Towards Run-time Component Integration

on Ubiquitous Systems

⋆

Macario Polo

and Andres Flores

Escuela Superior de Inform

atica, Universidad de Castilla-La Mancha,

Paseo de la Universidad 4, Ciudad Real, Espa

Departamento de Ciencias de la Computaci

on, Universidad Nacional del Comahue,

Buenos Aires 1400, 3400 Neuqu

en, Argentina

Abstract. This work is related to the area of Ubiquitous Systems and it fo-

cuses on a Component-based Integration process. This implies the evaluation of

whether components may or may not satisfy a given set of requirements. We pro-

pose a framework for such process and consider related concepts like Assessment

and Adaptation.

The Assessment procedure is based on meta-data added to components, involv-

ing assertions, and usage protocols. Assertions and usage protocols are evaluated

by applying a technique based on Abstract Syntax Trees. We also report on a

prototype developed to implement the proposed Assessment and Adaptation pro-

cedures which allowed us to gain understanding about the complexity and effec-

tiveness of our model.

Category. Work in progress by PhD Student

1 Introduction

An Integration Process for Component-based Systems (CBS) is assumed to enhance

reusability by consuming previously developed ‘off-the-shelf’ (OTS) components [1,

2]. Our main interest is on automating the process as a support for Ubiquitous Systems.

The goal on such environments is to provide a feeling of continuity on users’ daily

tasks. Hence, users do not expect a constrained environment [3, 4], and this can only be

achieved by an unlimited availability of resources. Applications are the main resources

that must remain available through changes on users context of operation. Some ap-

proaches assume a ﬁxed range of applications, or externally developed applications.

However, suitability for such applications could be in high risk when the underlying

conditions change unfavorably. We assume the possibility to build applications ‘on de-

mand’ when necessary. This could be achieved by assembling OTS components [5],

and we believe the whole initiative needs the consideration of a more formal frame-

work. We give in this paper a preliminary scheme to address the automation of the

whole Integration Process, which concerns ‘

qualiﬁcation

’, ‘

adaptation

’, ‘

assembly

’ and

‘

integration

’. We are currently focused mainly on Qualiﬁcation and Adaptation. In this

⋆

This work is supported by the CyTED project VII-J-RITOS2, the UNCo MPDSbC project

04-E059 and the UCLM MAS project TIC 2003-02737-C02-02.

Polo M. and Flores A. (2005).

Towards Run-time Component Integration on Ubiquitous Systems.

In Proceedings of the 3rd International Workshop on Modelling, Simulation, Veriﬁcation and Validation of Enterprise Information Systems, pages 9-18

DOI: 10.5220/0002576100090018

 SciTePress

paper we present a Component Assessment procedure for qualiﬁcation, and introduce

a preliminar approach for adaptation.

When a required application is not available, the assembly procedure could be ini-

tiated by previously executing a selection procedure of proper components. They could

be fetched from a repository or being discovered from some mobile device. In any

case evaluation should be thoroughly done [5,6]. Our Assessment Procedure intends

to compare behavioural aspects from components against a given set of requirements.

The requirement speciﬁcation is assumed in the form of a component interface – the

necessary set of component services. Thus our approach, which compares components

interfaces, actually evaluates a component against an expected set of services. This im-

plies to evaluate services’ signatures at a syntactic level – e.g identiﬁers, parameters,

and data types.

Additionally, components will be enriched by adding meta-data – an adaptation

mechanism called instrumentation [2]. Thus we intend to embrace semantic aspects.

The ﬁrst concern is adding ‘assertions’ which help to abstract out the black box func-

tionality hidden on components. Also, it is included the ‘usage protocol’ for services

which use regular expressions to describe the expected order of use for component ser-

vices. This technique has been applied on inter-class testing [7], and also on descriptions

for components [8].

Suppose post-conditions (for example) on services from two similar components.

They should relate to a similar structure and semantic. Hence, they could be thought

as being one a ‘clone’ of the other. Thus we apply some algorithms based on Abstract

Syntax Trees (AST) from [9], which were originally intended to detect similar pieces

of code (clones) on existing programs. Then compatibility for assertions and the usage

protocol is carried out by generating ASTs.

All such techniques applied on our assessment procedure help to accomplish a con-

sistent mechanism to assure a fair component integration. As we proceed with our work,

reliability is mainly considered, since we base the whole integration process on the chal-

lenging Ubiquitous Systems.

The rest of the paper is organized as follows. Section 2 presents our proposal for

an integration process. Section 3 illustrates the proposed process with an example. Sec-

tion 4 discusses implementation alternatives. Conclusions and future work are presented

afterwards.

2 Process Framework

We consider a reference model to describe the required engineering practices on our

targeted automated Integration Process. Figure 1 depicts partitions showing components

through different phases. We add an extra step to distinguish assembly from integration

– adapted from [1]. For each phase we distil some steps as is brieﬂy explained below.

Numbers imply a non-strict order of execution.

Qualiﬁcation

1. Recovery: Fetch components from a

repository or disparate devices.

2. Assessment: Evaluate compatibility upon

expected behaviours.

off

the

shelf

components

qualified

components

adapted

components

assembled

components

integrated

components

Qualification

Adaptation

Assembling

Integration

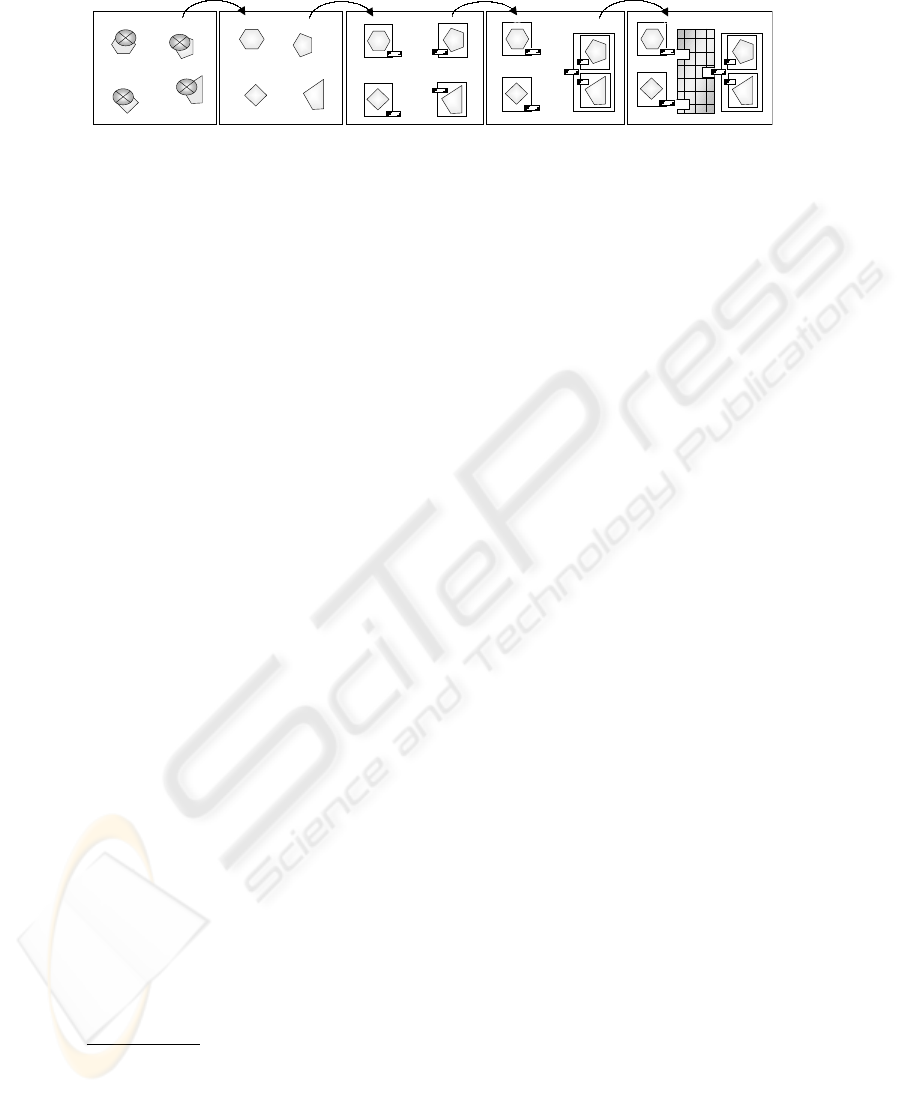

Fig.1. Component Integration Reference Model

3. Component Selection: Analyse options

from assessment results and extra require-

ments (e.g. user preferences).

Adaptation

1. Adaptation Analysis: Evaluate conditions

from a selected component according to a

client component.

2. Wrapping Selection: Analyse the most ap-

propriate adaptation strategy.

3. Tailoring: Perform the adaptation accord-

ing to the selected strategy.

Assembly

1. Assembly Analysis: Analyse conditions for

assembly to create a new application.

2. Building: Deployment of additional com-

ponents for the assembly process.

3. Composition: Perform the ﬁnal applica-

tion assembly.

Integration

1. Integration Feasibility: Analyse condi-

tions to perform connection to an under-

lying infrastructure (middleware).

2. Creation: Construction of additional com-

ponents for such an integration process.

3. Glue: Perform the ﬁnal application inte-

gration.

Next we focus on our Component Assessment procedure at run-time, as part of the

Qualiﬁcation phase. For this, we consider that a component under evaluation should

satisfy a certain degree of compatibility with respect to a given requirement speciﬁca-

tion. We assume such speciﬁcation describes the required functionality in the form of a

component by including the following aspects:

1. Expected Interface. Signatures of expected services.

2. Abstract Behaviour. Assertions for the component and its services.

3. Usage Protocol. The expected protocol of use for services.

Based on this we make the following consideration upon similarity between com-

ponents. A component B offers similar functionalities to A when the two following

conditions are properly satisﬁed:

Condition 1. Component B offers, at least, the same or equivalent services to those offered by A.

Interface(A) ⊆ Interface(B)

Condidition 2. The protocol of use for services on both components is equivalent. We use ≈ to

denote “equivalence”

UsageProtocol(A) ≈ UsageProtocol(B)

Equivalence is measured according to both the element to be compared and the applied tech-

nique. From this, different thresholds can be distinguished.

Condition 1 is true when there exists equivalence on corresponding services from

both components. A service sa of a component A is equivalent to a service sb of a

component B when the four next conditions are satisﬁed:

Condition 1.1. The return type of both services is equivalent

typeOf(sa) ≈ typeOf(sb)

Condition 1.2. The number of parameters on both services is the same:

|parms(sa)| = |parms(sb)|

Condition 1.3. Parameter types on both services are equivalent:

∀ pa ∈ parms(sa) ∃ pb ∈ parms(sb) / typeOf(pa) ≈ typeOf(pb)

Condition 1.4. Pre and Post-Conditions of sa and sb are similar.

A data type in sa (the return type or a parameter type) is equivalent to a data type in sb if

and only if either both data types are the same or the considered data type in sa is A and the

considered data type in sb is B:

typeOf(a) ≡ typeOf(b) iif

[ typeOf(a)=typeOf(b) ∨ ( typeOf(a)=A ∧ typeOf(b)=B)]

Being typeOf(a) a function returning the type of a (a can be a service or a parameter), and

respectively being A the component where a is included – the same for b and B.

3 Example

Suppose we have a window to operate with banking accounts. A user may create an

account by deﬁning the account number and then deposit or withdraw any amount of

money. Figure 2 shows the shape of the window. The ‘build’ button allows to create an

instance from a typical BankingAccount component, whose interface is presented

on Figure 3. In some scenario, it is possible that such component is not available to be

used by window. However, another component with a similar functionality could be

recovered from a repository. Suppose the FinancialAccount component is found,

which presents the interface given below. Then, in order to be sure about their similarity

we run the Assessment Procedure as explained in the next section.

component FinancialAccount {

FinancialAccount buildFAccount(string number);

double obtainBalance();

void deposit(double quantity);

void extract(double quantity);

void transfer(FinancialAccount target, double quantity);}

For built-in types, types on sb must have at least as much precision as types on sa have – e.g.

compare double w.r.t. integer.

Account Window

Withdraw

Deposit

Account # :

Balance :

Amount :

Build

Search Component

11112233334444

100

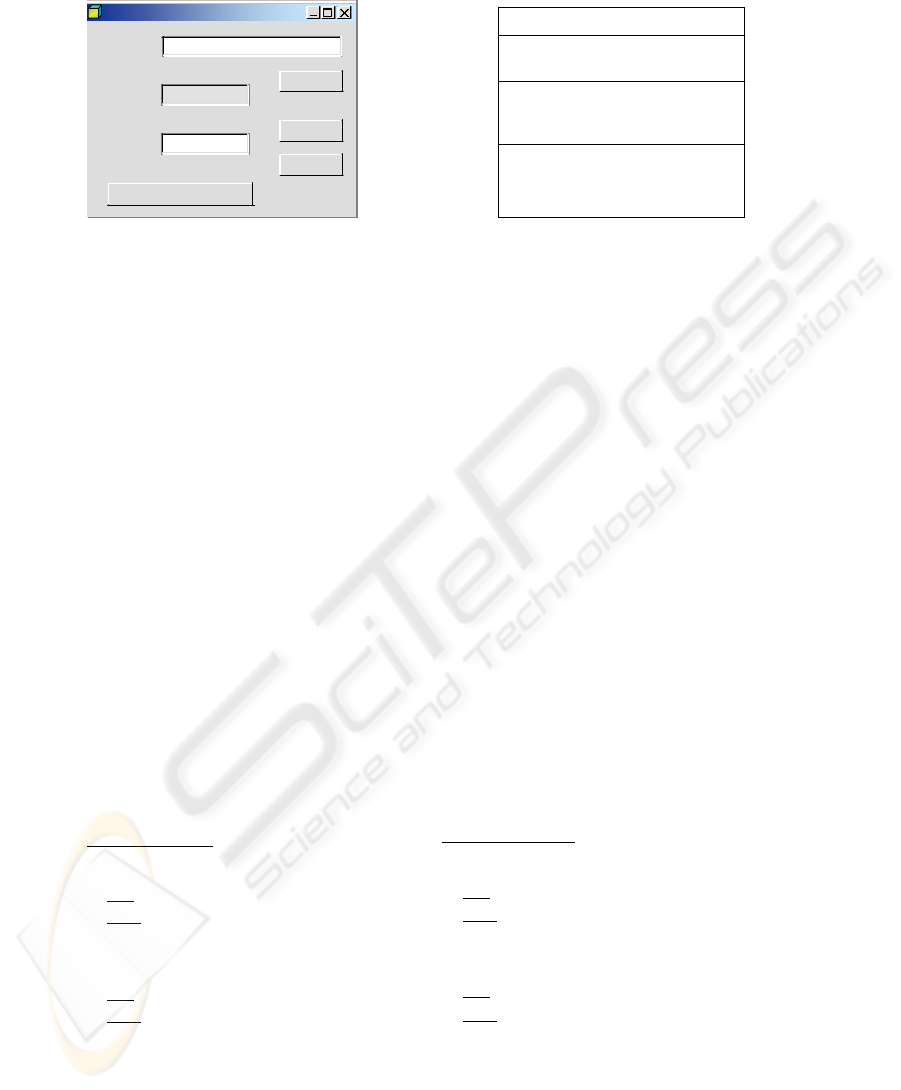

Fig.2. Account Manager Window

BankingAccount

#mNumber: string

#mBalance: double

+BankingAccount(number: string)

+buildBAccount(number: string):

BankingAccount

+deposit(amount: double)

+withdraw(amount: double)

+getBalance(): double

Fig.3. Banking Account Component

3.1 Assessment Procedure

The Assessment task must verify that Condition 1 and 2 are satisﬁed – as we pointed

out on Section 2. Thus we begin exploring Condition 1.

Interface Equivalence. For Condition 1 to be true we must verify four conditions.

However, lets consider ﬁrst only Conditions 1.1 to 1.3. An equivalence is found on

buildFAccount and buildBAccount. Their number of parameters and para-

meter types are equal; and their return types are equivalent – both refer to the con-

tainer component. Next are getBalance and obtainBalance, since they have

no parameters and the same return type. In case of deposit and withdraw from

BankingAccounttwo services from the other component could be similar: deposit

and extract. They match on the return and parameter types, and the number of pa-

rameters. BankingAccount does not include a service equivalent to transfer.

However, all of their services are, at a ﬁrst glance, also offered by FinancialAccount.

In order to be accurate on checking Condition 1, Condition 1.4 must be satisﬁed as

well. For this, the comparison of pre and post-conditions from corresponding services

is required. For brevity reasons we describe this procedure only for deposit (from

both components), withdraw and extract. For such services are speciﬁed by using

OCL the following assertions.

BankingAccount

deposit

pre

: amount > 0

post

: mBalance@pre

+ amount = mBalance

withdraw

pre: amount < mBalance@pre

post

: mBalance =

mBalance@pre − amount

FinancialAccount

deposit

pre: 0 < quantity

post: mBalance =

mBalance@pre + quantity

extract

pre: quantity < mBalance@pre

post: mBalance =

mBalance@pre − quantity

To check assertions similarity we derive Abstract Syntax Trees (ASTs). We show on

Figure 4 only ASTs for assertions of deposit from both components. On each node

in the tree we also save a ‘type’ that is used to operate with its sub-trees. Thus, nodes

with values = or + are of type Interchangeable Operator (IO), meaning that being a

and b two sub-trees, a+b is the same that b+a. Nodes with value >, < or − are of

type Non-Interchangeable Operator (NIO). Nodes with numbers or variable names are

of type Text (TXT).

quantity0

mBalance

quantity

mBalance@pre

Pre-Condition

Post-Condition

amount 0

mtBalance

amount

mBalance@pre

BankingAccount FinancialAccount

Fig.4. ASTs for deposit’s assertions on both Components

We start evaluating post-conditions from deposit. For this, the root node of both

trees are compared and, if they are equal, the respective left and right subtrees are re-

cursively compared. Being a and b two trees with IO root nodes, we say that they are

equivalent (a ≈ b) iif:

(a.leftChild ≈ b.leftChild ∧ a.rightChild ≈ b.rightChild) ∨

(a.leftChild ≈ b.rightChild ∧ a.rightChild ≈ b.leftChild)

In our example, both trees present IO root nodes. Thus, we can compare the left sub-

tree of one post-condition with the right sub-tree of the other, and vice versa. This allows

to detect the equivalence on both trees and so for the corresponding post-conditions

of both services. However, values on leave nodes imply a different case. For this, we

consider that two trees with no children with TXT root nodes are equivalent. Hence,

all the sub-trees are equivalent regarding both post-conditions, and then also the whole

post-conditions are.

ASTs for pre-conditions of both deposit services present NIO root nodes, but

their values are operators which are indeed opposite operators. In fact, the opposite

operator to > is <, and the transformation can be applied to any of both trees to make

the comparison. Hence, also the trees corresponding to pre-conditions are equivalent.

Similar procedures are followed up for each candidate pair of services. In the exam-

ple, the same operations are made for extract and withdraw. This process makes

clear the real correspondence on depositand withdrawfrom BankingAccount

with respect to deposit and extract from FinancialAccount.

Since all the assertions are equivalent, Condition 1.4 is fulﬁlled. Therefore, we can

also conclude that Condition 1 is true.

Usage Protocol Equivalence. Now, we must check whether the protocol of use for

both components is equivalent. Here it has to be remembered that the usage protocol is

described by regular expressions. The usage protocols for FinancialAccountcom-

ponent (1), and BankingAccount component (2) are given below. Note that we have

excluded services getBalanceand obtainBalanceto make the example simpler.

buildFAccount  deposit  (extract+deposit+transfer)* (1)

buildBAccount  deposit  (withdraw+deposit)* (2)

For usage protocols, only services actually required, are used for checking. In our

example, transfer is recognized as an extra service and as such is removed from

regular expression (1), as follows:

buildFAccount  deposit  (extract+deposit)* (3)

Usage protocols comparison is also made deriving ASTs from regular expressions

(1) and (3), as can be seen on Figure 5.

ASTs deriving from regular expressions have a different set of operators. The con-

catenation operator () is a Non-Interchangeable Operator (NIO). Alternative (+) is an

Interchangeable Operator (IO). Repetition (∗) is an Unary Operator (UO) – a tree with

just one child. Two nodes corresponding to services with no children in two different

trees are equivalent if the services are equivalent from Condition 1 point of view. Thus,

as the node labelled with + corresponds to a IO operator, extract is equivalent to

withdraw. Since the trees on Figure 5 are equivalent, Condition 2 is satisﬁed.

Therefore, as both Condition 1 and 2 are fulﬁlled, we can infer that Financial-

Account offers similar functionalities to those of BankingAccount.

•

buildBAccount

•

∗

deposit

withdraw

BankingAccount

FinancialAccount

•

buildFAccount

•

∗

deposit

extract

Fig.5. AST for Usage Protocols

3.2 Searching and Adaptation Procedure

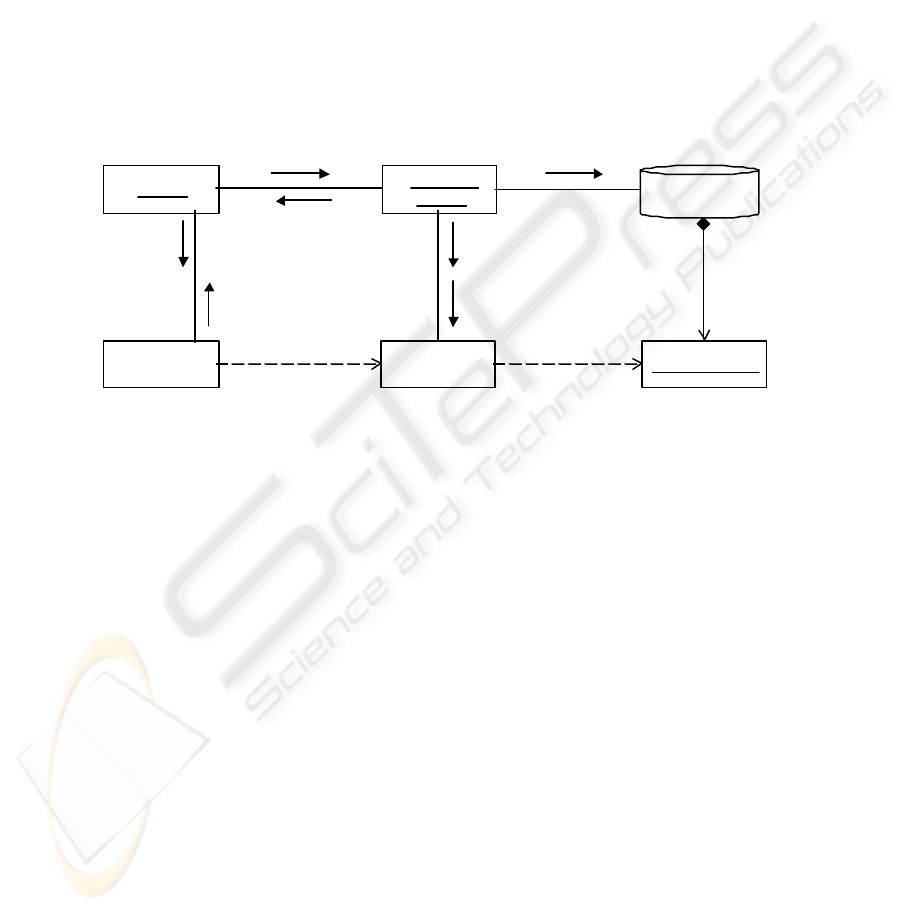

Figure 6 presents a collaboration diagram describing an approach – developed on Mi-

crosoft .Net – to achieve the Recovery and Adaptation procedures.

Window is an instance of FormAccount component – as the one in Figure 2. In

order to operate with accounts, it needs to be connected with a component representing

accounts. A special component called Retrieversearches for components equivalent

to a given speciﬁcation. In our example, BankingAccount component represents

such a requirement speciﬁcation provided by Window. Retriever asks for a com-

ponent by using a ComponentManager which may return a similar component from

a ComponentRepository. In order to solve likely inconsistencies with the expected

component, ComponentManager creates an instance from a Wrapper component,

called aWrapper. FinancialAccountis found on the ComponentRepository

and is connected to aWrapper. Hence, it is applied the wrapping mechanism named

adapter [2], to provide the expected signatures form – e.g. withdraw and amount.

A reference of aWrapper is returned to Retriever by ComponentManager. Fi-

nally, Retriever returns such reference to window, so to be able to start operating

by being connected to FinancialAccount.

:Retriever

:Component

Manager

aWrapper:

Wrapper

:FinancialAccount

1: findEquivalentComponents

For(“BankingAccount”)

2: findFor(“BankingAccount”) 4: searchFor(“BankingAccount”): Component

3: newWrapper()

5: add(FinancialAccount)

contains

associatedTo

7: return aWrapper

8: return

aWrapper

9: windows is

associatedTo aWrapper

window:

FormAccount

associatedTo

Component

Repository

6: aWrapper is

associatedToFinancialAccount

Fig.6. Recovery and Adaptation procedures

4 Implementation

We have developed a ﬁrst prototype to check the feasibility of our proposal. The proto-

type is based on Microsoft .NET technology and it includes simple but effective imple-

mentations of different elements and algorithms described in the previous section.

4.1 Representing Assertions and Usage Protocol

.NET allows to add meta-data to components using the Attribute mechanism. This help

to annotate classes, methods, parameters, etc. To describe assertions, we have created

a class called

Contraint

that specializes System.Attribute. This class includes the am-

bit where the attribute is valid – methods in this case. Each constraint will contain a

String representing the text of the pre or postcondition. Following is presented both

the Constraint class and an example of assertions added to the deposit service on

FinancialAccount.

using System;

namespace Components.attribs

{[AttributeUsage(AttributeTargets.Method)]

public class Constraint: System.Attribute

{ protected String mText;

public Constraint(String text)

{ this.mText=text; }

. . . } }

// Assertions for deposit

[Precondition(‘‘<(0,amount)")]

[Postcondition(‘‘=(mBalance,

+(mBalance@pre,amount))")]

public void deposit(double

amount)

{ mBalance+=amount;}

Regular expressions for the usage protocol are represented in a similar way, where

the ambit in this case is class. In order to facilitate evaluation both, the assertions and

the usage protocol, are described in a preﬁx form as can be seen above.

4.2 Recovering the Interface

In order to inspect the set of members of any element, .NET includes the Reﬂection

mechanism. This can be used to recover the set of methods from components to be

evaluated. Reﬂection can be of substantial help in cases where components are discov-

ered from some mobile devices.

5 Conclusions

We have presented a preliminary scheme to address the automation of a Component-

base Integration Process for Ubiquitous Systems. We are particularly working on the

Qualiﬁcation and Adaptation phases. Our approach of component Assessment is based

on meta-data added to components, describing assertions and the usage protocol by

means of OCL.

We have developed a simple prototype on Microsoft .Net to implement our ap-

proach. As reliability is our main concern, selecting appropriate methods, techniques

and languages, must be accurately accomplished. This is the emphasis of our next de-

velopment in this area.

Acknowledgments

We would like to thank Dr. Juan Carlos Augusto, from School of Computing and Math-

ematics, University of Ulster, Newtownabbey, UK. His participation provides a mean-

ingful complementary view giving accuracy and conﬁdence to the project.

References

1. Brown, A., Wallnau, K.: Engineering of Component-Based Systems. In: IEEE 2

ICECCS’96, Montreal, Canada (1996) 414–422

2. Flores, A., Polo, M.: Dynamic Assembly & Integration on Component-based Systems. In:

JIISIC, Madrid, Espa

na (2004) 349–360

3. Flores, A., Cechich, A.: Quality Considerations on Ubiquitous Systems. In: II Workshop de

Ingenier

ıa de Software, at JCC’02, Copiapo, Chile (2002)

4. Garlan, D.e.: Software Architecture-based Adaptation for Pervasive Systems. In: ARCS’02.

Volume 2299 of LNCS., Karlsruhe, Germany (2002) 67–82

5. Flores, A., Polo, M.: Considerations upon Interoperability on Pervasive Computing Environ-

ments. In: 6

WICC, pp. 162-166, Neuquen, Argentina (2004)

6. Flores, A., Augusto, J.C., Polo, M., Varea, M.: Towards Context-aware Testing for Semantic

Interoperability on PvC Environments. In: IEEE 17

SMC’04, special session: CRIPUC,

The Hague, Netherlands (2004) 1136–1141

7. Kirani, S.: Speciﬁcation and Veriﬁcation of Object-Oriented Programs. PhD thesis, Computer

Science, University of Minnesota, Minneapolis, USA (1994)

8. Brada, P.: Towards Automated Component Compatibility Assessment. In: 6

Wrkshp on

Comp-oriented Prog, at ECOOP’01, Budapest, Hungary (2001)

9. Baxter, I., Yahin, A., Moura, L., Sant’Anna, M., Bier, L.: Clone Detection Using Abstract

Syntax Trees. In: ICSM’98, pp. 368-377, Maryland, USA (1998)
