QoS Implementation and Evaluation for Mobile Ad hoc

Networks

Xuefei Li, Laurie Cuthbert

Department of Electronic Engineering, Queen Mary, University of London,

Mile End Road, London, UK

Abstract. Future mobile Ad hoc networks (MANETs) are expected to be based

on all-IP architecture and be capable of carrying the multitude of real time mul-

timedia applications such as voice, video and data. It is very necessary for

MANETs to have an efficient routing and quality of service (QoS) mechanism

to support diverse applications. In this paper, we propose a novel node-disjoint

Multipath QoS Routing protocol for supporting DiffServ (MQRD). Simulation

results show that MQRD achieves better performance in terms of packet deliv-

ery ratio and average delay.

1 Introduction

With the rising popularity and development of wireless network based on all-IP archi-

tecture and multimedia applications, potential uses of MANETs in military and civil-

ian life are attracting more and more researchers’ attentions on QoS support. QoS

provisioning in MANETs faces a number of technical challenges because of the net-

work restrictions such as dynamically and unpredictably variable topology resulting

from nodal mobility and bandwidth constraints caused by the shared wireless me-

dium.

For the current Internet there are two different models to obtain a QoS guarantee:

the Integrated Services (IntServ) [1]

and Differentiated Services (DiffServ) [2]. Int-

Serv uses the RSVP protocol [3] to carry the QoS parameters from the sender to the

receiver to make resource reservations along the path. IntServ/RSVP provides for a

rich end-to-end QoS solution, by way of end-to-end signalling, state-maintenance (for

each RSVP-flow and reservation), and admission control at each network element.

DiffServ on the other hand, does not have any end-to-end signalling mechanism and

works on a service level agreement between the provider and the user. Multiple flows

in DiffServ model are mapped to a single service level and state information about

every flow need not be maintained along the path.

IntServ-based model on per-flow resource reservation is not particularly

suitable

for MANETs because of the frequently changing topology and limited resources in

MANETs, resulting in more signalling overhead and unaffordable storage and com-

puting process for mobile nodes. DiffServ-based is a lightweight model using a rela-

tive-priority scheme to soften the hard requirements of hard QoS models like IntServ.

The service differentiation is based on per-hop behaviours (PHBs) [4], so no flow

Li X. and Cuthbert L. (2005).

QoS Implementation and Evaluation for Mobile Ad hoc Networks.

In Proceedings of the 2nd International Workshop on Ubiquitous Computing, pages 82-87

DOI: 10.5220/0002576200820087

 SciTePress

states need to be maintained within the core of the network. Thus the model could be

a potential QoS model in MANETs.

The current existing solutions for QoS provisioning in MANETs are mainly

based on the IntServ or DiffServ model. AQOR [5] uses a reservation-oriented

method to decide admission control and allocate bandwidth for each flow. INSIGNIA

[6] employs an in-band signalling protocol rather than out-of-band signalling protocol

as RSVP to decrease reservation overhead. FQMM [7] is designed to provide QoS in

ad hoc networks by mixing the IntServ and DiffServ mechanisms. High priority ap-

plications are provided by IntServ per-flow QoS guarantee, while lower priority ap-

plications are provided with per-class differentiation based on DiffServ. SWAN [8] is

based on reservation-less approach. By avoiding signalling, it simplifies the whole

architecture and provides a differentiation between real-time and best effort in spite

of not being able to guarantee the QoS needs of each flow for the whole session due

to frequently changing topology and limited wireless bandwidth restriction.

Multipath routing allows the establishment of multiple paths between a single

source and single destination node during a single route discovery. Some multipath

routing protocols [9,10] in MANETs have been proposed to provide load balancing,

fault-tolerance and higher aggregate bandwidth as well as eliminate route discovery

latency after a link break by making use of the availability of multiple route paths.

However, these multipath routing protocols lack QoS support in the process of trans-

mission of data packets.

In this paper, we present a novel node-disjoint Multipath QoS Routing protocol

for supporting DiffServ (MQRD), which combines DiffServ and a multipath routing

protocol, Node-Disjoint Multipath Routing (NDMR) [9], for QoS provisioning in

MANETs.

2 MQRD

Although NDMR provides node-disjoint multipath routing with low route overhead

in MANETs, it is only a best-effort routing approach, which is not enough to support

QoS. DiffServ is an approach for a more scalable way to achieve QoS in an IP net-

work. It could be a potential QoS model in MANETs because it acts on aggregated

flows and minimises the need for signalling. However, one of the biggest drawbacks

of DiffServ comes from the fact that the QoS provisioning happens separate from the

routing process.

2.1 Integration of NDMR and DiffServ

Both of NDMR and Diffserv operate at the network layer, so it is easy to work natu-

rally together. Although NDMR was designed without taking QoS into consideration,

it and DiffServ could be complementary techniques that can be implemented in

MANETs to support an end-to-end QoS solution. When used together, DiffServ pro-

vides the standardized QoS mechanisms and NDMR provides node-disjoint multipath

routing techniques increasing the network resource optimization and decreasing rout-

ing overhead.

2.2 QoS and Resource Management of MQRD

Effective QoS mechanism can be used to provide better service to certain flows in the

environments of limited wireless bandwidth. In MQRD this is done by either raising

the priority of a flow or limiting the priority of another flow. In order to support ser-

vice differentiation, scheduling and queue management are thought to be two impor-

tant aspects of resource management. The former is done by the scheduler which

decides the opportunities of flows for link access and the latter holds the valid packets

when necessary drops some packets from the buffer in case of network congestion.

Priority Scheduling. In MANETs, when a mobile node is receiving traffic faster

than it can transmit, the node may buffer the extra traffic until bandwidth is available.

In MQRD, priority queuing is used to build a priority scheduler. The priority sched-

uler includes two queues: a high-priority queue and a low-priority queue. The high-

priority queue must be emptied before packets are emptied from low-priority queues.

Although DiffServ has a lot of classes defined, the most essential use of DiffServ

is to provide support for the two most common applications:

(A) Voice, Video traffic. (B) Best effort data.

Let us denote the two classes as A and B. Class A applications require generally

low loss, low latency and assured bandwidth service, so packets of class A are classi-

fied as Expedited Forward (EF) traffic. Class B is classified as Best Effort (BE) traf-

fic which offers a lower priority service. Our priority scheduler (see Fig. 1) is de-

signed to transmit any available Class A packets ahead of Class B packets. On the

other hand, Class B packets are not sensitive to delay, as the application which they

service are primarily HTTP and FTP sessions.

Class A

Class B

Low Priority Queue

High Priority Queue

Classify

Priority

Scheduling

Input

traffic

Output

Link

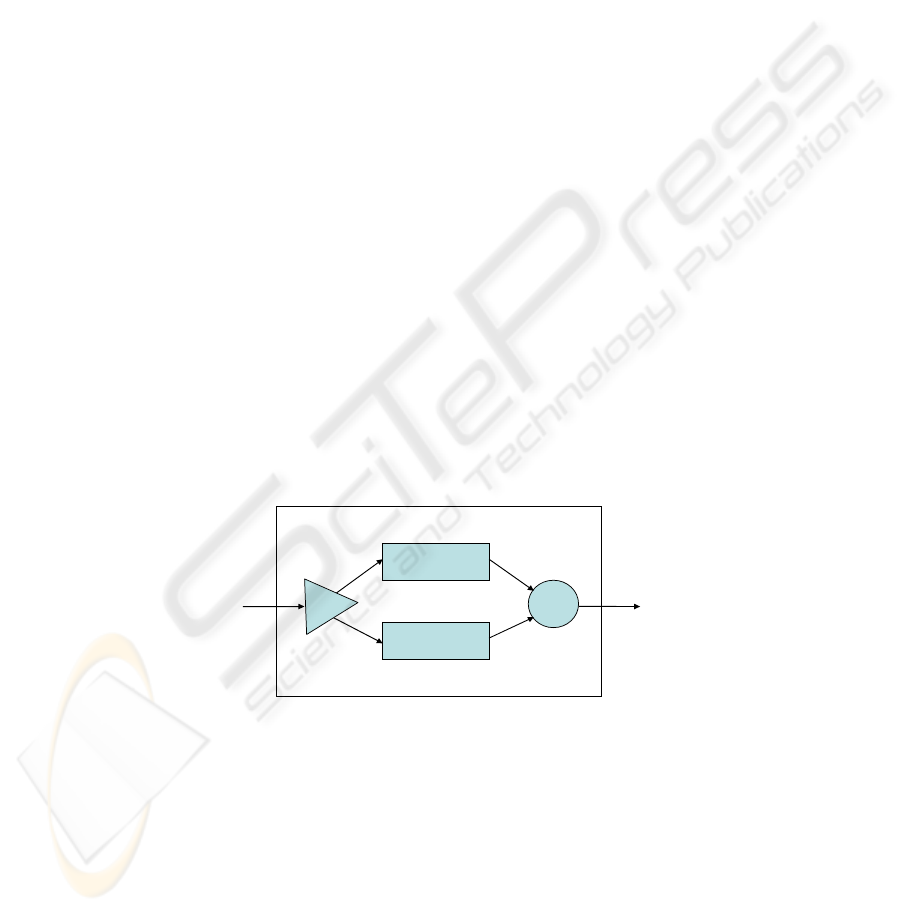

Fig. 1. Priority Scheduler

Queue Management. While the scheduling does play a big role in the QoS provided

by the network, it is only effective if there is sufficient queue space to hold incoming

packets. Because queues are not of infinite size, they can fill and overflow. When a

queue is full, any additional packets cannot get into the queue and will be dropped.

This is a tail drop. The issue with tail drops is that the router cannot prevent this

packet from being dropped (even if it is a high-priority packet). So, the purpose of

queue management is to make sure the queue does not fill up so that there is room for

high-priority packets.

The random early detection (RED) algorithm [11] is implemented to avoid conges-

tion before it becomes a problem. The minimum threshold specifies the number of

packets in a queue before the queue considers discarding packets. The probability of

discard increases until the queue depth reaches the maximum threshold. After a queue

depth exceeds the maximum threshold, all other packets that attempt to enter the

queue are discarded.

2.3 Load Balance and Congestion Avoidance

As mentioned before, MQRD can discover multiple node-disjoint route paths with

low routing overhead, so it can provide load balancing and higher aggregate band-

width. Load balancing function can be triggered to avoid congestion by spreading the

traffic along multiple routes when RED algorithm judges the queue depth to reach the

minimum threshold at which the queue begins to consider discarding packets. The

mobile node needs to send a Congestion Notification packet (CN) to the source of the

data packet along the reverse route path. When the source receives the CN, it distrib-

utes part of traffic to the other node-disjoint routing paths. In this way congestion and

bottleneck are avoided or alleviated.

3 Simulation Model

OPNET 8.1 Modeler [12] was used to create a simulation environment to develop and

analyze the proposed node-disjoint Multipath QoS Routing protocol for supporting

DiffServ (MQRD) and compare performances with NDMR, which does not take QoS

into account.

The random waypoint model [13] is used to model mobility. Each node starts its

journey from a random location to a random destination with a random velocity of 0-

20 m/s. Field configuration of 1000m x 1000m field with 50 nodes is used and each

node uses the IEEE 802.11[14] with a 250m transmission radius. Traffic sources with

512 byte data packets are CBR (constant bit rate). The source-destination pairs are

spread randomly over the network and the number of sources is varied to change the

offered load in the network.

In order to investigate the usage of network ability, the number of EF (Expedited

forwarding) sources with 80kbit/s (20pkt/s) bandwidth requirement is varied from 5

to 20 in intervals of 5. 20 other nodes are randomly chosen to send background BE

(Best Effort) traffic with 2pkt/s. Simulations are run for 800 simulated seconds.

4 Simulation Results

Comparing Fig. 2 and Fig. 3, we can find that the packet delivery ratio of MQRD has

better performance than that of NDMR with the increase in the number of EF sources.

In order to show clearly and compare simulation results of different type of packets,

packet delivery ratios of EF packets, BE packets and ALL packets (combination of

EF and BE packets) are depicted respectively in the two figures. Fig. 3. shows that EF

packets have higher delivery ratio than BE packets because priority scheduler is used

in MQRD. When the number of EF sources increases, NDMR drops a larger fraction

of the packets than that of MQRD. The reason is that there exists more congestion in

mobile node buffers when the number of EF sources increases.

From Fig. 4 we can see that EF packets and BE packets in NDMR have little dif-

ference in End-to-End average delay. The reason is that there is no priority policy to

deal with the incoming EF and BE packets in mobile nodes. Fig. 5 shows that EF

packets of MQRD has a much lower average delay than BE packets because priority

scheduler in MQRD makes EF packets be forwarded more quickly. With the increase

in the number of EF sources average delay of BE packets in MQRD increases more

quickly than that of EF packets. The reason is that an increase in the number of EF

sources leads to higher network load traffic. Because of the limitation of a con-

strained wireless bandwidth, BE packets that will be sent or forwarded have to stay in

buffers and wait for a longer time to get a radio channel available than EF packets in

order to avoid traffic congestions.

0.7

0.8

0.9

5 10152

Number of EF Sources

Packet Delivery Rati

EF pkts

BE pkts

ALL pkts

0.7

0.8

0.9

5101520

Number of EF Sources

Packet Delivery Rati

EF pkts

BE pkts

ALL pkts

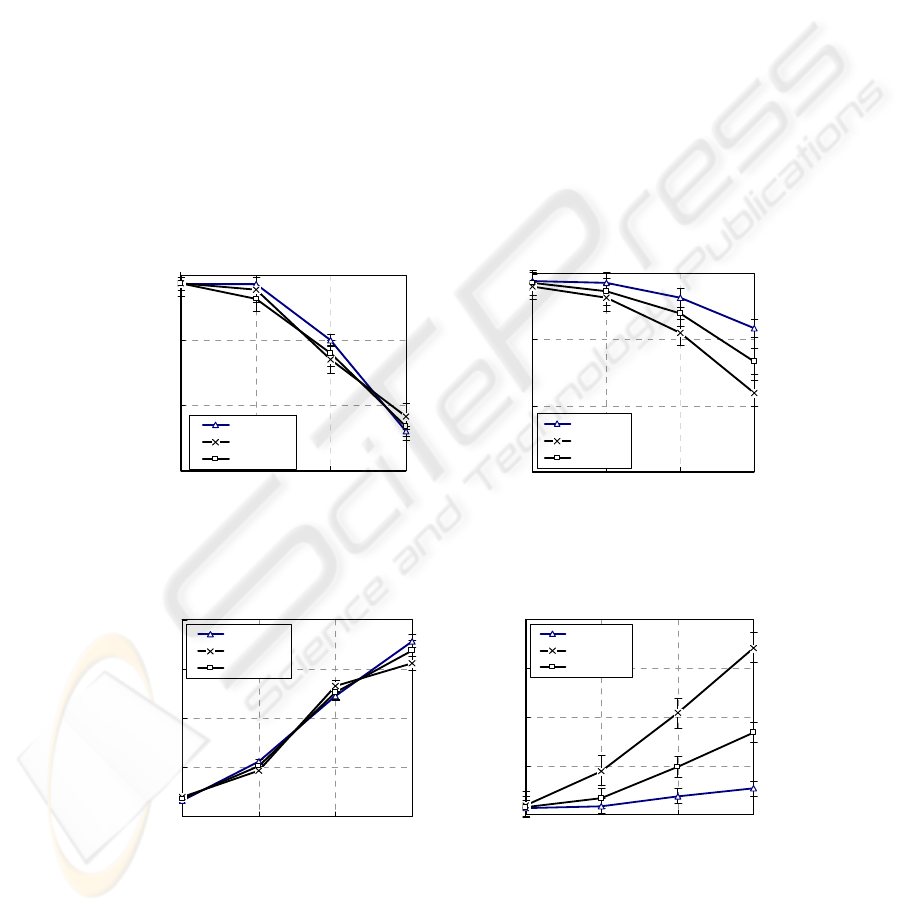

Fig. 2. Packet Delivery Ratio of NDMR Fig. 3. Packet Delivery Ratio of MQRD

300

600

900

1200

5101520

Number of EF Sources

Average Delay (ms

)

EF pkts

BE pkts

ALL pkts

500

1000

1500

2000

51015

Number of EF Sources

Average Delay (ms

)

EF pkts

BE pkts

ALL pkts

Fig. 4. Average Delay of NDMR Fig. 5. Average Delay of MQRD

5 Conclusions

In this paper, we have introduced a practical QoS provisioning which makes DiffServ

over node-disjoint multipath routing protocol for MANETs to overcome the short-

comings of the best-effort model. We also present a solution about a reliable multi-

path routing and resource management for QoS issues of real-time multimedia appli-

cations in ad hoc networks. The performance evaluation and comparison between

NDMR and MQRD are studied by extensive simulations using OPNET Modeler.

Simulation results show that MQRD achieves better performance than NDMR by

providing end-to-end QoS support in MANETs. We can conclude that MQRD has a

good potential to serve as a QoS model to provide real-time multimedia applications

under the dynamically changing environment of ad hoc networks.

References

1. R. BBraden, D. Clark, and S. Shenker, “Integrated Services in the Internet Architecture –

an Overview”, IETF RFC1663, June 1994.

2. S. Blake, “An Architecture for Differentiated Services”, IETF RFC2475, December 1998.

3. R. Braden, L. Zhang, S.Berson, S. Herzog, and S. Jamin, “Resource reservation Protocol

(RSVP) – Version 1 Functional Specification”, RFC2205, Sept. 1997.

4. D. Black, S. Brim, B. Carpenter, “Per Hop Behavior Identification Codes”, June 2001

5. Q. Xue and A.Ganz. Ad hoc QoS on-demand routing (AQOR) in mobile ad hoc networks.

Journal of parallel and Distributed Computing, 154-165, 20003

6. X. Zhang S.B. Lee, A. Gahng-Seop and A.T. Campbell, INSIGNIA: An IP-Based Quality

of Service Framework for Mobile Ad hoc Networks. Journal of Parallel and distributed

Computing, 60(4), 374-406, April 2000

7. A. Lo H.Xiao, W.K.G..Seah and KC Chua. A Flexible Quality of Service Model for Mo-

bile Ad hoc networks. In IEEE Vehicular Technology Conference Fall 2000, pages 445-

449, May 2000

8. A. Veres G.Ahn, A.T. Campbell and L.Sun. SWAN: Service Differentiation in Stateless

Wirelass Ad hoc network. In Conference on Computer Communications, Jun 2002

9. X. Li and L. Cuthbert, Stable Node-Disjoint Multipath Routing with Low Overhead in

Mobile Ad Hoc Networks, In Proceedings of the IEEE MASCOTS’04, Netherland, Oct.

2004

10. S.J.Lee and M.Gerla, Split Multipath Routing with Maximally Disjoint Paths in Ad Hoc

Networks, In Proceedings of the IEEE ICC, pages 3201-3205, 2001.

11. S. Floyd and V. Jacobson, Random Early Detection Gateways for Congestion Avoidance

12. OPNET Technologies, Inc. http://www.opnet.com/

13. J. Broch, D.A. Maltz, D.B. Johnson, Y.C. Hu, and J.Jetcheva, A Performance Comparison of

Multi-Hop Wireless Ad Hoc Network Routing Protocols, In Proceedings of MobiCom’98, Oc-

tober 25-30, 1998, Dallas, Texas, USA.

14. IEEE Standards Department, Wireless LAN medium access control (MAC) and physical layer

(PHY) specifications, IEEE standard 802.11, 1997
