A Honeypot Implementation as Part of the Brazilian

Distributed Honeypots Project and Statistical Analysis of

Attacks Against a University’s Network

Claudia J. Barenco Abbas, Alessandra Lafetá, Giuliano Arruda

Universidade de Brasília – UnB – Laboratório de Redes de Comunicação – Campus

Universitário Darcy Ribeiro – FT CEP 70910-900 – Brasília/DF – Brazil

Luis Javier Garcia Villalba

Universidad Complutense de Madrid – Departamento de sistemas informáticos y programacíon

– Faculdad de informática

Facultad de Informática, Despacho 431 –

C/ Profesor José García Santesmases s/n

Ciudad Universitária – 28040 - Madrid – Spain

Abstract. This paper intends to describe the deployment of a honeypot at

University of Brasília (UnB), by configuring an unique machine as part of the

Distributed Honeypots Project from the Brazilian Honeypots Alliance. This

work initially presents all the tools needed to implement the honeypot

environment, as well as the implementation itself. Afterwards, the collected

data about the attacks and their analysis are presented. Finally, final statements

are made and future works are suggested.

1 Introduction

Security is becoming an essential part of Information Technology, due to the

increasing number of attacks, which threatens institutions and their assets.

Consequently, these organizations invest in new tools developed by universities and

research centers, especially directed to defend their interests by defeating hackers.

Among the resulting technologies, we can find the honeypots, main subject of this

work.

Basically, honeypots are lures, security reso

urces, vulnerable by nature, designed

to track the steps taken by hackers when they intend to attack a system. In a higher

level, they can be connected to create a whole network, as has been made by the

leaders in network security development, who founded the Honeynet Project [1]. In

order to coordinate the researches around the world, theyhave set up the Honeynet

Research Alliance, which takes in projects from many countries as part of the group,

including Brazil.

With the objective of increasing the capacity of incident detection, event

correlation and trend analysis in the Brazilian Internet space [2], the Honeynet.BR

J. Barenco Abbas C., Lafet

a A., Arruda G. and Javier Garcia Villalba L. (2005).

A Honeypot Implementation as Part of the Brazilian Distributed Honeypots Project and Statistical Analysis of Attacks Against a University’s Network.

In Proceedings of the 3rd International Workshop on Security in Information Systems, pages 84-93

 SciTePress

Project [3] (Brazilian member of Honeynet Research Alliance) team has created the

Brazilian Honeypots Alliance, which deploys a network of distributed honeypots,

with the intention of analysing the traffic in Brazil, considered to be the biggest

source of attacks. The Distributed Honeypots Project is coordinated by NIC BR

Security Office (NBSO), the Brazilian CERT, and by a research center called

CenPRA (Renato Archer Research Center).

To achieve its goals, the Project’s coordination is working to cover most of the

Brazilian IP address space by setting up honeypots in a great number of Brazilian

institutions, which contributes to the honeypots’ maintenance with the allocation of

resources and staff [4]. In order to make the deployment easier and to help with the

procedures of updating, data collecting and management of several honeypots, these

institutions must follow a configuration standard.

The collected data, besides being used locally for analysis of attacks against each

institution, are also unloaded for a central server, where they are sanitized and stored

in a database. A summary of the data of each institution is published daily, allowing

all to follow the current activities in the honeypots of the distributed network. The

Distributed Honeypots Project also works to build a central data analysis’ system to

facilitate the study of attack trends and correlations, and to operate jointly with

Computer Security Incident Response Teams (CSIRTs) with the purpose of

disseminating the information acquired [3].

In this paper, we initially intend to show how we have implemented a honeypot at

UnB following the procedures to become a member of the Brazilian Honeypots

Alliance. Then, we present a statistical analysis of the activities observed in our

honeypot during a one-week period. This analysis has allowed us to identify some of

the risks the university’s network may be undergoing.

2 The Honeypot Environment

For the future members, the Distributed Honeypots Project’s coordination offers a

personalized version of HOACD, which contains all the tools needed to implement

the honeypot, as well as all the needed configuration files, already in accordance with

the Project’s standard. HOACD was developed by the Honeynet.BR Project team as a

basic tool for implementing a low-interaction honeypot that runs directly from a CD,

and stores its logs and configuration files on the machine’s hard disk. A public

version is available at their site [3].

HOACD uses the OpenBSD operating system, the low-interaction honeypot

Honeyd and the user-space ARP daemon Arpd – HOACD means Honeyd, OpenBSD

and Arpd in a CD.

2.1 Configuration of the Environment

UnB was invited by the Distributed Honeypots Project to join the Brazilian

Honeypots Alliance. Therefore, a contact was established with CenPRA and NBSO in

order to point the requisites needed to join the association. The requirements are:

− A machine with at least a 150 MHz processor, 64 MB RAM memory, IDE or SCSI

hard disk with 512 MB capacity, NIC and CD-ROM drive;

− A CIDR IP range with at least 16 addresses with unrestricted access at the

institution firewall.

− Definition of the participants of the Project’s discussion list. All must have a PGP

key to read summaries.

The next step was to set aside a machine with the following configuration:

− AMD Athlon XP 1900+ 1.6 GHz;

− 256 MB RAM memory;

− IDE hard disk with 40 GB;

− VIA VT86c100A Rhine-II PCI NIC;

− LG 52x CD-ROM drive.

Considering the access control to the hardware, it was defined that the machine

would be installed in a UnB laboratory so that it would be under vigilance most of the

time. The IP range was reserved, separated in a VLAN to avoid the excessive

broadcast packages. One of the IP addresses would be used as the machine’s real IP

and the others would be configured as virtual honeypots. It was observed that the IP

range wasn’t being filtered by the laboratory’s firewall.

For the institution to become part of the Alliance, it was necessary to define a

designation to the honeypot, identifying it at the summaries sent to the discussion list.

As the possibility of another honeypots to be installed in the same institution exists,

this identification couldn’t be too much generic.

With all the data and requisites in hand, a hyperlink to an ISO image from

HOACD was given by the Distributed Honeypots Project’s coordination. This file is

personalized to each organization, differently from the one on the Internet [3], which

is a public version for tests. Later, the installation of HOACD was done. All the steps

described in the installation instructions were followed, including the suggested sizes

for the hard disk partitions.

As the installation was concluded, the Honeyd configuration file was changed in

order to have a more personalized and diversified environment. This configuration

will be presented in the next section.

After the honeypot configuration was finished, tests and remote checks (from

NBSO) could be done. The daily rotation of logs could be checked after some days –

HOACD is configured to rotate the system’s logs every day, generating new log files

and compressing the old ones, so as to facilitate the process of collecting and to save

space in the hard disk. Thereafter, the honeypot was subscribed at the central server

and the remote monitoring and periodic remote status check were started.

We observed that there was another filter at the university network, which wasn’t

letting packages destined to some ports to pass. Hence, the total deliverance from

external traffic was made available. Even with these changes, there was still a filter

located at the National Research Network (RNP) backbone, of which UnB is part.

While the RNP’s filter wasn’t released, it was decided to collect and analyse the

data available, even if it did not represent the whole universe of attack sources. From

the data we had, the majority of the source addresses were from UnB and just a little

bit from the rest of Brazil, what is explained by the existence of the RNP’s filter. For

that reason, it was decided that only logs from foreign activities would be used as the

database for analysis.

When the filters were all set, the daily data collecting service and summary

generation were set up within the Alliance, as well as the subscription of a responsible

person for this honeypot in the discussion list. From this moment, the institution was

definitely considered as an Alliance’s member and started to receive the several

honeypots summaries.

2.2 Honeyd Configuration File

Because of the low risk offered to the institutions’ networks, less surveilance needs,

and higher maintenance and configuration facilities, the coordination of the

Distributed Honeypots Project decided to use only low-interaction honeypots [5]. The

solution chosen was Honeyd, an open source tool, which offers the highest number of

functions. Some of them are unique, such as operating systems emulation at TCP/IP

stack level and the ability of detecting any activity at any TCP and UDP port without

the need of any special configuration.

Although the installation and configuration of the tools involved have to follow

the standard established by the Project, the institutions are free to set up the Honeyd

configuration file by their own way, defining which OS should be simulated and

which service should be offered. Thus, we have configured the honeypot with:

− A Linux mail server, with scripts simulating POP3 (port 110/TCP) and SMTP (port

25/TCP) services. These scripts, which offer an interaction with the attacker and

log their activity, were downloaded from the Honeyd site [6]. At first, the intruder

faces a login prompt and, if his guess for the default password is successful, he

believes to be connected to a true service and can try to run some commands. This

will be mentioned in the analysis as honeypot 9.

− A FreeBSD ® file sharing server with a script simulating a FTP service (port

21/TCP). Additionally, the DNS (port 53/UDP) and HTTP (port 80/TCP) ports

were left open. Honeypot 13.

− A Macintosh ® vulnerable workstation. There are no services being simulated but

all TCP and UDP ports are open. Honeypot 14.

− A Microsoft Windows ® XP Home station (honeypot 15) and two Microsoft

Windows ® 98 SE stations (honeypots 5 and 12) with a script simulating a

command prompt with backdoors in six ports. This script was created by the

Honeynet.BR Project [3] team and acts as a machine infected by many well-known

worms such as: Blaster, Sasser, Dabber and Lovgate. It logs the commands typed

by the intruder, as well as the non-printable characters in hexadecimal format.

− Three Microsoft Windows ® XP Professional stations with a script simulating a

backdoor installed by the MyDoom virus in four ports. This script was also

honeypot and logs all attempts of using the backdoor’s proxy functions. Honeypots

2, 6 and 10.

− A CheckPoint Firewall-1 ® with all ports closed, except ports 23/TCP and 80/TCP,

which were blocked. Honeypot 4.

The other hosts (honeypots 1, 3, 7, 8 and 11) were left with the default

configuration from HOACD, which simulates a Microsoft Windows ® XP

Professional station with some open ports. All these ports are greatly known as

constant targets of attacks against Windows machines.

3 Results

The tool used to generate summaries and graphics from the Honeyd logs was

Honeydsum v. 0.3, a script, written in Perl, developed by the Honeynet.BR Project

team. It is a free software and it is available for download at the Project’s site [3].

Honeydsum organizes the data from the logs, sorting them by virtual honeypot

(each honeypot corresponds to an IP address from the block of addresses monitored

by Honeyd). For each honeypot, Honeydsum informs the number of connections per

source IP and destination port. A connection is considered to be any access attempt to

the port. Honeydsum also shows the top source and port access and the total number

of connections (to all honeypots) per protocol (Connection Counter) and per hour.

Different parameters can be used as filters to produce the summaries, such as

ports, protocols, IP addresses or networks. If no filter is specified, all possible

information is generated. It is also possible to sanitize the IP addresses so as not to

disclose the honeypots addressing. For this, Honeydsum allows to specify the private

addresses that will have to substitute the public addresses.

The tool supports input from multiple Honeyd log files. If the Honeyd

configuration file is also given as input, it displays the configuration of each honeypot

in the summary. Honeydsum is able to generate summaries in simple text files or in

valid HTML, for which it has the option to create graphics illustrating the information

showed by the summary.

Table 1. Connection counter

Protocol Connections Percentage

TCP 7938

91,7%

UDP 418 4,85%

ICMP 297 3,45%

Total 8653 100%

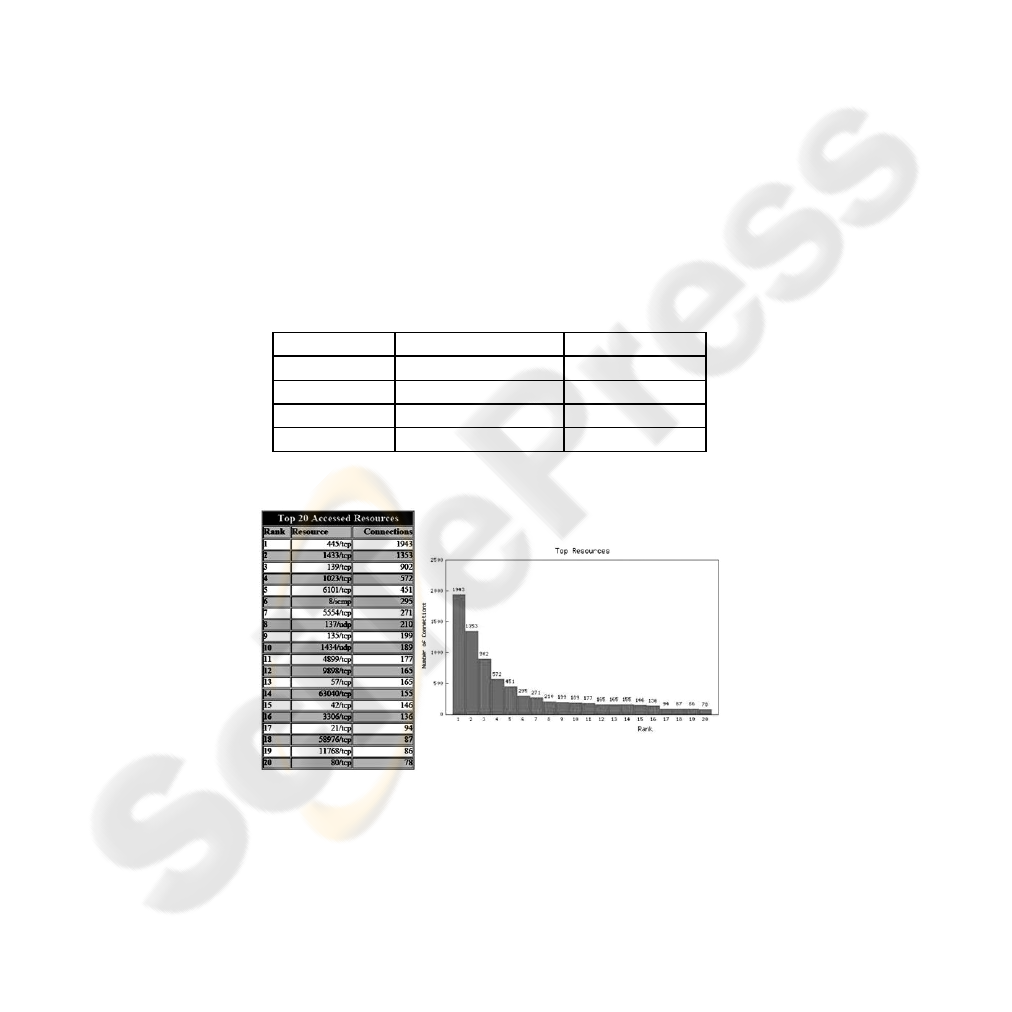

Fig. 1. Top resources

The first piece of information given in the summaries generated from the logs of

the observation period was the number of access attempts logged by the honeypots in

one week: 8653, which represents an approximate average of 575 attacks suffered per

honeypot. This is a considerable number, regarding that the access to the university’s

network was not completely released, since the filters from RNP were still blocking

traffic from some sources.

By looking at Table 1, we observe that TCP was the protocol most used by the

hackers. This can be explained by the fact that there are much more services that use

TCP than other protocols. Although the total amount of ports is the same for TCP and

UDP, for example, only two UDP ports appear among the 20 most accessed resources

(considering all honeypots) in the period, as shown in Figure 1.

The next graphic (Figure 2) shows the number of connection attempts in each

honeypot during the week. The eccentricity observed in honeypot 14 is due to the fact

that all its ports were open. Most of the IP addresses that attacked it (Figure 3) have

made much more access attempts than the average observed on the other honeypots.

This indicates that possibly DoS attacks or vulnerability scans were launched against

the ports that received more connection attempts in the supposed machine (Figure 4):

- Ports 445 and 139: Microsoft-ds and netbios-ns services, respectively, with

vulnerabilities explored by Nimda and Blaster.

- Port 1433: MS-SQL service with vulnerability explored by SQL worms.

Another fact to point out is that all these ports are used by Microsoft ® services..

According to [7], the systems of this company are the major targets of attacks,

because they can resist for about 20 minutes when attacked, while Linux systems can

resist up to three months. This does not prove that Windows ® is more vulnerable

than Linux; it only shows that it is the favorite target of the hackers.

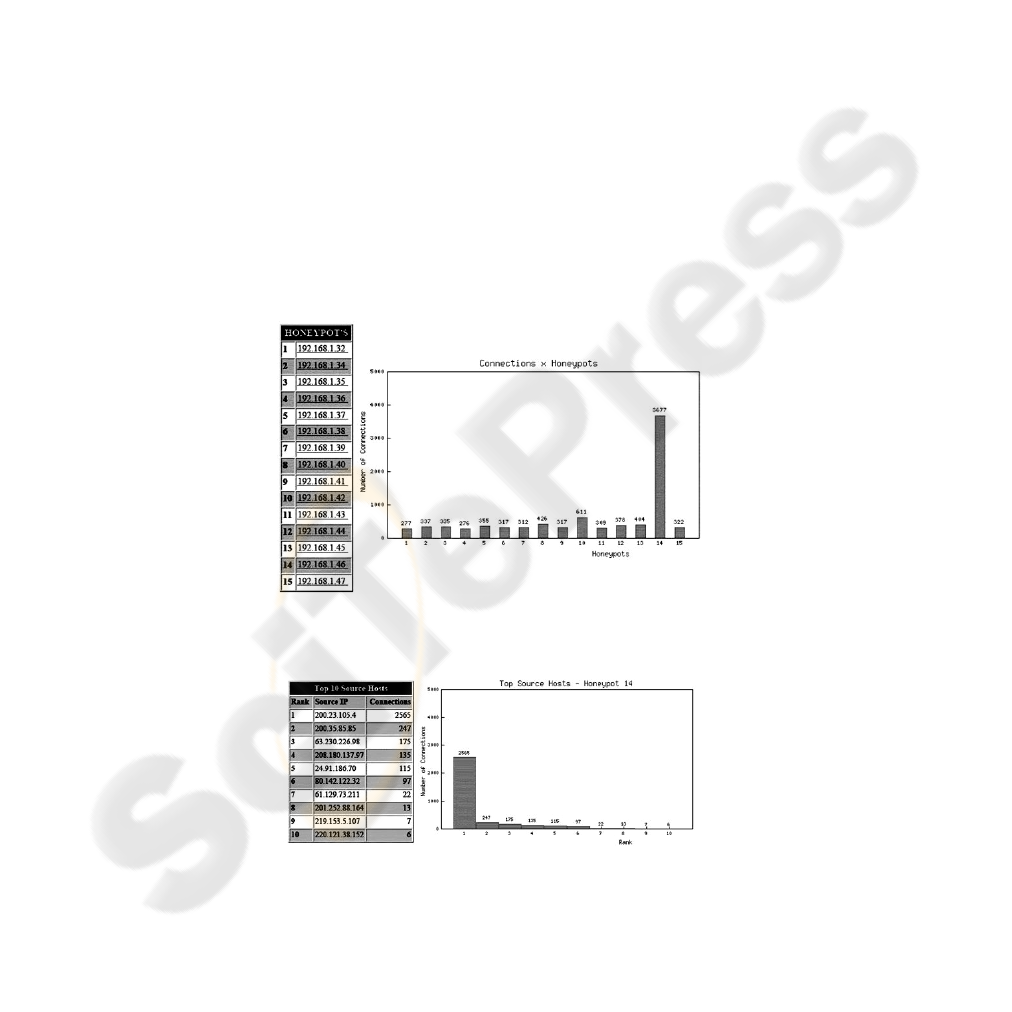

Fig, 2. Total number of connections per honeypot

Fig. 3. Top source hosts at honeypot 14

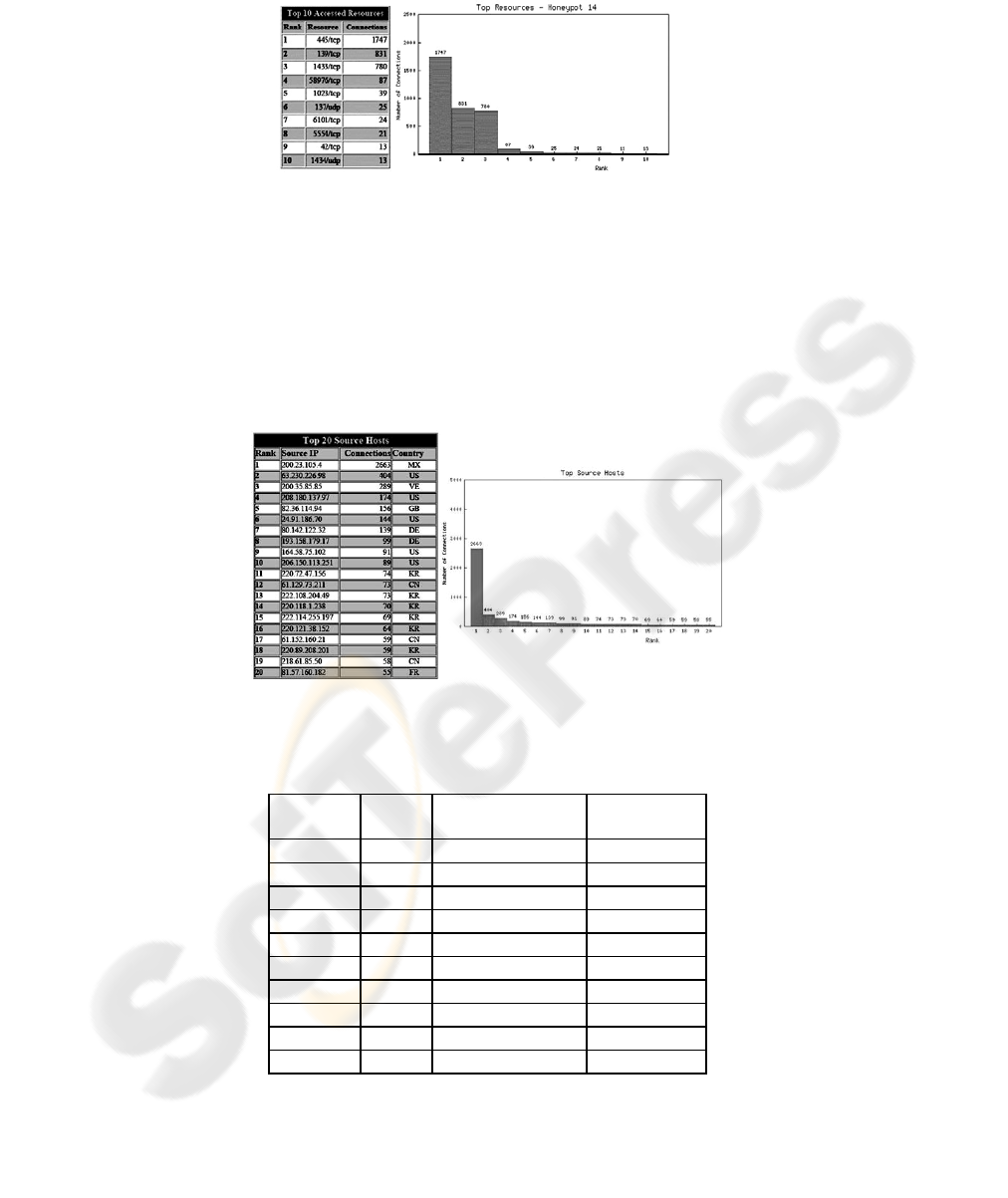

Fig. 4. Top resources at honeypot 14

The next graphic deals with the sources of the attacks. Only the 20 IP addresses

that more attacked our honeypot were listed in a Top 20 graphic (Figure 5), together

with the country they belong to, but the total number of sources logged during the

observation period was 652 IP addresses, which gives an average of about 13 access

attempts for hacker. The first source of the list is also the one that more attacked

honeypot 14 (Figure 3). Probably, the difference between the number of total

connections from this source and those recorded only in honeypot 14 represents the

connections related to IP scans made by this source on the other honeypots. The two

following sources of the list also had a number of connections above the average.

Fig. 5. Top source hosts

Table 2. Top source countries

Rank Acro

nym

Country Source IP

addresses

1 CN China 163

2 US United States 114

3 KR South Korea 67

4 NL Netherlands 36

5 DE Germany 31

6 JP Japan 26

7 GB Great Britain 23

8 TW Taiwan 21

9 RU Russia 17

10 IT Italy 13

The acronyms of the countries corresponding to each IP address informed in

Figure 5 were obtained by means of a query to WHOIS services. Table 2 shows a list

of the countries that had the major number of distinct IP addresses which attacked the

honeypot’s environment. 51 countries were detected, but we decided to include only

the top ten, because, after that, the difference between them starts to be very small.

As we can observe, the country that had more distinct sources of attacks was

China, followed closely by the United States. The site [7] presents daily statistics of

attacks against a honeynet that is part of the Honeynet Research Alliance. In each

report, there is a ranking of the countries that had more sources of attacks on that day.

China and the United States mostly appear in the first positions of the list. The site of

NBSO [8] also presents statistical data that confirm that this analysis does not differ

very much from reality, since the three countries subsequent to Brazil, which appear

in the graphic of countries sources of attacks, are the same ones found in this analysis.

Figure 6 illustrates the number of attacks suffered on each day of the week. We

could observe that the biggest amount of attacks happened in the middle of the week.

The weekend seems to have had high traffic because of the data collected on Sunday;

however, a detailed analysis of the logs of that day discloses that most of that high

amount of attacks (66%) was launched by a single source. That source is the same one

that appears on the top of the list of IP addresses that originated the greatest number

of attacks.

According to [7], the amount of attacks tends to be lesser at the weekend.

Considering the fact that at the weekend the offices are closed and, therefore, a great

number of machines are off, we conclude that most of the attacks come from

organizations that do not have good security mechanisms.

This analysis also showed that the top source concentrated its attacks on honeypot

14, more specifically on ports 139 and 445. Moreover, observing previous logs, it is

verified the presence of IP scans carried out by this same source, initially with ICMP

packages and later in TCP ports 1433 and 57. Superficially, we might conclude that

the attacks to honeypot 14 were originated from the previous scans, because this

honeypot was the only machine to which the source could establish a connection.

Although normally the attacks are carried out in ports that have been scanned for

vulnerabilities, there is also the practice of attacks that vary the ports during the

footprint. Thus, there may be a link between the scans and the attacks.

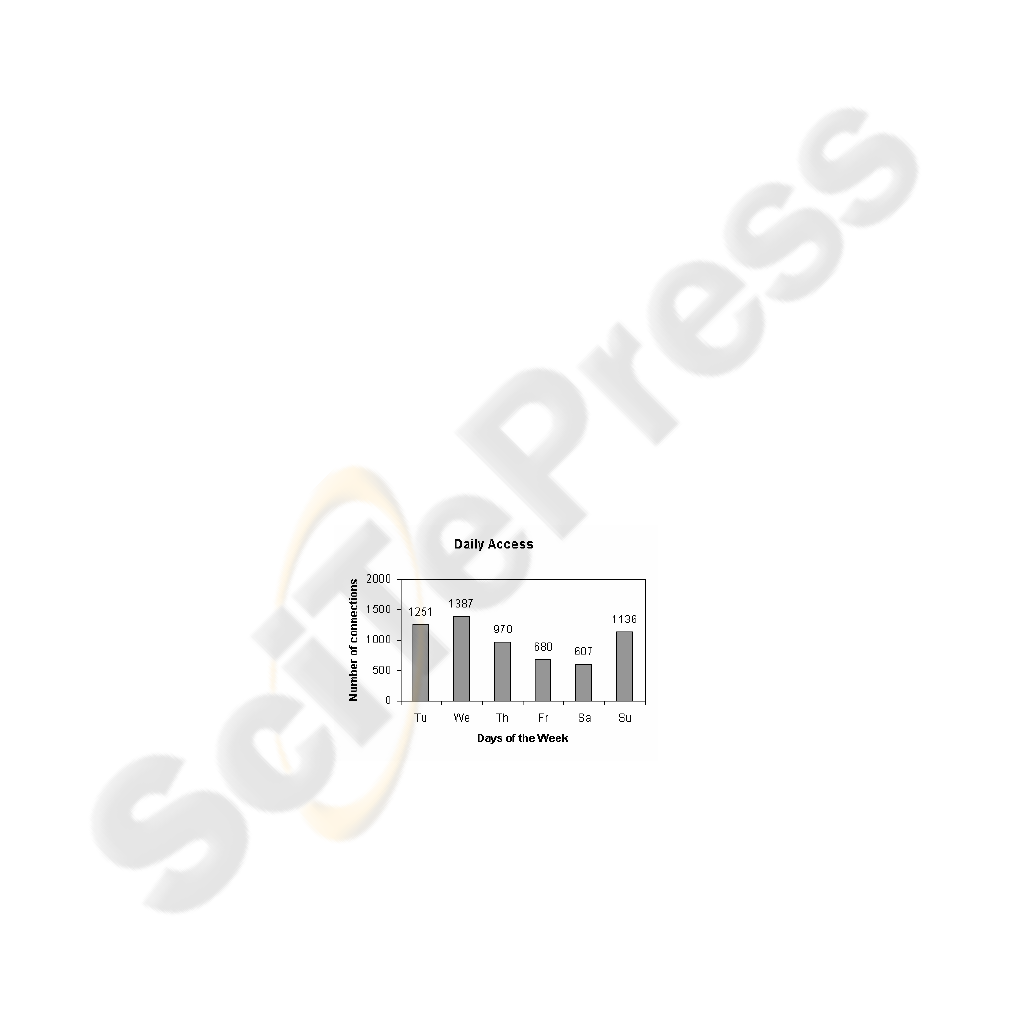

Fig. 6. Connections per day – Monday does not appear because the observation period covered

only parts of that day

4 Final Statements

With the inclusion of UnB as a member of the Brazilian Honeypots Alliance, it will

be possible to follow new research and technology development lines at the

information security area. Thus, it can be said that this project is only the beginning of

a great venture from UnB. From now on, since the university network administration

has a closer contact with the presented technologies, new policies could be taken on to

strengthen the security.

The installed tool will be of great value both nationally and locally. To the

Alliance, it will be important for being another source of data. The more distributed

the network is, i.e., the more members around the country it has, the more

representative will be its results. The Alliance will also count on with another

research team working together on the determination of new trends in intrusions.

For the university, it will be possible to identify problems such as the most

searched vulnerabilities, from internal and external networks. The existent filter on

the institution router revealed itself efficient for preventing the attacks to the most

accessed resources, but a honeypot could help to verify if the organization security

policies could be reinforced. With the honeypot, it is possible to identify new threats

and rearrange the filtering rules in good time to avoid worse consequences. It will

contribute also to detection of internal attack sources and infected workstations,

because, during the collected data analysis, it was verified that there is a great volume

of internal attacks, which shows that the biggest risk can be internal.

With the implementation of a honeypot, there is a huge volume of data to be

analysed. In one week it was verified an enormous quantity of attacks even with some

filtering on the source IP addresses in order to delimit the database to only foreign

addresses. The time period of a week may seem short but this interval was chosen

because of the amount of information acquired in a data analysis task.

The standardization of the ingress process, from the honeypot implementation

until the effective entrance, when the official Alliance summaries start to be disposed,

is decisive to the good flow of the project accomplishment. The determination of the

procedures to be followed helps on the inclusion of new members, as was seen during

the installation and configuration of the machine. Even though, a documentation of

the problems found by other members and their solutions, after which a candidate

could seek, would help the project integration even more.

The complete solution for the honeypot, with Honeyd running over OpenBSD, is

adequate because the first is a strong and efficient tool from its category, whereas the

latter is considered the most secure OS [9]. The configuration given by HOACD

looks trustful too, so that it assures the protection of the machine in that it is installed,

avoiding its compromising and its utilization as a starting place for new attacks.

Finally, it was observed that the analysis tools could get better in a way of

interacting more with the user. The used programs do not have user friendly interface,

probably for being open source. Furthermore, its configuration is too limited and the

personalization of the results requires advanced knowledge of the technology.

4.1 Future Works

At this project, data from Brazil were not taken into consideration, being analysed

only foreign attacks. A new deeper and more comprehensive analysis must be done in

order to examine the network activities at all.

Another job is the study of the internal attacks. This examination ought to show

the most important security problems which the university has and to propose

solutions, so that it contributes to a greater protection of the internal assets. In

addition, other filtering can be done, e.g., to choose some kind of attack and to select

only the data logged by some related ports.

Some used tools are to a certain extent limited so that they need improvements or

new ones to be developed, like the simulation scripts. A good firewall log analysis

tool is also needed. With more tools and kinds of log to analyse, the data collected by

this project, as the ones that need more intense work, could be studied further.

In relation to safeguarding, another measure to be taken is to improve the physical

access control to the machine because of the risk of a reboot or even a shutdown by

others. In the circumstances of other honeypots being installed at UnB as part of the

Distributed Honeypots Project, it would be interesting to deploy a log host to

concentrate all the information.

As a final point, it is necessary to write a documentation of the project with regard

to maintenance: everything executed should be recorded to facilitate the future works

and to function as a guide to upcoming members.

References

1. The Honeynet Project. Retrieved July, 2004, from http://www.honeynet.org

2. Brazilian Honeypots Alliance. Distributed Honeypots Project. Retrieved July, 2004, from

http://www.honeypots-alliance.org.br

3. The Honeynet.BR Project. Retrieved July, 2004, from http://www.honeynet.org.br

4. Rocha, L.F.: Especialistas brasileiros lançam Consórcio Brasileiro de Honeypots. Módulo

Security Magazine, São Paulo, n. 335, 05 abr. 2004. Retrieved November, 2004, from

http://www.modulo.com.br/index.jsp?page=3&catid=7&objid=2831&pagecounter=0

5. Franco, L.H., Barbato, L.G.C., Montes, A.: Instalação e uso de honeypot de baixa

interatividade: Tutorial. São Paulo, 18 abr. 2004. Retrieved October, 2004, from

http://www.honeynet.org.br/presentations/hnbr-gts2004-01-tutorial.pdf

6. The Honeyd Project. Developments of the Honeyd Virtual Honeypot. Developed by Niels

Provos, 1999-2004. Retrieved August, 2004, from http://www.honeyd.org

7. Security and Information Integrity: SIG^2 G-TEC Honeynet Project. Retrieved January,

2005, from http://iwfc.security.org.sg

8. NIC BR Security Office: Estatísticas dos Incidentes Reportados ao NBSO. Retrieved

November, 2004, from http://www.nbso.nic.br/stats/incidentes

9. The OpenBSD Project. Developed by Theo de Raadt, 1996-2004. Retrieved August, 2004,

from

http://www.openbsd.org
