GA-BASED APPROACH TO PITCH RECOGNITION OF MUSICAL

CONSONANCE

Masanori Natsui, Shunichi Kubo and Yoshiaki Tadokoro

Dept. of Information and Computer Sciences, Toyohashi University of Technology

1-1 Hibarigaoka, Tempaku-cho, Toyohashi-shi, Aichi 441-8580, Japan

Keywords:

Pitch recognition, Genetic algorithm, Musical consonance, Template matching.

Abstract:

This paper presents a novel method for the pitch recognition of the musical consonance (i.e., unison or octave)

using genetic algorithm (GA). GA is a kind of optimization techniques based on natural selection and genetics.

In our method, the pitch recognition is performed by the following two-step procedure: (i) search space

reduction using the comb ﬁlter estimation, and (ii) evolutionary parameter estimation of tone parameters such

as notes and volumes by minimizing error between a target waveform and a synthesized waveform using sound

templates with estimated parameters. The potential capability of the system is demonstrated through the pitch

estimation of randomly-generated consonances. Experimental results show that the system can successfully

estimate chords with more than 84% success rate for two-note consonances, and more than 71% success rate

for three-note consonances.

1 INTRODUCTION

Automatic music transcription is important for many

applications including music archival, music retrieval,

supports of music composition/arrangement, and also

signiﬁcant problems in machine perception(Sterian

and Wakeﬁeld, 2000; Pollastri, 2002; Roads, 1985;

Roads, 1996; Piszczalski and Galler, 1977). The

study of automatic musical transcription can be clas-

siﬁed into some categories, and that of the pitch detec-

tion is the most important task and many studies have

been done. Most of old studies are for monophony,

and based on the spectrum analysis using the fast

Fourier transform (FFT). On the other hand, the novel

technologies such as neural network, fuzzy logic, and

hidden Marcov model have also been proposed in the

recent studies(Klapuri, 2003).

For the pitch estimation of polyphonic sounds, we

have proposed a unique method based on comb ﬁlters

(H(z) = 1 − z

−N

)(Tadokoro and Yamaguchi, 2001;

Tadokoro et al., 2002; Tadokoro et al., 2003). The

comb ﬁlter can eliminate a fundamental frequency

and its harmonic components of a sound by simple

subtraction. So far, we have presented that cascade

or parallel connections of the comb ﬁlters enable the

polyphonic pitch estimation and can be effective for

the realization of the automatic music transcription

system.

A difﬁcult problem in the polyphonic pitch estima-

tion is that some frequency components of one note

may be overlapped with harmonics of other notes.

In fact, composers often use chords containing notes

that have a simple ratio between their fundamental

frequencies, such as 1:1 (perfect unison), 2:1 (per-

fect octave), or 3:2 (perfect ﬁfth), since these codes

called consonances typically produce sounds which

are pleasing to the human ear. If one note having a

fundamental frequency of f Hz and another note hav-

ing that of 2f Hz are produced at the same time, then

every harmonic of the upper note will be overlapped

to the even harmonics of the lower note (Fig. 1). To

infer the presence of the upper note, we have to use

some other information which is obtained by a tech-

nique except traditional methods such as spectrum

analysis.

From this viewpoint, we propose a unique method

of the pitch estimation based on genetic algorithm

(GA). GA is an optimization algorithm based on a

model of evolution in life. In this paper, we demon-

strate the possibility of the GA-based pitch estimation

method through the experimental pitch estimation of

musical consonance. The key ideas presented here

are: (i) time-domain template matching based on GA,

and (ii) search space reduction using the pitch estima-

Natsui M., Kubo S. and Tadokoro Y. (2006).

GA-BASED APPROACH TO PITCH RECOGNITION OF MUSICAL CONSONANCE.

In Proceedings of the Third International Conference on Informatics in Control, Automation and Robotics, pages 47-52

DOI: 10.5220/0001209400470052

 SciTePress

0 500 1000 1500

200

400

600

800

Amplitude

Frequency [Hz]

Fundamental frequency

Harmonic frequencies

(a) Horn C3

0 500 1000 1500

200

400

600

800

Amplitude

Frequency [Hz]

(b) Piano C4

0 500 1000 1500

200

400

600

800

Amplitude

Frequency [Hz]

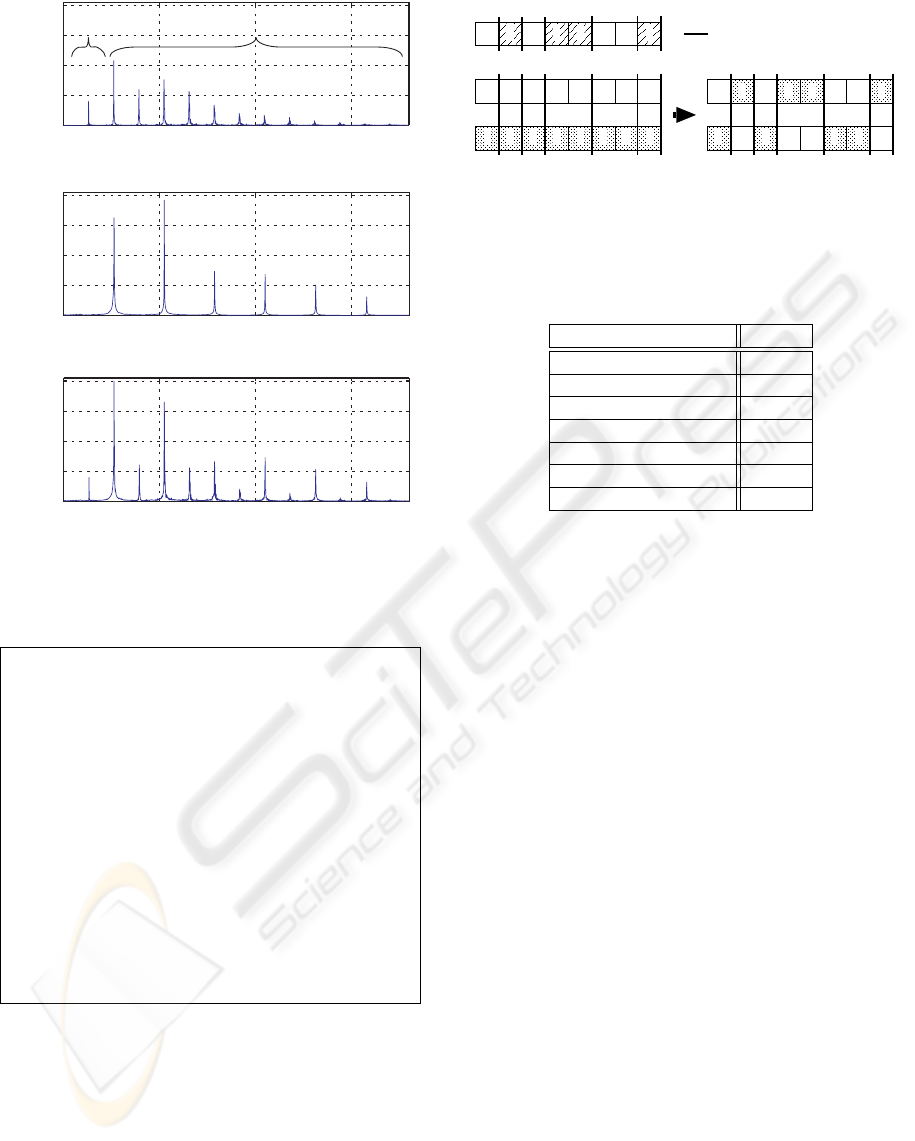

Figure 1: Spectra of music instruments: (a) Horn C3, (b)

Piano C4, and (c) polyphony of the two tones.

program Genetic Algorithm;

begin

t := 0;

{t: Number of generations.}

initialize(P (t));

{P (t): Population.}

evaluate(P (t));

while t ≤ Max . num. of gen. do

begin

C(t) := crossover(P (t));

M(t) := mutation(P (t));

evaluate(C(t) ∪ M(t));

P (t + 1) := select(C(t) ∪ M(t) ∪ P (t));

t := t + 1;

end

end.

Figure 2: Typical ﬂow of GA.

tion result based on the comb ﬁletrs.

This paper is organized as follows: Section 2

presents the basic concept of the pitch estimation sys-

tem using GA. Section 3 shows an overview of the

proposed pitch estimation system. Section 4 demon-

strates the experimental result of the pitch estimation.

Section 5 is the conclusion and future prospects.

0 1 1 1 10 0 0

crossover point

mask pattern

1 0 0 1 01 1 0

1 1 0 0 10 1 1

1 1 1 0

1 0 1 1

1 0 0 1

0 0 1 0

chromosome

Figure 3: Uniform crossover.

Table 1: Instruments and pitches stored in the sound tem-

plate.

Instrument Pitch

Alt Saxophone (AS) D3A5

Clarinet (CL) D3B5

Horn (HR) C3F5

Trumpet (TR) E3B5

Viora (VL) C3B5

Violin (VN) G3B5

Piano (PF) C3B5

2 GENETIC ALGORITHM

Genetic algorithm (GA) can be regarded as a unique

variation of evolutionary computation techniques

(Back et al., 1997; Holland, 1975; Goldberg, 1989).

In general, evolutionary methods mimic the process

of natural evolution, the driving process for emer-

gence of complex structures well-adapted to the given

environment. The better an individual performs under

the conditions the greater is the chance for the individ-

ual to live for a longer while and generate offspring.

As a result, the individuals are transformed to the suit-

able forms on the designer’s deﬁned constraint.

Figure 2 shows the overall procedure of GA. At

ﬁrst, GA generates embryonic individuals randomly

to form the initial population P (0). In the traditional

GA, each individual is represented by a ﬁxed-length

bit string. The next step is to evaluate a ﬁtness func-

tion at all individuals in P (t). A value for ﬁtness is

assigned to each individual depending on how close

it actually is to solving the problem. After the eval-

uation, the system selects a set of individuals having

higher ﬁtness values to perform evolutionary opera-

tions: crossover and mutation. The crossover recom-

bines two individuals into two new bit strings. The

mutation operation, on the other hand, ﬂips the val-

ues of chosen bits to their complements. There are

many ways how to do crossover and mutation. For

example, Figure 3 shows an example of crossover op-

eration called uniform crossover.

ICINCO 2006 - SIGNAL PROCESSING, SYSTEMS MODELING AND CONTROL

Estimation

result

Select tone

candiates

Set amplitude

phase &

synthesize

Synthesized signal

Target signal

Trumpet C4

Trumpet C5

Reduce

search space

Comb filter estimation

Build sound

template

Calculate

distance

Figure 4: Overview of the proposed system.

2.01.751.51.251.0 0.75 0.5 0.25 0

Amplitude

Time [s]

0.8

0.4

0.0

-0.4

Figure 5: Sound waveform (Trumpet, C4).

3 PITCH ESTIMATION SYSTEM

USING GA

Figure 4 shows the overview of the proposed pitch es-

timation system. At ﬁrst, we make a database which

contains waveforms of sound templates. Then the

system determines waveforms for the estimation by

using the result of comb-ﬁlter-based pitch estimation.

Finally, the system applies GA to search the opti-

mal parameters such as amplitudes and phases, which

minimize the squared error between a target wave-

form and a generated one. A more detailed descrip-

tion is provided in the following.

3.1 Sound Template

We make a database which contains a waveform of

each instrument and tone shown in Table 1. In this

experiment, the RWC music database(Goto, 2004) is

used as the original data. We use a waveform ap-

peared after 500ms from the beginning of a sound

data, which is considered to have the level of the

steady state amplitude (sustain), as a sound template.

The sampling rate is 44.1 kHz, and the length of each

template is 54ms (2385 points). Note that the maxi-

mum amplitude of each template is normalized to 1.0.

x(t)

x(n)

y(n)

1−

−

1−

0.5

1.5

Amplitude

[Hz] fs

fp 3fp2fp

(a)

(b)

Frequency

Figure 6: Notch-type comb ﬁlter: (a) block diagram, and

(b) frequency characteristic.

max1

max2

max12

(z)

)(nx

max11

(z)

Detect

minimum output

Figure 7: Parallel-connected comb ﬁlters for pitch estima-

tion.

3.2 Search Space Reduction Using

Comb Filter Estimation

The transfer function of the notch-type comb ﬁlter for

a tone p is written by

(z) = 1 − z

−N

, N

= [f

where f

is a sampling frequency, and f

is a funda-

mental frequency for the tone p. The block diagram

and its frequency characteristic are shown in Fig. 6

(a) and (b), respectively. The spectrum of a single

note from a musical instrument usually has a set of

GA-BASED APPROACH TO PITCH RECOGNITION OF MUSICAL CONSONANCE

Table 2: Target parameters.

Paramater Name Range Bit

Instrument

and note

note

1 ∼ T

∗

⌈T/2⌉

Amplitude amp

0 ∼ 1.0 8

Phase phase

0 ∼ 2π 6

(T: Number of templates after the search space reduction)

6bit8bit

[T/2] bit

Tone 2 Tone n

phasekampknotek

...

Tone 1

Tone bit Tone bit Tone bit

Tone * K bit

Figure 8: Individual representation.

peaks at harmonic ratios. That is, if the fundamental

frequency is f

, there are peaks at f

, and also at 2f

, 4f

, etc. Consequently, the operation of H

(z)

eliminates all frequency components of the target tone

at once.

As in the case of usual methods based on spec-

trum analysis, the comb ﬁltering cannot separate the

overlapped frequency components. For example, let a

polyphony be composed of C3, E3, G3, and C4. We

can estimate only the presence of C3, E3, and G3 by

using a parallel-connected comb ﬁlters (Fig. 7), while

the note C4 cannot be detected since every harmonic

of the note C4 is overlapped to the even harmonics of

the note C3. However, if we know the input sound is a

chord of four notes, we can also estimate that a funda-

mental frequency of another tone is equal to the one

of the known three tones. That is, the search space

of sound templates can be reduced to the one which

contains only the following tones:

Harmonics of C3: C4, G4, C5, E5,

Harmonics of E3: E4, B4, E5, G#5,

Harmonics of G3: G4, D4, G5, B5.

It achieves a reduction in the size of the search space

and an improvement in the search efﬁciency.

3.3 Parameter Optimization Using

Figure 8 shows an individual representation in the

system, which corresponds to a unique polyphonic

sound. Here K is the number of tones included in a

target polyphony, and amp

, note

, and phase

are

parameters for kth notes, which have bit lengths and

ranges of values shown in Table 2.

Table 3: Main parameter values for GA.

Parameter Value

Maximum number of generations 250

Population size 750

Crossover method Uniform

Crossover rate 0.8

Mutation rate 0.05

Mutation method Uniform

At the beginning of a new evolutionary run, the sys-

tem creates a set of randomly generated bit strings

with above data format to form the initial population.

A generated bit string is interpreted as its correspond-

ing waveform deﬁned as follows:

′

(n) =

k=1

n=1

amp

· x

note

(n + phase

· 2π

where x

note

(n) is a waveform of template note

N is a window size, f

is a sampling frequency, and

is a fundamental frequency of a template note

Through an evolutionary run, the system searches the

optimal waveform which minimizes the error as fol-

lows:

error =

n=1

{x(n) − x

′

(n)}

where x(n) is a target waveform.

4 EXPERIMENT

We demonstrate the potential capability of the GA-

based pitch estimation of musical consonance. Note

that the input sounds used in this experiment are

polyphony which contain at least one consonance

whose fundamental frequency ratio can be simply

represented by 1 : n (n: integer). Table 3 summa-

rizes the system parameters in this experiment. A set

of evolutionary runs were carried out on a Linux PC

(CPU: Intel Xeon 2.8GHz dual, RAM: 2GByte).

Figure 11 shows a ﬁtness transition of the error be-

tween a generated waveform and a target one. Target

sounds considered here are polyphony of randomly-

selected three tones. We can see the staircase im-

provements of the best individual ﬁtness on average.

Figures 9 and 10 depict an example snapshot of the

population and a waveform of the best ﬁtness indi-

vidual on each generation. In Fig. 9, the horizontal

axes indicate types of music instruments and pitches

of tones, and the vertical axis indicates the number of

individuals which contains a certain instrument and

pitch. The input sound considered here is a polyphony

of Trumpet C4, Alto Saxophone E4, and Horn C5.

Given the initial random generation, the evolution is

ICINCO 2006 - SIGNAL PROCESSING, SYSTEMS MODELING AND CONTROL

The 30th

generation

The 35th

generation

The 40th

generation

The 15th

generation

The 20th

generation

The 25th

generation

The 0th

generation

The 5th

generation

The 10th

generation

Instruments

Pitches

Instruments

Pitches

Instruments

Pitches

Instruments

Pitches

Instruments

Pitches

Instruments

Pitches

Instruments

Pitches

Instruments

Pitches

Instruments

Pitches

Num. of individuals

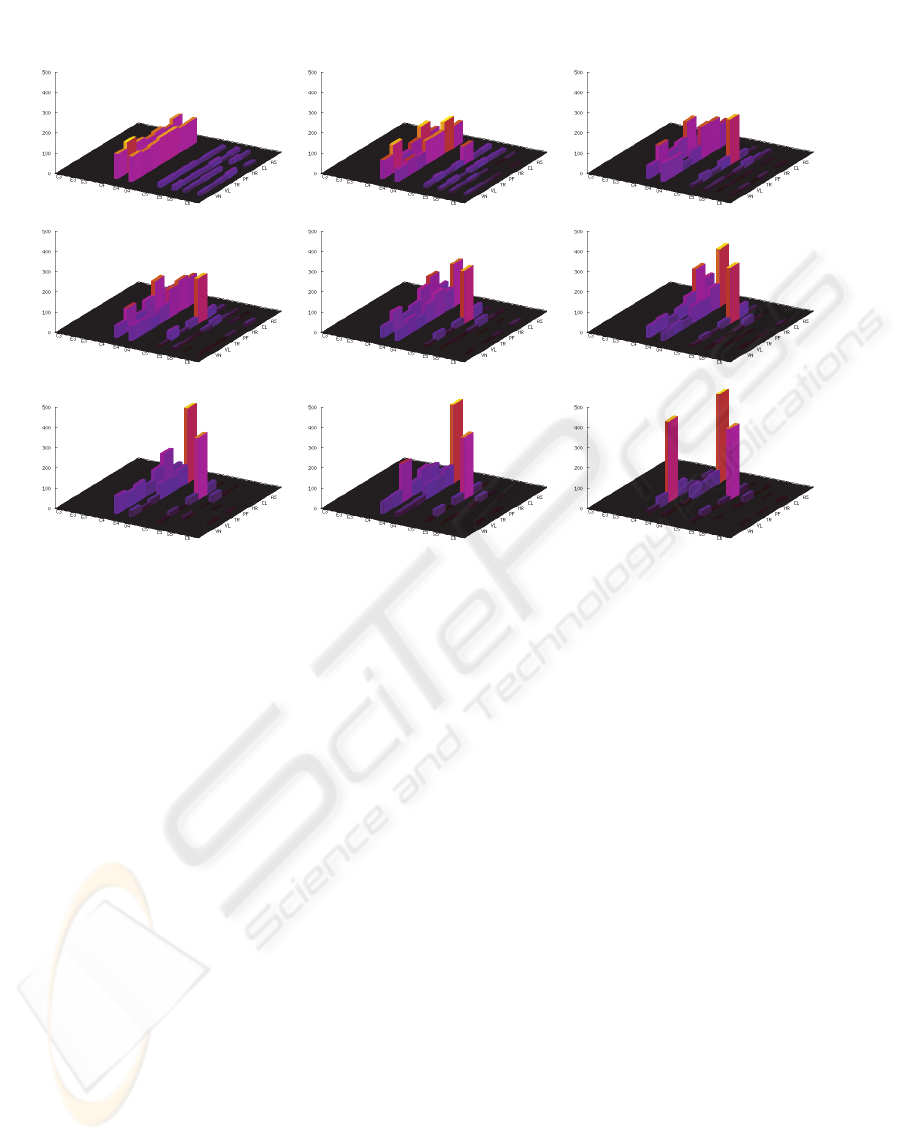

Figure 9: Population transition.

mainly driven towards ﬁnding one correct tone, then

the system eventually shifts to the search of another

tone. Finally, the system successfully ﬁnds a set of

tones and parameters which minimizes the squared

error between the target waveform and the generated

one.

Next, we evaluate the robustness of the system for

the increase of the number of tones and the instability

of the amplitude. Figures 12 and 13 show the accu-

racy of the pitch and instrument estimation on each

condition. We have performed 5000 evolutionary runs

for every condition. We can obtain the pitch estima-

tion accuracy of more than about 90% for two tones

and 70% for three tones when the time region of the

target sound begins from 250ms, 500ms, or 750ms.

On the other hand, the accuracy decreases when the

time region of the input sound is from 125ms. This is

because a waveform of the input sound is in the attack

or decay region, where the amplitude of the waveform

changes signiﬁcantly. For the practical application to

the automatic pitch estimation, we should introduce

additional information which improves the robustness

of the system.

5 CONCLUSION

In this paper, we have presented a possibility of the

GA-based pitch estimation method through the exper-

imental pitch estimation of the musical consonance.

An experimental pitch estimation system has a capa-

bility of analyzing the pitches of consonances, which

have not been realized by the conventional methods.

REFERENCES

Back, T., Hammel, U., and Schwefel, P. H. (1997). Evo-

lutionary computation: Comments on the history and

current state. IEEE Trans. Evolutionary Computation,

1(1):3 – 13.

Goldberg, D. (1989). Genetic Algorithms in Search, Op-

timization and Machine Learning. Addison-Wasley

Publishing Company.

Goto, M. (2004). Development of the rwc music database.

Proceedings of the 18th International Congress on

Acoustics (ICA 2004), pages I–553–556.

Holland, J. H. (1975). Adaptation in Natural and Artiﬁcial

Systems. University of Michigan Press.

Klapuri, A. (2003). Multiple fundamental frequency es-

timation based on harmonicity and spectral smooth-

ness. IEEE Transactions on Speech and Audio Pro-

cessing, 11(6):804–816.

Piszczalski, M. and Galler, B. (1977). Automatic music

transcription. Computer music journal, 1(4):24–31.

Pollastri, E. (2002). A pitch tracking system dedicated to

process singing voice for musical retrieval. Proceed-

GA-BASED APPROACH TO PITCH RECOGNITION OF MUSICAL CONSONANCE

ings of 2002 IEEE International Conference on Mul-

timedia and Expo (ICME).

Roads, C. (1985). Research in music and artiﬁcal intelli-

gence. ACM Computing Surveys, 17(2):163–190.

Roads, C. (1996). The computer music tutorial. MIT Press.

Sterian, A. and Wakeﬁeld, G. (2000). Music transcription

systems: from sound to symbol. Proceedings of AAAI-

2000 workshop on artiﬁcal intelligence and music.

Tadokoro, Y., Matsumoto, W., and Yamaguchi, M. (2002).

Pitch detection musical sounds using adaptive comb

ﬁlters controlled by time delay. Proceedings of 2002

IEEE International Conference on Multimedia and

Expo (ICME), P03.

Tadokoro, Y., Morita, T., and Yamaguchi, M. (2003). Pitch

detection of musical sounds noticing minimum out-

put of parallel connected comb ﬁlters. Proceed-

ings of 2003 IEEE Region 10 Conference on Conver-

gent Technologies For The Asia-Paciﬁc (TENCON),

tencon-072.

Tadokoro, Y. and Yamaguchi, M. (2001). Pitch detection

of duet song using double comb ﬁlters. Proceedings

of 2001 European Conference on Circuit Theory and

Design (ECCTD), I:57–60.

-1

-0.5

0.5

target

evolved

Amplitude

The 0th generation

-1

-0.5

0.5

target

evolved

Amplitude

The 10th generation

-1

-0.5

0.5

target

evolved

Amplitude

The 20th generation

-1

-0.5

0.5

target

evolved

Amplitude

The 30th generation

700 800 900 1000 1100 1200 1300

-1

-0.5

0.5

Sampling index

target

evolved

Amplitude

The 40th generation

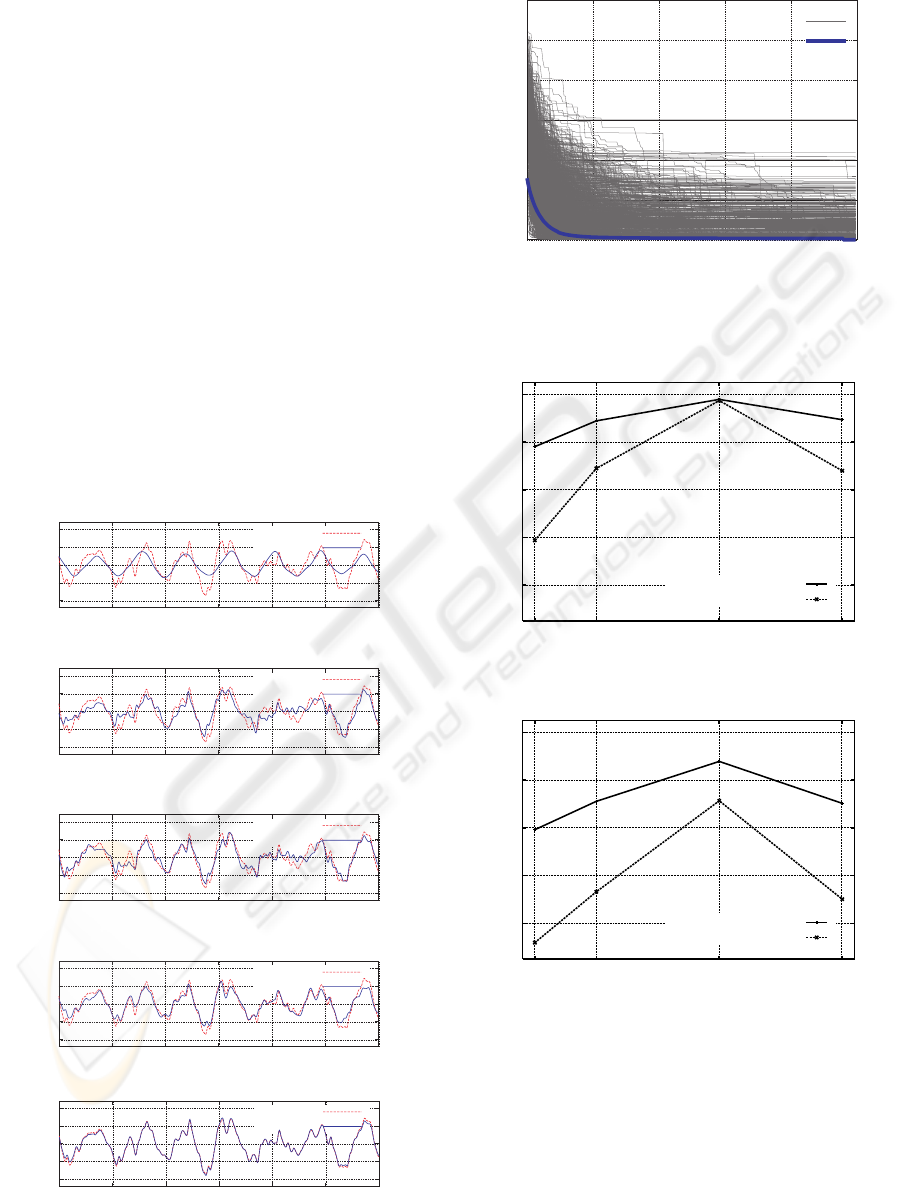

Figure 10: Waveform transition.

100

120

0 50 100 150 200 250

error

Generations

Average for 5000 runs

Minimum error on each gen.

Figure 11: Transition of the sum of squared errors between

the target waveform and the synthesized one.

100

125 250 500 750

pitches

pitches and instruments

Pitch estimation accuracy [%]

Generations

Figure 12: Accuracy of pitch/instrument estimation for two

notes.

100

125 250 500 750

pitches

pitches and instruments

Pitch estimation accuracy [%]

Generations

Figure 13: Accuracy of pitch/instrument estimation for

three notes.

ICINCO 2006 - SIGNAL PROCESSING, SYSTEMS MODELING AND CONTROL
