THE LAGR PROJECT

Integrating Learning into the 4D/RCS Control Hierarchy

James Albus, Roger Bostelman, Tsai Hong, Tommy Chang, Will Shackleford, Michael Shneier

National Institute of Standards and Technology, 100 Bureau Drive, Gaithersburg, MD 20899, USA

Keywords: LAGR, Learning, 4D/RCS, mobile robot, hierarchical control, reference model architecture.

Abstract: The National Institute of Standards and Technology’s (NIST) Intelligent Systems Division (ISD) is a par-

ticipant the Defense Advanced Research Project Agency (DARPA) LAGR (Learning Applied to Ground

Robots) Project. The NIST team’s objective for the LAGR Project is to insert learning algorithms into the

modules that make up the 4D/RCS (Four Dimensional/Real-Time Control System), the standard reference

model architecture to which ISD has applied to many intelligent systems. This paper describes the 4D/RCS

structure, its application to the LAGR project, and the learning and mobility control methods used by the

NIST team’s vehicle.

1 INTRODUCTION

The National Institute of Standards and Technol-

ogy’s (NIST) Intelligent Systems Division (ISD) has

been developing the RCS (Albus-1, 2002; Albus-2,

2002) reference model architecture for over 30

years. 4D/RCS is the most recent version of RCS

developed for the Army Research Lab Experimental

Unmanned Ground Vehicle program. The 4D in

4D/RCS signifies adding time as another dimension

to each level of the three dimensional (sensor proc-

essing, world modeling, behavior generation), hier-

archical control structure. ISD has studied the use of

4D/RCS in defense mobility (Balakirsky, 2002),

transportation (Albus, 1992), robot cranes (Bostel-

man, 1996), manufacturing (Shackleford, 2000;

Michaloski, 1986) and several other applications.

In the past year, ISD has been applying 4D/RCS

to the DARPA LAGR program (Jackel, 2005). The

DARPA LAGR program aims to develop algorithms

that enable a robotic vehicle to travel through com-

plex terrain without having to rely on hand-tuned

algorithms that only apply in limited environments.

The goal is to enable the control system of the vehi-

cle to learn which areas are traversable and how to

avoid areas that are impassable or that limit the mo-

bility of the vehicle. To accomplish this goal, the

program provided small robotic vehicles to each of

the participants (Figure 1). The vehicles are used by

the teams to develop software and a separate

DARPA team, with an identical vehicle, conducts

tests of the software each month. Operators load the

software onto an identical vehicle and command the

vehicle to travel from a start waypoint to a goal

waypoint through an obstacle-rich environment.

They measure the performance of the system on

multiple runs, under the expectation that improve-

ments will be made through learning.

Figure 1: The DARPA LAGR vehicle.

The vehicles are equipped with four computer

processors (right and left cameras, control, and the

planner); wireless data and emergency stop radios;

GPS receiver; inertial navigation unit; dual stereo

cameras; infrared sensors; switch-sensed bumper;

front wheel encoders; and other sensors listed later

in the paper.

Section 2 of this paper describes the 4D/RCS

Reference Model Architecture followed by a more

GPS

ntenna

Dual stereo

cameras

Computers,

IMU inside

Infrared

sensors

Casters

Drive wheels

Bumper

154

Albus J., Bostelman R., Hong T., Chang T., Shackleford W. and Shneier M. (2006).

THE LAGR PROJECT - Integrating Learning into the 4D/RCS Control Hierarchy.

In Proceedings of the Third International Conference on Informatics in Control, Automation and Robotics, pages 154-161

DOI: 10.5220/0001210701540161

 SciTePress

specific description of the 4D/RCS application to the

DARPA LAGR Program in Sections 3. Sections 4

include a summary and conclusion.

2 4D/RCS REFERENCE MODEL

ARCHITECTURE

The 4D/RCS architecture is characterized by a ge-

neric control node at all the hierarchical control lev-

els. The 4D/RCS hierarchical levels are scalable to

facilitate systems of any degree of complexity. Each

node within the hierarchy functions as a goal-driven,

model-based, closed-loop controller. Each node is

capable of accepting and decomposing task com-

mands with goals into actions that accomplish task

goals despite unexpected conditions and dynamic

perturbations in the world.

At the heart of the control loop through each

node is the world model, which provides the node

with an internal model of the external world (Figure

2). The world model provides a site for data fusion,

acts as a buffer between perception and behavior,

and supports both sensory processing and behavior

generation.

In support of behavior generation, the world

model provides knowledge of the environment with

a range and resolution in space and time that is ap-

propriate to task decomposition and control deci-

sions that are the responsibility of that node.

A world modeling process maintains the knowl-

edge database and uses information stored in it to

generate predictions for sensory processing and

simulations for behavior generation. Predictions are

compared with observations and errors are used to

generate updates for the knowledge database. Simu-

lations of tentative plans are evaluated by value

judgment to select the “best” plan for execution.

Predictions can be matched with observations for

recursive estimation and Kalman filtering. The

world model also provides hypotheses for gestalt

grouping and segmentation. Thus, each node in the

4D/RCS hierarchy is an intelligent system that ac-

cepts goals from above and generates commands for

subordinates so as to achieve those goals.

The centrality of the world model to each con-

trol loop is a principal distinguishing feature be-

tween 4D/RCS and behaviorist architectures. Be-

haviorist architectures rely solely on sensory feed-

back from the world. All behavior is a reaction to

immediate sensory feedback. In contrast, the

4D/RCS world model integrates all available knowl-

edge into an internal representation that is far richer

and more complete than is available from immediate

sensory feedback alone. This enables more sophisti-

cated behavior than can be achieved from purely

reactive systems.

Perception

Behavior

World Model

Sensing

Action Real World

internal

external

Mission Goal

Figure 2: The fundamental structure of a 4D/RCS control

loop.

The nature of the world model distinguishes

4D/RCS from conventional artificial intelligence

(AI) architectures. Most AI world models are purely

symbolic. In 4D/RCS, the world model is a combi-

nation of instantaneous signal values from sensors,

state variables, images, and maps that are linked to

symbolic representations of entities, events, objects,

classes, situations, and relationships in a composite

of immediate experience, short-term memory, and

long-term memory. Real-time performance in mod-

eling and planning is achieved by restricting the

range and resolution of maps and data structures to

what is required by the behavior generation module

at each level. Short range and high resolution maps

are implemented in the lowest level, with longer

range and lower resolution maps at the higher level.

A high level diagram of the internal structure of

the world model and value judgment system is

shown in Figure 3. Within the knowledge database,

iconic information (images and maps) are linked to

each other and to symbolic information (entities and

events). Situations and relationships between enti-

ties, events, images, and maps are represented by

pointers. Pointers that link symbolic data structures

to each other form syntactic, semantic, causal, and

situational networks. Pointers that link symbolic

data structures to regions in images and maps pro-

vide symbol grounding and enable the world model

to project its understanding of reality onto the physi-

cal world.

3 4D/RCS APPLIED TO LAGR

The 4D/RCS architecture for LAGR (Figure 4) con-

sists of only two levels requiring plans at each low

and high level out to approximately 10 m and 100 m,

respectively, in front of the vehicle. This is because

THE LAGR PROJECT - Integrating Learning into the 4D/RCS Control Hierarchy

155

the size of the LAGR test areas is small (typically

about 100 m on a side, and the test missions are

short in duration (typically less than 4 minutes.) For

controlling an entire battalion of autonomous vehi-

cles, there may be as many as five or more 4D/RCS

hierarchical levels.

The following sub-sections describe the type of

algorithms implemented in sensor processing, world

modeling, and behavior generation, as well as a sec-

tion that describes the learning algorithms that have

been implemented.

SENSORY

PROCESSING

WORLD MODELING

VALUE JUDGMENT

KNOWLEDGE

Images

Maps Entities

Sensors

ActuatorsWorld

Classification

Estimation

Computation

Grouping

Windowing

Mission (Goal)

internal

external

Events

Planners

Executors

Task

Knowledge

BEHAVIOR

GENERATION

Figure 3: The basic internal structure of a 4D/RCS control

loop.

SP2

SP1

BG2

Planner2

Executor2

10 step plan

Group pixels

Classify objects

images

name

class

images

color

range

edges

class

Classify pixels

Compute attributes

maps

cost

objects

terrain

200x200 pix

400x400 m

frames

names

attributes

state

class

relations

WM2

Manage KD2

maps

cost

terrain

200x200 pix

40x40 m

state vari-

ables

names

values

WM1

Manage KD1

BG1

Planner1

Executor1

10 step plan

Sensors

Cameras, INS, GPS, bumper, encoders, current

Actuators

Wheel motors, camera controls

Scale & filter

signals

status commands

commands

SP2

SP1

BG2

Planner2

Executor2

10 step plan

Group pixels

Classify objects

images

name

class

images

color

range

edges

class

Classify pixels

Compute attributes

maps

cost

objects

terrain

200x200 pix

400x400 m

frames

names

attributes

state

class

relations

WM2

Manage KD2

maps

cost

objects

terrain

200x200 pix

400x400 m

frames

names

attributes

state

class

relations

WM2

Manage KD2

maps

cost

terrain

200x200 pix

40x40 m

state vari-

ables

names

values

WM1

Manage KD1

maps

cost

terrain

200x200 pix

40x40 m

state vari-

ables

names

values

WM1

Manage KD1

BG1

Planner1

Executor1

10 step plan

Sensors

Cameras, INS, GPS, bumper, encoders, current

Actuators

Wheel motors, camera controls

Scale & filter

signals

status commands

commands

Figure 4: Two-level instantition of the 4D/RCS hierarchy

for LAGR.

3.1 Sensory Processing

The sensor processing column in the 4D/RCS hier-

archy for LAGR (Figure 4) starts with the sensors on

board the LAGR vehicle. Sensors used in the sen-

sory processing module include the two pairs of ste-

reo color cameras, the physical bumper and infra-red

bumper sensors, the motor current sensor (for terrain

resistance), and the navigation sensors (GPS, wheel

encoder, and INS). Sensory processing modules in-

clude a stereo obstacle detection module, a bumper

obstacle detection module, an infrared obstacle de-

tection module, an image classification module, and

a terrain slipperyness detection module.

3.2 Stereo Vision

Stereo vision is primarily used for detecting obsta-

cles. We use the SRI Stereo Vision Engine (Kono-

lige, 2005) to process the pairs of images from the

two stereo camera pairs. For each newly acquired

stereo image pair, the obstacle detection algorithm

processes each vertical scan line in the reference

image independently and classifies each pixel as

GROUND, OBSTACLE, SHORT_OBSTACLE, COVER

or INVALID. Figure 5 illustrates the basic obstacle

detection algorithm (

Chang, 1999).

Figure 5: A single vertical scanline detecting the ground.

Pixel 0 is altered to correspond to the bottom of the vehi-

cle wheel. Pixels 1, 2, 3, 8 and 9 are ground pixels due to

shallow slopes. Pixel 4, 5, 6 and 7 are obstacles due to

steeper slopes. The slopes are shown by the direction

vectors on the bottom of the figure.

Pixels that are not in the 3D point cloud are

marked INVALID. Pixels corresponding to obstacles

that are shorter than 5 cm high are marked as

SHORT_OBSTACLE. The obstacle height threshold

value of 5cm was chosen such that the LAGR vehi-

cle can ignore and drive over small pebbles and

rocks. Similarly,

COVER corresponds to obstacles

that are taller than 1.5 m, a safe clearance height for

the LAGR vehicle.

Within each reference image, the corresponding

3D points are accumulated onto a 2D cost map of 20

cm by 20 cm cell resolution. Each cell has a cost

value representing the percentage of

OBSTACLE

pixels in the cell. In addition to cost value, color and

elevation statistics are also kept and updated in each

cell. This map is sent the world model at the current

level and to the sensory processing module at the

level above in the 4D/RCS hierarchy.

Figure 6 shows a view of obstacle detection

from the operator control unit (OCU). The vehicle is

shown driving on a dirt road lined with trees with an

200

dual stereo cameras

ICINCO 2006 - ROBOTICS AND AUTOMATION

156

orange fence in the background.

3.3 Learning Classification in Color

Vision

A color-based image classification (Tan, 2006) mod-

ule runs independently from the obstacle detection

module in the lower-level sensory processing mod-

ule. It learns to classify objects in the scene by their

color and appearance. This enables it to provide

information about obstacles and ground points even

when stereo is not available. A flat world assumption

is used when determining the 3D location of a pixel

in the image. This assumption is valid for points

close to the vehicle providing that the vehicle does

not get too close to an obstacle.

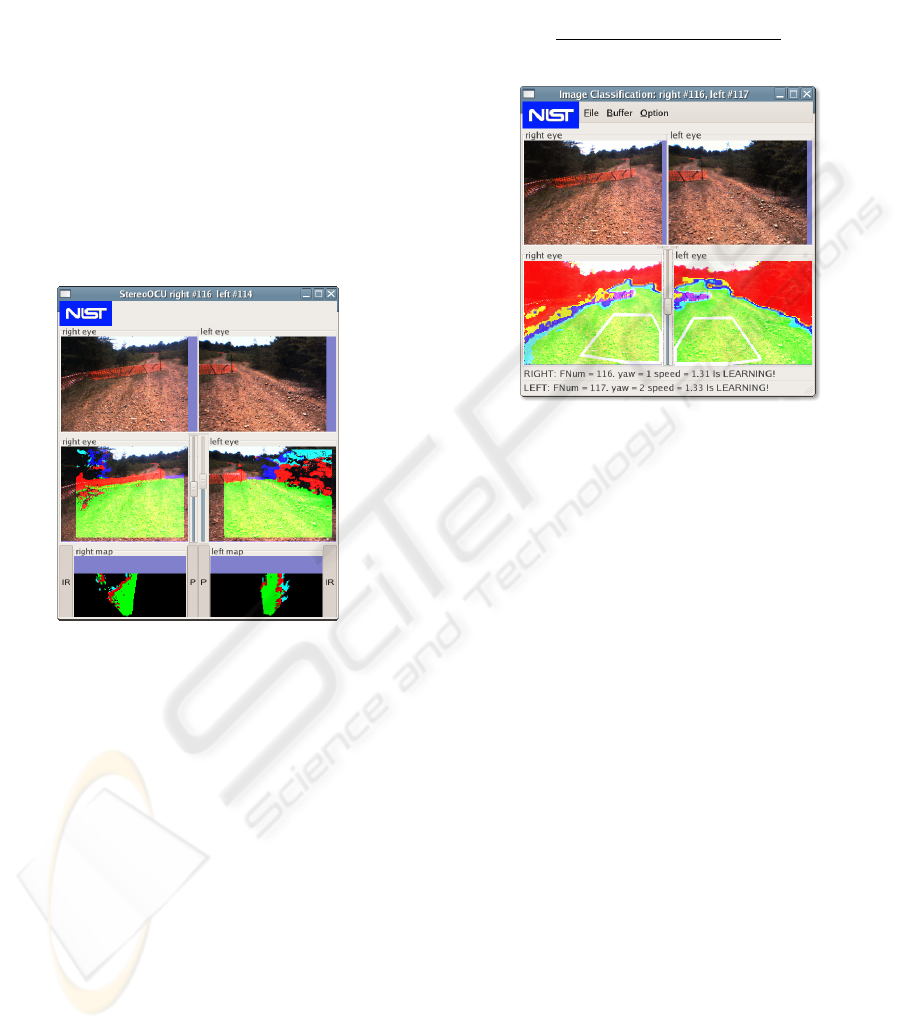

Figure 6: OCU display showing original images (top),

results of obstacle detection (middle), and cost maps (bot-

tom). Red represents obstacles, green is ground, and blue

represents obstacles too far away to classify.

Pixels near the vehicle, as defined by a 1 m

wide by 2 m long rectangular area in front of the

vehicle, are used to construct and update the

GROUND color histogram. Similarly, the BACK-

GROUND color histogram is constructed and up-

dated from pixel locations that were previously be-

lieved to be background.

The construction of the background model ini-

tially randomly samples the area above the horizon.

Once the algorithm is running, the algorithm ran-

domly samples pixels in the current frame that the

previous result identified as background. These

samples are used to update the background color

model using temporal fusion

In order to remember multiple color distribu-

tions, multiple GROUND color histograms are

maintained. However, only one BACKGROUND

color histogram is used.

The cost for each pixel is determined by a color

voting method and the degree of belief that a point is

a background is calculated from the two histograms

BACKGROUND

 N

GROUND

Figure 7: OCU display showing original images (top) and

cost images (bottom). The 1 m wide by 2 m long rectan-

gular areas assumed to be ground (white boxes) are over-

laid on the cost images.

Where N

BACKGROUND

and N

GROUND

are the number of

hits in the corresponding histogram bin. In the case

of multiple GROUND color histograms, the mini-

mum cost is used. The cost image is sent to the

world model. Figure 7 illustrates color classification

on the same image as shown in Figure 6

3.4 World Modeling

The world model is the system's internal representa-

tion of the external world. It acts as a bridge between

sensory processing and behavior generation in the

4D/RCS hierarchy by providing a central repository

for storing sensory data in a unified representation.

It decouples the real-time sensory updates from the

rest of the system. The world model process has two

primary functions: To create a knowledge database

and keep it current and consistent, and to generate

predictions of expected sensory input.

For the LAGR project, two world model levels

have been built (WM1 and WM2). Each world

model process builds a two dimensional (200 x 200

cells) map, but at different resolutions. These are

used to temporally fuse information from sensory

processing. Currently the lower level (SP1) is fused

into both WM1 and WM2 as the learning module in

THE LAGR PROJECT - Integrating Learning into the 4D/RCS Control Hierarchy

157

SP2 does not yet send its models to WM. Figure 8

shows the WM1 and WM2 maps constructed from

the stereo obstacle detection module in SP1. The

maps contain traversal costs for each cell in the map.

The position of the vehicle is shown as an overlay

on the map. The red, yellow, blue, light blue, and

green are cost values ranging from high to low cost,

and black represents unknown areas. Each map cell

represents an area on the ground of a fixed size and

is marked with the time it was last updated. The total

length and width of the map is 40 m for WM1 and

120 m for WM2. The information stored in each cell

includes the average ground and obstacle elevation

height, the variance, minimum and maximum height,

and a confidence measure reflecting the "goodness"

of the elevation data. In addition, a data structure

describing the terrain traversability cost and the cost

confidence as updated by the stereo obstacle detec-

tion module, image classification module, bumper

module, infrared sensor module, etc. The map updat-

ing algorithm is based on confidence-based mapping

as described in (Oskard, 1990). The costs and the

confidences are combined to determine the relative

safety of traversing the grid with the following equa-

tion:

tionclassificac

lagrLearnlstereoscell

CostW

CostWCostWCost

×+×=

where Cost

cell

is the cost to traverse each grid

cell. Cost

lagrLearn

, Cost

classification

, and Cost

stereo

are the

fused costs in the world model based on the learning

module, classification module, stereo obstacle detec-

tion module. W

, W

, and W

are weighting con-

stants for each cost. However, Cost

cell

is a bumper

cost if there is a bumper hit.

Figure 8: OCU display of the World Model cost maps built

from sensor processing data. WM1 builds a 0.2 m resolu-

tion cost map (left) and WM2 builds a 0.6 m resolution

cost map (right).

The final cost placed in each map cell represents

the best estimate of terrain traversability in the re-

gion represented by that cell, based on information

fused over time. Each cost has a confidence associ-

ated with it and the map grid selects the label with

the highest confidence. The final cost maps are con-

structed by taking the fused cost from all the sensory

processing modules.

Efficient functions have been developed to

scroll the maps as the vehicle moves, to update map

data, and to fuse data from the sensory processing

modules. A map is updated with new sensor data and

scrolled to keep the vehicle centered. This minimizes

grid relocation. No copying, only updating, of data is

done. When the vehicle moves out of the center grid

cell of the map, the scrolling function is enabled.

The map is vehicle-centered, so only the borders

need to be initialized. Initialization information may

be obtained from remembered maps saved from pre-

vious test runs as shown in Figure 9. Remembering

maps is a very effective way of learning about ter-

rain, and has proved important in optimizing succes-

sive runs over the same terrain.

The cost and elevation confidence of each grid

cell is updated every sensor cycle: 5 Hz for the ste-

reo obstacle detection module, 3 Hz for the learning

module, 5 Hz for the classification module, and 10-

20 Hz for the bumper module. The confidence val-

ues are used as a cost factor in determining the

traversability of a cell.

We plan additional research to implement mod-

eling of moving objects (cars, targets, etc.) and to

broaden the system's terrain and object classification

capabilities. The ability to recognize and label water,

rocky roads, buildings, fences, etc. would enhance

the vehicle's performance.

Figure 9: Initial (left) and remembered (right) cost maps as

the system starts without and with saved maps, respec-

tively.

3.5 Behavior Generation

Top level input to Behavior Generation (BG) (Figure

10) is a file containing the final goal point in UTM

(Universal Transverse Mercator) coordinates. At the

bottom level in the 4D/RCS hierarchy, BG produces

a speed for each of the two drive wheels updated

every 20 ms, which is input to the low-level control-

ICINCO 2006 - ROBOTICS AND AUTOMATION

158

ler included with the government-provided vehicle.

The low-level system returns status to BG, including

motor currents, position estimate, physical bumper

switch state, raw GPS and encoder feedback, etc

These are used directly by BG rather than passing

them through sensor processing and world modeling

since they are time-critical and relatively simple to

process.

Two position estimates are used in the system.

Global position is strongly affected by the GPS an-

tenna output and is more accurate over long ranges,

but can be noisy. Local position uses only the wheel

encoders and inertial measurement unit (IMU). It is

less noisy than GPS but drifts significantly as the

vehicle moves, and even more if the wheels slip.

The system consists of five separate executa-

bles. Each sleeps until the beginning of its cycle,

reads its inputs, does some planning, writes its out-

puts and starts the cycle again. Processes communi-

cate using the Neutral Message Language (NML) in

a non-blocking mode, which wraps the shared-

memory interface (

Shackleford, 1990). Each module

also posts a status message that can be used by both

the supervising process and by developers via a di-

agnostics tool to monitor the process.

The LAGR Supervisor is the highest level BG

module. It is responsible for starting and stopping

the system. It reads the final goal and sends it to the

waypoint generator. The waypoint generator chooses

a series of waypoints for the lowest-cost traversable

path to the goal using global position and translates

the points into local coordinates. It generates a list of

waypoints using either the output of the A* Planner

(

Heyes-Jones, 2005) or a previously recorded known

route to the goal.

The planner takes a 201 X 201 terrain grid from

WM, classifies the grid, and translates it into a grid

of costs of the same size. In most cases the cost is

simply looked up in a small table from the corre-

sponding element of the input grid. However, since

costs also depend on neighboring costs, they are

automatically adjusted to allow the vehicle to con-

tinue motion.

Lagr Superviso

Waypoint Generato

* Planne

Waypoint Followe

LAGR CMU Comm Interface

Final Goal (UTM Easting,Northing)

List of waypoints

local coordinates

{(x,y), …, (x,y)}

velocity and

heading

wheel speed

osition,motor current,

bumper, etc.

Long range (120m)

Low resolution (0.6m) Map

Clear/Save Map

Short range (40m)

High resolution (0.2m)

Map

Behavior Generation World Modeling

Figure 10: Behavior Generation High Level Data Flow

Diagram.

The waypoint follower receives a series of way-

points, spaced approximately 0.6 m apart that could

be used to drive blindly without a map. However,

there are some features of the path that make this

less than optimal. When the path contains a turn, it

is either at a 0.8 rad (45 degree) or 1.6 rad (90 de-

gree) angle with respect to the previous heading. The

waypoint follower could smooth the path, but it

would at least partially, enter cells that were not

covered by the path chosen at the higher level. The

A* planner might also plan through a cell that was

partially blocked by an obstacle. The waypoint fol-

lower is then responsible for avoiding the obstacle.

The first step in creating a short range plan is to

choose a goal point from the list provided by the A*

Planner. One option would be to use the point where

the path intersects the edge of the 40m map. How-

ever, due to the differences between local and global

positioning, this point might be on one side of an

obstacle in the long range map and on the other side

in the short range map. To avoid this, the first major

turning point is selected. The waypoint follower

searches a preset list of possible paths starting at the

current position and chooses the one with the best

score. The score represents a compromise between

getting close to the turning point, staying far away

from obstacles and higher cost areas, and keeping

the speed up by avoiding turns.

The waypoint follower also implements a num-

ber of custom behaviors selected from a state table.

These include:

z AGGRESSIVE MODE—Ignore obstacles ex-

cept those detected with the bumper and drive in

the direction of the final goal. Terrain such as

tall grass causes the vehicle to wander. Short

THE LAGR PROJECT - Integrating Learning into the 4D/RCS Control Hierarchy

159

bursts of aggressive mode help to get out of

these situations.

z HILL CLIMB—Wheel motor currents and roll

and pitch angle sensors are used to sense a hill.

The vehicle attempts to drive up hills without

stopping to avoid momentum loss and slipping.

z NARROW CORRIDOR/CLOSE TO OBSTA-

CLE—In tight spaces the system slows down,

builds a detailed world model, and considers a

larger number of alternative paths to get around

tight corners than in open areas.

z HIGH MOTOR AMPS/SLIPPING—When the

motor currents are high or the system thinks the

wheels are slipping it tries to reverse direction

and then tries a random series of speeds and di-

rections, searching for a path where the wheels

are able to move without slipping.

z REVERSE FROM BUMPER HIT—

Immediately after a bumper hit the vehicle

backs up and rotates to avoid the obstacle.

The lowest level module, the LAGR Comms In-

terface, takes a desired heading and direction from

the waypoint follower and controls the velocity and

acceleration, determines a vehicle-specific set of

wheel speeds, and handles all communications be-

tween the controller and vehicle hardware.

3.6 Learning Algorithms

Learning is a basic part of the LAGR program. Sev-

eral kinds of learning have to be addressed. There is

learning by example, learning from experience, and

learning of maps and paths. Most learning relies on

sensed information to provide both the learning

stimulus and the ground truth for evaluation. In the

LAGR program, learning from sensor data has

mainly focused on learning the traversability of ter-

rain. This includes learning by seeing examples of

the terrain and learning from the experience of driv-

ing over (or attempting to drive over) the terrain.

One example of learning by example was discussed

in Section 0.

Another model-based learning process occurs in

the SP2 module of the 4D/RCS architecture, taking

input from SP1 in the form of labeled pixels with

associated (x, y, z) positions. Classification is an SP1

process that uses the models to label the traversabil-

ity of image regions based only on color camera

data.

An assumption is made that terrain regions that

look similar will have similar traversability. The

learning works as follows (Shneier, 2006). The sys-

tem constructs a map of the terrain surrounding the

vehicle, with map cells 0.2 m by 0.2 m. Each pixel

passed up from SP1 has an associated red (R), green

(G), and blue (B) color value in addition to its (x, y,

z) position and label (obstacle or ground). Points are

projected into the map using the (x, y, z) position.

Each map cell accumulates descriptions of the color,

texture, intensity, and contrast of the points that pro-

ject into it.

Color is represented by 8-bin histograms of ra-

tios R/G, R/B, and G/B. This provides some protec-

tion from the color of ambient illumination. Texture

and contrast are computed using Local Binary Pat-

terns (LBP) (Ojala, 1996). The texture measure is

represented by a histogram with 8 bins. Intensity is

represented by an 8-bin histogram, while contrast is

a single number ranging from 0 to 1.

When a cell accumulates enough point, it is

ready to be considered as a model. To build a model

we require that 95% of the points projected into a

cell have the same label (obstacle or ground). If a

cell is the first to accumulate enough points, its val-

ues are used to create the first model. If other models

already exist, the cell is matched to these models

to see if it can be merged or if a new model must be

created. Matching is done by computing a weighted

sum of the elements of the model and the cell. Each

model has an associated traversability, computed

from the number of obstacle and ground points that

were used to create the model. These models corre-

spond to regions learned by example. Learning by

experience is used to modify the models. As the ve-

hicle travels, it moves from cell to cell in the map. If

it is able to traverse a cell that has an associated

model, the traversability of that model is increased.

If it hits an obstacle in a cell, the traversability is

decreased.

To classify a scene, only the color image is

needed. A window is passed over the image and

color, texture, and intensity histograms, and a con-

trast value are computed as in model building. A

comparison is made with the set of models, and the

window is classified with the best matching model,

if a sufficiently good match value is found. Regions

that do not find good matches are left unclassified.

Figure 9a shows an image taken during learn-

ing. The pixels contributing to the learning are

shown in red for obstacle points and green for

ground points. Figure 9b shows a scene labeled with

traversability values computed from the models built

from previous data.

ICINCO 2006 - ROBOTICS AND AUTOMATION

160

4 SUMMARY AND

CONCLUSIONS

The NIST 4D/RCS reference model architecture was

implemented on the DARPA LAGR vehicle, which

was used to prove that 4D/RCS can learn. Sensor

processing, world modeling, and behavior genera-

tion processes have been described in this paper.

Outputs from sensor processing of vehicle sensors

are fused with models in WM to update them with

external vehicle information. World modeling acts as

a bridge between multiple sensory inputs and a be-

havior generation (path planning) subsystem. Behav-

ior generation plan vehicle paths through the world

based on cost maps provided from world modeling.

Learning, as used on the LAGR vehicle includes

learning by example, learning from experience, and

learning of behaviors that are more likely to lead to

success.

Future research will include completion of the

sensory processing upper level (SP2) and developing

even more robust control algorithms than those de-

scribed in this paper.

(a) (b)

Figure 9: Learning by example images. (a) is an image

taken during learning and overlaid with (red) obstacles

and (green) ground, (b) is the same image overlaid with

traversability information as obstacles (magenta) and

ground (yellow).

REFERENCES

Albus, J.S., Juberts, M., Szabo, S., RCS: A Reference

Model Architecture for Intelligent Vehicle and High-

way Systems, Proceedings of the 25th Silver Jubilee

International Symposium on Automotive Technology

and Automation, Florence, Italy, June 1-5, 1992.

Albus, J.S., Huang, H.M., Messina, E., Murphy, K.N.,

Juberts, M., Lacaze, A., Balakirsky, S.B., Shneier,

M.O., Hong, T.H., Scott, H.A., Proctor, F.M., Shackle-

ford, W., Michaloski, J.L., Wavering, A.J., Kramer,

Tom , Dagalakis, N.G., Rippey, W.G., Stouffer, K.A.,

4D/RCS Version 2.0: A Reference Model Architecture

for Unmanned Vehicle Systems, NISTIR, 2002.

Albus, J.S., Balakirsky, S.B., Messina, E., Architecting A

Simulation and Development Environment for Multi-

Robot Teams, Proceedings of the International Work-

shop on Multi Robot Systems, Washington, DC, March

18 – 20, 2002

Balakirsky, S.B., Chang, T., Hong, T.H., Messina, E.,

Shneier, M.O., A Hierarchical World Model for an

Autonomous Scout Vehicle, Proceedings of the SPIE

16th Annual International Symposium on Aero-

space/Defense Sensing, Simulation, and Controls, Or-

lando, FL, April 1-5, 2002.

Bostelman, R.V., Jacoff, A., Dagalakis, N.G., Albus, J.S.,

RCS-Based RoboCrane Integration, Proceedings of

the International Conference on Intelligent Systems: A

Semiotic Perspective, Gaithersburg, MD, October 20-

23, 1996.

Chang, T., Hong, T., Legowik, S., Abrams, M., Conceal-

ment and Obstacle Detection for Autonomous Driving,

Proceedings of the Robotics & Applications Confer-

ence, Santa Barbara, CA, October, 1999.

Heyes-Jones, J., A* algorithm tutorial, 2005

http://us.geocities.com/jheyesjones/astar.html.

Shneier, M., Chang, T., Hong, T., and Shackleford, W.,

Learning Traversability Models for Autonomous Mo-

bile Vehicles, Autonomous Robots (submitted), 2006.

Jackel, Larry, LAGR Mission,

http://www.darpa.mil/ipto/programs/lagr/index.htm,

DARPA Information Processing Technology Office,

2005

Konolige, K., SRI Stereo Engine, 2005

http://www.ai.sri.com/~konolige/svs/.

Michaloski, J.L., Warsaw, B.A., Robot Control System

Based on Forth, Robotics Engineering, Vol. 8, No. 5,

pgs 22-26, May, 1896.

Ojala, T., Pietikäinen, M., and Harwood, D., A Compara-

tive Study of Texture Measures with Classification

Based on Feature Distributions, Pattern Recognition,

29: 51-59, 1996.

Oskard, D., Hong, T., Shaffer, C., Real-time Algorithms

and Data Structures for Underwater Mapping, Na-

tional Institute of Standards and Technology, 1990.

Shackleford, W., The NML Programmer's Guide (C++

Version), 1990.

http://www.isd.mel.nist.gov/projects/rcslib/NMLcpp.ht

ml.

Shackleford, W., Stouffer, K.A., Implementation of

VRML/Java Web-based Animation and Communica-

tions for the Next Generation Inspection System

(NGIS) Real-time Controller, Proceedings of the

ASME International 20th Computers and Information

in Engineering (CIE) Conference, Baltimore, MD,

September 10 – 13, 2000.

Tan, C., Hong, T., Shneier, M., and Chang, T., "Color

Model-Based Real-Time Learning for Road Follow-

ing," in Proc. of the IEEE Intelligent Transportation

Systems Conference (Submitted) Toronto, Canada,

2006

THE LAGR PROJECT - Integrating Learning into the 4D/RCS Control Hierarchy

161
