MISSION PLANNING, SIMULATION AND SUPERVISION OF

UNMANNED AERIAL VEHICLE WITH A GIS-BASED

FRAMEWORK

Pedro Gutierrez, Antonio Barrientos, Jaime del Cerro, Rodrigo San Martin

ETSII Universidad Politecnica de Madrid

Jos Gutierrez Abascal 2, E-28002 Spain

Keywords:

Unmanned aerial vehicles, mission planning, geographic information system, supervision.

Abstract:

A framework for mission planning, simulation and supervision of unmanned aerial vehicles (UAV) has been

developed. To provide a rich context for mission planning an Enhanced Reality is created from Geographic

Information System (GIS) sources and dynamic aggregation of available geo-referenced data. The mission

is expressed as statements and expressions of the Aerial Vehicle Control Language (AVCL), the abstraction

mechanism needed to bridge the gap between a strategic mission planner and a heterogenous group of vehicles

and active payloads. The framework is extendable by design and its aimed at the integration of diverse vehicles

with existing systems. It has been tested as a Mission Planning and Simulation tool with our real-time small

helicopter model.

1 INTRODUCTION

The development of UAV platforms usually has fol-

lowed a bottom-up approach where the low-level con-

trol is solved ﬁrst and the high-level mission planning

last. This is patent in the many articles published in

the past decades on attitude control, modeling and tra-

jectory tracking for UAVs, whereas mission planning

and supervision interfaces and systems received lit-

tle attention. This is a reasonable, even natural, ap-

proach, but more often than not the design of the top

control hierarchy is conditioned by the low-level con-

troller’s capabilities and design-time choices. Fur-

thermore, outside military-related research (of the

Secretary of Defense, 2005) there is no driving force

for the use of applicable standards and technologies

to ease integration of heterogeneous vehicles with ex-

isting systems.

Our university has three functional autonomous

aerial vehicles, and two more will become operational

in the next few months. Therefore we established a

top-down design for the higher levels of the software

hierarchy. In other words, it is assumed that the sys-

tem will have to accommodate to an heterogeneous

group of UAVs, low and mid-level control capabili-

ties/designs and active payloads. Additionally the de-

sign requires the use of applicable standards whenever

possible and cost-effective. As the framework moves

down and other projects at the university work their

way up, with different vehicles, the adaptability of the

system will be fully tested.

To date we have developed a GIS-based software

tool for mission planning, simulation and real-time

supervision of UAVs (MP-SS). And serving as the

bridge between the strategic planner and different ve-

hicles (simulated or real), there exists the run-time-

interpreted Aerial Vehicle Control Language (AVCL),

which is a move toward device-independent program-

ming tools, comparable to the MDLe (Hristu et al.,

2000). Both the MP-SS and the AVCL interpreter are

part of a framework that establishes a uniﬁed and open

platform for the integration of heterogeneous UAV

systems. So far the Mission Planning - Simulation

loops have been tested.

The AVCL is the abstraction layer that allows the

human supervisor to create missions that are vehicle

and payload independent, promoting code reuse. At

the same time the AVCL statements and commands

hide device speciﬁc software/hardware, and serve as

mission deﬁnition and storage.

1.1 GIS Data as a World Model

Most UAV research has been driven by military goals

(:19, 1999), so many researchers have focused on re-

active systems and unknown-space navigation. Nev-

310

Gutierrez P., Barrientos A., del Cerro J. and San Martin R. (2006).

MISSION PLANNING, SIMULATION AND SUPERVISION OF UNMANNED AERIAL VEHICLE WITH A GIS-BASED FRAMEWORK.

In Proceedings of the Third International Conference on Informatics in Control, Automation and Robotics, pages 310-317

DOI: 10.5220/0001214603100317

 SciTePress

ertheless the DoD states, in its Unmanned Aircraft

Systems (UAS) Roadmap, that autonomous vehicles

must also perform dull missions, which are repetitive

tasks in known territory, and may be carried out by

simpler and more reliable systems. Even highly re-

active designs must consider the fact that few places

where aerial vehicles ﬂy are completely unknown, be-

ing micro UAVs a notable exception.

Ofﬁcial and commercial institutions work everyday

to provide richer, better and more detailed geographic

and topological databases. In developed countries

Geographic Information Systems (GIS) provide full

coverage with great accuracy, and GIS tools are ﬁnd-

ing their way in robotics as knowledge representation

technologies (Doherty et al., 2000; Doherty, 2004).

Additionally, the role of GIS is crucial for many

mission planning systems (e.g. inspection of power

lines), GIS-based teleoperation interfaces may have

richer virtual environments, and GIS technologies and

standards provide an excellent medium for spatial-

data sharing. An example is the use of USGS’ Digital

Elevation Models (DEM) as a world model for 3D

navigation (Sinopoli et al., 2001).

2 THE MISSION PLANNER’S

(MP) GRAPHICAL INTERFACE

The Mission Planner (MP) is a .NET application de-

veloped in C# that uses ArcObjects (Institute, ) as the

GIS-enabling API. Using this commercial software li-

brary does, for now, tie the MP to the Windows plat-

form. Nevertheless ArcObjects provides unsurpassed

ﬂexibility because many of the world’s GIS databases

can be used without modiﬁcation. This level of inte-

gration with GIS might be the most notable difference

and, from our point of view, advantage of the MP over

previous planning tools (Barrouil and Lemaire, 1998;

Tso et al., 1999; Kim et al., 2002; Ramos et al., 2003).

It is important to note that the use of standard GIS

databases does not preclude the use of custom world

models (potential ﬁelds, octrees, clusters of spheres,

etc.) for speciﬁc tasks, such as autonomous path plan-

ning.

The MP has two interwound tools: one for data

display and other for command input. The former

presents the human operator an Enhanced Reality,

while the latter accepts the vehicle’s commands as

will be explained in Section 3.4. A simpliﬁed dia-

gram of the main components of the data display is

shown in Fig. 1, and its relevant aspects are detailed

in the following Sections.

There are several sources of GIS data available

from different levels and institutions of the govern-

ment. Commercial databases are usable too, but they

usually offer less accuracy for unpopulated areas. Ad-

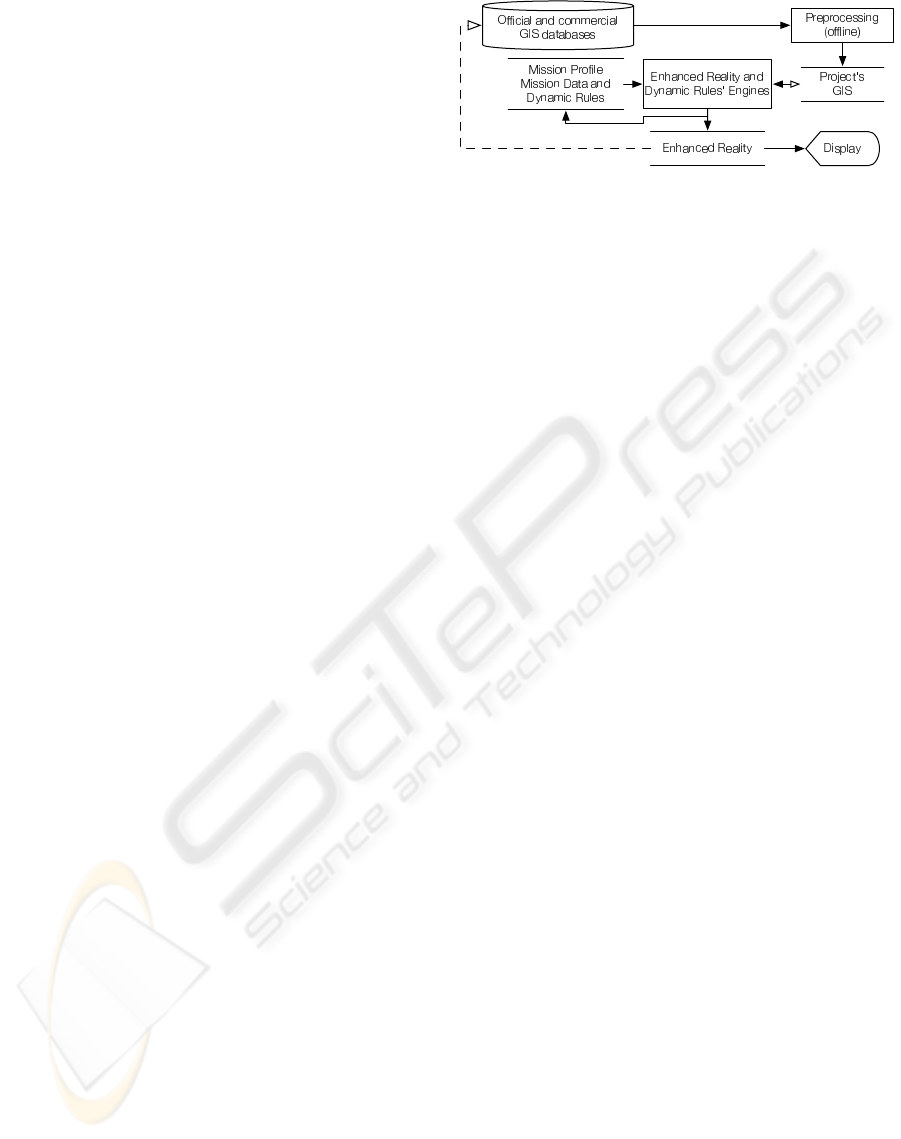

Figure 1: Simpliﬁed diagram of the generation of an En-

hanced Reality for Mission Planning, Simulation and Su-

pervision.

ditionally, properly geo-referenced data from various

vehicles’ sensors may be added to the database with

little effort.

Having heterogeneous data sources imposes an of-

ﬂine Preprocessing step: projections, units and co-

ordinate systems are matched; multi-resolution pyra-

mids for efﬁcient display are built for aerial/satellital

photographs; data discrepancies, if any, are solved;

3D representations of bidimensional data are built;

better resolution data is generated by aggregation of

multiple sources; and smaller datasets that match the

mission’s envelope are extracted, and irrelevant data

is discarded. This tasks are handled with GIS tools

(commercial, GNU-licensed, and custom-made) and

usually are one-time jobs.

After Preprocessing the MP software is able to cre-

ate a single ﬁle that holds all relevant GIS databases:

the Project’s GIS. This data is static because most GIS

standards can not handle space-time relations (Peu-

quet, 1999), dynamic data is added later. The static

nature of the Project’s GIS is not a limitation because

the main purpose of this database is to serve as the

context of the mission and the starting point at which

the human operator begins to express the mission’s

goals. It may seem at ﬁrst that a static GIS forces a

deliberative design but this is not the case: fully reac-

tive UAVs may be commanded and simulated in this

virtual environment.

2.1 Mission Proﬁle

It is an XML document that stores the Mission and its

main parameters:

• the location of the Project’s GIS database;

• the different symbols sets for data display. There

usually are many geographic/topological features

available in the Project’s GIS, but not all are rel-

evant at any given time. For example, the loca-

tion of power lines is critical for overhead inspec-

tion missions, so they should be displayed with

high-visibility symbols, while other items should

be subdued or invisible. Different symbol sets are

MISSION PLANNING, SIMULATION AND SUPERVISION OF UNMANNED AERIAL VEHICLE WITH A

GIS-BASED FRAMEWORK

311

arranged as a collection of “layers” whose visibility

can be switched on and off;

• the location of the available Vehicles Libraries (see

Section 3);

• the Mission Data and Dynamic Rules (see Sections

2.2 and 2.3).

The various pieces of the Mission Proﬁle deter-

mine, at run-time and dynamically, how all available

data is presented to the human operator.

2.2 Dynamic Rules

The main application of GIS data in the MP is the

representation of the context in which the mission is

planned -and simulated/supervised in a later stage-

. However, there are restrictions and additional in-

formation that can be inferred or generated both at

design-time and run-time. For example: in most

countries regulations forbid the use of UAVs over

areas with high population densities. The Dynamic

Rules’ engine overlays such areas with the “Forbid-

den” symbology and will disallow any operation of

the UAV within them.

Dynamic Rules do not have to express restrictions,

essentially they are combinations of available data,

provided either by the Project’s GIS, the UAVs or

other Dynamic Rules. They are stored as XML-

snippets that hold three components: its type and pa-

rameters; instructions on how to combine the avail-

able data to create a GIS feature, typically a set of

queries and logical operators; and information on the

way it should be presented in the display and stored

as new GIS data, essentially a set of GIS symbols.

Currently there are 5 types of rules:

• Virtual-data rule: by simple aggregation of exist-

ing GIS data new information can be displayed.

For example, a marker can be created at any loca-

tion where an UAV’s planned trajectory intercepts

a railway.

• Forbidden-zone hard rule: no vehicle can ﬂy within

this zone.

• Forbidden-zone soft rule: creates an interdict that

may be overridden by the human operator.

• Restricted-zone hard rule: a zone that enforces re-

strictions on the UAVs that ﬂy within (e.g. a veloc-

ity limit).

• Restricted-zone soft rule: a zone whose limitations

can be discarded.

It is important to note that a zone in this context is any

valid GIS datatype: point, line, surface or body. As

an example: when a rule creates a forbidden-line no

trajectory may intersect it.

One shortcoming of the Dynamic Rules system is

that they are tied to GIS sources. In other words, if

N government-supplied GIS databases represent free-

ways with M different codes there are two solutions:

to match the codiﬁcation at the Preprocessing stage,

or to design the rule with all the codes in its deﬁni-

tion. It is important to note that these rules are called

Dynamic for two reasons: data aggregation occurs at

run-time, and dynamic data, such as vehicle’s trajec-

tories, can be aggregated.

2.3 Mission Data

The mission consists of two elements: hotspots

and vehicle commands, both expressed in AVCL.

Hotspots are absolute or relative coordinates of 3D-

points that are relevant to the mission, such as way-

points, the center of an arc trajectory, or a feature that

must be examined with on-board sensors. Features of

the Project’s GIS can not be used directly to deﬁne

relative hotspots because it can not be guaranteed that

all UAVs will use the database as an on-board aid to

navigation. If need be the GUI can be used to acquire

the feature’s coordinates before adding the hotspot as

an absolute 3D-point. It is important to note that there

are two exceptions to this rule in the Mission Planning

tool: when a speciﬁc UAV “exposes” its capabilities

to the human operator, or when the mission uses mul-

tiple vehicles, but this will be explained later.

In the near future the MP will be extended to in-

clude lines, areas and bodies of interest (LOIs, AOIs

and BOIs, respectively). This will enhance the plan-

ning capabilities because it will be possible to instruct

a vehicle to follow a line without having to deﬁne a

large set of hotspots.

As stated above the Mission Data also consists of

vehicle commands. The human operator adds com-

mands to the mission as AVCL statements, either di-

rectly or with the aid of the MP’s GUI. These state-

ments are parsed and interpreted to create a projected

trajectory in real-time (subject to the limitations of

the chosen path-generating algorithm). The trajectory

and additional information (e.g. the number of rev-

olutions in a circular trajectory) are displayed by the

MP and aggregated as applicable GIS datatypes to the

Enhanced Reality. Therefore, this data is available to

most functions of the framework that work with GIS

features.

2.4 Enhanced Reality

The Enhanced Reality is the display of static, dy-

namic, inferred and simulated GIS data. To sum-

marize the previous Sections: the Dynamic Rules’

engine and the Mission Data (mostly hotspots and

trajectories) create GIS features that are aggregated

at run-time to the Project’s GIS to produce the En-

hanced Reality, which is displayed with the symbols

ICINCO 2006 - ROBOTICS AND AUTOMATION

312

sets available in the Mission Proﬁle. A screenshot of

the MP’s GUI is shown in Fig. 2. The MP is able to

show data in 2D and 3D environments, and it has a

global view that provides the context when the user

zooms in. Also available is a Z-proﬁle view, a plot of

altitude vs. distance of both the UAV’s trajectory and

its projection on the ground. The human operator may

change the sizes and relative positions of the different

views to suit the requirements of the current task, but

usually it is easier to plan in 2D and use the 3D-view

only for validation of some mission segments. On the

other hand, simulation normally has opposite require-

ments.

3 THE AERIAL VEHICLE

CONTROL LANGUAGE (AVCL)

So far the use of GIS data and the display of an En-

hanced Reality as contexts/aids to mission planning

have been explained, but the real power of the Mission

Planning framework comes from the use of an Aer-

ial Vehicle Control Language (AVCL) as a vehicle-

independent language to express mission goals and

parameters, UAV and payload commands, and mainly

as an abstraction tool for the management and inte-

gration of an heterogeneous group of aerial vehicles.

Therefore the AVCL should not be regarded as only a

grammar and its interpreter but as a consistent frame-

work.

3.1 The AVCL Grammar and

Interpreter

The AVCL borrows from and extends previous re-

search (Yuan et al., 1999; Dixon et al., 1999; Duarte

and Werger, 2000; Doherty et al., 2000; Kim et al.,

2002; Kim and Yuh, 2003). Because its grammar is

relatively complex it will not be reproduced here in

EBNF. Furthermore, the AVCL is a quasi-imperative

language that loosely follows the design of C++, so

it is fairly simple to grasp its structure by reviewing

its main properties and functionality, and presenting

some code snippets:

• Basic datatypes: bool, double-precision ﬂoating-

point number and string.

• Complex datatypes: distance, velocity, time, angle,

angular velocity, angular acceleration, vector/array,

3D-coordinates vector and attitude vector. Both SI

and English units are supported, and an operator for

unit conversion is provided.

• Logical, Comparison and Arithmetic operators

handle all datatypes (e.g. + concatenates strings),

and the interpreter follows the conventions of C++

on operator precedence.

• Trigonometric functions: sin, arcsin, etc..

• Variables, constants and mutables. Variables can be

created/destroyed, and have an associated datatype

while mutables are universal containers.

• Vehicles are stored in variables which point to the

glue-code that represents the simulated/real UAV’s

interfaces, which may be in the computer’s mem-

ory or elsewhere.

• Functions can be overloaded and nested.

• The AVCL follows a soft OOP paradigm, where

all variables are objects with attributes and mem-

ber functions. These can be accessed with the ->

operator, and may in turn be objects (cascaded-

attributes).

• Branches and Loops: if-then-else and while-do in-

structions are supported, with no practical limit to

the depth of the nesting of branches and loops.

The following snippet is valid AVCL code:

# AVLC

variable d, v, x. y, uav

d = 3.33e1 kilometer # a distance var

v = 1.2 fps # a velocity var

x = @0m, 0m, 15m@ # a 3D-point

y = x+@1m, 0m, -4m@ # an offset

uav = loadVehicle[‘‘\libs\moskito.so’’,

params]

uav->TakeOff[4.4ft] # take off to a

given Z

uav->FlyTo[x,4kph,45

]# vel/heading

constraints

if (((uav->Sensors)->Camera)->IsOn[])

((uav->Sensors)->Camera)->Snapshots[25,y]

else

print[‘‘ERROR: Camera is OFF’’]

endIf

The AVCL interpreter is a C++ library developed

with the Spirit Framework (de Guzman, ). It has

been successfully compiled for the Windows, Linux

and Mac OS X platforms, both as a dynamically

loaded library and as a standalone application.

The cross-platform design is necessary because the

interpreter resides both inside the Mission Planner

and in any embedded-system that controls an UAV

or active payload. Expressing the vehicle’s operation

with a run-time-interpreted language was a design

goal because it allows to command an UAV with

human-readable short messages, eases integration

with other tools and paves the way for speech-based

interfaces.

It is important to note that, while the AVCL is in-

terpreted at run-time in a sequential manner, the vehi-

cle’s scheduler does not need to be sequential.

MISSION PLANNING, SIMULATION AND SUPERVISION OF UNMANNED AERIAL VEHICLE WITH A

GIS-BASED FRAMEWORK

313

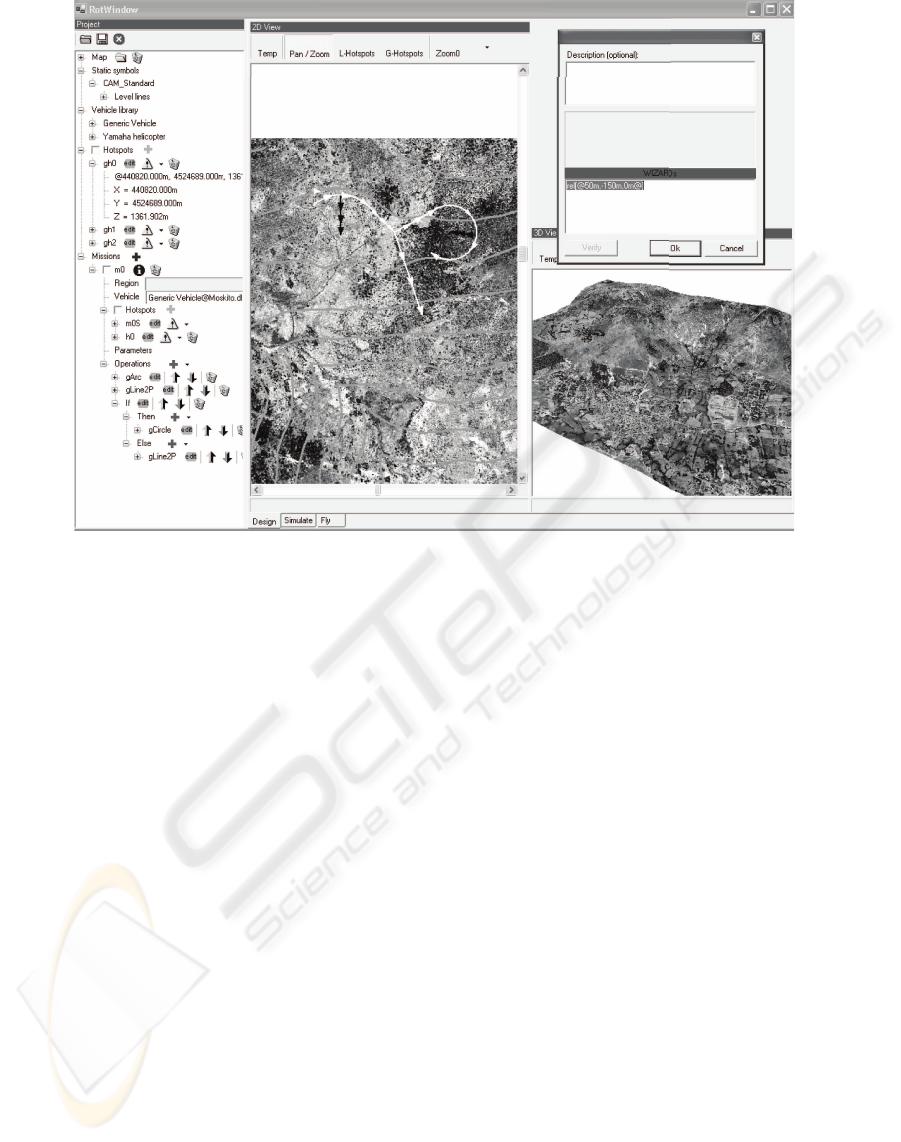

Figure 2: Grayscale screenshot of the Mission Planning GUI with Project Tree, 2D/3D World View and AVCL interface.

3.2 AVCL, the Bridge between

Strategic Planning and Mid-level

Control

As explained above the human operator uses an En-

hanced Reality to plan the mission, which is ex-

pressed by the MP as AVCL statements and expres-

sions. These instructions are converted to trajectories

and associated data by an interpreter, which is either

embedded in the MP or in a simulated/real UAV (see

Fig. 3). This means that for a device to be avail-

able for mission planning it must publish its attributes

and functions as AVCL objects. For UAVs whose in-

terfaces are developed in C++ compatibility with the

AVCL framework is a matter of class inheritance. For

other languages, or for remote objects, glue-code that

complies with the application binary interface (ABI)

of the interpreter is needed. These are not harsh re-

quirements as an AVCL object needs only three at-

tributes:

1. a name;

2. instructions on its use (optional);

3. a list of its attributes/functions, if any;

The attributes are objects themselves, and functions

are in reality two functions that receive the same in-

put parameters: a pointer to the interpreter’s public

state and a vector of the objects that were parsed as

input. The ﬁrst function exposes the public function’s

state (static parameters), while the second function is

the public function-call per se. Both functions return

a vector of AVCL objects. For example, the FlyTo

member function of an UAV could return, in planning

mode, a vector with the projected waypoints.

Using the AVCL as the bridge between the strategic

planner and the vehicle’s speciﬁc hardware/software

has an important advantage: that it too becomes a

bridge between the vehicles. This means that new

connections can be made at run-time, connections that

need not be considered at design-time:

1. a vehicle can be dynamically connected to a “navi-

gator” object with N different algorithms;

2. different active payloads can be freely mixed with

various vehicles, making possible the operation of

the payload capabilities or controlling the vehicle

with the payload:

# the vehicle controls the payload

uav->FlyTo[P1]

while (uav->Position != P1)

camera->Snapshot[P2] # take a picture

of P2

endWhile

# the payload controls the vehicle

uav->FlyUntil[northwest,

thermo->threshold[25]]

ICINCO 2006 - ROBOTICS AND AUTOMATION

314

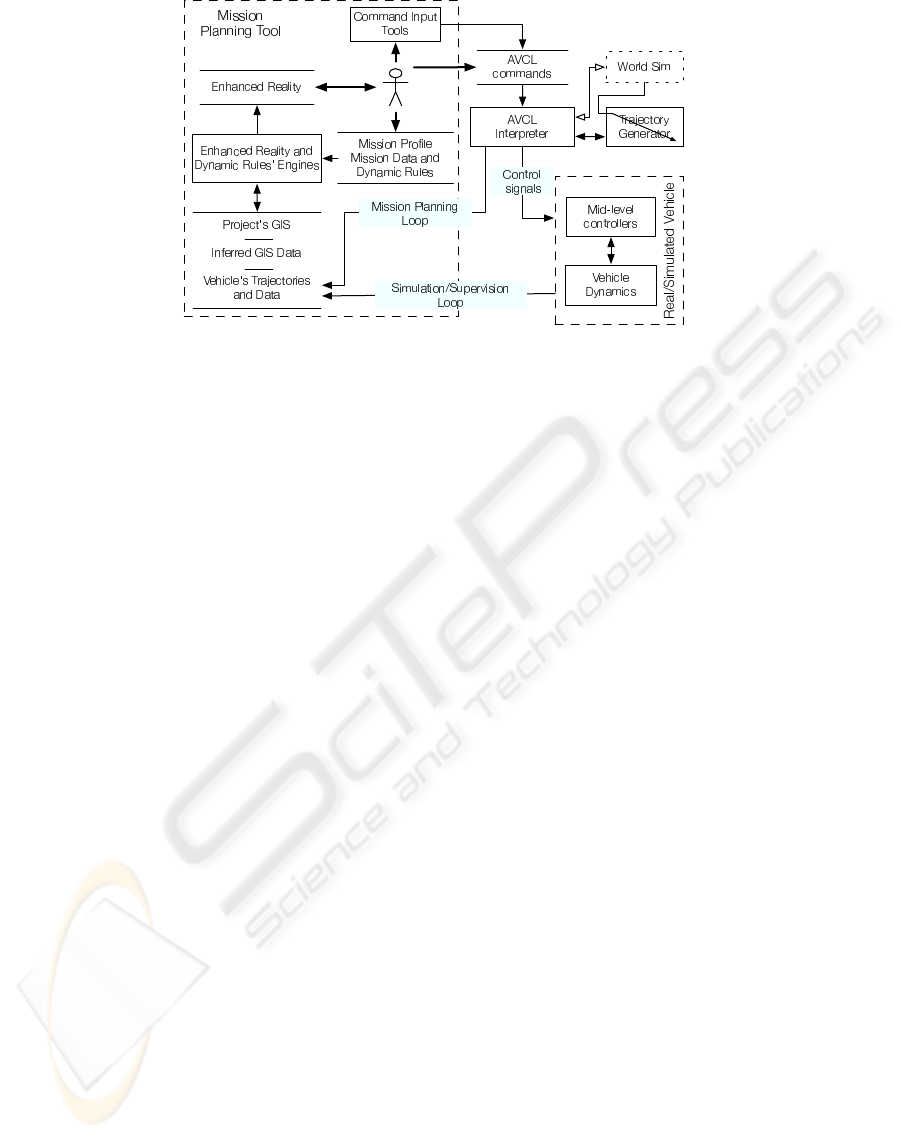

Figure 3: Simpliﬁed diagram of the Mission Planning and Simulation Loops.

3. the relation between vehicles and sensors can be

further abstracted:

if (uav->Name == ‘‘RMAX’’)

# function pointer

sense = cam->takePicture

params = { } # empty vector

else

# function pointer

sense = IRcam->takeVideo

params = 10.24s

endIf

uav->FlyTo[P1]

sense[params]

4. simple multi-vehicle missions and behaviors are

possible: uav1->Follow[uav2];

These are just a few simple examples of the possi-

bilities that the AVCL framework opens.

3.3 Generic Unmanned Aerial

Vehicles

The Mission Planner is not tied to a particular set of

vehicles, sensors or commands. At any given time

new functionality can be loaded and displayed to the

human operator as new options and commands. This

means that the MP-SS tool is to be extended through

Vehicle and Command Libraries without recompiling,

and that new capabilities and better vehicles can be

added effortlessly. The Mission Planner is a great

tool for simulation and direct comparison of differ-

ent trajectory trackers, UAV models and controllers,

because it can display N missions at the same time.

The concept of Vehicle Libraries has also been used

to deﬁne Generic UAVs. These are baseline vehi-

cles whose capabilities are nonspeciﬁc and only true

for a given set of vehicles. The MP-SS tool always

has one such Generic vehicle available: the simplest

UAV, which is capable of the following operations:

arc, change heading, circle, hover, land, two-point

line and take-off. It has no sensors and its trajectory

generator is very simple, it just veriﬁes that the vehi-

cle will not crash with the ground. The “hover” com-

mand is considered generic because it is available for

two of the three more common aerial vehicles (heli-

copter, airship and airplane) and it is a frequent oper-

ation for many missions (e.g. surveillance, data gath-

ering, etc.). Furthermore, it can be “approximated”

by ﬂying in circles, a solution that the MP proposes

when a vehicle not capable of hovering is selected to

ﬂy a mission created with this Generic UAV.

The use of Generic UAVs allows the human oper-

ator to plan missions that are ﬂyable by any vehicle

of a given set. Choosing a Generic vehicle in the MP

means that the operator will design and simulate an

approximation of the mission. After some rough vali-

dations have been made the human operator is free to

choose which vehicle will ﬂy. Obviously the mission

proﬁle must be validated when changing the vehicle

because some parameters might be incompatible (e.g.

velocity and range constraints), but a good Generic

vehicle would ease this task.

Moreover, a large set of generic missions is a good

benchmarking tool for our growing collection of ve-

hicles, models and controllers.

3.4 Planning a Mission

Planning a mission with the MP-SS software tool is a

simple task. The ﬁrst step is to load the Project’s GIS,

thus setting the context of the mission. Additional op-

erations do not follow a speciﬁc order, most of them

are available all the time.

MISSION PLANNING, SIMULATION AND SUPERVISION OF UNMANNED AERIAL VEHICLE WITH A

GIS-BASED FRAMEWORK

315

• Change the project’s proﬁle. Select the available

symbols sets, dynamic rules, etc.

• Add a global hotspot. These are available in all the

project’s missions and for all vehicles.

• Add missions. For each new mission the software

will automatically add a hotspot with random coor-

dinates, the assumed vehicle’s initial position.

• Change the Mission Proﬁle. Select the way the

Enhanced Reality should be displayed (symbols,

views, dynamic rules, etc.).

• Explore the Enhanced Reality. Zoom in and out,

change the on-screen size of different views, etc..

• Add vehicle libraries. These are loaded and the new

functionality is displayed when entering AVCL

commands.

• Add vehicle commands. Because the functions

might be overloaded some parameters are optional

and the type and order deﬁnes the outcome.

• Change the vehicle for each mission. The software

will have to validate the mission, and if changing

from a more capable vehicle, conﬂicts will have to

be manually resolved.

• Save the Mission Proﬁle as an XML document.

• Export the mission commands as a text ﬁle. This

ﬁle is uploaded to the vehicle to ﬂy the mission.

3.5 The Mission Simulator and

Supervisor

As shown in Fig. 3 the Mission Planner has

two similar loops for mission planning and simula-

tion/supervision. The difference is that in the Plan-

ning Loop the interpreter sends the projected way-

points back to the MP’s Enhanced Reality, while in

the Simulation Loop the interpreter commands the

simulated vehicle, which in turn sends the simulated

positions to the MP. Our research group has devel-

oped a Simulink-based model of a small helicopter

(del Cerro et al., 2004), that includes a position con-

troller and is capable of real-time simulation. This

simulator has been used with the MP-SS tool to test

the Simulation loop. For Mission Supervision the

AVCL commands would be sent to the real vehicle,

and its position plotted alongside the projected and/or

simulated paths.

4 CONCLUSION

A working version of the Mission Planning and Sim-

ulation (MP-SS) tool is available for use with any

UAV, and has been tested with our real-time heli-

copter model for mission planning and simulation. In

the near future the Supervision tool will be evaluated

with our working UAV once the interpreter is engi-

neered into and tested with the embedded platform.

And in the coming months the framework will be in-

tegrated with an heterogenous group of vehicles and

payloads, testing its ability to adapt to different capa-

bilities and design paradigms.

An UAV is only as useful as its payload, thus the

ability of the AVCL-based framework to mix vehicles

and payloads at run-time and without recompiling is

a major advantage when compared to other mission

planning tools. Furthermore, more capable UAVs

can publish mechanisms for the development of new

behaviors using only AVCL commands and expres-

sions. Another beneﬁt of the framework and software

tools is the use of GIS data as the main representation

model for the world. Numerous ofﬁcial and commer-

cial sources can be used to build an Enhanced Reality

for Mission Planning, and there exists a mechanism

for data aggregation and sharing.

4.1 Future Work

The tools described here are operational, but the

framework can (and will) be extended to provide new

functionality or more advanced versions of current

tools. However, there are known limitations. At the

moment the Dynamic Rules’ engine is very simple

and incapable of smart aggregation of GIS data. AI

algorithms would greatly enhance the options for in-

ferring new GIS data. For example the risk of turbu-

lence could be modeled as a function of the 3D terrain

model and land-use information, and this information

used as a new type of rule: a risk zone.

Another limitation is visible in Fig. 3: the World

Sim is, at the moment, just a placeholder for an engine

that will generate additional data for simulation pur-

poses. An example of this would be wind conditions,

GPS-signal quality degradation, virtual sensors or

markers, an many other variables that would greatly

enhance the simulating capabilities of the framework.

The World Sim will be controlled with AVCL com-

mands and will change the parameters of both the in-

terpreter and trajectory generation engines.

In the short term the GUI must be extended to han-

dle all the capabilities of the AVCL framework. No-

tably absent is the operation of sensors not loaded as

vehicle’s attributes but as independent objects. This is

possible with the interpreter but not with the Mission

Planner interface.

ACKNOWLEDGEMENTS

The authors would like to thank CONACYT for their

ﬁnancial support.

ICINCO 2006 - ROBOTICS AND AUTOMATION

316

REFERENCES

(1999). Civilian applications: the challenges facing the

UAV industry.

Barrouil, C. and Lemaire, J. (1998). An integrated navi-

gation system for a long range auv. In OCEANS ’98

Conference Proceedings, volume 1, pages 331 –335

vol.1.

de Guzman, J. Spirit framework.

del Cerro, J., Valero, J., Vidal, J., and Barrientos, A. (2004).

Modeling and identiﬁcation of a small unmanned he-

licopter. In World Automation Congress.

Dixon, K., Dolan, J., Huang, W., Paredis, C., and Khosla,

P. (1999). Rave: a real and virtual environment for

multiple mobile robot systems. In Intelligent Ro-

bots and Systems, 1999. IROS ’99. Proceedings. 1999

IEEE/RSJ International Conference on, volume 3,

pages 1360 –1367 vol.3.

Doherty, P. (2004). Advanced research with autonomous

unmanned aerial vehicles. In 9th International Con-

ference on Principles of Knowledge Representation

and Reasoning KR2004, Proceedings of.

Doherty, P., Granlund, G., Kuchcinski, K., Sandewall, E.,

Nordberg, K., Skarman, E., and Wiklund, J. (2000).

The WITAS unmanned aerial vehicle project. In Horn,

W., editor, ECAI 2000. Proceedings of the 14th Euro-

pean Conference on Artiﬁcial Intelligence, pages 747–

755, Berlin.

Duarte, C. N. and Werger, B. B. (2000). Deﬁning a common

control language for multiple autonomous vehicle op-

eration. In OCEANS 2000 MTS/IEEE Conference and

Exhibition, volume 3, pages 1861 –1867 vol.3.

Hristu, D., Krishnaprasad, P., Andersson, S., Zhang, F., So-

dre, P., and Anna, L. (2000). The MDLe engine: A

software tool for hybrid motion control. Technical re-

port, University of Maryland.

Institute, E. S. R. Arcobjects 8.3.

Kim, H. J., Shim, D. H., and Sastry, S. (2002). Flying ro-

bots: modeling, control and decision making. In Ro-

botics and Automation, 2002. Proceedings. ICRA ’02.

IEEE International Conference on, volume 1, pages

66–71 vol.1.

Kim, T. W. and Yuh, J. (2003). Task description lan-

guage for underwater robots. In Intelligent Robots

and Systems, 2003. (IROS 2003). Proceedings. 2003

IEEE/RSJ International Conference on, volume 1,

pages 565 –570 vol.1.

of the Secretary of Defense, O. (2005). Unmanned aircraft

systems (UAS) roadmap, 2005 - 2030.

Peuquet, D. J. (1999). Making space for time: issues in

space-time data representation. In Database and Ex-

pert Systems Applications, 1999. Proceedings. Tenth

International Workshop on, pages 404–408.

Ramos, J. J. G., Maeta, S. M., Mirisola, L. G. B., Bueno,

S. S., Bergerman, M., Faria, B. G., Pinto, G. E. M.,

and Bruciapaglia, A. H. (2003). Internet-based so-

lutions in the development and operation of an un-

manned robotic airship. Proceedings of the IEEE,

91(3):463–474.

Sinopoli, B., Micheli, M., Donato, G., and Koo, T. J. (2001).

Vision based navigation for an unmanned aerial vehi-

cle. In Robotics and Automation, 2001. Proceedings

2001 ICRA. IEEE International Conference on, vol-

ume 2, pages 1757–1764 vol.2.

Tso, K. S., Tharp, G. K., Zhang, W., and Tai, A. T. (1999). A

multi-agent operator interface for unmanned aerial ve-

hicles. In Digital Avionics Systems Conference, 1999.

Proceedings. 18th, volume 2, pages 6.A.4–1 –6.A.4–8

vol.2.

Yuan, X., Ganesan, K., Snowden, S., Smith, S. M., and

Evett, M. (1999). Mission command macros for

autonomous underwater vehicle. In OCEANS ’99

MTS/IEEE. Riding the Crest into the 21st Century,

volume 3, pages 1312 –1316 vol.3.

MISSION PLANNING, SIMULATION AND SUPERVISION OF UNMANNED AERIAL VEHICLE WITH A

GIS-BASED FRAMEWORK

317
