EXTRACTION OF SIGNIFICANT REGIONS IN COLOR IMAGES

FOR LANDMARK IDENTIFICATION

Jose-Luis Albarral and Enric Celaya

Institut de Robòtica i Informàtica Industrial (IRI), UPC-CSIC, Barcelona, Spain

Keywords: Color vision, image segmentation, landmark characterization.

Abstract: In this paper, we address the problem of natural landmark characterization in outdoor environments. Our

approach assumes that the image has been previously processed in order to detect the most color-salient

areas of the image, which are considered as possible candidates to contain a landmark. We take each of

these selected areas and perform a color segmentation of them involving only the most relevant regions,

which will be used to characterize a possible landmark contained in this area. The re-identification of the

same landmarks in successive views should be done in a posterior step by comparing their descriptions,

which consist in the color and first and second order moments of each segmented region. The main

contribution of this paper is the algorithm for the segmentation of the relevant regions of an image.

1 INTRODUCTION

To make vision-based robot navigation possible in

outdoor environments, a robot must be able to detect

and characterize relevant landmarks found in the

environment so that they can be recognized later on.

In order to make this task feasible it is necessary to

restrict the search for landmark candidates to the

most promising areas of the scene. In our approach,

we assume that a number of salient areas have

already been selected for further processing. The

procedure to find the salient areas of an image is not

the subject of this paper, but a description of some

methods that could be applied can be found in

(Celaya and Jimenez, 2003) or (Itti, 1998).

This paper focuses on the characterization of the

selected areas to allow the identification of the same

landmarks in different views. Techniques for

landmark characterization based on grey level

gradients, like the SIFT algorithm (Lowe, 2004),

have had a great success, but they are too dependent

on the point of view, which may change a lot during

the navigation process. A more robust landmark

characterization can be obtained using color

information. The approach we follow consists in a

color-based segmentation with the particularity that

not all pixels in the image are necessarily assigned to

a region: only those parts of the image that constitute

a relevant feature are obtained as the result of the

segmentation. The candidate landmark is then

characterized by the color content and the spatial

moments of its relevant regions, and matched

against other landmarks found in subsequent images.

Many color-based image segmentation

techniques can be found in the literature. Pixel-based

techniques, such as histogram thresholding

(Littmann, 1997) or color clustering methods

(Uchiyama, 1994), work exclusively in the color

space and extract regions with excellent color

homogeneity, but with no spatial continuity. Region

based techniques, such as split-and-merge (Celenk,

1990) or region growing methods (Themeau, 1997),

are a better option as they assure both color

homogeneity and spatial continuity, but their results

depend too much on the order in which pixels are

processed. Other techniques such as contour based

methods (Macaire, 1996) make use of gradient or

Laplacian operators which make them too sensitive

to noise. Finally, physics based methods, such as the

dichromatic reflection model (Shafer, 1985), avoid

effects of reflections and shading by modelling how

light interacts with each object, but they can only be

used when the reflection properties of objects are

known, something unfeasible in previously unknown

outdoor environments.

In this paper we present our approach to the

segmentation and extraction of significant regions of

an image that combines region growing and

histogram thresholding. It can be seen as an

552

Albarral J. and Celaya E. (2006).

EXTRACTION OF SIGNIFICANT REGIONS IN COLOR IMAGES FOR LANDMARK IDENTIFICATION.

In Proceedings of the Third International Conference on Informatics in Control, Automation and Robotics, pages 552-556

DOI: 10.5220/0001218305520556

 SciTePress

"incomplete" image segmentation, in the sense that

not all pixels need to be classified in some region,

but only those defining significant regions. With

significant region we mean that it presents sufficient

color homogeneity, is sufficiently different from its

surroundings, and its size is not too small. Ideally, a

useful landmark should be characterized with a

small number of significant regions. Thus we

designed our algorithm so that only the most

significant regions are obtained.

In the next Section we define the color

similarity test used by the segmentation algorithm,

which is described in Sec. 3. Some experiments and

results obtained with this approach are presented in

Sec. 4.

2 COLOR SIMILARITY TEST

Our segmentation algorithm uses a color similarity

test to determine if a pixel should be included in a

region or not. For this, instead of computing a

complex distance defined in a 3-dimensional color

space, our test uses three one-dimensional distances,

one for each color component. The test succeeds

only if all three distances stay below their respective

fixed thresholds. Clearly, the results of the test will

depend on the color space we use. A major

requirement for any outdoor vision system is

robustness in front of varying illumination. In these

conditions, the HSI color space (hue, saturation,

intensity) is preferable to RGB, since it provides

more robustness to changes in light intensity and

other effects. However, a well known drawback of

the HSI color space is that the hue value is not

reliable for low values of saturation or intensity, and

similarly, the saturation value is not reliable for low

intensity values. According to this, we compute the

distance between HSI components using two

correction factors K

and K

to take into account the

above mentioned indeterminacies associated with

greyness and darkness, respectively:

()

*,min)

( hhKKhhdist

dgH

−= (1)

( ssKssdist

−= (2)

)

( iiiidist

−= (3)

where

()

),(min

)

(

grey

sss

ssK

−−

(4)

()

),(min

)

(

dark

iii

iiK

−−

= (5)

makes the hue distance vanish as one of the

compared saturations falls below the grey saturation

threshold s

grey

, empirically set to 10% of the

saturation range. On the other side, K

makes both

the hue and the saturation distances vanish as one of

the compared intensities falls below the dark

intensity threshold i

dark

, set as 10% of the intensity

range. These two correction factors take the form of

sigmoid functions to guarantee a continuous gradual

correction when values are near both thresholds.

Two colors are considered similar by the test if:

1,,max ≤

⎟

⎠

⎞

⎜

⎝

⎛

thresh

dist

thresh

dist

thresh

dist

(6)

3 SEGMENTATION METHOD

Our segmentation algorithm is based on the

combination of two complementary methods: region

growing and histogram thresholding.

3.1 Random Seeds & Region

Growing

The segmentation method consists in a series of

region growing processes initiated at seed pixels

selected at random. This is done to avoid a complete

examination of all image pixels, since our goal is not

a classification of all pixels, but the identification of

the most significant regions composing the image.

Since too small regions are not considered

significant for landmark characterization, it is

appropriate to use a random exploration, which

gives more probability to find large regions than

small ones. Instead of using a fixed number of

random seeds, we define a minimum percentage of

the image to be segmented and let the process

continue until this percentage is reached. However,

this percentage may be hard to reach in the case of

textured images that give rise to a large number of

small regions. To tackle these situations, an

alternative stop condition occurs when the number

of segmented regions goes beyond a limit.

The process of region growing from a seed pixel

is done using a mask of the image to hold the pixels

included in the region, and a list of pixels to be

expanded, both of them initialized with the selected

seed. The region is characterized by a specific color,

initially taken as that of the seed pixel.

EXTRACTION OF SIGNIFICANT REGIONS IN COLOR IMAGES FOR LANDMARK IDENTIFICATION

553

The expansion of a pixel consists in checking its

eight neighbours for color similarity with its region.

Pixels considered similar are included in the mask

and added at the end of the expansion list. The

process stops when all pixels in the expansion list

have been processed. Repeated checking of the same

pixels is avoided by keeping track of the already

examined pixels. Also, if a seed pixel is contained in

a segmented region, it is not expanded again.

3.2 Defining a Region Color

To decide if a pixel is included in a region, we

perform a similarity test between the color of the

pixel and the color that characterizes the region.

Initially, the region is characterized by the color of

the seed pixel and, as new pixels are included, the

region color evolves to better represent the region.

To determine the current region color, two

approaches have been tested: taking the color

average of the included pixels, and taking the peak

value of the current histogram. In both cases, since

the region color evolves, the inclusion of a pixel in a

region depends on the precise time at which the test

is performed. To solve this, an iterative process of

relaxation can be done in the following way: once a

growing process is completed, the region color is

fixed and all the included pixels are incorporated in

the expansion list. Then the region growing process

is repeated as before, except that the region color is

not updated during the process. The pixels in the

resulting region are used to compute the new region

color that will be used in the next iteration of the

relaxation process. Successive relaxation steps can

be repeated until convergence to a stable region.

Tests performed in a number of images show

that, when using the color average, convergence is

reached in about five steps in most cases. However,

if the histogram peak is used, convergence is faster,

and is reached after just one or two steps. In both

cases, the segmentation is robust to the random

selection of seeds, always providing equivalent

results in different executions.

Therefore, we adopted the histogram peak to

represent the region color. Moreover, since results

do not vary significantly with relaxation, we perform

a single step in order to improve computing time.

3.3 Merging Regions

The region growing processes are independent, in

the sense that a pixel may be included in a region no

matter if it was already included in another one or

not. This mitigates the well known problem of

region growing techniques, whose outcome often

depends on the order in which seeds are expanded.

Thus, in our approach regions may overlap,

indicating that they are relatively similar. For this

reason, after the growing processes overlapping

regions are merged provided they pass a test of color

similarity, though with a larger tolerance than in the

case of pixels.

Since we allow regions to overlap, in some

cases highly overlapped regions, only differing in a

few pixels, may be obtained from different seeds.

This affects efficiency since the same tests are

repeated unnecessarily. To avoid this, the expansion

of a region into an already existing one is limited

only to region borders: pixels already included in

another region are added to the region mask, but not

to the expansion list.

An additional merge process is also done to join

similar regions that don’t overlap, but that are close

enough to each other.

In the final output of the segmentation process,

regions below a predetermined size are filtered off.

The remaining regions are then characterized by

their representing color and their spatial moments up

to order 2, which will be used later on for landmark

identification.

4 EXPERIMENTS AND RESULTS

In figures 1 to 3 a mountain environment image is

segmented. The result of the region growing process

is shown in figure 2, where an oversegmentation is

present with more than 30 regions. Each extracted

region is represented by its color and an ellipse

representing its spatial moments. The result after the

merge process is shown in figure 3, resulting in 8

final regions. The image size is 640x480 and 85% of

it was segmented, taking about 500 ms in a 2.40GHz

processor.

In figures 4 to 6 a field road environment image

is segmented. A strong oversegmentation is present

after the region growing process with more than 70

regions, as shown in figure 5. But, after the merge

process the final result is 13 regions, as shown in

figure 6. The image size is 240x240 and only 60% of

it was segmented, taking about 150 ms in the same

processor.

For real-time navigation we need shorter

processing times and therefore the integration with a

previous salient region detection module would be

useful to reduce the fraction of the image to be

segmented.

ICINCO 2006 - ROBOTICS AND AUTOMATION

554

The output of the saliency module is an ellipse

indicating the approximate position, orientation and

size of a salient color region in the image together

with its color range. This information is used to

separate the salient region from its background.

Then, its convex hull is obtained and the enclosing

area is considered a candidate landmark, in which

the segmentation takes place.

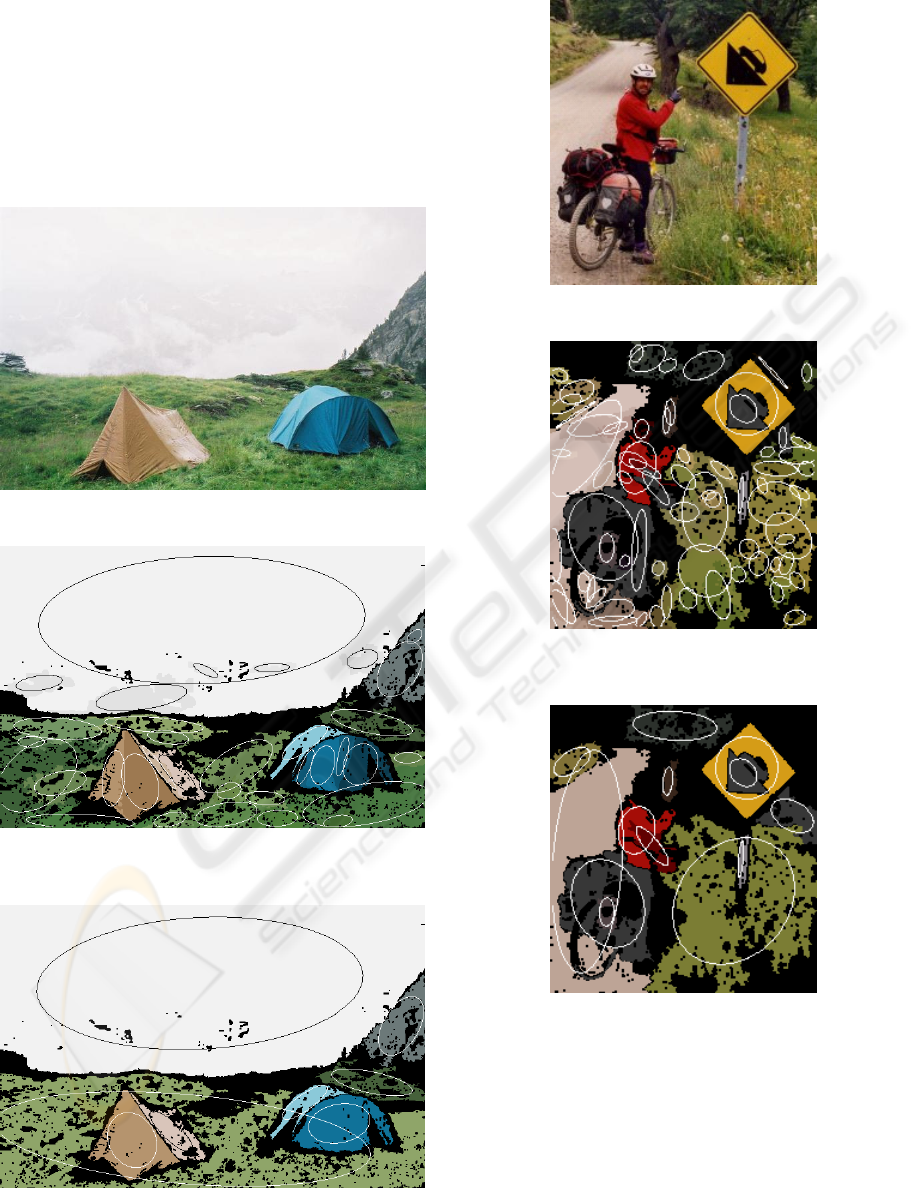

Figure 1: Image of a mountain environment.

Figure 2: +30 extracted homogeneous regions after the

growing process. The image is oversegmented.

Figure 3: 8 final regions after the merge of the similar

overlapped and neighbour regions.

Figure 4: Image of a field road environment.

Figure 5: +70 extracted regions after the growing process.

The image is oversegmented.

Figure 6: 13 final regions after the merge of the similar

overlapped and neighbour regions.

Figures 7 and 8 show two experiments where

the integration of the saliency and segmentation

modules has been tested. In each upper image, the

saliency ellipse indicates the presence of one salient

area, red lighthouse and blue tent, respectively.

Then, the extracted salient area, its convex hull, and

the result obtained after segmentation are shown

below.

EXTRACTION OF SIGNIFICANT REGIONS IN COLOR IMAGES FOR LANDMARK IDENTIFICATION

555

In the first experiment, figure 7, the image size

is 600x570 and only 1% of the image was

segmented (73% of the landmark) with 50 ms of

total processing time for the three steps process. The

second experiment, figure 8, took a total of 80 ms to

segment a 6% of the 640x430 image (77% of the

landmark).

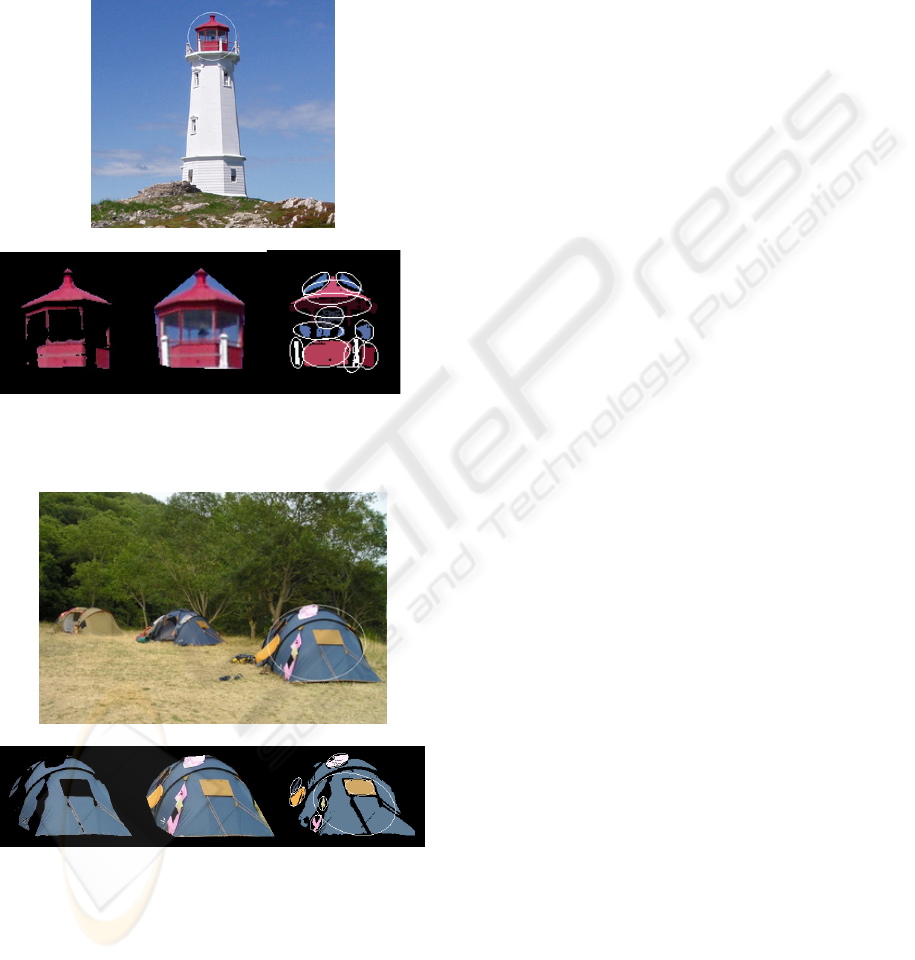

Figure 7: The red lighthouse is given as salient area. It is

separated from the background and its convex hull is

segmented in a 11 regions landmark.

Figure 8: The blue tent is given as salient area in the

image. It is separated from the background and its convex

hull segmented in a 7 regions landmark.

5 CONCLUSIONS

The results of our experiments show that the

implemented segmentation algorithm can be used in

a landmark detection system for robot navigation.

Our next step will consist in testing a matching

algorithm to identify landmarks in different views.

ACKNOWLEDGEMENTS

This work has been partially supported by the

spanish Ministerio de Educación y Ciencia and

FEDER, under the project DPI2003-05193-C02-01

of the Plan Nacional de I+D+I.

Jose-Luis Albarral holds grant BES-2004-6203

from the spanish Ministerio de Educación y Ciencia.

Institute, Cape Breton University

REFERENCES

Celaya, E., Jimenez, P., 2003. Salience detection in time-

evolving image sequences. Design and Application of

Hybrid Intelligent Systems, A. Abraham, M. Köppen,

K. Franke ed., IOS Press, Amsterdam, pp. 852-860.

Celenk, M, 1990. A color clustering technique for image

segmentation. Graphical Models and Image

Processing, vol. 52, no. 3, pp. 145-170.

Itti, L., Koch, C., 1998. A model of saliency-based visual

attention for rapid scene analysis. IEEE Trans. on

Pattern Analysis and Machine Intelligence, vol. 20,

no. 11, pp. 1254-1259.

Littmann, E., Ritter, H., 1997. Adaptive color

segmentation: a comparison of neural and statistical

methods. IEEE Trans. on Neural Networks, vol. 8, no.

1, pp. 175-185.

Lowe, D., 2004. Distinctive image features from scale-

invariant keypoints. International Journal of

Computer Vision, vol. 60, no. 2, pp. 91-110.

Macaire, L., Ultre, V., 1996. Determination of

compatibility coefficients for color edge detection by

relaxation. International Conference on Image

Processing, C, pp. 1045-1048.

Shafer, SA., 1985. Using color to separate reflexion

components. Color Research and Applications, vol.

10, no. 4, pp. 210-218.

Tremeau, A., Borel, N., 1997. A region growing and

merging algorithm to color segmentation. Pattern

Recognition, vol. 30, no. 7, pp. 1191-1203.

Uchiyama, T., Arbib, M., 1994. Color image segmentation

using competitive learning. IEEE Trans. on Pattern

Analysis and Machine Intelligence, vol. 16, no. 12, pp.

1197-1206.

ICINCO 2006 - ROBOTICS AND AUTOMATION

556
