WEB USER INTERACTION

Comparison of Declarative Approaches

Mikko Pohja,

∗

Mikko Honkala,

∗

Miemo Penttinen,

†

Petri Vuorimaa

∗

and Panu Ervamaa

†

∗

Telecommunications Software and Multimedia Laboratory, Helsinki University of Tehcnology

P.O. Box 5400, FI-02015 HUT, Finland

†

Frantic Media

Arabianranta 6, FI-00560 Helsinki, Finland

Keywords:

Web User Interface, XForms, XUL.

Abstract:

The World Wide Web is evolving from a platform for information access into a platform for interactive ser-

vices. Several applications are already used through Internet and Web browsers. User interface of such an

application is deﬁned by HTML. However, HTML has its deﬁciencies when used as a general UI description

language. Several parties have addressed this problem by deﬁning speciﬁc UI description languages. Thus, for

instance, a web browser could be used as a user interface for any application. We have revised the requirements

for a UI description language from literature and evaluated two XML-based UI description formats against the

requirements through use cases.

1 INTRODUCTION

Commerce and communication tasks, such as using

e-mail, are common today in the World Wide Web

(WWW). Also, there is a trend to realize higher in-

teraction tasks, such as information authoring, over

the WWW. Therefore, WWW is transforming from

a platform for information access into a platform for

interactive services (Hostetter et al., 1997). Tradi-

tionally, application User Interfaces (UI) were pro-

grammed as stand-alone clients using procedural pro-

gramming languages, such as Java or C++ and com-

ponent toolkits. WWW changed that; any browser

can be used as the client when accessing applications

in the Web, and the application UI is written in plat-

form independent HTML.

Unfortunately, some of the technologies used in the

Web are outdated and, in fact, were not originally de-

signed for the complex use case scenarios of today’s

applications. For instance, HTML forms are used as

the main interaction deﬁnition, even though they were

not designed to describe complex, higher-interaction

UIs. Their usage (along with client-side scripting) has

led to bad usability, maintainability, re-use, and ac-

cessibility. Therefore, a new paradigm for the Web is

needed: the declarative UI. Declarative UI languages

have usually a higher semantic level while traditional

programming languages have more expressive power.

Declarative languages, in addition to being modality

and device independent, are more easily processed by

accessibility and other tools, therefore ﬁxing many of

the problems found in the approaches with lower se-

mantical level (e.g., HTML forms and scripting). For

practical reasons, it is essential that a balance between

semantical level and expressive power is found.

In this paper, we study two UI description lan-

guages and how they suit to Web applications. The

languages are XForms (Dubinko et al., 2003) and

XUL (Hyatt, 2001). They are selected, because they

can be used to build cross platform applications and

have already several implementations. The research

work has been conducted by doing a literature study

of related work, deﬁning requirements for a UI de-

scription language, and deﬁning and implementing

use cases with selected languages. The results are

comprised of evaluation of the languages against the

requirements and heuristics analysis of the use case

implementations.

The main contributions of this paper are the follow-

ing:

• Based on literature, a set of requirements for a web

user interface deﬁnition language is derived.

• Three descriptive use cases are designed and im-

plemented in two different languages, XForms and

XUL.

• XForms and XUL are evaluated based on the de-

rived requirements and the use cases.

295

Pohja M., Honkala M., Penttinen M., Vuorimaa P. and Ervamaa P. (2006).

WEB USER INTERACTION - Comparison of Declarative Approaches.

In Proceedings of WEBIST 2006 - Second International Conference on Web Information Systems and Technologies - Internet Technology / Web

Interface and Applications, pages 295-302

DOI: 10.5220/0001238802950302

 SciTePress

• We propose an extension to XForms language for

navigating and editing recursive structures.

The paper is organized as follows. The next Section

gives background to the topic and reviews the related

work. Section 3 discusses the research scope and the

problem. In addition, it deﬁnes use cases. Results of

the work are presented in Section 4. Finally, Section

5 concludes the paper.

2 BACKGROUND

2.1 Related UI Languages

The focus of this paper is UI languages, whose cross-

platform implementations are readily available. Be-

cause of this, some research-oriented UI languages,

such as XIML (Puerta and Eisenstein, 2002) and

UIML (Abrams et al., 1999), are outside of the scope.

In addition to the UI languages reviewed in this pa-

per (XForms and XUL), there exists a whole array

of XML-based UI deﬁnition languages, whose imple-

mentations can be veriﬁed. Those are reviewed in

related research (Souchon and Vanderdonckt, 2003;

Trewin et al., 2004). In addition, there exists numer-

ous XML-based languages for the desktop GUI, in-

cluding Glade

, and Microsoft XAML (Rector, 2003),

while InfoPath addresses ofﬁce applications (Hoff-

man, 2003).

2.2 XForms

XForms 1.0 Recommendation (Dubinko et al., 2003)

is the next-generation Web forms language, designed

by the W3C. It solves some of the problems found

in the HTML forms by separating the purpose from

the presentation and using declarative markup to de-

scribe the most common operations in form-based ap-

plications (Cardone et al., 2005). It can use any XML

grammar to describe the content of the form (the in-

stance data). Thus, it also enables to create generic

editors for different XML grammars with XForms. It

is possible to create complex forms with XForms us-

ing declarative markup, without resorting to scripting.

XForms is an abstract user interface description

language. One of its design goals was not to mandate

a certain modality. Therefore, it can be suited to de-

scribe user interfaces, which are realized in different

modalities, such as the GUI and Speech.

Several XML vocabularies have been speciﬁed in

W3C. Typically, an XML language is targeted for a

certain purpose (e.g., XHTML for content structuring

or SVG for 2D graphics). Moreover, XML languages

Glade. Available at: http://glade.gnome.org/

can be combined. An XML document, which consists

of two or more XML languages, is called compound

document. A compound document can specify user

interface of an application. In this paper, XForms is

combined with XHTML+CSS level 2 to realize the

use cases. XForms 1.0 includes other W3C speciﬁca-

tions directly: XML Events, XPath 1.0, XML Schema

Datatypes, and XML 1.0.

2.3 XUL

Mozilla has developed a UI description language

called XML User Interface Language (XUL) (Hyatt,

2001). The markup consists of widget elements like

buttons, menus, etc. XUL applications are based on

several W3C standards. Those include HTML 4.0;

Cascading Style Sheets (CSS) 1 and 2; Document Ob-

ject Model (DOM) Levels 1 and 2; JavaScript 1.5,

including ECMA-262 Edition 3 (ECMAscript); and

XML 1.0.

The goal of XUL is to build cross platform ap-

plications. The applications can be ported to all of

the operating systems on which Mozilla runs (e.g.,

Linux, Windows, Windows CE, and Mac OS X). The

layout and appearance of XUL applications are sepa-

rated from the application deﬁnition and logic. More-

over, the application can be localized for different lan-

guages and regions independently of its logic or pre-

sentation.

XUL can be complemented by few technologies in-

troduced by Mozilla. The eXtensible Bindings Lan-

guage (XBL) is a markup language that deﬁnes new

elements for XUL widgets. Overlays are XUL ﬁles

used to describe extra content for the UI. XPCOM

and XPConnect enable the integration of external li-

braries with XUL applications and, ﬁnally, XPInstall

provides a way to package XUL application compo-

nents with an install script. (Bojanic, 2003)

2.4 Requirements

Souchon and Vanderdonckt have reviewed XML-

compliant user interface description languages in

(Souchon and Vanderdonckt, 2003). The paper com-

pares the general properties and the UI description ca-

pacities of the languages. XIML is found out most

expressive language whereas UIML has best software

support. XUL is found to be less expressive. XForms

has not been evaluated in the paper.

Four XML languages for abstract user interface

representation are examined in (Trewin et al., 2004).

The languages are UIML, XIML, XForms, and AIAP.

The paper deﬁnes requirements for the representa-

tions. Those include high level requirements like ap-

plicability to any target and any delivery context, per-

sonalization, ﬂexibility, extensibility, and simplicity.

WEBIST 2006 - WEB INTERFACES AND APPLICATIONS

296

In addition, they have deﬁned technical requirements,

which consist of separating purpose from presenta-

tion, characteristics of interface elements and func-

tions, ﬂexibility in inclusion of alternate resources,

compatibility with concrete user interfaces, support

for different interaction styles, and support for remote

control. XForms and AIAP fulﬁll best the require-

ments. Especially, in terms of separation of data from

presentation and ﬂexibility in resource substitution.

Requirements for a generic user interface descrip-

tion format are discussed in (Simon et al., 2004).

They also present an implementation of an integrated

description of user interfaces for both graphical and

voice modality. The proposed requirements are de-

vice independence, modality independence, and cus-

tomizability concerning layout without restricting de-

vice independence.

3 RESEARCH SCOPE AND

METHODS

The research area of the paper is Web user interaction

models.

Because of the huge variance in interaction scenar-

ios and technologies (ranging from natural language

speech interaction to 3D interaction with immersive

displays), the research is tightly scoped. The scope

for the research is desktop-style user interaction in

WWW environment.

The research steps are enumerated in the following

list. The scoping, which is deﬁned above, applies to

all of the research steps.

1. The Web application use cases are selected.

2. Requirements of a UI description format from lit-

erature are collected.

3. XForms and XUL are evaluated against the require-

ments.

4. The use case implementations are evaluated

through heuristic analysis (Nielsen, 1994).

3.1 Use Cases

The selected use cases are from an existing content

management system, which is used to manage the

content of an Internet magazine. The application is

used through Web and is originally implemented with

HTML and CSS. We selected three user interfaces

from the system, which are difﬁcult to realize prop-

erly with HTML. First, the wireframe models of the

use cases were drawn. The models were designed

using general usability guidelines without taking ac-

count possible restrictions of the languages. Users are

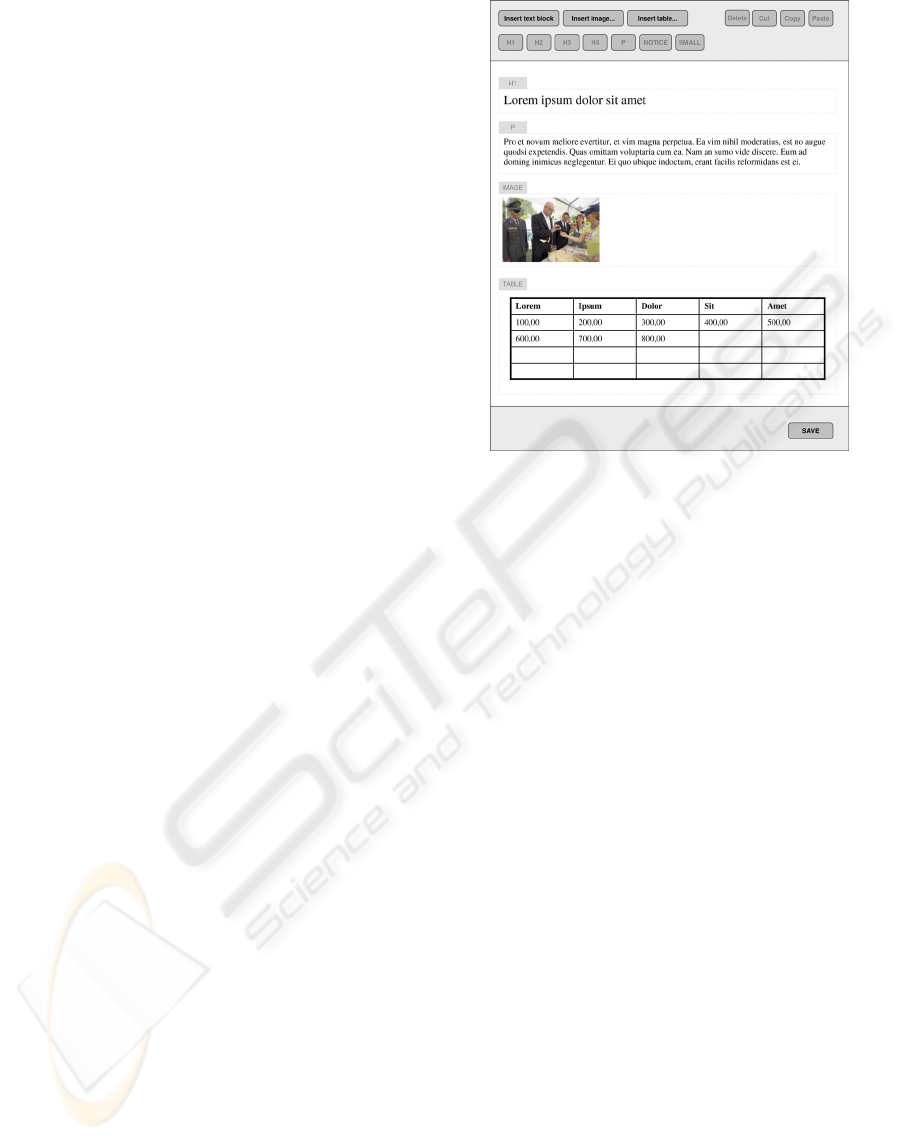

Figure 1: Wireframe model of the document editor.

mainly journalists, who have experience in using typ-

ical word processing program and are familiar with

concepts like copy-paste.

The design of the user interfaces in this paper is

based on usability best practices (Cooper, 1995) and

user interface design patterns (Tidwell, 2005) and

(Laakso, 2003). The usability of the interfaces has

been validated by usage simulation (Preece et al.,

2002) and heuristic analysis (Nielsen, 1994).

Document Editor. The purpose of this user interface

is to create and modify simple structural documents,

which could, e.g., be displayed as a web page. The

type of data in the document is limited to text, pre-

existing images and pre-existing tables (created, e.g.,

by the Table Editor user interface). Wireframe model

of the Document Editor is shown in Figure 1.

The structure of the document can be modiﬁed

by marking text blocks with different existing styles

(e.g., heading 1, heading 2, text paragraph, notice,

etc.). The marking is targeted to a selected text box.

For the sake of simplicity, all styles are block-level

styles, i.e., they are always attached to the whole text

block.

To keep the focus on the structure of the document

in the interface, the images and tables cannot be mod-

iﬁed in the document editor interface. A possible use

case for the document editor is: a journalist creates a

review of a laptop and completes it with images of the

laptop and a table about its features.

Table Editor. The purpose of this user interface is to

create and modify simple tabular data, which can be

WEB USER INTERACTION - Comparison of Declarative Approaches

297

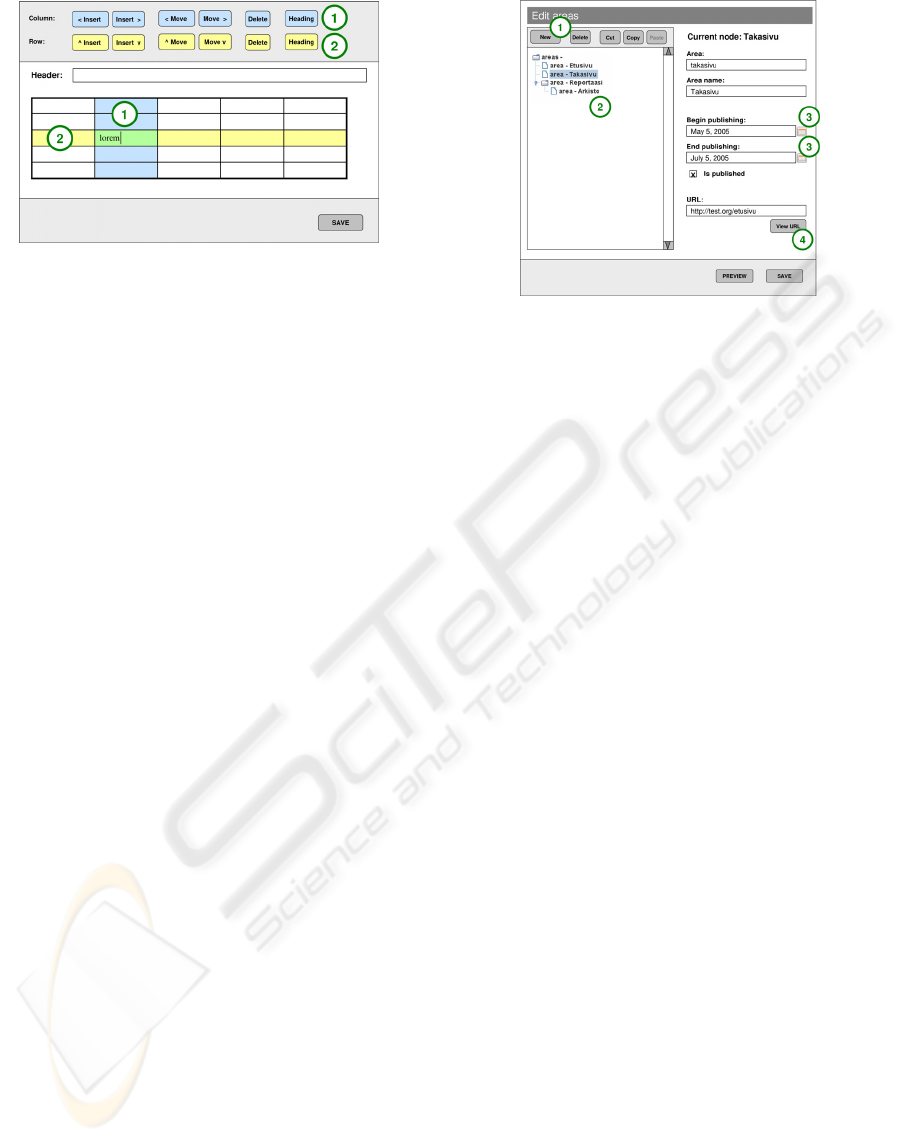

Figure 2: Wireframe model of the table editor. (1) Active

column is color coded to match the coloring of the buttons

for manipulating the column. (2) Active row is color coded

to match the coloring of the buttons for manipulating the

row.

displayed, e.g., in a web page. The type of data in the

table is limited to characters and numbers. Wireframe

model of the Table Editor is shown in Figure 2.

The user can also edit the structure of the tabular

data by marking some of the columns or headers as

headings and by entering a header text for the whole

table. The number of rows and columns in the table is

user-editable.

For the sake of simplicity, table cells are not al-

lowed to span multiple columns or rows. Possible use

cases for the table editor are: the user wants to create a

table documenting the average monthly temperatures

in four different locations during one year; or the user

wants to create a table presenting the costs estimate

for purchasing a new computer setup.

Tree Editor. The purpose of this user interface is to

create and modify a tree structure where the nodes of

the tree have multiple editable attributes. In this pa-

per, we use the nodes to represent web site areas for a

site of a magazine. However, the nodes and attributes

could represent anything. The tree Editor is depicted

in Figure 3.

The user is able to create new nodes, edit the at-

tributes, move nodes around in the tree and delete

nodes. A possible use case for the tree editor is: man-

aging the structure of an online magazine.

4 RESULTS

The results of the paper are discussed in this Section.

We analyzed how the languages fulﬁll the require-

ments of a UI description language presented in the

literature. In addition, we introduce the use case im-

plementations and the heuristic analysis we did for

them. Finally, model differences of the languages are

explained.

Figure 3: Wireframe model of the tree editor. (1) Creates a

new area as a child to the currently selected node. Data for

the newly created area is entered from the form in the right.

(2) Moving nodes in the tree is done by drag-and-dropping

them. (3) Opens a calendar widget for selecting the date.

(4) Opens the URL in a browser.

4.1 Requirements

The languages were evaluated against the require-

ments, and the results are shown in Tables 1-3. The

general requirements in Table 1 are from (Simon

et al., 2004). They are device and modality indepen-

dence and customizability. Both languages meet the

requirements. XForms has abstract UI description.

Thus, the concrete UI is totally device independent.

Also, the UI description of XUL does not restrict the

selection of devices. XForms uses data types, which

makes it easy to utilize different modalities. For in-

stance in voice modality, grammar based recognition

can be made more speciﬁc. XUL widgets can also be

transferred to other modalities, but lack of data types

makes it more difﬁcult. Both XForms and XUL pro-

vide control over layout and graphical appearance. In

XUL, the customization is easier because of speciﬁc

UI elements.

The requirements in Table 2 are represented in

(Trewin et al., 2004). In the paper, XForms is eval-

uated against the requirements among three other lan-

guages. XForms, along with Alternative Interface Ac-

cess Protocol (AIAP), was found best suited to meet

the requirements deﬁned in the paper. Especially, re-

garding to separation of data from presentation and

ﬂexibility in resource substitution.

The interface elements are not separated from their

presentation in XUL. In XForms, the data model can

be accessed through separate binding layer. In both

languages, the interface elements can have dependen-

cies. However, in XUL, the dependencies have to be

realized through scripts. XForms is also easier to use

in any target since its UI description is more abstract.

XForms supports data types, whereas XUL does not.

WEBIST 2006 - WEB INTERFACES AND APPLICATIONS

298

Table 1: The requirements of the UI description language

(Simon et al., 2004).

Requirement XForms XUL

General requirements

Device Independence Good Possible

Modality Independence Good Possible

Customizability Possible Good

Table 2: The requirements for universal interaction (Trewin

et al., 2004).

Requirement XForms XUL

Separation of Interface Elements from Pres.

Separation of Data/Pres. Good Possible

Interface Elements

Dependencies Good Possible

Any Target Good Possible

Data Types Good No

Presentation Related Information

Logical Groupings Good Good

Labels & Help Text Good Possible

Presentation Replacement Possible Possible

Run Time and Remote Control

Local Computation Good Possible

Serialization Good Possible

The presentation can be grouped well with both

languages. XForms provides explicit way to include

labels and help texts, while in XUL they can be real-

ized with normal text. Providing an alternative pre-

sentation is possible with both formats. Local com-

putations (e.g., data validation) and data serialization

are easier to provide with XForms, which has current

state always available. They must be realized through

scripts in XUL. These differences are discussed in

more detail in Subsection 4.6.

The requirements found from the literature were

extended with a more detailed typical interaction pat-

terns requirement set from the application scenario

(c.f. Table 3). Repeating structures (repeat) and

paging and dialogs (switch, message) are natively

supported by XForms, while in XUL they require

some script programming. Nested constructs are sup-

ported by the XUL tree control as well as our pro-

posed XForms tree module. Copy-paste, undo-redo,

and drag-and-drop can be programmed with scripts in

XUL, while in XForms only copy-paste is possible to

implement. As a summary, XUL handles the typical

interaction patterns better, since it has more desktop-

oriented focus.

Table 3: The proposed extensions to requirements.

Requirement XForms XUL

Typical Interaction Patterns

Paging & Dialogs Good Good

Repeating constructs Good Possible

Nested constructs Good

(∗)

Good

Copy-paste Possible Possible

Undo-redo No Possible

Drag-and-drop No Possible

(∗)

using the proposed tree extension.

4.2 Use Case Implementations in

XForms

The XForms implementations of the use cases were

done using the XForms 1.1 Working Draft (Boyer

et al., 2004) (W3C Work In Progress), which is im-

plemented in the X-Smiles browser (Vuorimaa et al.,

2002). XForms 1.1 has several features, which make

it possible to minimize scripting. The main features

from XForms 1.1, which were utilized, are duplicate

and destroy actions, and mediatype-aware output ren-

dering. Otherwise these features would have required

the use of scripting.

XForms language was extended with a tree mod-

ule, since in XForms 1.1, there is no way of select-

ing nodes from a recursive structure. We also imple-

mented the tree module, as a proof of concept, in the

X-Smiles XForms implementation.

The user interface state is completely contained in

the XForms model, and can therefore automatically

be serialized and submitted to a server without any

additional scripting.

Document Editor. The document editor relies

on XForms repeat, and dynamic UI bindings. It

requires few XForms 1.1. features, which it uti-

lizes heavily, namely destroy and duplicate, and out-

put@mediatype. This UI has no scripting.

Tree Editor. The tree editor (cf. Fig. 4) uses the

proposed XForms Tree extension. All other dynamic

features are done using XForms UI bindings. This UI

has no scripting.

Table Editor. This table editor UI is written in

XForms 1.1, but it has a small script to insert, delete

and move columns. This could be avoided if XForms

had repeating and conditional action containers (such

as for and if ).

WEB USER INTERACTION - Comparison of Declarative Approaches

299

Figure 4: XForms Tree Editor.

4.3 Proposed XForms Extension:

Tree Module

We have extended the XForms 1.0 speciﬁcation with

a tree module xforms:tree and a corresponding XPath

extension function nodeindex.

This form control displays a tree, which corre-

sponds to the instance tree rooted at the bound node.

It must have an id attribute. The item element’s label

(executed with the context of corresponding node) is

used to determine the label of each node.

The XPath function nodeindex takes an idref of

an tree widget, as an argument and returns the in-

stance node, which corresponds to the currently se-

lected node in a tree widget.

A code example of the tree element’s usage is

shown in Figure 5. It would display a tree of fold-

ers and ﬁles. When a user selects a node, an editor for

that node is shown in the relevant group.

4.4 Use Case Implementations in

XUL

In addition to the wireframe model designs, XUL en-

abled to use context menus in Document and Tree Ed-

itors. Also, Document editor has a real time preview

of a document. It is remarkable that XUL interfaces

require a lot of scripts. All the button functionalities,

drag-and-dropping, and focusing of elements have to

be realized through scripts. The XUL Document edi-

tor is depicted in Figure 6.

4.5 Heuristic Analysis

We did the heuristic analysis according to the heuris-

tics deﬁned by Nielsen (Nielsen, 1994). We did not

ﬁnd any major problems from the interfaces. Mainly,

because the wireframe models were already designed

<data>

</folder>

</data name="xxx">

</instance>

<tree ref="/data/folder" prune="true"

id="folders">

<label>The directory document</label>

</tree>

<group

ref="self::node()[localname()=’folder’]>

<label>Folder</label>

</group>

<group

ref="self::node()[localname()=’file’]>

</group>

Figure 5: Example of tree widget usage.

Figure 6: XUL Document Editor.

WEBIST 2006 - WEB INTERFACES AND APPLICATIONS

300

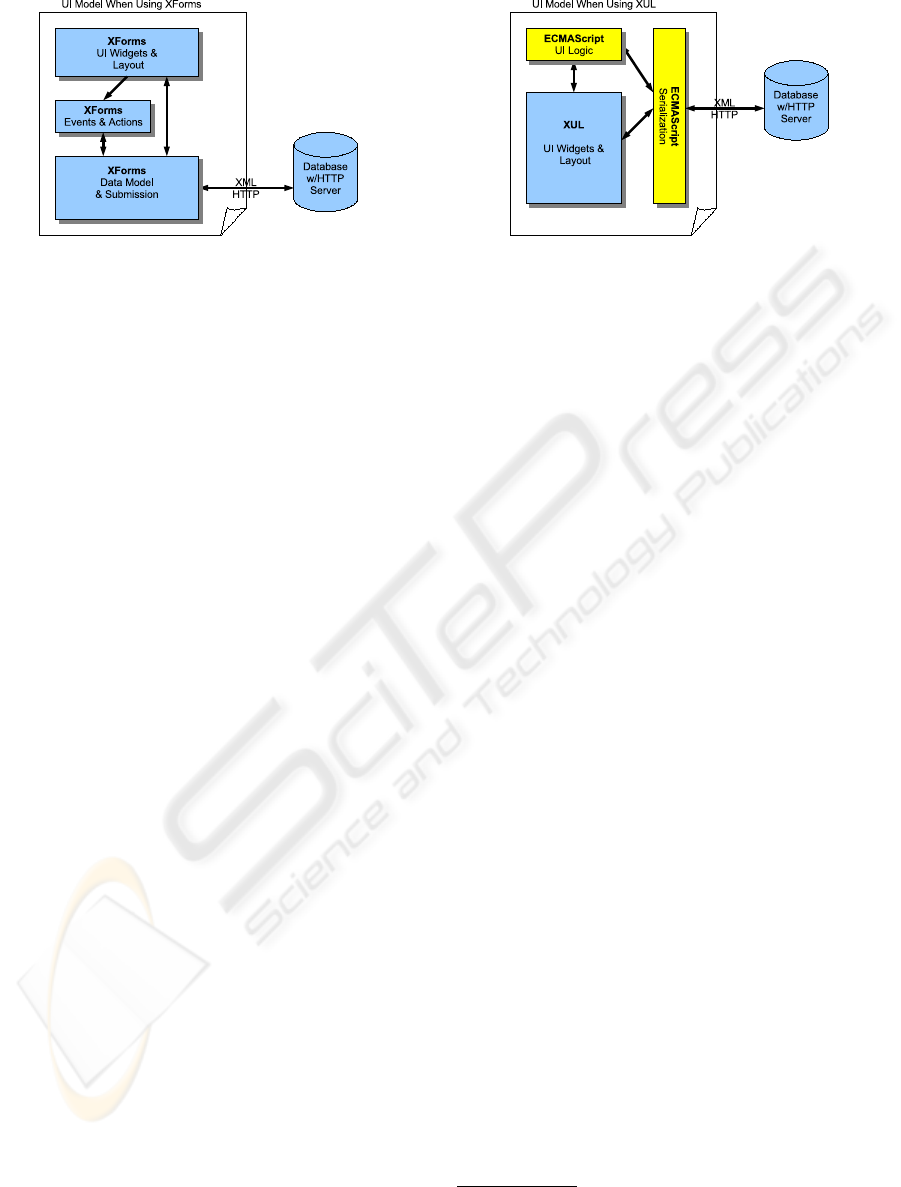

Figure 7: UI Model using XForms.

according to the heuristics. Nevertheless, we were

able to identify some problems from all the inter-

faces. Common deﬁciencies were lack of undo-redo

and help operations. Of course, these should have

been considered already in the design phase.

XForms Document Editor does not have drag-and-

drop functionality. In addition, the preview function is

a bit problematic in XForms editors, because user has

to always save the form before previewing it. How-

ever, saving is not always desired when previewing.

Finally, selected column or headers cannot be high-

lighted in XForms Table Editor.

4.6 Model Differences Between XUL

and XForms

Although, in the selected use cases on a desktop com-

puter, the usability between the XForms and XUL

user interfaces does not differ, we have noticed a dif-

ference in the user interface development model. Like

XUL, most of the XML-based user interface deﬁni-

tion languages are widget based. This means that they

are quite concrete, and the author works by adding

widgets, such as buttons and text areas to the user in-

terface. It is therefore very easy to graphically create

a user interface layout, but all user interface logic has

to be programmed using a programming or scripting

language, though. In contrast, XForms starts by deﬁn-

ing a XML data model, and all operations are done

to the datamodel using declarative actions and XPath

expressions, while user interface is automatically kept

up-to date with a dynamic dependency tracking.

Maybe the biggest difference is the communication

between the user interface and the back-end system.

For the communication, the user interface state has to

be serialized for transmission. Vice versa, after get-

ting serialized reply from the server, it has to be de-

serialized into application state. In XForms (cf. Fig.

7), that serialization is automatic, since the datamodel

is a live XML document object model, which is auto-

matically serialized and de-serialized.

Figure 8: UI Model using XUL.

On the other hand, in XUL there is no explicit

datamodel, and communication between a backend

process and the user interface have to be reimple-

mented using ECMAScript for each user interface, as

shown in Fig. 8. This is true also for HTML forms

and its derivatives, such as Ajax

. For example, when

the server sends an updated structured content back,

there has to be a script, which updates the correspond-

ing XUL DOM, respectively. This means, that author-

ing and maintaining XUL-based applications is more

complicated than XForms.

It is noteworthy that XUL has a templates mecha-

nism, which allows to use RDF as the datamodel to

some extent. Since RDF is more complicated than

XML (graph vs. tree), and we would have to serial-

ize the RDF datamodel anyway into the XML docu-

ment model either at server or client, it was not used in

this paper. Using XBL (Hyatt, 2000) combined with

XUL should allow the use of XML datamodels, thus

removing the need of serializing and de-serializing

communications. All user interface logic has to be

still written in ECMAScript, though XBL encapsu-

lates the operations in a reusable manner. It is still

unknown, whether XUL+XBL removes the need for

any serialization and deserialization in the selected

use cases.

5 CONCLUSIONS

In this paper, two UI description languages were stud-

ied, namely XForms and XUL. We collected require-

ments for a UI description language from literature,

extended them with typical interaction patterns, and

evaluated the languages against the requirements. In

addition, we selected three use cases, which are typi-

cal to Web application UIs, but are difﬁcult to realize

properly with HTML. First, we designed wireframe

Ajax: A New Approach to Web Applica-

tions, http://adaptivepath.com/publications/essays/

archives/000385.php

WEB USER INTERACTION - Comparison of Declarative Approaches

301

models of the use cases according to the usability

guidelines. Based on those, we implemented the use

cases with both languages, and did heuristic analysis

for the implementations.

XForms fulﬁlled the requirements slightly better

than XUL. On the other hand, with XUL, the use

cases could be realized more strictly according to the

wireframe models, since, for instance, drag-and-drop

is not supported in XForms. As a conclusion, the dif-

ferences between XForms and XUL+XBL on desktop

are not big. We do expect that major differences can

arise in device independence and multimodal usage

scenarios, where XForms is better.

Also, we feel that both languages should add sup-

port for general undo-redo, copy-paste, and drag-and-

drop interaction patterns. In special cases, it is pos-

sible to support these, but for instance, copy-paste

between different types of data input and outputs is

not usually supported (for instance, copying the val-

ues in a repeating spreadsheet-type of table into a dif-

ferent type of repeating construct). These interaction

patterns are so widely available in current user inter-

faces, that they need to be supported in the Web user

interface languages as well, in order to facilitate the

deployment of these user interfaces on the Web.

REFERENCES

Abrams, M., Phanouriou, C., Batongbacal, A. L., Williams,

S. M., and Shuster, J. E. (1999). UIML: an appliance-

independent XML user interface language. In WWW

’99: Proceeding of the eighth international confer-

ence on World Wide Web, pages 1695–1708, New

York, NY, USA. Elsevier North-Holland, Inc.

Bojanic, P. (2003). The Joy of XUL. Available online

http://www.mozilla.org/projects/xul/joy-of-xul.html.

Boyer, J., Landwehr, D., Merrick, R., and Raman, T. V.

(2004). XForms 1.1. W3C Working Draft.

Cardone, R., Soroker, D., and Tiwari, A. (2005). Using

XForms to simplify web programming. In WWW

’05: Proceedings of the 14th international conference

on World Wide Web, pages 215–224, New York, NY,

USA. ACM Press.

Cooper, A. (1995). About Face: The Essentials of User

Interface Design. John Wiley & Sons.

Dubinko, M., Klotz, L. L., Merrick, R., and Raman, T. V.

(2003). XForms 1.0. W3C Recommendation.

Hoffman, M. (2003). Architecture of microsoft ofﬁce in-

fopath 2003. Microsoft Developer Network.

Hostetter, M., Kranz, D., Seed, C., and C. Terman, S. W.

(1997). Curl, a gentle slope language for the web.

World Wide Web Journal.

Hyatt, D. (2000). XBL - extensible binding language 1.0.

Netscape.

Hyatt, D. (2001). XML user interface language (XUL) 1.0.

Mozilla.org.

Laakso, S. (2003). User Interface De-

sign Patterns. Available online

http://www.cs.helsinki.ﬁ/u/salaakso/patterns/.

Nielsen, J. (1994). Ten Usabil-

ity Heuristics. Available online

http://www.useit.com/papers/heuristic/heuristic

list.html.

Preece, J., Rogers, Y., and Sharp, H. (2002). Interaction

Design, chapter 13. Wiley, 1st edition.

Puerta, A. and Eisenstein, J. (2002). Ximl: a common rep-

resentation for interaction data. In IUI ’02: Proceed-

ings of the 7th international conference on Intelligent

user interfaces, pages 214–215, New York, NY, USA.

ACM Press.

Rector, B. (2003). Introducing ”longhorn” for developers.

Microsoft Developer Network.

Simon, R., Kapsch, M. J., and Wegscheider, F. (2004). A

generic UIML vocabulary for device- and modality in-

dependent user interfaces. In WWW Alt. ’04: Proceed-

ings of the 13th international World Wide Web confer-

ence on Alternate track papers & posters, pages 434–

435, New York, NY, USA. ACM Press.

Souchon, N. and Vanderdonckt, J. (2003). A review of

XML-compliant user interface description languages.

In Proceedings of the 10th International Workshop on

Interactive Systems. Design, Speciﬁcation, and Veriﬁ-

cation: DSV-IS 2003. Springer.

Tidwell, J. (2005). Designing Interfaces: Patterns for Ef-

fective Interaction Design. O’Reilly Media, Inc., 1.

edition.

Trewin, S., Zimmermann, G., and Vanderheiden, G. (2004).

Abstract representations as a basis for usable user in-

terfaces. Interacting with Computers, 16(3):477–506.

Vuorimaa, P., Ropponen, T., von Knorring, N., and

Honkala, M. (2002). A Java based XML browser for

consumer devices. In The 17th ACM Symposium on

Applied Computing, Madrid, Spain.

WEBIST 2006 - WEB INTERFACES AND APPLICATIONS

302
