XML QUERY OBJECT MODEL: A GENERAL VIEW

abio Ribeiro Silvestre

Fundac¸

ao Visconde de Cairu - CEPPEV

Rua do Salete 50, Barris - Salvador/BA - Brasil

Hernane Borges de Barros Pereira

Fundac¸

ao Visconde de Cairu - CEPPEV and

Universidade Estadual de Feira de Santana - DEXA

Rua da Brisa 42, Ap. 1701 Pituba - Salvador/BA - Brasil

Keywords:

Querying Process, Semistructured Data, XQOM Schema, Framework Technology.

Abstract:

We have observed an increase in document search needs in organizations. This increase in document search

demand has required better efﬁciency on search software languages. The current technologies are using spe-

ciﬁc patterns to search documents. The most usual pattern, called XML, has been proposed by W3C and some

languages (e.g. XQL, XML-QL etc.) were created to recover XML documents. The implementation of a

XML query server, which abstracts the language used, has been an emerging necessity. This paper surveys

technology used to develop a XML query server, called XQOM Schema, from the modelling to the implemen-

tation. In an organization setting, we have adopted new abstraction forms of searching for XML documents

without the usage limitation established by a speciﬁc language. XQOM Schema may contribute to the creation

of an universal document searching pattern in XML format.

1 INTRODUCTION

Currently, the demand for documents search systems

has increased in organizations. The Internet’s growth

brings a some practical issues. For instance, how to

recover documents more efﬁciently? However, there

are some technologies to solve this problem that use

speciﬁc patterns to search documents, such as XML

(eXtensible Markup Language), proposed by W3C

(Consortium World Wide Web) (Bray et al., 1997).

Some XML query languages have been proposed to

W3C. Three of them are more usual: XQL (functional

pattern), XML-QL (relational pattern) and Lorel (ob-

ject oriented pattern). We propose a query server to

semi-structured documents based on XML language,

which abstracts the query language employed. We

have chosen the XQL and XML-QL languages to test

the proposed server. These languages use a driver de-

veloped by researchers at the Berkley University for

XQL and a driver developed by researchers at the

AT&T for XML-QL. (Robie et al., 1998; Research,

1999).

Despite the fact that investments (from the time and

money perspectives) in researches on query languages

are being carried out, there is a lack of products and

processes related to the information and management

knowledge, inside the organization. In general, or-

ganizations have a well-deﬁned and almost inﬂexible

way for internal data structure. This, intuitively, im-

plies the use of conventional databases (e.g. relational

or object-oriented databases). However, the process-

ing of semi-structured data in these databases types

is inefﬁcient since semi-structured data has a pre-

deﬁned framework of data storing. On the other hand,

the semi-structured documents have a highly ﬂexible

and irregular structure that makes the conventional

databases inappropriate, disabling the databases with

respect to the semi-structured data storing (Graves,

2001).

The main goal of this paper is to survey the XML

Query Object Model that consists of a server (frame-

work), called XQOM Schema, that allows the cre-

ation of several XML document search applications

used in an organizational context (e.g. to be worked

in an intranet). This server uses metadata to carry out

searches in electronic documents, aiming more pre-

cise results.

2 XML QUERY OBJECT MODEL

XML Query Object Model (XQOM) is a query server

to semi-structured data. Some function paradigms

must be observed by applications that aspire to use the

469

Ribeiro Silvestre F. and Borges de Barros Pereira H. (2006).

XML QUERY OBJECT MODEL: A GENERAL VIEW.

In Proceedings of WEBIST 2006 - Second International Conference on Web Information Systems and Technologies - Internet Technology / Web

Interface and Applications, pages 469-472

DOI: 10.5220/0001244904690472

 SciTePress

XQOM Schema. Two steps are essential. First step

determines that there will be an individual responsi-

ble for the creation of conceptual documents in a spe-

ciﬁc category. The second one implies that there will

be a mapping between conceptual model and stored

XML documents. These XML documents have been

created through XQOM Schema.

XQOM Schema is basically composed of two mod-

ules: administration module and query module. Thus,

there will be corresponding proﬁles: administrator

and end-user.

2.1 XQOM Architecture

In this section, we present the XQOM Schema func-

tional processes. Figure 1 depicts the XQOM archi-

tecture and its functionality is detailed as follows.

Engine Options

XQL Engine

XML-QL Engine

Whatever Engine

Selected Engine

Query Processing

Query Editor Mapping Definition

Administrator

End-User

Conceptual,

Logical and

Physical Metadata

Information

Mapping

XML Data Source

XML

Query

Information

(Re)Mapping

XML

Metada Manager

Developer

Extends the

schema to

construct a

new engine

XQOM Schema

XQOM Interface

Software

Component

Metadata

DOM /

XPath

Expression

File

Systems

XQOM Query

Expression

XML Conceptual

Data/Metada

Query

Expression

XML Data

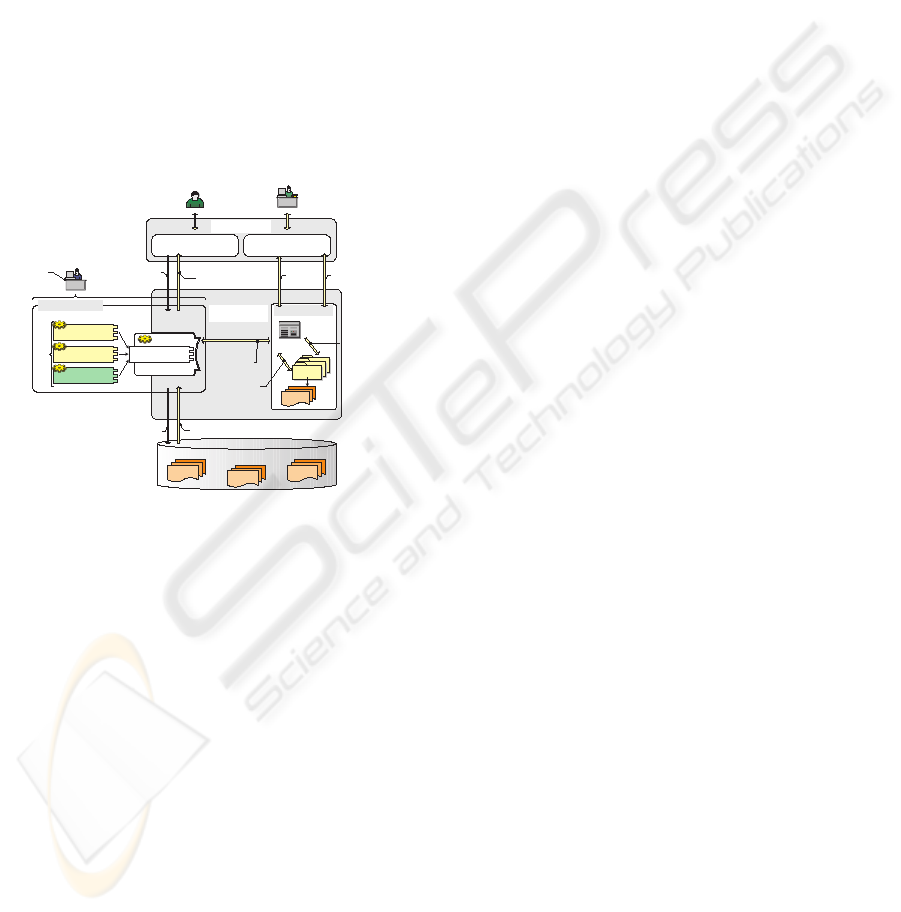

Figure 1: XQOM Architecture.

2.1.1 XQOM Administration Module

The administrator deﬁnes conceptual, logical and

physical worlds, explained below, which must be dis-

posed to query through the XQOM Schema. These

worlds are controlled by XQOM mapping process.

The administrator also deﬁnes the mapping between

conceptual world and several documents (i.e. phys-

ical documents). All documents involved in the

XQOM mapping process are stored in a local ﬁle sys-

tem to future searches. Mapping module is performed

by a XQOM functionality, called XQOM Map En-

gine, that is essential for the (re)mapping of XQOM

metadata in both administration and query modules.

We understand conceptual world as a common set

of deﬁnitions or nomenclatures created by adminis-

trator. This set evolves speciﬁc domains of rules in an

environment and it is collectively created. Concep-

tual models are just XML documents which represent

these domains through its hierarchical structure.

Physical world denotes documents created by some

people (e.g. paper, journal, magazine, book etc.).

The end-user must structure his/her documents taking

into account XML markups. After all, the document

must be sent to the administrator to storage in XQOM

Schema.

Logical world evolves mapping between concep-

tual document and physical document(s). The ad-

ministrator (i.e. a specialist in that information area)

must associate conceptual world metadata with phys-

ical world metadata. We emphasize that physical

documents are created by different users and, thus,

they can represent them with different XML markups.

This occurs because users are completely free to in-

vent their own markup nomenclatures.

The administrator’s role is fundamental to promote

a good operation of XQOM Schema. It is extremely

important that this individual be a specialist in the

area being mapped.

Metadata management is responsible for the con-

trol of administration module. Its goal is to pro-

vide mapping information as well to generate con-

ceptual, logical and physical documents, storing them

in the local ﬁle system. The physical document stor-

age is deﬁned by the application that extends XQOM

Schema. The same process is valuable to search mod-

els or physical documents.

When a solicitation of mapping information is sent

to metadata manager process, a software component

is activated to attend this request. This software com-

ponent constructs Xpath/DOM expressions that will

be applied to XML metadata documents distributed

among the directories of the local ﬁle system. The re-

sults of mapping metadata are returned and redirected

to the metadata manager that sends them to the appli-

cation solicitant.

Using the mapping information as a starting point,

the administrator can create new models or update

them. These models are redirected to the XQOM

Schema by the administrator. Then metadata manager

process updates the conceptual and logical documents

in directories of ﬁle system.

2.1.2 XQOM Query Module

The end-user can execute searches to conceptual doc-

uments using XQOM Query Module. He or she per-

forms the queries through the XQOM objects spec-

iﬁcation process. The language generation process

(i.e. XQOM Interpreter) uses it to generate new query

languages. The XQOM mapping process is used by

XQOM Interpreter to generate XML query languages

to document of the “physical world”. These lan-

guages are submitted to the XML, which returns a

response. Each response is mapped again to the end-

user “conceptual world”.

XQOM Speciﬁcation is another functionality of

WEBIST 2006 - WEB INTERFACES AND APPLICATIONS

470

XQOM Schema. It is also represented through

XQOM query objects that constitute the status of

search syntaxes to semi-structured data. The gram-

matical representation of the search, performed by the

end-user through the conceptual models, is stored in

XQOM object speciﬁcation. These objects represent

a query grammar to semi-structured data.

XQOM Map Engine is responsible by mapping

the query objects of XQOM Speciﬁcation to the cor-

responding XQOM query objects that represent the

physical document markups. XQOM Interpreter will

perform queries using these objects and it will return

a XML document. This will be transferred to XQOM

Map Engine to map it in corresponding conceptual

model to end-user.

XQOM Interpreter is responsible for the query lan-

guage generation through the query objects trans-

ferred from the XQOM mapping process. It trans-

forms these objects in a XML query language. From

this point, the process continues as discussed before.

We have observed that XQOM Map Engine and

XQOM Interpreter are the XQOM Schema function-

alities that it may be activated several times in a query.

This is possible because conceptual model can be as-

sociated to more than one physical document through

logical document.

The end-user is responsible for execution of the

query module. He or she accesses XQOM Schema

through the client-server application or the web appli-

cation. The query machine is the process responsible

for the query module management.

The end-user constructs XQOM expressions using

a query editor (i.e. XQOM Interface). The query ma-

chine process is activated to attend the request and it

calls the metadata manager to perform the XQOM ex-

pression mapping.

In this process, n XQOM query objects are trans-

ferred to the application that extends XQOM Schema,

which will generate n XML query languages. These

will be transferred to a class responsible for the link-

ing of the query language to a XML query processing

software or to a XML database.

The resultant XML documents are returned to the

query machine, which will require the metadata man-

ager a new mapping of XML physical documents in

the corresponding conceptual model. This model is

returned to query machine and, after all, to the initial

application. The end-user only will see a conceptual

result.

2.2 XQOM Query Objects

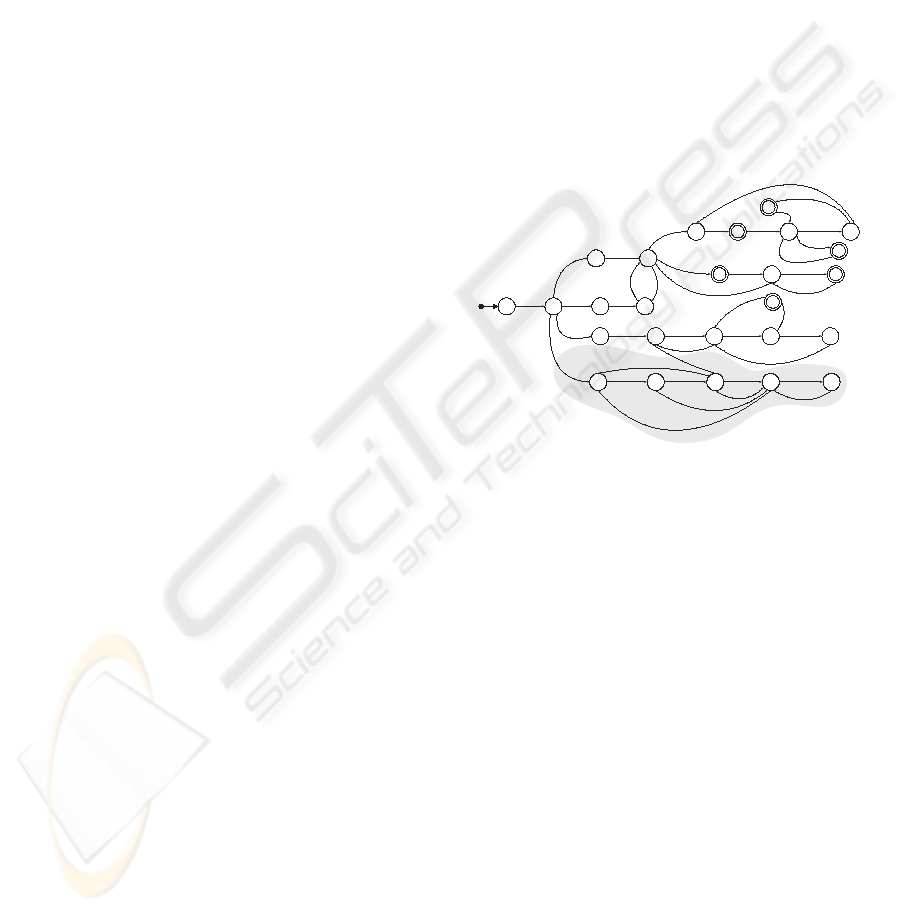

XQOM query objects are represented by grammatical

graph objects in which its status denotes syntaxes of

a query language to semi-structured data (Figure 2).

XQOM Schema has been inspired on DOM model

(Document Object Model), but XML documents are

not converted into XML objects deﬁned by DOM

speciﬁcation. The objects in XQOM Schema have

values deﬁned by end-user and compiles them to a

speciﬁc XML query language.

In case of change in the persistence layer, it is only

necessary a driver change to generate a new query lan-

guage through the XQOM Schema. This driver is de-

ﬁned through a class that compiles the objects of the

XQOM Schema to the corresponding database lan-

guage. The XQOM Schema implicitly calls this class

and its change will not affect the application that uses

the proposed schema.

Figure 2 represents the XML query object model

through the oriented and labeled graph. This repre-

sentation is based on the deterministic ﬁnite automata

(Aho et al., 1974; Aho et al., 1995; Du and KO, 2001;

Hopcroft et al., 2001).

create

XMLQuery

add

GroupBy

add

Having

add Sorts

add

ElementQuery

add

XMLElement

add

AttributeFunction

add

XMLFunction

Having inherits

Statements

add

XMLStatement

add

XMLToken

add

OrderBy

ElementQuery

inherits

XMLElement

add

XMLElement

add

Restriction

add

Projection

add

Projection

add

Restriction

add

XMLElement

add

XMLAttribute

add

element

add

attribute

add

XMLElement

add

element

J L

add

ElementFunction

add

attribute

add

XMLAttribute

add

function

add

XMLFunction

add

XMLFunction

Restriction inherits

Statements

add

XMLStatement

add

Statements

add

Projection

add ElementQuery

add

ElementQuery

adiciona

variable |

operator |

value

add

XMLStatement

N P

add

OrderBy

convert into

ElementFunction

Figure 2: XQOM Query Objects used to test the XQOM

Schema.

The gray area of Figure 2 represents the query

objects used to test the query languages within the

XQOM Schema.

2.3 XQOM Algorithm

The following XQOM Algorithm describes the search

carried out through the XQOM Schema from the con-

ceptual model (or document) input and its query ﬁl-

ters to the result based on XML document that also

consists of a conceptual document:

1. Deﬁne the structure of the conceptual model;

2. Establish the structure of the physical models;

3. Deﬁne the mapping between the conceptual and physical models;

4. Load the ﬁlters;

5. Conﬁgure the lexical analyzer based on the ﬁlters sent by XQOM Inter-

face;

6. While there exists physical model associated to logical model do:

(a) Run the lexical analyzer based on the ﬁlters sent by XQOM Interface;

(b) Run the query languages and store the XML results;

XML QUERY OBJECT MODEL: A GENERAL VIEW

471

7. Remap to only one conceptual model the XML results based on the deﬁ-

nition of the logical models.

3 SIMULATION AND RESULTS

In this section, we present simulations’ performances

that have collaborated to validate the XQOM Schema

functioning process. These results have partially been

obtained through a non-visual query environment for

the queries homologation carried out in the XQOM

Schema.

The communication among the conceptual, logical

and physical models is composed of four layers (i.e.

interface, conceptual metadata, logical metadata and

physical metadata), which illustrates the XQOM map-

ping idea (Silvestre et al., 2005) .

The XQOM mapping process, depicted in Figure 3,

is basically described as an association between con-

ceptual metadata and physical metadata (i.e. XML

Files).

Figure 3 presents, in a general view, an instance

of the XQOM mapping used to simulate and evaluate

the XQOM Schema: three physical documents and a

conceptual model. They are create and stored by the

administrator. The associations between conceptual

and physical models, presented in Figure 3, represent

the logical model.

conceptual.xml

Publication

Author

Title

Year

book.xml

books/book/name

books/book/date/year

magazine.xml

magazine/topic

magazine/editor

magazine/year

paper.xml

papers/paper/author

papers/paper/topic

papers/paper/year

<Year/>

</Publication>

<books>

<book>

<name>Jorge Lins</name>

<date>

</date>

</book>

<book>

<name>Marcelo M.</name>

<date>

</date>

</book>

</books>

<paper>

<topic>Musica<topic>

</paper>

<paper>

<author>Fábio</author>

</paper>

</papers>

<topic>Design</topic>

<editor>Paulo</editor>

</magazine>

XML Metadata

XML Document

Association Flows

Physical Document

Conceptual Document

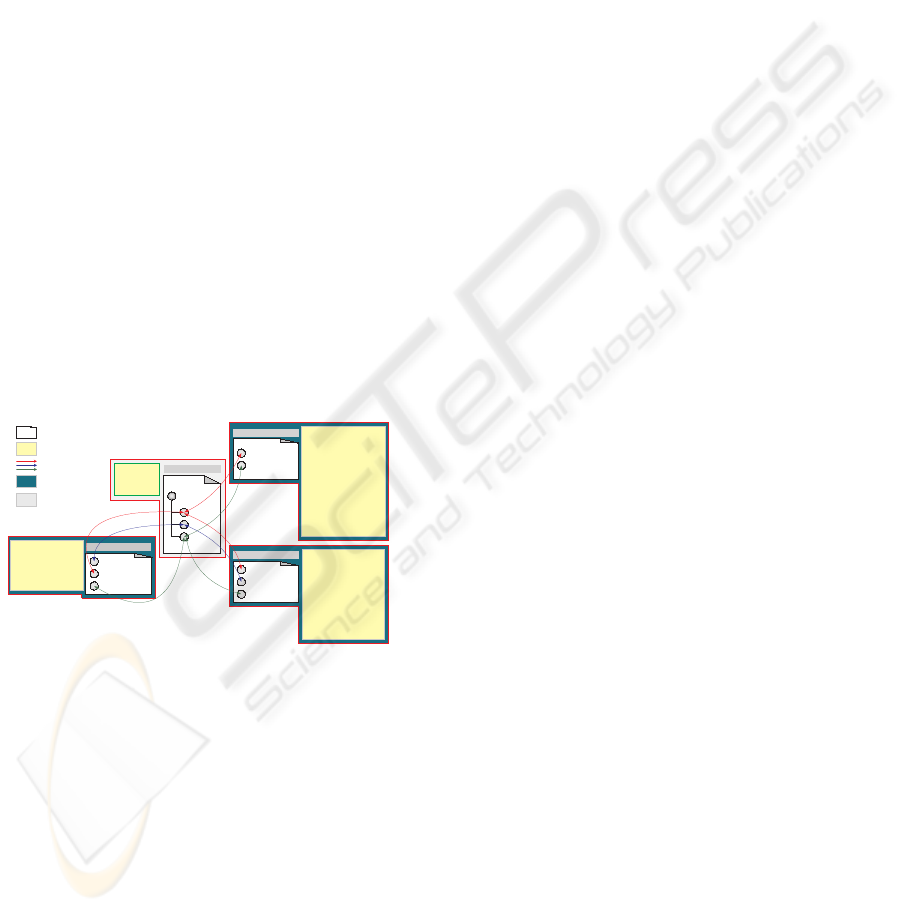

Figure 3: XQOM Mapping: Association between concep-

tual metadata and physical metadata (i.e. XML ﬁles).

4 CONCLUDING REMARKS

Some beneﬁts from XQOM Schema are pointed out.

It will facilitate to query ofﬁcial documents, journals,

libraries, magazines etc. It will also contribute to the

growing up of Document Electronic Management ap-

plications used in organizations that needs to offer

their documental heritage for searching. These ben-

eﬁts can be possible through the use of conceptual

models such as ontologies, which will facilitate the

search and retrieval of electronic documents.

As well, it is important to highlight that XQOM

Schema does not use any particular XML query lan-

guage, despite it can generates any language. This

fact turns it portable to other databases. Its portability

is granted among operational systems because it has

been developed in Java.

We point out a XQOM Schema limitation. There is

a great responsibility granted to the administrator and

end-user as well. They create the markups for the con-

ceptual documents and physical documents, respec-

tively. This can generate incorrect markups or physi-

cal documents. As a consequence, wrong results can

be returned. Finally, it is suggested as a future work

the realization of an interface evaluation in order to

improve the usability of the XQOM Interface.

REFERENCES

Aho, A. V., Hopcroft, J. E., and Ullman, J. D. (1974).

The Design and Analysis of Computer Algorithms.

Addison-Wesley, Reading.

Aho, A. V., Sethi, R., and Ullman, J. D. (1995). Compi-

ladores Princ

ıpios, T

ecnicas e Ferramentas. LTC, Rio

de Janeiro.

Bray, T., Paoli, J., Sperberg-McQueen, C. M., Maler, E.,

and Yergeau, F. (1997). Extensible Markup Language

(XML). on-line. XML Speciﬁcation by W3C.

Du, D.-Z. and KO, K.-I. (2001). Problem Solving in Au-

tomata, Languages, and Complexity. John Wiley and

Sons, New York.

Graves, M. (2001). Designing XML Databases. Prentice

Hall.

Hopcroft, J. E., Motwani, R., and Ullman, J. D. (2001). In-

troduction to Automata Theory, Languages, and Com-

putation. Addison-Wesley, Reading, 2nd edition.

Research, A. L. (1999). XML-QL: A Query Language for

XML. on-line. Source AT&T for the XML-QL.

Robie, J., Lapp, J., and Schach, D. (1998). XML Query

Language (XQL). on-line. XQL Tutorial of the W3C.

Silvestre, F. R., Pereira, H. B. B., and Jorge, E. M. F. (2005).

Esquema XQOM de Consultas a Documentos XML:

alise Te

orica. In SUCESU’2005 - Congresso Na-

cional de Tecnologia de Informac¸

ao e Comunicac¸

ao,

Belo Horizonte, Brazil.

WEBIST 2006 - WEB INTERFACES AND APPLICATIONS

472
