MCCV BASED IMAGE RETRIEVAL FOR ASTRONOMICAL

IMAGES

S. Santhosh Baboo

Department of Computer Science, D.G Vaishnav College, Arumbakkam, Chennai 106. India

P. Subashini

Department of Computer Science, Avinashilingam Deemed University, Coimbatore, India

K. S. Easwarakumar

Department of Computer Science & Engineering, Anna University, Chennai 25, India

Keywords: Astronomical Images, Colour coherence vector, Histogram, MCCV, Feature vectors.

Abstract: Content based image retrieval in astronomy, a technique that uses visual contents to search astronomical

images from a large scale image databases according to the users interests, has been an active and fast

advancing research area. Early techniques were not generally based on visual features but the textual

annotation of images. In other words, images were first annotated with text and then searched using a text-

based approach from traditional database management systems. Comprehensive surveys of early text-based

image retrieval methods can be found. Text-based image retrieval uses traditional database techniques to

manage images. Through text descriptions, images can be organized by topical or semantic hierarchies to

facilitate easy navigation and browsing based on standard Boolean queries. The aim of this paper is to

review the current state of the art in content-based image retrieval in astronomical images, a technique for

retrieving astronomical images on the basis of color distributions. The paper highlights the various retrieval

methods like color histogram, color coherence vector and multi scale color coherence vector. The findings

are based on both review of the relevant literature and discussions with researchers and practitioners in this

field.

1 INTRODUCTION

A database is a repository of data that traditionally

contains text, numeric values, Boolean values and

dates, known as ‘printable’ objects (Golshani F and

Dimitrova N, 1998). A multimedia database

additionally contains graphical images; video clips

and sound files, known as ‘presentable’ objects.

Users may retrieve information from a database

without having any knowledge of how or where that

data is stored.

The information stored within a database must be

structured in such a way that the information

required can be readily retrieved. A complex

multimedia data object, such as a video, was treated

as a single data item (Paul Lewis et al., 2002). In

terms of data management this object would be

treated in exactly the same way as other data items.

Queries were usually based on identifying an object

from its associated attributes. The deficiencies of

this approach for multimedia data objects quickly

became apparent and researchers are now

developing ways of retrieving multimedia data

objects based on their content. In order to handle the

enormous volume of data, not only of the big

number of images but also the size of each image

file, it is necessary to summarize the information.

From this perspective, we propose an approach to

perform image retrieval that initially generates a

representation that is independent of scale and

orientation, and then generates a more compact

representation, amenable to exhaustive search, using

principal component analysis.

477

Santhosh Baboo S., Subashini P. and S. Easwarakumar K. (2006).

MCCV BASED IMAGE RETRIEVAL FOR ASTRONOMICAL IMAGES.

In Proceedings of WEBIST 2006 - Second International Conference on Web Information Systems and Technologies - Internet Technology / Web

Interface and Applications, pages 477-480

DOI: 10.5220/0001248504770480

 SciTePress

2 DESCRIPTION OF THE

APPROACH

The method developed for image retrieval of

galaxies is divided in three modules : the Vision

module, the feature vector analysis module, and the

Retrieval module (engine). The method works as

follows: it takes as input the galaxy images, then the

Vision module rotates, centers, and crops them; the

FVA module finds the feature vectors, and the

projection of the images onto the principal

components will be the input parameters for the

Retrieval module. At the end, the user can supply a

query image and the Retrieval module, after

processing in the same way the image, compares it

against those in the collection, producing as a

response the images found that are similar to the

query image.

3 MULTISCALE COLOUR

COHERENCE VECTOR

The MCCV algorithm allows retrieval of similar

images based on the general colour distribution of

the image and sub-images, with discrimination

between colors in images, which are homogenous to

some sizable area (Mohammed F.A. et al., 2002).

The detail finder finds sub-images (Stephen

Chan et al., 2001) by dividing the query and the

database image into a number of tiles over a number

of resolutions, for each tile a CCV is created and

stored, so that the final feature vector is a set of

CCV feature vectors, one for each tile.

The multiscale ccv allows sub-image finding

based on the general colour distribution of tiles

within the images. This is a very basic match, which

allows detection of a query image within a database

image at any scale.

The highest resolution image is converted into

64x64 tiles, overlapping by 32 pixels in each

dimension. The image resolution is halved and,

again, divided into 64x64 tiles (of which there will

be 4 times less). The lowest resolution is of 64x64

pixels and 1 single tile. For each tile a RGB

histogram is created and stored, so that the final

feature vector is a set of RGB histogram feature

vectors, one for each tile.

Both the query image and the database image are

converted into a pyramid structure, and then each of

the tiles in the query image are compared against

each of the features for the tiles in the database

image using the RGB histogram matching algorithm

(Mike Westmacott et al., 2002).

The query is converted to a pyramid to facilitate

the database image being a sub-image (Mohammed

F.A. et al., 2002) of the query image (double sub-

image detection). An alternative is to assume the

query is a sub-image of the database image only, and

perform a RGB histogram match of the whole query

image against each of the tiles in the database image

(Fazly. S. Abas and Kirk Martinez, 2002). To

achieve a speed up in the matching, the features for

each of the tiles are compressed by an index (David

Dupplaw et al., 1999)

Rather than storing every single bin in each

histogram, only those bins that are populated are

stored. This can reduce the storage requirements

considerably. However, it introduces a matching

problem, because the populated bins may vary

between features, disallowing direct comparison. It

would be possible to ‘unpack’ the compressed

features and then compare those features, however,

it is possible using an algorithm developed by

Stephen Chan, to compare the compressed features

while they are still compressed. A histogram’s

populated bins would be stored as

{bin_number:frequency}; for example, {0:10, 3:4,

6:12} would represent a histogram with 3 populated

bins. A second histogram has a compressed feature

{0:1, 2:6, 8:4}. The matching algorithm steps

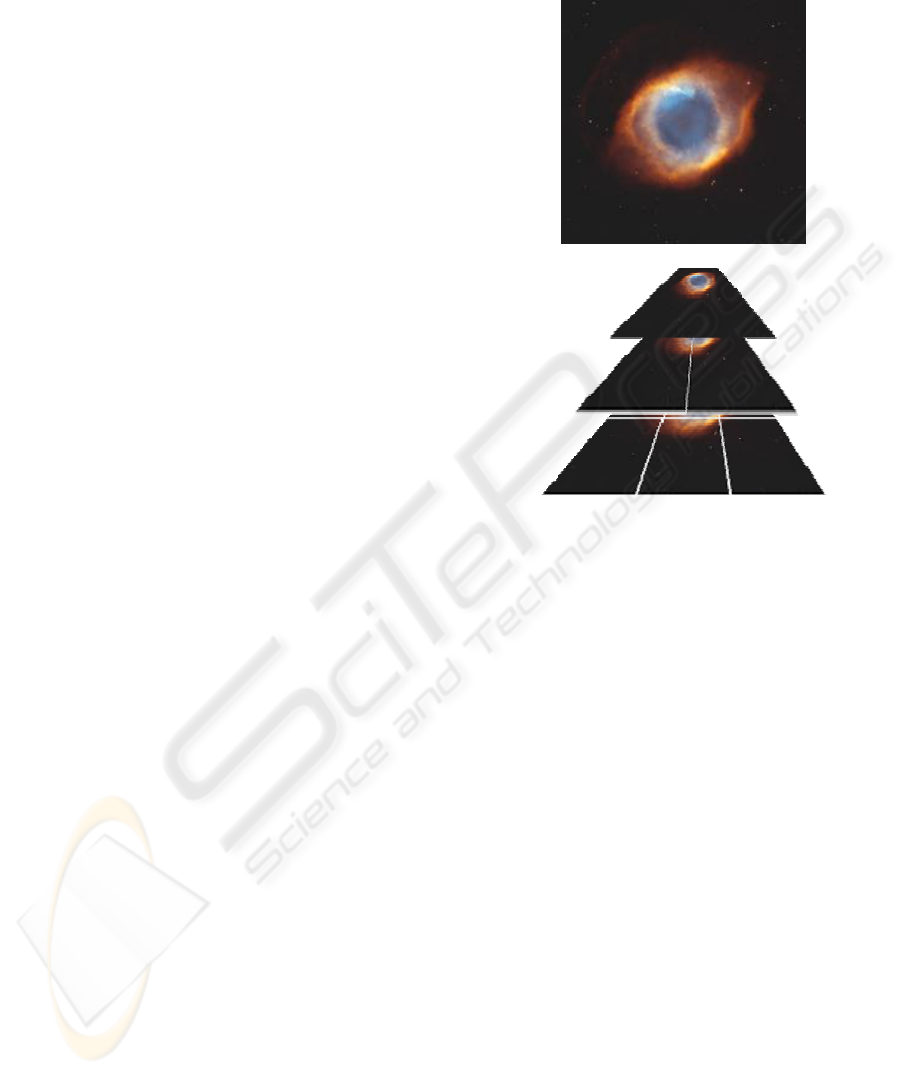

Figure 1: Multiscale pyramid structure of an image.

WEBIST 2006 - WEB INTERFACES AND APPLICATIONS

478

through these features accumulating a score as

though the feature was uncompressed. These two

histograms would be matched as follows:

 Compare first two values: {0:10}, {0:1}.

o Indexes match, so score becomes

sum of absolute difference:

score += abs (10-1) = 9

 Compare second values: {3:4}, {2:6}

o Increment score by value of

smaller index:

score += 6

 Compare next value with the same unused

value: {3:4}, {8:4}

o Increment score by value of

smaller index:

score += 4

 Compare next value with the same unused

value: {6:12}, {8:4}

o Increment score by value of

smaller index:

score += 12

 No value pairs left, so we add the left over

value on:

o Increment score by value of final

index:

score += 4

 Final score is: 35.

An example of the mutliscale matching is shown.

The image on the left is the query image which is a

sub-image of an image within the database.

4 EXPERIMENTAL RESULTS

We tested the system using a data set that consisted

images of galaxies. It was taken from the NAOA

catalog on the web page of the Astronomical images

(http://www.noao.edu/image_gallery). We processed

the images. Figure 3 shows examples of images

from the original data set and the resulting images

output by the vision module.

In order to assess the effectiveness of the

approach, we used leave-one-out cross validation,

testing the output of the system with one image, and

training with the rest, and repeating the process,

until all images have been used once as test image.

Using this approach, the system output as best match

a galaxy belonging to the same class as the query

image 89% of the time. This error rate is smaller to

those reported in the literature using automated

means for image-based galaxy classification (M.C.

Storrie-Lombardi et al., 1992) and (A.Adams and

A.Woolley, 1994). The best results were obtained

when using an elliptical galaxy as query image, very

likely because they present the most regular

structure, while the worst results were obtained for

irregular galaxies, which have very little discernible

structure.

We tested the images for noise and blur also.

We noticed that the luminosity of the image before

and after processing is doing well. Chart 1 says the

blur test and chart 2 says the noise test.

Chart one shows that the luminosity count for

processed image is less than that of the unprocessed

image when we applied blurring over it, which

indicates that processed image is resistive to the

blurring.

Chart two shows that the luminosity count for

processed image is less than that of the unprocessed

image when we applied noise over it, which

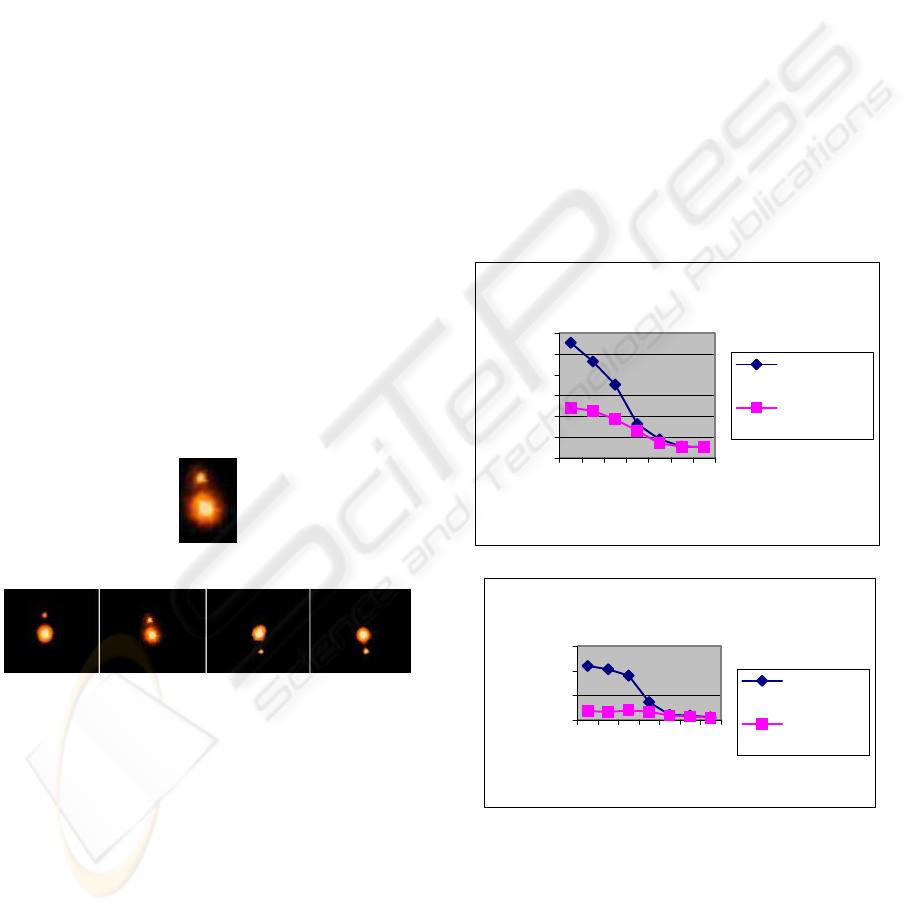

Figure 2: An example multiscalar match.

Noise Test

500

1000

1500

Layer

Luminosity Count

Unprocess

ed image

Processed


Blur Test

100

200

300

400

500

600

Layer

Luminosity Count

Unprocesse

d image

Processed


MCCV BASED IMAGE RETRIEVAL FOR ASTRONOMICAL IMAGES

479

indicates that processed image is resistive to the

noise.

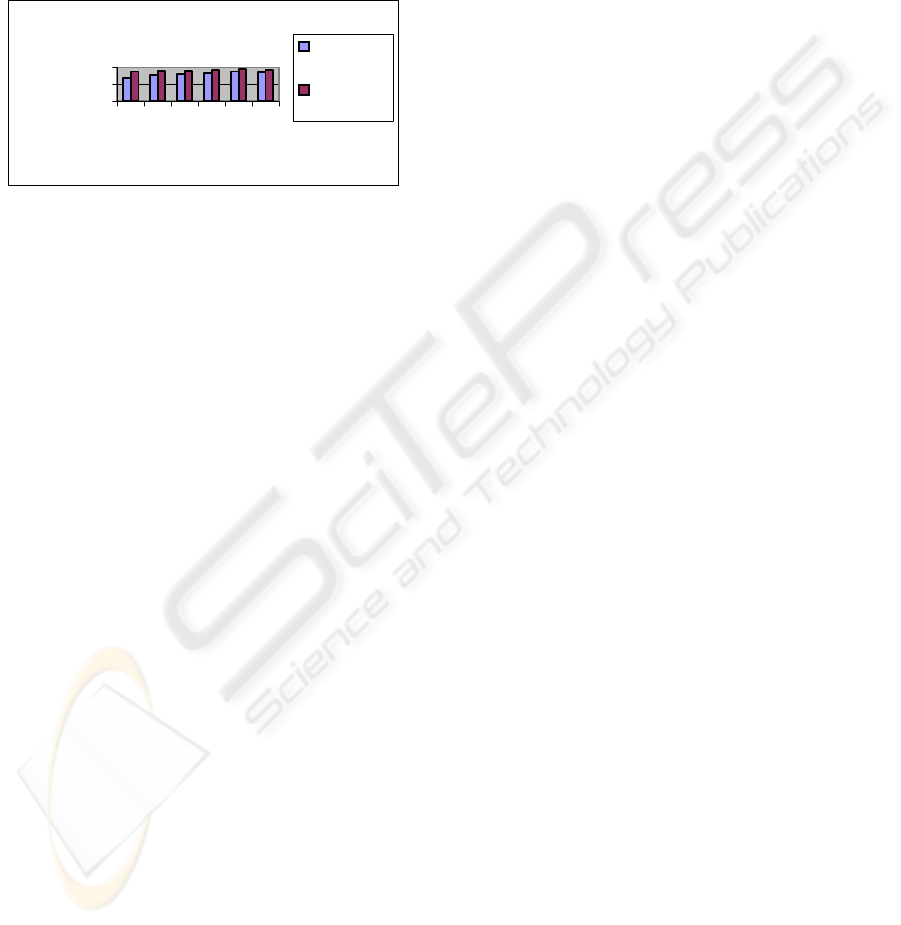

We tested the efficiency of the algorithm given

over the images which we applied our processing

and tested. The accuracy of both the retrievals is

depicted in the chart. We checked with 200

processed and tested images. When compared with

the histogram, MCCV gives more accurate retrieval.

5 CONCLUSION

We have presented a system that performs content-

based retrieval of astronomical images. The system

executes the following steps to perform image

retrieval: 1. Use computer vision techniques to find

the location, orientation and size of the galaxy in the

image. 2. Rotate, crop and resize the images so that

in all the images are the same size, the galaxy is at

the center of the image, has horizontal orientation

and covers the whole image. 3. Find the feature

vectors of the images and project the images. Given

a query image, process it as in steps 1 and 2, project

it and retrieve the n images with the smallest

distance. Quantitative results show that almost 90%

of the time the image deemed by the system as most

similar to query belongs to the same class, and

qualitative results show that the set of images

retrieved by the system are visually similar to the

query image. Some directions of future work

include:

 Extending the experiments to a larger

database of galactic images

 Efficient search methods using R-trees

(Guttman S, 1984)

 Building classifiers for other types of

astronomical objects, such as nebulas and

clusters.

 Extending the system to deal with wide-

field images, containing multiple objects.

This will be done by means of a

preprocessing stage to segment the objects

in the images, and then processing them

individually.

In summary, the global CCV is superior to the

basic colour histogram in most of the tests.

However, the histogram has the advantage of rapid

generation and comparison. Although processing

power is less of an issue the memory requirements

for generating CCVs can sometimes be a limiting

factor when compared to histograms.

This global CCV and histogram results translates

well to the Multiscale versions of the algorithms.

MCCV generally fared better than MHistogram. The

monochrome histogram provides good retrieval rate

in both single, and multi scale versions. However, it

is rather sensitive to noise.

REFERENCES

Golshani F and Dimitrova N A Language for content

based Video Retrieval, Multimedia tools and

applications 6, 1998 pp 289-312.

NOAO: Image Gallery on the web page of

http://www.noao.edu/image_gallery

M.C. Storrie-Lombardi, O. Lahav, L. Sodre and L.J.

Storrie-Lombardi, Morphological Classification of

Galaxies by Artificial Neural Networks, Monthly

Notices of the Royal Astronomical Society 259, 1992.

A.Adams and A.Woolley, Hubble Classification of

Galaxies Using Neural Networks, Vistas in Astronomy

38, 1994.

David Dupplaw, Paul Lewis, Mark Dobie, Spatial Colour

Matching for Content Based Retrieval and Navigation,

The Challenge of Image Retrieval, February 1999,

Newcastle, UK.

Guttman S (1984) In: Proceedings of the SIGMOD

Conference, ACM, pp. 47–57.

Stephen Chan and Kirk Martinez and Paul Lewis and

C.Lahanier and J.Stevenson, Handling Sub-Image

Queries in Content-Based Retrieval of High

Resolution Art Images, International Cultural Heritage

Informatics Meeting (ICHIM01),pp. 157-163 (2001).

Paul Lewis, David Dupplaw and Kirk Martinez, Content-

Based Multimedia Information Handling: Should we

Stick to Metadata?, Cultivate Interactive Issue 6,

February 2002,

http://www.cultivate-int.org/issue6/retrieval/

Mike Westmacott, Paul Lewis and Kirk Martinez, Using

Colour Pair Patches for Image Retrieval, Proceedings

of the First European Conference on Colour in

Graphics, Imaging and Vision, 245-248, June 2002.

Fazly. S. Abas, and Kirk Martinez, Craquelure Analysis

for Content-Based Retrieval, Proceedings, of the 14th

International Conference on Digital Signal Processing,

July 2002.

Mohammed F.A. Fauzi and Paul Lewis, Query by Fax for

Content-Based Image Retrieval, Proceedings of

International Conference CIVR 2002, London, July

2002, pages 91-99.

Accuracy of the Retrieval

100

123456

Images

% of

Accuracy

Color

Histogram

M CCV

WEBIST 2006 - WEB INTERFACES AND APPLICATIONS

480
