AUGMENTED REALITY ENVIRONMENT USING A WEB

BROWSER

Content Presentation with a Two-Layer Display

Kikuo Asai

National Institute of Multimedia Education, 2-12 Wakaba, Mihama-ku, Chiba, Japan

Hideaki Kobayashi

The Graduate University for Advanced Studies, Shonan Village, Hayama, Kanagawa, Japan

Keywords: Augmented reality, Web browser, two-layer display, content presentation, and character recognition.

Abstract: We developed a prototype system to make an augmented reality (AR) environment using a Web browser.

Although AR technology has the potential to be used in various applications, authoring/editing AR contents

is a problem on the wide spread. Graphics expertise and knowledge of computer programming are necessary

for creating contents for AR applications. We used a Web browser as a presentation tool so that users who

had experience in creating Web contents could reuse the multimedia data as AR contents and modify the

AR contents by themselves. A two-layer display was used in the system in order to superimpose virtual

objects onto a real scene for creating an AR environment. Another problem is about identifying objects in

the real scene. An open-source library, ARToolkit, is often used as an image-processing tool for detecting

the position and orientation of markers as well as identifying them. However, the markers must be

registered in the system in advance, and the registration becomes tedious work when many markers are used

such as Japanese kanji characters. The optical character reader (OCR) middleware was implemented as a

character-recognition function for Japanese character markers. This paper describes the system design and

software architecture for constructing an AR environment using a Web browser display and the

demonstration of the prototype system.

1 INTRODUCTION

Augmented reality (AR) technology enables us to

enhance recognition of the real world by

superimposing virtual objects onto a real scene. AR

has the potential of creating a new environment that

seamlessly connects a virtual space to the real world.

The AR environment has great advantages such as

spatial awareness (Biocca et al., 2003( over the real

world and tangible interaction (Poupyrev et al.,

2002( over a virtual space.

Various applications have been developed based

on AR’s potential. However, authoring/editing AR

contents currently requires computer graphics

expertise and knowledge of computer programming,

which is one of the reasons that AR has not

generated the killer application. Some toolkits for

authoring/editing AR contents have been developed

such as AMIRE (Grimm et al., 2002( and DART

(MacIntyre et al., 2004( that allow the user to edit

the contents without being familiarized with

computer graphics and programming.

Unfortunately, these toolkits are not well suited

for creating simple AR contents because using the

toolkits involves several complicated tasks in the

production process and additional tools for which

users must learn the basic skills. Our idea involves

using a Web browser as a presentation tool. The

browser supports various data formats that enable us

to reuse multimedia data. A Web browser may be

obtained for free, and the users who create AR

contents probably have some experience with a

markup language such as HTML, VRML, or XML.

In addition to the data formats it supports,

another advantage of using a Web browser is that

plug-in software can be installed for additional

functions for extended data formats. However, using

a Web browser causes a problem when

481

Asai K. and Kobayashi H. (2006).

AUGMENTED REALITY ENVIRONMENT USING A WEB BROWSER - Content Presentation with a Two-Layer Display.

In Proceedings of WEBIST 2006 - Second International Conference on Web Information Systems and Technologies - Internet Technology / Web

Interface and Applications, pages 481-486

DOI: 10.5220/0001250604810486

 SciTePress

superimposing virtual objects onto a real scene, so

we used a two-layer display for presenting virtual

objects over images in the real scene.

In marker-based tracking, the markers that are

used for identifying an object and detecting its

position and orientation in the scene have to be

registered in advance. Registering many markers

would be tedious work, especially when using

language characters as markers. We used an optical

character reader (OCR) middleware for recognizing

Japanese character markers.

Our goals are to develop a simple method for

superimposing virtual objects over the real scenes

and to enable users to create AR contents composed

of multimedia data of various formats. This paper

describes the design and architecture of a prototype

that uses a two-layer display for making an AR

environment with a Web browser.

2 RELATED WORK

ARToolkit (Kato et al., 2000( is a set of C/C++

open-source libraries, which has widely been used

for coding programs for AR applications. The

primary advantage of ARToolkit is to work with a

single camera operating under visible lighting

conditions. Programming skills are required for

coding the programs but are not required for using

the runtime samples for attaching VRML models to

markers. ARToolkit is distributed with sample

programs that show users how to attach VRML

models to markers.

AMIRE is a set of graphical authoring/editing

tools, which has a component-based framework

focused on specific AR domains. Although AMIRE

does not involve coding programs directly, a visual

language interface has to be treated for integrating

components in an object-oriented structure. DART is

also an authoring/editing tool built on Macromedia

Director. Director is an object-oriented environment

for creating 2-D and 3-D animations. A basic

knowledge of using Director is required for using

DART for developing AR applications.

These authoring/editing tools are not necessary

for creating simple applications, and the runtime

samples of ARToolkit would be enough for

superimposing virtual objects over a real scene.

However, the ARToolkit samples are not compatible

with various multimedia data formats and

registrations of many character markers. In our

system, a Web browser enables us to reuse

multimedia data of various formats, and OCR may

solve the registration problem.

Multi-layer displays that were originally

developed for CAD simultaneously display drafts

and 3-D structures on the same monitor. While NTT

Cyber Space Laboratories used a multi-layer display

for developing a stereoscopic display, depth-fused 3-

D (DFD) (Suyama et al., 2001(, and the display is

currently on the market. We used a two-layer display

for constructing an AR environment.

3 SYSTEM

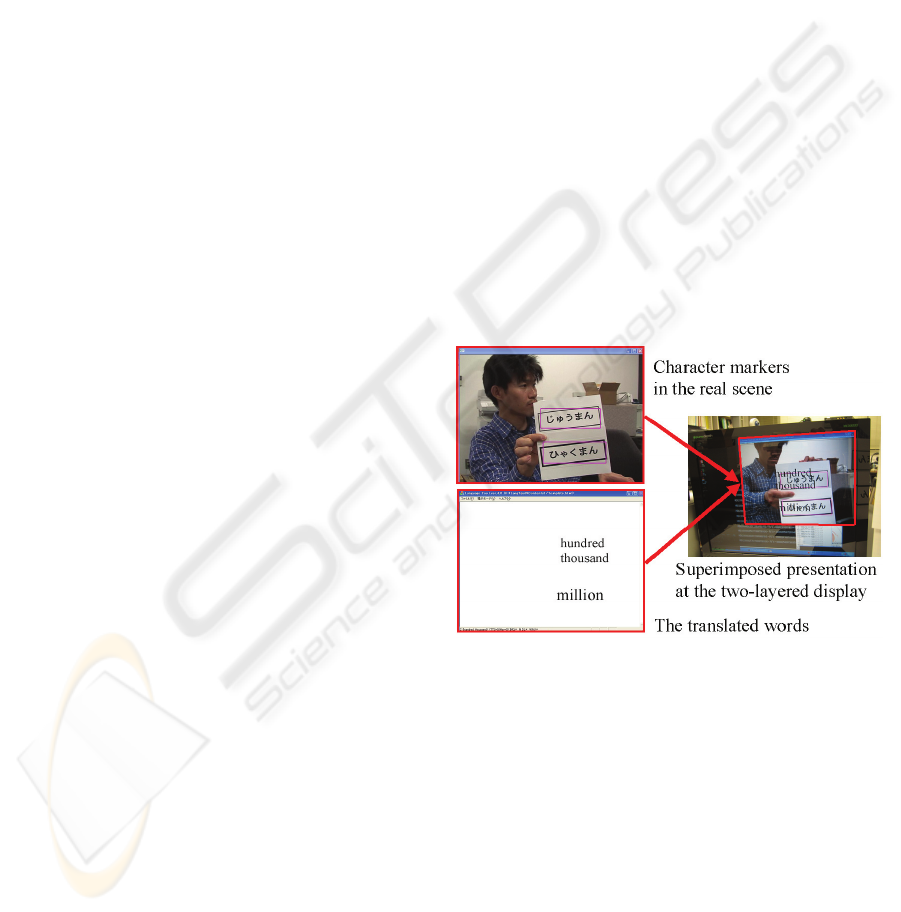

Figure 1 shows an example of a superimposed

presentation on a two-layer display. The English

words are superimposed over the Japanese

characters. The user holds the two character markers,

and the two translated words are presented in the

different windows. The recognized hiragana markers

are enclosed by the pink rectangles in the camera-

image window, and the two English words are set at

the corresponding locations in the presentation

window. When the user moves the markers, the

English words track the markers with the position

and orientation.

Figure 1: An example of superimposed presentation on

two-layer display.

3.1 Design

We here describe the design and functions of our

prototype system for making an AR environment.

The system detects square frames in a video image

and checks whether the characters in the square

frames correspond to the words that were registered

in advance. Based on the character markers, the

functions display texts, images, and 3-D models and

play sound, or generate a synthesized voice.

A design that incorporates a Web browser, a

two-layer display, and an OCR makes our system

unique.

WEBIST 2006 - WEB INTERFACES AND APPLICATIONS

482

1) Web browser—A Web browser was used in

the prototype as a presentation tool. Using a Web

browser has some distinct advantages. Web

browsers can support various multimedia data

formats and plug-in tools. Users have had problems

using AR technology for authoring/editing contents

because programmers and graphic experts usually

develop AR applications. Using a Web browser

improves the flexibility of authoring/editing and

reusing the existing contents, which makes creating

simple AR applications possible for novice users.

Moreover, the Web browser supports plug-in tools

and extended data formats.

2) Two-layer display—Some people might claim

that using a Web browser is not an AR-based system

because the virtual objects may not be spatially

registered on the real scene. However, the system

was designed as follows in order to keep the AR

features. The first is detecting the position and

orientation of the identified markers and reflecting

them in the presentation on the browser window.

The other is implementing a two-layer display in the

system that enables us to present virtual objects that

are superimposed on the real scene. Although spatial

registration is not actually achieved, the virtual

objects track the markers at the approximate

positions of the markers in the real scene.

3) Character recognition using OCR—Most AR

applications use markers for identifying objects and

detecting their position and orientation in real scenes.

However, users have to register each marker in the

system in advance, and this causes difficulties if

more than 100 markers are involved. OCR is thus

useful for recognizing letters and characters and for

detecting words as character markers. Although a

specific version of the OCR software needs to be

installed in order to allow for appropriate character

recognition (because OCR depends on the language

being used), using OCR greatly expands the number

of words that can be used in AR systems.

3.2 Configuration

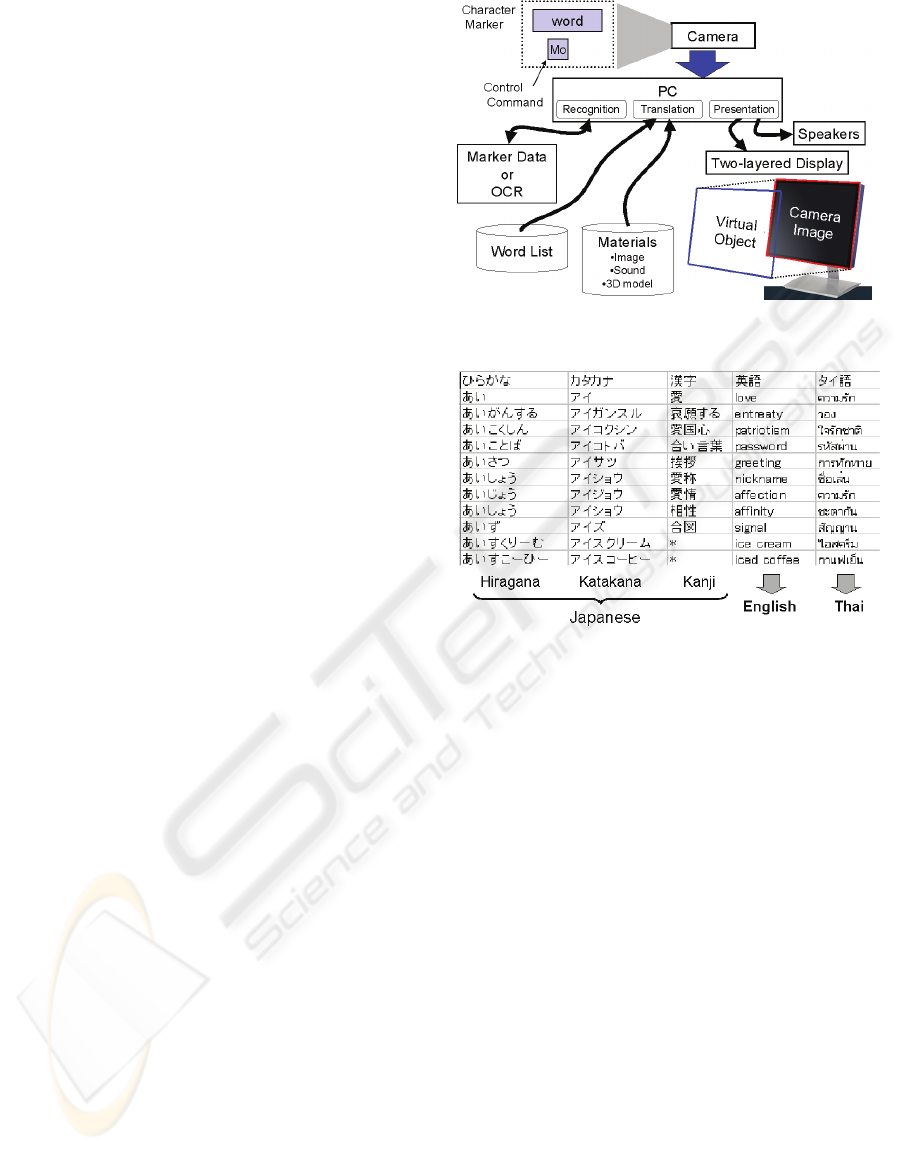

Figure 2 shows the configuration of the prototype

system. The arrow indicates direction of the flow of

the processing data. A camera captures video images

including the character markers held by the user, and

the video is fed into a PC.

First, the recognition function of the PC detects

the markers and the characters by matching them to

the marker data or by finding words with the OCR.

We created specific character markers for a

command in order to control the presentation. For

example, the user can change the format of the

presentation from text to image or the size of the text

font, by presenting the control command marker.

Figure 2: Configuration of prototype system.

Table 1: Beginning of word list.

The words that were recognized with the OCR

are then counted as possible matches to the word

shown by the user, and are looked up in the word list.

If the word matches a word in the word list, it is

translated into the designated format such as the text

of the other language, an image, a 3-D model, or

sound, which has been prepared for the presentation

in advance. Table 1 lists a sample from the word list.

The user views two windows that are

superimposed at the two-layer display. One window

contains the camera image and the other the contents.

The camera-image window shows the input video-

image including the character markers. The content

window presents information such as the translation

texts, images, and 3-D models that are related to the

recognized words.

The prototype system does not have a video

transmission function. When the system is used in

telecommunication, video images have to be

transmitted to remote sites separately through some

network such as the Internet or satellite

communications. A two-layer display is capable of

superimposing the camera image and the contents,

and presents them simultaneously. The virtual

objects are spatially registered to the camera images

of the real scene based on the positions and

AUGMENTED REALITY ENVIRONMENT USING A WEB BROWSER - Content Presentation with a Two-Layer

Display

483

orientations of the character markers. Instead of

texts, images, or 3-D graphics, sounds are played

using the sound files in the word list. When the user

selects the voice mode, a voice synthesizer reads out

loud for the recognized word.

3.3 Software Architecture

Figure 3 shows the software architecture of the

prototype system. The software is mainly composed

of image processing and presentation parts. The two

parts have a server-client relationship, and they

exchange data using socket communications. We

used UDP/IP to support multiple clients that transmit

and receive control signals with a server on the

network. The multiple clients can share the

information based on the recognized word at the

server. This software architecture allows users to

apply the system to support for telecommunication.

For example, a presenter makes a speech using

keywords while the video images are processed at

the server. The processed information is then

multicast to remote sites where the audiences see the

video with the keywords translated to their mother

tongues.

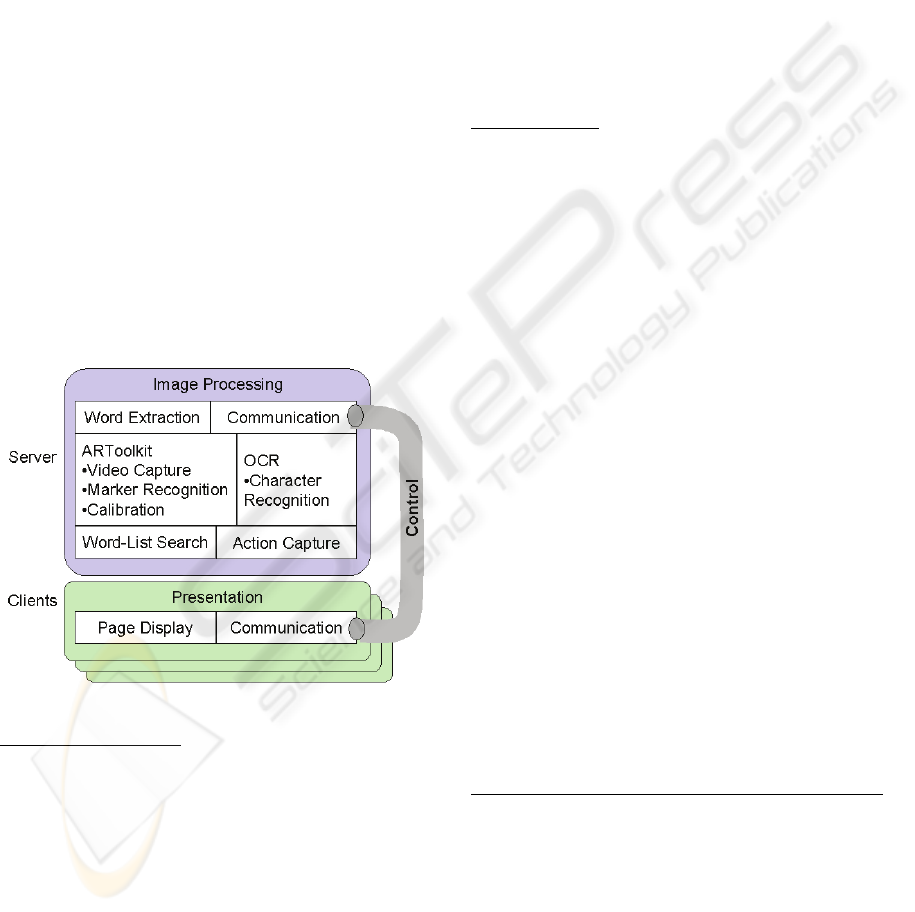

Figure 3: Software architecture.

Character Recognition

The way an image is processed depends on the

number of characters on the character marker. First,

the OCR tries to recognize some characters in order

to detect words in the character marker. If nothing or

only one character is found, the process is passed to

ARToolkit. If the character matches another one in

the pre-registered marker data, that character is then

used as a control command. Otherwise, the message

“no word” appears on the display. If the OCR

detects some words, they are checked as possible

matches against the words in the word list.

We used ARToolkit for identifying a control

command because the number of control commands

is currently around 30, and registering the markers is

not tedious work. The ARToolkit was also used for

detecting square frames—determining their position

and orientation.

We used the OCR middleware tool “Yonde!!

KoKo” (A.I. Soft) for the Japanese character

recognition. OCR is well suited for extracting the

characters of specific languages even though it does

not recognize the script or special symbols in minor

languages. The OCR tool recognizes the JIS first-

level kanji and hiragana, katakana, the English

alphabet, and Roman numerals. These characters do

not have to be registered in advance.

Word Detection

An original word list was created for conducting

the language translation because using a word list is

efficient on word detection. We did not use a

commercial translator. The translation is done by

referring to the compact word list from a specific

field of interest to the user. In the prototype system,

Hiragana, Katakana, and Kanji were designated as

the source characters, and everyday English or Thai

words were the destination words.

The word detection has not been perfect, and

incorrect results were sometimes obtained. The main

reason for this was that the characters derived from

the OCR were not always correct, depending on the

lighting condition and the movements of the

character marker. We observed that a statistically

significant number of characters were recognized

incorrectly. For example, the small characters of

Japanese Hiragana were often mistaken for the

normal-size Hiragana characters.

The word detection was thus conducted using the

following correction process. The characters that

were recognized by the OCR were first looked up in

the word list. If the group of characters did not

match any words in the word list, one character at a

time in the group was substituted with a candidate

character, and the corrected group was then checked

against the word list. This process was repeated until

a match was found.

Reducing the number of times the page is refreshed

The contents were presented in a layout that was

based on the position of the markers held by the user.

An HTML file was created to place the text, images,

or 3-D models at the marker positions in the real

scene. A page is renewed by recreating and

reloading the new file. However, refreshing the page

frequently destabilizes the presentation, and should

thus be kept to a minimum.

The change in position of the virtual objects was

controlled smoothly without renewing the page by

WEBIST 2006 - WEB INTERFACES AND APPLICATIONS

484

using a JavaScript function—a new file was created

and reloaded in the Web browser when the layout of

the virtual objects changed with the rotation and

zoom of the markers.

This method of control also helps reduce traffic

of signals multicasting between the server and the

clients. We set three levels of signal transmission.

Traffic was not generated when the detected words

were identical to the previous ones with the same

layout. Only the layout information was transferred

when the detected words were identical to the

previous ones but had a different layout. When the

detected words and their layout changed, their

detected words and the layout information were

multicast.

3.4 Implementation

Figure 4 demonstrates snapshots of each

presentation with (a) text, (b) an image, and (c) a 3-

D model. The system can control the presentation

format of text, images, and 3-D models by inserting

a control command marker. When the control

marker, “Im” or “Mo,” reaches the character marker,

the corresponding image or the 3-D model is

presented at the marker’s location. Only text appears

when there is no control marker. We used a VRML

plug-in tool, Cortona (Cortona(, for viewing the 3-D

models in the Web browser.

The HTML format is advantageous for creating

AR contents thus making authoring/editing the

contents and reusing the multimedia data easier.

Using a Web browser as a presentation tool also

enables us to install plug-in software, even though

the system does not offer much control flexibility of

the plug-in software. Figure 5 demonstrates a

snapshot of presenting protein data from the Protein

Data Bank, in which a plug-in tool, Chime (Chime(,

was implemented. The snapshot represents the 3-D

structure of a virus related to avian influenza. The

plug-in software increases the number of

presentation formats beyond that which is normally

supported by default in the Web browser. Although

sounds cannot be demonstrated in this paper, when

the user selects the sound files as the destination,

they are played based on the sort of the markers.

The prototype system was implemented on two

desktop PCs, each with a 2.4-GHz Pentium IV

processor for the image processing, and a 1-GHz

Pentium III processor for the presentation. A DV

camera (DCR-HC1000, SONY) was connected to

the image-processing PC through an IEEE 1394

cable. The PureDepth MLD

3000 that was used as

a two-layer display had specifications of a 17”-

diagonal size monitor and 1280x1024x2 resolution.

Although the frame rate was roughly 20 frames

per second, a delay of around one second was

observed between the time that the character marker

appeared and the time the text displayed. When the

markers were quickly shifted in the camera image,

unstable recognition was observed with the OCR.

We also checked accuracy of the word

identification, measuring a recognition rate of the

character markers under a static condition. 8 markers

of the Japanese Hiragana and Kanji characters were

prepared as samples for the evaluation test. The

simple camera (Qcam Pro 4000, Logicool) with 640

x 480 pixels was used for capturing images.

(a) Text (Japanese to Thai).

(b) Image.

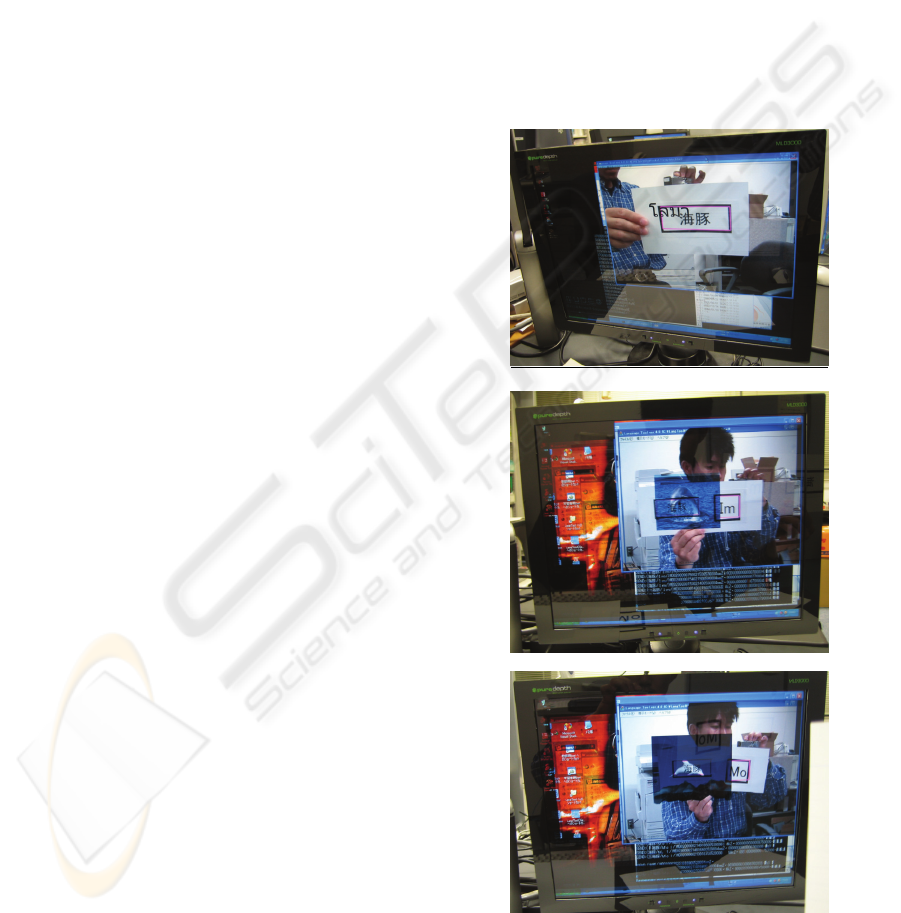

Figure 4: Snapshots of content presentations with (a) text,

(b) an image, and (c) a 3-D model.

AUGMENTED REALITY ENVIRONMENT USING A WEB BROWSER - Content Presentation with a Two-Layer

Display

485

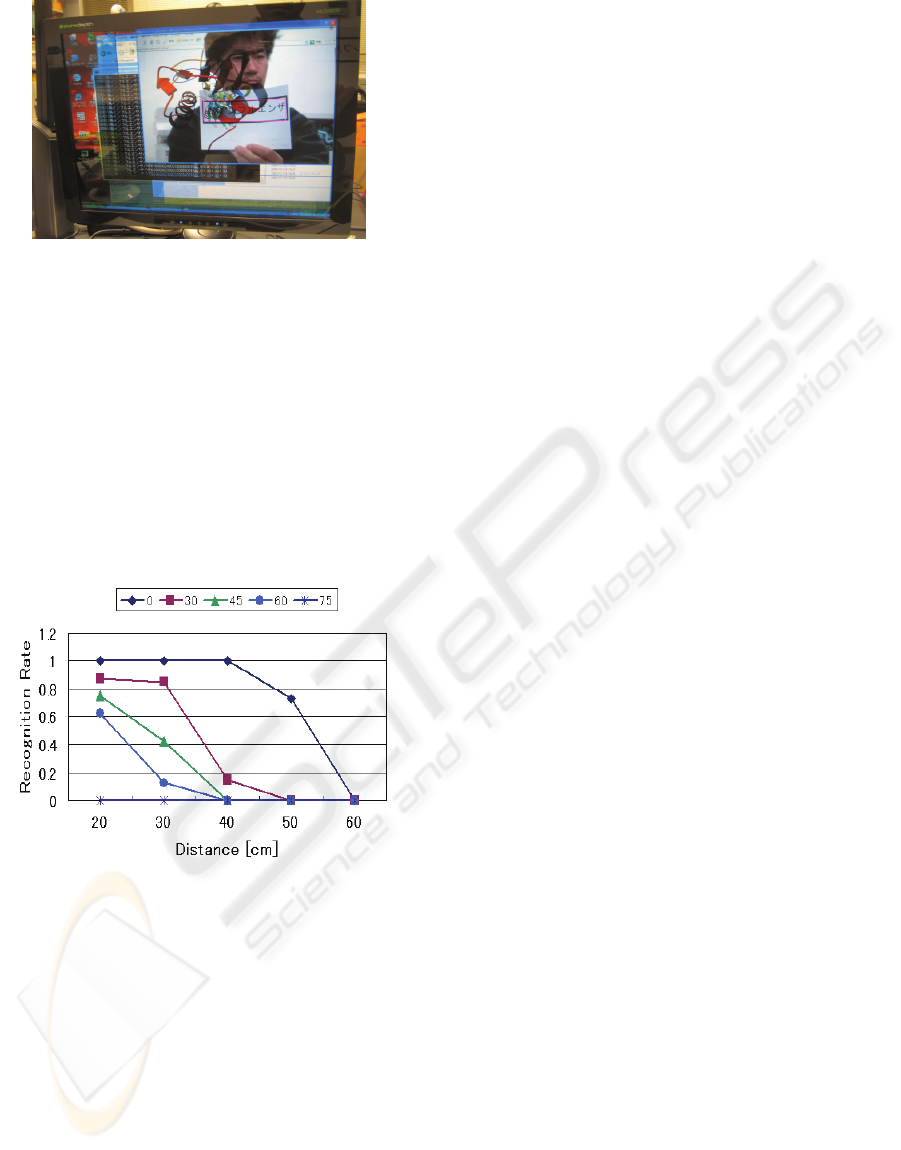

Figure 5: Presentation using a plug-in tool for the Protein

Database.

Figure 6 shows the average rate of the correct

recognition for the sample characters. The sort of

marks corresponds to difference of the slant for the

character markers. “30” means that the character

marker was set at direction of 30 deg. from the line

of sight of the camera. The recognition rate

decreases with distance of the character markers

from the camera and slant of the markers from the

line of sight. When markers are presented vertically

onto the camera, the stable recognition is obtained at

a distance from 20 to 40 cm.

Figure 6: Average rate of the correct recognition.

4 SUMMARY

We developed a prototype system that presents

contents with a two-layer display in order to make

an AR environment using a Web browser. Using a

Web browser as a presentation tool may improve the

authoring/editing of AR contents and the reusability

of multimedia data. The system can be used for

supporting telecommunications by presenting

additional information related to text during a

videoconference.

We used a word list to identify the words shown

by the user. For some words, however, the system

performance decreased due to the time required to

search the words. An acceleration function is

required for improving the efficiency of retrieving

information in the system. Our future plans include

improving the accuracy of the character recognition

using the OCR.

ACKNOWLEDGMENTS

This research was partially supported by a grant-in-

aid for scientific research (17300283) from the JSPS.

“Yonde!! KoKo” is a trademark of the A. I. Soft Co.,

Ltd. Yoshihiko Masui provided the Thai words in

the word list.

REFERENCES

Biocca, F., Rolland, J., Plantegenest, G., Reddy, C., Harms,

C., et. al. Approaches to the design and measurement

of social and information awareness in augmented

reality systems. Proc. Human-Computer Interaction

International: Theory and Practice, pp.844-848, 2003.

Chime, a PDB plug-in tool for a Web browser,

http://www.mdli.com/index.jsp

Cortona, a VRML plug-in tool for a Web browser,

http://www.parallelgraphics.com/products/cortona/

Grimm, P., Haller, M., Paelke, V., Reinhold, S., Reinmann,

C., and Zauner, J. AMIRE – authoring mixed reality.

Proc. IEEE International Augmented Reality Toolkit

Workshop, 2002.

Kato, H., Billinghurst, M., Poupyrev, I., Imamoto, K., and

Tachibana, K. Virtual object manipulation on a table-

top AR environment. Proc International Symposium

on Augmented Reality, pp.111-119, 2000.

MacIntyre, B., Gandy, M., Dow, S., Bolter, J. D. DART: a

toolkit for rapid design exploration of augmented

reality experiences. Proc. International Conference on

User Interface Software and Technology, 2004.

Poupyrev, I., Tan, D. S., Billinghurst, M., Kato, H.,

Regenbrecht, H., and Tetsutani, N. Developing a

generic augmented reality interface. Computer, vol.35,

pp.44-50, 2002.

Suyama, S., Takada, H., Uehara, K., Sakai, S., and

Ohtsuka, S. A new method for protruding apparent 3D

images in the DFD (Depth-Fused 3D) display. SID 01

Digest, vol.54.1, pp.1300-1303, 2001.

WEBIST 2006 - WEB INTERFACES AND APPLICATIONS

486
