JSR 168 AND WSRP 1.0 – HOW MATURE ARE PORTAL

STANDARDS?

Xiaobo Yang, Xiao Dong Wang, Rob Allan

CCLRC e-Science Centre, Daresbury Laboratory, Warrington WA4 4AD, UK

Keywords: Portal, Portlet, JSR 168, WSRP, Grid, e-Science.

Abstract: The benefits of adopting web portals in different scenarios like e-Learning and e-Research are well

understood now. With built-in single sign-on (SSO), role-based authorisation management and

personalisation, portals provide a uniform interface for seamless access by users to existing or emerging

distributed resources such as the Grid. In this paper, two portal standards – Web Services for Remote

Portlets (WSRP) and Java Specification Request (JSR) 168 will be discussed to reveal how practical they

are in developing real world portals. The discussion is based on our work in portal development for several

UK e-Science projects including the UK NGS (National Grid Services) Portal and the Sakai VRE Portal

Demonstrator project.

1 INTRODUCTION

Web portals can play a prominent role in real world

applications by bridging end-users to resources and

hiding underlying middleware complexity.

Resources could be as simple as some arbitrary data

stored in a database, or as complex as business logic

on the Grid. By aggregating distributed resources

together with built-in SSO, role-based authorisation

and support for personalisation, portals can

streamline the use of distributed resources and

improve the productivity of existing software

systems.

With the widening use of Grid technology,

portals are often used to provide transparent client

access. Prior to the two portal standards - WSRP 1.0

(WSRP1.0) and JSR 168 (JSR168) born in 2003,

portals were developed with a lot of similar code

rewritten in different Grid/e-Science projects.

Toolkits like GPDK (Novotny, 2002), Java CoG

(von Laszewski, 2001) and GridPort (Thomas, 2001)

were developed to simplify the task. This approach

also led to many customised libraries created to meet

the demands of particular projects, such as the Grid

Application Toolkit (GAT). Although these well

defined APIs/libraries can help to simplify portal

development, non-standard based portal applications

(Peltier, 2003, Wu, 2004, Bondarescu, 2005) are not

easy to re-use outside of the original project.

Realising the importance of standards in portal

development for the UK e-Science community, an

international workshop titled Portals and Portlets

was held in July 2003 at the UK National e-Science

Centre. It covered the main portal work of the Grid

community at that time. Work of GridSphere,

NEESgrid, OGCE, uPortal together with IBM

WebSphere Portal, Sun One Portal Framework and

more projects were presented. Shortly after that

workshop, WSRP and JSR 168 were formally

ratified by OASIS (Organisation for the

Advancement of Structured Information Standards)

and JCP (Java Community Process) respectively to

solve the interoperability issues in portal

development. At the beginning of March 2005,

another workshop on GridSphere and Portlets, was

held with discussions focusing on sharing JSR 168

portlets between different frameworks, plus an initial

investigation of WSRP.

WSRP and JSR 168 are slowly becoming

adopted by portal vendors and developers. Today

plenty of open-source and commercial portal

frameworks are available on the market, for

example, eXo platform, Liferay, uPortal, JBoss

Portal and IBM WebSphere Portal. They all claim to

support JSR 168 and many also claim to support

WSRP.

In this paper, we will first give an introduction to

WSRP and JSR 168. Then explain lessons learnt

from development of the NGS Portal. In this section,

393

Yang X., Dong Wang X. and Allan R. (2006).

JSR 168 AND WSRP 1.0 – HOW MATURE ARE PORTAL STANDARDS?.

In Proceedings of WEBIST 2006 - Second International Conference on Web Information Systems and Technologies - Internet Technology / Web

Interface and Applications, pages 393-399

DOI: 10.5220/0001252503930399

 SciTePress

re-use of the business logic and presentation layer

will be discussed in the context of a test of standard

compliance of selected open-source portal

frameworks. Some related work will be discussed

before giving concluding remarks and an outline of

possible future work.

2 TWO PORTAL STANDARDS

2.1 JSR 168

Many on-line resources such as IBM’s

DeveloperWorks, are available providing

introductory and in-depth discussions of the JSR 168

standard. Here we give a brief introduction for

completeness. JSR 168, also called the Java Portlet

Specification 1.0, is designed to standardise the

interaction between portlet and portlet container

(portal framework) by the Java Community Process.

In JSR 168, portal, portlet and portlet container

are defined as follows.

Portal - “A portal is a web based application

that – commonly – provides personalisation, single

sign on, content aggregation from different sources

and hosts the presentation layer of information

systems.”

Portlet – “A portlet is a Java technology based

web component, managed by a portlet container,

that processes requests and generates dynamic

content.

Portlet Container – “A portlet container

manages portlets and provides them with the

required runtime environment.”

User requests are therefore managed by a portlet

container and transferred to its portlets. A portal is

an aggregated view of the dynamic content

generated by several portlets. Although a portlet

container can be built as a separate component in a

portal application, it is commonly integrated with

the portal to become a fully functional portal

framework. Whilst the portlet container is focussed

on managing the life cycle and request process of

portlets deployed inside it, the portal normally

provides extra functionalities such as SSO, role-

based authorisation support and personalisation in

addition to rendering to provide a consistent “look

and feel”. Because of the prevalent integration of

portlet container and portal, “portlet container” and

“portal framework” are both commonly utilised to

describe the combined functionality.

Fig. 1 illustrates the relationships between end-

user, portal, portlet container and portlets. In Fig. 1,

the indicated business logic could be either inside or

outside the portlet.

JSR 168, as its name implies, only appropriate

for the Java programming language. This brings the

issue – how to re-use web contents published using

languages other than Java, for example, Perl or C

CGI and PHP? Also, a definition for exchanging

information between portal frameworks, e.g., re-use

of remote portlets, is missing in JSR 168. The

WSRP specification was developed to meet these

requirements.

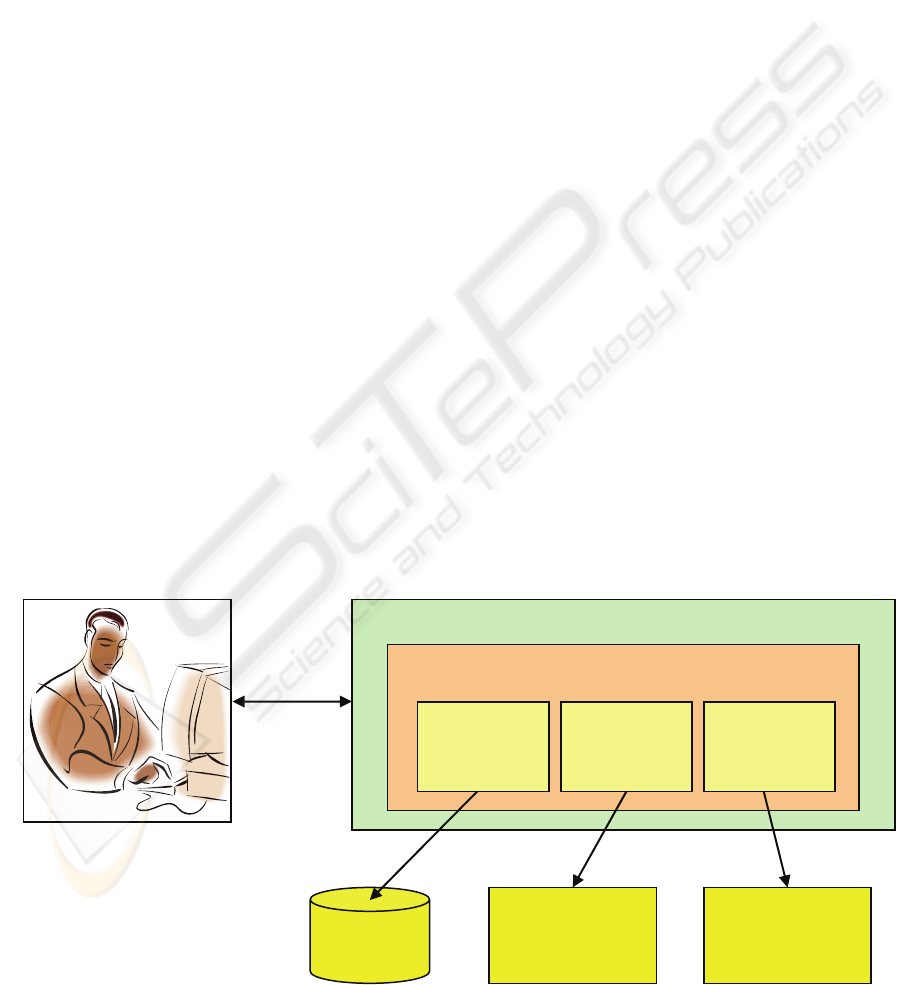

Figure 1: JSR 168 defines standard between portlets and portlet container.

Portle

Portal

Portlet Containe

Portle

Web

Service

Business Logic

HTTP(S)

Database

WEBIST 2006 - WEB INTERFACES AND APPLICATIONS

394

2.2 WSRP 1.0

WSRP 1.0, an approved OASIS standard, was

defined as “a web services interface for accessing

and interacting with interactive presentation-

oriented web services”. Unlike JSR 168, WSRP is

based on the web service concept; itself is based on

language- and platform-independent technologies

like SOAP, WSDL and UDDI. Therefore in theory,

it is possible to use programming languages other

than Java to provide information (defined as

Producer in WSRP 1.0) which can then be

consumed by any type of clients (defined as

Consumer in WSRP 1.0) although normally a

Consumer is a web portal. Unfortunately until now

there are few implementations of WSRP producers

using languages other than Java. The only one

known to the authors is the Go-Geo! portal from

EDINA (Awre, 2005, Go-Geo!). This is a Perl

application using the SOAP::Lite web services

module.

To explain the lack of other language

implementation of WSRP, we note that the WSRP

1.0 specification (Section 1.2.2 line 25) suggests

“Producers are modelled as containers of Portlets”.

WSRP4J, a well-known WSRP Java implementation

makes use of Pluto, a reference implementation of

JSR 168 as the portlet container. As there is no

portlet standard in other languages, this makes it

much more difficult to implement the WSRP

specification. From this point of view, WSRP 1.0 is

actually highly coupled with the JSR 168.

Alternatives to Java are however available to include

remote web sites into a portal for example through

the “IFRAM” tag. Furthermore, in its SharePoint

Server 2003 (SharePoint), Microsoft announced both

WSRP Producer and Consumer support through

WSRP Web Services Toolkit and WSRP Web Part

Toolkit respectively. This makes it possible for

third-party portals to leverage SharePoint application

functionalities as well as to consume WSRP portlet

services provided by a variety of vendors, regardless

of the business system used.

Fig. 2 illustrates the relationship between a portal

equipped with a WSRP Consumer and some WSRP

Producers. A portal can be constructed using local

and remote portlets.

Figure 3: Portlet contains both business logic and

presentation layer.

As illustrated in Fig. 3, a portlet acts as a web

component which has integrated presentation and

business logic. The latter can be external services

with which the portlet can communicate. The key

idea of WSRP is to re-use both the logic and

presentation layers with the help of the prevalent

web service concept. As mentioned above, WSRP

1.0 defines Producer and Consumer to a simulate

web service and its client. As stated in the

specification, WSRP is a “protocol [which]

describes conversation between Producers and

Consumers on behalf of End-Users (clients of the

Consumer)”. The WSRP Producer also acts as a

portlet container and portlets inside it are only

accessible via the Producer, the portlets are not web

services themselves. The four interfaces defined by

the WSRP 1.0 specification are now described:

1) ServiceDescription interface – this required

interface enables a consumer to discover the services

that a producer provides by defining an operation for

acquiring the producer’s metadata;

2) Markup interface – the second required

interface, is used to define operations for getting the

Portle

Presentation

Business Logic (can

exist outside of Portlet)

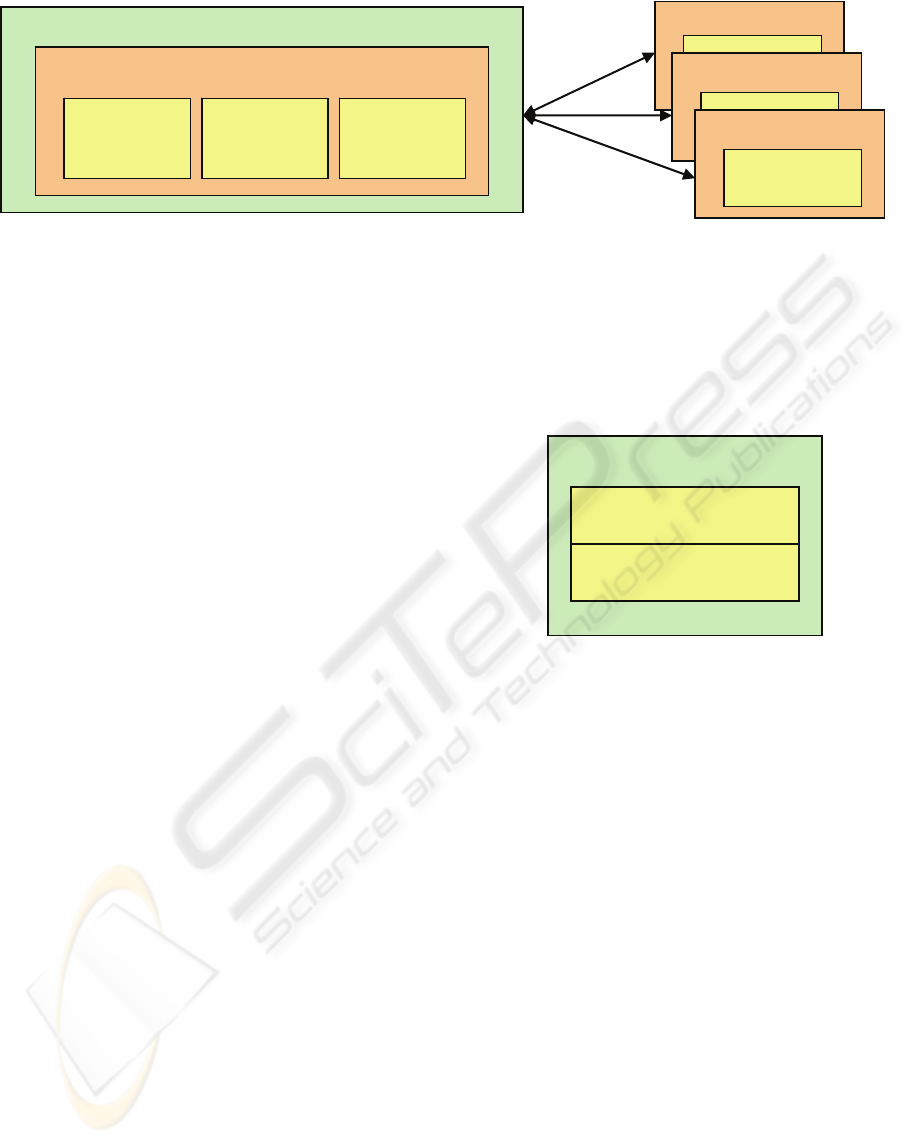

Figure 2: WSRP 1.0 defines contract for portlet containers to exchange information.

Portlet

Portal

Portlet Container

Portle Portle

WSRP

Portlet

WSRP Producer

SOAP

Discovery

Plug and Play

Publish

JSR 168 AND WSRP 1.0 – HOW MATURE ARE PORTAL STANDARDS?

395

markup from a portlet and process user interactions

with that markup. It also handles HTTP cookies;

3) Registration interface – an optional interface

which enables a consumer to register at the producer

by defining operations for establishing, updating and

destroying a registration;

4) PortletManagement interface – another

optional interface which covers lifecycle and

properties of portlets. It defines operations for

getting portlet metadata, cloning portlets for further

customisation and interacting with the property

interface.

A WSRP Consumer gives a portal the capability

to render portlets maintained remotely. A portal

page may present both local and remote portlets in a

way transparent to end-users and even portal

administrators (see Fig. 2). For example, in

StringBeans 3.0 the portal will try to create an

instance of a WSRP proxy portlet for each available

remote portlet during its startup phase. All remote

portlets are then treated as if they were local and are

added to the list of those available.

Similar to JSR 168, there are introductory

materials about WSRP 1.0 available online (for

example, Gupta, 2005) but almost all of them are

limited to an overview of the specification itself

without any real programming details. We will

discuss below experiences from our practical work

on WSRP.

3 EXPERIENCES OF PORTAL

DEVELOPMENT

3.1 Re-Use of Business Logic via

JSR 168 Portlets

A web portal for the UK National Grid Services

(NGS), the NGS Portal (Yang, 2005A), was

developed in the Grid Technology Group at the

CCLRC Daresbury Laboratory. As JSR 168 was

chosen as the most appropriate technology for this

work, the NGS Portal release 2.0 is based on a

customised version of StringBeans. A

MyProxyLoginModule using JAAS was added to

StringBeans in order to help authenticating users

through the NGS MyProxy server directly without

needing to have a local account pre-defined in the

portal. A set of JSR 168 portlets has been converted

from the NGS Portal release 1.0 (which used

Jetspeed 1.0 portlets deployed inside CHEF, a

CompreHensive collaborativE Framework now

replaced by the Sakai project (Sakai)). The portlets

listed below use the JavaCoG to manage Globus

Toolkit 2 (GT2) functionality from the web.

- ProxyManager portlet

- JobSubmission portlet

- BatchJobMonitor portlet

- FileTransfer (GridFTP/SRB) portlet

- LDAP/MDSBrowser portlet

These portlets were initially developed under the

eXo platform and then ported to StringBeans for the

production portal. During development, they were

also tested in GridSphere and uPortal to check

interoperability. It was proven that the JSR 168

standard solves the interoperability issues quite well

and portlets can be re-used in different portlet

containers. There is no need to modify the portlet

source code, only some minor modifications of the

configuration file (web.xml) and replacement of tag

libraries. A portal framework like GridSphere needs

more configuration files than the standard

portlet.xml and web.xml. Some of the portlets

designed for the NGS Portal were successfully used

in GridSphere to clone a prototype portal for the

Integrative Biology project (IB Project). Fig. 4 gives

a screenshot of the BatchJobMonitor portlet.

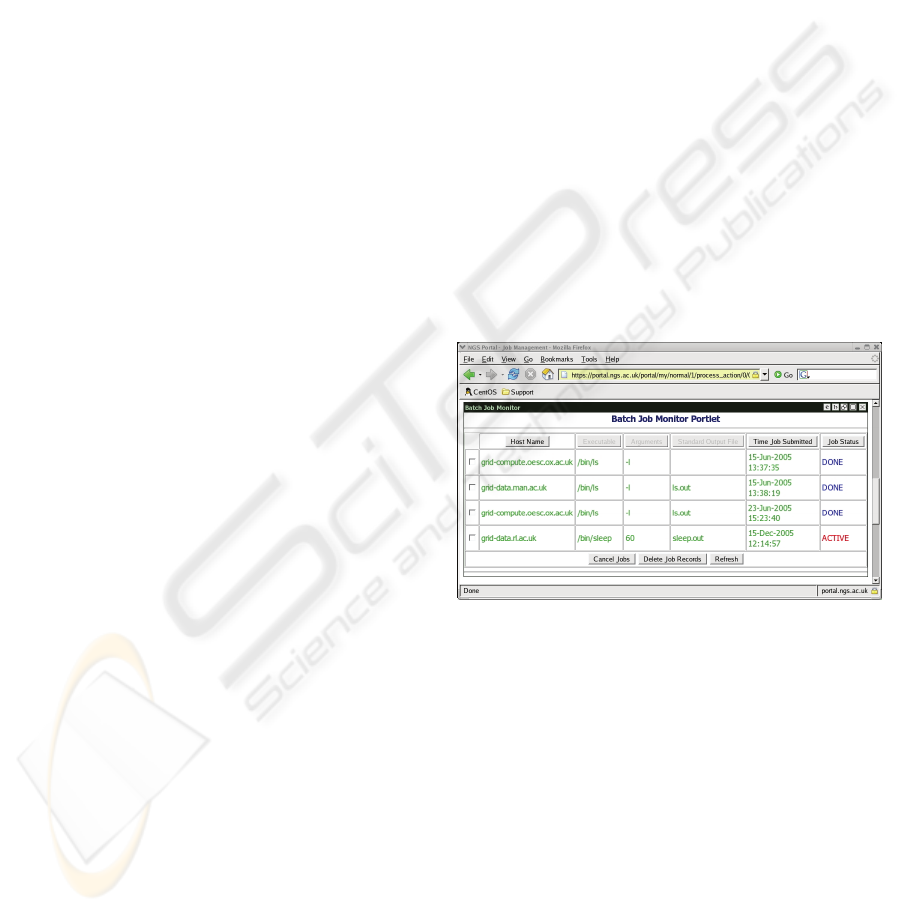

Figure 4: A screenshot of the NGS Portal –

BatchJobMonitor portlet.

Our experience on eXo platform, GridSphere,

StringBeans and uPortal shows that portlets can be

simply re-utilised with only some minor

modifications of several configuration files. The JSR

168 standard is quite mature on the market today.

Obviously, different portal frameworks provide their

own functionalities extending the standard JSR 168

specification, but this is not guaranteed to be

portable. In practice, we therefore recommend to

stay with standard functions provided by JSR 168.

WEBIST 2006 - WEB INTERFACES AND APPLICATIONS

396

3.2 Re-Use of Business Logic and

Presentation via WSRP

After the NGS Portal 2.0 was released, we

investigated various more complex aspects of portal/

portlet development. Part of the work involved a test

of WSRP support in selected open-source portal

frameworks. This includes eXo platform, Liferay,

StringBeans, uPortal and WSRP4J. Although re-use

of business logic in our scenario through portlets is

the most common case, a further step can be

achieved by re-using remotely maintained portlets

which also contain a presentation layer. This

approach eliminates portlet re-deployment and

makes it potentially quick and easy to set up a new

portal just by linking to WSRP Producers.

Despite the widespread claims, our tests showed

that WSRP support is however still immature (Yang,

2005B).

Till now, no universal Consumer exists that can

access all types of WSRP Producers. Even though

the WSRP 1.0 specification has been available for

two years, interoperability between portal

frameworks is still poor. Issues for both WSRP

Producer and Consume are listed below:

1) The WSRP 1.0 specification defined four

interfaces but only two of them – ServiceDescription

and Markup interfaces are mandatory. The other two

interfaces – Registration and PortletManagement are

optional, but these two optional interfaces play an

important role in registration and remote portlet

lifecycle management.

2) In the specification, it is mentioned that two

forms of registration are supported:

- In-band registration – this requires that the

Consumer sends a request to register with the

Producer;

- Out-of-band registration – the Producer and

Consumer go through specific business processes to

establish registration.

It is clear that both registration methods require

the optional Registration interface while at the same

time the out-of-band registration requires further

semantics and a process to be agreed for

communications between a Consumer and a

Producer.

3) Three URL types – blockingAction, render

and resource are defined in the WSRP 1.0

specification, but it was observed that this is not well

implemented on either Producer- or Consumer-side.

For instance, under the circumstance of Consumer-

side URL re-writing a Producer should indicate a

static image in the markup as a resource URL type.

Then the corresponding Consumer should re-write

the URL to point to the correct location. But if the

remote portlet does not encode such an image URL,

then none of the WSRP Producers/Consumers we

have tested can display the image correctly while

encoding of such a resource URL is not necessary.

Such statements make it very difficult to write a

universal WSRP Consumer to handle all situations.

For this reason it can be observed that each portal

framework’s Consumer works best with its own

Producer. There are other issues that the WSRP 1.0

specification does not cover. For example, if

registration information of a Producer is changed

there is no mechanism to notify its Consumers. This

may be necessary since the Producer could ask a

registered Consumer to re-register.

Currently we are working on a servlet-based

WSRP Consumer which internally accesses a UDDI

registry. End-users can search the registry to get a

list of available remote portlets that meet their

criteria (currently keyword based). The remote

portlet can then be selected and run on behalf of the

user. Our initial work has shown some promising

results. Fig. 5 gives a screen shot of our WSRP

Consumer servlet running inside uPortal through its

Inline Frame function - a Hello World

Portlet is up

and running. The next step will involve some further

work on our WSRP Consumer and it is planned to

port to the Sakai framework as part of a Sakai VRE

Demonstrator project. Third-party remote portlets

such as the portlets developed for the NGS Portal

could then be invoked alongside the Sakai

collaboration and educational tools.

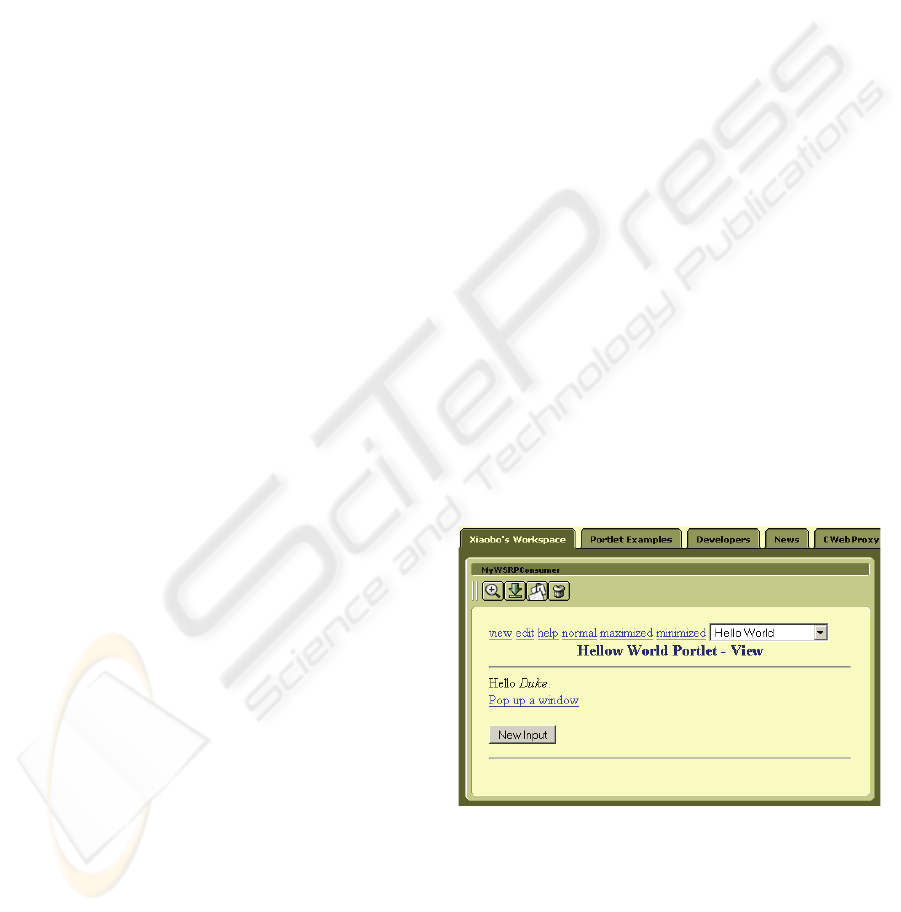

Figure 5: Integrating MyWSRPConsumer servlet inside

uPortal through its Inline Frame function.

Similar to WSRP 1.0, JSR 168 also does not

solve all the issues we identified. Some of them are

listed below:

1) Lack of inter-portlet communication is always

noted by portlet developers (Osmond, 2005). Some

portal framework vendors have their own solutions

JSR 168 AND WSRP 1.0 – HOW MATURE ARE PORTAL STANDARDS?

397

which extend the specification, like IBM in its

WebSphere portal.

2) Support for different web technologies like

Struts and JSF is not always available or complete,

although portlet container providers solve this issue

by providing different bridges. For example, Portals

Bridges used in Jetspeed provides support for JSR

168 compliant development using common web

frameworks like Struts, JSF, PHP, Perl and Velocity.

Some similar bridges have also been integrated by

other portal framework vendors including JBoss

Portal, GridSphere, StringBeans and Vignette Portal.

3) Lack of portlet filter to add processes before

and after accessing portlets. The Apache portals

project provides this kind of function which is

useful, e.g. for validating or modifying requests and

responses.

Issues listed above need to be addressed by

standards to improve the portability of portlets and

avoid the need for framework-specific extensions.

This is the basis of the work now being done by the

portal community to develop JSR 286 (Portlet

Specification 2.0) and WSRP specification 2.0.

4 RELATED WORK

Grid portals first emerged just after the introduction

of the Grid concepts in the mid 1990s. User friendly

interfaces were required for seamlessly accessing

integratied distributed Grid resources. Portals were a

natural choice for this because of the prevalence of

web-based applications and extended the simple use

of a browser to view and download information. As

described earlier, the first-generation portals were

normally project-based, but led to middleware

toolkits like GridPort and JavaCoG. The two portal

standards, WSRP 1.0 and JSR 168, make it easier to

re-use generic functionalities and portals today are

widely adopted by different domains beyond the

Grid, including e-Science, e-Learning and e-

Research. The second-generation web portals are

based on these portal standards particularly on JSR

168. Some of them were based on an underlying

Service-Oriented Architecture (SOA).

NEESgrid links earthquake researchers across

the USA with leading-edge computing resources and

experimental research equipment. Through

NEEScentral, a web-based portal, all NEES

participants and earthquake engineering researchers

can make use of community-wide tools and

resources integrated within NEESgrid in

collaborative project areas.

The GEON (Geoscience Network) cyber-

infrastructure project which involves a number of

institutions and industry partners in USA is based on

SOA. GEON aims at creating an IT infrastructure to

enable interdisciplinary geoscience research. Besides

the web service interface, GEON has a portal for

end-users to access a set of portlets from which

services like the visualisation tool.

The GroupLog and CREE (Contextual Resource

Evaluation Environment) projects investigated

creating web portals as the presentation layer for a

variety of information search tools. Both projects

evaluated JSR 168 and WSRP during their

development. JSR 168 compliant portlets have been

proven to work well within their portal

environments, but for WSRP only CREE (Awre,

2005) has WSRP4J plus uPortal tested and reported

to work well. Within the GroupLog project (Duke,

2005) a JSR 168 portlet has been written to call Perl

CGI scripts as business logic, illustrating a candidate

way to “glue” non-Java legacy applications into

portal technology.

Finally we note the work done by the EDINA

group in developing the Go-Geo! Portal which

featured a WSRP producer written in Perl. Clearly

this could also be done in other languages which

support web services.

5 CONCLUSIONS AND FUTURE

WORK

Web portals today play an important role in real

world applications because they are bridging end

users to resources behind the web. With the help of

portals, distributed resources and data can be

accessed as Grid or web services can be seamlessly

aggregated with built-in SSO and authorisation

support, personalisation support and much more.

JSR 168 and WSRP 1.0 are the two currently

standards used in portal development. Both

standards are designed to enable interoperability and

re-use, with JSR 168 focusing on interoperability

between portlets and portlet containers and WSRP

1.0 between portlet containers. Today all major

portal frameworks claim JSR 168 support and quite

a few of them also claim WSRP support. It has been

observed that JSR 168 is very well supported in all

frameworks tested but WSRP support is still

immature. We currently suggested adopting JSR 168

for portal development and adding WSRP support

later when it becomes more mature – the standards

are essentially independent. Using these standards

should mean that portlet developers do not need to

worry about re-use of their portlets which should be

guaranteed by portal framework vendors. Current

WEBIST 2006 - WEB INTERFACES AND APPLICATIONS

398

JSR 168 compliant portlet containers can plug in a

WSRP Producer support module and they can

provide a Consumer like the ProxyPortlet in uPortal

as a generic WSRP Consumer. StringBeans 3.0

adopted this approach for its recently announced

WSRP support.

As described above, both specifications have

their own issues to deal with in the future, for

instance, lack of inter-portlet communication in JSR

168 and some uncertainties (for example,

complexity) in WSRP 1.0. Although still not

available to test, their successors JSR 286 and

WSRP 2.0 are now expected to solve some of these

kinds of issues which will make future portal/ portlet

development much easier.

Finally we note that the Sakai project has

recently been very active in developing its own

kernel WSRP Producer. As it is crucial to our Sakai

VRE Portal Demonstrator project, further

investigation will be carried to study the possibility

of integrating uPortal and Sakai, which will lead to

the maximum re-use of existing resources. In the

further, we will also study security issues around

remote portlets.

REFERENCES

Awre, C., Waller, S., Allen, J., Dovey, M.J., Hunter, J.,

and Dolphin, I. 2005. Putting the library into the

institution: using JSR 168 and WSRP to enable search

within portal frameworks. Ariadne, 45, from

http://www.ariadne.ac.uk/issue45/awre/.

Bondarescu, R., Allen, G., Daues, G., Kelley, I., Russel,

M., Seidel, E., Shalf, J., and Tobias, M. 2005. The

astrophysics simulation collaboratory portal: a

framework for effective distributed research. Future

Generation Computer Systems, 21, 259-270.

Duke, M., and Swift, E. 2005. Portlet Feasibility Study: a

report prepared for the GroupLog project funded by

JISC under the eTools programme. From

http://www.bath.ac.uk/e-learning/grouplog/jisc/

groupLog-portlet-feasibility.pdf.

Gupta, R.K. 2005. WSRP: Dynamic and real-time

integration: an introduction to WSRP, its usage, and

implementation. WebServices Journal, 5(8), 10-19,

from:http://webservices.sys-con.com/read/121937.htm

IB Project. http://www.integrativebiology.ox.ac.uk/.

Go-Geo!. http://hds.essex.ac.uk/Go-Geo/.

JSR168. JSR-168 portlet specification. http://www.jcp.

org/aboutJava/communityprocess/final/jsr168/.

Novotny, J. 2002. The Grid portal development kit.

Concurrency Computat: Pract. Exper., 14, 1129-1144.

Osmond, M., and Guo, Y. 2005. Adopting and extending

portlet technologies for e-Science workflow

deployment. In UK e-Science AHM 2005, Nottingham,

UK, available on CDROM.

Peltier, S.T., Lin, A.W., Lee, D., Mock, S., Lamont, S.,

Molina, T., Wong, M., Dai, L., Martone, M.E., and

Ellisman, M.H. 2003. The telescience portal for

advanced tomography applications. J. Parallel Distrib.

Comput., 63, 539-550.Sakai. http://www.sakaiproject

.org/.

SharePoint. Microsoft continues commitment to XML

web services with new SharePoint products and

technologies toolkits. http://www.microsoft.com/press

pass/press/2004/aug04/08-09webpartspr.mspx.

Thomas, M., Mock, S., Boisseau, J., Dahan, M., Mueller,

K., and Sutton, D. 2001. The GridPort toolkit

architecture for building Grid portals. In Proc. of the

IEEE Intl. Symp. on High Perf. Dist. Comp.

von Laszewski, G., Foster, I., Gawor, J., and Lane, P.

2001. A Java commodity Grid kit. Concurrency and

Computation: Practice and Experience, 13(8-9), 643-

662.

WSRP1.0. Web Services for Remote Portlets specification

version 1.0. http://www.oasis-open.org/committees/

download.php/3343/oasis-200304-wsrp-specification-

1.0.pdf.

Wu, B., Dovey, M., Hong Ng, M., Tai, K., Murdock, S.,

Fangohr, H., Johnston, S., Jeffreys, P., Cox, S., Essex,

J.W., and Sansom, M.S.P., 2004, A web/Grid portal

implementation of BioSimGrid: a Biomolecular

simulation database. J. of Digital Information

Management, 2(2), 74-78.

Yang, X., Chohan, D., Wang, X.D., and Allan, R., 2005A.

A web portal for the National Grid Service. In UK e-

Science AHM 2005, Nottingham, UK, available on

CDROM.

Yang, X., Wang, X.D., and Allan, R. 2005B. WSRP

support investigation of selected open-source portal

frameworks. In GCE05: Portals Workshop, Seattle,

USA, submitted to Concurrency Computat.: Pract.

Exper.

JSR 168 AND WSRP 1.0 – HOW MATURE ARE PORTAL STANDARDS?

399
