A MULTILINGUAL MARKUP TRANSLATION WEB-SERVICE*

An Entry Level Solution to Internationalize XML Markup Vocabularies

Alejandro Bia, Juan Malonda, Federico Botella

CIO, Universidad Miguel Hernández, Elche, Spain

Jaime Gómez

Departamento deLenguajes y Sistemas Informáticos, Universidad de Alicante, Alicante, Spain

Keywords: Internet services, XML markup, multilingual markup , internationalization.

Abstract: Markup is based on mnemonics (i.e. element names, attribute names and attribute values). These

mnemonics have meaning, being this one of the most interesting features of markup. Human understanding

of this meaning is lost when the encoder doesn't understand the language the mnemonics are based on. By

“multilingual markup” we refer to the use of parallel sets of tags in various languages, and the ability to

automatically switch from one to another. We started working with multilingual markup in 2001, within the

Miguel de Cervantes Digital Library. By 2003, we have built a set of tools to automate the use of

multilingual vocabularies (Bia et al, 2003). This set of tools translates both XML document instances, and

XML document validators (we first implemented DTD translation, and then Schemas (Bia et al, 2004). First

we translated the TEI tagset, and most recently the Dublin Core tagset (Bia et al, 2005) to Spanish, and

Catalan. Other languages were added later

. Now we present a Multilingual Markup Website that provides

this type of translation services for public use.

1 PREVIOUS WORK

At the time when we started this multilingual

markup initiative in 2001 there were very few

similar attempts to be found (Pei-Chi WU, 2000).

Today they are still scarce (Bryan, 2002 and Cover,

2005).

Concerning document content, XML provides

built-in support for multilingual documents: it

provides the predefined lang attribute to identify the

language used in any part of a document. However,

in spite of allowing users to define their own tagsets,

XML does not explicitly provide a mechanism for

multilingual tagging.

1.1 The Mapping Structure

We started by defining the set of possible

translations of element names, attribute names, and

attribute values to a few target languages (Spanish,

Catalan and French). We stored this information in

an XML translation mapping document called

“tagmap”, whose structure in DTD syntax is the

following:

<!ELEMENT tagmap (element)+ >

<!ELEMENT element (attr)* >

<!ATTLIST element

en CDATA #REQUIRED

es CDATA #REQUIRED

fr CDATA #REQUIRED>

<!ELEMENT attr (value)* >

<!ATTLIST attr

en CDATA #REQUIRED

es CDATA #REQUIRED

fr CDATA #REQUIRED>

<!ELEMENT value EMPTY >

<!ATTLIST value

* This work is part of the METASIGN project, and has

been supported by the Ministry of Education and

Science of Spain through the grant number: TIN2004-

00779.

Translations of the TEI tagset by: Alejandro Bia and and

Manuel Sánchez (Spanish), Régis Déau (French),

Francesca Mari (Catalan), Arno Mittelbach (German)

Bia A., Malonda J., Botella F. and Gómez J. (2006).

A MULTILINGUAL MARKUP TRANSLATION WEB-SERVICE - An Entry Level Solution to Internationalize XML Markup Vocabularies.

In Proceedings of WEBIST 2006 - Second International Conference on Web Information Systems and Technologies - Internet Technology / Web

Interface and Applications, pages 63-68

DOI: 10.5220/0001257900630068

 SciTePress

en CDATA #REQUIRED

es CDATA #REQUIRED

fr CDATA #REQUIRED >

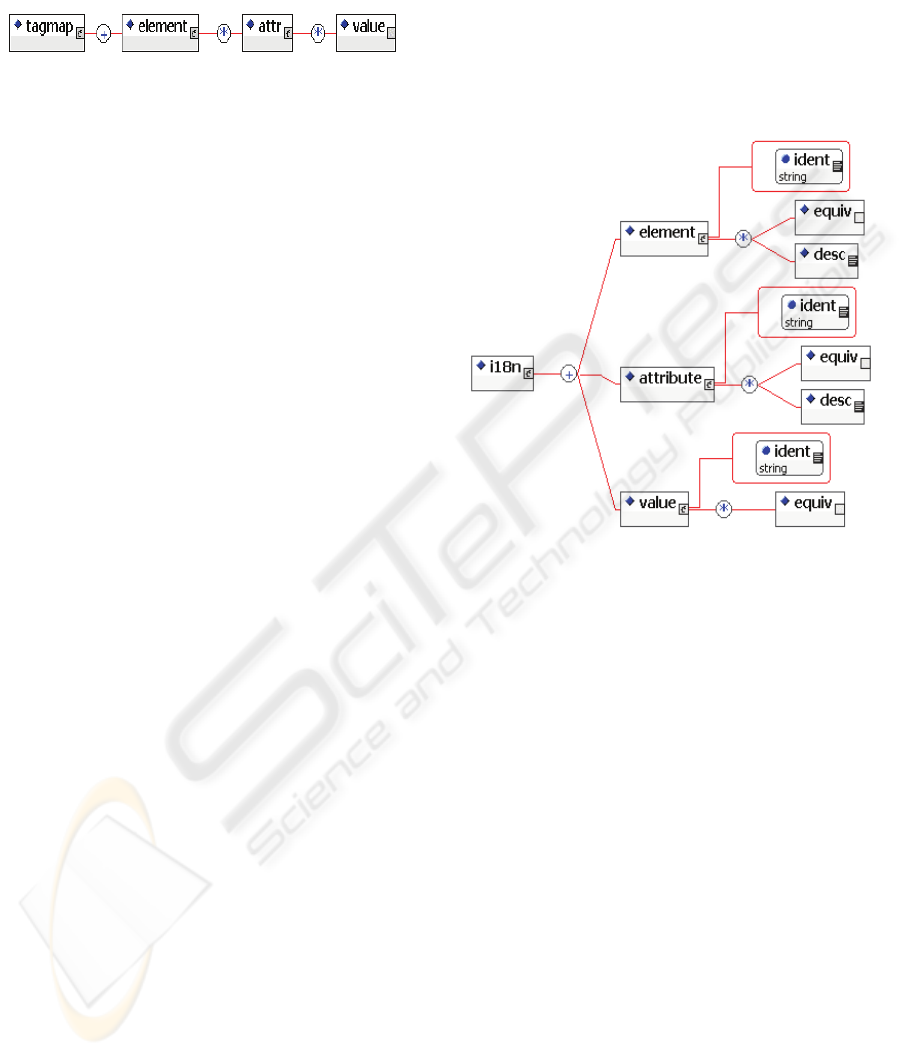

Figure 1: Structure of the original tagmap.xml file.

This structure is pretty simple, and proved useful

to support the mnemonic equivalences in various

languages. It was meant to solve ambiguity

problems, like having two attributes of the same

name in English, who should be translated to

different names in a given target language. For this

purpose, this structure obliges us to include all the

attribute names for each element and their

translations. The problem with this is global

attributes, which in this approach needed to be

repeated, once for each element. This made the

maintenance of this file cumbersome. Sebastian

Rahtz then proposed another structure

(http://cvs.sourceforge.net/viewcvs.py/tei/I18N/teina

mes.xml), under the assumption that an attribute

name has the same meaning in all cases, no mater

the element it is associated to, and accordingly it

would have only one target translation to a given

language. This is usually the case, and although

theoretically there could be cases of double

meaning, as above mentioned, they do not seem to

appear within the TEI. So the currently available

“teinames.xml” file follows Sabastian’s structure.

Note that “element”, “attribute” and “value” appear

at the same level, instead of nested:

<!ELEMENT i18n (element | attribute

| value)+>

<!ELEMENT element (equiv | desc)* >

<!ATTLIST element

ident CDATA #REQUIRED >

<!ELEMENT attribute (equiv | desc)*

<!ATTLIST attribute

ident CDATA #REQUIRED >

<!ELEMENT value (equiv)* >

<!ATTLIST value

ident CDATA #REQUIRED >

<!ELEMENT equiv EMPTY >

<!ATTLIST equiv

xml:lang CDATA #REQUIRED

value CDATA #REQUIRED >

In 2004, we discussed the idea of adding brief

text descriptions to each element, the same brief

descriptions of the TEI documentation, but now

translated to all supported languages. This would

allow the structure to provide help or documentation

services in several languages, as another

multilingual aid. This capability was then added to

the “teinames.xml” file structure, although the

translations of the all the descriptions still need to be

completed:

<!ELEMENT desc (#PCDATA) >

<!ATTLIST desc

xml:lang CDATA #REQUIRED >

Figure 2: Structure of the teinames.xml file.

2 THE MULTILINGUAL

MARKUP WEB SERVICE

By means of a simple input form, the markup of a

structured file can be automatically translated to the

chosen target language. The user can choose a file to

process (see figure 3) by means of a "Browse"

button.

Currently, only TEI XML document instances

are allowed. In the near future, the translation of TEI

DTDs, W3C-Schemas and Relax-NG Schemas will

be added, and later, other markup and metadata

vocabularies will be supported, like Docbook (Allen

et al, 1997) and DublinCore (http://dublincore.org/).

WEBIST 2006 - INTERNET TECHNOLOGY

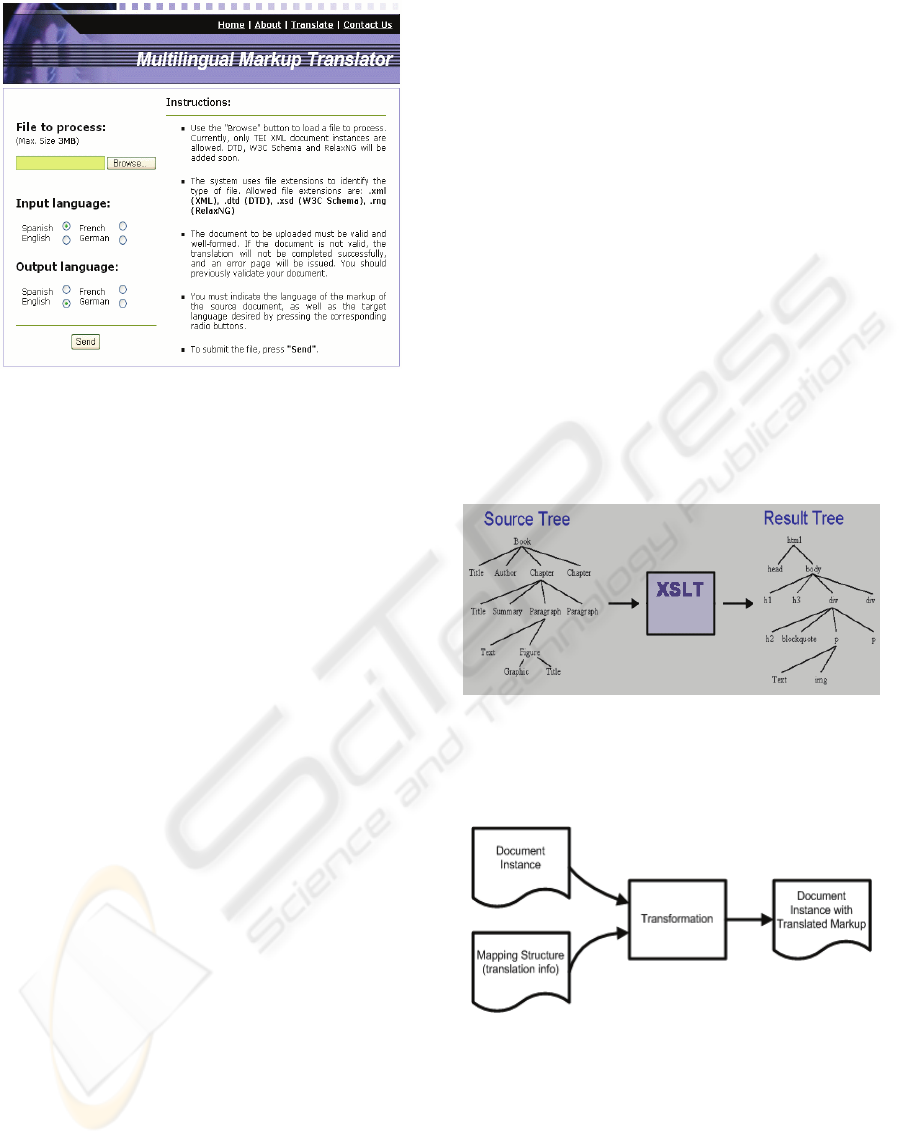

Figure 3: The Multilingual Markup Translator form.

The system uses file extensions to identify the

type of file submitted. Allowed file extensions are:

.xml for document instances, .dtd for DTDs, .xsd

for W3C Schemas, and .rng for RelaxNG schemas.

The document to be uploaded must be valid and

well-formed. If the document is not valid, the

translation will not be completed successfully, and

an error page will be issued. Once the source file has

been chosen, the user must indicate the language of

the markup of this source file, as well as the target

language desired for the output. This is done by

means of radio buttons.

It would not be necessary to indicate the

language of the markup of the source file if it was

implicit in the file itself. We thought of three ways

to do this:

- To use the name of the root tag to indicate the

language of the vocabulary of the XML document.

In this way, TEI.2 would be standard English based

TEI, TEIes.2 would indicate that the document has

been marked up using the Spanish tagset, and in the

same way TEIfr.2, TEIde.2, TEIit.2 would indicate

French, German, and Italian, for instance.

- To add an attribute to the root element, to

indicate the language of the tagset, for instance:

<TEI.2 markupLang = “it”> would indicate that the

markup is in Italian.

- Use the name of the DTD to indicate the

language of the tagset. TeiXLite.dtd would be

English, while TeiXLiteFr.dtd would be the French

equivalent.

Option 3 is by far the worst method, since a

document instance may lack a DOCTYPE

declaration, and there may be lots of customized TEI

DTDs everywhere with very different and

unpredictable names. However, options 1 and 2 are

reasonably good methods to identify the language of

the markup. Consensus is needed to make one of

them the common practice.

3 IMPLEMENTATION DETAILS

For the website pages we used JSP (dynamic pages)

and HTML (static pages), and these are run under a

Tomcat 5.5 web server. For the translations, we used

XSLT, as described in (Bia et al, 2003)

3.1 Automatic Generation of

Markup Translators Using

XSLT

The XSLT model is thought to transform one input

XML file into one output file (see figure 4), which

could be XML, HTML, XHTML or plain text, and

this includes program code. It does not allow the

simultaneous processing of two input files.

Figure 4: The XSLT processing model.

There are certain cases when we would like to

process two input files altogether, like markup

translation (see figure 5).

Figure 5: The ideal transformation required.

As XSLT does not allow this, two alternatives

occurred to us, both comprising two transformation

steps.

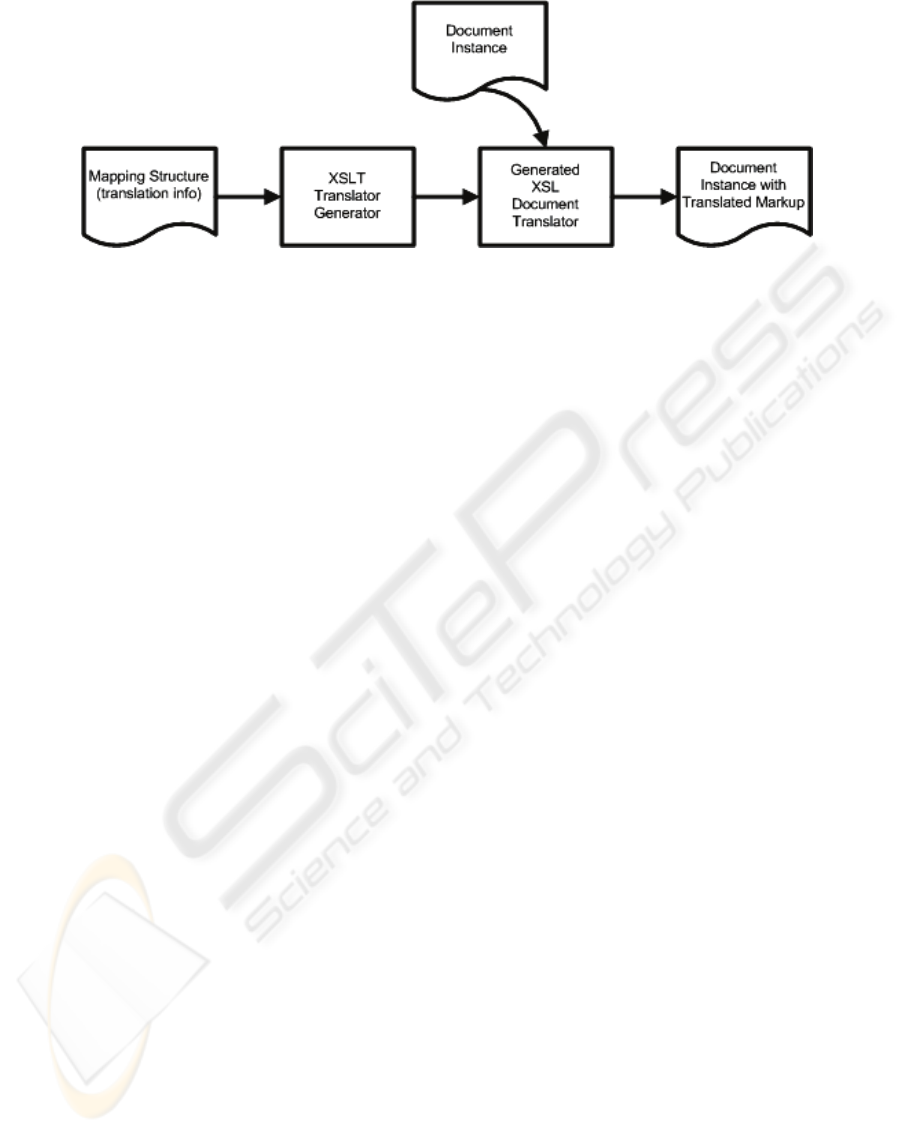

The first approach is to automatically generate

translators. Douglas Schmidt said: “I prefer to write

code that writes code, than to write code” (Schmidt,

2005). This is what we have done for the

A MULTILINGUAL MARKUP TRANSLATION WEB-SERVICE - An Entry Level Solution to Internationalize XML

Markup Vocabularies

MMWebsite, i.e. to pre-process the translation map

in order to generate an XSLT translation script

which includes the translation knowledge embedded

in its logic. Then this generated script can perform

all the document-instance translations required. The

mapping structure supports the language

equivalences for various languages, so we should

generate a translator for every possible pair of

languages. Whenever the mapping structure is

modified, a new set of translators must be generated.

Fortunately, this is an automated process (se figure

6).

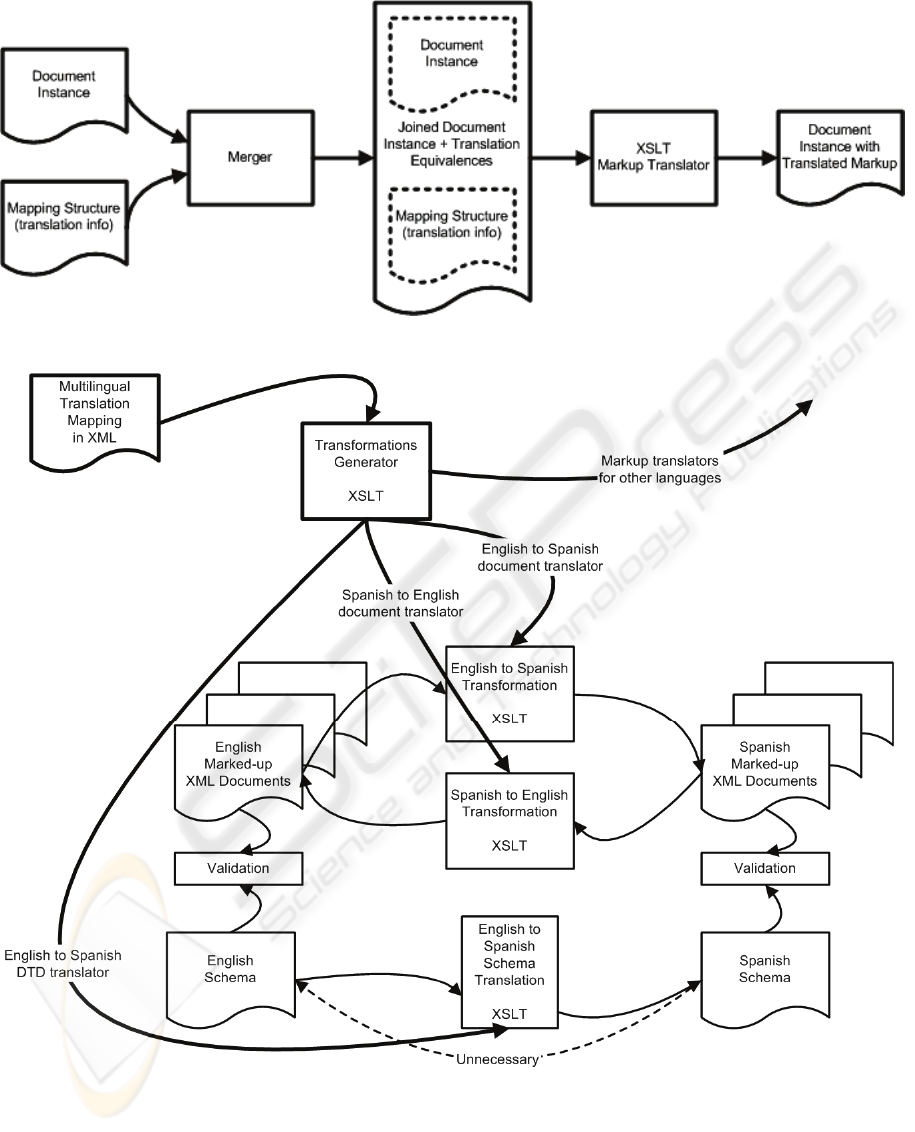

The other alternative would be to merge the two

input files into a new single XML structure, and then

to process such file which would contain both the

XML document instance, and the translation

mapping information (see figure 7). This implies

joining the two XML tree structures as branches of a

higher level root.

Although this approach may prove useful for

some problems, we did not use it for the

MMWebsite, because the file merging preprocessing

must be done for each file to translate, increasing the

web service response time. Using preprocessed

translators instead proved to be a faster solution.

This limitation, which is proper of the XSLT

processing model, could be avoided by using a

standard programming language like Java instead.

3.2 How We Actually Do It

The mapping document which contains all the

necessary structural information to develop the

language converters is read by the transformations

generator, which was built as an XSLT script. XSL

can be used to process XML documents in order to

produce other XML documents or a plain text

document. As XSL stylesheets are XML, they can

be generated as an XSL output. We used this feature

to automatically generate both an English-to-local-

language XSL transformation and a local-language

to English XSL transformation for each of the

languages contained in the multilingual translation

mapping file. In this way we assured both ways

convertibility for XML documents (see figure 8).

For each target language we also generate a

DTD or a Schema translator. In our first attempts,

this took the form of a C++ and Lex parser. Later,

we changed the approach. Now we first convert the

DTD to a W3C Schema, then we translate the

Schema to the local language, and finally we can

(optionally) generate an equivalent translated DTD.

This approach has the advantage of not using

complex parsers (only XSLT) and also solves the

translation of Schemas. In our latest implementation,

the user can freely choose amongst DTD, W3C

Schema and RelaxNG, both for input and output,

allowing for a format conversion during the

translation process.

Many other markup translators can be built to

other languages in the way described here.

4 CONCLUSIONS

Amongst the observed advantages of using markup

in one’s own language are: reduced learning times,

reduction of errors and higher production. It may

also help spread the use of XML vocabularies like

DC, TEI, DocBook, and many others, into non-

English speaking countries. Cooperative

multilingual projects may benefit from the

possibility of easily translating the markup to each

encoder's language. Last, but not least, scholars of a

given language feel more comfortable tagging their

texts with mnemonics based on their own language.

Figure 6: Pre-generation of a translating XSLT script, to then translate the document instance.

WEBIST 2006 - INTERNET TECHNOLOGY

Figure 7: Merging the two files before applying XSLT.

Figure 8: Schema translation using XSLT.

A MULTILINGUAL MARKUP TRANSLATION WEB-SERVICE - An Entry Level Solution to Internationalize XML

Markup Vocabularies

5 FUTURE WORK

Multilingual Help Services: As already said, brief

descriptions for elements and attributes in different

languages have been added to the mapping structure.

This allows for multilingual help services, like

generating a glossary in the chosen language of the

elements and attributes used in a given document, or

a given DTD/Schema. We are working on adding

this feature.

REFERENCES

Allen, T., Maler, E. and Walsh, N., 1997. DocBook DTD,

& Associates, Inc., Fujitsu Software Corporation, and

ArborText, Inc, http://www.ora.com/davenport/

Bia, A., Sánchez-Quero, M. and Déau, R., 2003.

Multilingual Markup of Digital Library Texts Using

XML, TEI and XSLT. In XML Europe 2003

Conference and Exposition, Organized by

IDEAlliance, 5-8 May 2003, Hilton Metropole Hotel,

London, p. 53, http://www.xmleurope.com/

Bia, A., Sánchez-Quero, M., 2004. The Future of Markup

is Multilingual, ACH/ALLC 2004: Computing and

Multilingual, Multicultural Heritage. The 16th Joint

International Conference of the Association for

Literary and Linguistic Computing and the

Association for Computers and the Humanities, 11-16

June 2004, Göteborg University, Sweden, p 15-18,

http://www.hum.gu.se/allcach2004/AP/html/prop119.

html

Bia, A., Malonda, J. and Gómez, J, 2005. Automating

Multilingual Metadata Vocabularies. In DC-2005:

Vocabularies in Practice, Eva Mª Méndez Rodríguez

(ed.), p. 221-229, 12-15 September 2005, Carlos III

University, Madrid. ISBN 84-89315-44-2.

http://dc2005.uc3m.es/

Bryan, J., 2002. KR’s Multilingual Markup, TechNews

Volume 8, Number 1: January/February 2002

http://www.naa.org/technews/TNArtPage.cfm?AID=3

880

Cover, R., 2005. Markup and Multilingualism, last visited

online 2005-4-25 at Cover Pages:

http://xml.coverpages.org/multilingual.html

Pei-Chi WU, 2000. Translation of Multilingual Markup in

XML, 2000 International Conference on the theories

and practices of Electronic Commerce, Part II, Session

14, pages 21-36, Association of Taiwan Electronic

Commerce, Taipei, Taiwan, October 2000.

http://www.atec.org.tw/ec2000/PDF/14.2.pdf

Schmidt, D., 2005. Opening Keynote, MoDELS 2005:

ACM/IEEE 8th International Conference on Model

Driven Engineering Languages and Systems, Montego

Bay, Jamaica, 2-7 October 2005.

WEBIST 2006 - INTERNET TECHNOLOGY
