BRIDGING BETWEEN MIDDLEWARE SYSTEMS:

OPTIMISATIONS USING DOWNLOADABLE CODE

Jan Newmarch

Faculty of Information Technology, Monash University

Melbourne, Australia

Keywords:

Middleware, UPnP, Jini, Service oriented architecture, downloadable code, proxies.

Abstract:

There are multiple middleware systems and no single system is likely to become predominant. There is there-

fore an interoperability requirement between clients and services belonging to different middleware systems.

Typically this is done by a bridge between invocation and discovery protocols. In this paper we introduce three

design patterns based on a bridging service cache manager and dynamic proxies. This is illustrated by exam-

ples including a new custom lookup service which allows Jini clients to discover and invoke UPnP services.

There is a detailed discussion of the pros and cons of each pattern.

1 INTRODUCTION

There are many middleware systems which often

overlap in application domains. For example, UPnP

is designed for devices in zero-conﬁguration environ-

ments such as homes (UPnP Consortium, 2006), Jini

is designed for adhoc environments with the capabil-

ity of handling short as well as long-lived services

(Waldo, 2005) while Web Services are designed for

long running services across the Web (WWW Con-

sortium, 2002). There are many other middleware

systems such as CORBA, Salutation, HAVi etc each

with their own preferred application space, and these

different application spaces will generally overlap to

some extent

It is unlikely that any single middleware will be-

come predominant, so that the situation will arise

where multiple services and clients exist but belong-

ing to different middleware systems. To avoid mid-

dleware “silos”, it is important to examine ways in

which clients using one middleware framework can

communicate with services using another.

This issue is not new: the standard approach is to

build a “bridge” which is a two-sided component that

uses one middleware on one side and another middle-

ware on the other. Examples include Jini to CORBA

The middleware systems we are interested in involve

discovery of services, rather than just transport-level mid-

dleware such as HTTP connecting web browsers and HTTP

servers

(Newmarch, 2001), Jini to UPnP (Allard et al., 2003),

SLP to UPnP, etc. These essentially replace an end-

to-end communication between client and service by

an end-to-middle-to-end communication, where the

middle (the bridge) performs translation from one

protocol to the other.

Newmarch (Newmarch, 2005) has investigated

how a Jini lookup service can be embedded into a

UPnP device to provide an alternative to the bridg-

ing architecture. However, in practical terms this is

an invasive mechanism which requires changes to the

UPnP device and cannot be easily retro-ﬁtted into de-

vices.

Jini (Arnold, 2001) is apparently unique in

production-quality middleware sytems with service

discovery in that rather than giving some sort of re-

mote reference to clients it downloads a proxy object

into the client (the proxy is a Java object). Many of

the obvious security issues in this have already been

addressed by Jini. It has also been claimed that this

will lead “to the end of protocols” (Waldo, 2000). In

this paper we investigate the implications of down-

loadable code for bridging systems, and show that it

can lead to many optimisations.

Some of our work can be applied to middleware

systems which support downloadable code but not

discovery, such as JavaScript in HTML pages.

We illustrate some of these optimisations with a

Jini-to-Web Services bridge and others with Jini- to-

UPnP bridge.

Newmarch J. (2006).

BRIDGING BETWEEN MIDDLEWARE SYSTEMS: OPTIMISATIONS USING DOWNLOADABLE CODE.

In Proceedings of the First International Conference on Software and Data Technologies, pages 89-97

DOI: 10.5220/0001310000890097

 SciTePress

The principal contribution of this paper is that it

proposes and demonstrates a number of optimisations

that could be considered to be additional architectural

patterns that can sometimes be applied to bridge be-

tween different middleware systems. The validity of

these patterns are demonstrated by discussion of sev-

eral example systems and through an implementation

for bridging between UPnP services and Jini clients.

However, the patterns do have strong requirements on

the client-side middleware: it must be possible to dy-

namically download code to clients and to dynami-

cally determine the content of this downloaded code.

The structure of this paper is as follows: the next

section discusses some general properties of bridging

systems and the following section discusses down-

loadable code in this context. Section 4 introduces

the ﬁrst of three optimisations, one for transport-level

bridging. Section 5 considers service cache manage-

ment and the following section applies this to the sec-

ond optimisation, for service-level transport. This is

followed by a section on device-level optimisation.

Successive sections deal with event handling and the

implementation of a Jini-UPnP bridge based on these

principles. We then assess the proposals and consider

the value and generality of our work, before a con-

cluding section.

Background knowledge of Jini may be found in

Newmarch (Newmarch, 2001) and on the UPnP home

site (UPnP Consortium, 2006).

2 BRIDGING

Nakazawa et al (Nakazawa et al., 2006) discuss gen-

eral properties of middleware bridges. They distin-

guish three features

• Transport-level bridging concerns translation be-

tween two invocation protocols where a client

makes a request of a service. Examples of invo-

cation protocols include SOAP and CORBA’s IIOP.

Transport-level bridging is concerned with translat-

ing from the invocation of a request to its delivery,

and also between any replies.

• Service-level bridging involves the advertisement

and discovery of services. Examples of discovery

protocol include CORBA’s use of a Naming service

and UPnP’s Simple Service Discovery Protocol.

• Device-level bridging concerns the semantics of

services.

Transport level bridging includes translating be-

tween the data-types carried by each protocol. For ex-

ample for Web Services using SOAP, these are XML

data-types while for Java RMI using JRMP these are

serialisable Java objects. There are usually prob-

lems involved in such conversions. Vinoski (Vinoski,

2005) points to the mismatch between Java data-types

and XML data-types. While he goes on to exam-

ine the consequences for JAX-RPC, the same issues

cause problems converting from SOAP data-types to

Java objects on JRMP. Newmarch (Newmarch, 2005)

discusses the mismatch between UPnP data-types and

Java objects and concludes that the UPnP to Java map-

ping is generally okay but the opposite direction is

not. There is no general solution to the data-mapping

problem, and indeed the use of the so-called ”lan-

guage independent” XML in some middleware sys-

tems appears to have exacerbated this. Services where

the data-types are not convertable cannot be bridged.

This paper does not address this issue.

While the transport protocol is usually end-to-end,

the discovery protocol may be either end-to-end as in

UPnP or involve a third party. Dabrowski and Mills

(Dabrowski and Mills, 2001) term this third-party a

service cache manager (SCM). Examples of such a

manager are the Jini lookup service, the CORBA and

RMI Naming service and UDDI (although this does

not seem to be heavily used). The implications for

service-level bridging involve the discovery protocol:

in an end-to-end discovery system the service-level

bridge will need to understand how to talk directly

to services and/or clients, while with a service cache

manager the bridge will need to understand how to

talk to the service cache manager.

Device-level bridging concerns the meaning of

“service” in different middleware systems, and how

services (and devices) are represented.

In general a bridge system will look like Figure 1.

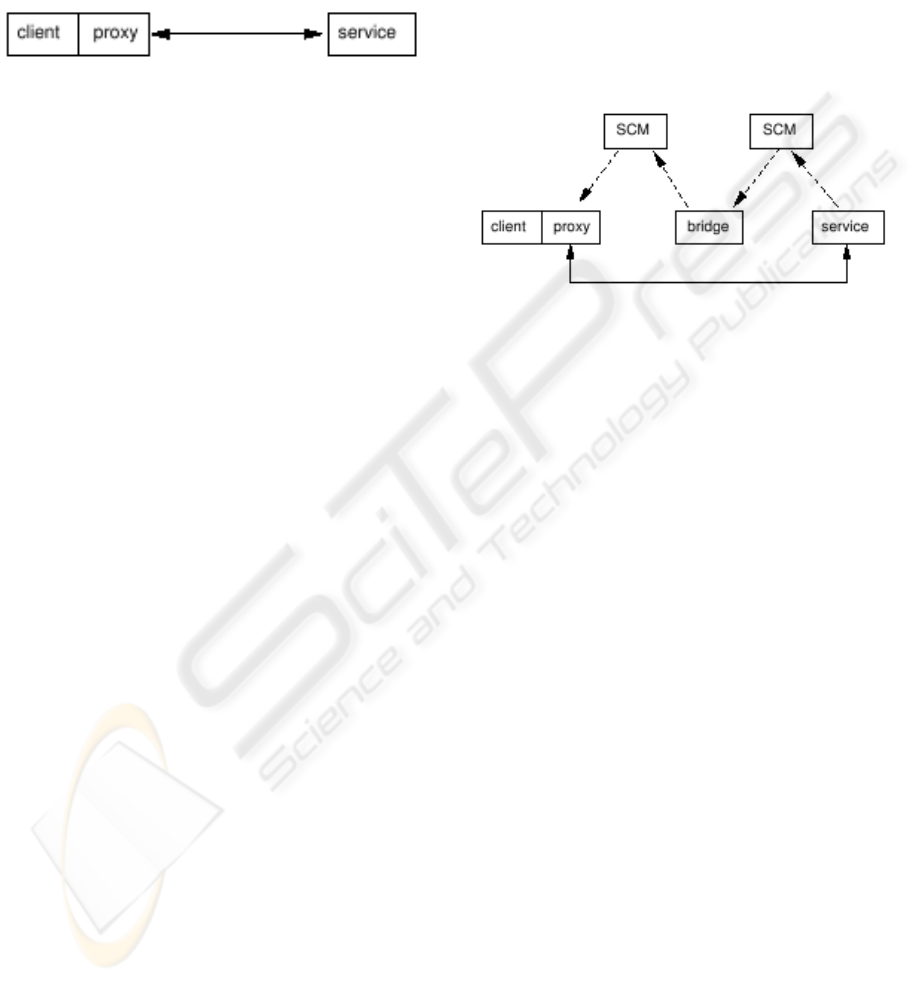

Figure 1: Typical bridge system.

3 DOWNLOADABLE CODE

There are many examples where code is downloaded

from one computer to execute in another. These

include JavaScript in HTML pages, Safe-Tcl (Levy

et al., 1997) and Erlang (Brown and Sablin, 1999).

Jini as a service-oriented architecture makes use of

RMI to download a proxy object representing a ser-

vice into a client. This changes the nature of the

client/service transport protocol since that is now

managed by the proxy object, not by the client-the

ICSOFT 2006 - INTERNATIONAL CONFERENCE ON SOFTWARE AND DATA TECHNOLOGIES

client just makes local calls on the proxy. The Java

Extensible Remote Invocation framework (Jeri) in

Jini 2.0 allows the proxy and service to use any pro-

tocol that they choose.

Proxy/service communication in Jini can be repre-

sented in Figure 2.

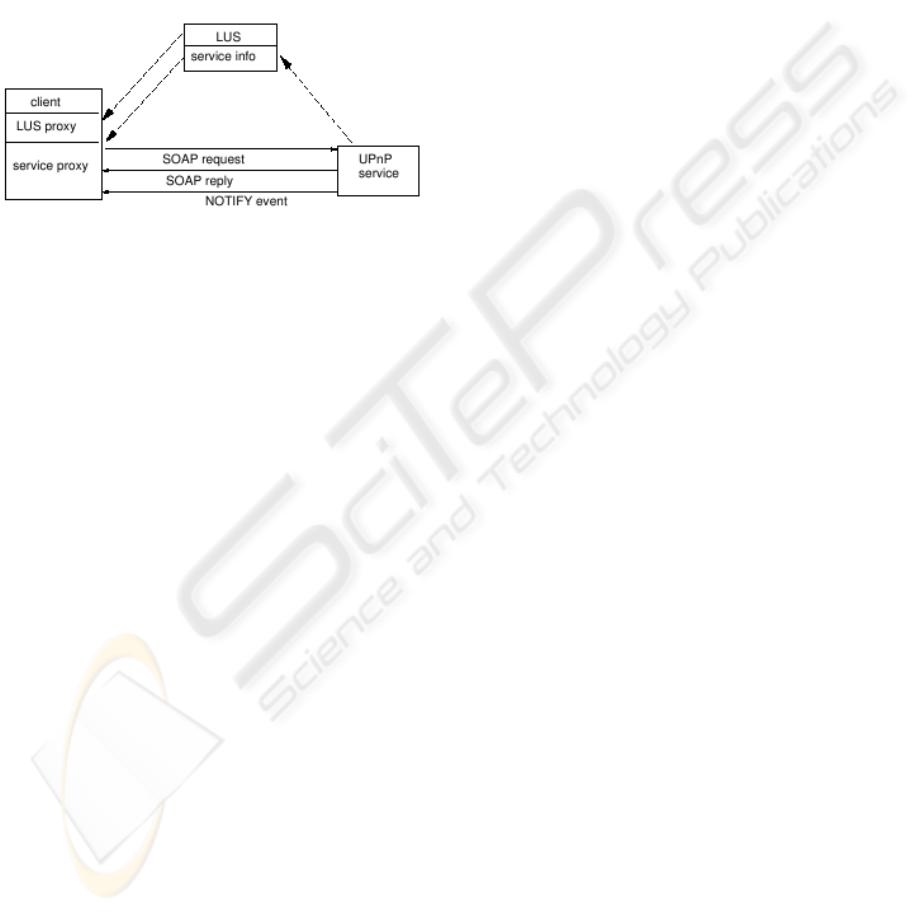

Figure 2: Proxy communication.

The pattern of communication of Figure 2 can also

be employed by JavaScript using the Ajax extensions

(Garrett, 2005), and is used by Google Maps and

Google Mail for example, although the communica-

tion is restricted to HTTP calls.

4 OPTIMISING

TRANSPORT-LEVEL

BRIDGING

Transport-level bridging involves the bridge receiv-

ing messages from a client using the client’s transport

protocol, translating them into messages for the ser-

vice and sending them using the service’s transport

protocol. Responses are handled in a similar way.

Many internet protocols specify all components of

the interaction between clients, services and service

cache managers. For example, UPnP speciﬁes the

search and discovery protocols and also the protocol

for procedure call interaction between client and ser-

vice as SOAP. However, as was shown by Java RMI

over CORBA’s IIOP instead of JRMP, and also by

CORBA’s use of Naming and Trader services, there

is no necessary link between discovery and invoca-

tion. As long as a client and service are using the

same invocation protocol they can interact directly.

For UPnP and many systems there is little choice

since the invocation protocol is ﬁxed by the middle-

ware speciﬁcation. However, Jini 2.0 allows a “plug-

gable” communications protocol. While most sys-

tems would require the client to have the communi-

cations protocol “hard coded” (or loadable from local

ﬁles), Jini allows a service proxy to be downloaded

from a lookup service (service cache manager) to a

client, and this can carry code to implement any de-

sired communicaration protocol.

In a similar but less ﬂexible way, the Ajax

XMLHttpRequest object can exchange any type of

data with its originating service. Usually this is XML

data, but could be other types such as JSON (JSON,

2006)

In the most common situations, the service proxy

communicates with its bridge service. However, a

transport-level bridge is just there to translate and

communicate between the client and the service. If

the code to do this translation is moved into the proxy,

then the transport-level component of the bridge ser-

vice becomes redundant. That is, the client makes

local calls on the proxy, which makes calls directly

to the service using the service’s transport protocol.

One leg of the middleware has been removed. This is

illustrated in Figure 3.

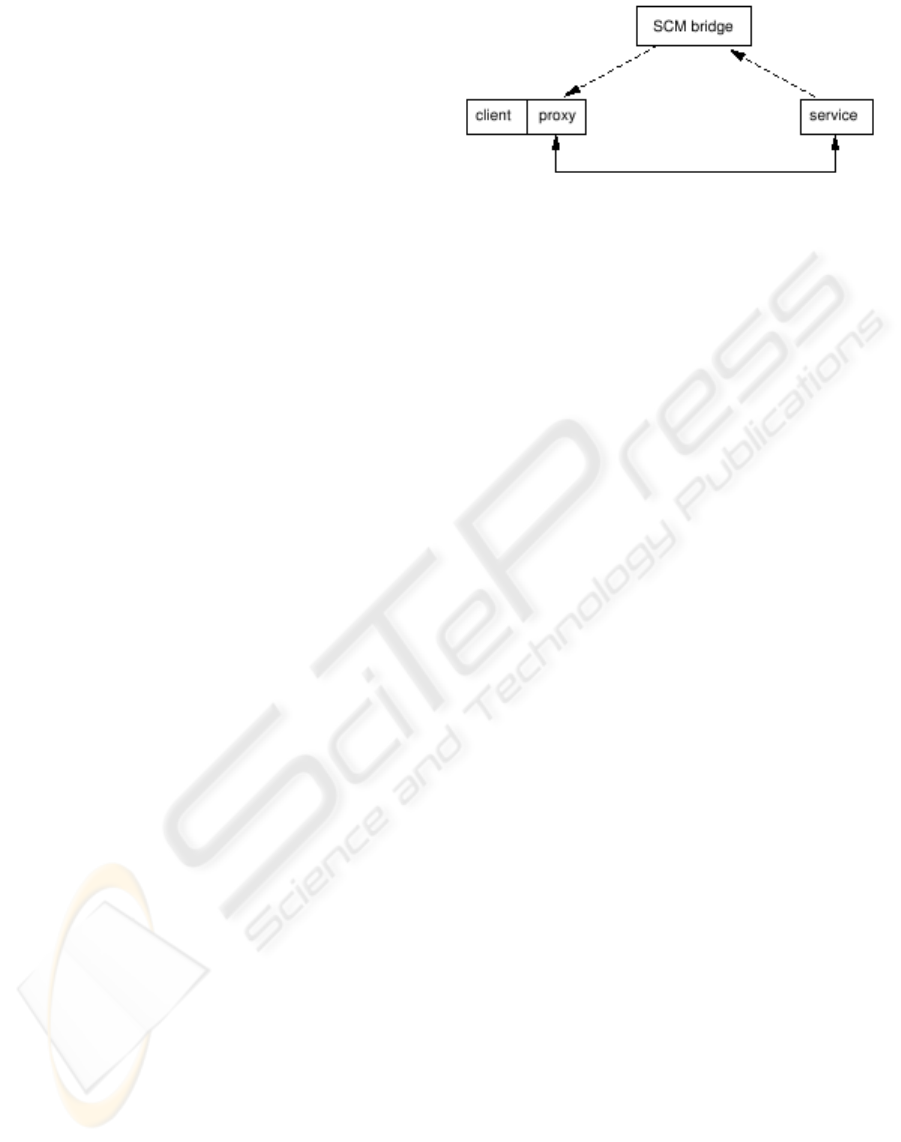

Figure 3: Removing one transport step.

This optimisation improves performance by

• removing one serialisation step

• removing one deserialisation step

• removing one network transport leg

In addition, the conversion to the destination pro-

tocol is performed once at the client-side. There

are some systems such as that of Nakazawa et al

(Nakazawa et al., 2006) in which the bridge performs

conversion from source data-types to an intermediate

“standard” type and from there to the destination type.

This (or even just conversion from source transport

data-types to destination transport data-types) intro-

duce possibilities for semantic problems which are

mitigated by a single conversion step at the client-

side.

This pattern has been used by Newmarch (New-

march, 2006) to show how a Jini client can communi-

cate with a Web Service. The proxy uses SOAP, the

transport protocol for the Web Service. The conver-

sion from Java data-types to XML data-types is per-

formed by the JAX-RPC package (which cannot do

a perfect conversion job, as mentioned earlier). The

role of the bridge is just there to advertise the Web

Service to the Jini federation and to upload a proxy to

the Jini lookup service.

This pattern can also be used by Jini clients to talk

to CORBA services, since Jini can directly generate

proxies that use IIOP.

Casati (Casati, 2006) shows how JavaScript down-

loaded into a browser can talk directly to Web

Services instead of the more usual HTML-Servlet-

Web Service (or similar) bridge (as typiﬁed by

BRIDGING BETWEEN MIDDLEWARE SYSTEMS: OPTIMISATIONS USING DOWNLOADABLE CODE

the web site www.xmethods.com). Casati em-

ploys the XMLHttpRequest object which allows a

browser to communicate with an HTTP server asyn-

chronously. This is usually used to exchange data be-

tween the browser and original page server. But as

Web Services typically use SOAP over HTTP, Casati

gives JavaScript for the object to be used as a proxy

to talk directly to the Web Service.

In a later section we discuss how we use this pattern

for a Jini client to talk to a UPnP service.

5 SERVICE CACHE MANAGER

Service cache managers are expected to store “ser-

vices” in some format and deliver them to clients. The

stored service can be a simple name/address pair as in

naming systems such as Java RMI or CORBA, com-

plex XML structures linked to WSDL URLs for Web

Services in UDDI directories, or other possibilities.

The Jini lookup service stores service proxy objects,

along with type information to locate them.

When clients and services are trying to locate a ser-

vice cache manager, there is often an assumed sym-

metry, that the client and service are searching for the

same thing. In our examples above, this occurs in all

of naming services, UDDI registries and Jini lookup

services.

Once found though, clients and service do differ-

ent things: services register whereas clients look for

services. The Jini ServiceRegistrar for exam-

ple contains two sets of methods, one for services

(register()) and one for clients (lookup()).

UDDI similarly has two sets of messages, but there

are more of them since UDDI has a more com-

plex structure (Bellwood, 2002). Conceptually,

there should be one protocol for services discovering

caches and another for clients discovering them, with

different interfaces exposed to each.

6 OPTIMISING SERVICE-LEVEL

BRIDGING

The standard bridge acts as a client to one discovery

protocol and as service to the other. For example, in

a Jini/UPnP bridge (Allard et al., 2003) UPnP device

advertisements are heard by a bridge acting as a UPnP

control point, which re-advertises the service as a Jini

service. In addition, it also acts as a transport-level

bridge.

As a second optimisation we propose folding the

service cache managers into the bridge, to just leave

service-level bridging as in Figure 4.

Figure 4: Optimised service-level bridging.

As an illustration of this, we have built a lookup

service as a service-level bridge which listens for

UPnP device advertisements on one side. It can han-

dle device registration and device farewells and will

deal with device renewals, timing out if they are not

received. In this respect it acts like a UPnP control

point, but unlike a control point it does not send any

action calls to the UPnP device or register itself for

events. The other side of the service-level bridge han-

dles requests from Jini clients, primarily a discovery

request for the lookup service.

The lookup service will act like a normal Jini

lookup service as far as the Jini client is concerned

and return a lookup service proxy. The Jini client will

be a normal Jini client and uses the lookup service

to search for a service using the standard Jini API. If

the lookup service knows of UPnP devices that de-

liver the service, it will prepare a proxy for the UPnP

device and send it back to the Jini client.

This optimisation is only useful in conjunction with

the ﬁrst one. Transport-level bridging or its replace-

ment will still need to be in place. If there is no re-

placement then little is gained by separating transport-

level and service-level bridging. However, when the

transport-level bridge is replaced by a smart proxy

then it is possible to just keep the service-level bridge.

This is at present a practical restriction on the ap-

plicability of this pattern, since there do not appear

to be many middleware systems in practical use apart

from Jini that support both downloadable proxies and

discovery services. However, this could be expected

to change with future development of more advanced

service oriented frameworks (for example, see Ed-

wards (Edwards et al., 2005)).

7 DEVICE-LEVEL BRIDGING

Different middleware systems have different basic

ideas of services. Many systems such as CORBA,

Jini and WebServices only have the notion of services.

Others like UPnP and Bluetooth have devices. UPnP

devices contain a number of services (and possibly

other devices, recursively).

ICSOFT 2006 - INTERNATIONAL CONFERENCE ON SOFTWARE AND DATA TECHNOLOGIES

The different systems give different meanings to

discovery. For example, the UPnP on/off light is a

BinaryLight device containing a SwitchPower

service. Jini has no concept of BinaryLight’s

and can only look for a SwitchPower service.

So a Jini client cannot search for a binary light

device but only some subset (as a collection) of the

service interfaces offered. On the other hand, UPnP

advertises the binary light device and the services,

but with separate messages for each service, rather

than as a group. UPnP devices usually only have

one service although some may have more. For ex-

ample, an internet gateway device may have several

services and embedded devices. This device has

a total service list of Layer3Forwarding,

WANCommonInterfaceConfig,

WANDSLLinkConfig and WANPPPConnection.

In general, a Jini service may implement a number

of service interfaces, and a Jini client may request a

service that simultaneously implements a number of

interfaces.

In the case of UPnP, services are described by XML

documents, while Jini services are described by Java

interfaces. We have deﬁned a standard mapping from

UPnP services to Jini services. For example, the

UPnP service description for a SwitchPower ser-

vice is

<?xml version="1.0"?>

...

<name>SetTarget</name>

<name>newTargetValue</name>

<relatedStateVariable>Target

</relatedStateVariable>

</argument>

</argumentList>

</action>

...

</actionList>

...

</scpd>

Our mapping translates this into the Java interface

(along with a suitable deﬁnition of Target)

public interface SwitchPower

extends Remote {

void SetTarget(Target newTargetValue)

throws RemoteException;

...

}

The service-level bridge will need to be able to

translate from one representation to the other. A di-

rect approach is to store a table mapping each ser-

vice. In the case of UPnP and Jini, the table would

just hold UPnP service names matched to Java class

ﬁles. At this stage, the service-level bridge will be

responsible for creating the proxy, and to do this it

needs the class ﬁles for the service interfaces. While

it would be ﬁne for the bridge to have class ﬁles for

the set of “standard” devices and services maintained

by the UPnP Consortium, it would not allow for new,

unknown services to be managed.

New UPnP services would require the service-

transport bridge to examine in detail the UPnP service

description and generate source code for the Java in-

terface. Then compile this on the ﬂy using a local Java

compiler (such as javac or Kirby’s dynamic com-

piler (Kirby, 2005)). This is similar to dynamic com-

pilation of JSP and servlets by servlet engines such

as Tomcat. The resultant class ﬁles can be cached

against repeated use.

Similar mechanisms may be needed for bridging

between any middleware systems where new and un-

known services may be presented to the service-level

bridge. This will depend on what information is re-

quired by the bridge in order to create a proxy.

8 OPTIMISING DEVICE-LEVEL

BRIDGING

In the architecture proposed so far, the service-level

bridge needs to be able to generate a proxy to rep-

resent the original service. For a Jini client, this re-

quires class ﬁles on the lookup service for the Java

interfaces, and for unknown service types these will

need to be generated by the bridge. This will involve

detailed introspection of the service descriptions and

use of a Java compiler. While dynamic compilation

of JSP pages demonstrates that this is feasible, it nev-

ertheless has overheads.

The Jini client on the other hand has to know the

service interface, otherwise it cannot ask for a ser-

vice proxy. So if knowledge of the Java interfaces

can be deferred to the client side, then it just becomes

a lookup of already instantiated classes. The name of

the interface is all that is required for the client to ﬁnd

the interface class

The Jini lookup service already downloads a proxy

to the client to represent it. This has not been shown

in the ﬁgures so far as it is a Jini-speciﬁc (but stan-

dard) detail. Usually this proxy just makes remote

calls back to the lookup service. However, just like

any downloaded code, the proxy can be designed to

perform any functions on the client side (subject to

security constraints). In particular, on a lookup oper-

ation the proxy could just pass back to the lookup ser-

The client has to know the interfaces it is interested in.

It should not know the implementation classes. This is ad-

dressed in the implementation section.

BRIDGING BETWEEN MIDDLEWARE SYSTEMS: OPTIMISATIONS USING DOWNLOADABLE CODE

vice enough to allow a match to be made, and on suc-

cess the lookup service could pass back just enough

for the lookup service’s proxy to create a proxy for the

original service. In the case of a UPnP/Jini bridge, the

minimal information is the names of the interfaces re-

quired, and the returned information just needs to be

the URL of the UPnP device description. These are

enough for a proxy to be created on the client-side

that can talk to the UPnP service. See Figure 5 for the

ﬁnal system.

Figure 5: Optimised service-level bridging.

9 EVENT HANDLING

The discussion so far has used the remote procedure

call paradigm. However, there are other possibilities

such as an asynchronous callback mechanism where

the service makes calls back to the client. This is eas-

ily handled by the proposed systems, as the proxy just

registers itself as the callback address.

10 IMPLEMENTATION OF

OPTIMISED JINI-UPNP

BRIDGING

There is an open source implementation of UPnP

devices and control points by CyberGarage (Konno,

2006). This is very closely modelled on the UPnP

Device Architecture speciﬁcation (UPnP Consortium,

2006a). It exposes an API to allow a client to cre-

ate a ControlPoint which can listen for device

announcements, to determine the services within the

device and it has methods to prepare parameters and

make action calls on UPnP services. It also supports

getting device information such as friendly name and

registering as listener for state variable change events.

We use this in our lookup service to monitor UPnP

devices and keep track of the services that are avail-

able, as well as device information.

The CyberGarage API treats UPnP devices and ser-

vices using a DOM-oriented model, unlike the SOA-

oriented manner of Jini. We use the UPnP to Java

mapping discussed earlier to translate between the

two representations.

In our implemention, we use the Java Proxy

class to give a dynamic proxy. This proxy imple-

ments all of the services on a UPnP device that are re-

quested by the client. The proxy is supplied with the

device URL so that it can access the device descrip-

tion. This description contains the URLs for action

calls, for registering listeners and for the presentation.

The Jini proxy requires an invocation handler. We use

the CyberGarage classes to build a generic handler

to deal with SOAP calls to the device. The Cyber-

Garage classes and this handler are downloaded from

the bridge to the client. This avoids the need for the

bridge to know the service interfaces at all and allows

the client to only know the service interfaces.

The proxy implementation uses the CyberGarage

library, but only for the control components of the

CyberGarage ControlPoint. That is, it is used to pre-

pare and make SOAP action calls and to register and

listen for UPnP events. However, it does not listen

for devices, since that is done by the bridging lookup

service. When a method call is made on the service

proxy it uses the control point to make a SOAP remote

procedure call.

Our current implementation relies heavily on the

CyberGarage library, but only on the control point

code. The device advertisement code is not used.

Only a part of the control point code is used by the

bridging lookup service to monitor devices while an-

other part is used by the service proxy to make action

calls and listen for events. However, the CyberGarage

code is tightly interwoven, and it was not possible to

use only the relevant parts. The lookup service has

to import almost all of the library, as does the ser-

vice proxy. It should be possible to produce a lighter-

weight version for each with only the required partial

functionality.

11 ASSESSMENT

Any “optimisation” often has both positive and nega-

tive sides. We try to offer a balanced viewpoint on the

advantages and disadvantages of our pattern

11.1 Transport-level Optimisation

In transport-level optimisation, we place the code

to perform service invocation directly in the proxy

downloaded to the client. The principal advantages

of this are

• perfomance improvement by removing one seriali-

sation step

ICSOFT 2006 - INTERNATIONAL CONFERENCE ON SOFTWARE AND DATA TECHNOLOGIES

• perfomance improvement by removing one deseri-

alisation step

• perfomance improvement by removing one net-

work transport leg

• reducing the risk of semantic mismatches between

client and service data-types by reducing the num-

ber of data conversion steps.

The ma jor disadvantage is that code has to be down-

loaded to the client that is capable of talking directly

to the service. This is generally downloaded from an

HTTP server. Some examples follow

• Casati(Casati, 2006) gives JavaScript that can be

downloaded to a web browser such as Firefox or IE

that can make function calls on Web Services. This

requires just 10kbytes of JavaScript source code.

This relies on the extensive libraries and support

within the browsers for many of the library calls

made.

• Newmarch (Newmarch, 2006) discusses a Jini

proxy that can make function calls on Web Ser-

vices. The particular implementation used there

makes use of the Apache Axis objects Call,

QName and Service. These classes and all the

classes they depend on are substantial in size–over

900kbytes. There are clear redundancies in this: for

example, there are many classes which deal with

WSDL document processing, and this is not needed

by the proxy.

• For the Jini UPnP proxy discussed here, the Cy-

berGarage classes are used. These classes are

270kbytes in size. However, the jar ﬁle also con-

tains the source code for the package. Remov-

ing these reduces the size to 160kbytes and a spe-

cialised version could be even smaller. Cyber-

Garage also requires an XML parser to interpret

SOAP responses. The default parser (Xerces) and

associated XML API package are over 1Mbyte in

size which is substantial for an HTTP download.

The kXML package can be used instead, and this

is a much more reasonable 20kbytes and there is

even a light version of this. This gives a total of

180kbytes which is acceptable for any Jini client–

the reference implementation of Sun’s lookup ser-

vice takes 50kbytes just by itself.

The actual amount of code downloaded depends on

the complexity of the proxy and the degree of support

that already exists in the client. These three examples

show variations from 10kbytes to nearly 1Mbyte.

11.2 Service-level Optimisation

The standard bridge requires upto two service cache

managers, one for each discovery protocol. In ad-

dition, the bridge has to act as a client to discover

the original service and as a service to advertise to

the original client. Service-level optimisation reduces

this to two halves of two SCMs: one half to listen to

service adverts, the other half for the original client to

discover the service. UPnP does not have an SCM and

control points listen directly to service adverts, which

reduces the savings somewhat.

On the downside, it is necessary to write parts of

service cache managers. Although this is not inher-

ently difﬁcult, knowledge of how to do this and API

support by middleware systems is not so widespread

as for writing simple clients and services. Jini has the

necessary classes, but there are no tutorials on how

to write a lookup service. CyberGarage has support

for control points, but this is tightly woven with the

device code and so contains redundant code.

In addition, the need to possibly perform introspec-

tion on service descriptions, to generate appropriate

client-side deﬁnitions and to compile them are disad-

vantages.

11.3 Device-level Optimisation

This optimisation gains by removal of some code (in-

trospection, generation of interfaces and compilation)

completely. On the other hand, code to generate the

proxy is just moved into the client. In the case of Jini,

most of this code is already present in the client from

the Jini libraries and does not represent much of an

overhead. For other systems it may be more costly.

11.4 Generality

The design patterns discussed in this paper rely on a

number of properties of the two middleware systems

in order to be applicable

• it must be possible for a service cache manager to

be used in each middleware system. In practise this

is not an onerous provision and it can be applied

even to systems such as UPnP which do not require

an SCM.

• There must be a (sufﬁciently good) mapping of

the datatypes from service system to client system.

This allows UPnP services to be called from Jini

clients, but would limit the scope of Jini services

that could be invoked by UPnP clients. As another

example, the ﬂexibility of XML data-types means

that it should be possible to mix Jini clients with

Web Services, and Jini services with Web Service

clients.

• It must be possible to download code from the

SCM to run in either the client or service. In

our case study, we have downloaded code to the

client that understands the service invocation pro-

tocol, but it would work equally well if code could

BRIDGING BETWEEN MIDDLEWARE SYSTEMS: OPTIMISATIONS USING DOWNLOADABLE CODE

be downloaded to the service that understands the

client invocation protocol. Without this, the recip-

ient would already need to know how to deal with

a foreign invocation protocol, which would largely

defeat the value of the pattern.

The third point is the most difﬁcult to realise in

practise. Many languages support dynamic code ex-

ecution: most interpreted languages have an equiva-

lent of the eval() mechanism, through to dynamic

linking mechanisms such as dynamic link libraries

of compiled, relocatable code.However, the only ma-

jor language supporting dynamic downloads of code

across a network appears to be Java, and the princi-

pal middleware system using this is Jini. Given some

level of dynamic support, adding network capabilities

to this is not hard: the author wrote a few pages of

code as proof of concept to wrap around the Unix C

dlopen() call to download compiled code across

the network into a C program.

12 VALUE OF WORK

The value of mixing different middleware systems

can be seen by a simple example. Through UPnP,

various devices such as hardware-based clocks and

alarms can be managed. A stock exchange service

may be available as a Web Service. A calendar and di-

ary service may be implemented purely in software as

a Jini service. Using the techniques described in this

paper, a Jini client could access all of these. Acting

on events from UPnP clocks to trigger actions from

the Jini diary the client could query the Web Service

stock exchange service and ring UPnP alarms if the

value of the owner’s shares has collapsed.

In addition to extending the use of clients and ser-

vices, there are also some side beneﬁts:

• Jini has suffered by a lack of standards work for

Jini devices and device services, with a correspond-

ing lack of actual devices. This work allows Jini to

”piggyback” on the work done now and in the fu-

ture by the UPnP Consortium and to bring a range

of standardised devices into the Jini environment.

Jini clients will be able to invoke UPnP services in

addition to services speciﬁcally designed for Jini.

• UPnP is a device-centric service architecture. It al-

lows clients to use services on devices, but has no

mechanism for UPnP clients to deal with software-

only services since they cannot be readily ex-

pressed in UPnP. Work is ongoing within the UPnP

Consortium to bring WSDL descriptions into the

UPnP world. Jini clients on the other hand are ag-

nostic to any hardware or software base, and can

mix services of any type.

Both middleware systems have limitations–in the

case of Jini, in the types of services that can be ac-

cessed, and in the case of UPnP, in the range of ser-

vices that can be offered. Other middleware systems

will have similar limitations. For example, Web Ser-

vices tend to deal with long-lived services at well-

known addresses whereas Jini can handle transient

services

13 CONCLUSION

We have proposed a set of alternative architectures to

bridge between different middleware systems which

uses a service cache bridge and a downloadable proxy

understanding the service or client invocation proto-

col. In addition, we have used this between Jini and

UPnP and we have automated the generation and run-

time behaviour of this proxy from a UPnP speciﬁ-

cation. This has been demonstrated to give a sim-

ple solution for UPnP services and Jini clients. The

techniques are applicable to any client protocol which

supports downloadable code and any service protocol.

REFERENCES

Allard, J., Chinta, V., Gundala, S., and Richard III, G. G.

(2003). Jini meets upnp: In Proceedings of the Appli-

cations and the Internet (SAINT).

Arnold, K. (2001). The Jini Speciﬁcation. Addison-Wesley.

Bellwood, T. (2002). Uddi version 2.04 api speci-

ﬁcation. Retrieved July 7, 2006 from http:

//uddi.org/pubs/ProgrammersAPI-V2.

04-Published-20020719.htm.

Brown, L. and Sablin, D. (1999). Extending erlang for safe

mobile code execution. In Lecture Notes in Computer

Science, vol 1726.

Casati, M. (2006). Javascript soap client. Retrieved July

7, 2006 from http://www.codeproject.com/

Ajax/JavaScriptSOAPClient.asp.

Dabrowski, C. and Mills, K. (2001). Analyzing proper-

ties and behavior of service discovery protocols using

an In Proc. Working Conference on Complex and Dy-

namic Systems Architecture.

Edwards, W. K., Newman, M. W., Smith, T. F., Sedivy, J.,

and Izadi, S. (2005). An extensible set-top box plat-

form for home media applications. IEEE Transactions

on Consumer Electronics, 4(51).

Garrett, J. J. (2005). Ajax: a new approach to web

applications. Retrieved July 7, 2006 from http://

www.adaptivepath.com/publications/

essays/archives/000385.php.

JSON (2006). Json in javascript. Retrieved July 7, 2006

from http://www.json.org/js.html.

ICSOFT 2006 - INTERNATIONAL CONFERENCE ON SOFTWARE AND DATA TECHNOLOGIES

Kirby, G. (2005). Dynamic compilation in

java. Retrieved July 7, 2006 from http:

//www-ppg.dcs.st-and.ac.uk/Java/

DynamicCompilation.

Levy, J. Y., Ousterhout, J. K., and Welch, B. B. (1997). The

safe-tcl security model. Technical report, Sun Mi-

crosystems. Retrieved July 7, 2006 from http://

research.sun.com/technical-reports/

1997/abstract-60.html.

Nakazawa, J., Edwards, W., Tokuda, H., and Ra-

machandran, U. (2006). A bridging frame-

work for universal interoperability in pervasive sys-

tems. In ICDCS. Retrieved July 7, 2006

from www-static.cc.gatech.edu/

keith/

pubs/icdcs06-bridging.pdf.

Newmarch, J. (2001). A Programmers Guide to Jini.

APress.

Newmarch, J. (2005). Upnp services and jini clients. In

ISNG, Las Vegas.

Newmarch, J. (2006). Foundations of Jini 2 Programming.

APress.

UPnP Consortium (2006). Upnp home page. Retrieved July

7, 2006 from http://www.upnp.org.

Vinoski, S. (2005). Rpc under ﬁre. IEEE Internet Comput-

ing.

Waldo, J. (2000). The end of protocols. Retrieved

July 7, 2006 from http://java.sun.com/

developer/technicalArticles/jini/

protocols.html.

Waldo, J. (2005). An architecture for service ori-

ented architectures. Retrieved July 7, 2006

from http://www.jini.org/events/

0505NYSIG/WaldoNYCJUG.pdf.

WWW Consortium (2002). Web services home page. Re-

trieved July 7, 2006 from http://www.w3.org/

2002/ws.

BRIDGING BETWEEN MIDDLEWARE SYSTEMS: OPTIMISATIONS USING DOWNLOADABLE CODE
