DISCOVERY AND AUTO-COMPOSITION OF SEMANTIC WEB

SERVICES

Philippe Larvet

Alcatel CIT, Research and Innovation, Route de Nozay, 91461 Marcoussis, France

Bruno Bonnin

Alcatel CIT, Research and Innovation, Route de Nozay, 91461 Marcoussis, France

Keywords: Web service, semantic web ser

vice, orchestration, automatic web service composition, semantic service

discovery.

Abstract: In order to facilitate the on-demand delivery of new services

for mobile terminals as well as for fixed

phones, we propose a user-centric solution based on Semantic Service-Oriented Architecture (SSOA) for

instant building and delivery of new services composed with existing Web services discovered and

assembled on-the-fly. This solution, based on semantic descriptions of Web services, is made of three main

mechanisms: a semantic service discoverer, transparent for the user, allows to find the pertinent Web

services matching with the user's original request, expressed vocally or by a SMS or a simple text ; a

semantic service composer, using the semantic descriptions of the Web services, allows to combine and

orchestrate the discovered services in order to build a new service fully matching the user's request, and a

service deliverer makes the new service immediately accessible by the user.

1 SEMANTIC WEB SERVICES

Web services, as they are easily accessible from any

point of Internet through an Application server, are

suitable to build rapidly on-demand applications.

From the point of view of their internal

mplexity, Web services (WS) can be divided into

two families : elementary WS and composite WS.

Elementary WS provide a basic service,

mparable to mathematical libraries, and contain a

low level of data transformation, embedded in few

algorithms; for example, translation services are

elementary WS.

In the contrary, composite WS provide a high level

service and

contain many levels of data accesses and

transformations, given by the cooperation of several

elementary services. Such a composite service,

resulting of the composition of several processes

logically assembled, can be called an orchestrated

service; for example, reservation services or secured-

payment services are composite orchestrated WS.

If the development of elementary WS is obviously

he domain of specialized software engineers, the

emerging technology of semantics, associated to web

services, allows a end user, through an appropriate

application accessible from his preferred phone

(mobile or fixed), to build transparently and to use

some new services made by an assembly of existing

elementary WS, discovered and orchestrated on-the-

fly. "Transparently", because the process of discovery,

composition and delivery of the new service has to be

totally transparent for the user whose the only demand

is to get a new easy-to-use service immediately

responding to his original easy-expressed request.

A second advantage of the semantic technology

tached to WS is to allow keeping only the semantic

descriptions of the requested services, instead of the

orchestrated resulting service, because the semantic

descriptions can be processed and re-processed at any

time, permitting a dynamic re-discover, re-orchestrate

and re-deliver of a "new" new service, matching better

with the original request.

2 EASY-EXPRESSING NEW

SERVICES

Let us develop a concrete use case to explain the

functioning of our solution. For example, a user wants

to get a french translation of the latest CNN news.

Larvet P. and Bonnin B. (2006).

DISCOVERY AND AUTO-COMPOSITION OF SEMANTIC WEB SERVICES.

In Proceedings of the First International Conference on Software and Data Technologies, pages 40-45

DOI: 10.5220/0001310500400045

 SciTePress

Internet/

Intranet

Application

Server

Click to use

Internet/

Intranet

Services

Semantic

Repository

Discover-

Orchestrate-

Deliver

Mechanism

Semantic

Repository

Services

Repository

notification

for the new service

Vocal request

SMS or text

Figure 1: Processing an Instant Building and Delivery use case (global view).

Vocal request

Semantic

Analyzer

Semantic

Descriptions of

Requested Services

Discover

Orchestrate

Deliver

D-O-D Mechanisms

Internet/

Intranet

Services

Semantic

Repository

Services

Repository

SMS or text

Speech

text

Figure 2: Processing an Instant Service Discover-Orchestrate-Deliver use case (detailed view).

The user simply activates the "instant delivery"

function of his terminal, and expresses vocally his

demand : "I want to get a french version of the latest

CNN news". He could also send an SMS containing

this short text to the address of the Instant Delivery

Service. Indeed, there is no easier way to express a

requirement !

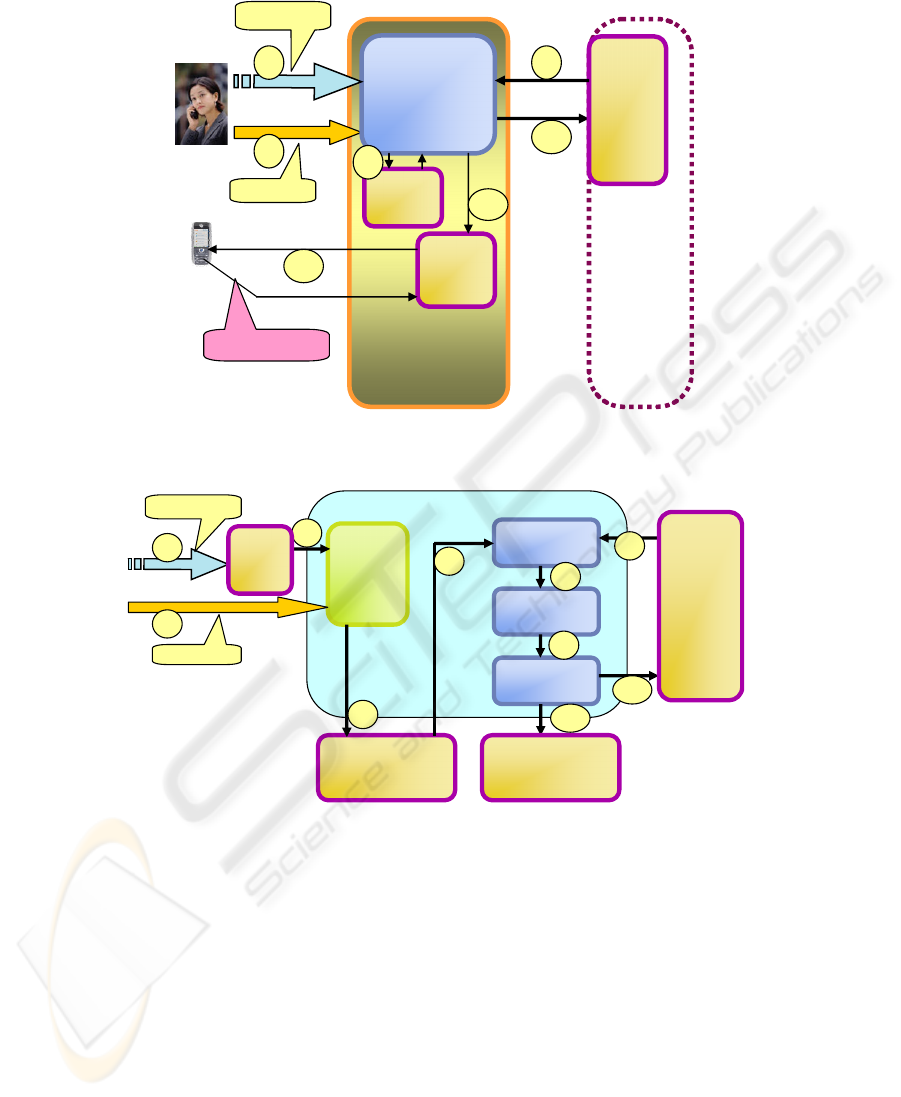

The Fig. 1 allows you to follow the building and

delivery of the final required service from the original

request.

The vocal message (flow 1) is taken into account

by the Discover-Orchestrate-Deliver Mechanism of a

given Application Server.

A fisrt block, Speech-to-Text (see Fig. 2),

"understands" the message and transforms it into a

text, that is processed by a Semantic Analyzer. If the

user has sent a text (flow 2) instead of speaking a

vocal message, this text directly enters the Analyzer

that extracts from the text content the needs for the

intermediate elementary required services. In the case

of our example, the needs are:

• french translation

• latest CNN news

These needs are kept in the Application Server

under the form of "semantic descriptions" of the

intermediate required services and they are stored in a

specific Semantic Repository (flow 4).

DISCOVERY AND AUTO-COMPOSITION OF SEMANTIC WEB SERVICES

The stored semantic descriptions are processed by

the Discover module (see fig. 2) that searches in a

public Semantic Services Repository (flow 6) some

service descriptions that match with the required

stored semantic descriptions.

The corresponding elementary web services (for

example a web service Translator and a web service

CNN News), fitting with the required semantic

descriptions, are passed to the Orchestrate module

(flow 7), which makes the composition of the

elementary web services, using the orchestration

handlers contained in their semantic descriptions.

The resulting composed service (flow 9) is taken

into account by the Deliver module, that stores the

new service in the Service Repository of the

Application Server (flow 10) and registers in the

public Intranet/Internet Semantic Services Repository

the semantic description of the new service (flow 11).

The Service Repository has a local intelligence

allowing to send to the user (and, occasionally, to

every user who previously subscribed to this service) a

notification (flow 12) informing him that the new

asked service is now available on his preferred server.

Then, and this is the end of our use case story, the

user can immediately activate and use the new service

– and to get a french version of the latest CNN news.

Beyond the obvious benefit of this process for the

user – getting a real-time and on-the-fly response to

his original demand, under the form of a new service

fully matching his request and immediately activable

and usable – another interest of this solution is set in

the notification mechanism of the Service Repository:

every user who previously subscribed to the "Instant

Delivery" service is informed that a new service is

available.

The following paragraphs explain in detail the

functioning of the three main blocks of the Discover-

Orchestrate-Deliver Mechanism, whose the process is

protected by an Alcatel patent.

3 THE DISCOVERY MECHANISM

From The User's Original Request To The

Pertinent Elementary Web Services

Before entering the Discover module, a pre-treatment

is made onto the text of the original request, in order to

transform it into semantic clauses, each of them

representing a precise need for an elementary web

service.

This need has to be expressed in a formal way, for

example under the form of a XML-based language, to

allow its easier post-processing.

In the context of our solution, we imagined a

simple semantic description language based onto

WSDL (Web Service Description Language, a W3C's

standard) and we developed such a semantic

description mechanism, taking into account the fact

that a WSDL description is always present for any

web service. The process of making semantic

descriptions from WSDL is protected by another

Alcatel patent.

A "semantic description" for a given service

contains:

• input data description (data category, types and

semantic tags)

• output data description (same structure than

input)

• semantics of operations

• "orchestration handlers", i.e. connection points

expressing how this very web service could

be automatically connected with another WS.

This automatic connection process is also

protected by an Alcatel patent.

The semantic descriptions for the required

elementary services, built by a Semantic Analysis

module from the text of the original request, are stored

in a specific Semantic Repository, local to the

Application Server (see Fig.2, flow 4).

These descriptions are used by the Discover block

(flow 5) to make a search into the Internet/Intranet

Semantic Service Repository (flow 6). The Discover

block contains a matching module that explores the

external Semantic Repository, looking for a match

between the external semantic descriptions (flow 6)

and the required semantic descriptions of the flow 5

that come from the user's request. This match is based

upon a correlation search between the main elements

of the semantic description: inputs, outputs and

semantics of operations.

When a match is found for each required semantic

description, the corresponding WSDL descriptions of

the elementary services are sent to the Orchestration

module.

4 THE COMPOSITION

MECHANISM

From The Elementary Components To The

Final New Service

Orchestration is the term used to describe the creation

of a "business process" (or a workflow) using Web

services (BPEL Editorial Team, 2005). A business

process is an aggregation of services whose the

ICSOFT 2006 - INTERNATIONAL CONFERENCE ON SOFTWARE AND DATA TECHNOLOGIES

operations, i.e. the processes, are logically linked

together in order to reach a given objective (Bruno,

2005).

Aggregating services to build an added-value

service have many solutions depending on the chosen

environment. For Web services, the orchestration is

usually expressed with a specific language like BPEL

for example (Business Process Execution Language

(BPEL Editorial Team, 2005)), that describes the

interactions between the services.

A business process is deployed itself as a service,

so it can be used by other processes. A business

process language describes the behaviour of business

processes based on Web services, i.e.:

• Control flow (sequences, loops, conditions,

parallelism, …)

• Variables, exceptions, timeout management.

By providing semantic descriptions of services, we

produce in fact specifications for all the layers of the

standard Web services stack, and so in the service

composition layer.

The stack has been enriched with new W3C

specifications, such OWL-S (OWL-S, 2004) for

example, for providing support of semantics. These

languages, and our "semantic descriptions"have the

same goal, provide a set of XML constructs for

describing the properties and capabilities of Web

services in order to facilitates the automation of Web

services processing, including automatic discovery and

composition.

In the previous step ("Discover" mechanism), we

have extracted the "semantics" from the service

descriptions to find the matching services. In the

current step, we automatically build the business

process with some specific semantic annotations

(that we call "semantic tags") included in the service

description in order to help the composition.

For example, the semantic annotations give

information about the input and output parameters:

in a business process, output parameters of a service

can be used as input parameters for another service.

The "semantic tags" are important to use the

parameters in the right way. The parameter types are

not sufficient to match output parameters of a service

with input parameters of another service. The

"semantic tags" help this composition.

In a business process, there is not only service

invocation activity: there are also condition activities,

loop activities, error processing, etc.

These activities are also taken into account: for

example, if an activity has an array of string as output

parameter and if the next service has only a string as

input parameter, the business process includes a loop

activity for processing all values of the array.

Once the business process has been defined and

described with a business process language, it is time

to deploy it.

5 THE DELIVERY MECHANISM

Serving The Newborn Service To The User

With the Service-Oriented Architecture

(SOA)(Nickolaos et al., 2004), (SOA explained, http),

we have a good level of dynamicity on server side.

But, on client side, as the client of the services is an

application that is installed on each machine, it must

also be as dynamic as possible to be able to invoke any

services.

There are two problems:

• How to access the new service?

• How the user knows there is a new service?

To access the new service, the user must have a

service client application on his terminal. But as all the

services are different, the service clients are different

(service parameters, user interface, etc.).

So, the service deployment step must include:

• A service client building,

• A user notification.

The service client application (see Fig.3) must

include the following functionalities:

• Business Process Server notification

management.

• Service client management. Its role:

o Download, start, stop, delete the

service clients

o Process events from the

notification manager

o Manage the user interface according

to the authorized service clients.

• Service clients execution: their main role is to

access the services. They have their own user

interface.

A new business process deployment includes the

following steps:

• Building of a new service client. It is built

from the new service description. For each

service argument, a user interface element is

created.

• Deployment of the service client.

• Notification of the user that a new service is

available and that he can access it.

DISCOVERY AND AUTO-COMPOSITION OF SEMANTIC WEB SERVICES

Service Client Container

Notification Manager

Service Client Manager

Service 1 Client Service 2 Client

Service 1 Service 2

Business

Process

Server

Service Clients

Server

Service requests

Download requests

otifications

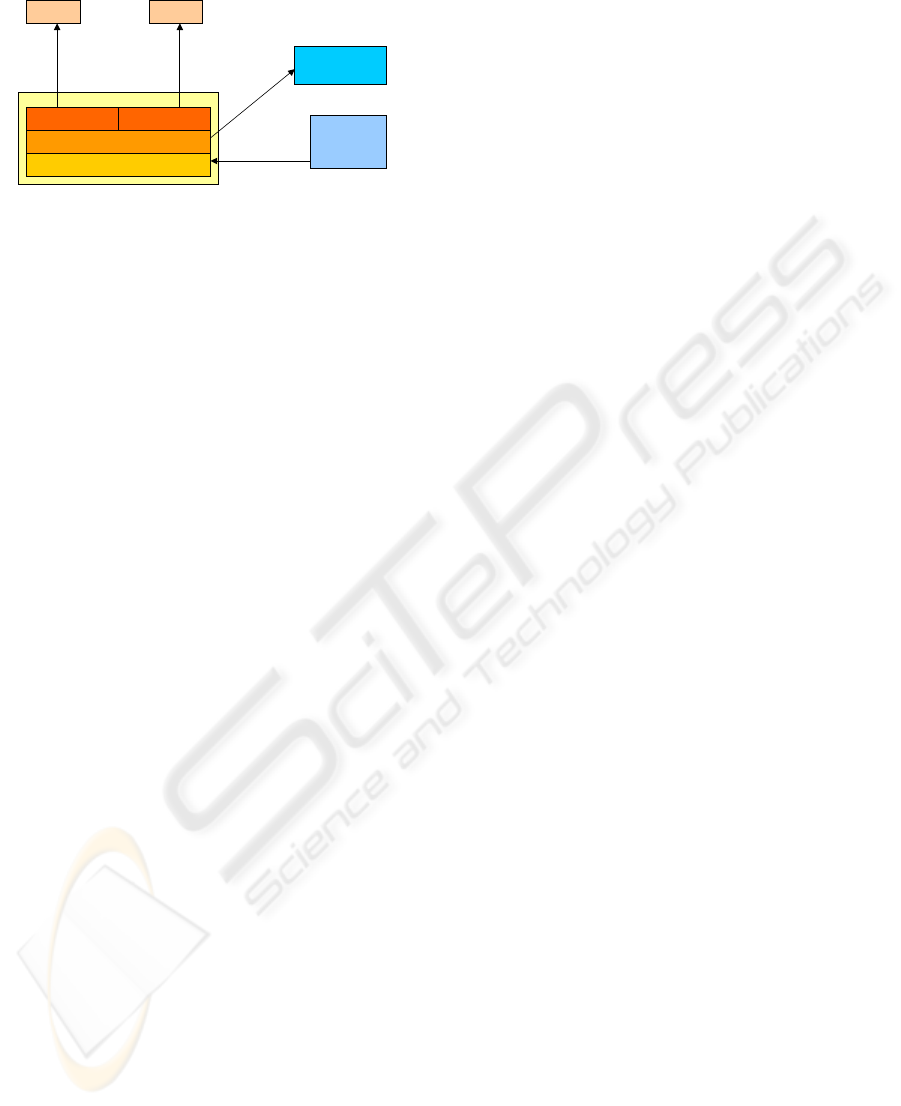

Figure 3: Detailed functional view of a Service Client

Application

When the user receives the notification, he activates

the service:

• The service client manager downloads the

service client

• The service client is activated

• The service client invokes the new service

The main advantages of this kind of service client

container are:

¾ Install once: only the Service Client Container has

to be installed on each machine, the other parts of

the application (service clients) are downloaded

¾ Context-aware: the application checks the

hardware and software environment for proposing

only usable applications and for using user’s

preferred tools such as web browser

¾ Dynamic upgrade: when running, if the Service

Client Container receives a notification from the

Business Process Server for any modification, it is

immediately taken into account; this mechanism

is transparent for the user and does not need any

restart.

6 MANAGING THE DISCOVER-

ORCHESTRATE-DELIVER

CONCEPT WITH A SEMANTIC

SERVICE-ORIENTED

ARCHITECTURE

Service-Oriented Architecture (SOA) is an

architectural style whose goal is to achieve loose

coupling among interacting software agents (SOA

explained, http). In this context, a service is seen as a

unit of work done by a service provider to achieve

desired end results for a service consumer. Both

provider and consumer are roles played by software

agents on behalf of their owners.

To achieve loose coupling among interacting

software agents, SOA employs two architectural

constraints:

1. A small set of simple and ubiquitous

interfaces to all participating software

agents. Only generic semantics are encoded

at these interfaces, that are universally

available for all providers and consumers.

2. Descriptive messages constrained by an

extensible schema delivered through the

interfaces. No, or only minimal, system

behavior is prescribed by messages. A

schema limits the vocabulary and structure

of messages – and an extensible schema

allows new versions of services to be

introduced without breaking existing

services.

Since we have only a few generic interfaces

available, we must express application-specific

semantics in messages. We can send any kind of

message over our interfaces, but there are three main

rules to follow before we can say that an architecture

is service-oriented:

1. The messages must be descriptive, rather

than instructive, because the service

provider is responsible for solving the

problem – when you go to a restaurant, you

tell the waiter your order and preferences

but you don't tell the cook how to cook

your dish step by step.

2. Service providers will be unable to

understand your request if your messages

are not written in a format, structure, and

vocabulary that is understood by all parties.

Limiting the vocabulary and structure of

messages is a necessity for any efficient

communication.

3. Extensibility is vitally important: the world

is an ever-changing place and so is any

environment in which a software system

lives. Those changes demand

corresponding changes in the software

system, service consumers, providers, and

the messages they exchange. If messages

are not extensible, consumers and providers

will be locked into one particular version of

a service.

There are numerous additional constraints one can

apply on SOA in order to improve its scalability,

performance and reliability. Among them, we mainly

retain the stateless service concept. Each message that

a consumer sends to a provider must contain all

necessary information for the provider to process it.

ICSOFT 2006 - INTERNATIONAL CONFERENCE ON SOFTWARE AND DATA TECHNOLOGIES

This constraint makes a service provider more scalable

because the provider does not have to store state

information between requests. This is effectively

"service in mass production" since each request can be

treated as generic. It is also claimed that this constraint

improves visibility because any monitoring software

can inspect one single request and figure out its

intention. There are no intermediate states to worry

about, so recovery from partial failure is also relatively

easy. This makes a service more reliable.

Taking into account these main particularities of

SOA, we can consider the main challenges for our

Discovery-Orchestrate-Deliver concept in a Semantic

Service-Oriented Architecture (SSOA) are the

descriptions of messages and services, the

management of services and the process for facilitating

the access to services.

At "Discover" level, the semantic descriptions of

services – as they are made from the external

descriptions of messages found in WSDL – make

more easy the classification of services in the service

repository, because these descriptions are structured

upon a taxonomy of the concepts manipulated by the

services. This taxonomy facilitates the logical ordering

of services by domains, subdomains, topics and

subtopics, and consequently facilitates their

management. These semantic descriptions, as they can

match with the service requirements contained in the

user's original request, are also a good means to make

more easy the discovery of corresponding services.

At "Orchestrate" level, the "composition handlers"

contained in the semantic descriptions of services are a

good enabler for an automatic orchestration process

able to aggregate several convenient services.

The semantic descriptions of a new service, and

mainly their taxonomic abilities, are still used at

"Deliver" level, when the Discover-Orchestrate-

Deliver mechanism has to store them as logically as

possible and to insert them in the existing structure of

the semantic repository.

7 CONCLUSION

Within a wide-communicating world where services

become more and more sophisticated and are on the

beginning to expose their semantic dimension, we

consider it is important to propose solutions in which

anybody could be able to create his own services in

some simple clicks. This paper reveals one of the

reflexion axis we currently have in this direction, and

we hope we could convince the reader that a semantic

approach, through the use of semantic descriptions of

services, helps in an important way the mechanisms

for building, holding and processing any kind of Web

service.

Moreover, we tried to show how Semantic SOA-

based mechanisms, if possible leant on IMS

development platforms, can provide high-value

capabilities for new generation service creation and

delivery: a simpler way to express a service, a faster

way to get and use it, a cheaper solution for the end-

user because it is simpler and faster.

We are convinced that IMS services are the good

base to develop such kind of rich services and use

interaction, including dynamic search, discovery and

publishing of web information associated to a multi-

media call session, and we think semantic Web

services are the good means to do it.

REFERENCES

BPEL Editorial Team, BPEL Learning Guide, February

2005, http://searchwebservices.techtarget.com/original

Content/0,289142,sid26_gci880731,00.html

OWL-S, Semantic Markup for Web services, W3C Member

Submission, November 2004,

http://www.w3.org/

Submission/OWL-S/

Bonnin Bruno, Larvet Philippe, Fontaine Patrick, Ferres

Lamia, A Multi-Actor Agnostic Platform for Web

Services Development and Deployment, June 2005,

Article published in W3C Workshop on Frameworks

for Semantics in Web Services, Innsbruck (Austria)

Kavantzas Nickolaos, WS-CDL, Web Service Choreography

Description Language, December 2004,

http://www.ebpml.org/ws_-_cdl.htm and

http://www.w3.org/TR/ws-cdl-10/

Kavantzas Nickolaos & al., Process-centric realization of

SOA : BPEL moves into the limelight, Web Services

Journal, Nov.2004, http://www.findarticles.com/p/

articles/mi_m0MLV/is_11_4/ai_n7071401

Nanda Mangala & al., Decentralized Orchestration of

Composite Web Services, IBM Research Computer

Science, Innovation Matters, November 2004,

http://www.research.ibm.com/compsci/project_spotlight

/distributed/

Peltz Chris, Web services orchestration, a review of

emerging technologies, tools, and standards, Hewlett-

Packard Co, January 2003, http://devresource.hp.com/

drc/technical_white_papers/WSOrch/WSOrchestration.

pdf

Smith Howard, BPM and MDA, Competitors, Alternatives

or Complementary, Business Process Trends, White

Paper, July 2003,

http://www.bptrends.com/publication

files/07%2D03%20WP%20BPM%20and%20MDA%2

0Reply%20%2D%20Smith%2Epdf

SOA explained: http://webservices.xml.com/pub/a/ws/2003/

09/30/soa.html

DISCOVERY AND AUTO-COMPOSITION OF SEMANTIC WEB SERVICES
