EXPLORING FEASIBILITY OF SOFTWARE DEFECTS

ORTHOGONAL CLASSIFICATION

Davide Falessi, Giovanni Cantone

Univ. of Roma "Tor Vergata”, DISP, Via del Politecnico 1,Rome, Italy

Keywords: Software engineering, Experimental softw

are engineering, Orthogonal Defect Classification, Defect class

affinity, Fault detection, Effectiveness, Efficiency.

Abstract: Defect categorization is the basis of many works that relate to software defect detection. The assumption is

that different subjects assign the same category to the same defect. Because this assumption was questioned,

our following decision was to study the phenomenon, in the aim of providing empirical evidence. Because

defects can be categorized by using different criteria, and the experience of the involved professionals in

using such a criterion could affect the results, our further decisions were: (i) to focus on the IBM Orthogonal

Defect Classification (ODC); (ii) to involve professionals after having stabilized process and materials with

students. This paper is concerned with our basic experiment. We analyze a benchmark including two

thousand and more data that we achieved through twenty-four segments of code, each segment seeded with

one defect, and by one hundred twelve sophomores, trained for six hours, and then assigned to classify those

defects in a controlled environment for three continual hours. The focus is on: Discrepancy among

categorizers, and orthogonality, affinity, effectiveness, and efficiency of categorizations. Results show: (i)

training is necessary to achieve orthogonal and effective classifications, and obtain agreement between

subjects, (ii) efficiency is five minutes per defect classification in the average, (iii) there is affinity between

some categories.

1 INTRODUCTION

Defect classification plays an important role in

software quality. In fact, software quality is strictly

related to the number and types of defects present in

software artifacts and eventually in software code.

The analysis of defect d

ata can help to better

understand the quality of software products and the

related processes, and how they evolve.

An invalid defect categorization would obviously

ply wrong data, which could lead analysts to

wrong conclusions, concerning the product,

development process or phase, methods, and/or

tools.

For instance, in order to define the best mix of

code

testing and inspection techniques for given

application domain and development environment, it

is crucial to collect valid defect-category data (Basili

& Selby, 1987; Cantone et al,. 2003; Abdelnabi et

al., 2004).

1.1 Related Works

The Orthogonal Defect Classification (ODC) is a

schema (IBMa, 2006) that IBM proposed in the aim

of capturing semantics of software defects (see

Section 1.3 for further details concerning ODC).

ODC was originally published on 1992; because in

the mean time the software world changed, the IBM

provided to update ODC regularly. The

classification adopted in this work is ODC v5.11, i.e.

the last version of ODC, to the best of our

knowledge. ODC is defined as a technology-

independent (software process, programming

language, operative system, etc.) classification

schema. This is based on eight different kinds of

attributes, each of them having its own categories.

Khaled El Emam and Isabella Wieczorek (1960),

and Ke

nnet Henningsson and Claes Wohlin (2004)

investigated ODC empirically by focusing on

subjectivity of defect classification. In order to

evaluate the level of cohesion among classifications

that different subjects enacted, both studies used

“Kappa statistics” (Cohen, 1960), and worked on

107

Falessi D. and Cantone G. (2006).

EXPLORING FEASIBILITY OF SOFTWARE DEFECTS ORTHOGONAL CLASSIFICATION.

In Proceedings of the First International Conference on Software and Data Technologies, pages 107-117

DOI: 10.5220/0001311201070117

 SciTePress

their own variations of ODC. In particular, El Emam

and Wieczorek involved various combinations of

three subjects who performed in the role of defect

categorizers on an actual software artifact, during

the development process; they hence collected and

eventually analyzed “real inspection data” (El Emam

& Wieczorek, 1960). Eight subjects, each having at

least a Master’s degree but with limited experience

in defect classification, participated to the

experiments conducted by Henningsson and Wohlin,

where objects were utilized that included thirty

defects selected from a repository. Concerning

results from those studies, the former presents high

level of cohesion with respect to standards utilized

by medical studies, the latter shows that there might

be subjectivity in classification. Durães and Madeira

(2003) used the ODC as initial defect categorization

framework and afterwards faults were classified in a

detailed manner according to the high-level

constructs where the faults reside and their effects in

the program. The analysis of field data on more than

five hundred real software faults shows a clear trend

in fault distribution across ODC classes. Moreover,

results show that a smaller subset of specific fault

types is clearly dominant regarding fault occurrence.

1.2 Study Motivations and View

We can count a significant number of empirical

works from many authors worldwide, whose

conclusions are based on categorization of software

defects. A common assumption of all those works

(see Section 8 for few samples of them: (Basili &

Selby, 1987; Cantone et al., 2003; Juristo and Vegas,

2003; Myers, 1978)) is that in large extent defects

can be classified objectively, whatever the

classification model might be. In the absence of

enough evidence for such an assumption, all those

empirical results could be questioned. Consequently,

the basic question of this study is whether software

practitioners can uniformly categorize defects.

In this paper we focus on the ODC attribute

“Defect Type” (DT), which role is to catch the

semantics of defects, that is the nature of the actual

correction that was made to remove a defect from a

software code. DT categorization hence follows

defect detection, identification and fixing: in fact,

the real nature of a defect can be understood (and

than suitably categorized) only after the code is

fixed, in the ODC approach.

DT includes seven defect categories (IBMa,

2006; IBMb, 2006):

1. Assignment/Initialization: value(s) assigned

incorrectly or not assigned at all.

2. Checking: errors caused by missing or incorrect

validation of parameters or data in conditional

statements. It might be expected that a

consequence of checking for a value would

require additional code such as a do while loop

or branch.

3. Algorithm/Method: efficiency or correctness

problems that affect the task and can be fixed by

re-implementing an algorithm or local data

structure without the need for requesting a

design change; problems in the procedure,

template, or overloaded function that describes

a service offered by an object.

4. Function/Class/Object: the defect should require

a formal design change, as it affects

significantly capability, end-user interfaces,

product interfaces, interface with hardware

architecture, or global data structure(s); defect

occurred when implementing the state and

capabilities of a real or an abstract entity.

5. Interface/O-O Messages: communication

problems between modules, components, device

drivers, objects or functions.

6. Relationship: problems related to associations

among procedures, data structures and objects.

7. Timing/Serialization: necessary serialization of

shared resource was missing, the wrong

resource was serialized, or the wrong

serialization technique was employed.

In the remaining, we present, analyze, and

discuss a benchmark including two-thousand and

more data that we achieved through an experiment

based on twenty-four segments of code, each

segment seeded with one defect, and one hundred

twelve sophomores, trained for six hours and then

assigned to classify those defects in a controlled

environment for three continual hours. In particular,

Section 2 presents the experiment problem and goal

definition. Section 3 shows the experiment planning

and operation. Section 4 and 5 present and discuss

results. Some final remarks and further intended

works conclude the paper.

2 GOAL AND EXPERIMENT

HYPOTHESES

The goal (Basili et al., 1987) of this paper is to

analyze the (ODC)’s DT attribute from the point of

view of the researcher, in the context of an academic

course on “OO thinking and programming with

Java” for sophomores, for the purpose of evaluating

dependences of software defect categorizations on:

ICSOFT 2006 - INTERNATIONAL CONFERENCE ON SOFTWARE AND DATA TECHNOLOGIES

108

i) defect (d∈DD): ii) subjectivity of practitioners

(s∈S); iii) expertise in defect detection (X), and (iv)

Programming language (PL) utilized to code

artifacts, by focusing on: a) Effectiveness (E), i.e. in

what extent a defect is associated to its most

frequent categorization (MFC); b) Efficiency (Ec),

i.e. the number of (MFC)s per time unit; c)

Orthogonality (O), i.e. in what extent a defect is

assigned to just one category; d) Affinity (A), i.e. in

what extent a defect category looks like other

categories, and e) Discrepancy (D), i.e. in what

extent subjects assign a defect different categories

(see Sections 3 for quantitative definitions of all

those variables).

Based on that goal, the hypotheses of our work

concern the impact of expertise (h

), defect category

), and programming language (h

) on

orthogonality (h

), effectiveness (h

), and

discrepancy (h

The null (h

) and alternative (h

) hypotheses for

expertise versus orthogonality (resp. effectiveness,

and discrepancy) are:

– h

XO0

: Expertise does not significantly impact on

orthogonality (resp. h

XE0

, and h

XD0

– h

XO1

: Expertise impacts significantly on

orthogonality (resp. h

XE1

, and h

XD1

Hypotheses concerning programming language

LO0

, h

LO1

, h

LE0

, h

LE1

, h

LD0

, h

LD1

), and defect

category (h

CO0

, h

CO1

, h

CE0

, h

CE1

, h

CD0

, h

CD1

) have

similar formulations. In the remaining, while we

evaluate the impact of defect category, expertise,

and programming language on outcomes, our

reasoning mainly focuses on expertise. In fact, in

our expectation, in case of significant dependence of

defect categorizations from the categorizers’

subjectivity, expertise should play the most

important role and behave as the main

discriminating factor; consequently, our planning

and training emphasis was in providing variable

expertise.

3 EXPERIMENT PLANNING AND

OPERATION

Whoever the participant subject, three items

characterize our elementary experiment: a defect, as

seeded and fixed in a program segment, the

programming language of that segment, and

dissimilarity of that defect.

In order to average on differences among

participant subjects, our planning decisions was to

utilize subjects with the same level of experience; in

particular: i) one hundred or more subjects from the

same academic class, ii) subjects showing the same

OOP class frequency record, iii) subjects who would

be attending all the training sessions. Moreover, in

order to manage the impact of learning effect on

results, we kept further planning decisions, which

also helped to prevent exchange of information

among participant subjects: iv) to arrange four

master files, where experiment artifacts are located

in different order, v) to assign subjects seats

randomly, and give neighbors copies of different

master files, and vii) to ask subjects to handle

artifacts in sequence, staring from the first artifact

their assigned.

We hence developed and saved into repository

defected artifacts. An artifact consists in a less than

twenty ELOC segment of code, plus comments to

ensure easy and valid understanding; one defect is

seeded per code segment, and fixed through specific

comments. Let us note that while we used our

understanding of DT ODC to generate defected

artifacts, we no further utilize such understanding in

the remaining of this study, where categorizations

are utilized as enacted by subjects.

In parallel with repository construction, we

called for participation, and trained subjects through

three two-hour lectures, which presented the role

and importance of defect categorization, defined

categories of the ODC DT attribute, and explained

extensively two or more exemplar cases for each

defect category. Subsequently, we evaluated in Low

(L), Average (A), and High (H) the dissimilarity

between defects in the experiment artifacts and

defects in the examples given for training (see

Expertise in Section 3.1.4 for further details).

Finally, we ruled the random selection of experiment

artifacts from the repository, as in the following: (i)

Get as many C++ as Java coded artifacts; (ii) Get

two or more artifacts for each defect category; (iii)

Get 20% of artifacts for each value of Dissimilarity,

and remaining (40%) at random.

3.1 Independent Variables:

Parameters, Blocking Variables

and Factors

3.1.1 Subjects

As already mentioned, one hundred twelve

sophomores participated to the experiment, who

were attending the course of Object-Oriented

Programming, their fourth CS course at least. All of

them had attended all the training lectures and, in

term of experience, they can be considered as novice

EXPLORING FEASIBILITY OF SOFTWARE DEFECTS ORTHOGONAL CLASSIFICATION

109

programmers. Subjects’ participation was part of a

course test; they worked individually in the same

250 seats room, in the continual presence of two or

more observers; communication among subjects was

not allowed. Other one hundred subjects, who had

not fully attended the training or the OOP course,

were located in an adjacent room: their data will be

no further considered in the present paper.

3.1.2 Objects

Experiment artifacts, twelve C++ coded and twelve

Java coded, were assigned to all subjects, each

artifact seeded by one defect. All quadruples of

neighbor subjects handled the same artifacts but in

different order.

3.1.3 Experiment Duration

Subjects had up to three hours assigned to enact their

task. They were allowed to quit the experiment any

time, after the start and before the formal end.

3.1.4 Factors and Treatments

Factors of the basic experiment and their levels are:

– Programming Language (PL), levelled at C++

and Java, respectively.

– Defect Category (Ctg). Six defect categories are

utilized, i.e. all the DT ODC less

Timing/Serialization: in fact, subjects had not yet

been exposed to concurrent programming

concepts, constructs, and mechanisms, when

they participated to the experiment.

– Expertise (X). It is analogous to Dissimilarity

but scale is reversed; it hence relates to quantity

of examples given per defect during training. In

fact, for each defect type, we set artificially the

subjects expertise by dosing the explanation

time, and the numbers of examples given per

defect. (0, 1, 2) are the values of the ordinal scale

we use to measure the subjects expertise, where:

0 means that training did not include examples

showing that specific instance of the defect

category (hence, the defect shows low level of

similarity with the explained defects, and its

Dissimilarity measure is H); 1 means that

training exposed subjects just one time to that

specific instance of the defect category

(Dissimilarity measures A); 2, means that

subjects trained with two or more instances

concerning that specific defect category (the

defect shows high similarity with the explained

ones, and its Dissimilarity measure is L).

Concerning this point, let us finally note that,

because subjects had already attended two CS

courses in C++ and were attending a Java

course, trainers gave more emphasis to defected

artifacts coded in the latter.

3.2 Dependent Variables

We directly measured:

– Completion Time: Actual task duration per

subject (duration of all the elementary

experiments assigned to the same subject).

– Categorization: ODC per elementary experiment

and subject. A subject, whether sure about his

understanding, assigns a defect just one

category, else zero or two categories.

Based on such direct measures, we derive the

variables described in the followings, which

characterize the DT attributes of the OD

Classification. Let us note that measures in the

following are given to each specific defect, and then

applied in the same way in each defect category,

each programming language, and so on..

– Effectiveness (E): percentage of the most

frequent categorization with respect to the

universe of categorizations given by subjects for

this defect.

– Efficiency (Ec): how many (MFC)s occur per

time unit, in the average, for this defect. Because

of the experiment infrastructure that we choose

(paper supports for data collection; data

registration enacted by subjects), our decision

was to collect the task Completion time only,

rather than the time duration of each elementary

experiment. Consequently, data from the basic

experiment are not enough to investigate

efficiency in deep.

– Orthogonality (O): what percentage of subjects

assigned this defect just one category (rather

than zero or two).

– Discrepancy (D): this does measure the average

distance in percentage related to the entire

population for the same categorization, and is a

variant of the Agreement’s (Henningsson and

Wohlin, 2004; El Emam & Wieczorek, 1960)

one complement. In other word, discrepancy is

the average probability that a given

categorization is different from those given by

other subjects for the same defect.

– Affinity (A): this expresses a relationship of a

category with respect to one more category, and

is a variant of the Confusion’s (Henningsson and

Wohlin, 2004) one complement. Given two

categories, the source category CS and the

ICSOFT 2006 - INTERNATIONAL CONFERENCE ON SOFTWARE AND DATA TECHNOLOGIES

110

destination category CD, let us take in

consideration defects, which MFC is CS. The

affinity of CS with respect to CD,

A_WRT(CS,CD), measures the percentage of

CS or CD categorizations given for those

defects. Formally:

– ∀d∈DD(Exp): MFC(d) = CS, ∃A_WRT∈

[0..100]: (100*p(d) ∈ {CS, CD}=A_WRT);

(1)

where: d is any of the defect set DD in the

experiment Exp, and p is the probability

function averaged on all instances of the

argument defect. A_WRT is not commutative

(sometimes A_WRT(C1,C2) ≠ A_WRT(C1,

C2)), and its reflexive closure, A_WRT(C,C), is

the Effectiveness with respect to category C.

The affinity between CS and CD, A_Btw(CS,

CD), is then defined as:

∀d ∈ DD(Exp): MFC(d) ∈ {CS, CD}, ∃ A_Btw

∈ [0..100]: (100*p(d) ∈ {CS, CD} = A_Btw);

(2)

Note that ∀(CS, CD), A_Btw(CS,CD) =

A_Btw(CD, CS), i.e. A_Btw is commutative:.

Definitions above can be extended to three or

more categories.

4 RESULTS AND DATA

ANALYSIS

At experiment conduction time, subjects registered

more than two thousand six hundred data fields,

which we eventually deposited in a database. Two

subjects provided exorbitantly distant data from the

most frequent ones; data analysis identified those

data as outliers, and consequently we excluded them

form further analysis.

In this study all categorizations given by

subjects, are evaluated, null ones included: in our

evaluation, null categorizations candidate IBM DT

definitions for further clarification, or our training

for improvement.

4.1 Descriptive Statistics

Let us consider now orderly relationships between

each response variable and factors.

4.1.1 Effectiveness

We want to describe the evolution of the most

frequent categorizations as a whole and versus

expertise, programming languages, and defect

categories involved, and eventually with respect to

the task completion time.

Figure 1 shows subjects given categorizations, as

averaged on the whole available data. Concerning

the abscissa, “0” stands for not categorized defects

(null); “1_MFC” (resp. “1_NMFC”) denotes that the

subject assigned this defect just the most frequent

categorization (resp. one category, but different from

the MFC); “Others” stands for assignment of two

categories to this defect. Effectiveness (see MFC in

Figure 1) is 0.69, and variance is 8.

Figure 2 and Figure 3 relate effectiveness with

expertise and specific defects, respectively.

Table 1 shows effectiveness versus ODC

categories, and related variances.

Table 2 relates

effectiveness to the programming language of the

defected segments.

Figure 4 shows the evolution of effectiveness in

time.

4.1.2 Efficiency

Figure 5 presents efficiency with respect to

completion time.

Table 3 shows statistical summary

for efficiency.

4.1.3 Orthogonality

Figure 6 and Figure 7 relate orthogonality with

expertise and specific defects, respectively.

Table 4

and

Table 5 present orthogonality versus ODC

categories, and programming language, respectively.

Table 6 shows statistical summary for

Orthogonality, and

Figure 8 presents the evolution

of orthogonality in time.

Mean Effectiveness = 69% Variance=8

100

1_MFC 1_NMFC Null Others

Categorizations

Figure 1: Categorizations and Effectiveness (with respect

to the whole data collected).

EXPLORING FEASIBILITY OF SOFTWARE DEFECTS ORTHOGONAL CLASSIFICATION

111

100

012

Expe rtise

Effectiveness %

Figure 2: Effectiveness versus Expertise.

0 204060801

Defect ID

Effectiveness (%)

Figure 3: Effectiveness per Defect.

Table 1: Effectiveness versus ODC Categories.

Category

Discrepancy

1 2 3 4 5 6

Average (%) 39 28 65 34 60 29

Variance 44 379 13 591 171 326

Table 9: Discrepancy versus Programming Language.

Language

Discrepancy

Java C++

Average (%) 50 50

Variance 453 478

012

Expertise

Discrepancy (%)

Figure 9: Discrepancy versus Expertise.

0 204060801

Defect ID

Disagreement (%)

Figure 10: Discrepancy per defect.

4.1.5 Affinity

Based on the average effectiveness shown above

(E=0.69), the number of categorizations that differ

from their (MFC)s is around 818.

EXPLORING FEASIBILITY OF SOFTWARE DEFECTS ORTHOGONAL CLASSIFICATION

113

While it is not possible to include all those

categorizations in this paper, we can describe their

tendencies, based on definitions given for Affinity in

Section 3.2 above: according to expressions (1),

A_WRT(

6, 5)= 90; A_WRT(2, 3)= 95; according to

expression (2), A_Btw(

1, 3, 5)= 90.

In words, when the MFC is 6 (Relationship) then

90% of categorizations provided by subjects are

(Relationship) or

5 (Interface/ OO Messages).

Moreover, when the MFC is 2 (Checking) then

95% of categorizations provided by subjects are

(Checking) or

3 (Algorithm/Method).

Furthermore, when MFC is 1 (Assignment/

Initialization),

3, or 5 then 90% of categorizations

provided by subjects are

1, 3, or 5.

Finally, let us spread on data “Others” in Figure

, which concern affinity. Columns Ctg1 and Ctg2

Table 10 present the alternative categorizations

that doubtful subjects assigned to defects; the Ocs

columns show the occurrences of those double

categorizations.

Table 10: Defect’s double categorizations (as provided by

doubtful subjects).

Ctg1 Ctg2 Ocs Ctg1 Ctg2 Ocs

1 3 3 3 6 1

1 5 2 4 5 1

2 3 3 4 6 2

3 4 2 5 6 1

3 5 2 Others 0

4.2 Hypothesis Testing

In order to test hypotheses concerning expertise, we

separate cases where the involved expertise is null

(0) from remaining ones (expertise measures 1 or 2),

so having the seeded defects partitioned in two

groups, G

X=0

, and G

X≠0

, respectively.

4.2.1 Testing h

XO0

. Expertise does

Insignificantly Impact on

Orthogonality: O(G

X=0

) ≅ O(G

X≠0

)

The number of subjects, who assigned one category

to G

X=0

defects, are: (100, 101, 103, 104, 104, 105,

105, 105, 106, 106, 107, 108), respectively; those for

X≠0

are: (103, 106, 107, 108, 109, 109, 109, 109,

110, 110, 110, 110).

Figure 11 shows the Box-and-

Whisker plots for such series of data. Since the latter

cannot fit under normal curve at 99% of confidence

level (in fact, its lowest P-value from Shapiro-Wilks

test is 0.0051, which is less than 0.01), we applied

the Mann-Whitney (Wilcoxon) W test to compare

medians. Since the W test’s P-value is 0.000919,

which is less than 0.05, there is a statistically

significant difference between the medians at the

95.0% confidence level. Consequently, we can reject

the null hypothesis h

XO0

at 95% of significance level.

In other words, expertise significantly impacts on

orthogonality of defect categorizations.

Orthogonality vs. Expertise

100 102 104 106 108 110

Others

Figure 11: Orthogonal classifications versus expertise.

4.2.2 Testing h

XE0

. Expertise does

Insignificantly Impact on

Effectiveness: E(G

X=0

) ≅ E(G

X≠0

)

The effectiveness values for categorizing G

X=0

defects are (41, 41, 45, 46, 52, 54, 59, 65, 71, 75, 79,

81), respectively; those for G

X≠0

are (74, 77, 79, 81,

83, 98, 100, 104, 105, 107, 108, 109).

Figure 12

shows the Box-and-Whisker plots for such series of

data. Since the latter cannot fit under normal curve

at 95% of confidence level (in fact, its lowest P-

value from Shapiro-Wilks test is 0.037, which is less

than 0.05), we applied the W test. Since the W test’s

P-value is 0.000194, which is less than 0.05, there is

a statistically significant difference between the

medians at the 95.0% confidence level.

Consequently, we can reject the null hypothesis h

XE0

at 95% of significance level. In other words,

expertise significantly impacts on effectiveness of

defect categorizations.

Effectiveness vs. Expertise

41 61 81 101 121

Others

Figure 12: Effectiveness versus expertise.

ICSOFT 2006 - INTERNATIONAL CONFERENCE ON SOFTWARE AND DATA TECHNOLOGIES

114

4.2.3 Testing h

XD0

. Expertise does

Insignificantly Impact on Discrepancy:

D(G

X=0

) ≅ D(G

X≠0

)

The discrepancy values related to categorizations of

X=0

defects are (42, 44, 49, 52, 58, 59, 63, 68, 68,

70, 71, 74), respectively; those for G

X≠0

are (2, 4, 5,

9, 10, 17, 19, 40, 41, 42, 46, 51).

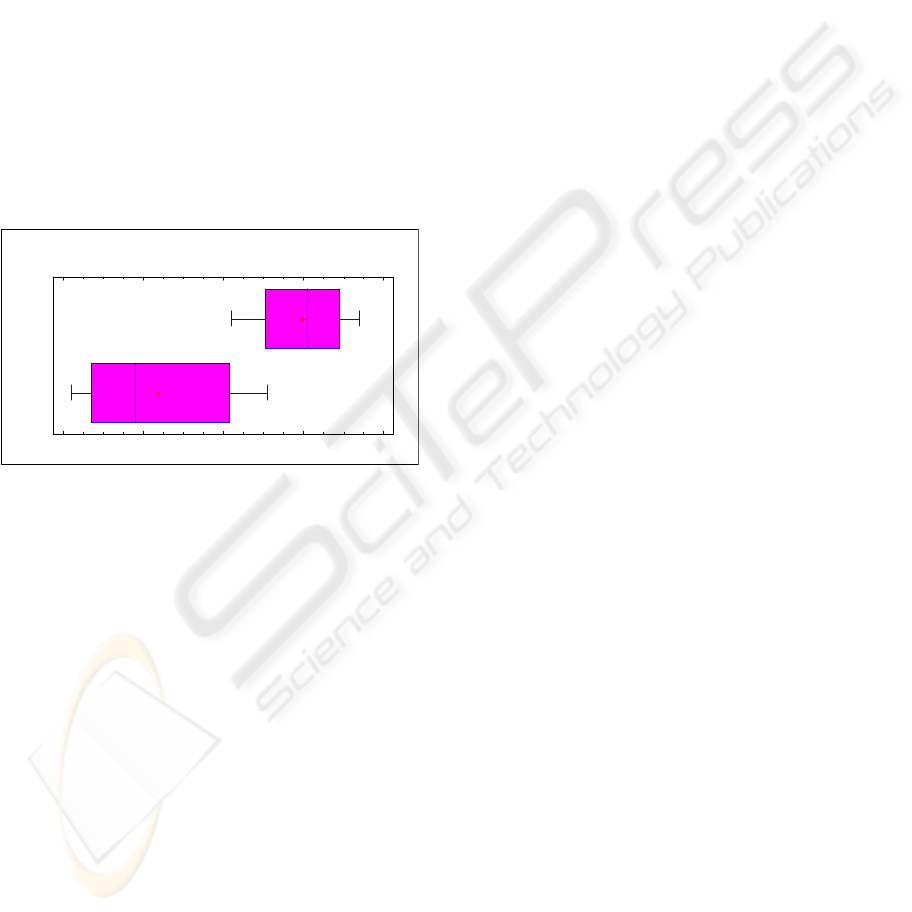

Figure 13 shows

the Box-and-Whisker plots for such series of data.

Since the latter cannot fit under normal curve (in

fact, its lowest P-value from Chi-Square test is

0.022, which is less than 0.05), we applied the W

test. Since the W test’s P-value is 0.000137, which is

less than 0.05, there is a statistically significant

difference between the medians at the 95.0%

confidence level. Consequently, we can reject the

null hypothesis h

XD0

at 95% of significance level. In

other words, expertise significantly impacts on

discrepancy between defect categorizations.

Discrepancy vs. Expertise

020406080

Others

Figure 13: Level of Discrepancy, treated by experience.

5 DISCUSSION

5.1 Experiment Results

5.1.1 Effectiveness

Based on Figure 1, the percentage of most frequent

categorizations is in average 69%. This seems quite

a small value for effectiveness, which also means

that there seems to be high subjectivity in defect

categorization when trained/untrained novice

programmers are involved. Again

Figure 1 shows

that those programmers perform quite dissimilarly,

since variance (8) is very high - one third of the

seeded defects (24) - as also shown by

Figure 3 and

Table 1.

Figure 1 also shows that single non-MFC

classifications (1_NMFC) are in number ten times

greater than the doubtful ones (Null + Others). In

our understanding, this means that novices seem

unconscious of consequences that their limited

knowledge of ODC DT could have. Another view is

that IBM should improve the presentation of ODC

DT, in order to help practitioners to distinguish

among categories more easily.

Based on

Figure 2, it seems that effectiveness is

strongly related to expertise. In fact, effectiveness

grows from 54% up to 89% as the given training

grows. Based on that slope, the trend for

effectiveness is 100%, which expert professionals

should be able to approach. The impact of expertise

on results explains, in our understanding, the

variance previously observed with aggregated data.

This also asserts that data in

Table 1 should not be

utilized to evaluate the impact of defect category on

effectiveness, and, similarly, data in

Table 2 should

not be used to evaluate the impact of programming

languages on effectiveness.

Finally, based on Figure 4, effectiveness seems

independent from the completion time, when this is

limited to 3 hours.

5.1.2 Efficiency

The amount of time a subject employed to enact a

categorization is around 5 minutes in average.

Based on date in

Table 3, the mean time for an

MFC categorization is 6.66 minutes (9 MFC/hour),

and variance is 7.3 MFC/hour.

Since variance is similar to the average, it seems

that efficiency is highly subjective with novice

programmers. Let us recall that it was not possible to

collect the duration time during the basic

experiment; consequently, we cannot investigate

efficiency more deeply.

5.1.3 Orthogonality

Based on Table 6, which data are again not yet

disaggregated with respect to expertise,

orthogonality is 97%, while variance is 2. This

expresses that, in the average, programmers

commonly percept ODC with respect, and tend to

provide just one classification per defect, whatever

is their expertise. However, taking in consideration

data disaggregated by expertise (

Figure 6), with

novices, orthogonality grows from 95% up to 99.3%

as expertise grows.

Based on

Table 5, aggregated data show no

difference of C++ and Java versus orthogonality.

Finally, based on

Figure 8, orthogonality seems

independent from the completion time, when this is

limited to 3 hours.

EXPLORING FEASIBILITY OF SOFTWARE DEFECTS ORTHOGONAL CLASSIFICATION

115

5.1.4 Discrepancy

Subjects had to select a category out of seven

(including null). In theory, the maximum value for

discrepancy is 86%, which occurs when all

selections are equally probable; it is the probability

that six categories are selected out seven (less scale

factor 100). The minimum of discrepancy is 0%,

which occurs in case of complete agreement

between subjects for each categorization.

Table 7

shows 43% discrepancy (and 1010 variance!), as

registered in average for our basic experiment, again

with respect to data not yet disaggregated by

expertise. That value is exactly the mean between

the discrepancy’s minimum and maximum theoretic

values; as a result, ODC seems to be quite dependent

from the categorizers’ subjectivity, when

trained/untrained novices are involved.

Based on

Figure 9, which relates to data

disaggregated by expertise, it seems that discrepancy

is strongly related to expertise. In fact, discrepancy

decreases from 60% up to 17% as the given training

grows. Based on that slope, the trend for discrepancy

is the theoretic minimum (0%), which expert

professionals should be able to approach. The

impact of expertise on results explains, in our

understanding, the very large value previously

observed for variance, when aggregated data were

considered.

Based on

Table 9, aggregated data show no

difference of C++ and Java versus discrepancy.

Again, discrepancy seems independent from the

completion time, when this is limited to 3 hours.

5.1.5 Affinity

Based on data elaboration that we presented above

(see Section

4.1.5), it seems that categories

“Assignment/ Initialization”, “Algorithm/Method”,

and “Interface/OO Message” are one each other

strongly affine. Moreover, category “Interface/OO

Message” is frequently provided in place of

“Relationship”, and the same for

“Algorithm/Method” with respect to “Checking”.

This, in our understanding, calls for training

improvement by emphasizing on dissimilarities

among those categories.

5.2 Threats to Validity

This empirical study has a number of limitations that

should be taken into account when interpreting its

results.

Concerning the internal validity (Wohlin et al.,

1978) (i.e. the degree to which conclusions can be

drawn about the causal relationship between

independent variables and dependent variables), it

should be noted that we utilized a very limited

number of defect samples: 12 per language, hence

two defects per category. Moreover, while the task

completion time assigned was quite small, and

subjects were continually in control of observers

during the conduction of the experiment, we cannot

guaranty absence of interactions between

participants; in fact, these were student, who we

partially graded for their performance; in the

experiment cultural context, a student is appreciated,

who passes his solutions to colleagues. Furthermore,

our training emphasized on Java language, and the

real experience and expertise of subjects with C++

was not in control.

Another limitation of this study is related to the

external validity (Wohlin et al., 1978), i.e. the degree

to which the results from this study can be

generalized. It cannot be assumed a priori that the

results of a study generalize beyond the specific

environment and context in which it was conducted.

In fact, subjects involved with the basic experiment

are sophomores in OO Programming, who should

not be considered as novice professional

programmers. Moreover, the experiment software

artifacts that we utilized in the basic experiment are

small segments of code, which should not be taken

to represent real software. Finally, we utilized paper

supports both for experiment artifacts and forms,

while realism asked for electronic-supported code,

and electronic-network-supported form distribution,

and data collection.

6 CONCLUSIONS AND FUTURE

WORKS

This paper has presented an empirical investigation

on the (IBM)’s ODC-DT attribute for software

defect categorization. Foci of the investigation have

been the classification effectiveness, efficiency,

orthogonality, discrepancy, and affinity with respect

to practitioners’ subjectivity (110 students

performing in the role of experiment subjects),

defects individuality (6 DT categories of seeded

defects), and software artifacts’ coding language

(Java and C++). Results shown include averages for

time for defect categorization (≅5 minutes),

effectiveness (69%), and orthogonality (97%).

Results also show that subject’s expertise seems to

ICSOFT 2006 - INTERNATIONAL CONFERENCE ON SOFTWARE AND DATA TECHNOLOGIES

116

impact very significantly on all the results, and

subjects with enough expertise should be able to

easily approach the theoretic best value for

effectiveness, as for orthogonality and discrepancy.

Our consequent expectation is that there should be

objectivity in defect categorization, whether enacted

by software practitioners. However, such an

expectation still needs empirical evidence. Further

results show that, when time spent in categorizing

defects lasts between 1 and 3 hours, the

effectiveness, orthogonality, and discrepancy are not

affected by the time duration of the classification

section. Moreover, results show that the

programming language of coded artifacts, and the

defect nature seem to impact insignificantly on

effectiveness, orthogonality, and discrepancy.

Finally, our results show that there are some

categories that tend to confuse subjects; this, in our

understanding, calls for improving definitions of

those ODC DT categories, as actually given by IBM.

Namely, those categories are “Interface/OO

Message” and “Relationships”. Further confusing

categories are “Assignment/Initialization” and

“Algorithm/Method” on one side, and

“Algorithm/Method” and “Checking” on the other

side, which confirm previous results (Henningsson

and Wohlin, 2004).

Our plan for the future is first to extend the size of

our defect repository, place the material in electronic

format, and contact IBM experts in the aim of

receiving their categorizations of our defect samples

(to use as the reference “correct” categorizations),

and then to proceed with replicating the experiment

with professionals both in a controlled environment,

and through the Web. This should also provide the

precise timing of each categorization, and help to

investigate efficiency in deep.

REFERENCES

Abdelnabi Z., G. Cantone, M. Ciolkowski, D. Rombach:

“Comparing Code Reading Techniques Applied to

Object-oriented Software Frameworks with regard to

Effectiveness and Defect Detection Rate”, Proceedings

of the 2004 International Symposium on Empirical

Software Engineering, pp. Redondo Beach (CA),

2004.

Basili V.R, G. Caldiera, H.D. Rombach: “Goal Question

Metric Paradigm”, in Encyclopaedia of Software

Engineering, J.J. Marciniak Edr., Vol. 1, pp. 528-532,

John Wiley & Sons, 1994.

Basili V.R., and R. Selby: “Comparing the Effectiveness

of Software Testing Strategies”, IEEE Transactions on

Software Engineering, CS Press, December, 1987, pp.

1278 -1296.

Cantone G., Z. A. Abdulnabi, A. Lomartire, G. Calavaro:

“Effectiveness of Code Reading and Functional

Testing with Event-Driven Object-Oriented Software”,

Empirical Methods and Studies in Software

Engineering, R. Conradi and A. I. Wang Eds., LNCS

2765, pp. 166-193, Springer, 2003.

Cohen J.: "A Coefficient of Agreement for Nominal

Scales". In Educational and Psychological

Measurement, 20:37-46, 1960.

Durães J. and Madeira H., "Definition of Software Fault

Emulation Operators: a Field Data Study", In Proc. of

2003 International Conference on Dependable

Systems and Networks", (2003)

El Emam K. and I. Wieczorek: “The Repeatability of

Code Defect Classifications”, Proceedings of

International Symposium on Software Reliability

Engineering, pp. 322-333, 1998.

Henningsson K. and C. Wohlin: “Assuring Fault

Classification Agreement – An Empirical Evaluation”

Proceedings of the 2004 International Symposium on

Empirical Software Engineering, 2004.

Juristo N. and S. Vegas: “Functional Testing, Structural

Testing, and Code Reading: What Fault Type Do They

Each Detect?”, Empirical Methods and Studies in

Software Engineering, R. Conradi and A. I. Wang

Eds., LNCS 2765, pp. 208-232, Springer, 2003.

Myers G.J.: “A Controlled Experiment in Program Testing

and Code Walkthroughs/Reviews”, Communications

of ACM, Vol. 21 (9), pp. 760-768, 1978.

Wohlin C., P. Runeson, M. Höst, M.C. Ohlsson, B.

Regnell, A. Wesslén: “Experimentation in Software

Engineering: An Introduction”, The Kluwer

International Series in Software Engineering, 2000.

IBM a, “Details of ODC v 5.11”,

www.research.ibm.com/softeng/ODC/DETODC.HTM

, last access: 02/05/2006.

IBM b, “ODC Frequently Asked Questions”,

www.research.ibm.com/softeng/ODC/FAQ.HTM, last

access: 02/05/2006.

EXPLORING FEASIBILITY OF SOFTWARE DEFECTS ORTHOGONAL CLASSIFICATION

117
