LANGUAGE-BASED SUPPORT FOR SERVICE ORIENTED

ARCHITECTURES: FUTURE DIRECTIONS

∗

Pablo Giambiagi

Swedish Institute of Computer Science – P.O. Box 1263, SE-16429 Kista, Sweden

Olaf Owe, Gerardo Schneider

Dept. of Informatics, Univ. of Oslo – P.O. Box 1080 Blindern, N-0316 Oslo, Norway

Anders P. Ravn

Dept. of Computer Science, Aalborg University – Fredrik Bajers vej 7E, DK-9220 Aalborg, Denmark

Keywords:

SOA, Web Services, Web Languages, Contracts.

Abstract:

The popularity of service-oriented architectures (SOA) lives on the promise of dynamic IT-supported inter-

business collaborations. Yet the programming models in use today are a poor match for the distributed, loosely-

coupled, document-based SOA; and the gap widens: interoperability across organizations needs contracts to

reduce risks. Thus, high-level contract models are making their way into SOA, but application developers

are still left to their own devices when it comes to writing code that will comply with a contract. This paper

surveys existing and future directions regarding language-based solutions to the above problem.

1 INTRODUCTION

In the past, advocates of the service-oriented architec-

ture (SOA) have predicted that the successful integra-

tion of loosely-coupled services belonging to differ-

ent, sometimes competing, but always collaborating

organizations, would storm the world. It would create

a myriad of new business opportunities, enabling the

formation of virtual organizations where SMEs would

join forces to thrive in ever increasingly competitive

global markets. Yet the industry has been slow to de-

ploy its SOAs, and the degree of integration between

different organizations remains low.

At the moment the developer faces a situation

where the tools originally used to produce intra-

organizational, non-distributed applications are al-

ready overstretched to cope with issues of distribu-

tion across organizational domains. Furthermore, col-

laboration presumes a minimum level of mutual trust,

and wherever trust is not considered sufﬁcient, busi-

nesspeople turn to contracts as a mechanism to re-

duce risks. In other terms, for the SOA to deliver its

promised advantages, developers need not only lan-

guage support for distribution, but also cost effective

contract management solutions. Researchers and in-

dustries alike have began addressing this very essen-

tial issue with a top-down approach. Several elec-

∗

Supported by the Nordunet3 Project “Contract-

Oriented Software Development for Internet Services”.

tronic contract languages, their models and reason-

ing techniques are in the process of being discussed

and reﬁned. Thus we see a pressing need to provide

the actual system developers with the means to imple-

ment services that meet the requirements dictated by

such contracts.

In the next section, we recall the main features of

SOAs and discuss the requirements posed by con-

tracts. In Sec. 3, we discuss programming languages

and SOA. In Sec. 4, we identify open problems and

in Sec. 5 we discuss possible concrete scenarios for

addressing them.

2 SOA AND CONTRACTS

In a SOA, applications are essentially distributed sys-

tems composed of services (Fig. 1, borrowed from

(Papazoglou, 2003)). A service is a loosely-coupled,

technology neutral and self-describing computation

element. Loose coupling is achieved through encap-

sulation and communication through message pass-

ing; technology neutrality results from adopting stan-

dardized mechanisms; and rich interface languages

permit the service to export sufﬁcient information

so that eventual clients can discover and connect to

it (Papazoglou, 2003). A SOA can be implemented

in many different ways, e.g. using web services.

339

Giambiagi P., Owe O., Schneider G. and P. Ravn A. (2006).

LANGUAGE-BASED SUPPORT FOR SERVICE ORIENTED ARCHITECTURES: FUTURE DIRECTIONS.

In Proceedings of the First International Conference on Software and Data Technologies, pages 339-344

DOI: 10.5220/0001315103390344

 SciTePress

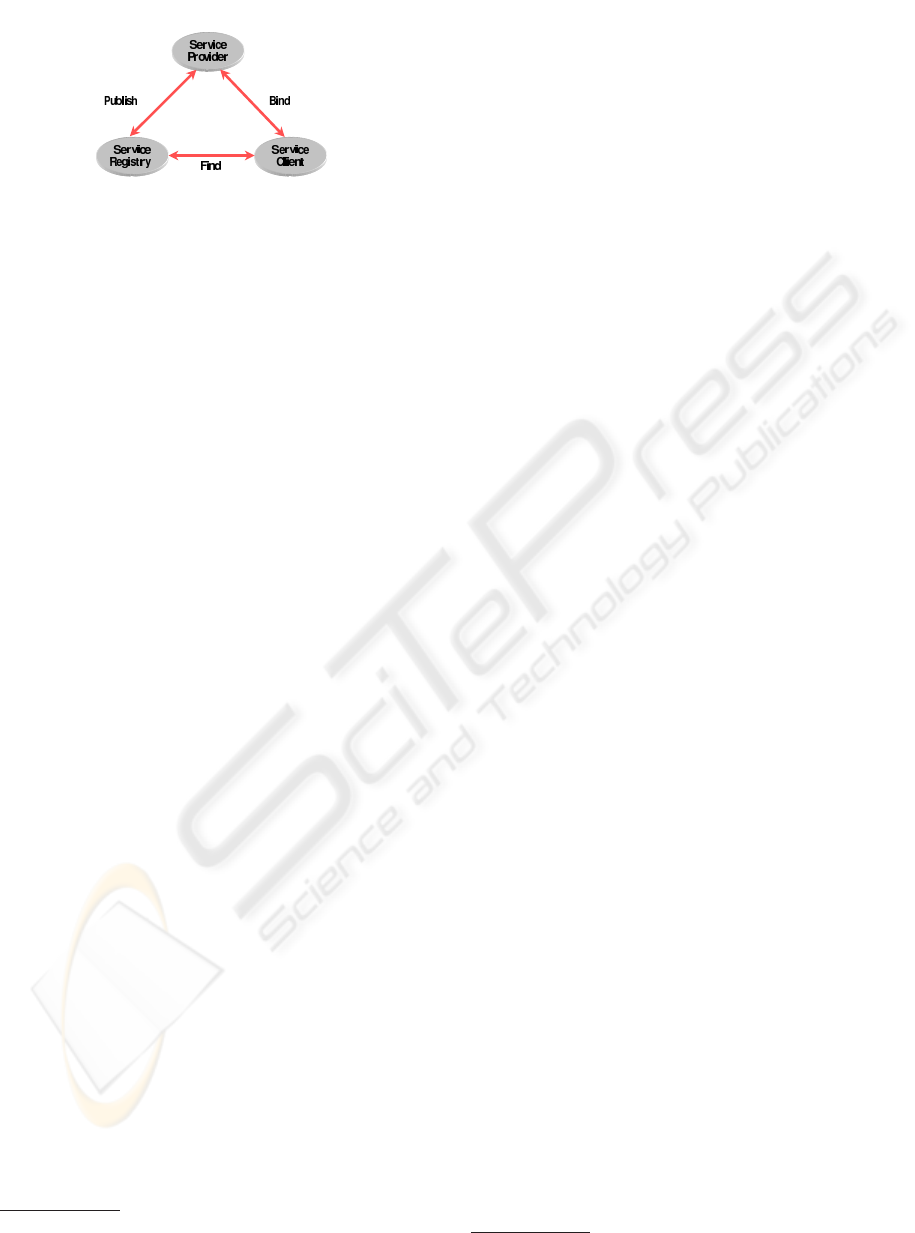

Figure 1: The basic Service Oriented Architecture.

Web services exchange SOAP messages over stan-

dard Internet protocols which carry a payload built

from a stack of open XML standards (WSA, 2004).

There are strong similarities between services and

components in a component-based system (Szyper-

ski, 2003). However, services usually have a coarser

granularity and the communication medium with its

high latency and openness constrains reliability and

security in ways that easily go beyond what can be

found in most component-based systems.

The services in a SOA usually belong to different

organizational domains and therefore there is no sin-

gle line of authority regulating their interactions. In

principle a consumer must trust the provider to de-

liver the expected service, or establish a contract with

it. For our purposes, a contract describes an agree-

ment between distinct services that determines rights

and obligations on its signatories, and for which there

exists static or dynamic ways of identifying contract

violations.

In the case of a bilateral contract, one usually talks

about the roles of service provider and service con-

sumer; but multi-lateral contracts are also possible

where the participants may play other roles. A ser-

vice provider may also use a contract template (i.e. a

yet-to-be-negotiated contract) to publish the services

it is willing to provide. As a service speciﬁcation,

a contract may describe many different aspects of a

service, including functional properties and also non-

functional properties like security, quality of service

(QoS) and reputation.

Contract Models There exists a number of contract

models for services. The business process standard

ebXML

describes a Collaboration Protocol Agree-

ment as a contract between business partners that

speciﬁes the behavior of each service (by simply stat-

ing its role) and how information exchanges are to be

encoded. IBM’s Web Service Level Agreement

an XML speciﬁcation of performance constraints as-

sociated with the provision of a web service. It de-

ﬁnes the sources of monitoring data, a set of met-

http://www.ebxml.org.

WSLA, http://www.research.ibm.com/wsla/.

rics (i.e. functions) to be evaluated on the data, and

obligations on the signatories to maintain the metric

values within certain ranges. The set of predeﬁned

metrics and the structure of WSLA contracts are de-

signed for services involving job submissions in a grid

computing environment. The later WS-Agreement

a Global Grid Forum recommendation that has not

reached the standard status yet, is based on WSLA,

but adapted to more recent web-services standards,

e.g. WS-Addressing and WS-Resource Framework.

WS-Agreement is also parametric on the language

used to specify the metrics.

A number of problems have previously been iden-

tiﬁed for these standards and speciﬁcations: They

are restricted to bilateral contracts, lack formal se-

mantics (and therefore it is difﬁcult to reason about

them), their treatment of functional behavior is rather

limited and the sub-languages used to specify QoS

and security constraints are usually limited to small

application-speciﬁc domains. In order to remedy

the situation researchers have produced contract tax-

onomies (Aagedal, 2001; Beugnard et al., 1999;

Tosic, 2005), formalizations using logics, e.g. clas-

sical (Davulcu et al., 2004), modal (Daskalopulu and

Maibaum, 2001), deontic (Paschke et al., 2005b) and

defeasible logic (Governatori, 2005), and formaliza-

tions based on models of computation –e.g. ﬁnite

state machines (Molina-Jimenez et al, 2004) and Petri

nets (Daskalopulu, 2000). The diversity of contract

types, their applications and properties poses a seri-

ous challenge to the deﬁnition of a generic contract

model. This, however, has been identiﬁed as a major

precondition for the advancement of the area (Bouys-

sounouse and Sifakis, 2005).

Discovery and Negotiation In a setup for contract-

enhanced service provision, providers are expected to

make service descriptions available for consumers to

discover and choose among them. The description

takes the form of a proto-contract, or template, set-

ting the basis for negotiating the provision of the ser-

vice. Speciﬁcations like ebXML and WS-Agreement

deﬁne sub-languages for such contract templates,

though they are usually attached to a very speciﬁc ne-

gotiation model. There is, however, a large body of

research on contract negotiation protocols under dif-

ferent threat models, particularly in the area of agent-

based systems (Andreoli and Castellani, 2001; Picard,

2003; Kraus, 2001).

Monitoring Monitoring presents an important list

of challenges. First, monitoring data (including exe-

cution events and samplings of continuous processes)

needs to be collected in a timely, reliable and trust-

worthy manner even within a distributed system.

Moreover, monitors are usually weaved into the appli-

cation code by specialists (not by ordinary program-

https://forge.gridforum.org/projects/graap-wg/.

ICSOFT 2006 - INTERNATIONAL CONFERENCE ON SOFTWARE AND DATA TECHNOLOGIES

340

mers), creating complex dependencies that seriously

affect the software development process.

Quality of Service According to the ARTIST road-

map (Bouyssounouse and Sifakis, 2005), quality of

service is a “function mapping a given system in-

stance with its full behavior onto some [quantitative]

scale”. Typical QoS measures for web services in-

clude average response time, minimum communica-

tion bandwidth and peak CPU usage. QoS measures

usually depend on the behavior of the environment

as well as of the service, thus models tend to have a

stochastic nature, although this is not really necessary

for monitoring purposes.

Typically, contract languages for QoS of web ser-

vices consist of three main sub-languages. Their pur-

pose is to specify: (1) The QoS measures (i.e. func-

tions) including their domains; (2) a mapping be-

tween elements in the execution model (e.g. ob-

servable events) and the domains of QoS measures;

and (3) the constraints on QoS measurements (i.e.

the obligations). The design of such languages is

therefore centered around the concept of QoS mea-

sure function. However, realistic contracts are not

easily modeled as a set of functions: they are built

upon the fundamental concept of obligation, to which

other concepts (like QoS measures) become acces-

sory. For instance, the fulﬁllment or violation of an

obligation may trigger other obligations. Function-

based approaches need then to encode obligation per-

formances as QoS measures. Moreover, the inclusion

of time considerations becomes unnecessarily com-

plicated.

Security So far, contract languages for security pay

almost exclusive attention to access control issues –

e.g. (de Win et al, 2005)– but it is evident that they

should be enhanced to cover other areas of security

such as integrity and conﬁdentiality.

3 SOA AND LANGUAGES

Current programming language abstractions are not

adequate for SOA, much less for web-service devel-

opment. The industry develops web services using

the object-oriented programming (OOP) paradigm

which maps badly to document-based communica-

tion, i.e. SOAP-transported XML documents, re-

quired by web-services (Meijer et al., 2003). Be-

sides, many current production OOP languages (e.g.

Java and C#) are based on the shared-state model so

they do not handle concurrency and message pass-

ing particularly well. Another criticism of OOP con-

cerns reusability. Object-orientation provides two

distinct mechanisms for composing concerns, namely

aggregation and inheritance, which may be difﬁcult

to combine with synchronization, history information

or multiple views. Thus OOP needs better abstraction

mechanisms.

The programming language community has long

identiﬁed the need to provide easier ways to extend

the abstraction mechanisms of a language. One of the

main approaches is that of aspect-oriented program-

ming (AOP) (Filman et al., 2005), which helps sepa-

rate cross-cutting concerns (like access control) from

the main business logic. AOP is composed of a set of

techniques, including code instrumentation and run-

time interceptors.

A similar approach uses composition ﬁlters

(CF) (Aksit et al., 1992), where the idea is not to

replace the programming paradigm but to enhance

the expressive power and maintainability of current

object-oriented (OO) languages. CF may be consid-

ered a modular extension to the OO model with in-

terface layers including the so-called ﬁlters. Advan-

tages of CFs with respect to aspects are exposed in

(Bergmans and Aksit, 2001).

An alternative approach deﬁnes new kinds of lan-

guages that adapt themselves better to the challenges

posed by web services. Some concentrate on bridging

the gap between the program language and the XML

objects that web services should exchange (Florescu

et al., 2002), others provide abstractions to manipu-

late interfaces (Cooney et al., 2005), and others ad-

dress asynchronous communication by means of mes-

sage passing –e.g., C

(Bierman et al., 2005). The

latter combines features from two other research lan-

guages: (a) Polyphonic C# (Benton et al., 2004): a

control ﬂow extension with asynchronous wide-area

concurrency, and (b) Xen (Meijer et al., 2003): a data

type extension for processing XML and table ma-

nipulation. Along the same lines, the Xtatic project

(Gapeyev and Pierce, 2003) aims at extending C#

with native XML processing adding regular types and

regular patterns. More oriented to web service devel-

opment, a new language is proposed in (Cooney et al.,

2005) which combines XQuery’s semantics with im-

perative constructs and a join calculus-style concur-

rency model. This proposal solves some of the prob-

lems of mainstream languages (e.g., Java and C#) like

concurrency and message correlation problems. It

lacks, however, useful features like interface inher-

itance, correlated messages and garbage collection.

Furthermore, the current implementation assumes a

shared-state concurrency model.

Another interesting language is Creol (Johnsen and

Owe, 2004), whose programs consist of concurrent

objects with internal process control communicating

asynchronously. By means of mechanisms for condi-

tional processor release points, passive waiting, and

time-out, explicit synchronization primitives are not

needed in the language. Compared to for instance

Polyphonic C#, Creol has a simpler set of communi-

LANGUAGE-BASED SUPPORT FOR SERVICE ORIENTED ARCHITECTURES: FUTURE DIRECTIONS

341

cation primitives, using the concept of asynchronous

method call, while maintaining multiple inheritance.

It also offers a synchronized merge operator which

effectively reduces the problems related to the so-

called inheritance anomaly (Matsuoka and Yonezawa,

1993), while allowing compositional reasoning.

The ideal language for SOA and web-services de-

velopment seems to be one which combines the ad-

vantages of the above-mentioned languages. It should

be based on asynchronous communications with fa-

cilities for providing good abstractions for manipu-

lating interfaces, XML processing and web service

development. The inclusion of regular types a la

XDuce (Hosoya and Pierce, 2003) and CDuce (Ben-

zaken et al., 2003) would be a plus.

Programming and Contracts The solutions men-

tioned so far still lack support for discovery, monitor-

ing and management of contracts. Approaches like

AOP and CF can potentially provide some help here

(Becker and Geihs, 2001), but they fail to abstract

low-level issues and basically leave too much freedom

to the programmer (which leads to code maintenance

and analysis issues). This is an issue for which no

consolidated work has been completed yet. Instead,

one should look for different bits and pieces, depend-

ing on the characteristics of the contract.

Although contracts could cover many other as-

pects, guarantees of the timely provision of ser-

vices are commonplace in SOA. Despite of the cur-

rent wide acceptance of AOP as a good paradigm

for improving reusability and modularity, there is

no convincing solution to the application of aspects

to real-time systems. In some cases (Tsang et al.,

2004), aspect-orientation seems to perform better

than object-orientation when dealing with real-time

speciﬁcations, regarding system properties such as

testability and maintainability. On the other hand, in

(Assayad et al., 2005), there is a formal framework

for multi-threaded and multi-processor software syn-

thesis using timing constraints, where it is shown that

AOP is not suitable for such cases.

A new concept for real-time system develop-

ment (ACCORD) is presented in (Tesanovic et al.,

2004), combining component-based and aspect-

oriented software development. ACCORD bridges

the gap between modern software engineering meth-

ods –focused mainly on component models, inter-

faces and separation of concerns– and real-time de-

sign methods. The focus is primarily on a design

methodology, but not on analysis and veriﬁcation of

real-time systems. It is not clear, either, how the

methodology could be used to develop asynchronous

open distributed systems.

Programs using real-time features are, in general,

difﬁcult to design and verify, even more when com-

bined with an inheritance mechanism. Changing ap-

plication requirements or real-time speciﬁcations in

real-time OO languages may produce unnecessary re-

deﬁnitions. This is called the real-time speciﬁcation

inheritance anomaly. To solve it, (Aksit et al., 1994)

propose real-time composition ﬁlters. Similar ideas

could be applied to support contract-based system de-

sign.

A contribution towards verifying properties of con-

tracts involving real-time as formulated in existing

languages is found in (Diaz et al., 2005). They use

a translation to a real-time model checker to verify

the cooperation aspect of contracts.

In conclusion, there is still plenty of work to do in

directly supporting development of services that can

be trusted to implement their contracts.

4 RESEARCH DIRECTIONS

The main problems and open issues identiﬁed for sup-

porting web services development include:

• Formal deﬁnition of generic contracts, in particular

for QoS and security.

• Negotiable and monitorable contracts. Contracts

must be negotiated till both parts agree on their ﬁ-

nal form, and they must be monitorable in the sense

that there must be a way to detect violations. No ex-

isting programming language supports negotiable

and monitorable contracts.

• Combination of object-orientation and concurrency

models based on asynchronous message-passing.

The shared-state based concurrency model is not

suitable for web service development.

• Integration of XML into a host language, reducing

the distance between XML and object data-models.

• Harmonious coexistence at the language level of

real-time and inheritance mechanisms.

• Veriﬁcation of contract properties. The integration

of contracts in a programming language should be

accompanied by good support for guaranteeing es-

sential properties. Guaranteeing the non-violation

of contracts might be done in (at least) four dif-

ferent ways: 1. with runtime enforcement, e.g.

through monitors; 2. by construction, e.g. through

low-level language mechanisms; 3. with standard

static program analysis techniques; or 4. through

model checking. None of the above can be used as

a universal tool; they must be combined.

Addressing these issues and problems, we need to

develop a model of contracts in a SOA that is broad

enough to cater for at least contracts for QoS and

security. A minimum requirement is the ability to

seamlessly combine real-time models (for QoS spec-

iﬁcations) and behavioral models (essential to con-

strain protocol implementation and to enforce secu-

rity). Contract models should also address discovery

ICSOFT 2006 - INTERNATIONAL CONFERENCE ON SOFTWARE AND DATA TECHNOLOGIES

342

and negotiation. Yet, the formal deﬁnition of con-

tracts should be only a ﬁrst step towards a more am-

bitious task, namely to provide language-based sup-

port for programming and effective usage of such con-

tracts. Some contracts may be seen as a wrapper

which “envelopes” the code/object under the scope of

the contract. Firewalls, for instance, may be seen as

a kind of contract between the machine and the ex-

ternal applications wanting to run on that machine. It

would be interesting to investigate a language primi-

tive to create wrapped objects which are correct-by-

construction. On the other hand, contracts for QoS

and security could be modeled as ﬁrst-class entities

using a “behavioral” approach, through interfaces. In

order to tackle timed constraints (related to QoS) such

interfaces need also to incorporate time. As exposed

in the ARTIST road-map, ﬁnding languages or nota-

tions for describing timing behaviors and timing re-

quirements is easy; the real challenges are in analy-

sis. Besides syntactic extensions, the language needs

to have timing semantic extensions in order to allow

extraction of a timed model, e.g. a timed automaton.

This model may be checked with existing tools, e.g.

Kronos (Yovine, 1997) and Uppaal (Bengtsson et al.,

1995). Model checking tools will help to prove real-

time properties, like guaranteeing that a service will

satisfy its promised response-time constraints. Other

properties may, instead, be proved to be correct-by-

construction (e.g. wrappers).

In practice, many properties can only be proved

correct through runtime approaches. A promising di-

rection is to develop techniques for constructing run-

time monitors from contracts, which will be used to

enforce its non-violation.

5 FINAL DISCUSSION

The web is mostly used nowadays for retrieving re-

mote information, but there is a high demand for more

challenging applications that offer, negotiate and dis-

cover web services through XML interfaces. This

new direction requires redesigning software architec-

tures and revising the existing foundations of com-

puter science (Montanari, 2004). Moreover, in order

to make collaboration a reality among different web-

services, the formal deﬁnition of monitorable and ne-

gotiable contracts has become imperative. In this pa-

per we have surveyed the main current approaches to

programming in a SOA and their support in state-of-

the-art programming languages. We have identiﬁed

some problems and open issues of current approaches

and we have proposed general research directions.

We believe object-orientation could still be a good

paradigm for modeling open distributed systems,

since its main problems come from sequential lan-

guage design and implementation decisions, not from

its original philosophy.

Regarding the formal deﬁnition of contracts, we

believe such a generic model can be described har-

moniously using real-time extensions of rewriting

logic (

Olveczky and Meseguer, 2002). This is in line

with recent investigations in the use of rule languages

to model contracts (Grosof and Poon, 2002; Paschke

et al., 2005a). While these languages are essentially

ad-hoc, we expect to proﬁt from the existing large

body of research in rewriting logics. The rule-based

approach brings along new challenges in the deﬁni-

tion of appropriate negotiation schemes (Reeves et al.,

2001; Paschke et al., 2005c). Here again, rewrit-

ing logic can give invaluable help. Its reﬂection and

meta-level computation properties may help deﬁne

and structure the negotiation protocol.

Concerning the choice of a host language for incor-

porating contracts as ﬁrst citizens, we believe Creol

might be a good starting point. The Creol project has

addressed many of the problems of OOP and it has

a formal semantics deﬁned in rewriting logic. More

details on such a line of research can be found in the

technical report (Giambiagi et al., 2006).

REFERENCES

Aagedal, J. (2001). Quality of Service Support in Devel-

opment of Distributed Systems. PhD thesis, Dept. of

Informatics, University of Oslo.

Aksit, M., Bergmans, L., and Vural, S. (1992). An object-

oriented language-database integration model: The

composition-ﬁlters approach. In ECOOP, pp. 372–

395.

Aksit, M., Bosch, J., van der Sterren, W., and Bergmans, L.

(1994). Real-time speciﬁcation inheritance anomalies

and real-time ﬁlters. In ECOOP, vol. 821 of LNCS,

pp. 386–407.

Andreoli, J. M. and Castellani, S. (2001). Towards a Flex-

ible Middleware Negotiation Facility for Distributed

Components. In DEXA, pp. 732–736. IEEE C.S.

Assayad, I., Bertin, V., Defaut, F.-X., Gerner, P., Quevreux,

O., and Yovine, S. (2005). Jahuel: A formal frame-

work for software synthesis. In ICFEM, vol. 3785 of

LNCS, pp. 204–218.

Becker, C. and Geihs, K. (2001). Quality of Service and

Object-Oriented Middleware-Multiple Concerns and

their Separation. In ICDCSW.

Bengtsson, J., Larsen, K., Larsson, F., Pettersson, P., and

Yi, W. (1995). UPPAAL — a Tool Suite for Automatic

Veriﬁcation of Real–Time Systems. In HS III, vol.

1066 of LNCS, pp. 232–243.

Benton, N., Cardelli, L., and Fournet, C. (2004). Modern

concurrency abstractions for c#. ACM Trans. Pro-

gram. Lang. Syst., 26(5):769–804.

LANGUAGE-BASED SUPPORT FOR SERVICE ORIENTED ARCHITECTURES: FUTURE DIRECTIONS

343

Benzaken, V., Castagna, G., and Frisch, A. (2003). Cduce:

an xml-centric general-purpose language. SIGPLAN

Not., 38(9):51–63.

Bergmans, L. and Aksit, M. (2001). Composing cross-

cutting concerns using composition ﬁlters. Commun.

ACM, 44(10):51–57.

Beugnard, A., Jzquel, J.-M., and Plouzeau, N. (1999). Mak-

ing components contract aware. IEEE, 32(7):38–45.

Bierman, G., Meijer, E., and Schulte, W. (2005). The

essence of data access in Cω . In ECOOP, vol. 3586

of LNCS, pp. 287–311.

Bouyssounouse, B. and Sifakis, J., editors (2005). Embed-

ded System Design: The ARTIST Roadmap for Re-

search and Development, vol. 3436 of LNCS.

Cooney, D., Dumas, M., and Roe, P. (2005). A pro-

gramming language for web service development. In

ACSC, vol. 38 of CRPIT, pp. 143–150.

Daskalopulu, A. (2000). Model checking contractual pro-

tocols. In Legal Knowledge and Information Systems,

Jurix 2000, IOS Press, pp. 35–47.

Daskalopulu, A. and Maibaum, T. S. E. (2001). Towards

Electronic Contract Performance. In DEXA, pp. 771–

777. IEEE.

Davulcu, H., Kifer, M., and Ramakrishnan, I. V. (2004).

CTR-S: A Logic for Specifying Contracts in Semantic

Web Services. In WWW, pp. 144–153.

de Win, B., Piessens, F., Smans, J. and Joosen, W. (2005).

Towards a unifying view on security contracts. In

SESS, pp. 1–7. ACM Press.

Diaz, G., Pardo, J.-J., Cambronero, M. E., Valero, V., and

Cuartero, F. (2005). Veriﬁcation of web services with

timed automata. In WWV, pp. 177–191.

Filman, R. E., Elrad, T., Clarke, S., and Aks¸it, M., edi-

tors (2005). Aspect-Oriented Software Development.

Addison-Wesley, Boston.

Florescu, D., Gr

unhagen, A., and Kossman, D. (2002).

XL: An XML programming language for web service

speciﬁcation and composition. In WWW, pp. 65–76.

Gapeyev, V. and Pierce, B. (2003). Regular object types. In

ECOOP, vol. 2743 of LNCS, pp. 151–175.

Giambiagi, P., Owe, O., Ravn, A. P., and Schneider, G.

(2006). Contract-based internet service software de-

velopment: A proposal. Technical Report 333, Dept.

of Informatics, University of Oslo, Norway.

Governatori, G. (2005). Representing business contracts in

RuleML. Int. Journal of Coop. Inf. Sys., 14:181–216.

Grosof, B. and Poon, T. (2002). Representing Agent Con-

tracts with Exceptions using XML Rules, Ontologies,

and Process Descriptions. In RuleML.

Hosoya, H. and Pierce, B. C. (2003). Xduce: A statically

typed xml processing language. ACM Trans. Inter.

Tech., 3(2):117–148.

Johnsen, E. B. and Owe, O. (2004). An asynchronous com-

munication model for distributed concurrent objects.

In SEFM, pp. 188–197. IEEE.

Kraus, S. (2001). Automated Negotiation and Decision

Making in Multiagent Environments. 2086:150–172.

Matsuoka, S. and Yonezawa, A. (1993). Analysis of inheri-

tance anomaly in object-oriented concurrent program-

ming languages. Research directions in concurrent

object-oriented programming, pp. 107–150.

Meijer, E., Schulte, W., and Bierman, G. (2003). Program-

ming with cirdvcles, triangles and rectangles. In XML

Conference.

Molina-Jimenez, C., Shrivastava, E. S. and Warne, J.

(2004). Run-time Monitoring and Enforcement of

Electronic Contracts. Elect. Commerce Research and

Applications, 3(2).

Montanari, U. (2004). Web services and models of compu-

tation. In WS-FM, vol. 105 of ENTCS, pp. 5–9.

Papazoglou, M. P. (2003). Service-Oriented Computing:

Concepts, Characteristics and Directions. In WISE,

pp. 3–12. IEEE.

Paschke, A., Bichler, M., and Dietrich, J. (2005a). Con-

tractLog: An Approach to Rule Based Monitoring and

Execution of Service Level Agreements. In RuleML,

vol. 3791 of LNCS, pp. 209–217.

Paschke, A., Dietrich, J., and Kuhla, K. (2005b). A Logic

Based SLA Management Framework. In Semantic

Web and Policy Workshop 2005, pp. 68–83.

Paschke, A., Kiss, C., and Al-Hunaty, S. (2005c). A Pattern

Language for Decentralized Coordination and Nego-

tiation Protocols. In EEE, pp. 404–407. IEEE.

Picard, W. (2003). NeSSy: Enabling Mass E-Negotiations

of Complex Contracts. In DEXA, pp. 829–833. IEEE.

Reeves, D. M., Wellman, M. P., and Grosof, B. N. (2001).

Automated negotiation from declarative contract de-

scriptions. In AGENTS, pp. 51–58. ACM Press.

Szyperski, C. (2003). Component technology - what,

where, and how? In ICSE, pp. 684–693. IEEE.

Tesanovic, A., Nystrm, D., Hansson, J., and Norstrm, C.

(2004). Aspects and components in real-time system

development: Towards reconﬁgurable and reusable

software. Journal of Embedded Computing, 1(1).

Tosic, V. (2005). On Comprehensive Contractual Descrip-

tions of Web Services. In EEE, pp. 444–449. IEEE.

Tsang, S. L., Clarke, S., and Baniassad, E. L. A. (2004). An

evaluation of aspect-oriented programming for java-

based real-time systems development. In ISORC, pp.

291–300.

WSA (2004). Web Services Architecture. W3C Working

Group Note, www.w3.org/TR/ws-arch/.

Yovine, S. (1997). Kronos: A veriﬁcation tool for real-

time systems. Int. Journal of Software Tools for Tech.

Transfer, 1(1/2):123–133.

Olveczky, P. and Meseguer, J. (2002). Speciﬁcation of

real-time and hybrid systems in rewriting logic. TCS,

285(2):359–405.

ICSOFT 2006 - INTERNATIONAL CONFERENCE ON SOFTWARE AND DATA TECHNOLOGIES

344
