SOME SPECIFIC HEURISTICS

FOR SITUATION CLUSTERING PROBLEMS

Boris Melnikov, Alexey Radionov

Department of Mathematics and Information Science, Togliatti State Univ., Belorusskaya str., 14, Togliatti, 445667, Russia

Andrey Moseev, Elena Melnikova

Department of Telecommunication Software, Ulyanovsk State Univ., L.Tolstoy str., 42, Ulyanovsk, 432700, Russia

Keywords: Discrete optimization problems, Multi-heuristic approach, Clustering situations.

Abstract: The present work is a continuation of several preceding author's works dedicated to a specific multi-

heuristi

c approach to discrete optimization problems. This paper considers those issues of this multi-

heuristic approach which relate to the problems of clustering situations. In particular it considers the issues

of the author’s approach to the problems and the description of specific heuristics for the problems. We give

the description of a particular example from the group of “Hierarchical Clustering Algorithms”, which we

use for clustering situations. We also give descriptions of some common methods and algorithms related to

such clustering. There are two examples of metrics on situations sets for two different problems; one of the

problems is a classical discrete optimization problem and the other one is a game-playing programming

problem.

1 INTRODUCTION AND

PRELIMINARIES

This paper is a continuation of several preceding

authors’ works dedicated to a specific multi-

heuristic approach to discrete optimization problems

(DOPs). We should mark that the given list of

literature consists almost only of the works of the

present paper’s authors. First of all it is caused by

the fact that the authors did not meet publications

about application in discrete optimization problems

of all the heuristics simultaneously. Among those

works we would mark separately the following:

• descri

ption of the approach to DOPs in general

(Melnikov, 2005; 2006);

• descri

ption of specific heuristics for particular

DOPs (

Belozyorova and Melnikov, 2005; Melnikova

and Radionov, 2005;

Melnikov, Radionov, and

Gumayunov, 2006);

• descri

ption of heuristics for game-playing

programs (

Melnikov and Radionov, 1998; Melnikov,

2001;

Melnikov, Radionov, Moseev, and Melnikova,

2006

However this division is mostly conventional

because each of those

papers contains partitions and

heuristics concerning any of the three areas

mentioned. The object of each of DOPs is

programming anytime algorithms, i.e., the

algorithms, which can provide a near-to-optimal

solution in real time.

The considered DOPs will be briefly (and two of

em quite properly) described in this paper. Here in

the Introduction we will very briefly describe the

approaches or actually the heuristics of the

mentioned multi-heuristic approach; the text is given

according to (Melnikov, 2005). So, the methods of

solution of DOPs are constructed on the basis of

special combination of some heuristics, which

belong to different areas of the theory of artificial

intelligence. Firstly, we use some modifications of

truncated branch-and-bound methods (TB&B);

moreover in this paper we will frequently refer to

TB&B. Secondly, for the selecting immediate step

of TB&B using some heuristics, we use dynamic

risk functions. Thirdly, simultaneously for the

selection of coefficients of the averaging-out, we

also use genetic algorithms. Fourthly, the reductive

272

Melnikov B., Radionov A., Moseev A. and Melnikova E. (2006).

SOME SPECIFIC HEURISTICS FOR SITUATION CLUSTERING PROBLEMS.

In Proceedings of the First International Conference on Software and Data Technologies, pages 272-279

DOI: 10.5220/0001317002720279

 SciTePress

self-learning by the same genetic methods is also

used for the start of TB&B.

In this paper we consider those issues of the

multi-heuristic approach to DOPs which are

connected with the problems of clustering (or

classifying; here we do not consider the difference

between these two terms for in the considered

problems they have the same meaning) situations,

actually with the author’s approach to those

problems, with description of the heuristics specific

for those problems, and with applying the

corresponding methods. Let us mention two works

which became classical. The first one is about usage

of clustering algorithms in artificial intelligence

problems, see in (Lifschitz, 1990). The second one is

a classical work on solving problems “by analogy”

(in author’s opinion this subject is quite popular

nowadays), see in (Carbonell, 1983)..

Section 2 of this paper contains the description of

an example from the group of “Hierarchical

Clustering Algorithms”; the authors find this variant

of algorithm the most efficient for the considered

problems of situations clustering in application to AI

problems and some empirical confirmations of this

fact are given below. The authors apply this

algorithm to problems in other areas (for more detail

see Section 2).

In any case a problem of clustering rather often

demands development of a specific metric.

Moreover when we fix a concrete algorithm of

clustering (independent of any particular metric) we

can say that “if there is a metric then there is a

clustering” and we do not simplify the situation too

much. In our case we need to develop metrics on

situation sets and two examples of that are

considered in Sections 3 and 4 of this paper. One of

the problems is a classical discrete optimization

problem and the other one is a game-playing

programming problem.

Section 5 contains descriptions of some common

methods and algorithms related to clustering. We

apply these algorithms to different DOPs, both

classical and intellectual game-playing

programming.

Some practical results of usage of our programs

in two descrete optimization problems (minimization

of non-deterministic finite automata and DNF) are

mentioned in conclusion (Section 6). The programs

contain implementations of all the heuristics

described in this paper and in the previous

publications of the authors. We can note in advance

that the results of our programs execution are purely

comparable to the best programs of other developers

(found in the Internet and others).

2 AN EXAMPLE

The following Section describes an example from

the group “Hierarchical Clustering Algorithms”,

applied by the authors in a number of DOPs. Let us

give a mathematical description of this algorithm.

We should note in advance, that here appear a lot of

problems, connected with building the most efficient

variants to carry out this very variant – however, we

are not going to study these problems in the present

article.

So, let R

be the minimal distance between the

elements of clusters numbered i and j, and r

be the

maximal distance between the elements of cluster i.

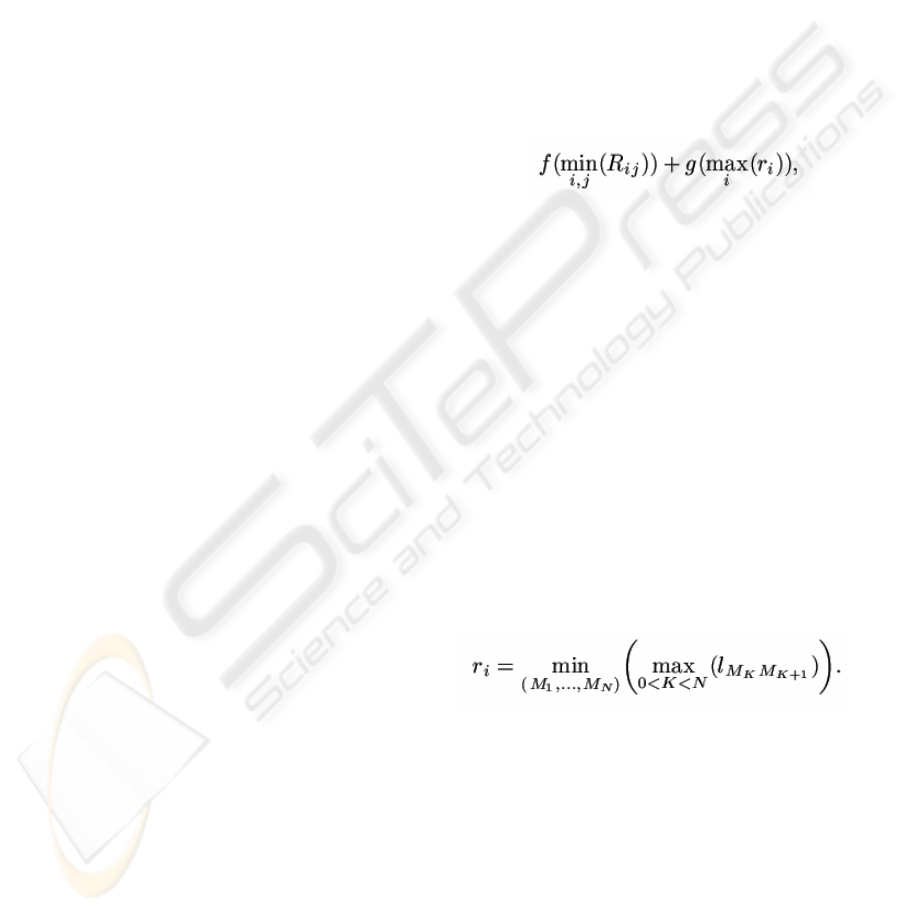

Common algorithms of clustering and algorithms of

its quality evaluation generally use the values

where f and g are specific increasing functions

(chosen depending on a particular problem,

particular algorithm and so) and i and j take on all

possible values. First of all we mean different

variants of algorithms from the group of

“Hierarchical Clustering Algorithms”. For example

see the site

http://www.elet.polimi.it/

upload/matteucc/Clustering/ and also the

information that can be found by links from this site.

As distinct from common algorithms the authors

use the same formula but with other meanings of r

values. In particular let:

• i be the considered cluster,

• m

,...,m

be all its elements,

• l

be the distance between its elements m and n,

• (M

,..., M

) be some finite sequence consisting

of the cluster’s elements m

,...,m

and including

each of them at least once.

Then we consider

Note that although the given definition is not an

algorithm the simplest possible algorithms of

calculating r

values built on its base are not difficult.

There are some differences between implementation

of these algorithms and the common ones (i.e.,

implementation of the algorithms which can be

found by the links on the site mentioned before) but

we will not concentrate on those differences.

(Actually those differences could be the subject of a

separate publication, which practically would not be

related to the present paper. One of those differences

is concluded in the following: we step by step

increase the criteria of combining two clusters into

SOME SPECIFIC HEURISTICS FOR SITUATION CLUSTERING PROBLEMS

273

one, i.e., lowering the clustering threshold with help

of a specific auxiliary algorithm which uses

precomputed distances defined on the current

clusters.) As it was mentioned above, there can be

found some interesting problems focused on

efficient realization of this algorithm variant.

However we will not study these problems in the

article either. Instead of considering such

algorithmic problems we are going to approve

empirically the expediency of using this algorithm in

the considered DOPs.

Thus we have shown a formal description of one

specific clustering algorithm. As it was mentioned in

Introduction the authors suppose that one of its

applications could be the problem of forming the

initial screen when searching in the Internet. In

(Melnikova and Radionov, 2005), two different

possible variants of using this algorithm in such a

problem are given and a preliminary version of

search engine was developed basing on this

approach. However here we are more concerned

about another possible application area of the

algorithm and this area is discrete optimization

problems.

The following question may arise: why do we

need this very algorithm, what makes it better than

the other ones described above? (Another question

may arise why in our case we need to solve

problems “by analogy” though the goal of each

anytime-algorithm is in achieving one pseudo-

optimal solution. A possible answer to this question

is given in Section 5 of this paper.) It is impossible

to give the exact answer, as it always seems in case

of heuristics. But practical programming and the

solution of several DOPs has shown that this

algorithm is the best to illustrate possible locations

of situations. Here we mean the situations both for a

certain DOP and for game-playing programs. We

attempt to focus on situations not only within one

cluster, but also in an order which corresponds to the

possible sequence (M

,…M

) in the formulae above

and what is more important to the selection of the

situations which are included more than once in into

this sequence (let us call them key situations).

Situations are sorted in the given way for ordered

processing of the situations, for solving the

corresponding subtasks in a similar order, and we

certainly start with the key situations. (We mark in

advance that our vision of the term subtask will bee

defined more exactly in the next section.) By such

situations sorting we achieve successful solving of

problems “by analogy” because the situations which

are close in a “good” metric most likely have similar

solutions. Here we first have in mind the possibility

to make the same step in TB&B. And not just

possibility to make the same step, but heuristic

choice and receiving the same separating element for

such step in two subtasks close in the metric.

So the authors hope that they have given the answer

to the possible question about necessity of using the

described algorithm of clustering in different DOPs.

And as it was mentioned above to do clustering with

help of this algorithm we need to find a metric on

the situations set (subtasks set). The following two

Sections of the paper are dedicated to description of

such metrics for two different DOPs.

3 METRICS FOR SITUATIONS IN

ONE PROBLEM

In this section we give a metric for the problem of

vertex minimization in nondeterministic finite

automata of Rabin-Scott. However the authors leave

this title of the section because in principle similar

heuristics can be applied to quite different discrete

optimization problems.

Let us explain the task setting (for more details

see (Melnikov, 2000) and others). Some matrix is

filled with numbers 0 and 1 (in terms of (Melnikov,

2000), numbers 1 correspond to elements of binary

relation #). Let us use the term Grid for any couple

of subsets of columns and rows of the matrix if those

subsets meet the following two conditions:

• at the intersection of each column with each row

of those subsets 1 is placed;

• we can not add any row or column to those

subsets without breaking the first condition.

In the set of all possible grids we need to find a

subset which includes all 1s of the given matrix.

And to reach the requirement of vertex minimization

in nondeterministic finite automata we should find

that one of the subsets which contains the minimal

number of grids in it. (One description of the

sufficient requirement is given in (Polák, 2004).

Besides in present time the authors of the paper are

preparing a publication with a description of such

algorithm based on description of the set of all

possible arcs of an automation, which is given in

(Melnikov, and Sciarini-Guryanova, 2002). To be

more specific it is based on presence of analogues of

all these arcs in the given automation. However here

we consider only the requirement of vertex

minimization so there is no need to consider arcs and

each grid is a special description of an automation

state.)

We can demonstrate that the problem is not trivial

by showing the following simple example. As usual

ICSOFT 2006 - INTERNATIONAL CONFERENCE ON SOFTWARE AND DATA TECHNOLOGIES

274

for such examples it is specially designed to make

greedy algorithms inefficient. So, let the initial

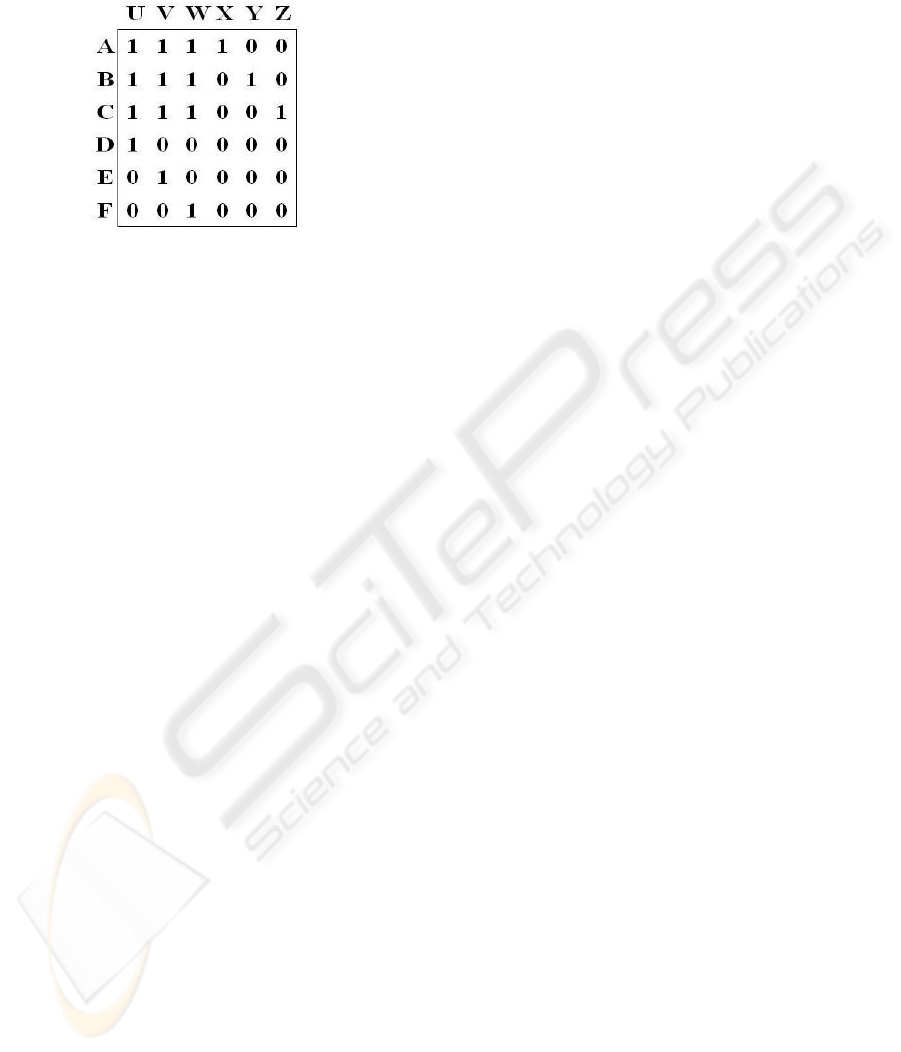

matrix be set by the Fig.1.

Figure 1: Initial Matrix.

Then the optimal solution does not contain the

maximal grid, i.e. the grid of columns U, V, and W

and rows A, B and C. Optimal solution consists of

the tree single-row grids (the same A, B and C but

now each of them contains all available 1) together

with three similar single-column grids. Obviously

real tasks are much more complex but as for smaller

tasks this one is quite interesting.

Now we are going to consider some different

metrics but first we need to explain some general

notations. Let X and Y be some sets, n=|X∩Y| be the

number of elements in their intersection, N=|XUY|

be the number of elements in their union. Then we

will write Ω(X,Y)=1–n/N.

Let us consider the heuristic for definition of a

metric on the grids set. (We suppose that any

possible metric should deliver value of 0 if the grids

are totally the same and value of 1 if the grids have

no common elements, i.e. common matrix cells

filled with 1.) As a result of practical programming

including testing of several alternatives we have

found that the following heuristic is the most

efficient for the problem. Let X

and X

be sets of

the numbers of the grids’ rows 1 and 2, Y

and Y

the same sets for the columns. Then we will use the

following value as a metric

(α·Ω(X

)+ (1– α)·Ω(Y

)),

where α is some coefficient to be adjusted with help

of genetic algorithms. (Actually it also depends on

the number of elements in the mentioned arrays, but

we do not discuss genetic algorithms in this paper.)

Obviously if the grids are the same then we get 0.

Though we do not always get 1 if the grids have no

common cells with value of 1, nevertheless the given

metric is quite efficient for the considered problem.

Now let us consider possible heuristics for definition

of a metric on the subtasks set. To do this we need to

define more exactly what is subtask (though we will

not give the complete definition, it is just

impossible) and first let us show fragments of the

corresponding programs in C++, containing

descriptions of task and subtask. Here we reach two

goals at the same time: firstly we show a possible

variant of implementation of the approach to DOPs

programming and secondly we introduce all the

auxiliary elements needed for our definition of

subtask. We hope that the comments placed in the

listing will help to read the source code.

First of all here is the class describing the whole

DOP.

class MyTask : public MAG {

// the ancestor contains

// the initial matrix

// and all yet generated grids

private:

AST sbtAll;

// all possible generated subtasks

MySubTask* pstAnyTime;

// the best of yet solved tasks;

// it is NOT included in sbtAll

// ...

};

Additional comments. We use the following

auxiliary classes:

• ancestor class MAG (abbreviation for Matrix,

Array, Grid) includes data of the initial matrix

and of the grids which are generated to the

moment;

• class

AST (“array of subtasks”) is an array of

subtasks; when using MFC library this class

should be derivate of the class

CPtrArray

which includes only pointers to defined below

subtask objects (of the class

MySubTask).

Then here is the class describing a subtask; we

are listing the variant using MFC.

class MySubTask {

private:

MyMatrix* pMatrixThis;

// already filled HERE matrix

double rQuality;

MyWordArray* pArrYes;

MyWordArray* pArrNo;

// both arrays contain

// numbers of grids

// ...

};

Additional comments. The matrix

*pMatrixThis is of the same type as the matrix

included in the class MAG; obviously at the start of

TB&B this matrix is filled with 0 only, and when

receiving any current solution it coincide with the

matrix included in the class MAG. The value

rQuality is a boundary which is used in TB&B

execution. The array

*pArrYes contains the

SOME SPECIFIC HEURISTICS FOR SITUATION CLUSTERING PROBLEMS

275

numbers of the grids which form the matrix

*pMatrixThis. According to the common

principles of TB&B a subtask must include the list

of the grids which cannot be included in

forthcoming solution and

*pArrNo contains this list.

References to the grids are made by their numbers

included in the class MAG. Thus there is no direct

access to the grids from the class

MySubTask but

the logic of this approach to the problem i.e. the

logic of TB&B application does not demand such

access.

Basing on the introduced above metric on grid we

define a metric on subtasks. To do this let us first

define a metric for any two arrays of grids. Let

X={x

,…,x

} be the first array, Y={y

,…,y

} be the

second one. Then the metric itself is

ρ(X,Y) = (∑

i , j

Ω(x

, y

)) / (m·n),

where i and j take on all possible values. Then let X

and Y

be arrays *pArrYes and *pArrNo for the first

subtask, X

and Y

be the corresponding arrays for

the second one. Let us denote

A = ρ(X

), BB

= ρ(X

), B

B = ρ(X

and as the distance between the subtasks we will use

the value

(1+2·α)·A – α·(B

where α is again some coefficient to be adjusted

with help of genetic algorithms. (Actually the last

formula is true only for “close” subtasks. In the

other case, for example in case of high values of the

sum B

, we use other formulae, however as

before we will not get deeply into details.)

When we use this metric in solving subtasks “by

analogy” as it was said above we make efficient

versions of programs because according to the

metric’s description we have similar sets of grids in

the arrays *pArrYes and *pArrNo for close in the

metric subtasks. However this metric demands

precomputing of distances between any two of the

grids generated to the moment. That is why the

authors often use another metric which is somehow

analogous to the metric given above for the grids.

So let us describe another variant of metric on a

subtasks set. Let P

be the set of cells of the first

subtask’s matrix with value of 1; P

be the same for

the second subtask. Then as a metric we use the

value Ω(P

). Note that the formulas here are mush

simpler than in the previous variant but if computing

of the distances on the set of grids is made

beforehand then the calculations for the second

variant of metric take quite longer. These

calculations bay be demanded as auxiliary for

different subtasks of TB&B and in some variants of

TB&B are actually made beforehand. Besides see

the brief description of possible algorithms

managing such calculations in Section 5.

4 METRICS FOR SITUATIONS IN

GAME PROGRAMS

This section describes one problem of

nondeterministic game-playing programming and

metrics used for clustering of situations in this game.

However we (as in the previous section) leave the

general title because the offered approach can be

used in other problems of non-deterministic game-

playing programming.

The particular nondeterministic game in which

we use situations clustering is called “Omega”

game; a similar game was described in one of Martin

Gardner’s works. Let us briefly describe the rules of

this game.

In the game a square matrix (with N rows and N

columns) is used. Two players take turns to fill the

matrix with natural numbers. After filling the whole

matrix (both players make N

moves in aggregate)

the first player calculates the sum of the numbers

productions by rows, the second player calculates

the sum of the productions by columns. The

difference between the sums is the first player’s

profit and the second player’s loss. The numbers

which the players use to fill the matrix are chosen at

random from the range between 1 and N

before

each move.

For this game even at the dimension of 3 (3 rows

and 3 columns) there is no chance to find the

optimal move with help of exhaustive search. That is

why here we have to use TB&B modified in a

specific way according to nondeterministic nature of

the game (for details see (Melnikov, Radionov,

Moseev, and Melnikova, 2006)). In particular we

use the method of risk functions developed by the

authors for programming of nondeterministic games.

Besides, some specific heuristics are used in order to

shorten the search.

In most cases at a regular step of TB&B we need

to classify the situation to choose one of the

heuristics or to define the particular values of the

used heuristics’ parameters for instance the values of

the risk functions’ parameters. Moreover, an

efficient method of situations classifying often helps

to determine such an order of the moves processing

which can shorten the search.

Before we can define a metric on the set of

situations of this game we need to define the term

situation itself (or subtask in term of the previous

ICSOFT 2006 - INTERNATIONAL CONFERENCE ON SOFTWARE AND DATA TECHNOLOGIES

276

section). A situation in this case is a game matrix

partly filled with numbers i.e. a state of the game

matrix after a move of one of the players. Thus we

are going to define a metric on the set of partly filled

matrixes.

To find the distance between two partly filled

matrixes let us fill their empty cells with average of

distribution of the random value. In our case we

should put the value (N

+1)/2 into all empty cells of

both matrixes. Now for each matrix we find the

products of numbers by columns and by rows. Then

we permute the rows and columns of each matrix in

ascending order of the corresponding products. Note

that the result of this game does not change after

permutation of rows or columns of its matrix. Let S

be the sum of absolute values of the differences

between the corresponding products of the matrixes

(2*N differences in aggregate). The value of S can

be considered the distance between the matrixes. We

can also use a normalized variant i.e.

S/(2*N*(N

2*N

-1)).

As is easy to see both variants are equal to 0

when the matrixes are the same. They also equal to 0

when the matrixes are equal to permutation and this

property corresponds to the game specific. Besides,

the normalized variant can never exceed 1 and it can

reach this value only in the case when one matrix is

completely filled with 1s and the other one is

completely filled with N

The given metric can be used in the described above

approach of situations clustering.

5 SOME COMMON

ALGORITHMS

In one of the previous sections the following

question was asked: why in our case we need to

solve problems “by analogy” though the goal of

each anytime-algorithm is in achieving one pseudo-

optimal solution. We can give the following

answers. First, we do not know which one of the

considered subtasks will deliver the pseudo-optimal

solution (which will replace the current one i.e.

*pstAnyTime according to the given program

notation). Second, according to one of the main

principles of the branch-and-bound method (not only

in the truncated one) two different subtasks can not

deliver the same final solution. Therefore the current

pseudo-optimal solutions for different subtasks will

certainly be different. However as is easy to see the

given answers do not cancel the possibility (and

maybe necessity) of solving similar (i.e. close in

metric) tasks by analogy.

Thus solving problems by analogy is one of the

common approaches which the authors use for

different DOPs. Among the other common

approaches we should firstly mark the following

one.

As we said in Section 3 sometimes it is good to

have a metric on a set of grids (or generally on a set

of auxiliary objects common for several subtasks).

However it often (including the described problem)

takes too much time to build such metric on set of all

situations. In this connection there can be used the

following algorithm. In our implementations of

TB&B we use such auxiliary algorithms one by one:

finding the new metric value for a pair of auxiliary

objects of the subset (grids and so);

• adjusting the precomputed metric value for a

pair of subtasks;

• selection of the next subtask from the list if

subtasks demanding solution;

• selection of an auxiliary object (grid or so) from

the corresponding set; this object will be used as

the separation element for the next step of

TB&B;

• building the left and the right subtasks basing on

the selected separation element and including

these subtasks in the corresponding data

structure for subsequent solution.

Thus we can say that here we have briefly

described TB&B with application of algorithms

connected with situation clustering. Remark also,

that:

• The authors have just started to use this auxiliary

algorithms in practical programming and its

efficiency is still under question. Besides we

should mark that the other possible solution of

the problem is implementation of distributed

calculations. However it is absolutely separate

problem and the authors did not yet start to solve

it in practice.

• In Section 3 we did not consider such algorithms

of precomputing. For the problem of

minimization of nondeterministic finite automata

the formulae for the metric precomputing are

similar to the ones given in Section 3. However

they use only those pairs of grids which have

their metrics already computed.

• Actually the most efficient data structure for

keeping the subtasks sets is a specific variant of

correctly filled tree (or heap in other terms; see

(

Cormen, Leiserson, Rivest, and Stein, 2001) and

others).

• At the same time we build the so called sequence

of the right problems (SRP). In (Melnikov,

SOME SPECIFIC HEURISTICS FOR SITUATION CLUSTERING PROBLEMS

277

2005), there is information about this auxiliary

algorithm but it is quite important so we are

giving a part of its description from that paper.

Each time, when we obtain the next right

problem (let us call it problem T) we make at the

same time also the SRP, i.e., T, then the right

problem of T, then the right problem of the right

problem of T, etc. Certainly, we make each time

also the corresponding left problems, i.e., the left

problem of T, then the left problem of the right

problem of T, etc. This process finishes:

– when we obtain a trivial problem (e.g., of

dimension 1), then we use its solution (i.e.,

its bound, and also the obtained path, and

similar behavior) by the current quasi-

optimal solution of the considered anytime

algorithm;

– or when we obtain the big value of the

bound, for example, if this value is more

than the current (existing) quasi-optimal

solution.

In practice, such process of SRP-constructing does not

require a lot of time, and the increasing the dimension of

the list of problems for the solution in the future is very

reasonable.

6 CONCLUSION. SOME

PRACTICAL RESULTS

So in this paper we considered some issues of the

offered by the authors multi-heuristic approach to

discrete optimization problems, the issues connected

with problems of situations clustering. In conclusion

we will mark the following circumstances.

In auxiliary algorithms we often use self learning

with help of genetic algorithms and not only in cases

evidently marked in Section 3. Generally you can

find more information about the author’s usage of

genetic algorithms in the mentioned above

references (Melnikov and Radionov, 1998;

Melnikov, 2005; Belozyorova and Melnikov, 2005;

Melnikova and Radionov, 2005; Melnikov,

Radionov, Moseev, and Melnikova, 2006; Melnikov,

Radionov, and Gumayunov, 2006), mainly in

(Melnikov, 2001; 2006).

We also should mark once more, that the given

list of literature consists almost only of the works of

the authors of the present paper. However this is a

consequence of the fact that we offer our own

approach to solving DOPs generally.

As it was mentioned above, the results of our

programs execution are about the same as the ones

of the programs found in the Internet. The best of

available links can be found at

http://citeseer.ifi.unizh.ch/fiser02set

.html or at

http://www.dei.isep.ipp.pt/~acc/bfunc/.

Now we are going to show one slightly different

approach to describing the practical results, see

below.

While testing, we set the time for our anytime

algorithm (see the tables). We also set the dimension

of the problem – i.e., the number of rows for NFA

(the number of columns depends of the last value

also by special variate) and the number of variables

for DNF – not the numbers of grids for NFA and

planes for DNF, the last values are also special

variates depending on previous ones.

The clock speed of the computer was about 2.0

GHz. If we choose the time under 10 minutes, we

make the averaging-out about 50 solutions.

And the values of cells have the following

meaning. For each cell, we made corresponding

tests. For each test, we set the number of

grids/planes for the given problem (certainly, we did

not use this information in the program) and obtain

the value of grids/planes found by anytime

algorithm. Then we counted comparative

improvement of this value (+) or the worsening (–).

The possibility of positive values is the corollary of

the fact, that, e.g. for the DNF, two planes of

dimension k could form one plane of dimension k+1.

The values were averaged; they are written in the

table in percents. (I.e., +0.22 means that the mean

value is better than the a priori given than 0.22%.)

Thus, below are the practical results.

Table 1: Nondeterministic Finite Automata.

NFA 20–23 40–45 60–65

01 sec 1.76 –0.58 –0.02

10 sec –0.55 –0.17 +0.22

01 min –0.03 +0.45 +1.00

10 min 0 +1.06 +1.07

01 h 0 +1.07 +1.17

Table 2: Disjunctive Normal Forms.

DNF 20–22 25–27 30–31

01 sec –8.5 –2.2 –1.9

10 sec –1.21 –0.70 –0.43

01 min –0.73 –0.65 –0.43

10 min –0.03 –0.01 –0.01

01 h –0.03 –0.01 0

The obtained results are near to 100%; this fact

shows that the approach proposed in this paper could

be applied in the future. And in the next papers, we

ICSOFT 2006 - INTERNATIONAL CONFERENCE ON SOFTWARE AND DATA TECHNOLOGIES

278

are going to give the practical results for two other

problems mentioned in Section 2.

The authors hope to continue the series of papers

about applying the multi-heuristic approach to

solution of different DOPs. In this connection we

should note that some subjects of the new

algorithms, programs and publications were briefly

mentioned in the present paper.

REFERENCES

Belozyorova, A., and Melnikov, B., 2005. Using

Heuristics Complex for the Problem of Making

Diagram of Nuclide Transformations, In 2nd Scientific

Conference “Tools and Techinques of Information

Processing”, Moscow State Lomonosov Univ. Ed.

(2005) 208–210 (in Russian).

Carbonell, J., 1983. Derivational Analogy and Its Role in

Problem Solving, AAAI (1983) 64–69.

Cormen, T., Leiserson, C., Rivest, R., and Stein, C., 2001.

Introduction to Algorithms. – MIT Press and McGraw-

Hill, 2001.

Lifschitz, V., 1990. Frames in the Space of Situations,

Artificial Intelligence 46 (1990) 365–376.

Melnikov, B., and Radionov, A., 1998. On the Decision

of Strategy in Nondeterministic Antagonistic Games”,

In Programming and Computer Software

(Programmirovanie, Russian Acad. Sci. Ed., English

translation), Vo.24, No.5 (1998).

Melnikov, B., 2000. Once More About the State-

Minimization of the Nondeterministic Finite

Automata, The Korean Journal of Computational and

Applied Mathematics, Vo.7, No.3. (2000) 655–662.

Melnikov, B., 2001. Heuristics in Programming

Nondeterministic Games, In Programming and

Computer Software (Programmirovanie, Russian

Acad. Sci. Ed., English translation), Vo.27, No.5

(2001) 277–288.

Melnikov, B., and Sciarini-Guryanova, N., 2002. Possible

Edges of a Finite Automaton Defining a Given

Regular Language, The Korean Journal of

Computational and Applied Mathematics, Vo.9, No.2

(2002) 475–485.

Melnikov, B., 2005. Discrete Optimization Problems –

Some New Heuristic Approaches, In 8th International

Conference on High Performance Computing and

Grid in Asia Pacific Region, IEEE Computer Society

Press Ed. (2005) 73–80.

Melnikova, E., and Radionov, A., 2005. A Construction

of Taxonomic Hierarchy of Documents Using Risk

Functions, In 2nd Scientific Conference “Tools and

Techinques of Information Processing”, Moscow

State Lomonosov Univ. Ed. (2005) 103–106 (in

Russian).

Melnikov, B., 2006. A Multi-Heuristic Approach to the

Problems of Discrete Optimization, In Cybernetics

and Systems Analysis (Ukranian Acad. Sci. Ed.), 2006,

No. 5, accepted (in Russian).

Melnikov, B., Radionov, A., and Gumayunov, V., 2006.

Some Special Heuristics for Discrete Optimization

Problems, In 8th International Conference on

Enterprise Information Systems, Cyprus (2006) 91–95.

Melnikov, B., Radionov, A., Moseev, A., and Melnikova,

E., 2006. Heuristics for Working With Searching Tree

in Non-Deterministic Games, ICGA Journal, 2006,

submitted.

Polák, L., 2004. Minimization of NFA Using the

Universal Automaton, CIAA (2004) 325–326.

SOME SPECIFIC HEURISTICS FOR SITUATION CLUSTERING PROBLEMS

279
