A FRAMEWORK FOR THE DEVELOPMENT AND

DEPLOYMENT OF EVOLVING APPLICATIONS

Elaborating on the Model Driven Architecture

Towards a Change-resistant Development Framework

Georgios Voulalas, Georgios Evangelidis

Department of Applied Informatics, University of Macedonia, 156 Egnatia St., Thessaloniki, Greece

Keywords: Model-driven Development, Meta-Models, Evolving

Business Applications, Application Generators,

Application Deployment Platforms, Reflectional Programming.

Abstract: Software development is an R&D intensive activity, dominated by human creativity and diseconomies of

scale. Current efforts focus on design patterns, reusable components and forward-engineering mechanisms

as the right next stage in cutting the Gordian knot of software. Model-driven development improves

productivity by introducing formal models that can be understood by computers. Through these models the

problems of portability, interoperability, maintenance, and documentation are also successfully addressed.

However, the problem of evolving requirements, which is more prevalent within the context of business

applications, additionally calls for efficient mechanisms that ensure consistency between models and code,

and enable seamless and rapid accommodation of changes, without interrupting severely the operation of the

deployed application. This paper introduces a framework that supports rapid development and deployment

of evolving web-based applications, based on an integrated database schema. The proposed framework can

be seen as an extension of the Model Driven Architecture targeting a specific family of applications.

1 INTRODUCTION

Software development is an area in which we are

struggling with a number of major problems. The

most important problems are (Kleppe & Warmer &

Bast, 2003):

The Productivity, Documentation, and

Maintenance Problem. T

he software development

process includes a number of phases: (a)

Conceptualization and requirements elicitation and

gathering, (b) Analysis and functional description,

Implementation, (e) Testing, and, (f) Deployment.

Whether we use an incremental and iterative

process, or the traditional waterfall process,

documents and diagrams are produced during the

first three phases. The connection between those

artefacts and the code fades away as implementation

progresses. Changes widen the gap, since they are

usually done at the code level only, due to time

restrictions. The idea of Extreme Programming (XP)

has rapidly become popular, since it is built upon the

fact that the code is the driving force of software

development and thus the phases that should

accumulate the major effort are coding and testing.

However, having just code and tests makes

maintenance of a software system very difficult.

Practically speaking, analysis and design artefacts

are required, but to be really productive they should

not be just static, paper representations. They have

to stay in high cohesion with the code throughout the

software lifecycle, they should elevate technologists

above the lower level complexities that are imposed

by the available (with continuously increased

complexity) technologies, and they need to be

eligible as input in forward-engineering operations.

The Portability Problem. T

he software industry

has a special characteristic that makes it stand apart

from most other industries. Each year, and

sometimes even faster, new technologies are being

invented and becoming popular (e.g., Java, CORBA,

UML, XML, J2EE, .NET, and Web Services). The

new technologies offer concrete benefits for

companies and many of them cannot afford to lag

behind. As a consequence, the investments in

previous technologies lose value, and existing

Voulalas G. and Evangelidis G. (2006).

A FRAMEWORK FOR THE DEVELOPMENT AND DEPLOYMENT OF EVOLVING APPLICATIONS - Elaborating on the Model Driven Architecture

Towards a Change-resistant Development Framework.

In Proceedings of the First International Conference on Software and Data Technologies, pages 22-29

 SciTePress

systems have to be ported to the new technology in

order for interoperability (with systems built with

the new technology) restrictions to be completely

wiped out.

The Interoperability Problem. Software

systems rarely live isolated. Most systems need to

communicate with other, often legacy, systems.

The Evolution Problem. The management of

evolution in information systems is a dominant

requirement. This is even stronger in business

applications, due to the dynamic nature of business

domains. In (Roddick & Al-Jadir & Bertossi et al.,

2000) the following factors that drive information

system evolution are listed:

“A change in the universe of discourse”: The

application world is continually evolving. A

viable application system should accommodate

these changes.

“A change to the interpretation of facts about the

universe of discourse and the manner in which

the task is realized in a system”: People are not

able to precisely express the desired functionality

of a large-scale application system. Only

experience from using the system will enable

them to properly formulate the needs and

requirements.

“Changes in the form of updates to effect upgrades

to the functionality or scope of a system”: People

do not know in advance all the desired

functionality of a large-scale application system.

Only experience from using the system will

enable them to realize and express all needs and

requirements.

“Changes in the form of updates to effect efficiency

improvements”. For example, the restructuring of

database elements in order for faster information

retrieval to be achieved.

In order for evolution to be handled efficiently

the following objectives should be met:

 changes should be seamlessly incorporated

without the need of restructuring the existing

application,

 analysis and design artefacts should be updated

in order for changes to be reflected,

 the operation of the deployed application should

not be interrupted, or at least interruption should

minimized, and

 access to old business objects within their right

context should be supported, i.e., at any time an

old business object should be able to be easily

retrieved and examined through the specific

version of the application that produced and

manipulated it, in order for user to be able to

trace back to former business data.

This paper introduces a new framework for the

development and deployment of web-based business

applications. In Section 2, we present the Model

Driven Architecture (MDA) and the modern

practices brought out by Microsoft. In Section 3, we

discuss the areas of the MDA that will take

advantage of the proposed framework. In section 4,

the framework is introduced. The last section

provides a conclusive summary of the paper and

identifies our future research plan.

2 MDA & MICROSOFT

SOFTWARE FACTORIES

MDA (Kleppe & Warmer & Bast, 2003; Miller &

Mukerji, 2001; Miller & Mukerji, 2003) is a

framework for software development defined by the

OMG. The MDA development lifecycle is not very

different from the traditional lifecycle; they both

involve the same phases. One of the major

differences has to do with the nature of the artefacts

that are produced during the development process.

The artefacts are models that can be understood and

processed by computers. The following three models

are at the heart of the MDA.

Platform Independent Model (PIM). This

model is the first to be defined and is a model with a

high level of abstraction that is independent of any

implementation technology. Within a PIM, the

system is modelled from the aspect of how it best

supports the business requirements.

Platform Specific Model (PSM). In the next

step, the PIM is transformed into one or more PSMs.

A PSM specifies the system (or part of the system)

in terms of the implementation details defined by

one specific implementation technology.

Code. The final step in the development is the

transformation of each PSM to code. Because a PSM

fits its technology rather closely, this transformation

is relatively straightforward.

For many specifications, PIM and PSMs are

defined in UML, making OMG's standard modelling

language a foundation of the MDA.

In contrast to traditional development, MDA

transformations are always executed by tools. Many

tools are able to transform a PSM into code; there is

nothing new to that. What’s innovative in MDA is

that the transformation from PIM to PSM is

automated as well.

A FRAMEWORK FOR THE DEVELOPMENT AND DEPLOYMENT OF EVOLVING APPLICATIONS - Elaborating

on the Model Driven Architecture Towards a Change-resistant Development Framework

Let us now clarify how MDA responds to the

challenges presented in the previous section.

Productivity, Documentation and

Maintenance. The focus for a developer shifts to the

development of a PIM. The PSMs and the code are

generated automatically. The PIM fulfils the

function of high-level documentation, and is not

frozen after writing, since changes will eventually be

made by changing the PIM and regenerating the

PSMs and the code.

Portability. Portability is achieved by focusing

on the development of PIMs that are by definition

platform independent.

Interoperability. When PSMs are targeted at

different platforms, they cannot directly talk to each

other. Concepts from one platform should be

transformed into concepts used in another platform.

MDA addresses this problem by generating not only

the PSMs, but the necessary bridges between them

as well.

Evolution Management. The PIM is a live

artefact that depicts precisely the system throughout

its lifecycle, since all changes made to the system

are eventually made by changing the PIM and

regenerating the PSMs and the code.

On the other side, Microsoft has recently

introduced Domain Specific Languages (DSLs) with

its own modelling environment, Visual Studio 2005

Team System (VSTS). DSLs (Greenfield, 2004) are

programming languages dedicated to specific

problems and consisting of their own built-in

abstractions and notations. DSLs underpin

Microsoft's concept of software factories, that are

planned modules of tools, content and processes

used to build applications in specific domains like

healthcare, human resources or enterprise resource

planning. Microsoft has chosen the term “software

factory” in order to emphasize upon reusable assets

and tooling for supporting them. The software

industry welcomed the new approach, however

many are still cautious, mainly due to the

displacement of the UML and the fact that since

software is an R&D and not a production activity, it

is difficult to apply manufacturing principles.

Undoubtedly, narrowing the domain enables to more

precisely define the features of the target family and

facilitates the definition of languages, patterns,

frameworks and tools that automate the development

of its members. One early backer for the DSL and

Software Factories approach is Borland.

3 RETHINKING MDA

MDA is a complete framework that enables

organizations to respond efficiently to the

augmentative requirements of modern software

projects.

The current status of the framework is mainly

shaped by the availability of support tools and

therefore presents the following deficiencies (Kleppe

& Warmer & Bast, 2003):

 Though OMG has defined the mapping standards

between the three models (the PIM, the PSM and

the code), it has yet to define how to implement

the models.

 Current tools are not sophisticated enough to

fully provide the transformations from PIM to

PSM and from PSM to code.

 The extent to which portability can be achieved

depends on the automated transformation tools

that are available. For popular platforms, a large

number of tools will undoubtedly be available.

For less popular platforms, the user may have to

use add-on tools, or write proprietary

transformation definitions.

 Cross-platform interoperability requires tools

that not only generate PSMs but the bridges

between them as well. Existing tools are not so

advanced to cope with this requisite.

Undoubtedly, it’s a matter of time before

software vendors overcome the above-mentioned

limitations. However, there exist a number of areas

that can be improved. More specifically, MDA fails

to:

 Ensure consistency between the produced

code and the preceding models. Even if

vendors succeed in building transformation tools

that fully generate the required code based on the

specifications modelled in the PSMs, one cannot

guarantee that developers will not interfere

manually with the generated code. Consequently,

the consistency between the three cornerstone

models is unstable.

 Cope efficiently with the problem of evolving

requirements. In MDA, every new change

requires code to be regenerated and recompiled,

and the final application to be redeployed.

What’s more, the arbitrary realization of changes

may create gaps between the three models. Last

but not least, MDA can provide access to data

that have been manipulated by previous versions

of the application, only by maintaining different

installations of the applications, approach that is

a neither practical, nor elegant.

ICSOFT 2006 - INTERNATIONAL CONFERENCE ON SOFTWARE AND DATA TECHNOLOGIES

Those limitations are inherent to the MDA’s

comprehensiveness, since it is very difficult to

elaborate on a more sophisticated solution while in

parallel coping with all types of applications.

4 THE PROPOSED

FRAMEWORK

Motivated by the above-mentioned findings related

to the MDA paradigm, its core principles, and the

latest practices adopted by Microsoft and Borland,

we introduce an innovative extension for the

realization of a development and deployment

framework targeted to web-based business

applications. The proposed framework (depicted in

figure 1) will be structured on the basis of a

universal database schema (meta-model).

Development will be supported by components

(modelling tools) that will elicit functional

specifications from users and transform them in

formal definitions, and by data structures (part of the

meta-model) that will be utilized for the storage of

the definitions. Deployment will be supported by

generic components (meta-components) that will be

dynamically configured at run-time according to the

functional specifications provided during

development, and by application-independent data

structures (part of the meta-model) that will hold all

application-specific data. The following two

statements outline the philosophy of the proposed

solution:

 No code (SQL, Java, C++, JSP, ASP, etc.) will

be generated for the produced applications; just

run-time instances of generic components will be

created.

 There will always exist one deployed

application, independently of the actual number

of running applications. Application-specific

behaviour will be rendered by this universal

application according to the functional

definitions that are maintained in the database. In

other words, functional and presentation

specifications are shifted from the middle and

front tier respectively to the database tier (taking

as basis a 3-tier approach that is the most

outstanding architectural paradigm). Response to

business changes is instant, simply through the

manipulation of data tuples.

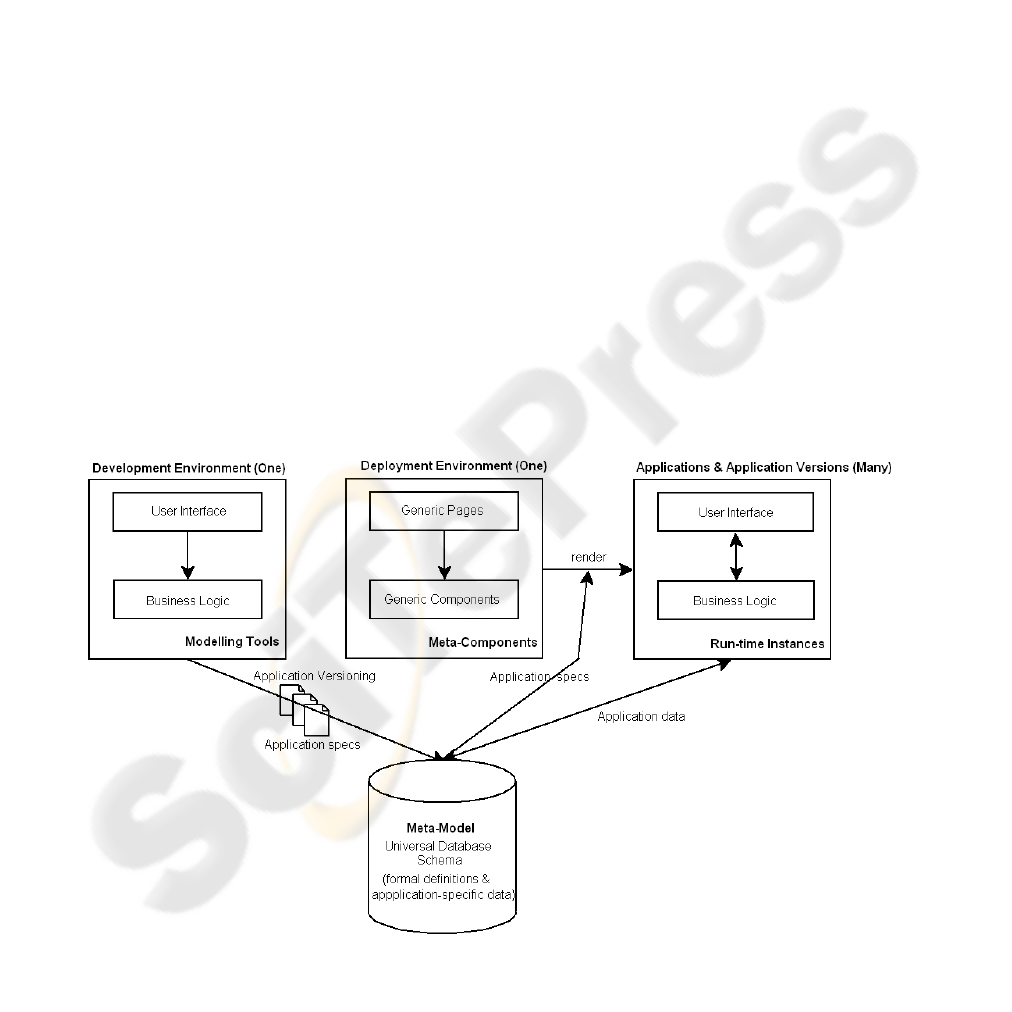

Figure 1: Structure of the Proposed Development and Deployment Framework.

A FRAMEWORK FOR THE DEVELOPMENT AND DEPLOYMENT OF EVOLVING APPLICATIONS - Elaborating

on the Model Driven Architecture Towards a Change-resistant Development Framework

More specifically, the proposed framework includes

the models that are described below.

4.1 Domain Model

The Domain Model is a business-oriented model that

maps to the MDA Platform Independent Model. It

defines the structure of the data that the application

is working on (objects, attributes, and associations),

along with their behavioural aspect (methods) and

business rules. It is mainly structured on the basis of

the Object-Oriented paradigm, augmented with the

extensions introduced by the Object Constraint

Language (OMG, 2003; Coronato & Cinquegrani &

Giuseppe, 2002) for the description of constraints

that govern the modelled objects, plus elements from

an acceptable business rules classification scheme

(Business Rules Forum 2004 Practitioners' Panel,

2005; Butleris & Kapocius, 2002; Herbst, 2002),

with the Ross method (Business Rules Forum 2004

Practitioners' Panel, 2005) being the prevalent.

Therefore, its main entities are:

 Business activities. They carry the information

that is necessary for the execution of a process.

Example: Travel Application, Accommodation

Proposal, Air Ticket, and Traveller.

 Status: Each business object passes through

different statuses during its lifecycle. Example:

Un-submitted, Submitted, and Rejected (for the

travel application).

 Attributes: Define the static aspect (information)

of a business object. Example: Cost (numeric),

Notes (alphanumeric), and Check-out date (for

the Accommodation Proposal).

 Methods: Define the dynamic aspect (behaviour)

of a business object. Example: Submit, Approve,

and Reject (for the Travel Application).

 Association: Represents structural relationship

between business objects that exist for some

duration (in contrast with transient links that, for

example, exist only for the duration of an

operation). Example: A Travel Application is

associated with one or more Accommodation

Proposals.

 Argument: A parameter required for the

execution of method. Example: Submission notes

and priority are arguments of the ‘submit’

method.

 Term: A noun or noun phrase with an agreed

upon definition. A term is essentially an object or

attribute that is included in a business rule.

Example: Air Ticket, fare.

 Fact: A complete statement connecting terms

(via verbs or prepositions) into sensible,

business-relevant observations. A fact is

essentially a business-significant association.

Example: A Travel Application is associated with

at least one Traveller.

 Computation Rule: Provides an algorithm for

arriving at the value of a term. A computation

rule is essentially a business-significant method.

Example: The total cost of a Travel Application

is computed as the air tickets fare plus the

accommodation cost.

 Pre-condition: A condition that must hold before

executing an operation. It typically evaluates one

or more attributes. Example: The ‘submit’

method can only be executed upon those travel

applications that are un-submitted.

 Post-condition: Defines either the return value of

a method or modifications on the value of

component attributes that must be performed.

Example: The status of a Travel Application

changes to ‘submitted’ after the execution of the

‘submit’ method.

 Guard: Force the execution of operations

anytime triggers (i.e. all attributes involved in the

guard condition) get a specific state. Example:

Each time an Accommodation Proposal gets

approved by the travellers (i.e., its status

changes to ‘approved’) the status of the

associated Travel Application is updated.

 Invariant Constraint: A condition that must

always hold as long as the system operates. It

typically constraints the value of an attribute.

Example: The value of the attribute

‘numberOfPassengers’ should always be greater

than zero.

Besides business rules and data processing logic,

every business application incorporates mechanisms

for enterprise modelling, business relationships

establishment, role assignment, and personnel

administration. Thus, the Domain Model embraces

an additional component, named Enterprise Model,

which covers inter- and intra-organizational aspects.

The main entities of this sub-model are:

 Business Role: In each process, one or more

business roles are identified. Example:

Corporation, Travel Agency.

 Enterprise: The organization that participates in

the process by undertaking a specific business

role. In the case of business applications limited

to the enterprise scope, only one organization

exists. In the case of business networks or e-

ICSOFT 2006 - INTERNATIONAL CONFERENCE ON SOFTWARE AND DATA TECHNOLOGIES

marketplaces multiple organizations exist.

Example: Corporation X, Travel Agency Y.

 Business Units: Departments, branches or

affiliated companies of an enterprise. Example:

The accounting department of corporation X

 Partnership: Cooperation relationships

established between enterprises (applies only to

business networks and e-marketplaces).

Example: The Partnership that has been

established between corporation X and travel

agency Y within the CTP (supposing that an e-

marketplace that enables the cooperation of

travel agencies with corporate customers exists).

 Partner: An enterprise that participates in a

partnership by playing an undertaking business

role. Example: The travel agency Y in the

previous partnership.

 Employee: A person employed by an enterprise.

Employees usually belong to business units.

Example: Mr. X.

 Role: Represents the responsible actor for the

fulfilment of a set of activities (methods

implemented by business objects). An activity

can be optionally associated with more than one

role. Example: Traveller, Travel Arranger,

Travel Agent, and Travel Administrator.

 User: An employee that has access to the

business application. A user is associated with

one or more roles. Example: Mr. X that access

the business application as traveller.

Although the entities included in the Enterprise

model can be implemented as instances of the meta-

entities of the core Domain Model, we have selected

to handle them separately for reasons of

performance. Thus, instead of dynamically

configuring the meta-entities to render the desired

functionality, we utilize standard entities. This

differentiation stems from the fact that the

mechanisms implemented by the Enterprise Model

can be specified in advance, as they are common

among all business applications.

Specifications included in the Domain Model

will be stored in a database. The database schema

should embrace the proposed structure and include

all identified entities (Business Object, Method,

Rule, etc.).

As for modelling language, UML including OCL

will be extensively utilized within the Domain

Model. However there is need for a specialization of

UML for modelling inter- and intra-organizational

aspects, which means that a new UML profile

focused on the Enterprise Model should be defined.

4.2 Application Model

The Application Model maps to the MDA Platform

Specific Model and focuses on the targeted platform.

The Application Model contains the following three

sub-models:

 Presentation Model: It pictures the overall

structure of the presentation elements. Display

pages are defined for every business object based

on the identified attributes. Input pages that elicit

the information required for the execution of the

methods are defined based on the specified

arguments. Pages are interrelated according to

the identified object associations.

 Business Logic Model: Suppose that we select

the Java 2 Standard Edition as target platform.

All objects and terms will be mapped to the

‘java.lang.Object’ class. Alphanumeric attributes

will be mapped to ‘java.lang.String’ class. A

method (or part of it) that returns part of an

alphanumeric will be mapped to the ‘substring’

method that is implemented by the

‘java.lang.String’ class. A computation rule will

be mapped to a set of primitive methods

supported by the target platform that will be

invoked in specific order in order for the rule to

be propagated. In general, all elements included

in the Domain Model will be mapped to

fundamental elements of the target programming

language.

 Data Model: Based on the identified objects,

their attributes and the way they associated, a

data model is structured. Only persistent objects

are mapped to database structures. The

discrimination between persistent and transient

objects is captured in the domain model.

4.3 Operation Model

The Operation model consists of the following

building blocks.

 Presentation Model Instance: Run-time

instances of generic presentation elements (e.g.,

Java Server Pages or Active Server Pages that

obey to specific Cascading Style Sheets).

 Business Logic Model Instance: Run-time

instances of the generic functional components

(meta-objects) that render the behaviour of an

application-specific object. The exact process is

the following: application specifications are

retrieved from the database at run-time and the

generic components are configured dynamically

in order to expose the specified functionality by

A FRAMEWORK FOR THE DEVELOPMENT AND DEPLOYMENT OF EVOLVING APPLICATIONS - Elaborating

on the Model Driven Architecture Towards a Change-resistant Development Framework

utilizing reflectional adaptation techniques

(reflection is the process by which a program can

modify its own behaviour and is supported by

many object-oriented programming languages).

For each different technology utilized at

Application Level (J2SE, .NET, J2EE), different

components should exist. Practically speaking,

every programming language that supports

reflectional behaviour can be utilized.

 Data Model Instance: The part of the unified

database schema that will hold the realizations of

the business object instances (e.g., realizations of

the travel applications, orders, products, etc.).

The database schema will be independent of the

applications, i.e., its structure will be fixed. In

(Yannakoudakis & Tsionos & Kapetis, 1999) a

framework for dynamically evolving database

environments is introduced. Similar to our

approach it is based upon a database structure

that is independent of applications. Changes to

the data structure of the application result to

record modifications, instead of changing the

schema itself. In comparison to our approach the

specific research effort focuses only to the data

side of applications.

4.4 Discussion

Note that the three sub-models included in the

Application Model are not transformed to code at

operation level, except for the part of the Business

Logic Model that originates from the Enterprise

Model. Instead, the definitions that they include are

coupled with the generic components (presentation

elements, functional components, and database) in

order for the required functionality to be rendered.

The proposed framework responds to the

challenges identified in Section 4 as follows:

 Consistency between the produced code and

the preceding models. Since no code is

generated and the middle model is generated

automatically in its entirety, all changes are

realized through the Domain Model.

 Efficient handling of evolving requirements.

Having shifted the functional and presentation

specifications from the middle and front tier

respectively to the database tier we can easily

achieve evolution management by applying

standard data versioning techniques. In case the

static (attributes) or dynamic (methods)

definition of a business object is modified this

results in modifications to the underlying data

instances, i.e., we can deal with changes at

deployment time without recompiling and

redeploying the application. What’s more we

can, at anytime, refer to a previous version of an

application and examine old data in their real

context by retrieving the corresponding data

instances from the database, without the need of

maintaining multiple installations.

What’s more, in full compliance with the MDA

principles, the framework enhances productivity by

incorporating application generation features

through the elicitation of high-level, formal

definitions that are automatically transformed to

low-level technical specifications, and supports

portability through the Application Model that can

be theoretically supported by any programming

language that supports reflection and by any

database system.

5 CONCLUSIONS AND

FURTHER RESEARCH

In this paper we examine the development and

deployment of web-based business applications

through a different perspective: our main aim is to

elaborate on and limit the side-effects that are

induced by the continuously changing requirements,

while conforming to the principles introduced by the

MDA paradigm and retaining its undisputable

advantages, i.e., improved productivity, efficient

documentation, effective maintenance, production,

portability, and interoperability. For this reason, we

suggest transferring the functional specifications of

the application from the components (code) to the

database and utilizing them at run-time in order to

configure generic components. The development

and deployment platform will be based upon a

unified database schema. The generic components

will be built with the use of a programming language

that supports reflection. These meta-components

will be configured at run-time in order to render the

application-specific functionality. Dynamic

functional specifications will let end-users deal with

changes at deployment time without recompiling

and redeploying the application. What’s more, with

simple data versioning techniques that enable the

retrieval of previous specifications, the operation of

previous versions of an application will be feasible

through the same, unique installation. Last but not

least, since all changes pass through the Domain

Model, the consistency between the three

cornerstone models will not be compromised.

ICSOFT 2006 - INTERNATIONAL CONFERENCE ON SOFTWARE AND DATA TECHNOLOGIES

It should be clear that our goal is to present an

interesting perspective that could somehow extend

the MDA framework and not replace it. Besides, one

can easily identify a set of drawbacks in comparison

with the MDA framework:

 The proposed framework has narrower scope,

since it focuses on web-based business

applications.

 MDA handles efficiently integration with other

systems, while the current formulation of the

proposed framework supplants the specific

coordinate.

 Indisputably, a solution that is build upon a

meta-model and extensively utilizes reflection

requires increased computational resources

compared to a traditional one.

The first constraint is enforced by the fact that is

practically infeasible to create a generator that can

produce any application (Guerrieri, 1994; Wu &

Jen-Her & Hsia et al., 2003) and is in compliance

with the latest developments as pictured by the

initiatives undertaken by major software players.

This is the main reason for considering and

evaluating this framework as an extension of the

MDA that targets on a specific group of

applications. The third drawback is minor, since the

availability of powerful computational resources

encourages the elaboration of sophisticated

solutions. Working towards a ‘lighter’ solution, we

will consider adopting partial behavioural reflection

(Tanter & Noye & Caromel et al., 2003). We also

plan to address the issue of interoperability.

Future research will focus on:

 Extending the framework with a coordinate

that will cover the need for cross-platform

interoperability. This coordinate will be

structured on the basis of the Web Services

paradigm.

 Elaborating on a new UML Profile for the

modelling of business entities.

 Implementing the required infrastructure.

After finalizing the structure of the framework

and identifying all main entities, we have to

elaborate on the database schema. Performance

issues should be seriously taken into account in

the selection of the adopted data-modelling

paradigm (relational, object-relational, object).

The next step will be the specification and

implementation of the meta-components along

with the components that will support the

development process. The derived prototype will

verify the viability and efficiency of the

proposed solution.

REFERENCES

Business Rules Forum 2004 Practitioners' Panel, 2005.

The DOs and DON'Ts of Business Rules. Business

Rules Journal, Vol. 6, No. 4,

http://www.BRCommunity.com/a2005/b230.html

Butleris, R., Kapocius, K., 2002. The Business Rules

Repository for Information Systems Design. ADBIS

Research Communications: 64-77

Coronato, A., Cinquegrani, M., Giuseppe, D.P., 2002.

Adding Business Rules and Constraints in Component

Based Applications. CoopIS/DOA/ODBASE: 948-964

Greenfield, J., 2004. Software Factories: Assembling

Applications with Patterns, Models, Frameworks, and

Tools,

http://msdn.microsoft.com/library/default.asp?url=/libr

ary/en-us/dnbda/html/softfact3.asp

Guerrieri, E., 1994. Case Study: Digital's Application

Generator. IEEE Software, 11(5) 95-96

Herbst, H., 1996. Business Rules in Systems Analysis: a

Meta-Model and Repository System. Inf. Syst. 21(2)

147-166

Kleppe, A., Warmer, S., Bast, W., 1996. MDA Explained.

The Model Driven Architecture: Practice and Promise

(Chapter One). Addison-Wesley.

Miller, J., Mukerji, J., 2001. Model Driven Architecture –

A Technical Perspective. http://www.omg.org/cgi-

bin/doc?ormsc/2001-07-01

Miller, J., Mukerji, J., 2001. Technical Guide to Model

Driven Architecture: The MDA Guide v1.0.1.

http://www.omg.org/cgi-bin/doc?omg/03-06-01

OMG, 2003. Object Constraint Language Specification.

http://www.omg.org/cgi-bin/doc?ptc/2003-10-14

Roddick, J.F., Al-Jadir, L., Bertossi, L.E., Dumas, M.,

Estrella, F., Gregersen, H., Hornsby, K., Lufter, J.,

Mandreoli, F., Mannisto, T., Mayol, E., Wedemeijer,

L., 2000. Evolution and Change in Data Management -

Issues and Directions. SIGMOD Record 29(1) 21-25

Tanter, E., Noye, J., Caromel, D., Cointe, P., 2003. Partial

behavioral reflection: spatial and temporal selection of

reification. OOPSLA 27-46

Wu, Jen-Her, Hsia, Tse-Chih, Chang, I-Chia, Tsai, Sun-

Jen, 2003. Application Generator: A Framework and

Methodology for IS Construction. 36th Annual Hawaii

International Conference on System Sciences (IEEE -

HICSS) 263-272

Yannakoudakis, E. J., Tsionos, C. X., Kapetis, C. A.,

1999. A new framework for dynamically evolving

database environments. Journal of Documentation,

55(2) 144-158

A FRAMEWORK FOR THE DEVELOPMENT AND DEPLOYMENT OF EVOLVING APPLICATIONS - Elaborating

on the Model Driven Architecture Towards a Change-resistant Development Framework
