AVOIDING TWO-LEVEL SYSTEMS: USING A TEXTUAL

ENVIRONMENT TO ADDRESS CROSS-CUTTING CONCERNS

David Greaves

University of Cambridge, Computer Laboratory

Cambridge, UK

Keywords:

Aspect Oriented Programming, Meta-Programming, Textual Environment, Interceptor Function.

Abstract:

We believe that, owing to the paucity of textual facilities in contemporary HLLs (high-level languages), large

software systems frequently require an additional level of meta-programming to sufﬁciently address their

cross-cutting concerns. A programming team can either implement its system by both writing the main ap-

plication in a slightly customised language and the corresponding customised compiler for it, or it can use a

macro pre-processor to provide the remaining cross-cutting requirements not found in the chosen HLL. With

either method, a two-level system arises. This paper argues that textual macro-programming is an important

cross-cutting medium, that existing proposals for sets of pre-deﬁned AOP (aspect-oriented programming) join-

points are overly constrictive and that a generalised meta-programming facility, based on a textual environment

should instead be directly embedded in HLLs. The paper presents the semantics of the main additions required

in an HLL designed with this feature. We recommend that the textual features must be compiled out as the

reference semantics would generally be too inefﬁcient if naively interpreted.

1 INTRODUCTION

Although the term is relatively new, cross-cutting re-

quirements have always been found in large software

projects, and have been met in various ways, aligned

with various cutting/joining axes that we list in the

next paragraph. This paper emphasises one partic-

ular cutting axis, that of the textual structure of the

source ﬁle. We ﬁrst provide a list of the main cut-

ting axes, then list ways in which the textual axis is

exploited by the C/C++ pre-processor and speak of

alternatives when a pre-processor is not used. Finally

we introduce our own textual-environment concept to

HLL (high-level language) compilation and evaluate

it in terms of how it addresses the facilities otherwise

provided by a pre-processor or customised compiler.

By means of introduction, we list the common

facilities provided for cross-cutting found in HLLs,

starting with the most basic. We deﬁne a ‘cross-

cutting’ aspect of a language to be any mechanism

within the language that provides a link from one part

of the program to another. It reduces the effective di-

ameter of the program by increasing the dimensional-

ity of the interconnectivity.

Cross cutting axes we identify are:

ADVANCED IDE PREPROCESSOR

MAIN APPLICATION CODE

CUSTOMISED

INTERPRETER/COMPILER

CROSSCUTTING

CONCERNS

EXECUTING PROGRAM

To Upper

Crust

To Lower

Crust

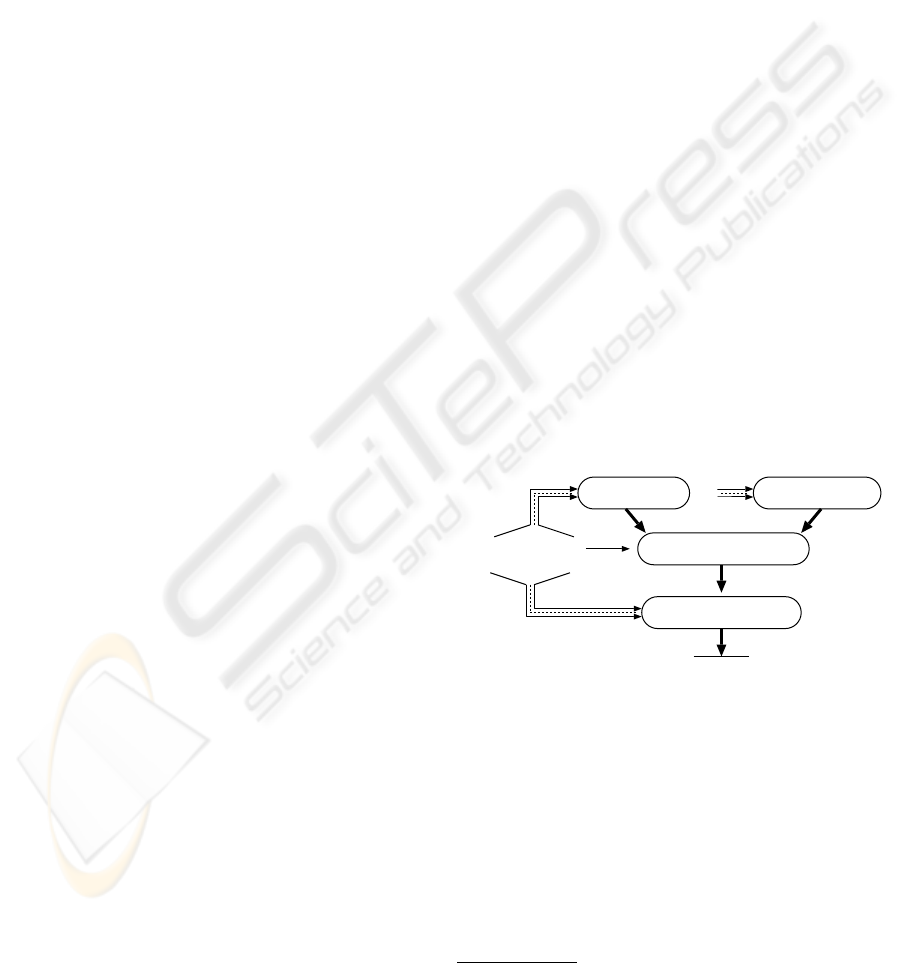

Figure 1: Cross-cutting aspects feeding either into the upper

or the lower crust of the sandwich that contains the main

application code.

1. Shared Global Variables. Shared variables are the

most ancient and basic cross-cutting facility, ac-

cording to our deﬁnition thereof. Although obvi-

ous, we list them for completeness.

2. Thread Dynamics. A thread weaves between sub-

routines, often held in separate textual ﬁles

Strangely, in the hardware description languages

VHDL and Verilog, threads may not move between mod-

ules. This is one of the most distinguishing features of

Greaves D. (2006).

AVOIDING TWO-LEVEL SYSTEMS: USING A TEXTUAL ENVIRONMENT TO ADDRESS CROSS-CUTTING CONCERNS.

In Proceedings of the First International Conference on Software and Data Technologies, pages 71-76

DOI: 10.5220/0001318100710076

 SciTePress

3. Static and Dynamic Reference Environments.

Apart from access to global and dynamically allo-

cated local variables, programing languages with

dynamic-free variables, such as Pascal, OCAML

and dialects of Algol, provide function closures

where a function can make direct reference to val-

ues in its closing environment, even when it has

been passed off for remote execution as an upcall

(see following note).

4. Computed Branches and Upcalls. Languages

that enable function pointers to be stored in vari-

ables, which is all modern languages, enable dy-

namic dispatch and remote invocation of these

functions. Where one component stores an entry

in the data-structure of another (often providing a

so-called up-call), this is a cross-cutting feature.

5. Object Static and Dynamic Hierarchy. The static

module inheritance graph of an OO language and

the dynamic, actual instantiation of an object mesh

at run time are both forms of cross-cutting. We note

that Java decided not to provide access to dynamic

function variables that are free in a method be-

cause it instead provides access to the ﬁelds in the

surrounding object that may be dynamically allo-

cated almost as easily. Programmers used to SML,

OCAML, Haskell and so on often ﬁnd this a nui-

sance, but the overhead of providing both a static

chain and an object context, with the former not

likely to be used by contemporary mainstream pro-

grammers, was seen as too great by the Java design-

ers; hence they traded one form of cross-cutting for

another.

6. Long Jumps and Exceptions. Long jumps and ex-

ceptions form another cross-cutting aspect (by our

deﬁnition) whose usefulness is well proven.

7. Macro Pre-Processing. The C pre-processor is

used to provide a whole gamet of cross-cutting

facilities, which we list separately below. Pre-

processing is often deprecated because it is crude,

being not type-safe and offering the potential to

make a program unreadable. This paper will hold

that pre-processing should be replaced with a well-

designed, yet simple, ‘meta-programming’ facility

that is a primary part of any compiled HLL.

8. Constructors, Access Functions and Overload-

ing. OO languages allow the user to insert their

own code at points where abstract datatypes are

created, read or otherwise operated on, by writing

constructors and methods bound to overloaded op-

erators. These are useful joinpoints.

9. Templates and Generics. Some would argue that

C++ templates and other similar HLL generics are

these languages that enforces a totally different program-

ming style from that used in all (other) software.

artifacts to overcome antiquated, non-parametric,

type systems, and would suggest using HM (Mil-

ner, 1978) typing instead. However, in whatever

way the type system works, the facility to insert

additional code in the template libraries provides a

form of cross-cutting. Provision of some form of

polymorphism, even just through ‘void

’ casts,

is a required cross-cutting form for any HLL used

in a large system.

We assert that the tacit motivation for AOP (aspect-

oriented programming) is that those languages that

do not normally use a pre-processor are restricted be-

cause the remaining parts of the above list are insufﬁ-

ciently expressive. The sandwich diagram, ﬁgure 1,

shows that some cross-cutting requirements can be

met by the facilities of the HLL per se, whereas the

remainder are implemented using some form of meta-

programming. Two forms are shown. Either a pre-

processor is used, by which we imply to include the

operations of this nature performed by an IDE (inte-

grated development environment). This is the upper-

crust approach. Otherwise, customisation of the com-

piler/interpreter is needed. This is the lower-crust

approach. We believe that only one crust is needed

to provide sufﬁcient additional cross-cutting. In our

terms, Aspect-J (Kiczales et al., 2001) is a lower-crust

approach, where modiﬁcation of the compiler serves

this purpose and the modiﬁcations are sufﬁciently

ﬂexible to provide fairly generic meta-programming.

One can also argue that the lower crust represents a

frequent, major motivation for developing specialised

HLL’s, such as database languages. In the author’s

personal experience, where a project team has worked

on an ML program some 100,000 lines long, occa-

sional customisations to the ML compiler have proved

invaluable when certain cross-cutting requirements

have arisen. These all fall into one of the application

categories listed below.

The C/C++ preprocessor embodies many individ-

ual functions and is deﬁned in terms of multiple

passes of the source ﬁles. However, a small and well-

known core of operations is all that is commonly re-

quired. Although most readers of this paper will be

well-familiar with the C preprocessor and its typical

uses, it is worth listing those speciﬁc uses here, so

that the reader can consider our assertion, in terms of

each use, that AOP has been an attempt to re-provide

these facilities when a pre-processor is not routinely

used or is deprecated, or the run-time system cannot

be customized. The list also serves as the basis for our

evaluation criteria in the results section of this paper.

The C/C++ pre-processor is commonly used for the

following (cross-cutting) functions. We note that the

majority

of these functions can be provided using the

When we say the ‘majority’ we could have put ‘all’ be-

cause the residual language is, of course, Turing complete.

ICSOFT 2006 - INTERNATIONAL CONFERENCE ON SOFTWARE AND DATA TECHNOLOGIES

other major cross-cutting forms listed above, such as

sending a thread to a method or carrying extra param-

eters into a function, but that the alternative would

be unnecessarily expensive compared with the pre-

processing function.

• Tie-Offs. A tie-off is the permanent setting of a

variable to a constant value. For instance, hard-

wiring the name of a directory path or the IP ad-

dress of a primary server.

• Conditional Compilation. From the point of view

of this paper, conditional compilation is a tie-off to

the guard expression of a conditional construct.

• Textual Inclusion and Access to Textual Con-

text. The C pre-processor allows one ﬁle to include

another and enables the name and line number of

the current ﬁle to be accessed, using

FILE and

LINE . Newer HLLs, like Python and Java, pro-

vide reﬂection APIs that allow much greater infor-

mation about the textual structure of the program

source to be read off. Our textual environment,

introduced later, relies on this information being

available.

• Assertions. Pre-processor assertions generally re-

quire both conditional compilation (for rendering a

speed-enhanced version) and a long jump or excep-

tion mechanism. Provided these two cross-cutting

axes exist, conventional assertions can be imple-

mented. If we have textual inclusion and access

to textual context, they can be placed in their own

library and print the details of their caller.

• Visualisation, Logging, Coverage Monitoring,

etc.. The conditional compilation aspect of the pre-

processor enables logging to be turned on and off

with global switches, and access to textual context

enables C/C++ macros to be conditional, as well as

providing vital information to index the recorded

data. There are many variations of logging, includ-

ing visualisation of program resource consumption

and code coverage testing. Logging was the exam-

ple cross-cutting concern addressed in several AOP

papers (Kiczales et al., 2001).

• Memory Allocation and Tracking. The pre-

processor is often used to implement a ‘new’

macro in C, overcoming a historical deﬁciency

and the tracking functions just require a cross-

cutting logger.

• Watchpoints. Using the pre-processor, it is easy

to provide breakpointing when a thread reaches a

However, it would be tortuous to achieve the more-textual

forms even using a reﬂection API.

Aside: Some might argue it is not a deﬁciency: they

say the fact that C does not always require a memory man-

ager or any form of run-time system at all is one of its main

strengths for bare-metal programming.

particular line of code; watching for a variable to

attain a certain value requires that all writes are

ensconced inside unpleasant macro calls; check-

ing for the formation of a particular pattern in a

data structure is not at all easy. The customised

compiler approach is perhaps the easiest conven-

tional way to watch for the latter, when available;

otherwise specialist hardware techniques are used,

which are beyond the scope of this paper.

• Accessor Functions for Opaque Data-

Structures. Inter-procedure call optimisation

has replaced the use of in-lined macros as the best

way to access otherwise opaque data-structures.

This use is obsolescent.

• Inter-language Calls and Miscellaneous

Application-Speciﬁc Uses. There are many

other applications for the pre-processor, but we

assert that the remaining uses can be regarded

as application-speciﬁc rather than cross-cutting.

These include persistence, scheduling, and a

whole host of library, operating-system and inter-

language calls. The majority of these uses cannot

be coded in the original HLL, or certainly require

deferred linking, and hence are not cross-cutting

aspects of the current application.

A textual (or typographical) technique known to all

mathematicians is the distributive law. We assert it

can be helpful in programming. For instance, if g()

does not produce side effects referenced by f (), and

vice versa, then

f(if g() then A else B)

can be rewritten as

if g() then f(A) else f(B).

Our assertion is that the process of ‘folding in’ is a

required form of cross-cutting in large software sys-

tems, where the desire is to apply f() at one point

and have it executed at many, textually lower, points.

Our approach is to pass items such as f (), as well as

tie-offs that might effect various functions like g(),

down through the textual structure of the program to

the leaves where they will act.

2 EMBEDDED PRE-PROCESSOR

In this section we deﬁne what is essentially a pow-

erful, embedded pre-processor. This is speciﬁ-

cally designed to serve the cross-cutting aspects that

have been met with a second level, that of macro-

processing, as identiﬁed in the previous section.

We assume the abstract syntax tree of our HLL is

very typical, like the following:

AVOIDING TWO-LEVEL SYSTEMS: USING A TEXTUAL ENVIRONMENT TO ADDRESS CROSS-CUTTING

CONCERNS

| eval (s, t) (apply(f, args)) =

let val (lambda(bv, body), s’, t’) = eval (s, t) (f)

fun evalargs(nil, nil, s) = s

| evalargs(f::ft, a::at, s) = let val (a’, s’, _) = eval(s, t) a

in (f,a’)::evalargs(ft, at, s’) end

val s2 = evalargs(bv, args, s’)

val (r, s3, _) = eval (s2, t’) body

in (r, s3, t’)

end

| eval (s, t) (apply(Str f, args)) =

let val (lambda(bv, body), s’, t’) = eval (s, t) (Str f)

fun mv n = "_" ˆ (Int.toString n)

val mvl = ref nil

fun evalargs(n, nil, nil, s) = s

| evalargs(n, f::ft, a::at, s) = let val (a’, s’, _) = eval(s, t) a

val _ = mvl := (mv n, a’)::(!mvl) in (f,a’)::evalargs(n+1, ft, at, s’) end

val s2 = evalargs(1, bv, args, s’)

val mf = assoc(f, t’)

fun do_mf (tc_mf(lambda(bv, mb))) (a1, a2) =

eval (!mvl @ ("arg1", a1)::("arg2", a2)::s, t) mb

| do_mf (_) (a1, a2) = (a1, s, t)

val _ = do_mf mf (Int 0, Int 0)

val (r, s3, _) = eval (s2, t’) body

val (r’, _, _) = do_mf mf (Int 0, r)

in (r’, s3, t’)

end

Figure 2: The clause for Function Apply taken from our toy interpeter. For clarity, it is ﬁrst shown without the entry and

exit calls to the mf accessor joinpoint. The triple returned is the result, the modiﬁed environment σ

′

and the modiﬁed textual

environment, Te’.

datatype exp =

Str of string | Int of int | Var of str

| plus of exp

exp | ...

| ... other common expression operators,

| lambda of exp list

exp

| meta of exp

exp

| apply of exp

exp list

| block of exp list

| defun of ...

Rather than presenting only the denotational se-

mantics for the embedded pre-processor, we alter-

nate the presentation by giving fragments of SML

from a toy implementation of the interpreter. Hence,

we write ‘eval(ast, sigma, text)’, instead

of [[ ast ]]

(σ,Te)

, where ast is a fragment of ab-

stract syntax tree, σ is an association list for the

environment, mapping variables to values, and Te

is our new textual environment. In the com-

piler, as opposed to the interpreter, σ is a sym-

bol table mapping variables to run-time store loca-

tions. Additional arguments would be needed to

support either dynamic free variables and/or the OO

‘this’ current object pointer, but these are book-

work and omitted for clarity. The demonstrator in

SML can be downloaded from the following URL

http://www.cl.cam.ac.uk/users/djg/aspectsdemo.

A full implementation of the textual environment,

Te, would be too long to present in this paper, and

its ﬁne detail is not very important. The signiﬁcant

aspects are:

1. It is initialised as a set of bindings/tie-offs by com-

mand line ﬂags, such as the -D ﬂag used in C/C++,

the source ﬁle path, using URI etc. and from other

compile-time environment settings.

2. It is temporarily augmented, in the style of a LIFO

stack, by an explicit ‘meta’ construct as well as by

entry to each nested block or textual inclusion.

3. A set of access functions and predicates provided

as natives in the HLL are able to extract values and

test properties of Te.

4. Names of variables and functions appearing else-

where in the source program can be stored in Te to

produce special behaviour where they occur.

The simplest access function would be the direct oc-

currence in an HLL expression of the name of a

textual variable, bound only in Te. Variables are

looked up in Te before σ to give precedence to tie-

offs. To avoid over-pollution of the expression names-

pace, speciﬁc textual values should be extracted from

Te with an HLL primitive such as ‘

T()’. For exam-

ple, [[

T(name) ]]

(σ,Te)

= name(Te), where name

is one of many possible builtin accessor functions

for textual context, e.g. one that retrieves the clos-

ICSOFT 2006 - INTERNATIONAL CONFERENCE ON SOFTWARE AND DATA TECHNOLOGIES

est textually-surrounding basic block name. Others

would access line number and ﬁle and directory name.

Conditional compilation is implemented using the

language’s conventional conditional constructs, such

as ‘if’, ‘case’ and ‘?:’, where the guard expression

makes access to Te.

The sequence rule, typically denoted in the con-

crete syntax with semicolon, is augmented by the

HLL parser to supply additional context information

such as the line number for each sequence operator.

We denote the meta information at the semicolon by

the sufﬁx a;

[[ e1;

e2 ]]

(σ,t)

let (

, σ

′

, Te

′

) = [[ e1 ]]

(σ,Te)

in [[ e2 ]]

(σ

′

,a@Te

′

)

The sequence rule evaluates e2 using both environ-

ments returned from e1. Imperative basic blocks

(generally denoted with braces or begin/end) are

built out of the sequence rule in the normal way, ex-

cept that the ﬁnally returned textual environment is

the initial one that acted at the start of the block,

thereby deleting bindings created inside the block.

User tie-offs (bindings) can be locally introduced

into Te with the HLL ‘meta’ construct that augments

the textual context for the remainder of the current

basic block.

[[ meta(v, e) ]]

(σ,Te)

= (⊥, σ, (v, [[ e ]]

(nil,Te)

) :: Te)

Note that σ is ignored when evaluating e since it is

not known until runtime in the compiler version.

The basic function application step, when using the

textual environment, is presented in the top part of

ﬁgure 2. This implements the procedure and func-

tion call operation, using call-by-value. The actual

parameters are evaluated in order, leading to succes-

sive new bindings in σ, as well as any other side ef-

fects, before the body is evaluated in the ﬁnal σ, de-

noted s2.

Note that the textual environment for

evaluating the body, t’, is that from the function

deﬁnition, rather that that of the caller. In an inter-

preter, it would be helpful to provide access to aspects

of the caller’s textual environment, but this would

add considerable run-time overheads, if supported for

separately-compiled modules.

With the given simple code, the binding of the bound

variable is left in the returned environment, s3, but ideally

this would not be the case in reality, such as our own refer-

ence implementation.

Where dynamic-free variables are used, the eval of f

will return a closure to augment sigma during the eval of

the body. This form of cross-cutting should be considered

to be applied to all of our fragments, but we do not show it

for clarity.

To provide logging and accessor functions for for-

mal parameter, variable and ﬁeld access operations

we allow user-deﬁned interceptor functions to be reg-

istered in Te, associated with any variable, that are

called when that variable is read or written (second

argument is a 1 for a write). The execution seman-

tics for this are where f : α ∗ int → α is as-

sociated with variable b, then, on a right-hand side,

[[ b ]]

(σ,Te)

is replaced with f ([[ b ]]

(σ,Te)

, 0) and, on

the left-hand side [[ b := e ]]

(σ,Te)

is replaced with

b := f ([[ e ]]

(σ,Te)

, 1). This is a more general form

of the tie-off, but can be deﬁned with the same con-

crete syntax: namely meta(f, e). Locality of opera-

tion is controlled both by the restricted scope of the

meta construct and the ability of the accessor func-

tions to test Te to gate their behaviour. To achieve

global control, starting values are established in Te on

the compiler command line or via the IDE.

Interceptor functions also serve at the function call

and return join points. They operate before the call,

but after evaluation of the arguments, or at the re-

turn and on the return value. The meta construct can

again be used to set up the desired action, associating

a number of user constant tie-offs or user interceptor

functions with the locally enclosing function or any

named function called while the subsequent textual

environment holds.

Speciﬁcally, ‘meta(af, mf); e2’ causes all calls to

af within e2 and any subsequent sequential com-

mands in the same basic block to have their return

value passed through function mf, for logging or tie-

off. The second argument to mf is a 1 on the return

stroke. On the before-call stroke, the second argu-

ment is a 0 and its return value is ignored. For callee

side interception, af is replaced in the meta state-

ment with null or some other token to signify the

current function in all functions deﬁned within block

starting with e2.

The implementation of the caller’s side intercep-

tions is illustrated in the lower part of ﬁgure 2, al-

though, for brevity, only one interceptor function, mf,

is retrieved per function call instance. After evalu-

ating the actual arguments, Te is searched by the

caller for a deﬁnition pertaining to the called function.

In an efﬁcient interpreter, the search result would be

cached, using whatever technique is already deployed

for optimising branches, whereas for compilation the

search is only made once anyway. Also shown in the

code is a helpful facility to intercept the caller’s ar-

guments in either the pre- or post-call joinpoint. It

would be handy to access these during the execution

of mfusing the formal names they are bound to in the

callee, but this cannot be done if the callee is com-

piled separately or a computed branch is used where

different formal identiﬁers are used in different desti-

nations. Therefore, as a fallback, hardwired, stylised

identiﬁers are always provided, such as

1, 2, to ac-

AVOIDING TWO-LEVEL SYSTEMS: USING A TEXTUAL ENVIRONMENT TO ADDRESS CROSS-CUTTING

CONCERNS

cess the actuals by positional index.

The implementation of the callee-side joinpoints is

similar. As mentioned, a special token, such as the

empty string, should be passed as the ﬁrst argument to

the meta statement to register an interceptor function

for entry and exit to the currently textually enclosing

procedure or function deﬁnition.

Another useful feature is for Te to contain a han-

dle on the stack pointer so that calls can be associated

with their returns. The actual stack pointer is easily

mapped to a simple integer on most machines, and

the integer can then be accessed as ‘

sp’. Although it

is intended that only the relative values of the integer

have meaning, bugs that arise from use of the actual

values will tend to be machine-dependent. Compile-

time static analysis can ensure that no reliance of ac-

tual values is used, but we have not implemented that.

Although we have only implemented an interpreter

for the textual environment feature, we have spoken

of the constraints and beneﬁts arising form the com-

piled implementation. Compilation is certainly our

intended medium, not least for efﬁciency. Standard

techniques for converting an interpreter to a compiler

(Futamura, 1999) are not made less practical by our

approach.

Small-scale trials would be the best form of eval-

uation of the presented work, but we have not had a

chance to start them. Nonetheless, if the reader now

scans again the list of applications addressed by the

two-level system, we believe it is more-or-less ob-

vious that use of our textual environment, which is

automatically augmented with meta-information by

the command line, IDE, textual inclusion and named

block and sequencing operators, can adequately ad-

dress the application list.

3 CONCLUSION

This paper has presented an original and comprehen-

sive deﬁnition of weaving and cross-cutting meth-

ods and applications. We asserted that the main

uses are conventionally met using a single level

of meta-programming (not a new assertion (Volder,

1999)). Two possible levels were presented: pre-

processor and customised HLL. We used the C/C++

pre-processor as our main example owing to it be-

ing widely familiar. We then presented the essence of

a general-purpose, single-level compilation technique

that provides all of the methods and applications we

found in the pre-processor. Our solution requires al-

most no additional syntax in a concrete implementa-

tion and is therefore claimed to be superior to other

proposals.

An extension to our system would allow writes as

well as reads to the textual environment. This would

facilitate storage of meta-data needed for emerg-

ing dynamic-binding applications based on reﬂection

APIs and so on.

Please note that although we have used a functional

language (SML) to express the main evaluation func-

tion, our approach applies equally to imperative and

functional target languages.

REFERENCES

Futamura, Y. (1999). Partial evaluation of computation pro-

cess - an approach to a compiler-compiler. Higher-

Order and Symbolic Computation, 12(4):381–391.

Kiczales, G., Hilsdale, E., Hugunin, J., Kersten, M., Palm,

J., and Griswold, W. G. (2001). An overview of As-

pectJ. Lecture Notes in Computer Science, 2072:327–

355.

Milner, R. (1978). A theory of type polymorphism in pro-

gramming. Journal of Computer and System Sciences,

17(3):348–375.

Volder, K. D. (1999). Aspect-oriented logic meta program-

ming.

ICSOFT 2006 - INTERNATIONAL CONFERENCE ON SOFTWARE AND DATA TECHNOLOGIES
