CLICKSTREAM DATA MINING ASSISTANCE

A Case-Based Reasoning Task Model

Cristina Wanzeller

Departamento de Informática, Escola Superior de Tecnologia, Instituto Politécnico de Viseu, Campus Politécnico, Viseu

Portugal

Orlando Belo

Departamento de Informática, Universidade do Minho, Campus de Gualtar, Braga, Portugal

Keywords: Web Usage Mining, Case-Based Reasoning, Processing model, Clickstream Da

ta Mining Assistance.

Abstract: This paper presents a case-based reasoning system to assist users in knowledge discover

y from clickstream

data. The system is especially oriented to store and make use of the knowledge acquired from the

experience in solving specific clickstream data mining problems inside a corporate environment. We

describe the main design, implementation and characteristics of this system. It was implemented as a

prototype Web-based application, centralizing the past mining processes in a corporative memory. Its main

goal is to recommend the most suited mining strategies to address the problem at hand, accepting as inputs

the characteristics of the available data and the analysis requirements. The system also takes advantage and

integrates corporative related information resources, supporting a semi-automated data gathering approach.

1 INTRODUCTION

Nowadays, establishing a successful presence on the

Web is challenging, yet imperative for most the

organizations. The Web has matured and users have

diverse and rising expectations. Thus, becomes vital

to evaluate the effectiveness of Web sites and to find

ways to realize opportunities offered by Web, acting

more proactively towards reaching the goals of sites.

The Data Mining (DM) or Knowledge Discovery

(KD) process applied to data related to user

interaction with the Web, known as Web Usage

Mining (WUM) (Cooley et al, 1997), is a critical

tool for both purposes. WUM can help organizations

to transform such huge, but very rich, data source

into actionable knowledge for improvements that

lead to revenue. However, WUM learning curve is a

serious obstacle to users without deep knowledge in

the domain. Part of the difficulty stems from the

subtle nature and intrinsic complexity of clickstream

data. There are also a myriad of technical issues,

options and particularities under practical WUM

problems, in order to get useful results for a specific

goal. Most of the success obtained by experts when

dealing with WUM problems comes from their

acquired know-how, and even they cannot provide

general and consistent rules for problem solving.

Our idea to tackle the above obstacle relies on

man

aging the knowledge gained from the experience

in solving concrete WUM problems, inside a

corporate environment, to build the basis for sharing

and reusing such knowledge across the organization.

This idea was realised exploring a Case-Based

Reasoning (CBR) and corporative-wide approach.

The CBR paradigm provides a framework capable of

meeting our core demands. When exploited at

corporative level and integrated with the mainstay

organization’s information technologies (Kitano and

Shimazu, 1996), it may consolidate the past

processes into a collective memory and promote the

knowledge flow over a larger audience.

This paper describes the main design,

plementation and characteristics of a CBR system

devoted to assist users along the development and

application of WUM processes. We give emphasis

to the modelling and implementation of the major

tasks that the system has to fulfil. The system aims

at proposing the most plausible methods to apply on

a concrete WUM problem, described through the

data characteristics and analysis requirements. To

achieve this aim, the system has to translate

Wanzeller C. and Belo O. (2006).

CLICKSTREAM DATA MINING ASSISTANCE - A Case-Based Reasoning Task Model.

In Proceedings of the First International Conference on Software and Data Technologies , pages 61-66

DOI: 10.5220/0001319000610066

 SciTePress

imprecise descriptions, from the implicated (human

and data) sources, into a proper target problem.

Moreover, since it relies on the WUM know-how of

the organization, it has to deal with extensive,

dispersed and heterogeneous sources of information,

ensuring the mechanisms capable of promoting its

continuous learning from the corporative experience

evolution. Therefore, supporting a semi-automated

data gathering approach becomes opportune.

The system was implemented as a prototype

application, joining, mostly, Web, XML, database

and Java technologies, as well general and CBR

specific methodological orientations. These options

were made trying to achieve flexibility, according to

the established requests. Besides, we are specifically

interested in assuring the system extensibility, to

simplify its progressive improvement.

2 ASSISTING WUM PROCESSES

The challenge lies in supporting KD, an exploratory

and participant driven process, which does not result

in exact solutions. It involves several actions and

decisions, which comprise (Fayyad, 1996): picking

relevant data; identifying proper DM functions;

choosing suitable models and setting its parameters;

transforming data to improve its quality, to better fit

the methods assumptions and to answer a concrete

problem. Such activities require a deeper technical

understanding of the methods and are influenced by

many factors. These factors are often complex and

subjective, resulting in uncertain problem

descriptions and biased success criteria. Clickstream

data subtle nature, intrinsic complexity and massive

volume increase even more the general challenge.

Further, WUM problem types, the kinds of mining

activities, the related practical applications and the

key data items are less studied and structured.

Our goal is to promote a more efficient, effective

and synergetic use of the corporative resources,

decreasing the effort and time required to derive

useful knowledge and bringing up together multiple

valuable contributions. To achieve this goal, our

system has to assist users in two essential ways:

collecting, organising and storing the useful

examples of WUM processes; proposing the most

plausible mining plans to handle one WUM

problem, given the target dataset and an informal

description of the explicit analysis requirements.

The system has to be proper for users with

varying levels of expertise. It should enable novice

users to gain insight into the overall WUM

development process and its utility, capturing all the

core actions that led to the resulting knowledge from

the initial data, and the underlying decision-making

course. This means that it must kept knowledge

about each process, covering dimensions as: (D)

characterizations of the target data, at dataset and

variables level; (T) categorizations of the WUM

problem type, in terms of general and organization’s

own properties; (A) sequence of activities, including

transformation and modelling steps, the involved

data, the parameters settings and explanations; (K)

prior and derived knowledge, concerning to facts

that affected the analysis, the extracted knowledge

and its relations to such facts.

Capturing, structuring, storing and sharing the

above aspects at corporative level bring up three

immediate issues. First, this calls for domain’s

standards. The Predictive Model Markup Language

(PMML) (http://www.dmg.org/) is a XML-based

norm to define and share statistical and DM models

across compliant applications. Since PMML is

widely accepted, it provides established vocabulary

to adopt, insights to structure KD processes and an

opportunity to automate some data gathering.

Second, the inter-operation with corporative data

management technologies is essential, to tack

advantage of the available capacities and to leverage

its potential. Such inter-operation can be realized for

acquiring data characteristics and to manage the

knowledge obtained from WUM processes. Third,

the system has to collect a considerable amount of

items. Thus, a prerequisite is to automate its

gathering, as most as possible, from data sources and

KD tools, ensuring an effective and consistent

extraction across the heterogeneous types of sources.

Other functional requests rest on the suited

support for KD. Greater flexibility is needed to cope

with fuzzy problem descriptions, allowing partial

specifications, enabling versatile enquiry patterns

(e.g. similarity based) and searching for the best or

close matches. To tackle KD uncertainly, it is

common practice to propose multiple alternatives,

meaning that, their presentation should combine

indicators to aid decisions and access to successively

further detailed information.

KD activities are usually performed by exploring

previous experience in the domain, suggesting the

CBR paradigm adoption as the framework to sustain

the intended assistance. Each useful WUM process

may correspond to a case, expressed in terms of the

domain problem (comprising the D and T

dimensions) and the respective applied solution

(covered by the A and K dimensions). CBR is a

learning and problem solving approach (Kolodner,

1993; Aamodt and Plaza, 1994) that emphasis the

ICSOFT 2006 - INTERNATIONAL CONFERENCE ON SOFTWARE AND DATA TECHNOLOGIES

role of prior experience during problem solving

(Mantaras et al, 2005). Multiple strengths of CBR

sustain our option. Just to name a few: it simulates

(more systematically, Kolodner, 1991) human

behaviour in solving real life problems; it provides a

flexible similarity-based comparison; it can cope

with incomplete and subjective information; it may

use specific importance levels to focus more relevant

features; it uses cases as a good way to justify

decisions (Kolodner, 1991); it is a sustained

incremental learning approach; it offers an open

environment for integrating different kinds of

techniques (Althoff, 2001).

3 PROCESSING MODEL

Many efforts have been elaborated the different

aspects of CBR, including the discussion of broader

perspectives on CBR as a systematic engineering

discipline. Important contributions to these efforts

arose from the reported experiences of successful

development of CBR applications and from projects

where methodology development was explicitly

incorporated as a task. Positional work from other

areas, as software engineering and knowledge

engineering, is also vital (Bergmann et al, 1997) and

contemplated on such contributions.

A methodology gives guidelines regarding both

the development activities and its product, at

different levels of abstraction. At a very high level

of abstraction (Bergmann et al, 1997), an

incremental prototyping development of a CBR

system is considered to be the most effective

strategy (Bartsch-Spröl, 1996). The underlying

approach is comparable to the spiral model (Boehm,

1988). A sequence of prototype systems is generated

and each prototype development can be regarded as

one cycle in the spiral model. In the following we

consider the product of the development, at the level

of its model description, focusing on the manner in

which the system might tackles the problem, by

defining the system processing model.

Several models have been devised to put CBR in

practice. The most influent and widely acknowledge

ones comprise the knowledge container model from

(Richter, 1995), the process model of the CBR cycle

and the task-method-decomposition structure for

CBR (Aamodt and Plaza, 1994). The former model

focus the different kinds of knowledge found in

CBR systems - vocabulary, similarity measures, case

base and adaptation knowledge, suggesting a well-

established approach to structure the knowledge

representation within CBR systems. The remaining

models provide means for structuring the CBR

system itself, being complementary, since they

represent two views of CBR: a general one,

identifying the major CBR sub-processes - retrieve,

reuse, revise and retain, their interdependencies and

outcomes; a task-oriented view, expressing the

hierarchical decomposition of general tasks into

subtasks and related methods to accomplish them.

We have modelled the CBR process using six

central tasks, adapting the typical CBR cycle to our

functional requirements.

Figure 1 shows these tasks,

their interconnections, inputs and outputs, as well

the main involved knowledge containers. Five of

them are decomposed on

Figure 2 into the major

subtasks that the system assures. Under the classic

CBR cycle the two tasks characterize and construct

and the task transform are integrated, respectively,

as subtasks of the retrieve and retain steps.

The characterize task has as mission to translate

the initial data to be mined into a systematic (meta-)

representation for: capturing properties significant to

methods selection; replacing the original data within

the comparison of distinct datasets. The data

characterization includes metadata extracted

automatically and properties that cannot be derived,

leading to the following subtasks: the dataset source

and the supplied metadata are collected; some of

this information is then used to access the source and

to extract metadata from raw data; all the obtained

metadata is preserved on the provisory repository

for later use. The collect subtask may occur more

than once, for instance, over variables, which are

first extracted and then might be enriched.

Dataset

New

problem

Requirements

WUM

process

Knowledge

base

New

case

c, v

WUM

plans

Retrieve

- case base

- similarity measures

- vocabulary

c, s

Characterize

Transform

Construct

Reuse

Revise

PMML

documents

Retain

Provisory

metadata

Data

sources

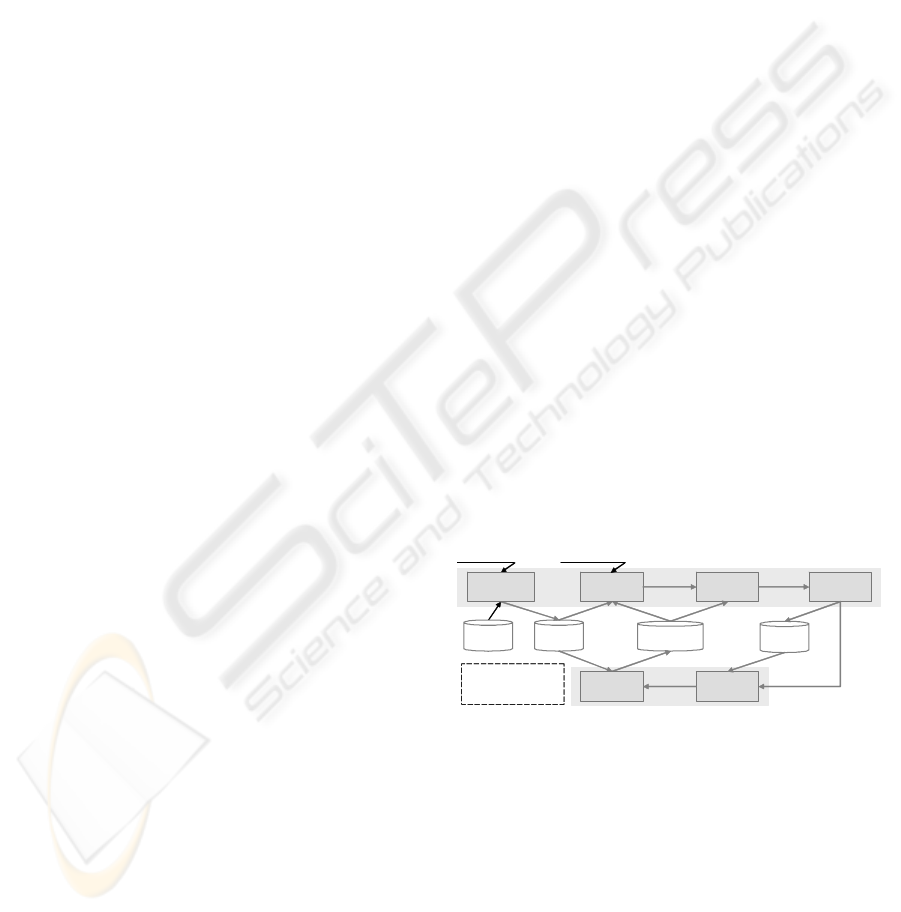

Figure 1: Processing model.

The construct task elaborates a new problem,

being activated by a request, expressing the

(analysis) requirements, based on the vocabulary

and, usually, on a previously characterized dataset,

to impose explicit restrictions. It may also rely on an

existent problem from the case base. Building a

target (problem) consists mainly in getting a set of

relevant descriptors and the respective expected

values. It starts by obtaining the available

descriptors, theirs domains, types of applicable exact

constraints and default expected values. After

CLICKSTREAM DATA MINING ASSISTANCE - A Case-Based Reasoning Task Model

filtering the irrelevant or unknown features, the final

descriptor’s values, exact constraints and importance

levels are used to define a new target problem.

The retrieve task basically comes up with a set of

alternative WUM plans to address the incoming

problem, using mainly the similarity and case base

containers. It has split into five subtasks. First, the

search subtask uses the target problem to find out a

set of plausible candidates from the case base.

Second, the target and candidate problems are

matched, calculating similitude values. Third, the

most promising candidates are selected, given a

similarity threshold value. Fourth, the candidates are

grouped based on the distinct solutions they hold,

which are evaluated determining indicators by

solution type. Finally, the candidate cases are

organized, considering the solution type, the degree

of similarity and the evaluation indicators. The two

last subtasks focus the main parts of the candidate

cases that may be transferred to the target problem,

preparing the derivational reuse process (i.e. the

reuse of the method that constructed the solution).

The reuse and revise steps are done outside the

system. In fact, the system does not perform

extensive adaptation, in the wide sense, neither

contemplates the adaptation container. The user

makes part of the reasoning process, choosing

among the proposed plans and adapting and revising

them to the current needs, counting on explanations

to aid these steps. The final WUM process and the

PMML document(s) supplied by the KD tool might

be entry points to the next phase of learning.

The transform (data) task accepts a

heterogeneous description, collected through PMML

documents and (or) user interaction, and builds a

coherent and correctly sequenced intermediary

representation. It aims at supporting the description

of a WUM process from the user’s convenience

point of view, covering two subtasks: combine

PMML documents and complementary information;

(get and) convert the relevant PMML elements, to

produce a compatibly description.

The retain task essentially augments the case

base with a new WUM process and is organized into

three subtasks. First, all the available information

about a WUM process is integrated. Second, such

information is structured, according to the internal

schema, and the WUM process is catalogued,

considering the kind of problem and the type of

solution, to simplify its future reuse. Third, the case

is stored in the knowledge base, testing the

existence of the different items (e.g. DM functions,

models, parameters) and adding the new ones, as

well transferring the provisory metadata to the case

base. Subsequently, the augmented case may be

edited and additional information (e.g. discoveries

and even new mining activities) may be integrated.

4 IMPLEMENTATION

The system was realised as a prototype Web-based

application developed in Java environment. It

follows a client/server typical architecture and is

structured into three layers of services: interface,

business and data. The options concerning the

implementation were made giving priority to free

software with open code and multi-platform, and to

accepted standards and Application Program

Interfaces (API). The application’s client side uses,

mostly, HTML, supported by style sheets formatting

and by Javascript programming for validation and

enhancement of browser behaviour and user

interaction. The server side was built on top of the

Java 2 Standard Edition

(http://java.sun.com/javase).

The business logic is in charge of Java components

and the interface services front-end is based on the

Java Server Pages (JSP) specification (

http://java.

sun.com/products/jsp/

). The JSP/Servlets container

Apache Tomcat (http://tomcat.apache.org/) assures

the publication of such services. The data services

explore different API (e.g. JDBC, JAXP), to support

and abstract the access to diverse data sources.

Figure 3 shows the main building blocks

(packages) of the application over the three layers of

services. Within data services, plain file access,

sql access and xml access yield generic persistence

services for the three types of sources. These

functionalities are reused by the remaining services.

Collect

Extract

Preserve Obtain Define

Match

Select

Combine

Convert

Evaluate

Organize

Integrate

Structure

Store

Characterize

Construct

Retrieve Transform

Retain

Problem solving and learning from experience

Problem solving

Learning

...

Figure 2: Task decomposition.

ICSOFT 2006 - INTERNATIONAL CONFERENCE ON SOFTWARE AND DATA TECHNOLOGIES

pmml access implements essentially the convert

subtask previously discussed, supporting multiple

PMML versions. ds source persistence and

kb persistence assure, respectively the access to

different types of dataset sources and the

manipulation of the knowledge base, providing the

required functionality encapsulation. For instance,

kb persistence isolates and hides the case base

storage and schema implementation details, realized

by a relational database management system.

Data collection and

results presentation

Data transformation

and persistence

domain

data characterizator

construct problem

configuration

similarity

retrieve process

retain process

interface services

Interface Services

ml access

pmml access

plain file access

sql access

Web pages

Business Services

Business logic

Data Services

ds source persistence

kb persistence

Figure 3: Application building blocks by layers of

services.

The business service layer encapsulates the core

functionality of the system, organized under the

following main components:

- domain stands for and manages the whole

collection of WUM process objects, separating

the domain model from the methods that

undertake the reasoning process;

- data characterizer and construct problem

accomplish the characterize and construct tasks,

exploring also interface and data services;

- configuration represents the vocabulary and

retrieval parameters, so that the task may be

generic. For example, it sets attributes used to

describe a problem, their domains and weights;

- similarity provides a collection of available

global and local similarity measures, which can

be added independently;

- retrieve process implements the retrieve task,

being supported, mainly, by similarity and

configuration services;

- retain process is responsible for the retain

reasoning task, exploiting also other services.

The interface services enable access to the

system functionality and support the presentation

logic, relying directly on two types of components,

Web pages and an interfaceservices package.

The class diagram (

Figure 4) in Unified

Modelling Language (http://www.omg.org)

simplified notation, shows the major classes

involved within retrieve task. The Retrieve class

controls the task, started after the problem

construction, which produces a CbrTarget object.

CbrTarget implements the define subtask and uses

methods from RrProperties to update some dynamic

properties.

CasesSelected embody all the plausible

candidate cases. It implements the search subtask,

using CbrTarget specifications and the

PCasesSelected subclass services. This subclass

knows how to convert tuples and attributes

distributed over multiple (case base’s) tables into

candidate cases. It appeals to its specific methods

and also to the common and shared ones provided by

the PGeneralKB superclass. Conversely, CbrCase

stands for each individual case and functionality.

similarity

retrieve process

kbpersistence

RrProperties

PGeneralKB

PCasesSelected

CasesSelected

Results

EvalCriteria

RankItems

CbrTarget

CbrCase

Retrieve

configuration

LocalSimilarity

GlobalSimilarity

command

construct problem

Figure 4: Retrieve process class diagram.

The match and select subtasks are realized

through the Results class, which is supported by a

collection of similarity functions (objects). Here, the

command design pattern (Gamma et al, 1995) has an

important role (encapsulating commands as objects),

so that the retrieve process may stay generic and

extensible. The subtasks evaluate and organize are

(extensible) ensured by the EvalCriteria and

RankItems classes. EvalCriteria determines average

values (by solution type) of the evaluation criteria

features, obtaining such features from RrProperties

as a variable length set. RankItems implements the

Comparable interface, providing a dynamic sorting

logic, based on: the type of solution; the similitude

level; the relative importance given by the user to

the evaluation criteria; the variable set of evaluation

features. So, this set of features may be changed

(modified, increased or decreased) easily, without

affecting those two related classes.

5 CONCLUSIONS

We implemented a prototype CBR application to

assist users along WUM development and

application. It intends to centralize the knowledge

about useful WUM processes in a corporative case

base and to enable its reuse across the organization.

We believe that this application is a useful tool to

less skilled users, not only to deal with a WUM

problem in cooperation with it, but also to learn or

CLICKSTREAM DATA MINING ASSISTANCE - A Case-Based Reasoning Task Model

get new insights about problem solving from the

contributions of experienced users. The application

may reduce WUM experts’ workload, and even they

may recall previous effective solutions, instead of

solving the problems from scratch.

In this paper, we described the main design,

implementation and characteristics of our system,

focussing the modelling and implementation of the

major tasks that it has to fulfil. The methodological

orientations adopted (and reported), were basically a

spiral-prototyping incremental development

approach and the CBR knowledge-level process

model based on the (Aamodt and Plaza, 1994) ideas.

To achieve its aim, the system essentially:

translates a raw target dataset into a meta

characterization, reflecting inherent restrictions;

guides users within the problem description,

regarding explicit analysis requirements; produces a

set of alternative possible solutions, exploring

knowledge from previous WUM experiences;

supports a semi-automated data gathering approach

to describe new experiences; captures, structures and

stores the relevant knowledge from the new

experiences into a knowledge base for future sharing

and reuse. Under these tasks, the system considers

human sources along the organization and integrates

other resources, such as corporative data sources and

PMML documents, representing the knowledge

extracted from data and based on a widely accepted

and supported standard in the DM domain.

The system’s (current) prototype was

implemented combining, mostly, Web, PMML,

database and Java technologies. With these options

we hope to: win flexibility with respect to the user

interaction and application accessibility and use;

take advantage from the DM domain’s standards;

leverage corporative resources; embrace Java

environment portability, objected-oriented features,

flexibility and Web advantages. Furthermore, the

case storage, the domain model and the reasoning

steps have been handled as independently as

possible, to simplify the application development

and to assure its extensibility.

Currently we are working on the construction of

a wide set of cases to enlarge the case base and to

enable more exhaustive evaluation tests of the

system. The obtained results, so far, point to the

system effectiveness, but a systematic evaluation

becomes necessary. Afterwards, we plan to elaborate

further the system, namely, case base maintenance,

tacking into account factors such as cases utility and

representatively, based on usage statistics and the

level of relevance (e.g. distinct solutions they hold).

ACKNOWLEDGEMENTS

The work of Cristina Wanzeller was supported by a grant

from PRODEP (Acção 5.3, concurso nº02/2003).

REFERENCES

Aamodt, A. and Plaza, E., 1994. Case–based reasoning:

foundational issues, methodological variations, and

system approaches. Artificial Intelligence

Communications, IOS Press, 7(1), 39–59.

Althoff, K.-D., 2001. Case-based reasoning. Handbook on

Software Engineering and Knowledge Engineering. S.

K. Chang (Ed.), World Scientific, 549-588.

Bartsch-Spröl, B., 1996. How to make CBR systems work

in practice. In GWCBR'96, 4th German Workshop on

Case-Based Reasoning, Informatik-Bericht, 55, 36-42.

Bergmann, R., Wilke, W., Althoff, K.-D., Breen, S. and

Johnston, R., 1997. Ingredients for developing a case-

based reasoning methodology. In GWCBR'97, 5th

German Workshop on Case-Based Reasoning,

University of Kaiserslautern, 49-58.

Boehm, B. W., 1988. A spiral model of software

development and enhancement. IEEE Computer,

21(5), 61-72.

Cooley, R., Mobasher, B. and Srivastava, J., 1997. Web

mining: information and pattern discovery on the

World Wide Web. In ICTAI'97, 9th IEEE

International Conference on Tools with Artificial

Intelligence, 558-567.

Fayyad, U.M., Piatetsky-Shapiro, G. and Smyth, P., 1996.

The KDD process for extracting useful knowledge

from volumes of data. Communications of the ACM,

39(11), 27-41.

Gamma, E., Helm, R., Jonhson R. and Vlissides, J., 1995.

Design Patterns: Elements of Reusable Object

Oriented Software. Addison Wesley, Massachusetts.

Kolodner J, 1991. Improving human decision making

through case-based decision aiding. AI Magazine,

12(2), 52-68.

Kolodner, J., 1993. Case-based reasoning. Morgan

Kaufman, San Mateo.

Kitano, H. and Shimazu, H., 1996. The experience sharing

architecture: A case study in corporate-wide case-

based software quality control. Case-Based

Reasoning: Experiences, Lessons, and Future

Directions. D. Leake (ed), AAAI Press, Menlo Park,

CA, 235-268.

Mantaras, R., McSherry, D., Bridge, D., Leake, D., Smyth,

B., Craw, S., Faltings, B., Maher, M., Cox, M.,

Forbus, K., Keane, M., Aamodt, A. and Watson, I.,

2005. Retrieval, reuse, revision, and retention in case-

based reasoning. The Knowledge Engineering Review,

Cambridge University Press DOI.

Richter, M., 1995. The knowledge contained in similarity

measures. (Talk) at ICCBR'95, 1st International

Conference on Case-Based Reasoning, Lecture Notes

in Artificial Intelligence 1010, Springer Verlag.

ICSOFT 2006 - INTERNATIONAL CONFERENCE ON SOFTWARE AND DATA TECHNOLOGIES
