A DYNAMIC ANALYSIS TOOL FOR EXTRACTING UML 2

SEQUENCE DIAGRAMS

Paolo Falcarin, Marco Torchiano

Dipartimento di Automatica e Informatica (DAUIN), Politecnico di Torino,Corso Duca degli Abruzzi 24, Torino, Italy

Keywords: UML, XMI, Dynamic Models, Aspect Orien

ted Programming (AOP), Reverse Engineering.

Abstract: There is a wide range of formats and meta-models to represent the information extracted by reverse

engineering

tools. Currently UML tools with reverse engineering capabilities are not truly interoperable due

to differences in the interchange format and cannot extract complete and integrated models. The

forthcoming UML 2.0 standard includes a complete meta-model and a well defined interchange format

(XMI). There is an available implementation of the meta-model, therefore it is a viable option to use UML

2.0 the modelling format for reverse engineered models. In this paper we propose a technique to

automatically extract sequence diagrams from Java programs, compliant to the UML 2.0 specifications. The

proposed approach takes advantage of the Eclipse platform and different plug-ins to provide an integrated

solution: it relies on a new dynamic analysis technique, based on Aspect Oriented Programming; it recovers

the interactions between objects also in presence of reflective calls and polymorphism.

1 INTRODUCTION

A significant effort in the lifecycle of software

systems is devoted to maintenance and

comprehension. Some among the currently

widespread software development practices, such as

agile software development and open source projects

devote less and less effort the production of

documentation.

Though, documentation and design models are

essen

tial for the comprehension of software.

Therefore, in order to achieve high maintainability it

is important to provide developers with automatic

tools to extract the documentation, consistent with

the actual system.

Both in academic and industrial contexts the need

r usable tools to help reverse-engineering tasks is

strongly perceived. The Unified Modeling

Language (OMG) is the most used standard for

visual representation of the design of object-oriented

software. Some UML tools provide reverse-

engineering features, mainly class diagram

extraction. Few tools reverse-engineer existing

source code into a sequence diagram or

collaboration diagram (Kollmann et al. 2001). All

these tools are based on static analysis of source

code instead of dynamic analysis of the executable

files.

Static analysis has some limitations because it is

imited to source code. In case of polymorphism,

dynamic creation of objects, and using of reflection,

the behaviour may vary depending on data: thus,

these issues can be solved running the application,

i.e. using dynamic analysis techniques. Dynamic

extraction of objects interactions can be applied even

with a limited knowledge of the target application.

Analyzing dynamic behaviour in such cases usually

req

uires heavy code instrumentation and a reflective

language support; moreover dealing with the huge

amount of extracted information is an issue that has

to be faced with; in this case it is often necessary to

select the use case and the related parts of the system

that should be analyzed: filters should be defined to

set boundaries of the automated analysis.

Current approaches use ad-

hoc debuggers or

profilers to generate traces on files: these are then

used to generate one or more models. These

approaches differ in the kind of code instrumentation

used, in the format of extracted models, and in the

different tools and platforms they rely on: therefore

a reverse engineering task may require time on

configuration and adaptation of heterogeneous

environments.

171

Falcarin P. and Torchiano M. (2006).

A DYNAMIC ANALYSIS TOOL FOR EXTRACTING UML 2 SEQUENCE DIAGRAMS.

In Proceedings of the First International Conference on Software and Data Technologies, pages 171-176

DOI: 10.5220/0001319401710176

 SciTePress

In order to extract dynamic behaviour of a software

application, we present a technique based on AOP to

instrument bytecode, running test cases, and then

extracting sequence diagrams models, all integrated

in the Eclipse platform (Eclipse).

The tool we created implements several existing

techniques into a single easy-to-use plug-in. In

addition it is the first reverse engineering tool built

on top of the UML2 Eclipse plug-in.

The following sections will explain our Eclipse-

based approach, the main concepts behind AOP, and

will give more information on the UML2 Project

(UML2).

2 THE PROPOSED APPROACH

In this section we describe the approach for

extracting data from the application both statically

using reflection and at run-time using AOP. The

information extracted is used to populate the UML2

model of the system. The described approach has

been implemented by means of some wizards

working as a plug-in of the Eclipse development

environment. The tool supports the following

process to reverse engineer an application starting

from a target Java Project in Eclipse:

1. The User identifies which java packages to

inspect in the target project through a wizard in

Eclipse.

2. These packages are used as parameters for a

pre-defined template: the Eclipse Modeling

Framework (EMF) plug-in is then used for creating

an AspectTracer java file, suitable for the target

application

3. The tool changes the nature of the Java Project

in an AspectJ project: therefore a new build of the

target project will instrument the target application

with the aspect, by means of the AspectJ weaver.

4. Through another wizard, user selects a package

with the JUnit test-cases for the target application

(JUnit).

5. The wizard runs all the selected test cases and

updates the UML2 model on the fly, adding a new

interaction diagram for each test-case.

The result of the above mentioned analysis steps are

stored in an object model using the UML2 plug-in

API: this object model is based on the Eclipse

Modeling Framework and therefore it can be

serialized in a file in the standard XMI format,

compliant with the recent UML 2.0 specification.

Our approach leverage different Eclipse plug-ins to

provide, in few steps, UML 2 standard models; these

can be visualized and manipulated by whichever

UML tool able to import XMI models, without being

locked to a particular UML tool provider.

2.1 Overview of AOP

Aspect-Oriented Programming (Kiczales et al.,

1997) is a new programming paradigm easing the

modularization of crosscutting concerns in object-

oriented software development. In particular,

developers can remove scattered code related to

crosscutting concerns from classes and placing them

into elements called aspects. This methodology

relies on a join-point model, which defines the

points along the execution of a program that can be

possibly addressed by an aspect. Thus, AOP

involves a compiling process (called weaving) for

the actual insertion of aspect code into pre-existing

application source code or byte code.

AspectJ (AspectJ) is the leading AOP

implementation, and the more complete, stable and

widely used one; it includes a language

specification, a set of additions to the Java language,

a compiler that creates standard Java bytecode.

In the terminology of AspectJ an aspect is

composed by a set of pointcuts and advices. The

term ‘advice’ represents the implementation of a

crosscutting concern, i.e. additional code to be

executed in join points of the application code.

AOP also involves means for identifying the join

points to be extended by an aspect. The AOP term

‘pointcut’ implicitly defines at which points in the

dynamic execution of the program (at which join-

points) extra code should be inserted: pointcuts

describe sets of join points by specifying, for

example, the objects and methods to be considered,

or a specific method call or execution. AspectJ

offers a rich set of pointcuts: among these the ‘call’

pointcut is the more interesting for our purposes,

because it intercepts method calls: the following

simple example shows a simple call() pointcut,

which intercepts a method call, whose signature is

defined between parenthesis.

pointcut p(): call(public static

void mypackage.MyClass.main(String[]));

Thus, the former pointcut, named ‘p()’, picks up

a single join-point: the call to the public static

method ‘main’, of class ‘MyClass’ in package

‘mypackage’, with a single parameter of type

‘String[]‘ and a ‘void’ return value.

AspectJ utilizes a wildcard-based syntax to

construct the pointcuts in order to capture join points

ICSOFT 2006 - INTERNATIONAL CONFERENCE ON SOFTWARE AND DATA TECHNOLOGIES

172

that share common characteristics. Three wildcard

notations are available in AspectJ:

1. * means any number of characters except

the period.

2. .. means any number of characters

including any number of periods.

3. + means any subclass or sub-interface of a

given type.

Just like in Java, AspectJ provides a unary

negation operator (!) and two binary operators (|| and

&&) to form complex matching rules by combining

simple pointcuts. The negation operator ! allows the

matching of all join points except those specified by

the pointcut. Combining two pointcuts with the ||

operator causes the selection of join points that

match at least one of the pointcuts, while combining

them with the && operator causes the choice of join

points matching both the pointcuts.

2.2 Aspect Tracer

We defined the AspectTracer aspect to collect

information for building the sequence diagrams in

the UML2 model. In our approach a scenario is

associated with a test-case, thus a use case can be

related with a set of test-cases. Automated tests

written with JUnit act like a sort of specification of

scenarios.

Here we describe an example of AspectTracer

created for the ‘Foo’ case study.

Looking at the AspectTracer’s source code (see

Figure 1), the second line specifies the aspect name

following the AspectJ syntax. An aspect is

composed by a set of pointcuts and a set of advices.

In the aspect several pointcuts are defined and

named, in order to identify different sets of join

points in the application code; these pointcuts can

then be composed with logical operators to define

more complex pointcuts.

In order to identify these join-points, each advice

is related to one named pointcut, specifying a

particular set of join-points in the application code:

for example, whenever the related pointcut In the

aspect there are four advices of type before, used to

execute some code right before the identified join-

point, and one advice of type after, used to execute

some code right after the join-point. Each advice

contains, enclosed between braces, the additional

code that is inserted at the specified join-points

during the weaving process, at compile-time.

For example, test() matches a join-point in the

application, the advice of type before(), at line 19, is

executed immediately before the join-point.

The methodCalls() pointcut at line 9 in figure 1

can be read like this: ‘all the method calls defined in

whichever package, for whichever class, whichever

method, and whichever return value; moreover the

wildcard “..” used between method’s parenthesis,

matches whichever list of types for formal

parameters.

In the same way (see line 7) we intercept all calls

to constructor methods, identified by the keyword

‘new’.

Now we need to limit the scope to the ‘foo’

package, containing our case study to be inspected:

we define the targetPackage() pointcut to identify

all the join-points of our target application. This

pointcut relies on the AspectJ pointcut within()

which identifies all the join-points defined in the

source code of classes matching the type pattern

defined between parenthesis. For example,

“within(foo..*)” matches whichever string starting

with “foo” and followed by a string including

periods: this identifies all the join-points defined in

package “foo” and in all its sub-packages.

Wildcards are very powerful but the extensive

usage made by methodCalls() pointcut, leads to pick

up undesired join-points; thus, we need to define the

boundary() pointcut (see line 12) to describe all join-

points we want to exclude from tracing.

In particular, in order to avoid infinite recursion,

we defined the instrumentation() pointcut, which

excludes all the join points occurring inside our

instrumentation code, i.e. the AspectTracer’s body

and the related Tracer class. Moreover, we use the

init() pointcut to exclude the calls to initialization

methods, transparently inserted in bytecode during

compilation, and occurring whenever a new object is

created and its fields are initialized. Finally the

callSet() pointcut (at line 15) represents the method

calls we are interested to trace.

Whenever a method of a class in the “foo”

package is called the related ‘before()’ advice (at

line 22) is executed immediately before the join-

point: this advice simply store the caller object

reference. The keyword thisJoinPoint is, for an

aspect, what the keyword this is for Java language,

but, instead of returning the current executing object,

it returns the current join-point reached along the

execution. The getThis() method returns the

reference of the currently executing object, advised

by this aspect.

A DYNAMIC ANALYSIS TOOL FOR EXTRACTING UML 2 SEQUENCE DIAGRAMS

173

1. package it.polito.tracer;

2. aspect AspectTracerpublic {

3. pointcut targetPackage(): within(foo..*);

4. pointcut instrumentation(): within(it.polito.tracer..*);

5. pointcut init():

6. initialization(new(..)) || preinitialization(new(..)) ||

staticinitialization(*..*);

7. pointcut constructorCalls(): call(new(..)) ;

8. pointcut constructorExecutions(): execution(new(..)) ;

9. pointcut methodCalls(): call( * *..*.*(..));

10. pointcut methodExecutions(): execution( * *..*.*(..));

11. pointcut test():execution(public void test*(..))&&

within(junit.framework.TestCase+);

12. pointcut boundary(): targetPackage() && !instrumentation() && !init();

13. pointcut refMethod(): call(Object java.lang.reflect.Method.invoke(..));

14. pointcut refConstructor(): call(Object

g.reflect.Constructor.newInstance(..)); java.lan

15. pointcut callSet(): (methodCalls() || refMethod()) && boundary();

16. pointcut constructorCallSet(): (constructorCalls() || refConstructor())

ary(); && bound

17. pointcut executionSet(): (methodExecutions() || constructorExecutions())

&& boundary();

18. static Object sender; static boolean isConstructor = false;

19. before(): test() {

20. Tracer.loadModel(thisJoinPoint.getThis().getClass().getName());

21. }

22. before(): c

allSet() {

23. sender = thisJoinPoint.getThis(); isConstructor = false;

24. }

25. before(): constructorCallSet() {

26. sender = thisJoinPoint.getThis(); isConstructor = true;

27. }

28. before(): executionSet() {

29. Tracer.trace(sender,

thisJoinPoint.getThis(),thisJoinPoint.getSignature().toLongString(),

isConstructor, thisJoinPoint.getArgs());

30. }

31. after(): test() {

32. Tracer.saveModel();

33. }}

Figure 1: AspectTracer source code.

Another pointcut we used is methodExecutions()

relying on the AspectJ’s execution() pointcut, which

behaves like the call() pointcut: the only

difference is that in this case the currently executing

object (obtained with thisJoinPoint.getThis() ) is the

receiver object of a method call, instead of the caller

object.

One may question that we just need a single

before() advice for the call() pointcuts, instead of

two, to extract all the information on the sender and

the receiver objects. This is not possible because if

we write a single advice related to a call pointcut

then we are not able to extract the receiver object

reference in case of constructor method calls.

On the other hand, a single advice related to an

execution() pointcut would not be able to extract the

sender object reference. This clarifies the need to

temporarily store the sender object reference,

retrieved by the call() related advices: this value will

be used immediately after by the execution() related

advice to invoke the Tracer tool for updating the

model. At line 29, the Tracer is invoked passing

these parameters: the caller object, the receiver

object, the signature of the invoked method, and an

array of Objects containing the parameters’ values.

It is worthwhile to notice that our approach

seamlessly detects reflection-based invocations to

methods and constructors (see lines 13-14).

Therefore it allows identifying the actual target

objects in the interaction model.

Finally it is important to notice the test() pointcut

(see line 9) which intercepts the method call of a

ICSOFT 2006 - INTERNATIONAL CONFERENCE ON SOFTWARE AND DATA TECHNOLOGIES

174

whichever JUnit test-case, in order to load the

current UML2 model before starting the test, and

saving it immediately.

2.3 UML2 Sequence Diagrams

There is an ongoing effort in the Eclipse UML2

project to develop a UML2.0 compliant class library.

The object model prescribed by the OMG standard

is very complex, thus to make it usable the UML2

team introduced some simplifications.

A sequence diagram depicts a scenario by

showing the interactions among a set of objects in

temporal order. Objects are shown as vertical bars,

called “lifelines”; events or message delivery is

shown as horizontal arrows from the sender to the

receiver (see Figure 2).

A scenario describes a typical example of an

execution trace and therefore control-flow

statements and conditions are not specified.

To better understand how these classes can be

used to model a Java software system we present a

very simple example. Let’s consider two classes A

and B and we model the dynamic interaction where

obj1, instance of class A, invokes method m2() of

object obj2, instance of class B. This interaction can

be represented by a sequence diagram as shown in

Figure 2.

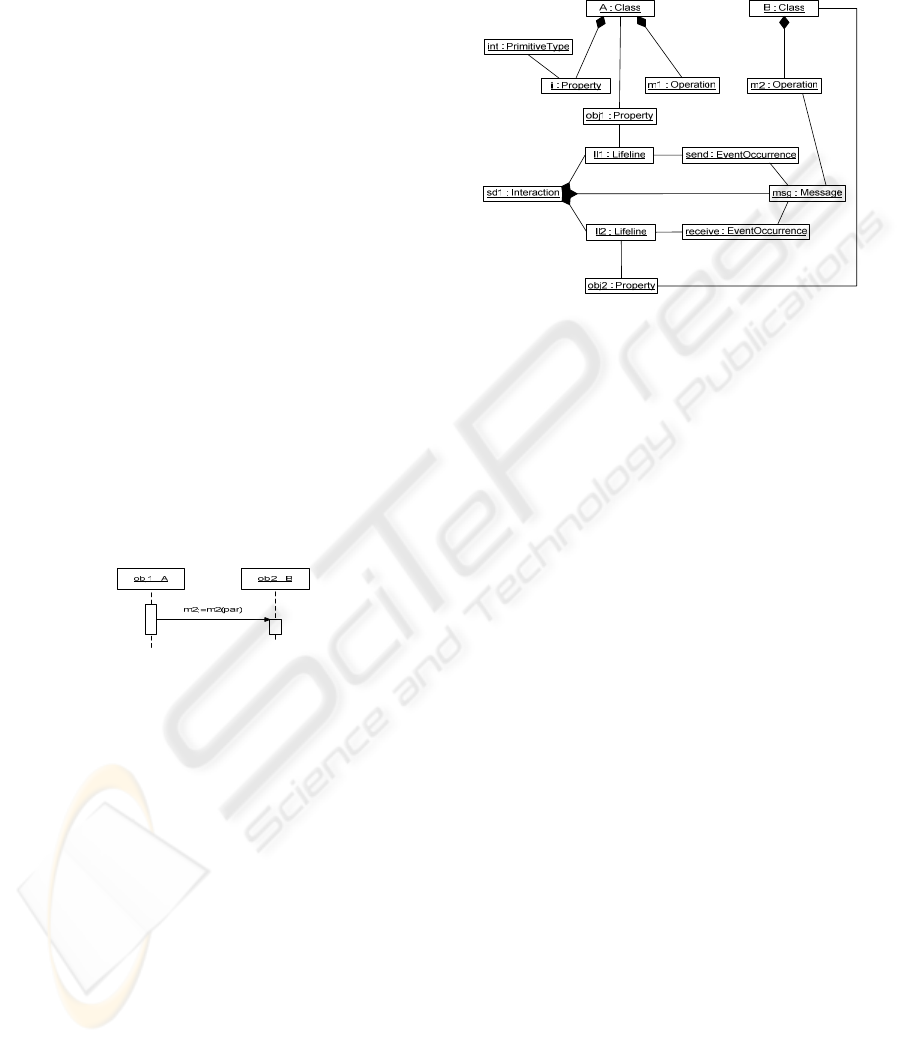

Figure 2: Sample Sequence Diagram.

The UML2 object-model corresponding to the

sequence diagram is presented in the lower part of

Figure 3. Interaction object corresponds to a

sequence diagram and it contains the elements of the

model: lifelines and messages. The lifelines

represent instances of classes, which are represented

by class Property. The messages are linked to the

source and destination lifelines by two

EventOccurence objects: a send event and a receive

event respectively. A message represents the

invocation of a method, whose signature is

represented by class Operation.

The Interaction sd1 contains two Lifeline

objects, ll1 and ll2, which represent two objects obj1

and obj2, whose types are Class A and Class B

respectively. The Interaction sd1 contains a Message

msg that is sent by Lifeline ll1 through the

EventOccurrence send and received by Lifeline ll2

through EventOccurrence receive. The signature of

the Message msg is the Operation m2 of Class B.

Figure 3: Object-model of the sample model.

3 RELATED WORK

Recent research has shown that automated tools can

be used to help engineers understand software

systems. Commercial UML tools, and research tools

extract a UML model from a system

implementation. Typically, these tools use static

analysis to parse the system source code or bytecode

to extract a model of the system.

Shimba (Systa et al., 2001) is a reverse

engineering environment to support the

understanding of Java software systems. Shimba

integrates the Rigi (Tilley et al., 1994) and SCED

(Systa, 2001) tools to analyze and visualize the static

and dynamic aspects of a subject system. The static

software artifacts and their dependencies are

extracted from Java bytecode and viewed as directed

graph in Rigi format. The run-time information is

generated by running the target software under a

customized debugger, then the generated

information is viewed as sequence diagrams using

the SCED tool.

Jinsight (Pauw et al. 2002) is a tool for exploring

a program’s run-time behaviour, by means of an ad-

hoc graphical visualization based on execution

traces. To collect a trace, the user runs the target

program with a profiling agent and a standard JVM.

Jinsight is not able to limit the trace to invocations

of a particular method or class, and it has problems

to scale for large code-base.

A DYNAMIC ANALYSIS TOOL FOR EXTRACTING UML 2 SEQUENCE DIAGRAMS

175

We claim that AOP usage eases reverse

engineering task because code instrumentation is

modularized in a single aspect that can be easily

inserted or removed at build-time; moreover there is

no more need of customized debuggers or ad-hoc

instrumentation of source code, which are more

complex to handle and error-prone.

Thanks to the aspect-oriented platform, pointcuts

can be used to set precise tracing boundaries,

selecting which target packages or classes to inspect

and which ones to exclude.

In (Briand et al. 2005) a method to reverse

engineer UML sequence diagrams from execution

traces for distributed systems is described: they

define how transforming extracted data in a UML

1.3 model, relying on their ad-hoc meta-model to

represent sequence diagrams.

We also rely on a meta-model to generate UML

models: the innovation is that we offer an integrated

Eclipse environment relying on the UML2 project in

order to generate models compliant with the recent

UML 2 standard and exportable through XMI

standard documents.

4 CONCLUSIONS

We developed and approach to model Java programs

from dynamic points of view. The approach has

been implemented in a working Eclipse plug-in. In

summary the main highlights of the proposed

approach are:

• This is the first reverse engineering approach

and toolset using UML 2 as modelling

infrastructure.

• It works correctly also in presence of

polymorphism, allowing both a precise recovery the

correct identification of invoked methods.

• Using suitable join points it is able to recognize

invocations made through the Java reflection classes.

• It leverages the use of JUnit, the widespread

Java unit-testing framework, to trigger scenarios

executions. The test cases are formalizations or

usage scenarios. This makes the proposed approach

a suitable a-posteriori documentation tool for

processes mainly focused on code, e.g. agile and

OSS projects.

We identified several threads for further work, in

particular we plan to investigate how to determine

which tests are needed to obtain an acceptable

coverage; then compare design sequence diagrams

with the reverse-engineered ones, this will enable

checking consistency between code and models

made in an early design phase; finally we need to

validate the overall approach with large sized

software systems.

REFERENCES

AspectJ Project homepage. Retrieved July 8th, 2006, from

http://eclipse.org/aspectj

Briand, L.C., Labiche, Y., & Leduc, J, 2005. Tracing

Distributed Systems Executions Using AspectJ. In

ICSM’05, International Conference on Software

Maintenance. IEEE Press.

Eclipse Project homepage. Retrieved July 8th, 2006, from

http://eclipse.org

JUnit Project homepage. Retrieved July 8th, 2006, from

http://junit.org

Kiczales, G., Lamping, J., Mendhekar, A., Maeda, C.,

Lopes, C., Loingtier, J.M., & Irwin, J, 1997. Aspect-

oriented programming. In ECOOP’97, 11th European

Conference on Object-Oriented Programming.

Springer-Verlag.

Kollmann, R., Gogolla, M., 2001. Capturing Dynamic

Program Behavior with UML Collaboration Diagrams.

In CSMR’01, European Conference on Software

Maintenance and Reengineering. IEEE Press.

OMG, Unified Modeling Language Specification.

Retrieved at http://www.uml.org/

Pauw, W.D., Jensen, E., Mitchell, N., Sevitsky, G., &

Vlissides, J., 2002. Visualizing the Execution of Java

Programs. In Software Visualization. Springer-Verlag.

Systa, T., Koskimies, K., & Müller, H., 2001. Shimba - An

Environment for Reverse Engineering Java Software

Systems. In Software - Practice and Experience, vol.

31: 371-394. Wiley 2001.

Systa, T., 2001. On the relationships between static and

dynamic models in reverse engineering Java software.

In WCRE’99, Sixth Working Conference on Reverse

Engineering, pp. 304-313. IEEE Press.

Tilley, S. R., Wong, K., Storey, M. A. D., & Müller, H.

A., 1994. Programmable reverse engineering. In

Journal of Software Engineering and Knowledge

Engineering.

UML2 Project homepage. Retrieved July 8, 2006, from

http://eclipse.org/uml2

ICSOFT 2006 - INTERNATIONAL CONFERENCE ON SOFTWARE AND DATA TECHNOLOGIES

176
