SPECIFICATION OF DEPENDENCIES FOR IT SERVICE FAULT

MANAGEMENT

Andreas Hanemann, David Schmitz

Munich Network Management Team, Leibniz Supercomputing Center

Boltzmannstr. 1, D-85748 Garching, Germany

Patricia Marcu, Martin Sailer

Munich Network Management Team, University of Munich (LMU)

Oettingenstr. 67, D-80538 Munich, Germany

Keywords:

Dependency modeling, service management, event correlation, impact analysis.

Abstract:

The provisioning of IT services is often based on a variety of resources and underlying services. To deal with

this complexity the dependencies between these elements have to be well-known. In particular, dependencies

are needed for tracking a failure in a higher-level service being offered to customers down to the provisioning

infrastructure. Another usage of dependencies is the impact estimation of an assumed or actual resource failure

onto the services to allow for decision making about appropriate measures.

Starting from a set of requirements an analysis of the state-of-the-art shows the contributions and limitations

of existing research approaches and industry tools for a conﬁguration management solution with respect to the

dependencies. To improve the current situation a methodology is proposed to model dependencies for given

service provisioning scenarios. The proposed dependency modeling is part of a larger solution for an overall

service management information repository.

1 INTRODUCTION

In a competitive environment, service providers strive

to deliver services in a lean and agile manner, de-

spite the rising complexity and heterogeneity within

the network. The advent of new technologies such as

virtualization of hardware and service-oriented archi-

tectures add to this complexity and thus even increase

the challenge for IT management.

One of the key challenges for service providers is

efﬁcient fault management. When a customer expe-

riences problems with a service, the provider needs

to react quickly in order to honor the Service Level

Agreements (SLA) in effect between provider and

customer. Conversely, it is desirable to determine the

impact onto services and Service Level Agreements

when problems with resources or subservices are de-

tected (Hanemann et al., 2005).

Fault Management requires the assessment of de-

pendencies of a service on speciﬁc resources, re-

source interdependencies as well as the mapping of

resources on the services provided. This is to infer the

actual cause of service problems, to identify the mal-

functioning or misconﬁgured resources, and to devise

a problem solution. This process is by no means triv-

ial. In large scale systems, it is nearly impossible

without appropriate tool support. Automation sup-

port, however, requires dependencies to be formal-

ized in a machine-readable format. Service providers

therefore maintain management models, which essen-

tially represent an abstraction of their IT infrastruc-

ture. However, state-of-the-art management models

show deﬁcits regarding the speciﬁcation of dependen-

cies and thus provide only rudimentary support with

respect to the needs of IT service fault management.

In this paper we examine how dependencies can

be modeled in a systematic and service-oriented way

that allows us to extend – and thereby reﬁne – cur-

rent management models. In Section 2 a set of re-

quirements for the dependency modeling is presented

which is used to analyze related work in Section 3.

Our approach for specifying the dependencies based

on the analysis of interactions is detailed in Section 4.

Conclusion and future work can be found in the last

section highlighting the inclusion of this work into an

approach for management information modeling.

2 REQUIREMENTS

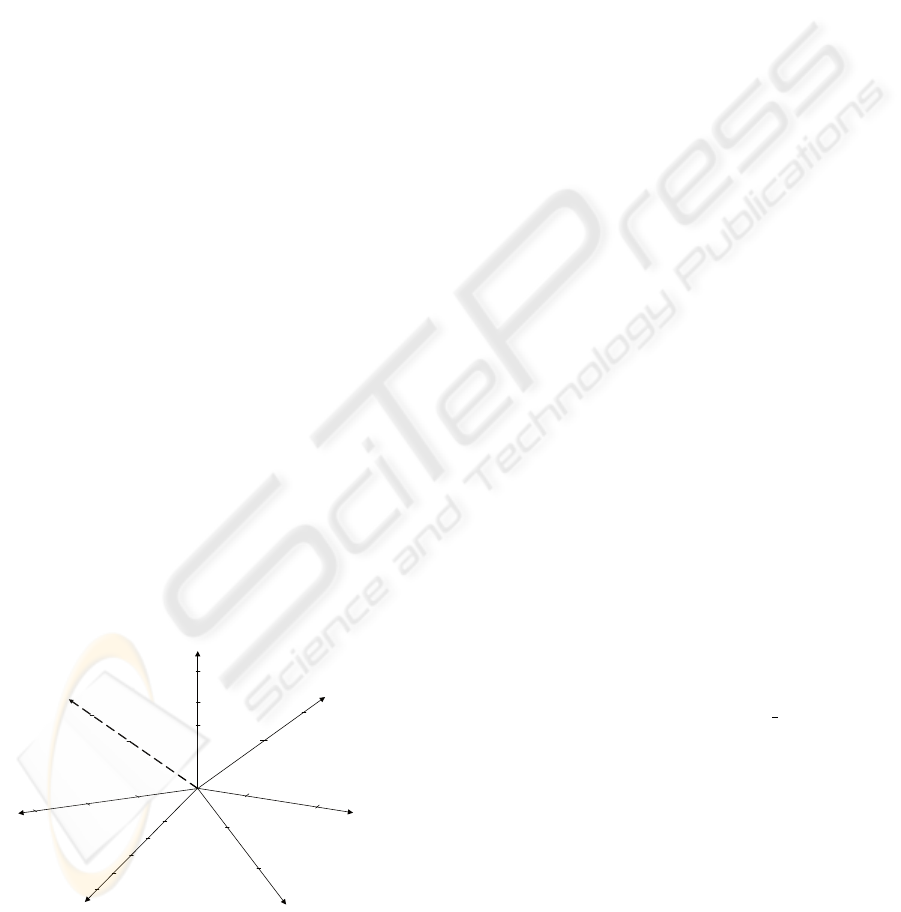

In Fig. 1 different aspects which have to be considered

for the modeling of dependencies are depicted. These

257

Hanemann A., Schmitz D., Marcu P. and Sailer M. (2006).

SPECIFICATION OF DEPENDENCIES FOR IT SERVICE FAULT MANAGEMENT.

In Proceedings of the First International Conference on Software and Data Technologies, pages 257-260

DOI: 10.5220/0001319502570260

 SciTePress

are explained in the following.

The type of dependency is used to distinguish

between inter-service, service-resource, and inter-

resource dependencies. These denote dependencies

between services, services and resources as well as

between resources, respectively.

A distinction can be made for the level of detail for

services since a service can usually be divided into

service functionalities. For a web hosting service it is

e.g. possible to retrieve web pages or to ﬁll out and

transmit an online form. Dependencies can therefore

be detailed whether they are relevant for a speciﬁc ser-

vice functionality.

An important characteristic of dependencies is

whether they can be treated on their own (isolated) or

whether they involve multiple resources or services

which is usually the case for redundancies. A ser-

vice may use a set of redundant hardware compo-

nents. Therefore, an unavailability of a server has to

be regarded in conjunction with the other servers.

Another important characteristic is the dynamic

which denotes the treatment of changes in the depen-

dencies. Especially for fault management it is impor-

tant to know whether it can be assumed that the de-

pendencies remain unchanged during the fault diag-

nosis.

The service lifecycle describes the change of de-

pendencies from the initial installation of the service

until its removal.

The degree of formalization of the dependencies

also needs to be considered. Dependencies cannot

only be formalized or speciﬁed as pseudocode but can

also be deﬁned as formal model.

Finally, not only functional dependencies can be

taken into account, but also those resulting from or-

ganizations (dimension characteristic). However, this

paper concentrates only on the functional dependen-

cies.

Redundancy

Dynamics

Type of

Dependency

Service Lifecycle

Characteristic

Level of Detail

Degree of

Formalization

isolated

dependencies

composite

dependencies

Resource

Level

Service

Level

formalization

textual/

pseudocode

formal

model

static

dynamic

organizational

functional

Design

Negotiation

Provisioning

Usage

Deinstallation

service as

a whole

division in

functionalities

Resource-Service

Level

Figure 1: Requirement dimensions.

Dependencies play an important role in the area of

IT service fault management. In particular, they are a

prerequisite for the following two use cases: For fault

diagnosis the dependencies should be traversable in a

top-down manner to identify a resource as root cause

of a service problem, while the opposite direction is

relevant for impact analysis to estimate the impact of

a resource failure for services.

3 RELATED WORK

In the analysis of related work we distinguish between

the identiﬁcation, modeling, and use of dependencies.

In the literature the term “dependency” is often

used without a precise deﬁnition. Examples are the

deﬁnition of absent, weak, medium and strong depen-

dencies in (Bagchi et al., 2001) or the distinction be-

tween “and” and “or” dependencies in (Rodosek and

Kaiser, 1997), which did not provide any further at-

tributes.

Caswell and Ramanathan (Caswell and Ra-

manathan, 1999) describe dependencies for services,

especially for ISPs. They deﬁne ﬁve kinds of depen-

dencies which are partially similar with our deﬁnition

of terms. They specify inter-service dependencies in

the way it is done in the previous section. Service-

resource dependencies in our terms can be seen as

an superclass of the link, component, and execution

dependencies in this model. The execution depen-

dency reﬂects the dynamic in service provisioning

where the execution of a functionality can be done

using a selection of resources. The organizational de-

pendency could be covered by the deﬁnition of sub-

services. However, the speciﬁcation does not go into

further details and is tied to ISPs.

Common Information Model (CIM) CIM

(DMTF, 2005) is an object-oriented information

model that aims at providing a common way to

represent information about networks and systems

as well as services. Dependencies between CIM

elements are modeled as association classes and are

derived from a single base class CIM Dependency;

the inheritance hierarchy is therefore ﬂat. CIM would

particularly proﬁt from a more systematic approach

that allows to arrange the existing dependencies in a

hierarchical structure.

NGOSS SID The Shared Information/Data (SID)

model (TeleManagementForum, 2003) is part of the

initiative Next Generation Operation Support and

Software (NGOSS). It employs an object-oriented

modeling approach and constitutes a framework for

deﬁning service management information from a

business-oriented point of view. Since SID is cur-

rently in an early development stage, work has mainly

focused on providing the major building blocks of the

ICSOFT 2006 - INTERNATIONAL CONFERENCE ON SOFTWARE AND DATA TECHNOLOGIES

258

model. Albeit this did not include systematic model-

ing of dependencies in terms of hierarchies, it can be

expected for upcoming versions of SID.

In sum, it can be concluded that dependency mod-

eling cannot be regarded as a solved research issue

with respect to the requirements of service manage-

ment.

4 DEPENDENCY

SPECIFICATION

METHODOLOGY

In this section a generic model for the dependency

speciﬁcation is developed striving to fulﬁll the re-

quirements delineated in Section 2. We also show,

how the model helps in addressing the service fault

diagnosis.

Dependency Modeling Dependencies which are

encountered in practice usually form a hierarchy

which results from the composition of resources and

subservices into more complex higher-level services.

Therefore, the structural design pattern composite is

used as basis for the modeling.

Figure 2 depicts the proposed dependency model.

The object Dependency reﬂects the component object

of the pattern and declares the interface for objects in

the composition CompositeDependency (the compos-

ite object).

Some attributes characterize the Dependency class:

antecedent has the type ServiceBuildingBlock (ab-

stract superclass of services and resources) and is

the antecedent, dependent represents the dependent of

a dependency also having the type ServiceBuilding-

Block. The strength attribute (string) represents the

importance of the dependency with the values weak,

medium, strong, mandatory which means that is de-

scribes the redundancy relation. The last attribute sta-

tusLifeCycle is an indicator for the state of the de-

pendency along the service lifecycle using the values

planned, active, inactive, withdrawn.

Usually, a service exhibits a set of functionalities.

These functionalities can in turn be divided into sub-

functionalities and can represent the whole service

(global functionality) as well as a single functionality

or a partial functionality of the service. This kind of

modeling allows to ﬁnd a trade-off between the mod-

eling effort and its beneﬁt in a given scenario.

A set of operations are deﬁned: the add opera-

tion adds a new dependency to the container, whereas

the remove operation removes a dependency from the

container. The operation getChild returns the n-th

child of the dependency, getChildList lists all the di-

rect children. The operations getDependent, getAn-

tecedent, testPresence, and getImpact are designed

for fault management (see below).

The leaves of the composite pattern are formed by

the three kinds of dependencies. Inter-Resource-Dep

represents inter-resource dependencies with the inher-

ited attributes strength, antecedent, dependent, status-

LifeCycle deﬁned as in the component class Depen-

dency. The type of the attributes antecedent and de-

pendent is Resource. The operations will implement

the abstract operations from the class Dependency.

The Service-Resource-Dep class represents the

service-resource dependency and has also the at-

tributes and operations inherited from class Depen-

dency. Besides of the different implementation of

operations, the attribute antecedent has the type Re-

source and the attribute dependent the type Function-

ality.

Inter-service dependencies are formalized as in-

stances of the Inter-Service-Dep class which has the

same attributes and implements the same operations

as class Dependency. The type of the attributes an-

tecedent and dependent is Functionality. This class

contains many hierarchically structured instances re-

sulting from the functionality deﬁnition. Dependen-

cies can exist between two services, between a service

and a service functionality (i.e. one service is decom-

posed into its functionalities, while this decomposi-

tion is not made for the other service), or between two

service functionalities.

The composite class in this pattern is the class

CompositeDependency. It deﬁnes behavior for depen-

dencies having children, it stores this children (leaves

or composite components) and implements operations

relating on child component (add, remove, getChild,

getChildList) in the Dependency interface.

Methods for Fault Management Application In

addition to the child oriented operations there are op-

erations which facilitate the navigation in a system

and which are useful for fault diagnosis and/or for im-

pact analysis.

The operation getDependent returns all the Ser-

viceBuildingBlock objects which are dependent from

the actual dependency and getAntecedent returns all

the ServiceBuildingBlock objects the actual depen-

dency depends on. Depending on the element in

which it occurs (leaves or composite elements) it has

another return value (functionality or resource). The

operation testPresence returns the status of the depen-

dency for a given point in time representing whether

the dependency was in effect at that moment (as a

boolean).

5 CONCLUSION

We have presented a systematic modeling approach

that allows the speciﬁcation of complex, dynamic and

SPECIFICATION OF DEPENDENCIES FOR IT SERVICE FAULT MANAGEMENT

259

+add(d : Dependency)

+remove (d : Dependency)

+getChild(n : int) : ServiceBuildingBlock

+getChildList (): ServiceBuildingBlock[]

+getImpact() : ImpactObject

+getDependent() : ServiceBuildingBlock

+getAntecedent() : ServiceBuildingBlock

+testPresence(time : Date): bool

-antecedent : ServiceBuildingBlock

-dependent : ServiceBuildingBlock

-strength : string

-statusLifeCycle : string

Dependency

+getImpact() : ImpactObject

+getDependent() : Resource

+getAntecedent() : Resource

+testPresence(time:Date): bool

-antecedent : Resource

-dependent : Resource

Inter-Resource-Dep

+getImpact() : ImpactObject

+getDependent() : Resource

+getAntecedent() : Functionality

+testPresence(time:Date): bool

-antecedent : Resource

-dependent : Functionality

Serv-Resource-Dep

+add(d : Dependency)

+remove (d : Dependency)

+getChild(n : int) : ServiceBuildingBlock

+getChildList () : ServiceBuildingBlock[]

+getImpact() : ImpactObject

+getDependent() : ServiceBuildingBlock

+getAntecedent() : ServiceBuildingBlock

+testPresence(time:Date ) : bool

CompositeDependency

+getImpact() : ImpactObject

+getDependent() : Functionality

+getAntecedent() : Functionality

+testPresence(time:Date): bool

-antecedent : Functionality

-dependent : Functionality

Inter-Service-Dep

* children

Figure 2: Dependency Model.

adaptable dependencies. While state-of-the-art man-

agement models are tackling these issues in differ-

ent ways, they would beneﬁt from the systematic ap-

proach presented in this paper.

We are currently implementing our approach by

extending a speciﬁc management model, namely

DMTF’s CIM and will apply it for the management

of IT services at the Leibniz Supercomputing Center

in Munich. We also plan to merge the ﬁndings of this

paper with the Service Management Information Base

approach (Sailer, 2005), a research project conducted

within our research group.

ACKNOWLEDGEMENTS

The authors wish to thank the members of the Munich

Network Management (MNM) Team for helpful dis-

cussions and valuable comments on previous versions

of this paper. The MNM Team directed by Prof. Dr.

Heinz-Gerd Hegering is a group of researchers of the

University of Munich, the Munich University of Tech-

nology, the University of the Federal Armed Forces

Munich, and the Leibniz Supercomputing Center of

the Bavarian Academy of Sciences. Their web–server

is located at http://www.mnm-team.org.

This paper was supported in part by the EC IST-

EMANICS Network of Excellence (#26854).

REFERENCES

Bagchi, S., Kar, G., and Hellerstein, J. (2001). Depen-

dency analysis in distributed systems using fault in-

jections: Application to problem determination in an

e-commerce environment. In Proceedings of the 12th

International IFIP/IEEE Workshop on Distributed

Systems: Operations and Management (DSOM 2001),

Nancy, France.

Caswell, D. and Ramanathan, S. (1999). Using service

models for management of internet services. In

HP Technical Report HPL-1999-43, HP Laboratories,

Palo Alto, California, USA.

DMTF (2005). Common Information Model (CIM) Ver-

sion 2.9. Speciﬁcation, Distributed Management Task

Force.

Hanemann, A., Sailer, M., and Schmitz, D. (2005). A

framework for failure impact analysis and recovery

with respect to service level agreements. In Proceed-

ings of the IEEE International Conference on Ser-

vices Computing (SCC 2005), Orlando, Florida, USA.

IEEE.

Rodosek, G. D. and Kaiser, T. (1997). Determining the

availability of distributed applications. In Proceed-

ings of the Fifth IFIP/IEEE International Symposium

on Integrated Network Management (IM 1997), pages

207–218, San Diego, California, USA. IFIP/IEEE.

Sailer, M. (2005). Towards a service management infor-

mation base. In Proceedings of the IBM PhD Stu-

dent Symposium at the 3rd International Conference

on Service-Oriented Computing (ICSOC 2005); IBM

Research Report, Amsterdam, The Netherlands.

TeleManagementForum (2003). Shared Information/Data

(SID) Model Concepts, Principles, and Domains.

Technical Report GB 922 Member Evaluation Version

3.1.

ICSOFT 2006 - INTERNATIONAL CONFERENCE ON SOFTWARE AND DATA TECHNOLOGIES

260
