LP FITTING APPROACH FOR RECONSTRUCTING PARAMETRIC

SURFACES FROM POINTS CLOUDS

Thibault Marzais

LLAIC

IUT-D

epartement Informatique

63173 Aubiere Cedex

Yan Gerard, R

emy Malgouyres

LLAIC

IUT-D

epartement Informatique

63173 Aubiere Cedex

Keywords:

Surface reconstruction, Linear programming, Least Squares Fitting, B

ezier and B-spline surfaces.

Abstract:

We present a method to reconstruct a surface from a group of points, each provided with two parameters. The

kind of reconstructed surface can be a Bezier surface, a B-spline surface or any surface generated by a basis

of functions.

The usual method involved in such a reconstruction is the least squares approach. Our original ﬁtting method

called LP-ﬁtting uses a linear program for minimizing the uniform error instead of the quadratic error consid-

ered in least squares.

Experimental results comparing both approaches show that the surface obtained by LP-ﬁtting is usually closer

(from a uniform point of view) to the initial points cloud than the surface obtained by least squares.

1 INTRODUCTION

Surface reconstruction is involved in several domains

of applications going from reverse engineering to sur-

face modeling. The problem is the computation of a

surface S passing as close as possible to each point of

a given subset of R

. We focus in this paper on re-

construction of parametric surfaces where F belongs

to a given linear space of functions (it is the case of

ezier and B-Spline surfaces).

The expression of the nearness between the points

cloud and the reconstructed surface requires to intro-

duce the error vector δ(S) that coordinates δ

(S) are

the distances between each point of index i in the in-

put and its closest point in surface S. This vector

measures the accuracy of the approximation. Thus,

the natural surface reconstruction problem is the com-

putation of a function F in the given linear space of

functions that error vector has a minimal norm (some

variants can be obtained by adding a value measuring

the smoothness of the surface, satisfaction of normal

constraints...). It is a highly non linear problem of op-

timization which has been tackled by Newton meth-

ods in (Atieg and Watson, 2004).

A more classical approach, developped in the

framework of computer graphics, consists in four con-

secutive steps. (Eck and Hoppe, 1996; Weiss et al.,

2002; Sarkar and Menq, 1991; J

uttler, 1997)

1. Mesh generation from the unorganized points cloud

(α-shapes, marching cubes, Delaunay triangula-

tions) (Edelsbrunner and M

ucke, 1994; Barber

et al., 1996)

2. Mesh partitionning in patches homeomorphic to

disks by using for instance tools of shape analysis.

(Eck et al., 1995)

3. Parametrization (Eck et al., 1995; Floater and Hor-

mann, 2005)

4. Surface ﬁtting. After the parametrization step, a

pair of parameters (s

) has been assigned to each

point (x

). The problem of surface ﬁtting is

now to minimize the distances between each point

and its corresponding point of the surface F (s

)

instead of minimizing its real minimal distance to

The standard approach of surface ﬁtting is to min-

imize



((x

),F(s

))

(where d

is the

Euclidian distance) in the considered linear space of

functions. This objective function is the square of the

Euclidian norm ||δ||

where the coordinate δ

is the

Euclidian distance between the input point (x

)

and its corresponding point on the surface F (s

325

Marzais T., Gerard Y. and Malgouyres R. (2006).

LP FITTING APPROACH FOR RECONSTRUCTING PARAMETRIC SURFACES FROM POINTS CLOUDS.

In Proceedings of the First International Conference on Computer Graphics Theory and Applications, pages 325-330

DOI: 10.5220/0001353503250330

 SciTePress

This usual routine of the overall reconstruction prob-

lem is called ”least-squares ﬁtting” (Farin, 2002; Co-

hen et al., 2001) because the computation can be done

easily by the least squares method.

The task of the paper is to introduce an alterna-

tive to least-squares ﬁtting and to compare both ap-

proaches. The main idea is to use the uniform norm

|| . ||

∞

instead of the Euclidian norm. We mini-

mize ||δ||

∞

where coordinate δ

is the uniform dis-

tance between the input point (x

) and its cor-

responding point in the surface F (s

). More pre-

cisely we minimize independently the three inﬁnite

norms ||(x

−F

))||

∞

, ||(y

−F

))||

∞

and

||(z

− F

))||

∞

. These problems of optimiza-

tion are linear and thus they can be solved by linear

programming. We call this approach ”LP-ﬁtting”. Its

principle is to control the maximal distance between

each point of the input (x

) and its correspond-

ing point in the surface F (s

) while the principle

of least squares ﬁtting is to search the best solution

from a statistical point of view.

We start the paper with the basic deﬁnitions and no-

tations (see §2). We introduce in §3 the ﬁtting prob-

lems obtained by using Euclidian or uniform norms

and their solutions by least-square method or linear

programming. We end the paper with the compari-

son of the experimental results provided by both ap-

proaches (see §4).

2 NOTATIONS

We begin with a brief introduction to classical para-

metric surfaces.

2.1 Parametric Surfaces

Let P

, i ∈ [[ 0 ,n]] be a subset of points of R

. Let

(s, t), i ∈ [[ 0 ,n]] be a family of functions and let the

parametric surface S be the image of interval product

[a, b] × [c, d] by function :

F (s, t)=



i=0

(s, t)

The points P

are called control points of surface

S. The most usual cases are B

ezier and B-Spline sur-

faces, depending on the family f

we choose.

2.2 B

ezier Surfaces

ezier surfaces are parametric polynomial surfaces

with bounded degree. Any basis of polynomials could

be used as functions f

(s, t) but the usual choice is to

work with Bernstein polynomials B

i,n

(t)=





∗ t

∗

(1 − t)

n−i

or more precisely with their tensor prod-

uct (their sum being 1, the surface belongs to the the

convex hull of the control points) :

F (s, t)=



i=0



j=0

i,j

i,m

(s)B

j,n

(t)

2.3 B-Spline Surfaces

The B-Spline surfaces require other parameters. We

introduce two integers k and l and two vectors S =

,...,s

m+k−1

} and T = {t

,...,t

n+l−1

}, with

≤ s

≤ ... ≤ s

m+k−1

and t

≤ t

≤ ... ≤

n+l−1

called knot vectors. Then the considered fam-

ily of functions is obtained with tensor product :

F (s, t)=



i=0



j=0

i,j

i,k

(s)N

j,l

(t)

where the N

i,k

is the basis function deﬁned by Cox

de Boor formula (Farin, 2002).

Note that by adjusting the number of parameters

by tensor product and by changing the dimension by

cartesian product, previous deﬁnitions and next re-

sults hold in a general framework.

3 SURFACE RECONSTRUCTION

3.1 General Problem

Let {M

}

1≤k≤p

, with M

)

,be

a subset of p points in R

. We consider that each point

is provided in the input with a pair of parameters

and t

. The purpose of this section is to ﬁnd a para-

metric surface S, deﬁned by a function F (s, t), which

is close (in a sense to be deﬁned) to the given set of

points. We introduce the error δ

of the approxima-

tion on the point M

= F (s

) − M

for 1 ≤ k ≤ p (1)

with a function F chosen in the linear space gener-

ated by functions (f

)

0≤i≤n

deﬁned in Section 2.1.

3.2 Interpolation

If the error is constrained to be null, equalities δ

for k ∈ [[ 1 ,p]] leads to the linear system of equations



i=0

(s, t) that unknowns are the three

coordinates of each control point P

, P

and P

We can be sure of the existence of a solution if the

dimension of the basis of functions f

is at least equal

to the number of points p. Otherwise, the linear sys-

tem is much often not feasible with the consequence

GRAPP 2006 - COMPUTER GRAPHICS THEORY AND APPLICATIONS

326

that usually no interpolation exists. This usual case

is the framework of ﬁtting methods. Their task is to

ﬁnd approximate solutions of unfeasible systems. It

allows to work with linear spaces of restricted dimen-

sions while the huge dimensions and degrees neces-

sary for interpolation introduce detrimental variations

(Figure 1).

Figure 1: Consequences of interpolation with a high degree

polynomial.

3.3 Approximate Reconstruction

The function F (s, t) of the linear space

generated by functions f

is denoted

F (s, t)=(x(s, t),y(s, t),z(s, t)) with

⎧

⎨

⎩

x(s, t)=



i=0

∗ f

(s, t)

y(s, t)=



i=0

∗ f

(s, t)

z(s, t)=



i=0

∗ f

(s, t)

and where





, i ∈ [[ 0 ,n]] are the

control points of surface F .

The principle of ﬁtting methods is to minimize the

error expressed by Equation 1:

⎧

⎪

⎨

⎪

⎩



i=0

∗ f

) − x

∀k ∈ [[ 1 ,p]]



i=0

∗ f

) − y

∀k ∈ [[ 1 ,p]]



i=0

∗ f

) − z

∀k ∈ [[ 1 ,p]]

Let us note that the three systems are independent

(their unknowns are different). Equation on the x-

coordinates leads to system 2 :

A ∗ X = Y + δ (2)

where A is matrix

⎛

⎜

⎝

) ... f

)

) f

)

) ... f

)

⎞

⎟

⎠

where vector X =(

, ..., P

)

con-

tains the x-coordinates of the control points, Y =

(

, ..., x

)

contains the x-coordinates of

the real points, and δ =



, ..., δ



is the

error on the x-coordinates.

In the framework of interpolation, δ is constrained

to be null but we have seen in previous section that in

many cases, the linear rank of matrix A is not sufﬁ-

cient to guarantee the existence of an exact solution.

Thus the idea of ﬁtting methods is to optimize the vec-

tor δ according to some criteria.

3.4 Least Squares Fitting

The criteria of least squares ﬁtting is the Euclidian

norm of the error δ

(Cohen et al., 2001; Farin,

2002). Equation 2 leads to the following problem of

minimization:

Min

A ∗ X − Y 

⇐⇒

⎧

⎪

⎨

⎪

⎩

Min



i=1

δ = A ∗ X − Y =

⎛

⎜

⎝

⎞

⎟

⎠

Thus the problem is to minimize the distance be-

tween the given point Y and a point A ∗ X belonging

to linear space Im(A). It is well known (Whittaker

and Robinson, 1967) that the the minimum is ob-

tained with the orthogonal projection of Y on Im(A)

namely with Y = A ∗ X + δ and δ ∈ Im(A)

⊥

This decomposition of Y (corresponding to the di-

rect sum R

= Im(A) ⊕ Im(A)

⊥

) is denoted :

A ∗ X

LSF

  

∈Im(A)

− δ

LSF



∈Im(A)

⊥

= Y

By recalling that Im(A)

⊥

is also KerA

,we

have :

∗ A)



 

square matrix, symmetric

∗X

LSF

− A

∗ δ

LSF

  

= A

∗ Y

and by multiplying on the left by the inverse of

A ∗ A

(we assume that A is a full rank matrix), it

provides the following expression of the least squares

solution :

LSF

=(A

∗ A)

−1

∗ A

∗ Y (3)

The n+1coordinates of X

LSF

are the coordinates

(in present case : the x-coordinates) of the n +1con-

trol points of the least squares ﬁtting reconstructed

surface.

LP FITTING APPROACH FOR RECONSTRUCTING PARAMETRIC SURFACES FROM POINTS CLOUDS

327

3.5 LP Fitting

Our original approach consists in working with a uni-

form criterion on the error. We minimize the uniform

norm of δ instead of the Euclidian norm used in least

squares ﬁtting. This method leads us to a linear pro-

gram (Chvatal and Vasek, 1983). According to Equa-

tion 2 we obtain the following problem of minimiza-

tion :

Min

A ∗ X − Y 

∞

⇐⇒

⎧

⎪

⎨

⎪

⎩

Min



Max

1≤i≤p

|δ



δ = A ∗ X − Y =

⎛

⎜

⎝

⎞

⎟

⎠

The problem can be modiﬁed by introducing an

auxiliary real variable that we denote h. It plays the

role of a bound on the each coordinate of A ∗ X − Y .

⎧

⎨

⎩

Min



Max

1≤i≤p

|δ



δ = A ∗ X − Y

⇐⇒

⎧

⎨

⎩

Min

X,h

(h)

δ = A ∗ X − Y

−h ≤ δ

≤ +h ∀i, 1 ≤ i ≤ p

⇐⇒



Min

X,h

(h)

−h ∗ 1l ≤ A ∗ X − Y ≤ h ∗ 1l

⇐⇒

⎧

⎨

⎩

Min

X,h

(h)

A ∗ X + h ∗ 1l ≥ Y

A ∗ X − h ∗ 1l ≤ Y

It leads to the following linear program 4:

⎧

⎪

⎨

⎪

⎩

Min

(h)

⎛

⎜

⎝

⎞

⎟

⎠

∗





≥ Y

⎛

⎜

⎝

−1

⎞

⎟

⎠

∗





≤ Y

(4)

where the variables are X ∈ R

n+1

(or each co-

ordinate of X) and h ∈ R and where the objective

function is the linear form h. By construction, the lin-

ear program is feasible. Its solution is denoted X

LP F

Its n +1coordinates are again the coordinates (in our

case the x-coordinates) of the n +1control points of

the LP-ﬁtting reconstructed surface.

4 RESULTS

4.1 Protocole

We have generated point clouds from existing para-

metric surfaces: B

ezier surfaces, B-spline surfaces

and sphere surfaces with spherical angles as parame-

ters. The coordinates of the points and the corre-

sponding parameters have been perturbed by gaussian

noise to obtain relatively realistic points clouds. Then

we proceeded with the reconstruction according to

least squares and LP ﬁtting methods. The results have

been recorded in histograms in order to understand

the relative merit of our new ﬁtting method with re-

spect to classical least squares approach.

4.2 Interpretation of Results

For each surface that we reconstructed, we computed

the errors on each point (see Figure 2) .

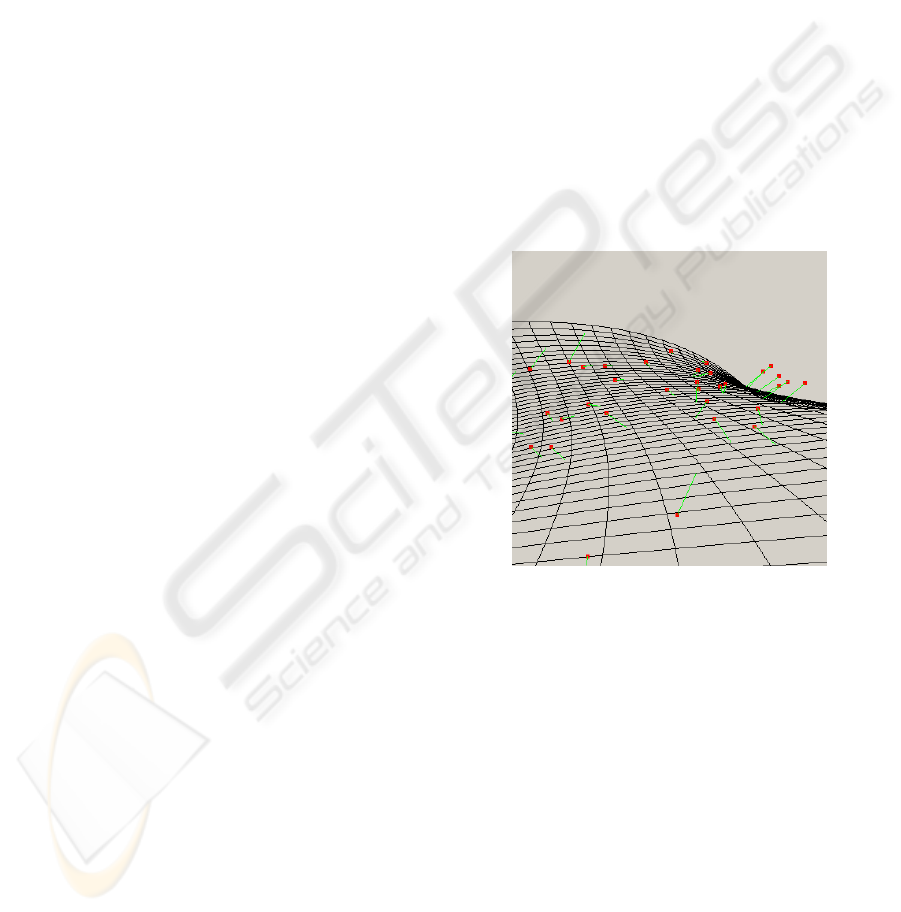

Figure 2: Result of reconstruction with the original 3D co-

ordinates M

in red, the surface F (s, t) in black, and the

error vectors δ

−−−−−−−−→

F (s

) in green.

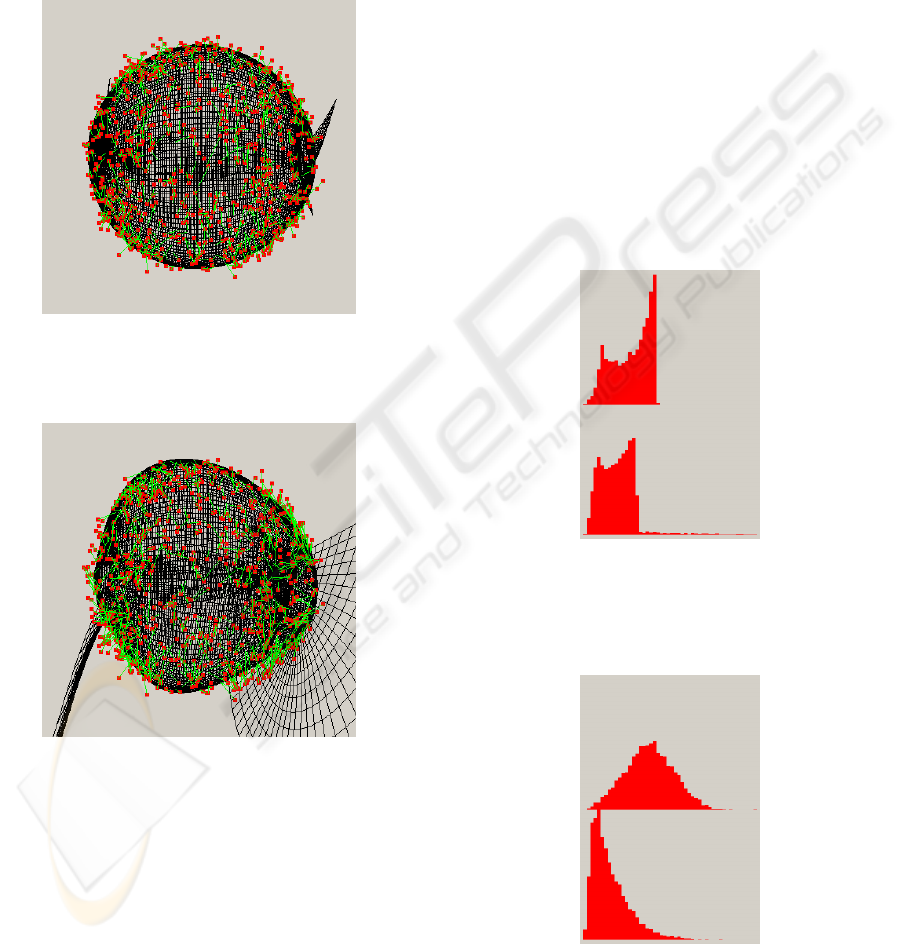

Figures 3 and 4 show the reconstruction of the

same perturbed sphere by B

ezier surface, with the two

methods. We can notice that the least squares ﬁtting

result seems to be a practically perfect sphere while

the LP ﬁtting result is bumpy. It is the consequence of

an expectable behavior. The noise that we have intro-

duced on the sphere has a deeper impact on the LP-

approach than on least squares ﬁtting. This feature

of both methods is a great difference. Least squares

would be better to deal with noisy data but there is

the risk that some important details represented only

by few points or a lower density of points in the input

could be treated as noise and disappear from the re-

constructed surface. With least squares ﬁtting, the re-

constructed surface could be very far from one point

because the quadratic criteria has favored a solution

GRAPP 2006 - COMPUTER GRAPHICS THEORY AND APPLICATIONS

328

passing close to another region with a lot of points.

With LP-ﬁtting, the uniform criterion constrains the

solution to be close to any point without any consider-

ation on its statistical weight. Thus LP-ﬁtting is better

if all the points have an equivalent signiﬁcation and

is probably less satisfying than least squares ﬁtting if

the input is noisy (with non signiﬁcant points in the

input).

Figure 3: Reconstruction of sphere with Least Squares Fit-

ting (LSF).

Figure 4: Reconstruction of sphere with LP Fitting (LPF).

4.3 Histograms

For each reconstructed surface, the Euclidian norms

of the error vectors (in green in the ﬁgures) have been

recorded in histograms.

In most cases the maximal error between a point

and its corresponding point belonging to the recon-

structed surface is much smaller with LP-ﬁtting than

with least squares ﬁtting (see for instance Figure 5).

There exist actualy some cases where the tendency is

inverted (see Figure 6). It is due to the fact that the

maximum of the error on the x-coordinate, on the y-

coordinate and on the z-coordinate are obtained with

points of different indices with the consequence that

an independent minimization of each of them (what is

done in LP-ﬁtting) does not guarantee to minimize the

maximum of their Euclidian norm. Some more stan-

dard histograms are drawn in Figure 7 and 8. They

show results with little disturbed data and much more

disturbed data. In general, on all computed examples,

with few and much more disturbances, the LP-ﬁtting

maximum error is about 80% of the least squares

maximum error.

The main result of our experiment is that LP-ﬁtting

provides surfaces which are signiﬁcantly closer from

the points cloud in terms of maximal distance. We

can also notice on the shape of the corresponding his-

tograms that by using LP-ﬁtting the cost on the mean

error (which is minimum by using least squares ﬁt-

ting) remains quite low.

Figure 5: Histograms of reconstruction of a perturbed

sphere by B

ezier surface 5*5 : LP-ﬁtting (top) least squares

ﬁtting (bottom).

Figure 6: Histograms of reconstruction of another perturbed

sphere by B

ezier 5*5 : LP-ﬁtting (top) least squares ﬁtting

(bottom).

LP FITTING APPROACH FOR RECONSTRUCTING PARAMETRIC SURFACES FROM POINTS CLOUDS

329

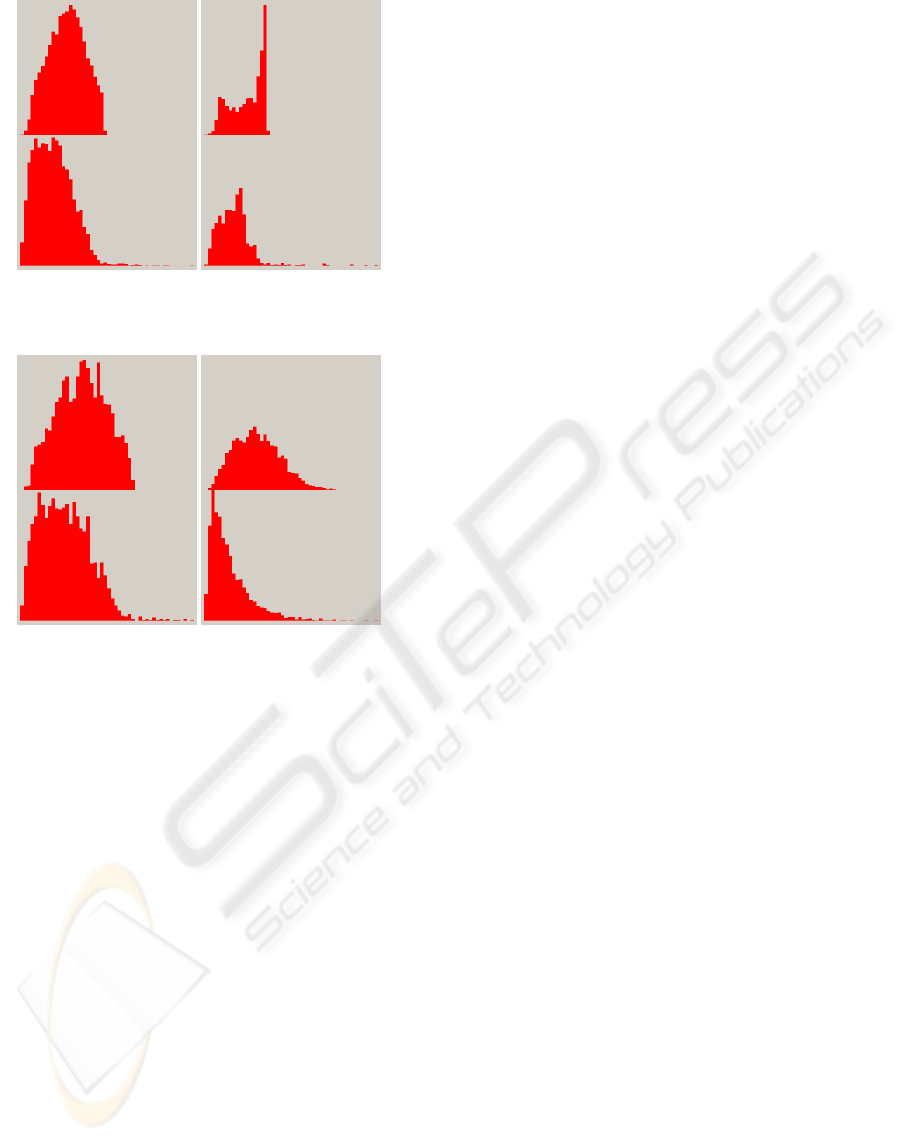

Figure 7: Two histograms of reconstructions : LP-ﬁtting

(top) least squares ﬁtting (bottom).

Figure 8: Two histograms of reconstructions of highly per-

turbed input : LP-ﬁtting (top) least squares ﬁtting (bottom).

5 CONCLUSION

Least squares ﬁtting is a subroutine of the general

problem of surface reconstruction. The input is a ﬁ-

nite subset of R

provided with a pair of parameters

for each point. The output is a grid of control points

ofaB

ezier, B-spline surface (or any surface of the

same kind). We propose in this paper an alternative

method based on the idea to minimize the uniform er-

ror on the input instead of usual quadratic Euclidian

error. From a computational point of view, it leads

to a linear program which can be solved by any solver

while classical least squares approach only requires to

compute an orthogonal projection on a linear space.

The different features of the two methods are re-

lated to the choice to minimize the uniform or Euclid-

ian error. With least squares approach the statistical

weight of a subset of points concentrated in a given

region enforces the reconstructed surface to be close

to it while an isolated point can be considered as noise

with the consequence that the surface can be far from

it. With LP-ﬁtting the reconstructed surface is close

to all the points of the input independently of their

number in each region. This different behavior is the

main point allowing to choose one or the other ﬁtting

method.

REFERENCES

Atieg, A. and Watson, G. A. (2004). Use of l

norms in

ﬁtting curves and surfaces to data. In Crawford, J. and

Roberts, A. J., editors, Proc. of 11th Computational

Techniques and Applications Conference CTAC-2003,

volume 45, pages C187–C200.

Barber, C. B., Dobkin, D. P., and Huhdanpaa, H. (1996).

The quickhull algorithm for convex hulls. ACM Trans-

actions on Mathematical Software, 22(4):469–483.

Chvatal and Vasek (1983). Linear Programming. A Series

of Books in the Mathematical Sciences. W. H. Free-

man and Company, New York.

Cohen, E., Riesenﬁeld, R. F., and Elber, G. (2001). Geo-

metric Modeling with Splines : An Introduction.AK

Peters.

Eck, M., DeRose, T., Duchamp, T., Hoppe, H., Lounsbery,

M., and Stuetzle, W. (1995). Multiresolution analysis

of arbitrary meshes. Computer Graphics, 29(Annual

Conference Series):173–182.

Eck, M. and Hoppe, H. (1996). Automatic reconstruction

of B-Spline surfaces of arbitrary topological type. In

ACM SIGGRAPH 96, pages 325–334.

Edelsbrunner, H. and M

ucke, E. P. (1994). Three-

dimensional alpha shapes. ACM Transactions on

Graphics, 13(1):43–72.

Farin, G. (2002). Curves and surfaces for CAGD: a practi-

cal guide. Morgan Kaufmann Publishers Inc.

Floater, M. S. and Hormann, K. (2005). Surface parame-

terization: a tutorial and survey. In Dodgson, N. A.,

Floater, M. S., and Sabin, M. A., editors, Advances in

multiresolution for geometric modelling, pages 157–

186. Springer Verlag.

uttler, B. (1997). Surface ﬁtting using convex tensor-

product splines. J. Comput. Appl. Math., 84(1):23–44.

Sarkar, B. and Menq, C.-H. (1991). Smooth-surface ap-

proximation and reverse engineering. Computer-

Aided Design, 23(9):623–628.

Weiss, V., Andor, L., Renner, G., and V

arady, T. (2002).

Advanced surface ﬁtting techniques. Comput. Aided

Geom. Des., 19(1):19–42.

Whittaker, E. T. and Robinson, G. (1967). The Method of

Least Squares. Ch. 9 in The Calculus of Observations:

A Treatise on Numerical Mathematics. Dover Publi-

cations, 4th edition.

GRAPP 2006 - COMPUTER GRAPHICS THEORY AND APPLICATIONS

330
