SYSTEM ARCHITECTURE OF A MIXED REALITY FRAMEWORK

Helmut Seibert

Computer Graphics Center (ZGDV), Department Visual Computing

Fraunhoferstrasse 5, 64283 Darmstadt, Germany

Patrick D

ahne

Computer Graphics Center (ZGDV), Department Visual Computing

Fraunhoferstrasse 5, 64283 Darmstadt, Germany

Keywords:

Mixed Reality framework, Augmented Reality, data-ﬂow management, distributed systems.

Abstract:

In this paper the software architecture of a framework which simpliﬁes the development of applications in

the area of Virtual and Augmented Reality is presented. It is based on VRML/X3D to enable rendering of

audio-visual information. We extended our VRML rendering system by a device management system that is

based on the concept of a data-ﬂow graph. The aim of the system is to create Mixed Reality (MR) applications

simply by plugging together small prefabricated software components, instead of compiling monolithic C++

applications. The ﬂexibility and the advantages of the presented framework are explained on the basis of an

exemplary implementation of a classic Augmented Reality application and its extension to a collaborative

remote expert scenario.

1 INTRODUCTION

Creating Mixed Reality (MR) applications currently

is one of the most challenging tasks in the ﬁeld of

computer graphics. The developer has to deal with

exotic hardware devices like head mounted displays,

GPS receivers, electronic compasses etc. In many

cases, especially when building mobile systems, tra-

ditional IO devices like keyboards and mice are not

available. No widely adopted standards exist in this

area.

Our own experience with different projects has

shown that most MR applications are closely tied to

the hardware they have been developed for. It is usu-

ally not a trivial task to switch from a video-see-

trough head mounted display to a system based on

a web pad, or to exchange an electromagnetic track-

ing system by a video-based tracking system. In most

cases, changing the system conﬁguration results in

rewriting major parts of the MR application.

Another problem is that hardware platforms for

MR applications are becoming more and more hetero-

geneous. Mobile AR applications for example are not

necessarily limited to the usual Wintel platform (MS

Windows operating system on an Intel microproces-

sor), instead, new hardware platforms like handheld

PCs, handheld game consoles and mobile phones are

emerging. The broad range of different hardware

conﬁgurations and operating systems on these kinds

of devices makes cross-platform development even

worse.

Obviously, this situation is not very satisfactory and

hinders the introduction of commercial MR applica-

tions. For this reason, we developed a framework that

allows us to separate the hardware-independent appli-

cation logic from the parts of the software that de-

pend on the hardware conﬁguration. Our framework

allows to develop MR applications by using VRML

and a special markup language used to describe the

hardware conﬁguration. Applications written in these

markup languages are completly platform indepen-

dent, i.e. they can be executed on any platform the

runtime system has been ported to. Changing the

hardware conﬁguration can be simply done by modi-

fying text ﬁles without the need to recompile any ap-

plication code. The main focus of our system is rapid

prototyping, i.e. it is meant to be a research system

that allows to rapidly develop small applications that

serve as a test bed for new algorithms.

2 RELATED WORK

The main research focus in the area of Augmented

Reality has been the determination of the user’s posi-

tion and orientation (tracking), appropriate interaction

200

Seibert H. and Dähne P. (2006).

SYSTEM ARCHITECTURE OF A MIXED REALITY FRAMEWORK.

In Proceedings of the First International Conference on Computer Graphics Theory and Applications, pages 200-207

DOI: 10.5220/0001354902000207

 SciTePress

methods for AR applications, graphical problems like

the correct illumination of virtual objects and the oc-

clusion of virtual objects by real objects, and the de-

velopment of powerful and yet lightweight wearable

computers. But recently, the development of AR soft-

ware frameworks gained more and more attention.

An early example of a software framework is CO-

TERIE (MacIntyre and Feiner, 1996). COTERIE is

a set of packages written in Modula-3 that allow to

create “Distributed shared objects”, i.e. data objects

that are transparently shared by processes on different

machines in the network.

Another well-known software-framework is

Studierstube (Schmalstieg et al., 2002). Studierstube

is based on the concept of a distributed scene graph

(Distributed Open Inventor), and a data ﬂow frame-

work called OpenTracker (Reitmayr and Schmalstieg,

2001) that handles different kinds of trackers.

DWARF (Bauer et al., 2001) is using a concept

similar to our own concept described in this paper.

AR applications are build by using services that form

a distributed data ﬂow graph. CORBA is used for all

network communication.

Tinmith (Piekarski and Thomas, 2003) is using an

object store based on Unix ﬁle system semantics. Ap-

plications can register callbacks on these objects to

get notiﬁcations when an object changes. Objects are

automatically distributed between different processes

on the network.

ImageTclAR (Owen et al., 2003) is an AR frame-

work based on Tcl/Tk. The basic runtime system of

the Tcl script language has been extended by modules

that provide functionality typically needed by AR ap-

plications, e.g. access to video cameras and tracking

devices.

Other software frameworks that focus on the de-

velopment of VR applications are VR Juggler (Cruz-

Neira et al., 2002) and DIVERSE (Arsenault and

Kelso, 2002). VRPN (Taylor et al., 2001) and IDEAL

(Fr

ohlich and Roth, 2000) are device management

systems that concentrate on the ﬂexible and network-

transparent access to VR devices.

Our framework differs from these existing solu-

tions in the way it is used to create MR applications.

Our system is not a library that has to be linked into

the application code, instead it is a runtime system

that allows to interpret MR applications written in a

set of markup languages. The major advantage of this

approach is that applications are platform indepen-

dent – the applications run on all platforms the run-

time system has been ported to. Furthermore, chang-

ing the hardware conﬁguration can be easily done by

modifying simple text ﬁles, without having to recom-

pile any code. Our system shares these advantages

with ImageTclAR, which also allows to develop ap-

plications in a scripting language. In contrast to Im-

ageTclAR, our system is based on the concept of a

data ﬂow graph, which in our opinion better reﬂects

the event-driven nature of MR applications than a pro-

cedural script language.

3 CONCEPT OF AN MR

FRAMEWORK

As already mentioned in the introduction, our aim is

to create MR applications that can be implemented

without much effort, and can be easily ported to mis-

cellaneous hardware conﬁgurations. The application

logic should be clearly separated from the code nec-

essary to handle hardware devices. Instead of creat-

ing large, monolithic C++ applications that have to

be recompiled each time the hardware conﬁguration

changes, we prefer to have a set of small, reuseable

software components that are not hard-wired, but can

be easily reconﬁgured by using conﬁguration ﬁles that

can be adapted to the speciﬁc system conﬁguration.

The ﬁnal aim is to create some kind of a runtime sys-

tem that is able to load and execute MR applications

written in a device- and system-independent markup

language.

When analyzing existing standards and techniques

in the computer graphics area, we realized that at least

for VR applications the VRML standard to a large

degree fulﬁlls our needs. VRML is a markup lan-

guage that allows to describe the virtual scene in a

completely device-independent manner. Besides the

classical scene graph, VRML also allows to specify

the behavior of the virtual objects. Each node of the

scene graph is a small state machine that is able to

receive events, change its state, and to send events

depending on the state transition. In fact, the scene

graph is supplemented by a data ﬂow graph that con-

tains the application logic. When it is not possible

to implement the application logic by using standard

nodes, the set of VRML nodes can be extended by

using “Script” nodes whose behavior can be imple-

mented in JavaScript or Java.

Because VRML perfectly ﬁts to our requirements,

our framework is based on VRML. But VRML has

its weaknesses when used for MR applications. It is

designed for Internet applications, i.e. for VR appli-

cations running on a desktop PC equipped with stan-

dard IO devices like mice and keyboards. It does not

provide any means to integrate any devices and me-

dia used for MR applications, i.e. tracking systems or

live video streams. Therefore, we had to extend our

VRML framework by a device management system.

Most existing device management systems allow

the application to access devices by using a set of ab-

stract device classes, for example “Locator” for track-

ing systems. But only few provide means to process

the data values, e.g. to transform position values of

SYSTEM ARCHITECTURE OF A MIXED REALITY FRAMEWORK

201

tracking systems into another coordinate system, or

to calculate the position and orientation of the user by

using video images.

When we planned the architecture of our device

management system, we realized that almost all de-

vices used in MR applications produce or consume

data streams. We have live video and audio streams

from cameras and microphones, streams of position

and orientation values from tracking systems, as well

as button-press and -release events from gamepads or

keyboards. Our demand for extensive preprocessing

of data streams resulted in the concept of a data ﬂow

graph. In this graph, we have nodes that produce data

streams (input devices), nodes that transform data

streams, and nodes that consume data streams (output

devices). Nodes send data values via “Outslots” and

receive values via “Inslots”. Like in VRML, outslots

and inslots are connected by “Routes”. The follow-

ing sections describe the components of the data ﬂow

graph in more detail.

3.1 Nodes

Nodes are the core component of the data ﬂow graph.

There are four types of nodes:

1. Nodes that produce data. These are usually de-

vice drivers of input devices, nodes that replay data

streams stored on a hard disk, timers etc.

2. Nodes that transform data. Examples are nodes

that transform coordinate systems, or video track-

ing systems that take video frames and transform

them to position and orientation values.

3. Nodes that consume data. These are usually de-

vice drivers of output devices, nodes that store data

streams on a hard disk, etc.

4. Nodes that do not deal with data in any way. This

sounds strange at a ﬁrst glance, but our system cur-

rently already has three nodes of this kind: The

“Network” node that makes the system network

transparent, the “Web” node that provides a user

interface to the framework, and the “Inline” node

that allows to integrate subgraphs stored in conﬁg-

uration ﬁles.

To create a new node, the developer has to de-

rive a new class from the abstract node base class.

Nodes can be linked into the application executable

(mostly used for the basic, application-independent

set of standard nodes provided by the system), or they

can be loaded as plugins during runtime (application-

speciﬁc nodes).

An important design decision that has to be made

by the developer of a new node is whether the node

uses its own thread or not. Device driver nodes for

input devices usually always need to have an own

thread, because they have to listen to the port the de-

vice is connected to. All other types of nodes do not

necessarily need to have their own thread. For ex-

ample, ﬁlter nodes that transform position values into

another coordinate system usually directly calculate

the new values when they are notiﬁed that new data is

available. This means that they are in fact driven by

the threads of the device driver nodes that provided

the incoming data values. On the other hand, ﬁlter

nodes that have to perform complex calculations, like

video trackers, usually get their own threads.

3.2 Outslots and Inslots

Outslots and inslots are the means used by nodes to

exchange data values. Outslots are used to send data

to other nodes, and inslots are used to receive data

from other nodes. Both outslots and inslots are typed,

i.e. you have to specify what kind of data can be

send to or received from the slot when you create

it. When a node writes data values into an outslot,

the outslot automatically transfers copies of these data

values to all inslots it is currently connected to. For

efﬁciency reasons, smart pointers are used to transfer

large amounts of data, i.e. copying data values into

inslots usually just requires to copy a pointer.

For example,the Joystick node consists of two ﬂoat

outslots for the two axes of the joystick, and a boolean

outslot for the button. Please note that the actual num-

ber of outslots depends on the joystick hardware de-

tected by the joystick driver, i.e. the number of ﬂoat

outslots corresponds to number of axes provided by

the joystick, and the number of boolean outslots cor-

responds to the number of buttons.

3.3 Routes

When creating nodes of the data ﬂow graph, the ap-

plication developer has to specify a unique name for

each of these nodes, e.g. “Joystick 1” and “Joystick

2” for two nodes that operate joysticks attached to the

system. Each outslot and inslot of a node has a unique

label as well, e.g. “Button #1” for the ﬁrst button of a

joystick or “X-Axis” for the x-axis. As a result, each

slot in the system can be identiﬁed by a unique label

consisting of the node name and the slot name, e.g.

“Joystick 1/Button #1” for the ﬁrst button of the ﬁrst

joystick or “Joystick 2/X-Axis” for the x-axis of the

second joystick. To connect an outslot to an inslot, the

application developer simply has to create a so-called

“Route” that maps the label of an outslot to the label

of an inslot. Of course, only slots sending and receiv-

ing the same data type can be connected by routes.

GRAPP 2006 - COMPUTER GRAPHICS THEORY AND APPLICATIONS

202

Network

Node A

Node B

Node C

Graph 1

Proxy A

Proxy B

Node D

Graph 2

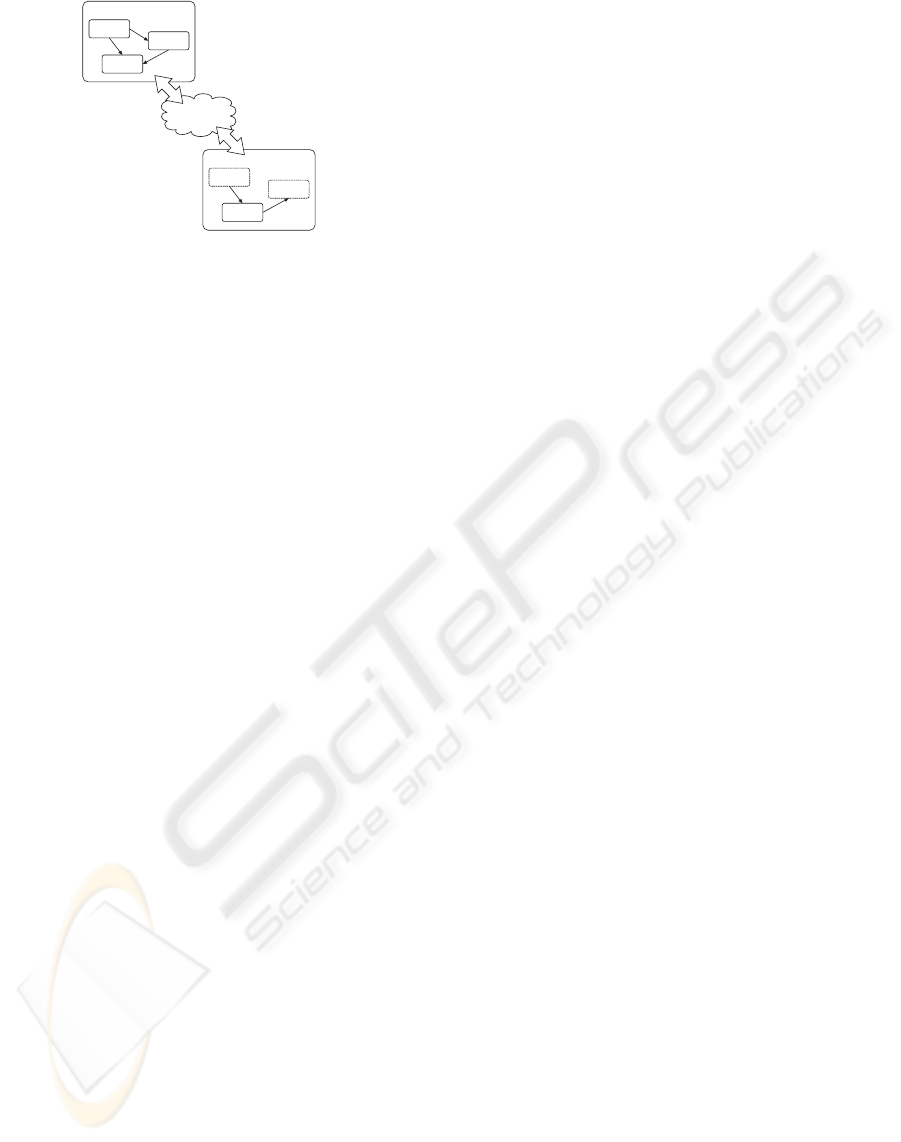

Figure 1: Network transparency by creating proxy nodes.

3.4 Namespaces

An interesting feature is the possibility to create

hierarchies of data ﬂow graphs by using so-called

“Namespaces”. Namespaces can be integrated into

data ﬂow graphs just like Nodes. They contain a com-

plete data ﬂow graph consisting of Nodes and Routes.

The developer can export any inslot and outslot from

the graph contained in the Namespace to the graph

that contains the Namespace. This allows application

developers to structure their data ﬂow graphs, hide

implementation details, and create macros that pro-

vide functionality to other developers.

3.5 Network Transparency

The concept of a data ﬂow graph makes it simple to

introduce network transparency into the device man-

agement system. Nodes of the graph communicate

via edges, so the most elegant solution is to allow

edges to be created between nodes on different ma-

chines.

Our system does not support network transparency

directly. Instead, it is made available by a special node

called “Network”. We did this to achieve a clear sep-

aration between the device management and the net-

work code.

When the Network node starts operation, it auto-

matically connects to all other Network nodes on the

network. We are using a technique called “Multicast

DNS” (ZZMDNS, ) to automatically discover all Net-

work nodes available on the network without the need

of any conﬁguration or central servers. After con-

necting, the Network nodes create local proxy nodes

for all nodes available on remote machines. These

proxy nodes can be used to create edges between

nodes on different machines. Figure 1 for example

shows two data ﬂow graphs running on different ma-

chines. Nodes A and B of the ﬁrst graph are available

as proxy nodes in the second graph. They can be used

in the second graph just the same way as local nodes,

but any events sent between the proxy nodes and lo-

cal nodes of the second scene graph are automatically

transferred via the network.

Each data value that gets transferred via a network

connection needs to be transformed into a system-

independent byte stream (serialization). For each data

type, a corresponding codec has to be implemented

that performs this serialization. Such codecs already

exist for the default data types provided by the sys-

tem, but the application programmer has to imple-

ment and register codecs for all application-speciﬁc

data types. Most codecs simply write the data values

into the byte stream, but more sophisticated codecs

are possible that compress the transferred data, e.g.

when transferring video frames.

3.6 Conﬁguration File

The structure of the data ﬂow graph is usually not hard

coded into the application. Instead, we use a conﬁgu-

ration ﬁle to store the whole data ﬂow graph on hard

disk and to restore the graph when starting the appli-

cation again.

The format of the conﬁguration ﬁle is XML due to

the fact that this is a well-known, established standard

for storing information. There are numerous parsers,

editors and other free tools available.

Even though it is possible to create these XML ﬁles

by hand, this approach is not recommended. Instead,

the application developer uses the integrated user in-

terface of the device management system to create a

data ﬂow graph that fulﬁlls his needs. This user in-

terface also allows to save the current status into a

conﬁguration ﬁle.

There are three ways to restore a saved graph from

a conﬁguration ﬁle:

1. The user simply loads the conﬁguration by using

the integrated user interface.

2. The conﬁguration is loaded when starting the ap-

plication.

3. There is a special “Inline” node that allows to in-

tegrate conﬁguration ﬁles into other conﬁguration

ﬁles, exactly the same way as the VRML “Inline”

node allows to integrate several VRML subgraphs

into one scene graph, or the C “include” preproces-

sor statement allows to integrate several pieces of

source code into one ﬁle.

3.7 User Interface

Our device management system has an integrated

Graphical User Interface (GUI) that allows to mod-

ify the data ﬂow graph during runtime. During our

work on several MR projects it soon became obvious

that it is quite often impossible to do development and

SYSTEM ARCHITECTURE OF A MIXED REALITY FRAMEWORK

203

debugging directly on the machine the application is

running on. Instead, we need means to control our

application from other machines in the network.

For example, consider the development of a mobile

AR system. Such wearable systems usually do not

have conventional input devices like keyboards and

mice. This means that the user of such a system is

not able to operate user interfaces that consist of win-

dows, buttons, sliders etc. Furthermore, these appli-

cations usually run in full-screen mode which makes

it difﬁcult to watch any debug output in console win-

dows.

Our solution is a small web server that provides

a user interface build from HTML pages. This web

server is not part of the device management system,

instead it is implemented as a node that can be added

to the data ﬂow graph. The web server solution allows

us to control the device management system from any

device that has a simple web browser installed and

that is connected via network to the machine the ap-

plication is running on. The interface allows to in-

spect the current state of the system, to add and to

remove nodes and routes from the graph, to change

parameters, and to save the current state to or to re-

store it from a conﬁguration ﬁle.

4 INTEGRATION IN VRML/X3D

The integration of our device management system

into VRML is straightforward. For each ﬁeld data

type available in VRML, we deﬁned a sensor node.

These sensors are deﬁned as follows (“x” is just a

placeholder for the concrete VRML ﬁeld types SF-

Bool, SFFloat, ...,MFBool, MFFloat, ...):

xSensor {

SFString [] label ""

SFBool [] out FALSE

x [in,out] value

}

For example, the sensor for boolean events is deﬁned

SFBoolSensor {

SFString [] label ""

SFBool [] out FALSE

SFBool [in,out] value FALSE

}

For each sensor in the VRML ﬁle we create a corre-

sponding outslot or inslot in the graph of the device

management system (if it is an outslot or an inslot de-

pends on the value of the “out” ﬁeld). The slot gets

the name speciﬁed in the “label” ﬁeld. The VRML

scene sends data to outslots or receives values from

inslots via the “value” ﬁeld.

For more information about the design rationales of

the sensor nodes, see (Behr et al., 2004).

5 PERFORMANCE

CONSIDERATIONS

Applications written in scripting and markup lan-

guages often suffer from the prejudice that they are

inefﬁcient. This is not generally true. In our system,

we do not use scripting and markup languages to han-

dle time-consuming tasks like video tracking and ren-

dering – instead, they are only used to set up the struc-

ture of the system. Video tracking and rendering are

implemented in an efﬁcient compiled language (C++)

– only the interconnection between the software mod-

ules (nodes) and the application logic is controlled by

scripts. The communication between the modules of

course introduces some overhead – but this overhead

is small compared to the calculation time needed by

tracking and rendering. Furthermore, the overhead is

compareable to the overhead of conventional frame-

works.

6 APPLICATIONS

The proposed architecture simpliﬁes and speeds up

the development of new Mixed Reality applications.

A prefabricated pool of nodes interfacing various de-

vices allows the developer to choose the appropriate

devices for the desired application.

6.1 AR Application Using

Marker-based Tracking

This section focusses at the development of an Aug-

mented Reality application using a marker-based

video tracking system based on the well known AR-

ToolKit (Kato and Billinghurst, 1999). A common

task in Augmented Reality applications is to enhance

the view to a real scene with virtual objects contain-

ing speciﬁc information about real objects. We chose

a technical scenario, where the augmented view on a

networks witch device explains the allocation its con-

nectors, which are known from a database,and infor-

mation on how to establish a deﬁned cable connec-

tion..

Detailed instructions can be used to augment the

users view, e.g. allowing the user a plug a cable

to the correct connector of a network device, see

ﬁgures 4 and 3 .

6.1.1 Hardware Setup

The hardware components for the user are a laptop, a

standard USB video camera for the observation of the

real scene and a (Sony LDI-100) high resolution head

mounted display for the observation of the augmented

GRAPP 2006 - COMPUTER GRAPHICS THEORY AND APPLICATIONS

204

Figure 2: User with head mounted display.

scene, see ﬁgure 2. Three buttons are mounted on the

hand-held display to enable simple user interactions

like switching application modes or adjusting para-

meters.

Figure 3: Augmented view, showing location of a connec-

tor.

6.1.2 Rendering System

Rendering is done with the Avalon(Behr et al., 2004)

rendering framework which utilizes VRML/X3D.

The described device management system is inte-

grated, data can be received via VRML sensor nodes.

One system-speciﬁc extension we use is the Viewfrus-

tum node which allows to use a projection matrix

which is calculated by the external tracking node. The

augmented environment, by means of virtual objects

to be included in the augmented view for the user

is deﬁned in the scene-graph. The system is imple-

mented as a video-see through, so video images are

drawn as background to the application window. The

scene-graph includes a Transform node and additional

child nodes representing the corresponding virtual ob-

ject for each marker. The Viewfrustum, the Transform

node and the Switch node are updated according to

corresponding sensor nodes.

Figure 4: Augmented view, showing additional information

how to plug in a connector.

6.1.3 Software Components and Data Flow

To implement the mentioned AR application, we are

able to select prepared modules, represented as nodes

which can be inserted into our data ﬂow graph. The

video tracking system consists of a video source, the

computer vision algorithms and optional ﬁlters that

allow e.g. grouping of several markers. The nodes we

use are described brieﬂy in the following. The appli-

cation can be implemented by setting up a data ﬂow

graph holding the corresponding nodes and routes

connecting corresponding inslots and outslots, see

ﬁgure 5 for a sample conﬁguration ﬁle. When the ap-

plication starts, the nodes and routes are created, and

the system is ready for use. The integrated web inter-

face shows all nodes and routes that have been created

and allows to examine their state, sources of error can

easily be determined and eliminated. For example if

there is no camera connected to the system, the video

node will fail to initialize resulting in a blank applica-

tion screen. The web interface allows a look inside the

system and shows the existing nodes and their current

state.

6.1.4 Video Node

The video node produces video data by interfacing

the camera and, if necessary, converting compressed

video formats to a suitable uncompressed format for

the vision algorithms and the display system. Each

frame of the video sequence is pushed through an

SFImage outslot as a single image. Optional para-

meters allow to specify image size or image format to

initialize the video node in a suitable way.

6.1.5 Video Tracking Node

The video tracking node provides the tracking algo-

rithm to compute the transformation of each recog-

nized marker in the video image. Video frames are re-

SYSTEM ARCHITECTURE OF A MIXED REALITY FRAMEWORK

205

<?xml version="1.0"?>

<ExternalRoute internal="

" external="{NamespaceLabel}/{SlotLabel}"/>

</Node>

<Parameter name="markers" value="m1,http://pc978/markers/m1.patt,15;

m2,http://pc978/markers/m2.patt,15;/>

<ExternalRoute internal="

" external="{NamespaceLabel}/{SlotLabel}"/>

</Node>

<Parameter name="markers" value="m1,0 0 0,0 0 0 1;

m2,122 -404.5 0,0001;"/>

<ExternalRoute internal="

" external="{SlotLabel}"/>

</Node>

<ExternalRoute internal="

" external="{SlotLabel}"/>

</Node>

</Node>

</HID>

Figure 5: XML conﬁguration ﬁle for the device manage-

ment.

ceived through an SFImage inslot and processed with

computer vision algorithms, which allow to recognize

trained patterns. The Tracking Node has to be initial-

ized with a number of pattern descriptions. This is

done by supplying a parameter string containing the

pattern name and the URL of the corresponding pat-

tern deﬁnition ﬁles, and the pattern size for each used

marker. Other parameter is the URL of the camera

calibration ﬁle, the near and far values for the view

frustum and the image segmentation threshold. The

ﬁles are retrieved and the module creates the out-

slots for each pattern. The rendering system needs

to be supplied with the transformation of the recog-

nized patterns to update the corresponding Transform

nodes in its scene-graph. To toggle the visibility of

the corresponding object, the information weather it

has been detected or not is also provided. A sam-

ple VRML ﬁle is shown in ﬁgure 6. Two outslots are

created for each pattern, one outslot of type SFMa-

trix, and another outslot of type SFBool. All marker

transformations are calculated for the camera model

deﬁned by the camera calibration ﬁle and additional

near and far plane parameters. The corresponding

projection matrix for the rendering system is supplied

through an additional outslot of type SFMatrix. The

vision algorithms are time-consuming, to avoid dis-

placed augmentations the processed video frames are

forwarded through an SFImage outslot at the same

time the marker information is passed though the cor-

responding outslots.

#VRML V2.0 utf8

DEF matrixCam Viewfrustum{

zNear 50.0

zFar 5000.0

}

DEF projectionSensor SFMatrixSensor {

label "ArToolKit/projection"

description "Projection Sensor"

}

ROUTE projectionSensor.value_changed TO matrixCam.set_projection

DEF imageBG ImageBackground {

texture DEF image PixelTexture {}

}

DEF imageSensor SFImageSensor {

label "ARToolKit/frames_out"

description "Image Sensor"

}

ROUTE imageSensor.value_changed TO image.set_image

DEF model_trans MatrixTransform {

children [

DEF inlineNode Inline {

url"http://pc990/augmentation.wrl"

}

]

}

DEF modelSensor SFMatrixSensor {

label "model_transform"

description "Model transform Sensor"

}

DEF modelSelectSensor BoolSensor {

label "model_select"

description "Model select Sensor"

}

ROUTE modelSensor.value_changed TO model_trans.set_matrix

ROUTE modelSelectSensor.value_changed TO model_trans.set_visible

DEF urlSensor SFStringSensor {

label "augmentation_url"

description "augmentation url Sensor"

}

ROUTE urlSensor.value_changed TO inlineNode.set_url

Figure 6: VRML ﬁle for the rendering system.

6.1.6 Group Node

Tracking with single markers does often not satisfy

the needs of the application, because some markers

get occluded or unrecognizable when the camera is

moved. The use of redundant markers is possible if

the displacement in between is known and remains

ﬁx during runtime. A group node provides inslots

for each pattern and calculates the group transforma-

tion by applying appropriate offset transformations to

the pattern transformations, which is mapping each

marker transformation to a group transformation. The

in slots and corresponding offset transformations have

to be provided as parameters, see ﬁgure 5 for exam-

ple. The group transformations for each pattern are

then combined by applying a linear combination of

transformations as introduced in (Alexa, 2002). The

group transformation is then provided at the outslot of

the group-node.

6.2 Extending the Application

The application above has been enhanced to allow a

simple communication between user and an ’remote’

expert at a different location. The expert is supplied

with the camera images of the distant user, and is able

to move a pointer and place additional virtual objects

and into the view of the worker. Furthermore a bidi-

rectional speech communication is necessary to ex-

tend the information interchange.

GRAPP 2006 - COMPUTER GRAPHICS THEORY AND APPLICATIONS

206

The expert requires a workstation with network con-

nection, sound hardware and a headset. Interactions

are done by mouse and keyboard. The user of the

AR system has the equipment mentioned above plus

a headset and network connection.

Two nodes at each system enable sound recording and

playback. The sound-record node accesses the digi-

tizer of the installed sound hardware, and provides the

PCM data on an outslot of type SFSample. The num-

ber of bits to sample, sample rate etc. are optional

parameters, which can be provided for initialization.

The counterpart is the sound-play node, which re-

ceives the samples using an inslot of type SFSam-

ple and passes the sample values to the digital/analog

converter of the sound hardware.

The Network transparency of the system allows to es-

tablish routes between inslots and outslots on differ-

ent machines. Video image and tracking information

are routed to the rendering system of the remote ex-

pert, which has the same scene-graph loaded. Mouse

interactions are grabbed by the mouse node and pro-

vided on an outslot of type SFVec2f. The user of

the AR system has an overlay which is shifted on

the screen according to the mouse movements of the

remote expert. The geometry of the overlay can be

modiﬁed by the remote expert by changing the URL

ﬁeld of an Inline node in the scene graph of the AR-

System. The URL needs to be speciﬁed by the remote

expert, the corresponding string is transferred via an

SFString outslot at the expert system and an inslot in

the rendering system of the user.

7 CONCLUSION

In this paper we presented the framework we use for

the development of our MR applications. It is cur-

rently available on several operating systems (Win-

dows, MacOS X, Linux, IRIX and SunOS) and as

a Java package (written in pure Java, therefore run-

ning on all systems providing a Java virtual machine).

The experiences we gain from the practical use of the

advance the further development of the system. Our

current research focus is the identiﬁcation, design and

implementation of new nodes that further ease the de-

velopment of MR applications.

REFERENCES

Alexa, M. (2002). Linear Combination of Transformations.

In Proceedings of ACM SIGGRAPH 2002, pages 380–

386.

Arsenault, L. E. and Kelso, J. (2002). The DIVERSE

Toolkit: A Toolkit for Distributed Simulations and Pe-

ripheral Device Services. In VR 2002.

Bauer, M., Bruegge, B., Klinker, G., MacWilliams, A.,

Reicher, T., Riss, S., Sandor, C., and Wagner, M.

(2001). Design of a component-based augmented re-

ality framework. In Proceedings of ISAR 2001.

Behr, J., D

ahne, P., and Roth, M. (2004). Utilizing X3D for

Immersive Environments. In Proceedings of Web3D

2004, pages 71–78.

Cruz-Neira, C., Bierbaum, A., Hartling, P., Just, C., and

Meinert, K. (2002). VR Juggler - An Open Source

Platform for Virtual Reality Applications. In Procs of

40th AIAA Aerospace Sciences Meeting and Exhibit

’02.

ohlich, T. and Roth, M. (2000). Integration of Multi-

dimensional Interaction Devices in Real-Time Com-

puter Graphics Applications. In Computer Graphics

Forum 19, pages C–313 – C–319.

Kato, H. and Billinghurst, M. (1999). Marker tracking and

HMD calibration for a video-based augmented reality

conferencing system. In 2nd IEEE and ACM Interna-

tional Workshop on Augmented Reality, pages 85–94.

MacIntyre, B. and Feiner, S. (1996). Language-level sup-

port for exploratory programming of distributed vir-

tual environments. In Proceedings of UIST ’96, pages

83 – 95.

Owen, C., Tang, A., and Xiao, F. (2003). ImageTclAR:

A Blended Script and Compiled Code Development

System for Augmented Reality. In Proceedings of the

International Workshop on Software Technology for

Augmented Reality Systems.

Piekarski, W. and Thomas, B. H. (2003). An object-oriented

software architecture for 3D mixed reality applica-

tions. In Proceedings of ISMAR 2003.

Reitmayr, G. and Schmalstieg, D. (2001). An Open Soft-

ware Architecture for Virtual Reality Interaction. In

Proceedings of VRST 2001.

Schmalstieg, D., Fuhrmann, A., Hesina, G., Szalavari, Z.,

Encarnac¸

ao, L. M., Gervautz, M., and Purgathofer, W.

(2002). The Studierstube Augmented Reality Project.

Presence, 11.

Taylor, R. M., Hudson, T. C., Seeger, A., Weber, H.,

Juliano, J., and Helser, A. T. (2001). VRPN: A

Device-Independent, Network-Transparent VR Pe-

ripheral System. In Proceedings of VRST 2001.

ZZMDNS. Multicast DNS, IETF draft.

http://www.multicastdns.org/.

SYSTEM ARCHITECTURE OF A MIXED REALITY FRAMEWORK

207
