A BASIC GESTURE AND MOTION FORMAT FOR VIRTUAL

REALITY MULTISENSORY APPLICATIONS

Annie Luciani, Matthieu Evrard, Damien Couroussé,

Nicolas Castagné, Claude Cadoz, Jean-Loup Florens

ACROE & ICA laboratory,

INPG, 46 av. Felix Viallet, Grenoble, France

Keywords: File Format, Gesture, Movement, Motion Capture, Virtual Reality, Computer Animation, Multisensoriality.

Abstract: The question of encoding movements such as those produced by human gestures may become central in the

coming years, given the growing importance of movement data exchanges between heterogeneous systems

and applications (musical applications, 3D motion control, virtual reality interaction, etc.). For the past 20

years, various formats have been proposed for encoding movement, especially gestures. Though, these

formats, at different degrees, were designed in the context of quite specific applications (character

animation, motion capture, musical gesture, biomechanical concerns…). The article introduce a new file

format, called GMS (for ‘Gesture and Motion Signal’), with the aim of being more low-level and generic,

by defining the minimal features a format carrying movement/gesture information needs, rather than by

gathering all the information generally given by the existing formats. The article argues that, given its

growing presence in virtual reality situations, the “gesture signal” itself must be encoded, and that a specific

format is needed. The proposed format features the inner properties of such signals: dimensionality,

structural features, types of variables, and spatial and temporal properties. The article first reviews the

various situations with multisensory virtual objects in which gesture controls intervene. The proposed

format is then deduced, as a mean to encode such versatile and variable “gestural and animated scene”.

1 INTRODUCTION

Gesture, motricity, and haptic perception are

deciding factors in the way we act on and we

perceive our environment. During the last few years,

many research centers have focused on gesture

control and movement analysis or synthesis, in

domains as various as surgery, aeronautics,

multimedia, artistic creation, and generally speaking

in every interactive systems. More and more,

applications are developed in opened and versatile

contexts and 3D images synthesis are produced in

interactive multimedia installations, in a such a way

that they have to be correlated to sound synthesis

processes, or other processes.

Thus, one today would need a low level format

to be used by developers and users in Computer

graphics, Computer Music, interactive systems and

versatile VR platforms. Several formats already exist

for encoding motion control/gesture data. However,

these formats were introduced in the context of quite

specific application and uses, usually do not focus

strictly on motion and gesture, and were not

designed, at first, to be used in versatile and

heterogeneous contexts. The data they encode are

thus context dependent, and they hardly correspond

with motion data in its more general meaning. This

article questions the need of a minimal and low level

description of gesture and motion data, able to code

all their features independently of the context in

which they have been produced and will be used.

The two next sections situate the various notions

at hand and discuss the properties of motion/gesture

data. The section 4 reviews the various existing file

formats, and discuss their advantages and lacks. The

two last sections present the requirements for a more

generic encoding of gesture data and the main

features of the proposed format, called GMS.

349

Luciani A., Evrard M., Couroussé D., Castagné N., Cadoz C. and Florens J. (2006).

A BASIC GESTURE AND MOTION FORMAT FOR VIRTUAL REALITY MULTISENSORY APPLICATIONS.

In Proceedings of the First International Conference on Computer Graphics Theory and Applications, pages 349-356

DOI: 10.5220/0001355803490356

 SciTePress

2 AMBIGUOUS TERMS

Given the ambiguity of various terms the article

focuses on, a few definitions have to be discussed.

2.1 Action / Movement / Signal

Movement (or motion) is the moving in space of a

part or of the totality of a system. Movement should

be distinguished from action, which is the result of

the movement. Following (Smith & al., 1984) ,

action is the result of the task achieved or to be

achieved - for example: “to drink a glass of water”.

Each action can be performed by means of many

different movements. And a movement can be

characterized by properties, such as soft, vivid, etc.

Action can be described at a high symbolic level,

for example by language, or by means of event-

based representations. Conversely, movements are

explicit spatio-temporal phenomena. They need to

be represented as temporal signals.

2.2 Motion and Gesture

Another evidence concerning motion is that it refers

to the evolution produced by a physical system,

whatever it is: human body, real mechanical objects

equipped with sensors, virtual objects, etc. One can

speak as well of the motion of a human body, of a

leaf, of a sounding source, etc. Motion is therefore

considered as the result of the performance, i.e. as an

output of an evolving system.

Conversely, when focusing the use of such

movements as “a command” or an input to control

the motion of another system, the only usable terms

are “action” or “gesture”. Unfortunately, as said in

the previous paragraph, “action” refers more to the

high level of the task than to way it was achieved. It

is very general, and can be used for any type of

systems. Conversely, “gesture” is usually reserved to

humans. Facing this dilemma, we decide to

emphasize the differentiation between input and

output functionalities, more than the nature of the

evolving system that produces the signals. Thus, we

call “gestures” all the motions that can be applied as

an input signal, i.e. as a “cause of a performance”,

whatever the producing system is (human beings or

other objects).

Anyhow, Motion/output and Gesture/input are

two representatives of similar temporal signals,

corresponding with an evolving physical system –

see Figure 1. Thus, to simplify, the term ‘gesture’

and ‘motion data’ could be used in the following to

refer to this sort of ‘gesture like’ data, no matter it is

considered as an input or an output of an evolving

systems, possibly a human body.

Physical

System

Input signals

Gesture G(t) ~ 1KHz

Output signals

Sound S(t) Š 44 KHz

Motion M(t) ~ 1KHz

Images I(t) Š 50 Hz

Figure 1: Gestures and Motion as input and outputs of

physical systems. Gesture (input) and Motion (output) are

comparable types of data.

Rather than discussing the differences between

Gesture and Motion, one can emphasize their

similarities. This leads to identify them as a new and

unique type of data, beside visual and acoustic data,

and to introduce a dedicated encoding format.

2.3 Gesture and Control

Gestures can be considered as a common feature of

numerous situations, applications, systems etc., and

they may be a privileged mean for allowing those

systems to cooperate: animation control, animation

performance, musical control and performance,

multisensory control and performance such as in VR

or in multimedia arts.

The figure 2 illustrates some basic cases of

gesture signals and gesture control. On the figure,

grey circles are placed on the streams one can

consider as gesture streams (or as being equivalent

to a gesture signal). Conversely, the grey squares are

placed on the streams that are no more gesture

streams.

In the case of gesture control of real or digital

musical instruments, the gesture signals can be

either the signals sensed directly on the human body

(fingers, hands, arms, whole body) (figure 2, grey

circles 1 and 2), or the motions produced by an

object manipulated by the player (hammer, key,

bow, stick, etc...) (figure 2, grey circle 3).

In the case of gesture control of 2D or 3D visual

motions, the gesture signals can be either the signal

sensed directly on the human body (figure 2, grey

circles 4 and 5), or the motions produced by an

object manipulated by the performer (sticks, force

feedback devices, etc.) (figure 2, grey circles 6 and

7). Conversely to what happens in musical

instruments, in which the output “sound” is usually

not considered as a “gesture”, the 3D motions

provided by a 3D virtual objects (Figure 2, grey

circle 7) are of the same nature as the 3D motions

produced by a human body in body motion capture.

They may be used as an input for controlling another

system (3D object , musical instrument, etc.).

Consequently, a 3D virtual object produces signals

that can be considered as being homogeneous with

“gestures” (Figure 2, grey circles 4, 5, 6).

GRAPP 2006 - COMPUTER GRAPHICS THEORY AND APPLICATIONS

350

In the case of the gestures that produce formal

and symbolic data, as when acting on a computer

keyboard, the gesture signals (Figure 2, grey circles

8 and 9) are transformed in outputs (words,

sentences) that can usually no more be considered as

gesture signals.

Digital

Musical

Instrument

Sound

Huma

Body

Motion

Non sounding object

(Excitor)

object

motions

Virtual 3D

Object

Huma

Body

Motion

Non sounding object

(Excitor)

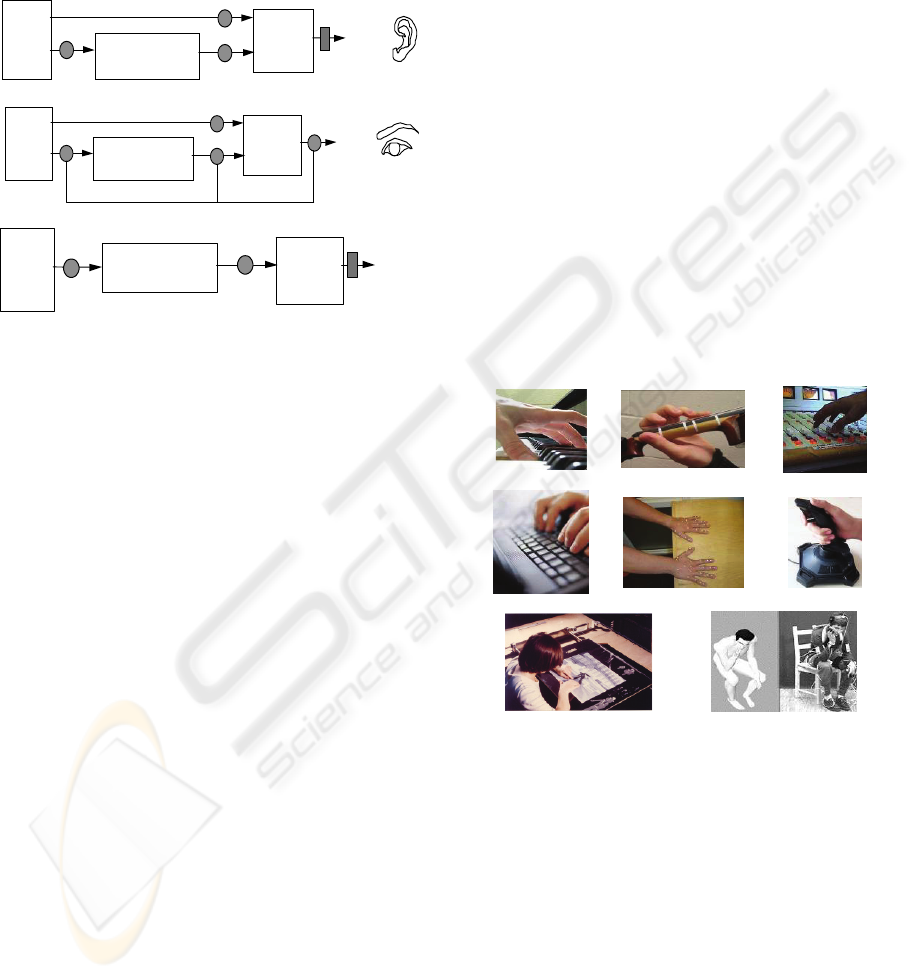

Figure 2: Various cases of gesture control. Up: gesture

control of digital musical instrument. Middle: gesture

control of a 3D virtual object. Down: gesture control of

formal and symbolic data.

3 CHARACTERIZATION OF

GESTURE SIGNALS

Gesture signals, whatever the way they are produced

(objects or human motion, virtual object…), and

whatever the way they are considered (as outputs or

inputs of evolving systems), do present specific

properties that allow distinguishing them among

other temporal signals (especially aero-acoustical

signals or visual signals). This section reviews these

properties that will be used as a basis for defining a

basic generic format.

3.1 Morphological Versatility

A first evidence is the morphological versatility of

gestures. While images and sounds can be displayed

in predefined environments (displays or 3D Caves,

with fixed sizes and resolution, stereo or

quadraphonic rendering for sounds, etc.), the

structure and the morphology of gesture signals are

more versatile, depending on the tasks and the

manipulated tools. To take into account this inner

versatility, we propose to structure gesture signals

along two complementary features: geometrical and

structural dimensionalities.

3.1.1 Geometrical Dimensionality

Geometrical dimensionality refers to the

dimensionality of the space in which the gesture is

evolving. It can vary from a pure scalar or a set of

scalars to geometrical 1D, 2D, 3D.

For example, piano or clarinet keys are pushed or

closed according to a 1D finger motion (figure 1a).

More generally, controlling sounding objects or

tuning parameters (for example the value of an

elasticity or the amplitude of a deformation), can be

made through devices that evolve in a 1D non

oriented space, like set of sliders or set of knobs

(figures 1c, 1d), and that can be described by a

scalar or a set of scalars.

Conversely, in cartoon animation or in scrap-

paper animation or animated painting, the space is

reduced to a plane. Gestures and motions evolve in a

2D space (Figure 3, g), and can be described on two

orthogonal oriented axes.

When we manipulate an object (real or virtual),

the dimensionality of the space is obviously 3D.

Thus, describing motion or gesture requires using

three orthogonal oriented axes (figure 3, e, f, h).

(a)

(b)

(c)

(d)

(e)

(f)

(g)

(h)

Figure 3: Versatility of the gesture morphology.

3.1.2 Structural Dimensionality

For a given geometrical dimensionality, gestures

have another type of variability, related to their

functional organization. We call this second

variability structural dimensionality. In the case of

articulated 3D solids, it usually corresponds to the

number of degrees of freedom. A couple of

examples allow illustrating the variability of

structural dimensionality of gesture.

When we are acting on a keyboard of n keys (a

piano keyboard, a computer keyboard, a set of

buttons…), the performed gesture, and similarly the

Formal

and

symbolic

processing

Huma

Body

Motion

Computer keybord

or pad

Formal

data

A BASIC GESTURE AND MOTION FORMAT FOR VIRTUAL REALITY MULTISENSORY APPLICATIONS

351

signals produced by the n keys, the geometrical

dimensionality is 1, but the system can be

considered in two ways either as n independent

systems (for example n systems of one key), or as a

single system of n degrees of freedom.

When dealing with human body motion, the

geometrical dimensionality is 3 but the structural

dimensionality (ie: the number of considered

degrees of freedom) is variable: more than 200 in the

real body, only N when using a motion capture

systems with N sensors (N=1 to 16, or more).

In physical models of a bowed string, the two

dimensions of the deformations (pressing the string,

bowing the string) are usually decoupled, and the

system can be considered as two superposed 1D

gestures, thus as one system of two 1D DoF.

In particle physical model of a flow, the number

N of 3D particles, i.e. the number N of 3D DoF,

could be more than some hundreds. Considering that

this flow can be used to control large spatial scene

(for example wind playing a musical instrument,

flow controlling atmospheric or oceanic

deformations), the motions can be stored as gestures

of N 3D DoF.

3.1.3 To Conclude

This analysis and these examples show that the

geometrical dimensionality of gestures should not be

fixed, since it can vary from scalar to 3D (we don’t

examine here space with larger geometrical

dimensionality, although the case can occur). They

show also that the structural dimensionality can vary

widely (from 1Dof to several hundred). In addition,

the structural dimensionality cannot be totally

independent of how the system is analyzed by the

designer that must be able to declare them freely.

3.2 Quantitative Ranges

Additionally to the geometrical and structural

dimensionalities, gesture signals present specific

quantitative spatial and temporal features.

3.2.1 Temporal Ranges

As shown on Figure 4, the frequency bandwidth

range is one of the quantitative features that allow

distinguishing gesture signals among others

(especially aero-mechanical signals, visual motions).

Although the three zones of the figure 4 are

overlapped, they enable a useful categorization:

visualizing motions requires a sampling rate up to

100 Hz; manipulating an object with force feedback

requires a sampling rate from some Hz to some kHz;

recording sounds requires a sampling rate from

around 10 kHz to some 40 kHz. Indeed, gesture

signals are at the middle range.

1 KHz 10 KHz

Mechanica

signa

estures

motions

)

ero-mechanical (acoustical) signals

Frequency bandwidth

100 Hz

Visua

motions

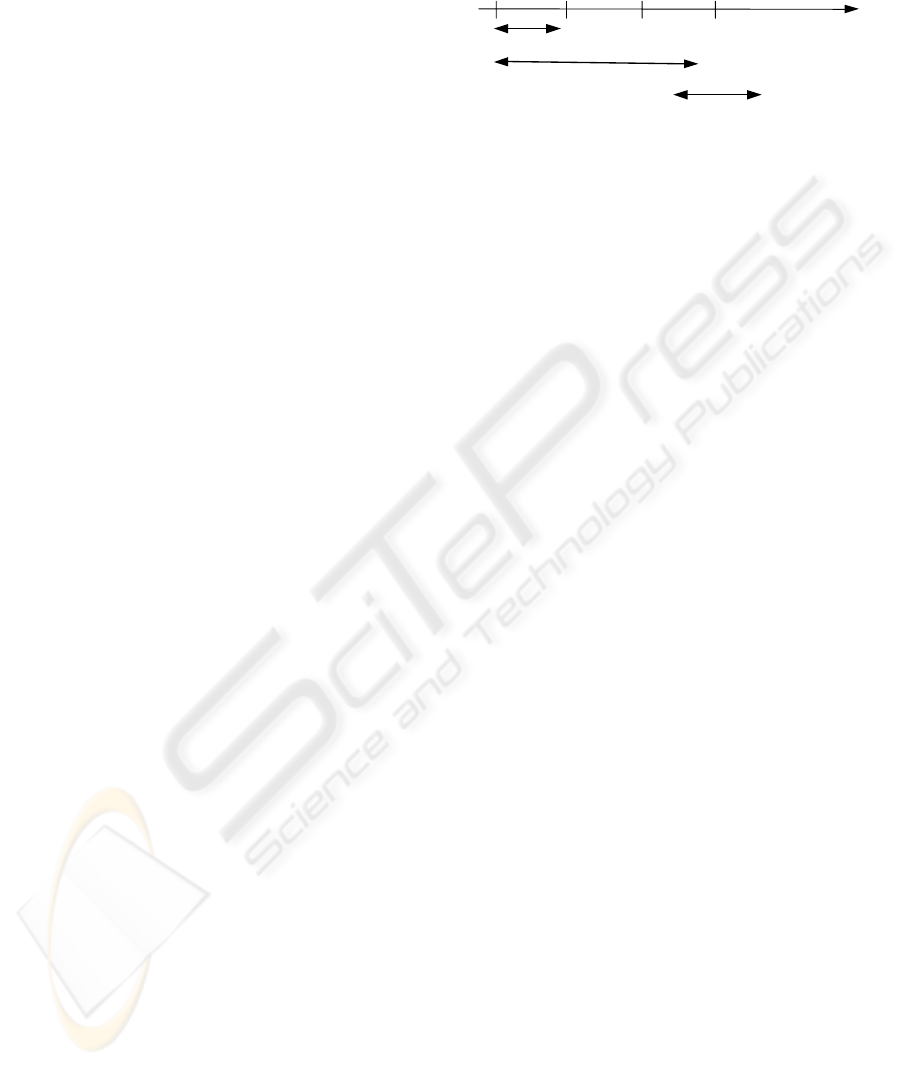

Figure 4: Temporal range of sensory signals.

3.2.2 Spatial Ranges

Spatial positions and ranges is another feature of

gesture signals. Whereas audio signals are zero-

centered deformations of about some millimeters,

gestures and visual motions correspond with

deformations and displacements that are non-

necessarily centered on 0, and that are at a larger

spatial scale, from centimeters to meters.

3.2.3 To Conclude

One can note that the quantitative properties of

gesture signals position them at middle range of the

signals involved in interactive computer graphics,

specifically when using force feedback devices and

physically-based simulation, or multisensory VR

simulation platforms including sounds: (1) it is

similar to visual motion as for spatiality, but it needs

higher frequency rate; (2) it needs a lower frequency

rate than the sound, but it runs at higher non-

centered spatial range.

Indeed, one can consider the gesture signal as a

pivot for multisensory VR simulation platforms.

Visual motions can be produced by simply under-

sampling them. A non-linear control-simulation

process can then produce sounds, transforming low

frequency gesture command signals in high

frequency sound signals.

3.3 Type of variables

Since motions and gestures are produced by physical

systems (either real or virtual), and used to control

physical systems, the data can be of two different

types: (1) extensive variables, such as variables that

derivates from spatial information (positions,

velocities, angles…); and (2) intensive variables as

forces, torques, etc. Noticeably, one can note that

visual and acoustical data are only extensive

variables (positions and/or displacements).

In natural situations, when gestures are used for

manipulating object, physical energy is exchanged

GRAPP 2006 - COMPUTER GRAPHICS THEORY AND APPLICATIONS

352

between the two interacting bodies (for example

object and human). To represent such interactive

dynamic systems, the correlation between extensive

and intensive variables must be considered, either

explicitly as in Newtonian formalism, or implicitly

as in energy formalisms. Both extensive and

intensive variable are needed for a complete

encoding of the interaction.

4 A REVIEW OF EXISTING

MOTION FILE FORMATS

Several motion file formats have been developed so

far (Meredith, 2000 , Van Baerle, 2000). Here, we

position some of the most known (see Table 1) along

the properties of gesture signals elicited in the

previous paragraphs: versatility of the geometrical

and structural dimensionality, spatial and temporal

requirements, and multiplicity of the types of data.

Table 1: some of the most known ‘gesture/motion’ format.

BVA, BVH

ASK, SDL

[BVH] Developed by Biovision, a firm

providing optical motion capture systems.

HTR, TRC [HTR] Developed by the Motion Analysis.

AOA [AOA] Designed by Adaptive Optics, a firm

that develops motion capture hardware.

ASF

AMC

[ASF] Developed by Acclaim, a video game

firm. Now used by Oxford Metrics (Vicon

motion capture Systems). Public domain.

BRD [BRD] Introduced by Lambsoft, for the

"Flock of Birds" motion capture system.

CSM [CSM] 3D Studio Max and Character Studio

format. Recoding of characters’ movements.

C3D [C3D] National Institute of Health. Initially

encoding movements of athletes. Largely

used today (ex: as a file format for encoding

basic marker data, for the Vicon Motion

Systems).

4.1 Origin of the Existing Formats

The considered formats have been historically

introduced in the context of specific application and

uses – mostly in the context of Motion Capture.

Though some have eventually been adapted to other

applications and usages than their preliminary target,

they had neither been designed at first to be used in

other applications, nor as a data exchange mean.

Consequently, the data they encode, and the manner

these are encoded, depend on the context of the

usages preliminary foreseen, and hardly correspond

with gesture / motion data in its more general

meaning.

4.2 Object Dependence

Except C3D, all the formats imply a hierarchy

depicting a hierarchical dependency over the various

recorded signals. The hierarchy is inherited from the

hierarchical structure of the object that produces the

signals. For example, describing the movement of a

humanoid is made according to a pre-defined tree-

like structure of a cinematic chain of the body

(Herda &al., 2000). In that case, most often, the

value of a position/rotation is given in the coordinate

system of the upper hierarchical level it belongs to.

As for it, the CSM file format developed along

with the Character Studio software is not explicitly

hierarchy-based. It encodes the motion of a set of 3D

points in absolute coordinate. However, using CSM

files within Character Studio requires the names of

all the points to match Character Studio setup. A

skeleton is implied, and the number of points and

their ‘meaning’ are fixed.

Such a hierarchical structure has proved to be

operational in domains such as motion planning or

character animation. It is most often adapted to the

case of articulated objects such as human body,

rigid-articulated robot, etc. However, the use of a

hierarchical structure does not apply to motion/

gesture encoding in its more general meaning –

especially to the case of deformable non tree-

articulated objects and mechanisms.

4.3 Context Dependence

Some of the discussed formats contain additional

data dealing with the context of data acquisition. The

context data are typically data concerning the

parameters of the capture system (number of

sensors, captors used to determine the movement at

a certain moment, sensitivity of sensors, etc.).

The C3D file format is the most representative

example of such additional data recording. In a C3D

file, each motion stream is associated with the

description of the measurement process that was

used. Indeed, C3D corresponds firstly with

measurement or experimental setup recordings.

4.4 Predefined Dimensionality

Most of the formats predefine a specific dimension

for the recorded data: 3D points in AOA or CSM,

“7D points” in BRD. In the BVH, ASF/AMC and

HTR file formats, the dimension of each join is

declared in accordance with the constraints

underlain by the hierarchical structure. Omitting a

coordinate corresponds with constraints of the

mechanical system. Once again, one can observe

A BASIC GESTURE AND MOTION FORMAT FOR VIRTUAL REALITY MULTISENSORY APPLICATIONS

353

that these formats suppose that the recorded motion

data are intimately associated with a tree-like

structure of the object supporting the sensors. As for

them, C3D files store conventional 3D positional

information. 1D or 2D motion data may be recorded,

by fixing one or more coordinate to zero all along

the stream. Though, scalar data can also be recorded

within the raw data (see §4.5).

Anyhow, one can consider that pre-defining the

dimensionality of the data to be stored is a real

problem since the versatility of dimensionality is a

core property of gestures, and since one may often

have to consider coexistence of different

dimensionalities in the same gesture stream.

4.5 Type of Variable

C3D files can encode two categories of data: ‘analog

data’, i.e. scalar data acquired from any kind of

sensor, and ‘3D data’ i.e. motion-like data displayed

by a motion capture system. The format implies no

inner limit in the type of the ‘analog data’, so that

any type of variable may be recorded, including

hearth rate, elecromyogram, etc. Additionally, a

non-optimized trick allows recording ‘kinematical

data’ (angles, moment, acceleration…) processed

from the motion data. Thus, besides the fact that

C3D is widely used for motion recording, it does

overpass the strict scope of motion and gesture. It is

a very flexible and adaptable format – but it is too

general for being a Basic Law-Level format adapted

to the category of data we call “gestures”.

As for the type of the ‘gesture/motion data’

themselves, the various file formats are restricted to

position-like data (C3D allow recording other types,

but only within the very open ‘analog data’

sections). They do not natively include the

possibility to encode the type of the variables. They

are especially not adapted natively to the recording

of intensive variable.

4.6 Data Coding

Except for the C3D format, ASCII encoding is used

in the existing formats. This corresponds to the fact

that the frequency bandwidth of motion capture

systems and gesture controllers used to be on the

VLF range (from 10 to 300 Hz) and that recorded

gestures used to have a small number of DoF and

tracks (less than one hundred). Though, today, one

usually considers that the frequency bandwidth of

gesture signals may be of some kHz (especially

when dealing with force feedback gesture

interaction). In addition, the diversification of the

objects (real or virtual) producing motions, and the

decrease of the costs of sensors, imply that the

number of tracks to be stored is significantly

increasing. Consequently, gesture files may

correspond with amount of data far more important

than it had been considered so far, and ASCII

encoding is no more usable. Indeed, the use of a

binary format (like for sound, images or movies) is a

necessity for a generic gesture/motion format.

5 THE ™GMS FORMAT

On the basis of the previous analysis of gesture (or

more generally of motions usable as a command of

an evolving system), this section introduces the

proposed Low Level Gesture File Format. This

format is called ™GMS, which stands for “Gesture

and Motion Signals” - file extension is .gms.

5.1 Requirements for a Gesture File

5.1.1 Sampling Rate

First of all, a gesture signal is a signal sampled at the

necessary Shannon frequency. In the current 0.1

version, a unique sampling rate is used for all the

data in a GMS file. This choice does not correspond

to an optimal encoding, and will be reconsidered in

future versions.

5.1.2 Geometry and Structure Encoding

We then propose to organize the gesture data in four

levels at maximum: Tracks – Channels – Units –

Scenes :

• Gesture Track. The track i contains a

sampled monodimensional scalar a

(t) corresponding

to a single A-D track a(t), sampled at its Shannon

rate.

• Gesture Channels. Channels support the

geometrical dimensionality of gesture signal. A

Channel is composed of one or several tracks. A

Channel can be 1D0 (a pure scalar), 1Dx (a vector

on x axis), 1Dy, 1Dz, 2Dxy, 2Dyz, 2Dzy, or 3Dxyz.

A Channel can encode either “extensive variable

(EV)” i.e. homogeneous to spatial variables

(positions P, Angles A, velocities V, Accelerations

G) or “intensives variables (IV)”, i.e. homogeneous

to forces F.

• Gesture Units. Units are provided for

supporting the structural dimensionality of gestures.

GRAPP 2006 - COMPUTER GRAPHICS THEORY AND APPLICATIONS

354

A unit is then composed of several channels in

which the signals are not dynamically independent,

whatever the way in which they are correlated is.

This differs from the structural properties of motion

capture formats that focus on tree-like structures.

The user can declare units freely. Along with

supporting a low-level structuring of the signal,

Units allow preventing non-relevant signal

processing in future uses of the data, for example

breaking of the correlation.

• Gesture Scenes. Finally, a scene is

composed of several units that are not – or can be

considered as not - dynamically linked.

5.1.3 An Example

In table 2, we illustrate how a user could structure a

complex gesture scene like the one described in the

‘DESCRIPTION’ column.

Table 2: a possible structure for a gesture scene.

UNIT DESCRIPTION CHANNELS

Pianist

One musician plays with a

small keyboard composed

of 8 piano-like keys.

8 Mono dimensional

Channels“PianoKeys

”:

PK1 [EV(P), 1Dz], ...

, PK 8 [EV(P), 1Dz].

Stick

Source

Another one is controlling

the spatial position of a

sound source via a 3D

stick.

1 3Dxyz Channel

“SoundSource”:

SS [EV(P), 3Dxyz]

Light

Another one is controlling

the orientation of a light

source via a 2D force

sensor (a force pad).

1 2Dxy channel

“LightSource”:

LS [IV(F), 2Dxy]

Dancer

A dancer is equipped with

a motion capture system

of 16 3D points.

16 3Dxyz channels

“DancerPoints”:

DP1[EV(P), 3Dxyz],

..., DP16[EV(P),

3Dxyz]

1 3Dxyz channel

“Ball1”: BL1 [EV(P),

3Dxyz]

Juggler

A juggler is manipulating

a 6D force feedback ball

to play with a 6D virtual

racket.

1 3Drqf channel

“Ball2”:

BL2 [EV(A), 3Drqf]

Fluid

A virtual fluid of N 1D

masses acts on a virtual

string.

n 1D “fluidMass”:

FL [EV(V), 1D0]

5.2 ™GMS Format Implementation

This paragraph describes the current implementation

of the concepts developed previously. The

requirements have been implemented in the version

0.1 of the ™GMS gesture format, through a C/C++

read/write library, which is currently submitted to

file formats authorities, and as a MIME type.

The format is built above the IFF (Interchange

File Format) coding standard for binary files. A

description of this format can be found in (Morrison,

1985). IFF, and its equivalent RIFF, are largely used

by several formats as AIFF for sound files, AVI for

movie files, ILBM or GIFF for picture files.

As required by the IFF coding standard, data in

the proposed gesture file are encapsulated in

structures called chunks.

Table 3 presents a description of the data

contained in each of these chunks. The binary types

of those data are CHAR (a byte), USHORT (a 2

bytes unsigned integer), LONG or ULONG (a 4

bytes signed or unsigned integer), FLOAT32 or

FLOAT64 (a 4 or 8 bytes floating point number -

IEEE 754 standard). All the data covering more than

one byte in the file are encoded in BIG ENDIAN.

Table 3: description of the data contained in each chunk.

CHAR[4] chunkId = ‘FORM’

ULONG

fileSize;

Header

CHAR[4] fileType = ‘GSM ’

CHAR[4] chunkId = ‘VERS’

ULONG

chunkSize

Version

USHORT versNum

USHORT

subVersNum

CHAR[4] chunkId = ‘SCEN’

ULONG

chunkSize

USHORT sceneNameLength

CHAR*sceneNa

ULONG nbFrame FLOAT64 freq

USHORT

dataType

Scene

FLOAT64 scale ULONG blockSize

CHAR[4] chunkId = ‘UNIT’

ULONG

chunkSize

Unit

USHORT unitNameLength

CHAR*

unitName

CHAR[4] chunkId = ‘CHAN’

ULONG

chunkSize

USHORT chanNameLength

CHAR*

chanName

Channel

USHORT dimension USHORT type

CHAR[4] chunkId = ‘FRAM’

ULONG

chunkSize

Frame

TypeOfData[nbTrack][nbFrame] frames

The version chunk corresponds to the chunk

structure to be found in the file. Future evolutions of

the gesture file are foreseen.

A BASIC GESTURE AND MOTION FORMAT FOR VIRTUAL REALITY MULTISENSORY APPLICATIONS

355

The scene chunk contains information about the

gesture scene encoded in the file. dataType gives the

type of data of the signal. The current version

supports three type of data: FLOAT32, FLOAT64,

and LONG. scale is a scale factor to apply on the

signal. blockSize allows setting up an alignment of

the frames (ie: the gesture data) on multiple of

blockSize. This may be useful on some architecture

to process the file in real time. If blockSize is 0

(default), the size of a block equals to the size of a

frame.

The unit and channel chunks encode information

on a gesture/motion unit and channel. Channel and

unit chunks are interleaved: the current channel

belongs to the last declared unit. The dimension

integer encodes the dimension of the channel, and

accordingly its number of tracks. Dimensions

supported in version 0.1 are: 0D (pure scalar); a

vector on 1Dx (resp. 1Dy or 1Dz), on 2Dxy (resp.

2Dyz or 2Dzx), on 3Dxyz. type encodes the type of

the data. Current supported types are position, and

force.

The frame chunk contains the signal itself, given

frame by frame.

6 CONCLUSION

While gesture devices, especially haptic devices,

develop, while applications communicate more and

more though gesture-like data, the definition of a

low level gesture format can be seen as a major need

for the near future.

To do this, we extracted the specific properties of

gesture/motion signals over other temporal signals

(sounds and images): morphological versatility

(decomposed in geometrical and structural

properties), spatial and temporal ranges, and variety

of type of data. We showed that these properties are

able to explain why gestures can be considered as at

“a hub place” in multisensory situations and how

they can be shared by various applications. This led

to introduce a basic file format, able to encode all

the minimal and necessary features.

Various evolutions are foreseen, including:

• extending the format to multi-frequence gesture

stream; eventually, defining a set of standard

frequencies.

• extending the possible dimensions of channels,

especially to 6D; although the necessity of such

ND channels is not true evidence, and is still

under study.

• extending the supported types of data, including

for example displacement, velocities, angles,

torques, etc.

These extensions, though, require further

analysis for being exhaustive without damaging the

‘minimality’ and ‘simplicity’ of the proposed

format. Suggestions and comments will be welcome.

The proposed format has been used in physically

based multisensory simulators for synchronous

haptic interaction with computer animation and

sound synthesis, in hard and soft real-time, as well

as in separated physically-based animation

simulators and sound synthesis simulators.

Experiences for connecting the various systems

(computer animation, computer sound, multimodal

systems) through the proposed gesture format are in

progress in the laboratory.

ACKNOWLEDGMENTS

This work was supported by the FP6 Network of

Excellence IST-2002-002114 - Enactive Interfaces,

and by the French Ministry of Culture.

REFERENCES

(AOA,BVH,HTR) http://www.cs.wisc.edu/graphics/Cours

es/cs-838-1999/Jeff/{AOA,BVH,HTR}.html

(ASF) http://www.darwin3d.com/gamedev/acclaim.zip

(BRD,CSM)http://www.dcs.shef.ac.uk/~mikem/fileformat

s/{brd,csm}.html

(C3D) http://www.c3d.org

Herda, L., Fua, P., Plänkers, R., Boulic, R., Thalmann, D.,

2000. Skeleton-Based Motion Capture for Robust

Reconstruction of Human Motion. In Computer

Animation 2000 (CA00), p.77.

Luciani, A., Cadoz, C., Florens, J.-L., 1998. Towards a

complete representation by means of computer – the

instrumental communication interface concept. In

Cyberworld, Springer-Verlag, Tokyo.

Menache, A., 1999. Understanding Motion Capture for

computer animation and video games. Morgan

Kauffmann Ed., August 1999.

Meredith, Maddock, 2000. Motion capture file formats

explained. Departement of Computer Science

Technical Report CS-01-11, University of Sheffield.

Morrison, 1985. EA IFF 85 - Standard for interchange

format files - Electronic Arts,– available on Internet.

Smyth, M., Wing, A. 1984. The psychology of Human

movement. Academie Press.

Van Baerle, S., 2000. Motion Editing : Principles and

Practice. In 2000 Game Development Conference

Proceedings. March 20-24. San Jose, CA.

Note: Web addresses are provided for the file formats that

have not been precisely described in scientific

publications.

GRAPP 2006 - COMPUTER GRAPHICS THEORY AND APPLICATIONS

356
