OUT-OF-CORE CONSTRUCTION AND 3D VISUALIZATION OF

LEVEL-OF-DETAIL TERRAINS POPULATED WITH LARGE

COLLECTION OF HETEROGENEOUS OBJECTS

Anupam Agrawal, M. Radhakrishna

Indian Institute of Information Technology (Deemed University), Deoghat, Jhalwa, Allahabad – 211 012, India

R.C. Joshi

Dept. of Electronics & Computer Engg., Indian Institute of Technology, Roorkee – 247 667, India

Keywords: Terrain visualization, Out-of-core algorithms, Multiresolution modeling, View-dependent refinement.

Abstract: Interactive visualization of very large-scale terrain data in scientific visualization, GIS or simulation and

training applications is a hard problem. The grid digital terrain elevation and texture data are not only too

large to be rendered in real-time but also exceed physical main memory capacity. Therefore out-of-core

management of digital terrain data is an essential requirement. Further to bring photorealism in

visualization, it is required to place multiple collections of man-made objects such as buildings, lampposts

etc. as well as natural objects such as trees, grass etc. on top of the terrain surface. In this paper we have

proposed an integrated approach for effective out-of-core visualization of terrains populated with large

collection of static heterogeneous objects. We have developed an efficient tile-based out-of-core view-

dependent Level of Detail (LOD) mesh simplification algorithm for real-time rendering of large terrains.

Instead of manipulating individual triangles, the algorithm operates on clusters of geometry called blocks of

aggregate triangles. Hence the amount of work CPU must perform is greatly reduced. The formation of long

triangle strips for LOD blocks also solves the CPU-to-Card bandwidth problem. The tile-based

multiresolution terrain geometry framework has been extended to support large satellite or aerial imagery

textures. To display large collection of objects over the terrain while maintaining the real-time frame rate,

an efficient object handling method has been proposed using paging technique and object instantiation. User

is allowed to control the objects locations, scales and orientations. The algorithms have been implemented

using Visual C++ and OpenGL 3D API and successfully tested on different real-world height maps and

satellite phototextures of sizes upto 16K*16K coupled with thousands of static objects on PCs.

1 INTRODUCTION

There is a growing demand for high quality

interactive visual simulations in the field of

landscape visualization. However, interactive

visualization of large-scale terrain data brings up a

wealth of problems. Because the grid digital terrain

models are not only too large to be rendered in real-

time but also exceed physical main memory

capacity, traditional in-memory multiresolution

meshing and rendering techniques do not provide a

sufficient solution. Relying only on virtual memory

and the operating system’s paging mechanism does

not sufficiently take into account spatial as well as

level-of-detail relations in a multi-resolution

triangulation framework. For rendering large terrain

from out-of-core, the multi-resolution data structure

and rendering algorithm themselves must provide an

efficient paging of LOD data from disk. The same

argument holds true for rendering large collection of

static heterogeneous objects such as buildings, trees

etc. on top of the terrain surface.

To achieve real-time rendering without

sacrificing accuracy, several aspects have to be

considered. On one hand, to exploit the full

performance of the current Graphics Processing

Units (GPUs) hardware, transmission of large data

chunks is advantageous. On the other hand, no

unnecessary data should be submitted for rendering,

since bandwidth and I/O are often the bottleneck of

429

Agrawal A., Radhakrishna M. and Joshi R. (2006).

OUT-OF-CORE CONSTRUCTION AND 3D VISUALIZATION OF LEVEL-OF-DETAIL TERRAINS POPULATED WITH LARGE COLLECTION OF

HETEROGENEOUS OBJECTS.

In Proceedings of the First International Conference on Computer Graphics Theory and Applications, pages 429-435

DOI: 10.5220/0001358404290435

 SciTePress

current graphics systems. Furthermore, with the

growing GPU power the management of fine-

grained LODs on the CPU as done by traditional

algorithms (Lindstrom, 1996, and Duchaineau,

1997) becomes more and more limiting factor, and

in many rendering applications the GPU is not

working at full capacity.

This paper discusses the methodology and

implementation aspects of our research work to

improve the quality and speed of rendering of large

terrains with objects on general-purpose desktop

PCs. Our block-based dynamic LOD terrain-

rendering software, TREND, considers above facts

using 3D rendering hardware and minimizes the

CPU overhead. We have proposed an integrated

approach for effective out-of-core visualization of

terrains populated with large collection of discrete,

static heterogeneous objects. User is allowed to

control the objects locations, scales and orientations.

The object instantiation scheme reduces the memory

overhead to a large extent.

2 RELATED WORK

External memory algorithms (Vitter, 2001), also

known as out-of-core algorithms, address issues

related to the hierarchical nature of the memory

structure of modern computers (fast cache, main

memory, hard disk etc.). Managing and making the

best use of the memory structure is important when

dealing with large data structures that do not fit in

the main memory of a single computer. In most

terrain visualization systems, two approaches are

prevailing for external memory handling. In the first

approach (Dollner, 2000, and Lindstrom, 2001) the

multiresolution terrain triangulation hierarchy is

linearized into an array and a memory-mapped file

mechanism (supported by the operating system) is

used to provide out-of-core access. The second

approach (Reddy, 1999, and Pajarola, 1998) is to

split the terrain into large rectangular tiles of varying

resolution that are paged in on demand. The main

drawbacks of the first approach are that the terrain

data is only clustered on disk with respect to the

linearization of the triangulation hierarchy and that

the storage cost is comparatively high. We have

adopted the second approach for out-of-core data

management for terrain topography as well as for the

objects.

Many mesh simplification and multiresolution

triangulation methods have been developed over the

last decade. Due to space constraint, we refer to the

literature for overviews on general mesh

simplification and multiresolution modelling

(Cignoni, 1998, and Luebke, 2001). We have chosen

regular hierarchical structure to represent terrain

(stored as height map) as it allows fast collision

detection between moving objects (including

camera) and the terrain. It also supports use of

efficient hierarchical data structures for fast and easy

view frustum culling.

Relatively less work has been reported in

literature on object management over

multiresolution terrain. Szenberg et al. (Szenberg,

1997) describe a method of terrain visualization with

point-location based objects such as houses,

transmission poles etc. The visualization scheme for

terrain height field is not based on multiresolution

modelling but combines the Z-buffer with the

Floating Horizon algorithm. Further it has been

applied to limited sized terrain data (512*512 size)

only. Douglass et al. (Douglass, 1999) describe a

bottom-up LOD height-field rendering scheme by

placing building-like objects over the terrain. In

contrast to a top-down LOD approach, a bottom-up

approach necessitates the entire model being

available at the first step and therefore has higher

memory and computational demands (Luebke,

2003). In this paper, we have proposed a new object

management approach coupled with our block-based

multiresolution LOD terrain modelling approach. It

employs an efficient object-paging scheme, which

smoothly adapts to our tile-based organization of

geometry and texture data for out-of-core data

management.

3 THE TILE BASED MULTI-

RESOLUTION FRAMEWORK

We have developed a view-dependent dynamic

block-based LOD modelling for mesh simplification

and using tiled geospecific texture, to display the

details of the high-resolution satellite imagery in

real-time rendering (Agrawal, 2004a). The terrain

geometry and texture data are organized in titles of

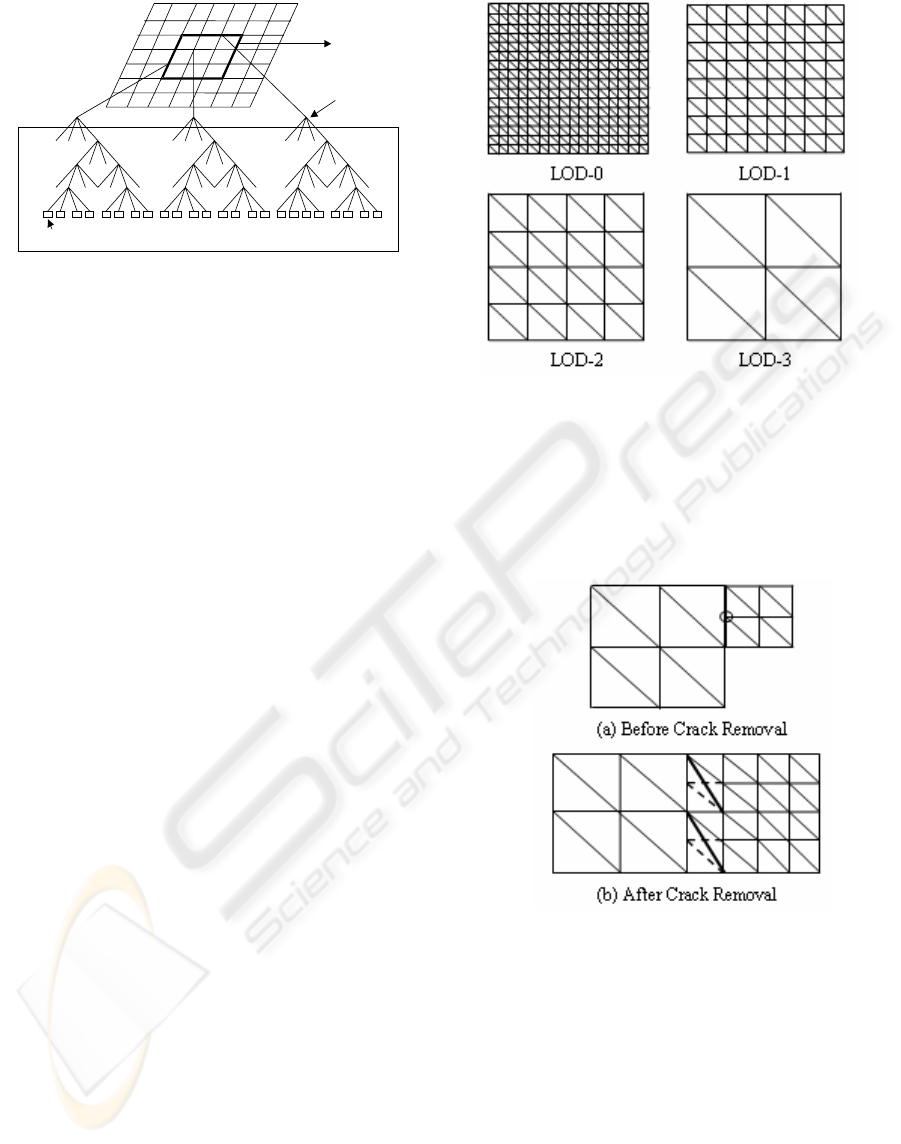

size 257*257 and 256*256 respectively as shown in

Figure 1. One pixel overlap is kept between adjacent

geometry tiles to ensure proper stitching of tiles. At

any instance of time, only nine tiles are kept in main

memory. The viewer position is always assumed to

be inside the centre tile. The algorithm efficiently

handles out-of-core data by dynamic paging of

terrain tiles between secondary storage and main

memory. Each geometry tile data is organized with a

quadtree with leaves corresponding to patches or

GRAPP 2006 - COMPUTER GRAPHICS THEORY AND APPLICATIONS

430

blocks of size 17*17 (the size decided after

experimentation) to speed up the view-frustum

culling.

Multiresolution pyramid representation is used

to define each terrain block. Figure 2 shows the four

pyramid levels of the height map block of size

17*17. Considering the multiresolution

representation for each patch, the algorithm employs

a variable screen-space threshold

(τ) to limit the

maximum error of the projected image considering

the terrain complexity, viewer distance and viewing

direction as the viewer navigates the terrain. The

algorithm pre-computes a look-up table at terrain tile

load time to decide the tessellation level of each

block within view-frustum based on position of the

camera from the block (De Boer, 2000). In the

approach, a group of vertices are considered instead

of single vertex for deciding whether to remove

them or not. Hence CPU requirements are many

times lower as compared to the LOD mesh

simplification algorithms, which work on individual

vertices of the height field.

It is important to note that in a view-dependent

framework, the resolution of adjacent patches might

change at every frame. Hence, cracks occur on

borders of adjacent patches of different levels of

detail. In Figure 3 (a), the circle shows the position

of crack in tessellation with level difference one

(right side patch is shown partially). Figure 3 (b)

shows the modified geometry to remove the cracks

where the dashed edges are excluded in triangulation

and the bold edges are included. Similar procedure is

followed to eliminate cracks when level difference

between adjacent patches is two or three. Image

draping over 3D mesh geometry is performed using

texture mipmapping. The algorithm also handles the

problem of texture seams between adjacent texture

tiles (Agrawal, 2004b).

Figure 2: Multiresolution Modelling of Height Map.

To exploit the full performance of current GPUs

hardware, transmission of large data chunks is

advantageous. Graphics rendering can be accelerated

through compact representations of polygonal

meshes using data structures such as triangle strips

and triangle fans. Using triangle strip primitive, it is

possible to form a longer length of connected

Figure 3: Removing Cracks between Adjacent Patches.

triangles as compared to triangle fan. Generating

long triangle strips efficiently solves the CPU-to-

card bandwidth problem and avoids redundant 3D

vertex transformation and lighting (T&L)

calculations. However in view-dependent meshing

methods the underlying mesh is in a constant state of

flux between view positions. This poses a significant

hurdle to construct long triangle strips. Our triangle

strip generation scheme for view-dependent dynamic

multiresolution terrain shows significant

improvement in rendering speed as compared to

individual triangle-based and triangle-fan based

rendering schemes (Agrawal, 2005). The snapshot of

Size of leaf block: 17*17

(used for LOD management)

Memory: 3*3 block

(block size: 257*257

)

Four Level Quadtree

Containing Terrain

Polygon

Figure 1: Organization of Terrain Geometry Data.

OUT-OF-CORE CONSTRUCTION AND 3D VISUALIZATION OF LEVEL-OF-DETAIL TERRAINS POPULATED

WITH LARGE COLLECTION OF HETEROGENEOUS OBJECTS

431

the triangulated height map is given in Figure 4

using triangle-strip primitive.

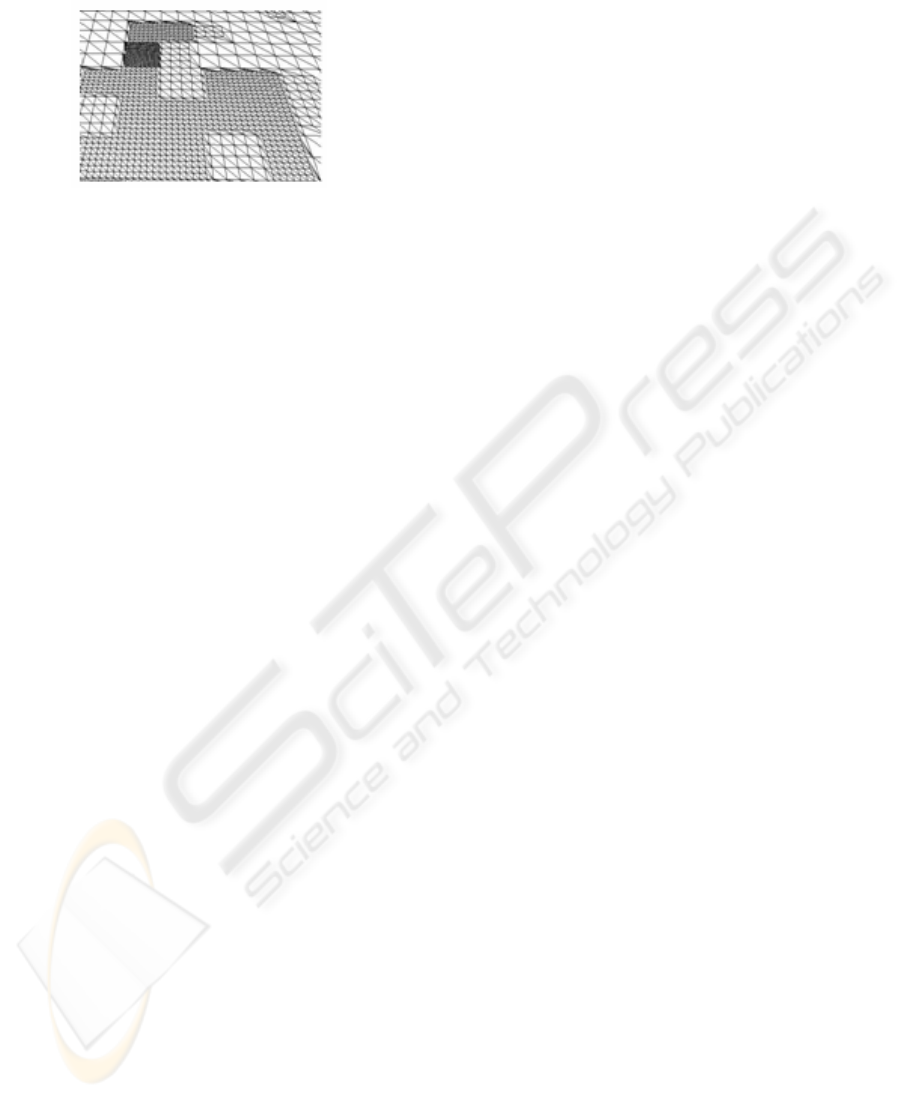

Figure 4: Wireframe View of Terrain LOD Geometry.

4 OUT-OF-CORE

VISUALIZATION OF OBJECTS

We may divide the point-location objects into two

categories. The first one is simple objects, those

having simple geometry and can be drawn with the

help of OpenGL primitive functions. These objects

do not need to be loaded into memory. Examples of

simple objects include sky-scrapper buildings drawn

using elongated cube with texture mapping over its

exposed faces and also objects created using

billboarding technique. The second category is of

complex objects having complex geometry and large

number of triangles. These objects are required to be

loaded into main memory containing their vertices

and topology information. Examples of such objects

include complex 3D geometrical models of

buildings, trees etc. The software has the provision

to import such complex structures from .dxf format

and convert into native .mesh files obtained after

selecting relevant only information. Complex

objects may consume substantial memory as well as

drawing time and may severely affect the rendering

performance. So we usually prefer to use simple

objects to populate the terrain.

While having a walkthrough over the 3D terrain,

user cannot see all the objects at once. Thus there is

no need of keeping all of them in memory and

render them. Our objective is to deal with large

number of objects over the terrain. The number of

objects is not constant throughout the navigation

process; also more objects can be edited, added, or

even deleted from the objects list. To enable real-

time rendering and interactive communication

between user and objects, an efficient method of

object handling has been proposed and implemented

using dynamic paging technique and object

instantiation.

4.1 Placing Multiple Instances of

Objects over Terrain

The first task has been the deployment of various

building-like objects on the terrain. The various

types of buildings and houses being rendered on the

terrain would give a look of a good human

settlement. The software has the provision for

various types of buildings like clock-towers,

skyscrapers, houses etc to be shown on the terrain.

The buildings could be designed using OpenGL 3D

API itself or using AutoCAD package (in DXF-

3DFACE format). The software helps the user to

place a building anywhere on the terrain by pointing

at the scanned georeferenced map or image in the

background inside a 2D window after selecting the

specific building model. Once the buildings are

deployed on the terrain, the software permits the

user to edit the objects using all the conventional

edit features for the objects such as scale change etc.

An object may have its multiple instances with

possibly different scaling factors. If an object is

already been loaded into memory, on its subsequent

occurrences simply the pointer of object memory is

returned for further processing and its counter is

incremented by one. Thus the multiple loading of

same objects can be avoided.

For many objects and a few special effects such

as storm etc. we have also used the technique of

billboarding which is sometimes of great use as the

loss in framerate is quite negligible and it displays

the 2D images just like 3D objects. Billboarding is a

technique that adjusts an object's orientation so that

it "faces" some target, usually the camera.

Billboarding can be used to cut back on the number

of polygons required to model a scene by replacing

geometry with an impostor texture. For example

this technique has been used to create trees,

lampposts, signposts etc. This particular technique

can be used in these cases when finer detail is not

required about the object. Here we have used small

size .bmp or .tga images to use as textures, which

take less space and hence help us in achieving a

better frame rate i.e. faster rendering of the terrain

with objects. Only object’s memory reference and

new scaling factors are kept in memory for multiple

instances of same object.

GRAPP 2006 - COMPUTER GRAPHICS THEORY AND APPLICATIONS

432

4.2 Paging and Display of Objects

When user opens the model layer consisting of

objects, a message is sent to Objects class to open

the particular file, followed by loading of names and

locations of all the objects, which are there in file.

These all objects (i.e. their geometry & texture) are

not loaded into memory, but the objects of same tiles

are grouped together, so that objects of current nine

tiles can be loaded into memory. The software

internally manages a dynamic data structure to store

tile-wise objects details (without their geometry &

topology information). The geometry & topology

information of only those complex objects are kept

in main memory, which are inside current active

nine tiles.

When new tiles are loaded and old are deleted,

‘AddModel’ function is called to add new models

and ‘RemoveModel’ is called to remove old models

of corresponding tiles. The ‘AddModel’ function is

called prior to ‘RemoveModel’ function to optimize

the time. The model is deleted from the linked-list in

memory only when there is no instance of same

model in current scene. Otherwise counter is

incremented or decremented accordingly. Objects

paging helps in out-of-core management of large

objects data on secondary storage.

5 RESULTS AND DISCUSSION

The software TREND has been tested with 2K*4K

terrain raster dataset of Grand Canyon and 16K*16K

terrain data set of Puget Sound area obtained from

Georgia Institute of Technology website. We have

also generated the height map of Dehradun (India)

area using digitised contours on Survey of India

(SOI), India supplied topographic map. The

corresponding geo-referenced IRS-1D FCC Satellite

imagery has been used for image draping.

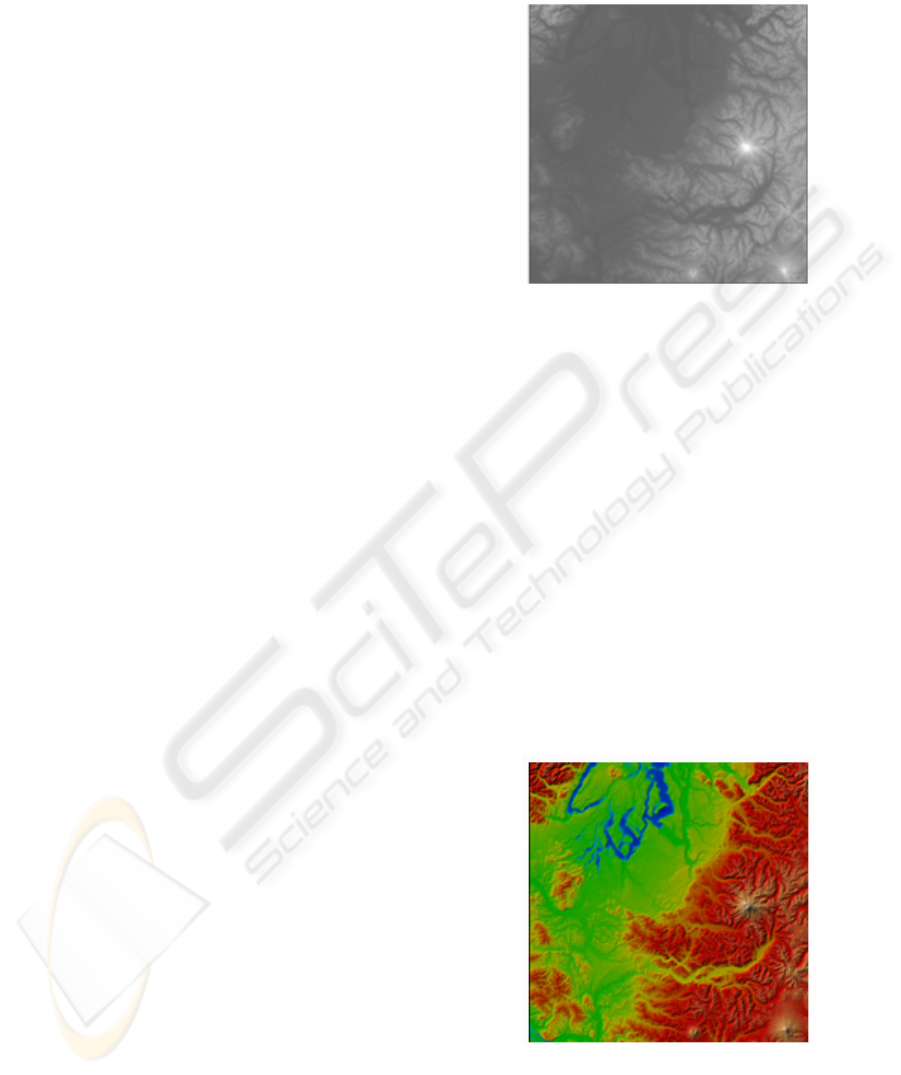

The images in Figure 5 and Figure 6 show the

Height map (DEM) of Puget Sound area and

corresponding False Color Composite Satellite

imagery respectively.

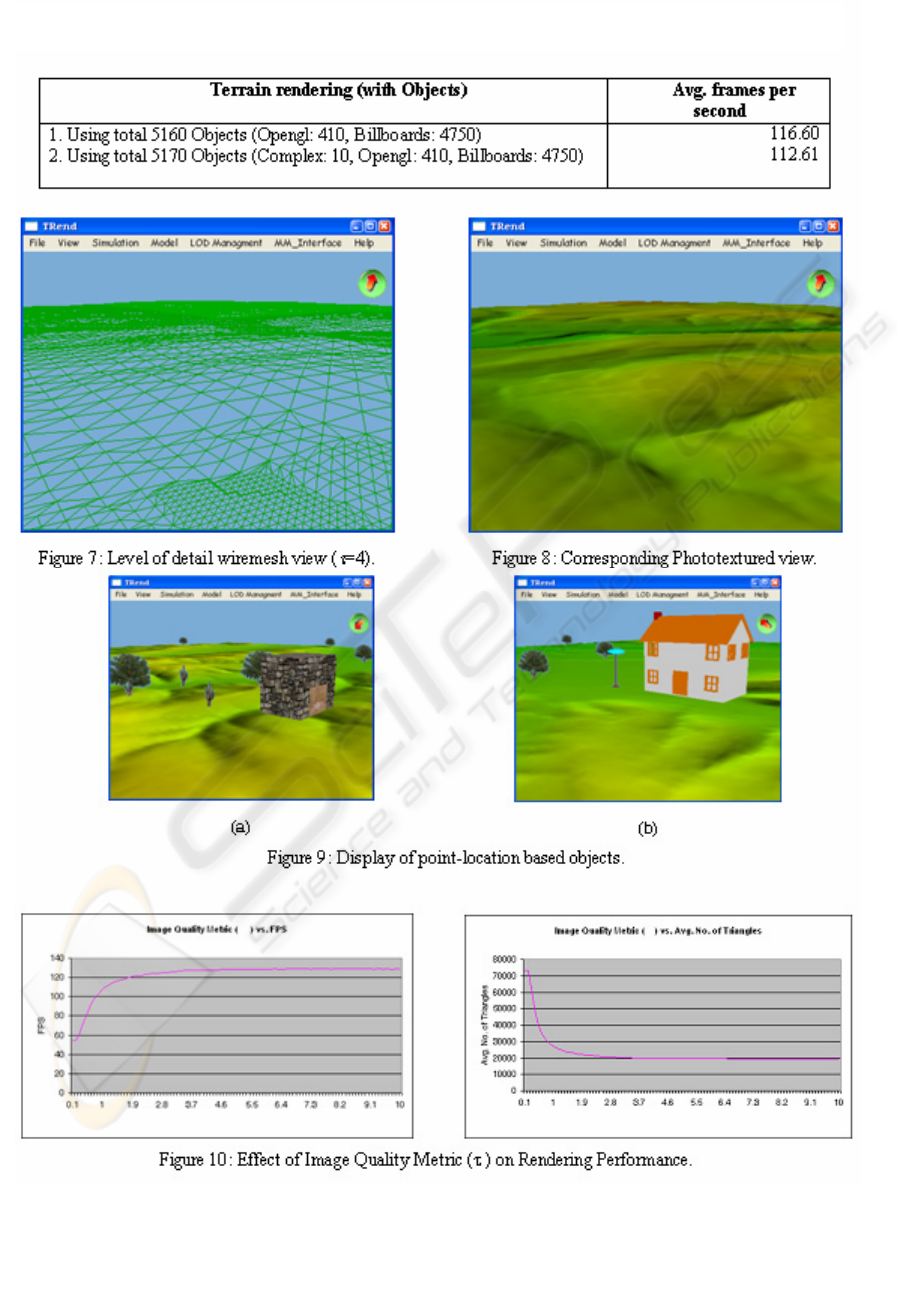

Figure 7 and Figure 8 show the level of detail 3D

wiremesh view and corresponding phototextured

view respectively. Figure 9(a) shows a view with

point-location based simple objects (OpenGL and

Billboard drawn objects). A complex object (a

building designed using AutoCAD) is shown over

the terrain in Figure 9 (b).

The performance of the software has been

evaluated on a Pentium IV 2.4 GHz computer with

512MB RAM and Intel 82865G onboard Graphics

Controller on 865GL motherboard. The performance

of the algorithm on raster data is independent of size

of terrain data as with the tiles indexing scheme, the

Figure 5: DEM (Height Map) of Puget - Sound area (size

16K*16K).

algorithm only keeps nine tiles active in main

memory. The organization of the terrain data in tiles

of defined size is required to be done only once on

the same data set. For raster data, the number of

frames rendered per second mainly depends on the

complexity of the terrain (roughness) under the

view-frustum and the user defined image quality

metric (τ). The graphs in Figure 10 show the effect

of τ on rendering performance. Table 1 shows

performance analysis of the Adaptive LOD

Algorithm for 3D visualization of the raster data set.

The results of testing the same adaptive LOD

algorithm using triangle strip (with indexed vertex

array) in conjunction with object management

algorithm are shown in Table 2. The value of τ is

kept 4.0 to obtain various results as shown in Table

1 and Table 2.

Figure 6: FCC Satellite Imagery of Puget - Sound area

(size 16K*16K).

OUT-OF-CORE CONSTRUCTION AND 3D VISUALIZATION OF LEVEL-OF-DETAIL TERRAINS POPULATED

WITH LARGE COLLECTION OF HETEROGENEOUS OBJECTS

433

6 CONCLUSION AND FUTURE

WORK

This paper discusses the methodology and

implementation aspects of our research work to

improve the quality and speed of rendering of large

terrains on general-purpose desktop PCs. The proposed

LOD algorithm for raster data uses a compact and

efficient multi-resolution grid representation of height

fields and employs a variable screen-space threshold to

limit the maximum error of the projected image. The

method is different from the individual triangle-based

LOD algorithms and is optimised for modern,

consumer 3D graphics cards and minimizes CPU usage

during rendering. It is augmented with out-of-core

visualization of large height geometry and texture

terrain data. To display large collection of point-

location based static objects over the terrain while

maintaining the real-time frame rate, an efficient

object handling method has been proposed using

paging technique and object instantiation. Objects

include different kinds of buildings, trees etc. User is

allowed to control the objects locations, scales and

orientations.

As a next step to further improve the rendering

performance and quality of visualization, we are

currently investigating rendering using state-of-the-

art programmable GPU cards through vertex and

fragment programs. Complex 3D objects such as

buildings and trees with large number of polygons,

severely affect the rendering performance. Discrete

multiresolution representation of these objects and

their run-time selection may further increase the

rendering speed.

REFERENCES

Agrawal, Anupam et al., 2004a. TREND: Adaptive Real-

time View-dependent Level-of-detail-based Terrain

Rendering. Proceedings IT++: The Next Generation -

the 39

Annual National Convention of Computer

Society of India (CSI) held in Mumbai, pp. 146-157.

Agrawal, Anupam et al., 2004b. Dynamic Multiresolution

Level of Detail Mesh Simplification for Real-time

Rendering of Large Digital Terrain Models.

Proceedings IEEE India Annual Conference 2004

(INDICON-2004) at IIT, Kharagpur, pp. 278-282.

Agrawal, Anupam et al., 2005. An Approach to Improve

Rendering Performance of Large Multiresolution

Phototextured Terrain Models using Efficient Triangle

Strip Generation. Paper presented in IEEE IGARSS-

2005 held in Seoul, Korea during July 25-29, 2005.

Cignoni, P. et al., 1998. A Comparison of Mesh

Simplification Algorithms. Computers and Graphics,

22(1), pp. 37-54.

De Boer, W. H., 2000. Fast Terrain Rendering Using

Geometrical MipMapping. http://www.flipcode.com/

articles/article_geomipmaps.pdf.

Dollner, J. et al., 2000. Texturing Techniques for Terrain

Visualization. In Proceedings of IEEE

Visualization’2000, pp. 207-234.

Douglass, D. et al., 1999. Real-Time Visualization of

Scalably Large Collections of Heterogeneous Objects.

In Proceedings of IEEE Visualization‘99, pp. 437-440.

Duchaineau, M. et al., 1997. ROAMing Terrain: Real-time

Optimally Adapting Meshes. In Proceedings of IEEE

Visualization’97, pp. 81-88.

Lindstrom, P. et al., 1996. Real-Time Continuous Level of

Detail Rendering of Height Fields. In Proceedings of

ACM SIGGRAPH’96, pp. 109-118.

Lindstrom, P. and Pascucci, V., 2001. Visualization of

Large Terrains made easy. In Proceedings of IEEE

Visualization’2001, pp. 363-370.

Luebke, D., 2001. Survey of Polygon Simplification

Algorithms. IEEE Computer Graphics and

Applications, 21(3), pp.24–35.

Luebke, D. et al., 2003. Level of Detail for 3D Graphics,

Morgan Kaufmann Pub., pp. 19-46.

Pajarola, R., 1998. Large Scale Terrain Visualization

using the Restricted Quadtree Triangulation. In

Proceedings of IEEE Visualization’98, pp. 19-26.

Reddy, M. et al, 1999. TerraVision II: Visualizing

Massive Terrain Databases in VRML. IEEE Computer

Graphics & Applications, Vol. 19(2), pp. 30-38.

Szenberg, F. et al., 1997. An Algorithm for the

Visualization of a Terrain with Objects. In X Brazilian

Symposium on Computer Graphics and Image

Processing, pp. 103-110.

Vitter, J.S., 2001. External Memory Algorithms and Data

Structures: Dealing with Massive Data. ACM

Computing Surveys, Vol. 33, Issue 2, pp. 209-271.

Table 1:Performance Analysis of the Adaptive LOD

Algorithm (without Objects).

Terrain Rendering

(without objects)

Avg. no. of

Triangles

Avg.

Frame per

Second

Full resolution

(considering 9 tiles

only)

1327104.00 01.63

View frustum culled

surface

268338.82 05.96

Adaptive LOD

algorithm (τ=4)

1. Using triangle list

2. Using triangle fan

3. Using triangle strip

(without using

indexed vertex array)

4. Using triangle strip

(with using indexed

vertex array)

16764.25

19763.86

19752.95

58.63

76.47

112.65

128.89

GRAPP 2006 - COMPUTER GRAPHICS THEORY AND APPLICATIONS

434

Table 2: Performance Analysis of the Adaptive LOD Algorithm (with Objects).

OUT-OF-CORE CONSTRUCTION AND 3D VISUALIZATION OF LEVEL-OF-DETAIL TERRAINS POPULATED

WITH LARGE COLLECTION OF HETEROGENEOUS OBJECTS

435
