COLOR SEGMENTATION OF COMPLEX DOCUMENT IMAGES
N. Nikolaou, N. Papamarkos
Image Processing and Multimedia Laboratory
Department of Electrical & Computer Engineering
Democritus University of Thrace
67100 Xanthi, Greece
Keywords: Color document segmentation, RGB color space, Mean shift, Edge preserving smoothing.
Abstract: In this paper we present a new method for color segmentation of complex document images which can be
used as a preprocessing step of a text information extraction application. From the edge map of an image,
we choose a representative set of samples of the input color image and built the 3D histogram of the RGB
color space. These samples are used to locate a relatively large number of proper points in the 3D color
space and use them in order to initially reduce the colors. From this step an oversegmented image is
produced which usually has no more than 100 colors. To extract the final result, a mean shift procedure
starts from the calculated points and locates the final color clusters of the RGB color distribution. Also, to
overcome noise problems, a proposed edge preserving smoothing filter is used to enhance the quality of the
image. Experimental results showed the method’s capability of producing correctly segmented complex
color documents while removing background noise or low contrast objects which is very desirable in text
information extraction applications. Additionally, our method has the ability to cluster randomly shaped
distributions.
1 INTRODUCTION
Printed documents in color are very common
nowadays. To be able to exploit their textual
content, the identification of text regions is
substantial. This can lead to built systems capable to
index, classify and retrieve them automatically. The
transformation of the text into its electronic form via
OCR is also a very useful operation.
Objects on printed documents that appear
uniform for human perception, become noisy with
unwanted variations through the digitization process.
So, digitized documents contain thousands of colors
and a color reduction preprocessing step is
necessary. The purpose is to create a simplified
version of the initial image where characters can be
extracted as solid items, by utilizing a connected
component analysis and labeling procedure.
Various types of methods for color reduction in
text information applications have been proposed in
the literature. Zhong (1995) used the smoothed RGB
color histogram to detect local maxima and segment
the color image. Chen’s (1998) work is based on the
YIQ color model and the resulted images contain 42
or less colors. Sobottka (2000) approaches the color
segmentation of color documents with a graph-
theoretical clustering technique. First the 3D
histogram of the RGB color space is built and a
pointer to its larger neighbor cell is stored. Chains of
cells pointing to the same local maximum are
identified and the color clusters are formed. Hase
(2001) algorithm is based on the uniform color space
CIE L*a*b*. Initially, the method partitions the
three axes so that the color space is formed into
many cubes. Those with frequency lower than
1/1000 or not larger than their neighbors are
rejected. Remaining cubes define the representative
colors and through a voronoi tessellation procedure
the final color centers are adopted. Strouthopoulos
(2002) approach is based on an adaptive color
reduction (ACR) method which first obtains the
optimal numbers of colors and then segments the
image. This is achieved by a self-organized feature
map (SOFM) neural network. Wang (2005) uses the
same approach as Sobottka (2000). Also, a similar
work with the application of this paper (Hase, 2003)
This paper was partially supported by the project
Archimedes 04-3-001/4 and Pythagoras 1249-6
220
Nikolaou N. and Papamarkos N. (2006).
COLOR SEGMENTATION OF COMPLEX DOCUMENT IMAGES.
In Proceedings of the First International Conference on Computer Vision Theory and Applications, pages 220-227
DOI: 10.5220/0001366202200227
Copyright
c
 SciTePress

is presented from the viewpoint of the influence of
resolution to color document analysis.
Dealing with complex color documents such as
cover books or journal covers raises some
challenging difficulties. Text is overlaid on images
or graphics and often it is impossible to spatially
define the background.
Generally, a color segmentation algorithm for
text information extraction applications must be able
to perform its task without oversegmenting
characters and still preventing fusion with the
background. Additionally, it is desirable to merge
low contrast objects with their background and
create large compact areas. This will result to a
small number of connected components, so the
outcome of a text information extraction algorithm
will be extensively improved.
2 DESCRIPTION OF THE
METHOD
In this paper, we propose an approach which
efficiently approximates the RGB color distribution
of the image by taking advantage an important
property of the edge map. Specifically, we sub
sample the image by selecting only those pixels
which are local minima in the 8-neighborhood on
the edge image. This ensures that the samples are
taken from inner points of the objects so fuzzy areas
are avoided. Also, all objects will be represented in
the obtained sample set. The benefits of this
approach are analyzed in section 4.1.
These samples are used in the next step to
initially reduce the colors of the input image with a
relatively large number of colors, usually no more
than 100 (section 4.2). The extracted image at this
stage is oversegmented.

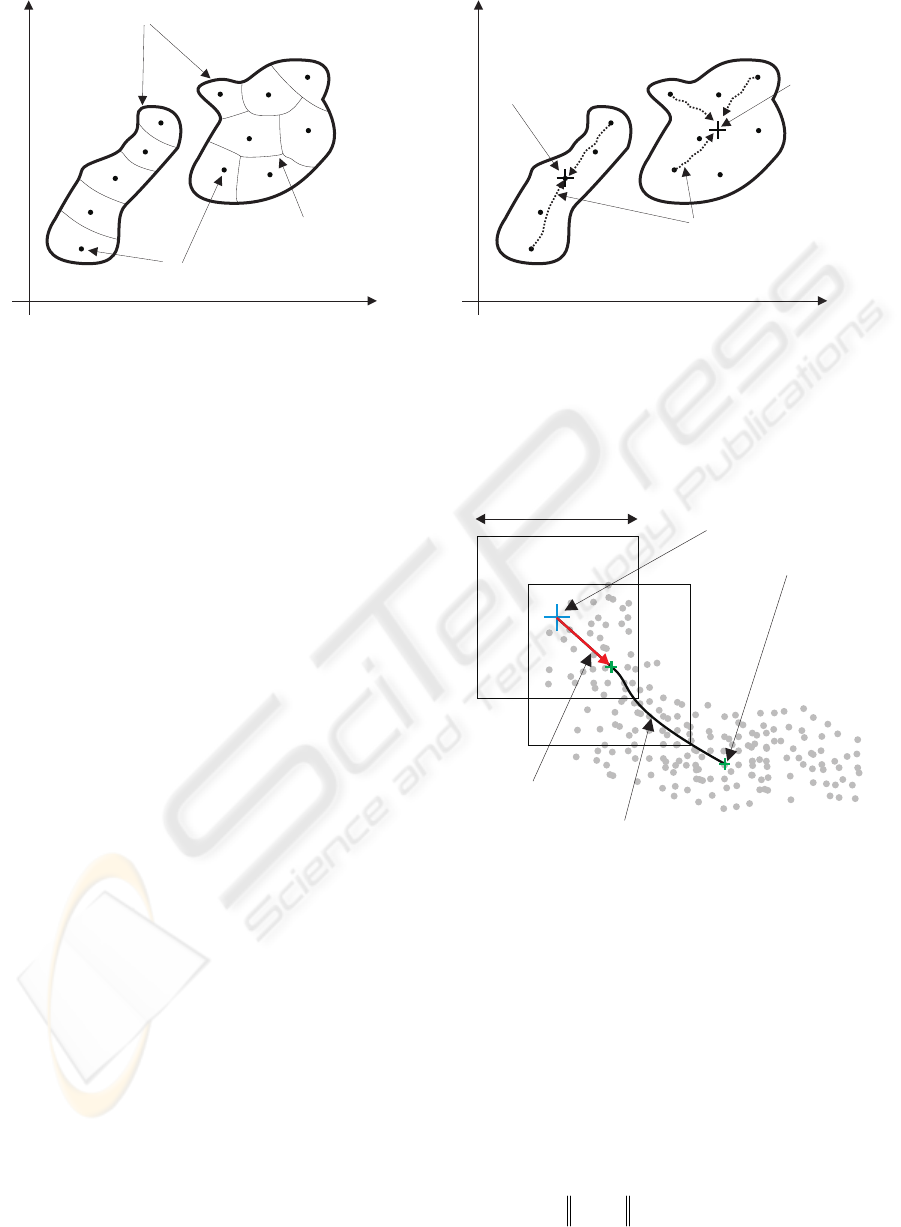

The resulted color centers are then used by a
mean shift operation (Fukunaga, 1975), (Cheng,
1995), (Comaniciu, 2002) to locate the final points
of the RGB color space, on which the algorithm will
be based to extract the final result (sections 4.3, 4.4).
In order to deal with noisy cases and to improve
the performance of the system, a proposed edge
preserving smoothing filter is used (section 3) as a
preprocessing step.
The overall process consists of the following
stages.
1. Edge preserving smoothing.
2. Color edge detection.
3. RGB color space approximation (Sub sampling).
4. Initial color reduction.
5. Mean shift
6. Finalization of the color reduction process.
The method is implemented in a visual
environment and the computer system used for all
tests is a PENTIUM 4 PC with 2.4GHz CPU speed
and 512MB RAM.
In section 5 of this paper, experimental results
are depicted where the efficiency of the method is
demonstrated. Computation time is also mentioned.
3 EDGE PRESERVING
SMOOTHING
A common technique for removing noise from
images is blurring them by replacing the center pixel
of a window with the weighted average of the pixels
in the window (Mean, Gaussian filters). Through
this process valuable information is lost and the
details of object boundaries are deformed. A
solution to this problem is to use an anisotropic
diffusion process (Perona, 1990). In this paper we
present a filter which performs as well as anisotropic
diffusion but requires less computation time.
First we calculate the Manhattan color distances
i
d between the center pixel
c
a and the pixels
i
a in
a 3x3 window. Values are normalized in [0,1]
ci c i ci
iaa aa aa
dRR GG BB=−+−+−
(1)
To compute the coefficients for the convolution
mask of the filter the following equation is used.
(1 )
p
ii
cd=−
(2)
In words,
i
c receives larger values for smaller
values of
i
d . This concludes to the following
convolution mask
123
45
8
678
1
1
0
i
i
ccc
cc
c
ccc
=
⎡
⎤
⎢
⎥
⎢
⎥
⎢
⎥
⎣
⎦
∑
(3)
Factor
p in equation (2) scales exponentially the
color differences. Thus it controls the amount of
blurring performed on the image. As it gets larger,
coefficients with small color distance from the
center pixel increase their relative value difference
from coefficients with large color distance, so the
blurring effect decreases. A fixed value 10 is used
for all of our experiments since this resulted in very
good performance.
COLOR SEGMENTATION OF COMPLEX DOCUMENT IMAGES
221

The center pixel of the convolution mask is set to
0 in order to remove impulsive noise.
Figure 1 shows the effect of the filter on a color
document. As it can be seen, noise is reduced
without affecting edge points. The main benefit from
this result is the extensive reduction of
misclassifications on the segmented image.
4 COLOR SEGMENTATION
4.1 Sub Sampling
In this section we propose a new technique for sub
sampling a color image. The resulted set of samples
will be used in the following steps of the algorithm
in order to perform the task of color reduction.
With the use of the well known Sobel operator,
we calculate the edge strength for each one of the
three color channels.
22
| (,)| ( (,)) ( (,))
rr r
row col
Gxy G xy G xy=+
(4)
22
| (,)| ( (,)) ( (,))
g
gg
row
col
Gxy G xy G xy=+
(5)
22
| (,)| ( (,)) ( (,))
bb b
row col
Gxy G xy G xy=+
(6)
where
|(,)|
r
Gxy, |(,)|
g
Gxy, |(,)|
b
Gxy the edge
values for red, green and blue channel, respectively.
To obtain the final edge value, we choose
{
}
(,) max| (,)|,| (,)|,| (,)|
rgb
Gxy G xy G xy G xy=
(7)
The maximum value guarantees that edges will
be detected even if variation occurs in only one of
the three color channels. From the transformed
(, )Gxy the sample set is formed with those
pixels
(, )
ii
x
y which satisfy the following criterion
(, )(,)
[1,1], [1,1]
ii ii
Gx ny m Gx y
where n m
+
+≥
=− =−
(8)
These points will be referred as local minima. It
is important to note that the watershed
transformation algorithm (Roerdink, 2000) uses this
methodology to initiate the segmentation process.
(a) (b)
(c) (d)

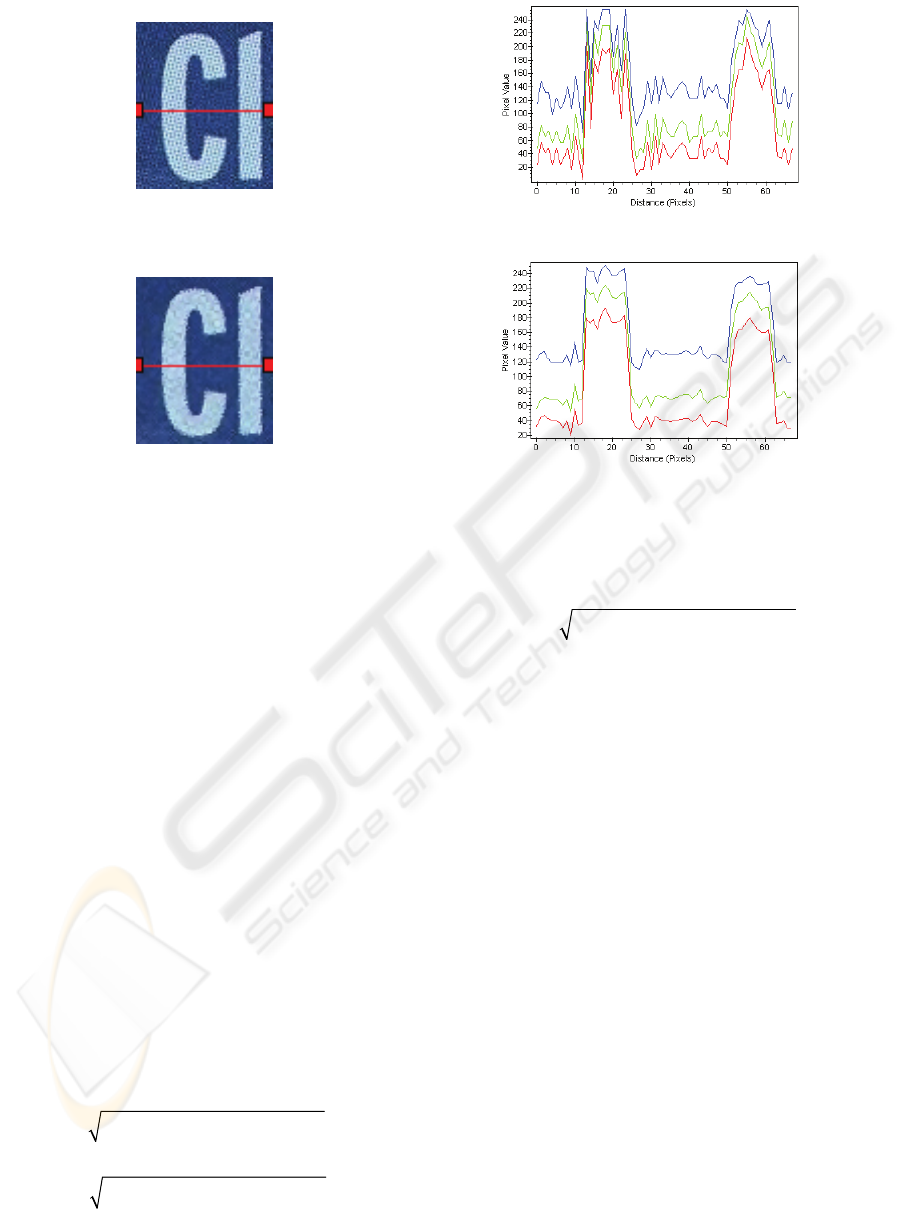

Figure 1: The effect of the edge preserving smoothing filter on a color document. (a) Original noisy color document, (b)
RGB pixel profile of line y=44 on the original document. (c)- (d) Filtered document (
10p
=
) and the pixel profile of
the same line.
VISAPP 2006 - IMAGE ANALYSIS
222

The resulted set of pixels has some interesting
characteristics.
– Edge points are not represented in this set so
fuzzy areas are avoided.
– Spatially, the samples are always inside the
objects of the image.
– Every object’s color is represented in the sample
set.
As a conclusion, we can assume that every
member of the local minima based extracted set of
samples can be considered as a candidate cluster
center. This assumption will be used in the next step
of the algorithm to initially reduce the colors.

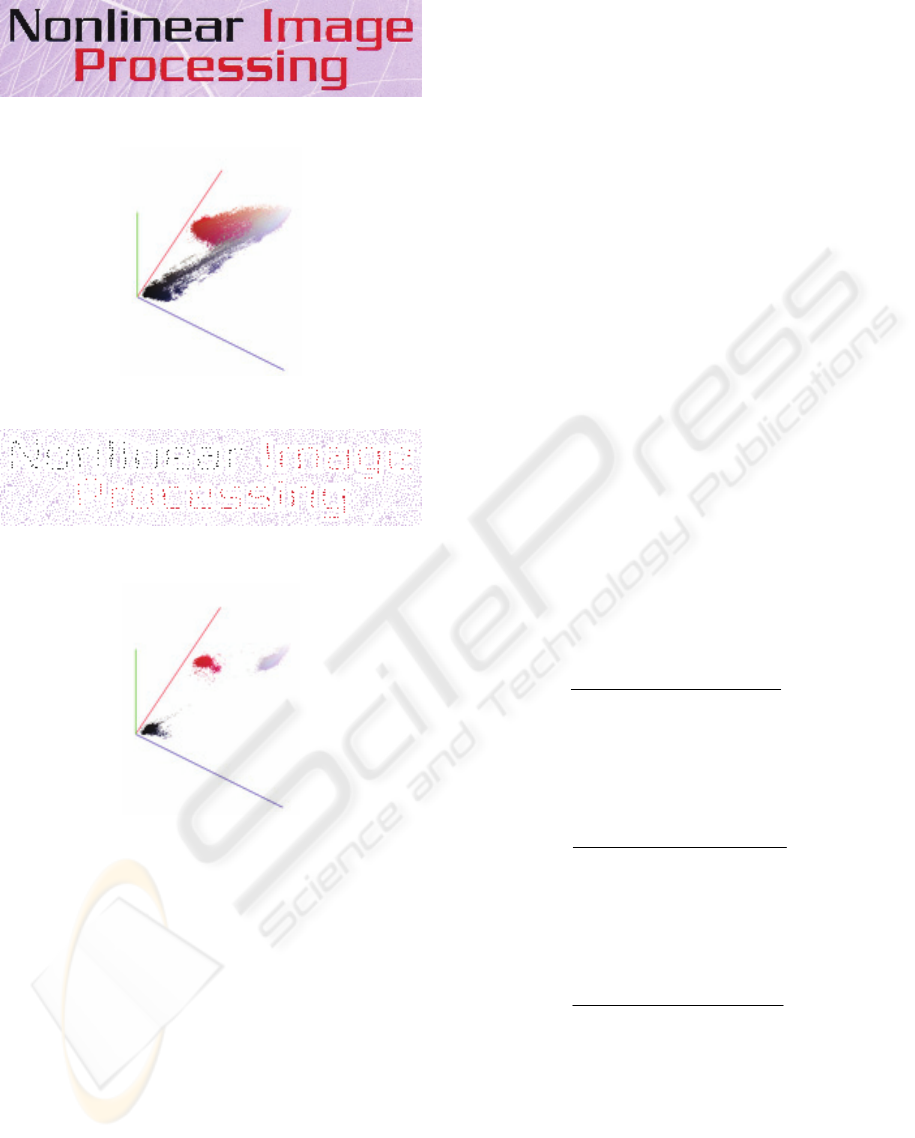

Figure 2 shows an example of approximating the
original color distribution according to our sub
sampling technique. It can be seen that the selected
pixels are placed very close to the cluster centers of
the initial image’s RGB distribution.
The sampling rate depends on the structure of the
input image but in most cases it is about 10%-15%.
Also, the number of colors is extensively reduced.
4.2 Initial Color Reduction
Let S be the resulted set of samples obtained from
the previous step and
(, , )prgb ( ,, [0,255]rgb= )
the 3D histogram of
S . As already mentioned,
every sample
s
S
∈
is considered as a candidate
cluster center. Based on this, the algorithm starts by
choosing a random sample
i
s
and performs the
following tasks.
Step 1. Define a cube with length of side
1
2h .
Considering
(, , )
iiii
s
rgb
=
as the center of the cube,
calculate a new point
(, , )
iiii
mmmm
s
rgb=
where
,,
iii
mmm
rgb
the mean values of red, green, blue
channels, respectively in the defined cube.
111
111
111
111
(, , )
(, , )
i
hhh
rhghbh
m
hhh
rhghbh
rprgb
r
prgb
=− =− =−
=− =− =−
⋅
=
∑∑∑
∑∑∑
(9)
111
111
111
111
(, , )
(, , )
i
hhh
rhghbh
m
hhh
rhghbh
g
prgb
g
prgb
=− =− =−
=− =− =−
⋅
=
∑∑∑
∑∑∑
(10)
111
111
111
111
(, , )
(, , )
i
hhh
rhghbh
m
hhh
rhghbh
bprgb
b
prgb
=− =− =−
=− =− =−
⋅
=
∑∑∑
∑∑∑
(11)
(a) 87361 colors
(b) 602640 pixels (1620x372)
(c) 15959 colors
(d) 81123 pixel samples (13% sampling rate)
Figure 2: (a) Original color document, (b) RGB color
distribution of (a), (c) local minima pixels (d) RGB color
distribution of local minima pixels.
COLOR SEGMENTATION OF COMPLEX DOCUMENT IMAGES
223

Step 2. Label all points contained in the cube
that has been examined.
Step 3. Choose a new unlabeled sample and go
to step 1. If all samples are labeled then stop.
The new set of points
m
S created by the
algorithm just described is used to initially reduce
the colors of the image (initial clustering). This is
done by assigning to the pixels of the original image
the color of their nearest neighbor (Euclidean
distance) in
m
S . The size of
m
S (number of points)
depends on the size of the cube, namely on
1
h . After
several experiments the value of
1
h was set to 32.
With this value, the number of the obtained colors is
relatively large and usually smaller than 100, thus
the resulted image is oversegmented.
Figure 3(a) shows an example of initial
clustering in the 2D space in a similar way of what is
being discussed in the current section. The detected
points (
m
S ) are referred as initial cluster centers.
Adopting this approach, namely to first oversegment
the clusters it is possible to solve a clustering
problem where the clusters are randomly shaped by
shifting the initial segments (as shown in Figure
3(a)) towards the mode point of the clusters. This is
achieved by a mean shift operation which is
described in the following section.
4.3 Mean Shift
Mean shift is a nonparametric and iterative
technique, useful for estimating probability density
functions. It was proposed by Fukunaga (1975) and
extensively analyzed by Cheng (1995). Comaniciu
(2002) used it to analyze complex multimodal
feature distributions and also proposed a mean shift
based color segmentation application.
cluster mode
mean shift
vector
2h
mean shift
path
beginning point
Figure 4: Demonstration of the mean shift operation.
It operates by iteratively shifting a data point to
the average of points located in a specified
neighborhood. As shown in Figure 4, starting from a
beginning point
i
x
, the mean value of the points
located in the square with side length
2h is
calculated, considering point
i
x
as the center of the
square. The resulted value, point
j
x
, is used in the
next step with the same manner to locate a new
point. The vector defined by two successive
calculated points
(, )
ij
x
x
is called mean shift vector.
The algorithm continues until the norm of the mean
shift vector (
ij
x
x−
) vanishes or becomes smaller
initial cluster centers
X
Y
clusters
C1
C2
initial cluster boundaries
X
Y
C1
C2
mean shift paths
cluster mode
cluster
mode
(a) (b)
Figure 3: Hypothetical case of clustering in the 2D space, (a) the two randomly shaped clusters C1 and C2 are initially
oversegmented, (b) the final result is adopted by mean shifting the initial cluster centers (mode detection).
VISAPP 2006 - IMAGE ANALYSIS
224

than a specified lower bound (convergence
condition).
In our case, beginning points of the mean shift
procedure are the points of the set
m
S calculated as
described in section 4.2. For each point, we define a
cube with length of side
2
2h in the 3D histogram
and by utilizing equations (9), (10) and (11) for the
calculation of the mean values, cluster modes are
detected through the mean shift operation. A
graphical example for the case of 2D space is given
in Figure 3(b).
The convergence condition we adopt in our work
is based on the calculation of the Manhattan color
distance between two successive points in the 3D
histogram
(, , )prgb .
||| || |
mij i j ij
drr gg bb=− + − + −
(12)
In order to avoid a large number of repetitions
and save computation time, we consider that the
mean shift converges if
mm
dT≤
(13)
A small value
3
m
T = is used in our work. The
final number of colors is affected by the side length
of the cube (
2
2h ). A good choice for the value of
2
h
is to set it equal to
1
h (section 4.2).
4.4 Final Color Reduction
To achieve the result of color segmentation, a final
step which merges the shifted points is necessary
because for each cluster, various values of modes
have been extracted. These values are very close but
do not have identical values.
Assuming that the final color cluster centers
should not be closer than a specific distance, we
employ a simple merging procedure where points
with distance smaller than
1
h (section 4.2) are
considered to belong to the same color cluster, thus
they are merged and their mean value represents the
final color value which will be assigned to the
cluster.
5 EXPERIMENTAL RESULTS
To test the proposed method, a large database of
color documents was created which consists of 1000
images. Some were scanned from color book covers
and magazines (150 - 300 dpi) and others were
obtained from the WWW. In all experiments we
used the following parameters values
Edge preserving smoothing
factor
p
10
Initial color reduction
factor
1
h
32
Mean shift
factor
2
h
32
In Figures 5 and 6 we present experimental
results of the proposed method on noisy color
documents. The obtained results are summarized
below.
With edge
preserving
smoothing
Without edge
preserving
smoothing
computation time 2.68 sec 3.3 sec
initial color clusters 82 134
final color clusters 10 8
connected
components
4913 20288
With edge
preserving
smoothing
Without edge
preserving
smoothing
computation time 3 sec 3 sec
initial color clusters 60 95
final color clusters 8 10
connected
components
8075 59195
It can be observed that when the edge preserving
smoothing filter is not applied, the computation time
increases or stays the same. This happens because
the mean shift procedure requires more repetitions to
converge. The explanation is that when the filter is
applied, the density function of the RGB distribution
becomes steeper and the mean shift vectors get
larger values. In general, the structure of the RGB
distribution affects significantly the computation
cost.
Also, the number of connected components is
extensively reduced. This can improve the
performance of a text extraction application.
6 CONCLUSIONS
A novel color segmentation method for text
information extraction applications is presented in
COLOR SEGMENTATION OF COMPLEX DOCUMENT IMAGES
225

this paper. With an efficient sub sampling technique
we first approximate the initial RGB distribution.
The obtained samples are used to initially reduce the
colors and by a mean shift procedure the final result
is produced.
The method has been extensively tested on a
large number of color documents and the results
showed its capability of producing correct
segmentation results where characters are not
oversegmented or fused with the background. Also,
unwanted low contrast objects are merged with their
backgrounds and compact areas are created. These
results are very desirable in text information
extraction applications.
REFERENCES
Y. Zhong, K. Karu, A.K. Jain, 1995. Locating text in
complex color images. Pattern Recognition 28 (10),
1523–1535.
W.Y. Chen and S.Y. Chen, 1998. Adaptive page
segmentation for color technical journals’ cover
images. Image and Vision Computing 16, 855-877.
K. Sobottka et al, 2000. Text Extraction from Colored
Book and Journal Covers. International Journal on
Document Analysis and Recognition, vol. 2, No. 4, pp.
163-176.
H. Hase, T. Shinokawa, M. Yoneda, C.Y. Suen, 2001.
Character string extraction from color documents.
Pattern Recognition 34 (7), 1349–1365.
C. Strouthopoulos, N. Papamarkos and A. Atsalakis, 2002.
Text extraction in complex color documents. Pattern
Recognition, Vol. 35, Issue 8, pp. 1743-1758.
Hiroyuki Hase, Masaaki Yoneda, Shogo Tokai, Jien Kato
and Ching Y. Suen, 2003. Color segmentation for text
extraction. International Journal on Document
Analysis and Recognition 6(4): 271-284.
Bin Wang, Xiang-Feng Li, Feng Liu and Fu-Qiao Hu,
2005. Color text image binarization based on binary
texture analysis. Pattern Recognition Letters, Volume
26, Issue 11, Pages 1650-1657.
Roerdink, J.B.T.M., Meijster, A, 2000. The watershed
transform: Definitions, algorithms and parallelization
strategies. Fundamenta Informaticae 41, 187–228
P. Perona, J. Malik, 1990. Scale-Space and Edge
Detection Using Anisotropic Diffusion. IEEE Trans.
Pattern Analysis and Machine Intelligence, Vol. 12,
629-639.
Κ. Fukunaga and L.D. Hostetler, 1975. The Estimation of
the Gradient of a Density Function, with Applications
in Pattern Recognition. IEEE Trans. Information
Theory, vol. 21, pp. 32-40.
Y. Cheng, 1995. Mean Shift, Mode Seeking, and
Clustering. IEEE Trans. Pattern Analysis and Machine
Intelligence, vol. 17, no. 8, pp. 790-799.
D. Comaniciu and P. Meer, 2002. Mean Shift: A Robust
Approach Toward Feature Space Analysis. IEEE
Trans. Pattern Analysis and Machine Intelligence, vol.
24, no. 5, pp. 603-619.
VISAPP 2006 - IMAGE ANALYSIS
226

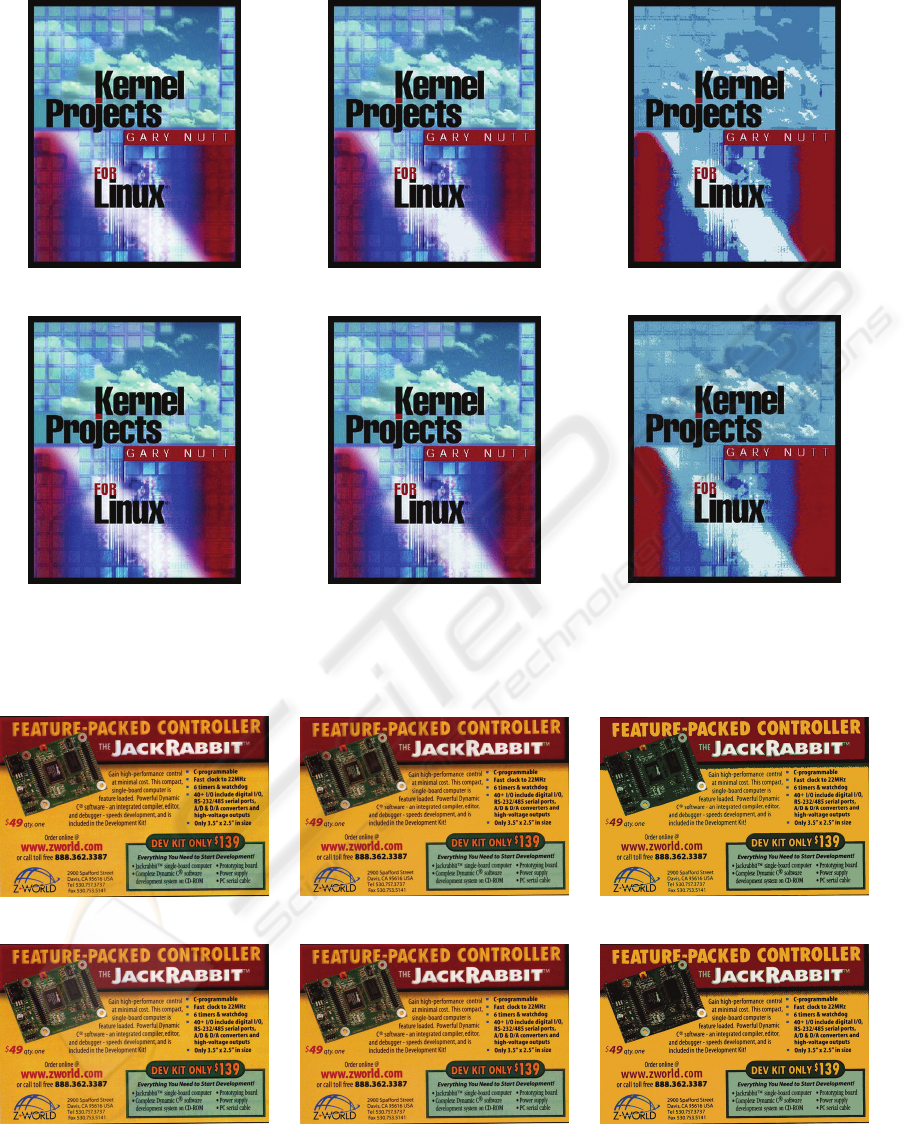

(a) 378961 colors (b) 82 colors (c) 10 colors
(d) 339136 colors (e) 134 colors (f) 8 colors
Figure 5: (a) Color document after edge preserving smoothing, (b) initial color reduction of (a), (c) final color reduction
of (a), (d) color document without edge preserving smoothing, (e) initial color reduction of (d), (f) final color reduction of
(d).
(a) 441567 colors (b) 60 colors (c) 8 colors
(d) 379088 colors (e) 95 colors (f) 10 colors
Figure 6: (a) Color document after edge preserving smoothing, (b) initial color reduction of (a), (c) final color reduction
of (a), (d) color document without edge preserving smoothing, (e) initial color reduction of (d), (f) final color reduction of
(d).
COLOR SEGMENTATION OF COMPLEX DOCUMENT IMAGES
227
