REAL-TIME FPGA-BASED IMAGE RECTIFICATION SYSTEM

Cristian Vancea, Sergiu Nedevschi, Mihai Negru

Computer Science Department, Technical University of Cluj-Napoca, Gh. Baritiu 28, 400027, Cluj-Napoca, Romania

Stefan Mathe

Computer Science Department, University of Toronto, Toronto, Canada

Keywords: Image rectification, Pipeline hardware design, VHDL, FPGA.

Abstract: Image rectification is the process of transforming stereo-images as if they were captured using a canonical

stereo-system. Computationally intensive tasks, like dense stereo matching, are greatly simplified if

performed on rectified images. We developed an efficient pipeline hardware machine which performs real-

time image rectification. The design was implemented using VHDL, thus allowing portability on many

hardware platforms. The architecture was highly optimized, both in terms of time and resources needed. To

increase its flexibility, the design was described based on generics (configuration parameters), which allow

reconfiguring different characteristics and behaviour, such as: image size, number of precision bits, memory

cache complexity. We also analyze the performance of the implemented solution on a VirtexE600 FPGA

device.

1 INTRODUCTION

The process of generating dense disparity maps

using stereo-images is a computationally intensive

task. It involves finding for every pixel in one

image, the correspondent pixel in the other image(s).

Correct corresponding point is defined as the pixel

representing the same physical point in the scene.

Normally this is a 2-D search problem, but it can be

reduced to a 1-D search problem if the images were

captured using a canonical stereo-system, almost

impossible to obtain in practice. However it is

possible to apply a rectification process over the

images, which will make them appear as if they

were captured using a canonical configuration. The

rectified images can be thought of as captured by a

new stereo-system, obtained by rotating the original

cameras around their optical centers.

Image rectification consists in transforming the

images so that the epipolar lines are aligned

horizontally or vertically.

The rectification process can be divided in two

major steps:

1. offline calculation of rectification matrices

for each camera – performed once for a

given calibrated stereo-system;

2. online image rectification from sequence to

sequence.

As the second phase is time consuming, a need to

be performed by additional hardware is encountered.

In this purpose, current paper introduces a pipeline

oriented hardware architecture, which was

implemented in a FPGA module and performs

online image rectification. The hardware

architecture is described using VHDL, the image

resolution can be dynamically set using generics

(configuration parameters) and the entire module is

technology independent though it can be ported on

any FPGA device. In this context we are able to take

advantage of the great speed technology that appears

on market, processing time being strictly dependent

on it.

2 RELATED WORK

Most of the previously stereovision hardware

machines that appeared in literature had as purpose

other tasks which involved image rectification as a

pre-processing step. Moreover they don’t really

mention any details about the rectification method

used within this step, nor specific description about

Vancea C., Nedevschi S., Negru M. and Mathe S. (2006).

REAL-TIME FPGA-BASED IMAGE RECTIFICATION SYSTEM.

In Proceedings of the First International Conference on Computer Vision Theory and Applications, pages 93-100

DOI: 10.5220/0001369500930100

 SciTePress

the hardware design. However, Fusiello, Trucco and

Verri (1997) and Fusiello (1998b) present a

rectification process based on constraints imposed

on the rectified images: principal point in position

(0,0), equal focal lengths, unchanged optical centers.

A similar method was presented later (Fusiello,

Trucco and Verri, 1998a), (Fusiello, Trucco and

Verri, 2000). It has the same principles as the

previous one, but the constraints differ a little.

A general purpose reconfigurable computer, the

PARTS system (

Woodfill and Herzen, 1997), consists

of 16 tightly coupled Xilinx 4025 FPGAs and 16

1MB SRAMs. Used for the task of stereovision, the

system achieves a performance of 42 fps at

computing 24 disparities on 320x240 pixel images.

The team from Tyzx developed a hardware

system for stereo depth computation implemented in

ASIC (Woodfill, Gordon and Buck, 2004). The

design is based on a highly parallel pipelined

architecture. It uses a pair of two stereo cameras

which connect directly to the board, though the

latency is reduced and the PCI Bus and memory are

not burdened with image data. Each camera is

calibrated to define basic imager and lens

parameters, which are used to rectify the images.

Jia et al (2004) introduce a miniature

stereovision system which generates high-resolution

disparity maps using a trinocular system attached to

a hardware module implemented in FPGA. Its

frequency is 60 MHz, reaching up to 30 fps. The

depth is calculated using 64 disparity levels and 256

disparity levels with interpolation. Epipolar

rectification is used in order to simplify the stereo

correspondence.

3 IMAGE RECTIFICATION

METHODOLOGY

The idea behind image rectification consists in

calculating a rectification matrix, for each camera,

based on the Perspective Projection Matrices

characterizing both original (P

) and defined

canonical (P

) stereo systems. Knowing the point

coordinates in the original image (

) and the optical

centre (c) of the camera, its correspondent point in

World Reference Frame (WRF) is:

iQcw ⋅+=

−1

(1)

where:

oooo

Svu ],,[=i

ZYX ],,[=w

[]

ooo

qQP |=

Considering the projection formula from WRF

onto the rectified image (obtained without moving

the optical centre of the camera), the new position of

the image point becomes:

[]

()

iQQqcQi

qiQcQ

oocccr

coocccc

⋅⋅++⋅=

⇒+⋅+⋅=

⎥

⎦

⎤

⎢

⎣

⎡

⋅=

⎥

⎦

⎤

⎢

⎣

⎡

⋅=

−

(2)

where:

rrrr

Svu ],,[=i

⋅

qcQ

– optical centre is projected in (0,0)

In this way the corresponding position in

rectified image can be calculated for each pixel from

original image:

ooc

iTiQQi ⋅=⋅⋅=

−1

(3)

where:

1−

⋅=

QQT

– rectification matrix

It has to be stated that rectifying an image is not

a simple product between the rectification matrix

and the vector representing the current pixel

coordinates in the image. Practically the image

coordinates are integer values and the elements of

the rectifying matrix are real numbers. The

approximation of the corresponding points

coordinates could distort the rectified image. So for

each integer coordinate of the rectified image the

corresponding point onto the original image is

computed using the inverse of the rectifying matrix:

= t

11*

+ t

12*

+ t

(4)

= t

21*

+ t

22*

+ t

(5)

where:

= (u

, v

, 1)

– point coordinates in original image

= (u

, v

, 1)

– point coordinates in rectified image

⎥

⎦

⎤

⎢

⎣

⎡

332331

232221

131211

ttt

Such a point will have real coordinates and will

be situated between four pixels (fig. 1). In order to

maintain clarity, a bilinear interpolation of the four

neighbouring pixels’ intensities will give the

resulting intensity in the rectified image:

= u + d

(6)

= v + d

(7)

) = I

(u,v)*(1-d

)*(1-d

) + I

(u+1,v)*d

*(1-d

)

+ I

(u,v+1)*(1-d

)*d

+ I

(u+1,v+1)*d

(8)

where:

– rectified image intensity bitmap

– original image intensity bitmap

VISAPP 2006 - IMAGE FORMATION AND PROCESSING

original image

(u,v+1) (u+1,v+1)

(u+1,v)(u,v)

1−

rectified image

),(

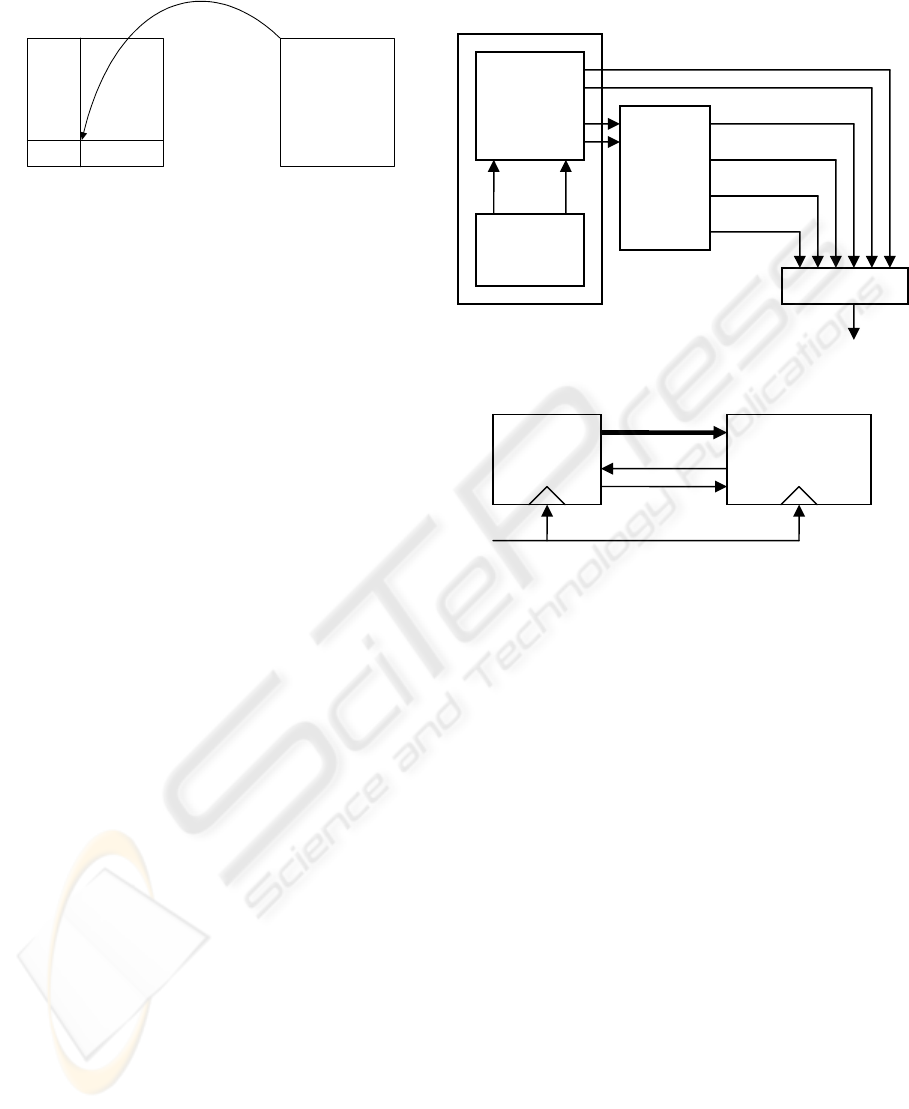

Figure 1: Image rectification methodology.

4 HARDWARE DESIGN

There are some issues to be discussed before giving

any details about the hardware architecture. First of

all the entire architecture was described using

VHDL. For that reason, some features could be

described using generics: image dimension, image

area to be rectified, precision. The inverse of

rectification matrix is also given using generics. The

design can be optimized in matters of speed and

resources to be used inside the FPGA device. Using

generics, one can choose for a complex design

handling more situations, giving greater precision in

results, or choose for a simpler design which would

need fewer resources, but would handle less

situations or even worse precision.

The input consists in the original image and the

output will be the rectified image. Practically, the

process consists in parsing the rectified image pixel

by pixel and applying the equations (4), (5) and (8)

in order to determine their intensity. The hardware

architecture was divided in three major parts (fig. 2):

• coordinate generator and 2-D

transformation block;

• source image reader;

• interpolator.

4.1 Communication Protocol

Each of the three blocks is an independent pipeline

module. They communicate using a very simple

one-way communication protocol called DFLOW

(Data FLOW – fig. 3).

The handshaking is simple: when source has

valid data, it outputs the data onto the DATA bus

and enables the WEN signal; when destination is

ready to receive data it sets the RDY signal high;

when both RDY and WEN are set, data transfers

take place on each clock cycle. In this way,

continuous transfer is possible.

Figure 2: Image rectification hardware architecture.

Figure 3: DFLOW communication protocol.

4.2 Coordinate Generator and 2-D

Transformation Block

This part of the architecture has as purpose the

calculation of u, v, d

and d

using formulas (4) and

(5). As the relations are similar, the same hardware

unit can be duplicated to perform all operations. We

will discuss further how to implement relation (4).

It can be noticed that only adders and multipliers

should be involved, but multipliers are slow and

complex modules. Another observation is that u

and

are increasing by 1 and rectification matrix

elements are real number constants, though it is

possible to perform multiplication by using repeated

sums, on each clock cycle and storing the temporary

result in a buffer (see fig. 4).

Any unit of the module, which is driven by a

clock signal, contains a register on the output. Such

a measurement was taken in order to insert fast

stages in the pipeline. As the entire architecture was

designed to work with integers, generics like t

, t

had to be shifted to the left with a certain number

of precision bits. This number varies depending on

the stage of the pipeline architecture. For example,

Source

Destination

RDY

WEN

DATA

CLK

Coord.

generator

2-D

Transform

Block

Source


Reader

(u+1,v)

(u,v)

(u,v+1)

(u+1,v+1)

Inter

olato

)

REAL-TIME FPGA-BASED IMAGE RECTIFICATION SYSTEM

in the first stage where t

and t

are summed

repeatedly for a certain number of times, more

precision bits are needed than the stage where t

added. The idea is to use only k precision bits when

calculating u

and v

and only l (smaller than

k) precision bits when performing the rest of the

sums. In this way a lot of FPGA resources will be

saved for other purposes. It can be proved that for f

precision bits wanted in the final result, k and l

should respect the following relations, so as to

obtain the optimal solution in terms of resources

required:

l = f + 4 (9)

k = f + 2 + log

(W + H) (10)

where:

W, H – image weight and height

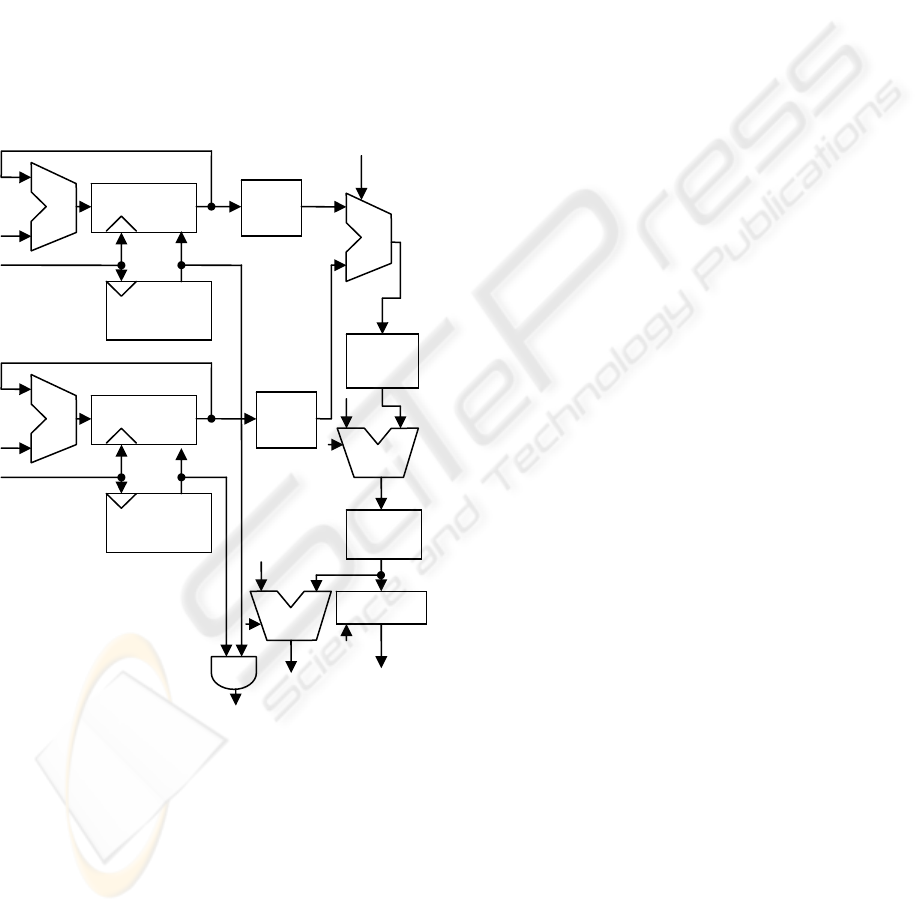

Figure 4: Coordinate generator and 2-D transformation

block.

The design in figure 4 is configured using a set

of generics:

• t

, t

– first raw of rectification matrix;

• i – number of bits to represent the integer

part of the result;

• f – number of bits to represent the fractional

part of the result;

• image width.

The output lines are:

• Finished – is asserted when the entire

image was rectified;

• Overflow – is asserted when the resulting

position in the original image is outside;

• Result – represents the result data bus; it is

represented using i + f bits.

4.3 Source Image Reader

The large amount of storage space needed for

memorizing the acquired frames in a stereo vision

system well exceeds the capabilities of internal

BRAM units. The solution is to use external

memories, which, in most cases, are either SRAM or

SDRAM. The former has the advantage of

simplified access, while the latter has a higher

capacity. Since many of the FPGA-PCI boards

present on the market today provide SDRAM

modules for external storage, we designed a

component that can efficiently fetch the pixels to be

used as the input for the interpolator.

The input of the image reader component

consists of a stream of pairs of pixels coordinates in

the image space. For each such pair of coordinates,

the image reader should provide as output a tuple of

4 pixel intensities, corresponding to a 2x2 window

whose top-left corner is located at these coordinates

in the image that is stored inside the external

storage.

The difficulty of the task resides not in fetching

the pixel values, but rather doing this in an efficient

manner. It can be noticed that while the window

sweeps the image, it usually does so by moving in

successive partially overlapping positions. Even

more conveniently, data is stored inside the SDRAM

in 32-bit words, that is, 4 successive pixels are

accessible by performing one read operation. As a

consequence, it is possible to build an efficient cache

that can both provide pixels at a much higher rate

and can also significantly reduce the memory load.

The cache will store a window of 2x2 32-bit

words (16 pixels) from the image. The operations

performed by the cache will be:

• read a 32 bit word into one of the positions

of the cache;

• shift the cache in one of the 8 possible

directions;

• send the contents of a 2x2 pixel window

over the output port.

The phases of the computation performed inside

the image reader module are described in what

follows (fig. 5):


width

FULL

Counter (u

)

RST

Clk

Sign

ext.

Sign

ext.

Finished

Overflow

Result (u

)

FULL

Counter (v

)

RST

Clk

Sign

ext.

Sign

ext.

≤

VISAPP 2006 - IMAGE FORMATION AND PROCESSING

Window tracking involves detecting the direction

in which the 2x2 pixel window moves relative to its

previous position. It is a two stage pipeline process,

in which the difference between the new and old

coordinates is computed on a per-axis basis.

Differences corresponding to -1, 0 and +1 are

detected and encoded using a direction encoder,

described in table 1.

Table 1: Direction encoding.

RST U- U0 U+ V- V0 V+ DIR

1 X X X X X X NEW

0 0 1 0 0 1 0 SAME

0 0 0 1 0 1 0 0

0 0 0 1 1 0 0 45

0 0 1 0 1 0 0 90

0 1 0 0 1 0 0 135

0 1 0 0 0 1 0 180

0 1 0 0 0 0 1 225

0 0 1 0 0 0 1 270

0 0 0 1 0 0 1 315

0 Otherwise NEW

Figure 6: The internal structure of the cache.

Based on the coordinates of the window and the

movement direction provided by the window tracker

pipeline, command generation block has the task to

create the set of parallelized commands that should

be carried out by the cache in order to make

available all the pixels inside the window. The

output of the command generator will be:

• read – a vector of 4 bits, read(i) being set if

it is necessary to perform a read operation

for word number i in the cache (word

numbering inside the cache is depicted in

figure 6);

• shift – one of the 8 shift directions or

SHIFT_NONE if no shift needs to be

carried out;

• offset – the offset of the 2x2 pixel window

inside the cache. This will be needed for

carrying out the sending operation.

At most 4 read operations may result after the

command generation phase, corresponding to the 4

32-bit word positions in the cache. The addresses for

the 4 words can be immediately derived from the

coordinates of the 2x2 pixel window, by obtaining

the byte address (v x img_width + u) and rounding it

down to the nearest 32-bit word (fig. 7).

Figure 7: Read addresses computation.

Based on this observation, it is possible to

compute the addresses in parallel with the window

tracking and command generation phase, thus

reducing the overall pipeline length. As address

computation involves the use of one constant-

argument pipeline multiplier, we developed a highly

optimized component based on Booth's Algorithm.

The Address Generation branch and Window

Tracking + Command Generation branch (fig. 5)

might not have the same number of stages. For that

reason, a Pipeline Synchronizer based on DFLOW

handshaking protocol was introduced.

Some of the commands may not be executed in

parallel by the cache. This problem is solved using a

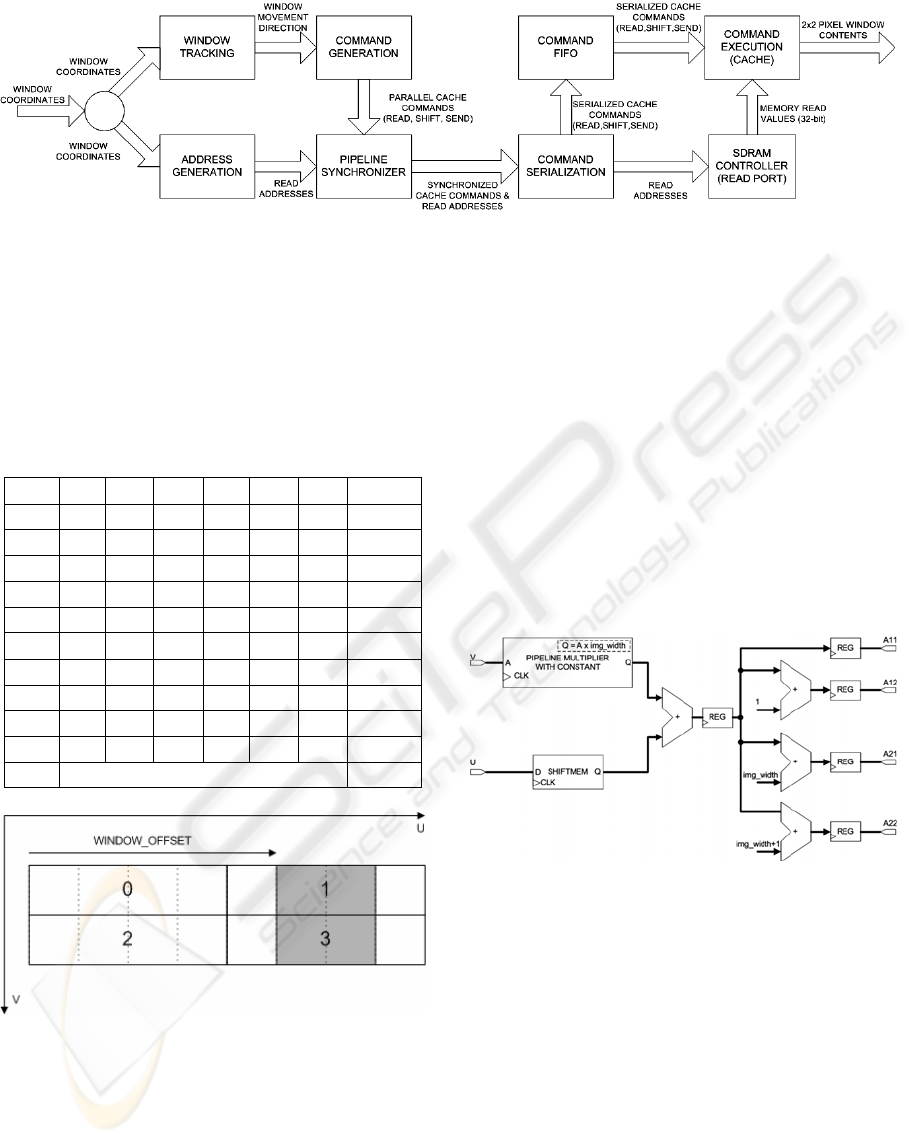

Figure 5: Flow Diagram for Image Reader module.

REAL-TIME FPGA-BASED IMAGE RECTIFICATION SYSTEM

Command Serialization unit. The following

constraints must be met:

• only one read may be performed per clock

cycle;

• cache shifting must take place before or in

the same clock cycle as the first read

operation;

• send operation must be performed after the

last read for current window position is

completed and before or in the same clock

cycle as the first read or shift for the next

window position takes place.

Due to the fact not all commands will involve a

read operation from memory, using a Command

FIFO unit will allow them to be executed while

SDRAM Controller performs readings for other

commands. The result is a speedup in the process.

The final stage of the image reader pipeline is the

cache. Its function is to process the serialized

commands coming from the Command Serialization

unit through the Command FIFO together with the

data values coming from the SDRAM Controller.

The control logic will always schedule the shift

operation in the first clock cycle after a command is

loaded (if there is no pending send command), since

it is always possible to execute it. Read operations

are scheduled as soon as the data from SDRAM

Controller becomes available. Send operations are

scheduled last, after the last read operation has been

completed. Send operations will actually be

executed some time after the last read operation,

when the output becomes ready. However, in order

to ensure continuous operation of the cache, a send

command may be pending while another command

is being loaded into the input buffers, allowing the

sending of data to be overlapped with the arrival of

the next command. Nevertheless, if the sending

operation continues to remain pending because the

destination is not ready to receive data, the next

command will not start execution. The cached data

is kept in registers which are capable of executing

the shift and read operations. The input of each of

the four 32-bit registers is connected, through a

multiplexer, to each of the other 3 registers and to

the data buffer. This is, the most expensive part of

the image reader component both in terms of

resources and propagation delay. Further

optimizations can be carried out by noticing that, in

applications like image rectification, the cache will

not be performing shift operations in all of the 8

directions, though some of the logic may be

eliminated. Boolean generics, for each window

movement direction, were introduced in the VHDL

description, to allow flexible design configuration.

4.4 Bilinear Interpolator

This is the final stage of the image rectification

architecture. It performs the bilinear interpolation of

the four neighboring intensities from the original

image, according to d

, d

offsets.

This part includes a set o adders and

multiplication modules. We modified formula (8) in

such a way that that the number of multiplication

units decrease to minimum possible. The reason is

that a multiplication module requires a lot of

pipeline stages. The more consecutive multipliers we

have, the greater the number of pipeline stages we

get. An optimized solution is presented in what

follows.

Consider the following bilinear interpolation

formula:

P = a

*(1-d

)*(1-d

) + b*d

*(1-d

) + c*(1-d

)*d

d*d

(11)

This could be written as:

= a*(1-d

) + b*d

= a + (b-a)*d

(12)

= c*(1-d

) + d*d

= c + (d-c)*d

(13)

P = P

*(1-d

) + P

= P

+ (P

-P

)*d

(14)

As formulas (12) and (13) can be performed in

parallel, the interpolation process was optimized to

only two consecutive multiplication stages. Also, the

number of needed resources was reduced because

the number of multiplication units decreased from 8

to 3.

4.5 Top-level of the Architecture

The entire rectification process was designed to have

two major phases:

1. image load into memory;

2. image transformation.

First phase consists in loading the image from

the software module into the SDRAM through the

PCI bus. For that reason, a counter generating the

address for the SDRAM is used. Communication

with memory is performed using the DFLOW

protocol. Second phase is designated for rectifying

the image in memory. The Address Generator

module is disabled and the Image Transformation

module is put at work. A description of the top-level

control unit and dataflow is presented in figure 8.

(a)

Rst

Finished=’1’ Pipe_Empty=’1’

Rst_Mem=’1’

Rst_Rectif=’0’

Rst_Mem=’0’

Rst Rectif=’1’

Rectify Image

Load Image

VISAPP 2006 - IMAGE FORMATION AND PROCESSING

(b)

Figure 8: Top-level view of Image Rectification System:

a) control unit; b) dataflow.

5 EXPERIMENTAL RESULTS

The hardware design was tested using a Strathnuey

board equipped with a Ballyderl DIME module

containing a Virtex FPGA (model V600EFG680)

and 128MB SDRAM. The images (640x512 pixels)

were sent from PC through the PCI bus and the

rectified images were read back into the PC,

registering a total time of 17.5 ms (57 fps). Such

amount of time is due to the fact the PCI

communication between PC and FPGA-PCI board is

very slow. Practically, the design working at a

frequency of 80 MHz, waits until the image

download and upload through PCI is performed. On

the other hand, the time required only for rectifying

the image (no upload and download) is about 4.5 ms

(222 fps). Download time can be eliminated if

images will be captured directly from camera and

not through PCI.

The resulting images were tested against those

obtained with a software reference implementation.

The similitude between both solutions can be seen in

figure 9 (dark patterns on the margins represent

pixels from the rectified image with correspondents

outside the original image).

We performed several tests concerning chip area

usage statistics. For example, by reducing the

number of possible window movement directions,

the amount of chip area and operating frequency can

be improved. In the case of the image rectification

task, the image is swept using successive lines. This

implies that the window movement direction can

take at most 3 values of the 8 possible ones. The

improvement in performance is shown in figure 10.

Chip area improvement is the most significant, from

around 11% down to around 7%.

(a)

(b)

Figure 9: Rectified images: a) hardware results; b)

software results.

Figure 10: Performance can be improved by removing

unused window movement directions.

To test the performance of the Image Reader

design, different image rotation matrices have been

Rst

Top-level FSM

Memory

(image)


Rectification

Module

Rst Empty

Address generator

(counter)

Rst

Communication

BUS

Address

Width*Height

Finished Rst_Mem

Rst

Rectif

Clk

Rst

nch

RDY WEN

PCI

Pipe

Empty

Rst

REAL-TIME FPGA-BASED IMAGE RECTIFICATION SYSTEM

used. Figure 11 shows the variation of the

throughput (megapixels/second) as a function of the

rotation angle, measured at a 75 MHz frequency

(memory controller operating at the same

frequency).

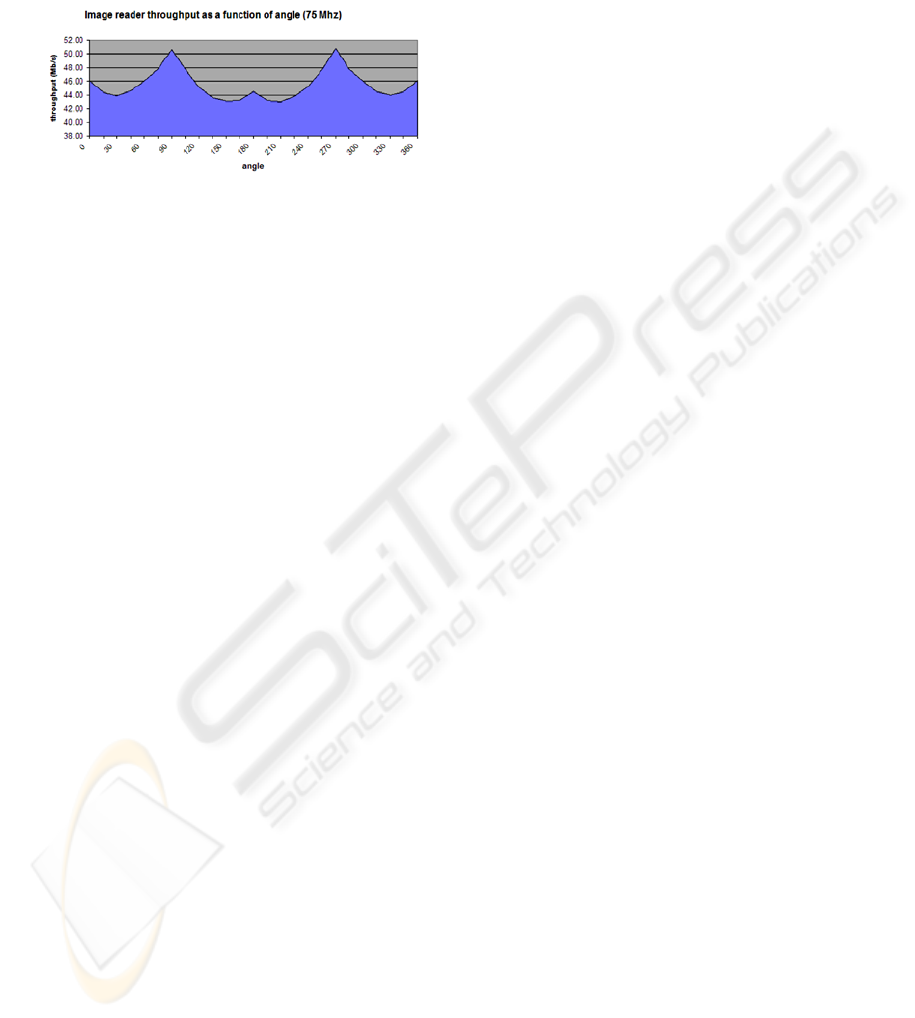

Figure 11: The throughput of the image reader as a

function of image rotation angle at a frequency of 75

MHz.

The variation of the throughput is 14% of the

maximum value, with a minimum of 43 Mb/s

(obtained at 150

and 210

) and a maximum of 50.6

Mb/s (for 90

and 270

). It can also be noticed that

the performance for a 0

angle is less than the one

obtained at 90

. The reason is that, in the first case,

when a cache miss is found, two read operations

(corresponding to words 1 and 3 of the cache) are

requested at once by the Command Generator and

the cache must stall for one clock cycle, to perform

the second read. In the second case, a miss will

usually generate one read operation (words 2 and 3),

and will not stall the pipeline (with the exception

being the situation in which the window is in the

middle of the cache - offset 3 - in which both words

2 and 3 will require reading).

6 CONCLUSIONS AND FUTURE

WORK

A flexible and scalable solution has been developed

for the problem of image rectification, providing

real-time results with configurable parameters such

as: image resolution, number of precision bits to be

used in calculus. The possible window movement

directions can be freely configured as to reduce chip

area usage and increase accepted clock frequency.

Image quality results proved to be very close to

the ones obtained using a reference software

implementation. The description was made

independent of the underlying technology, though it

can be ported easily on other platforms.

The processing time is very small, but the

transfer of images through the PCI bus proved to be

the weakest part (tests were performed with a slow

FPGA from VirtexE family). A solution to eliminate

such inconvenience would be to link the camera

directly to the FPGA board and implement, inside

the chip, an architecture which knows the

communication protocol with the camera. In this

way, only resulting images will have to be

transferred through the PCI, thus saving a lot of

time.

An alternative solution to be investigated in the

future consists in replacing the Coordinate Generator

and 2-D Transformation blocks with a lookup table

containing (with sub-pixel precision) the position in

original image, of each pixel from rectified image.

In this case the memory workload will increase

inefficiently, though several SDRAM/SRAM

modules would be needed to avoid such

inconvenience. On the other hand, a lookup table

based system might be used for more complex

processes, like image rectification combined with

image un-distortion or ground plane stereo-

correction, which require extremely complex

operations, difficult to be implemented in a fast

pipeline fashion.

REFERENCES

Fusiello, A., Trucco, E. & Verri, A. (1997). Rectification

with unconstrained stereo geometry. In Proceedings of

the British Machine Vision Conference. University of

Essex, BMVA Press. pp. 400-409.

Woodfill, J., Herzen B. (1997). Real-time stereo vision on

the parts reconfigurable computer. In IEEE Workshop

on FPGAs for Custom Computing Machines, pp. 242-

252.

Fusiello, A., Trucco, E. & Verri, A. (1998a). Rectification

with unconstrained stereo geometry. Research

Memorandum RM/98/12. Edinburgh, Department of

Computing and Electrical Engineering, Heriot-Watt

University.

Fusiello, A. (1998b). Tutorial on rectification of stereo

images. In R. Fisher, editor, CVonline: On-Line

Compendium of Computer Vision [Online]. Available:

http://www.dai.ed.ac.uk/CVonline/

Fusiello, A., Trucco, E. & Verri, A. (2000). A compact

algorithm for rectification of stereo pairs. Machine

Vision and Applications, 12(1):16-22.

Woodfill, J.I., Gordon, G., Buck R. (2004). Tyzx DeepSea

High Speed Stereo Vision System. In Proceedings of

the IEEE Computer Society Workshop on Real Time 3-

D Sensors and Their Use, Conference on Computer

Vision and Pattern Recognition. Washington D.C.

Jia, Y., Zhang, X., Li, M. & An, L. (2004). A Miniature

Stereo Vision Machine (MSVM-III) for Dense

Disparity Mapping. In Proceedings of the 17

International Conference on Pattern Recognition.

Cambridge. Volume 1, pp. 728-731.

VISAPP 2006 - IMAGE FORMATION AND PROCESSING

100
