MULTIDIRECTIONAL FACE TRACKING WITH 3D FACE MODEL

AND LEARNING HALF-FACE TEMPLATE

Jun’ya Matsuyama and Kuniaki Uehara

Graduate School of Science & Technology, Kobe University

1-1 Rokko-dai, Nada, Kobe 657-8501, Japan

Keywords:

Face Tracking, Face Detection, AdaBoost, InfoBoost, 3D-Model, Half-Face, Cascading, Random Sampling.

Abstract:

In this paper, we present an algorithm to detect and track both frontal and side faces in video clips. By means of

both learning Haar-Like features of human faces and boosting the learning accuracy with InfoBoost algorithm,

our algorithm can detect frontal faces in video clips. We map these Haar-Like features to a 3D model to create

the classiﬁer that can detect both frontal and side faces. Since it is costly to detect and track faces using the

3D model, we project Haar-Like features from the 3D model to a 2D space in order to generate various face

orientations. By using them, we can detect even side faces in real time without learning frontal faces and side

faces separately.

1 INTRODUCTION

In recent years there has been a great deal of inter-

ests in detection and tracking of human faces in video

clips. To recognize people in a video clip, we must

locate their faces. For example, to design a robot ca-

pable of interacting with humans, it is required that

the robot can detect human faces within its sight and

recognize the one it is interacting with. In this case,

the speed of face detection is most important. On the

other hand, when face detection is used in surveil-

lance systems, the speed of face detection is also im-

portant. However it is most important that the system

can detect all faces in the video clips.

Recently, Viola et al. proposed a very fast ap-

proach for multiple face detection (Viola and Jones,

2001), which uses AdaBoost algorithm (Freund and

Schapire, 1996). This algorithm learns a fast strong

classiﬁer by applying AdaBoost to a weak learner.

Then the classiﬁer is applied to sub-images of the tar-

get image, and the sub-images classiﬁed into a face

class are detected as faces in the target image. This

approach has two problems:

First, AdaBoost has some problem to use human

face detection. AdaBoost does not consider the re-

liability of the classiﬁcation result of each sample

with each weak classiﬁer. Furthermore, AdaBoost is

based on decision-theoretic approach, which does not

take the reason of misclassiﬁed samples. Therefore,

this algorithm cannot distinguish between misclassi-

ﬁed faces and misclassiﬁed non-faces. We will dis-

cuss these problems ﬁnely in section 3.

Second, this algorithm can only detect frontal

faces. However the number of frontal faces in video

clips is less than the number of side faces. Addi-

tionally, some algorithms have problems in the ini-

tialization process. Gross et al. (Gross et al., 2004)

use mesh structure to represent a human face, and de-

tect and/or track the face with template matching. In

the initialization process, all mesh vertices must be

marked in every training sample manually. Pradeep

et al. (Pradeep and Whelan, 2002) represent a face as

a triangle, whose vertices are the eyes and the mouth,

and track the face with template matching. In the ini-

tialization process, they need to manually initialize

the parameters of the triangle in the ﬁrst frame. Ross

et al. (Ross et al., 2004) use eigenbasis to track faces

and update the eigenbasis to account for the intrinsic

(e.g. facial expression and pose) and extrinsic varia-

tion (e.g. lighting) of the target face. In the initializa-

tion process, they need to decide the initial location of

the face in the ﬁrst frame manually. Zhu et al. (Zhu

and Ji, 2004) use face detection algorithm in the ﬁrst

frame to initialize the face position. Thereby, they do

not need manual initialization process. However, the

face detection algorithm can detect only a frontal face.

In this paper, we propose an algorithm, which clas-

siﬁes sub-images to face class or non-face class by

Matsuyama J. and Uehara K. (2006).

MULTIDIRECTIONAL FACE TRACKING WITH 3D FACE MODEL AND LEARNING HALF-FACE TEMPLATE.

In Proceedings of the First International Conference on Computer Vision Theory and Applications, pages 77-84

DOI: 10.5220/0001372700770084

 SciTePress

using classiﬁers. This algorithm does not require

manual initialization process. We substitute Info-

Boost algorithm (Aslam, 2000), which is based on

information-theoretic approach, for AdaBoost algo-

rithm, which is based on decision-theoretic approach.

The reason is to solve the ﬁrst problem and to im-

prove the precision by using the additional informa-

tion (hypothesis with reliability), which is ignored in

AdaBoost. Additionally, our algorithm does not learn

the whole human face but half of it and maps these

half-face templates to a 3D model. Then the algo-

rithm reproduces the whole-face template from the

3D model with some angle around the vertical axis.

As a result, we can detect faces, which are even ro-

tated around the vertical axis, by using the reproduced

whole-face templates.

2 HAAR-LIKE FEATURES

In this paper, Haar-Like features are used to classify

images into a face class or a non-face class. Some

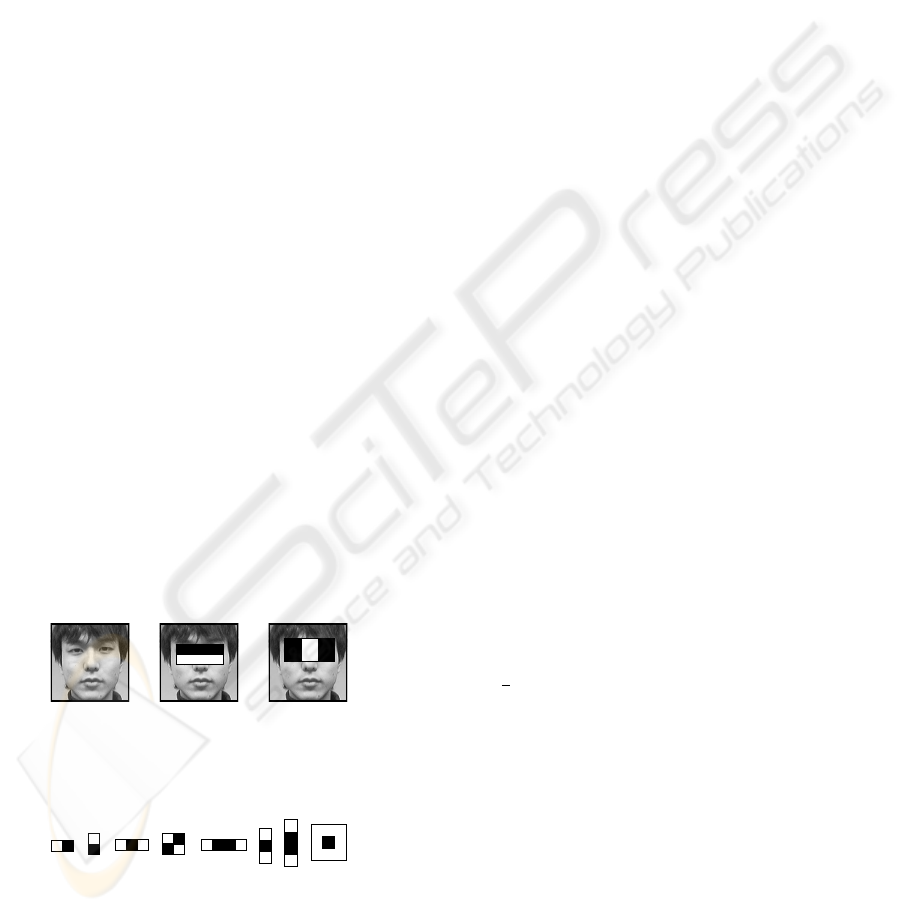

samples of Haar-Like features are shown in Figure 1.

Basically, the brightness pattern of the eyes distin-

guishes the face from the background. (a) is an orig-

inal facial image. (b) measures the difference in

brightness between the region of the eyes and the re-

gion under them. As is shown in (b), the brightness

of the eyes is usually darker than the skin under them.

region of the eyes and the region between them. As is

shown in (c), the eyes are usually darker than the re-

gions between them Thus, an image can be classiﬁed

as a facial or a non-facial class based on the brightness

pattern described above. These features are generated

from feature prototypes (Figure 2) by scaling these

prototypes vertically and horizontally.

(b)(a) (c)

Figure 1: Feature Example.

(a) (b) (c) (e) (f) (g) (h)(d)

Figure 2: Feature Prototypes.

We calculate the average brightness B

, B

in the

black region and the white region of the features, and

use their difference (F = B

− B

) as a feature

value. Then we use these feature values as parame-

ters to classify images into a face class or a non-face

class. For example, when a feature of Figure 1(b) is

applied to a true human face, F is too large. Accord-

ingly, we decide the threshold of the classiﬁcation and

classify images according to the feature value F , if it

is larger or smaller than the threshold. If F is larger

than the threshold, the image is classiﬁed into a face

class. If F is smaller than the threshold the image is

not a human face.

Viola et al. use feature prototype (a)-(d) shown in

Figure 2. We use four additional prototypes (e)-(h).

Prototype (e) will measure the difference in bright-

ness between the region of the mouth and its both

ends. The black region of prototype (e) will match

the region of the mouth, and the white regions will

match both ends of the mouth. The black region of

prototype (f), (g) will match the region of the mouth

(the eyes), and the white regions will match the top

and bottom of the region of the mouth (the eyes). The

black region of prototype (h) will match the region

of the eye (the nose or the mouth), and the white re-

gion will match the region around the eye (the nose or

the mouth). Therefore, these feature prototypes will

be effective to classify images to face and non-face

classes.

If we add these effective feature prototypes like (e)-

(h), the learning time will be somewhat increased,

while the speed of classiﬁcation will be improved. If

we add some compound feature prototypes, the time

of classiﬁcation will be decreased. For example, fea-

ture prototype (e) can be considered as the prototype,

which is made by combining the prototype (a) twice.

In the region where the feature prototype (e) can be

used, we need to calculate twice for the value of the

feature generated from prototype (a). But now we

need only one calculation for the value of the feature

generated from the prototype (e). So the time com-

plexity is decreased for these regions, and the detec-

tion time can be reduced. In this case, if we need t

seconds to face detection with prototype (a), we only

need

t second to face detection with prototype (e).

3 APPLYING INFOBOOST

Classiﬁcation with Haar-Like features is fast, but it

is too simple and its precision is not very impressive.

Hence, we apply a boosting algorithm to generate a

fast strong classiﬁer. AdaBoost is a most popular

boosting algorithm.

3.1 AdaBoost

AdaBoost assigns the same weight to all training sam-

ples and repeats learning by weak learners while up-

VISAPP 2006 - IMAGE UNDERSTANDING

dating the weights of the training samples. If the weak

classiﬁer generated by the weak learner classiﬁes a

training sample correctly, the weight of the sample in-

creases. If the weak classiﬁer misclassiﬁes a training

sample, the weight of the sample decreases. By this

repetition, the weak learner becomes more focused

on the sample, which is difﬁcult to classify. At last,

by combining these weak classiﬁers with the voting

process, AdaBoost generates one strong classiﬁer and

calculates the ﬁnal hypothesis for each sample. The

voting process evaluates results of weak classiﬁers by

majority decision and decides the ﬁnal classiﬁcation

result. Nevertheless, we use InfoBoost to increase the

precision of the classiﬁer because there are two prob-

lems in AdaBoost.

Weak classiﬁers generated in the AdaBoost pro-

cess do not consider the reliability of the classiﬁca-

tion result for each sample. Hence, the classiﬁers

which classify the sample with high reliability and

those which classify the sample with low reliability

are combined without any consideration of their reli-

abilities.

For example, assume that nine weak classiﬁers are

generated in the AdaBoost process. If four of them

classify a sample into a face class with 95% accu-

racy, and ﬁve of them classify the same sample into

a non-face class with 55% accuracy, the image will

be classiﬁed into a non-face class. If we introduce the

reliabilities of these classiﬁcations, the sample should

have been classiﬁed into a face class.

Another problem is that AdaBoost is based on

decision-theoretic approach. AdaBoost algorithm

only deals with two cases, whether the classiﬁcation

is true or false, when the weights are updated. But

actually there are the following four cases to be con-

sidered.

• A face image classiﬁed into a face class.

• A non-face image classiﬁed into face class.

• A face image classiﬁed into a non-face class.

• A non-face image classiﬁed into a non-face classD

The incidences of these classiﬁcations are not always

the same. For example, in a certain round of Ad-

aBoost, if the number of misclassiﬁed face images

and the number of misclassiﬁed non-face images are

nearly equal, all we are required to do is to decrease

the weights of correctly classiﬁed samples and to in-

crease the weights of incorrectly classiﬁed samples.

In contrast, if the number of misclassiﬁed non-face

images is larger than the number of misclassiﬁed

face images, the misclassiﬁed non-face images will

be classiﬁed correctly in the next round or later, al-

though the misclassiﬁed face images may not be cor-

rectly classiﬁed. The reason is that AdaBoost does

not take care of the difference of two misclassiﬁca-

tion cases. Therefore, we should not depend only on

the classiﬁcation result (true or false) for weight up-

dating, but we must also consider the correct classes

(positive or negative). When we update the weight of

each sample image we must consider these four cases

separately.

3.2 InfoBoost

In this paper, we consider the two problems of Ad-

aBoost and use InfoBoost algorithm, which is a mod-

iﬁcation of AdaBoost. We propose three points where

InfoBoost and AdaBoost differ:

First, InfoBoost repeats the round T times (t =

1, · · · , T ) in the learning process. In round t, weak

hypothesis h

is shown by h

: X → R. The hypothe-

sis represents not only the classiﬁcation result but also

the reliability of the classiﬁcation result. In order to

make it easy to handle, we restrict the region of hy-

pothesis h

to [−1, +1]. The sign of h

represents the

class of prediction (−1 or +1), and the absolute value

of h

represents the magnitude of reliability. For ex-

ample, if h

) = −0.8, h

classiﬁes the sample x

into the class −1 with the reliability value 0.8.

Second, the accuracy of negative prediction α

[−1]

and the accuracy of positive prediction α

[+1] are cal-

culated. These values are calculated using equation

(1), (2).

α[−1] =



1 + r[−1]

1 − r[−1]



(1)

α[+1] =



1 + r[+1]

1 − r[+1]



(2)

r[−1] =

i:h(x

)<0

(i)y

)

i:h(x

)<0

D(i)

(3)

r[+1] =

i:h(x

)≥0

(i)y

)

i:h(x

)≥0

D(i)

(4)

is the correct class of the sample x

, and D

(i) is

the weight of the sample x

in round t. α

[−1] and

[+1] reﬂect the magnitude of reliability and the pre-

cision of classiﬁcation for each sample. If hypoth-

esis h

classiﬁes x

into the class −1, α

)) is

[−1]. If hypothesis h

classiﬁes x

into the class

+1, α

)) is α

[+1].

Third, the weight D

is updated according to equa-

tion (5)

t+1

(i) =

(i) exp(−α

(x))y

))

(5)

is a normalization factor. It is chosen in a way

that

t+1

(i) = 1. By executing this operation,

the weight of the sample classiﬁed correctly with hy-

pothesis h

) is decreased, while the weight of the

sample classiﬁed incorrectly with hypothesis h

)

is increased.

MULTIDIRECTIONAL FACE TRACKING WITH 3D FACE MODEL AND LEARNING HALF-FACE TEMPLATE

We repeat these processes T times, and calculate

the ﬁnal hypothesis H with the T weak hypotheses.

Then we take a weighted vote among hypotheses us-

ing α

)) as weight. If the result of voting is a

negative value, we output −1 as the ﬁnal hypothesis,

and if the result of voting is a positive value, we out-

put +1 as the ﬁnal hypothesis.

When we apply InfoBoost to weak learners, it is

necessary to show how correct the classiﬁcation re-

sults of training samples are. We calculate the feature

value for each training sample, the difference d of the

feature value f , and the threshold t (d = f − t). The

sign of difference f represents the classiﬁcation re-

sult. If the absolute value of d is too small, the feature

value f is near the threshold d. The sample classiﬁed

+1 might be classiﬁed −1, so it is not trusty. Con-

versely, if the absolute value of d is too large, the clas-

siﬁcation result is trusty. Obtaining the difference be-

tween feature value and threshold, we can express the

classiﬁcation result and its reliability for each sample.

Therefore, we use the difference between the feature

value and the threshold as the classiﬁcation result with

evaluation of reliability.

Because InfoBoost is based on information-

theoretic approach, it does not only have the beneﬁt of

the improvement of the classiﬁcation’s precision, but

also it can provide some ﬂexibility for the classiﬁer.

For instance, in surveillance systems, we must detect

all human faces while it is allowed to mis-detect few

non-faces as faces. On the other hand, if a surveil-

lance system of a building cannot detect some faces

and those people commit a crime in the building, we

cannot place their faces on the wanted list. Thus the

surveillance system which cannot detect some human

faces is not useful.

By increasing the weight of face samples classiﬁed

into non-face class, the learning process focuses more

on the misclassiﬁed face image and the ﬁnal classiﬁer

will be able to detect almost all human faces more

accuratly. Hence, we can adapt classiﬁers for surveil-

lance systems by adjustment of weights of samples.

InfoBoost can bias the classiﬁcation basis based on

the importance according to the four cases (face clas-

siﬁed into face, face classiﬁed into non-face, non-face

classiﬁed into face, and non-face classiﬁed into non-

face) by biased the rules of updating weight.

4 3D MODEL AND LEARNING

HALF-FACE TEMPLATE

In video clips, the probability of having complete

frontal faces is not high. Most of them are side faces.

Consequently, we map the classiﬁer learned from fa-

cial features to a 3D model (Figure 3(a)(b)). The

3D model consists of three areas (r), (c), (l) (in Fig-

ure 3(b)). (r) is the right part of the 3D model, (c)

is the center part of the 3D model, and (l) is the left

part of the 3D model. These parts of the 3D model

are plane faces, and their joint angles are

in Fig-

ure 3(b). By using this 3D template, the classiﬁer will

be able to detect not only frontal faces but also side

shots of faces.

(a) Feature in 2D

(b) 3D-Model

Mapping

Reverse Feature

(d) Rotated Feature

in 2D

Projection

with 3D-Model

Rotate

(r)

(c)

(l)

(r)

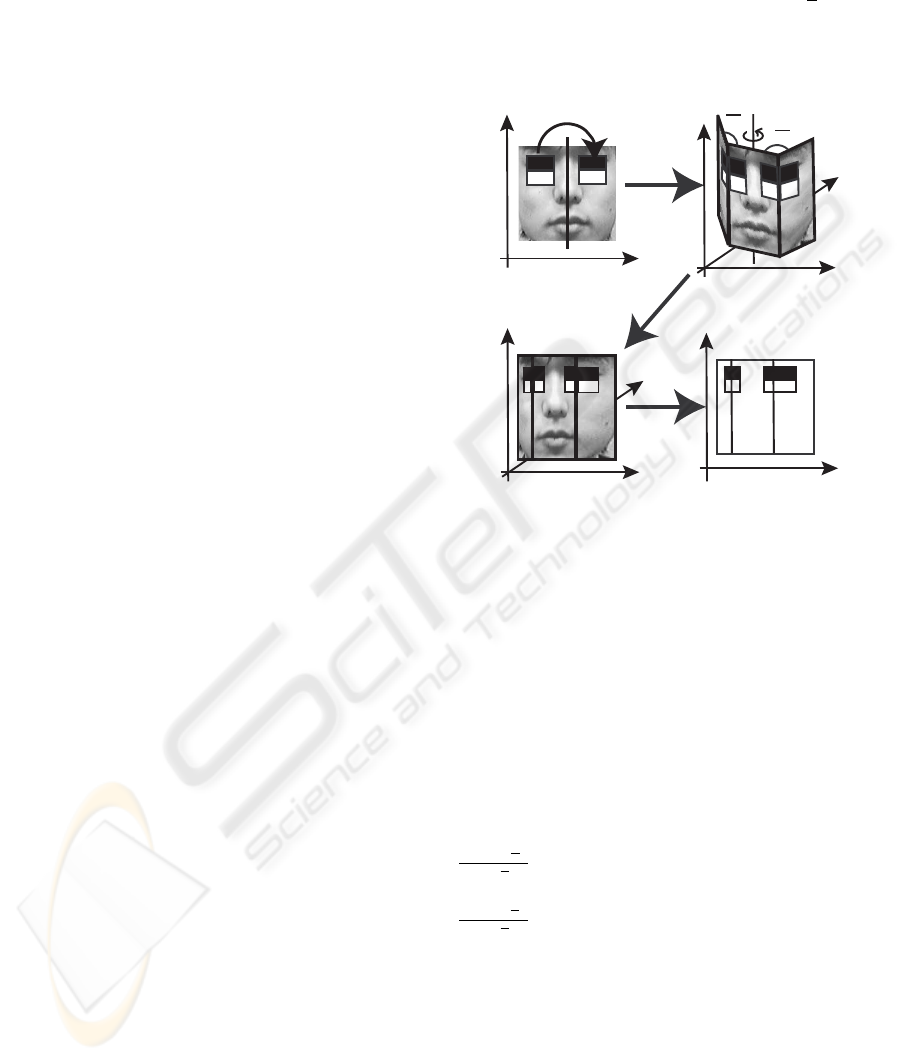

Figure 3: Feature Projection.

If we use 3D model in face detection, time com-

plexity is increased and detection speed is decreased,

because the calculation of 3D model is time consum-

ing. Therefore, we create a new classiﬁer by rotating

the 3D model around the vertical axis and by project-

ing the 3D model classiﬁer back to 2D again (Fig-

ure 3(c)(d)). By using these classiﬁers, we do not

need calculation of 3D model in the detection process,

so the time complexity does not increase much.

If the rotation angle is θ (positive for clockwise

rotation), the width w

of area (r) is modiﬁed to

cos(θ−

)

cos

, the width w

of area (c) is modiﬁed to

cos(θ)w

, and the width w

of area (l) is modiﬁed to

cos(θ+

)

cos

. We execute these processes in every 30

degrees of rotation angle and use these classiﬁers in

parallel to prevent the increase of time complexity.

But, there is a self-occlusion problem. When the

3D model is rotated enough, (r) or (l) of the 3D model

is occluded by (c), and some feature rectangles in 3D

model may be hidden and we cannot use these fea-

tures. If the 3D model in Figure 3 is rotated in clock-

wise direction enough, the part of the feature at the

right eye in (r) will be hidden and we cannot use this

feature. Hence, we do not use whole faces but use

half-faces as learning samples.

VISAPP 2006 - IMAGE UNDERSTANDING

Furthermore, because of the face symmetry, we ex-

press the whole face by combining reversed facial fea-

tures with the original ones (Figure 3(a)). Therefore,

even if the 3D model is rotated, we can use all features

of either the right half or the left half of the face.

Additionally, because of learning half-faces, we

can be free from the different illumination states be-

tween left and right faces. We use the right side and

reversed left side of whole face samples as the half-

face samples, thus the half-face classiﬁer is robust to

the difference between the left and the right of the

faces.

The classiﬁer generated from the boosting algo-

rithm is a set of weak classiﬁers using Haar-Like fea-

tures. Each weak classiﬁer consists of the following

elements: coordinates of the reference points, width

and height of the white and black rectangles of Haar-

Like feature, and the threshold of Haar-Like feature.

In Figure 4, P

is the reference point of the white

rectangle of Haar-Like feature, and P

is the reference

point of the black rectangle of Haar-Like feature. The

coordinates of these rectangles are shown as X

, X

, Y

, and widths and heights of these rectangles are

shown as W

, W

, H

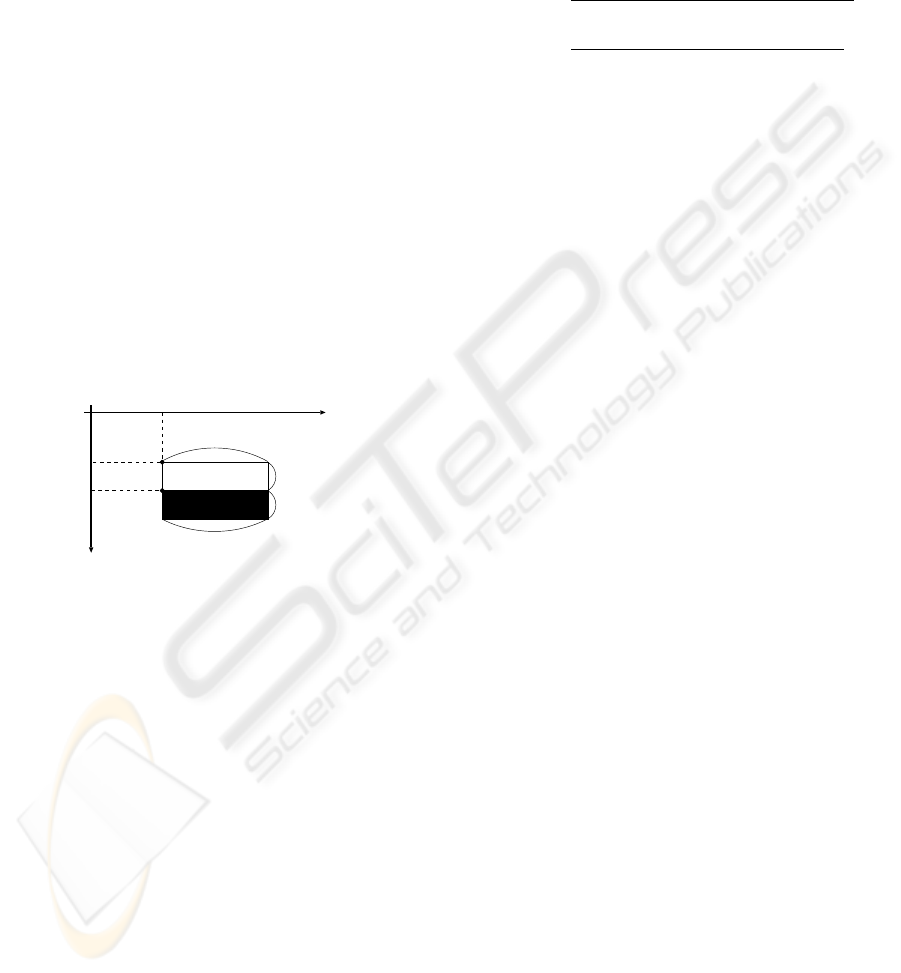

Figure 4: Parameter of Haar-Like Feature Rectangle.

Therefore, the features are easily mapped to the 3D

model shown in Figure 3(b). Then, we conﬁne that

3D model can only be rotated around the vertical axis,

as a result feature rectangles are scaled only in hori-

zontal axis (see Figure 3(a) and (d)). Therefore, the

weak classiﬁer generated by projecting the features

from 3D model to 2D can be transformed by mov-

ing, expanding and/or shrinking the Haar-Like feature

rectangles of the original weak classiﬁer horizontally.

5 EXTENSION OF CASCADING

Cascading is the algorithm to reduce the time com-

plexity of classiﬁcation. Cascading algorithm gener-

ates the cascade of small classiﬁers by dividing the set

of weak classiﬁers into some subsets. The ﬁrst classi-

ﬁer of the cascade classiﬁes all samples. The samples

classiﬁed into negative samples are not passed to the

following classiﬁers. By doing this, cascading algo-

rithm reduces the number of samples to be evaluated

and the time complexity of classiﬁcation. To generate

each weak classiﬁer, the learning process is executed

with a constrained condition (T P > minT P ) while

F P < maxF P . True positive rate T P and false pos-

itive rate F P are calculated as follows:

T P =

number of correctly classiﬁed faces

total number of faces

(6)

F P =

number of misclassiﬁed non-faces

total number of non-faces

(7)

minT P and maxF P are parameters of the learning

process. We execute learning process with minT P =

0.999 and maxF P = 0.4.

We extend boosting and cascading process in the

following three points to reduce the time complexity

of face detection and learning time.

• The conﬁguration of the cascading.

• The termination condition of the learning process.

• The number of samples used in AdaBoost process.

First, when we use half-face templates, we must

evaluate them separately and aggregate these evalu-

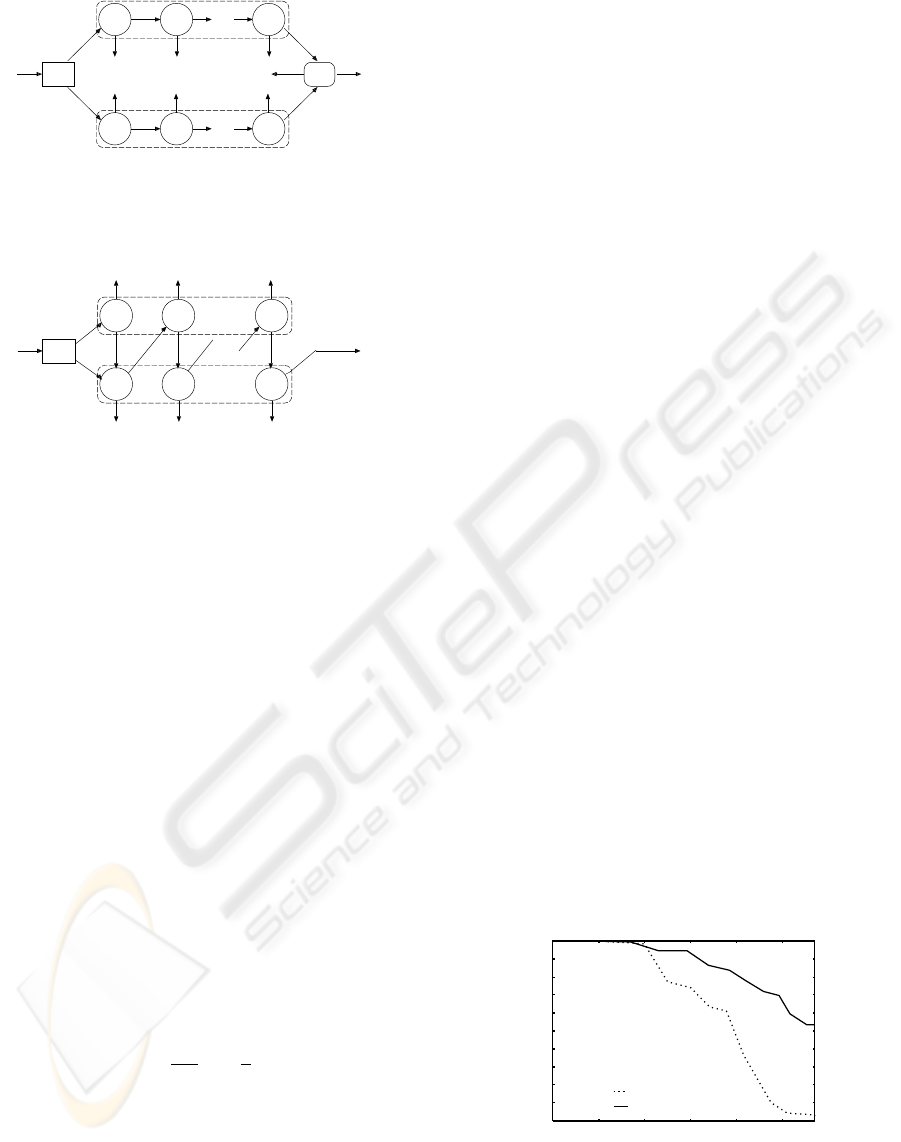

ation results. As is shown in Figure 5, the classiﬁer

consists of two cascades. In this case, both of the cal-

culations of these cascades are executed every time.

However, when the target sample is rejected in an

early stage in one of these cascades, the calculation of

another cascade makes no sense. Therefore we com-

bine these cascades as shown in Figure 6 to reduce the

unnecessary process. By using this new cascade, the

unnecessary process is avoided. If the target sample

is rejected in an early stage on one of the cascades,

the calculation on another cascade is stopped imme-

diately.

Second, when we use half-faces as learning sam-

ples, characteristic features of a face are much fewer

than those of whole face samples. If we use whole

faces as learning samples, we can use all features

learned from the whole face. However we cannot use

some of these features (for example, the feature in

Fig 1(b), (c)), because we use half-faces as learning

samples. Thereby, we will use some new features that

can be applied to half-faces to substitute for the fea-

tures that we cannot use here. These new features are

more delicate, hence their number is larger than that

of the features that can only be applied to the whole

faces. As the tradeoff, the speed of face detection will

be decreased, because a simple feature based on the

whole face is replaced by several small features based

on the half-face. Accordingly, in the learning process,

if precision of the classiﬁers is enough to detect faces,

we ﬁnish the learning process. As the learning pro-

cess makes progress, the face detection rate will hit a

peak. Simultaneously, the number of features which

are necessary to classify both positive and negative

MULTIDIRECTIONAL FACE TRACKING WITH 3D FACE MODEL AND LEARNING HALF-FACE TEMPLATE

True True

True

False False False

right half of

part images

input data classified into a non-face

True

. . .

input data

classified

into a face

True True True

False False False

left half of

part images

True

. . .

part

images

split AND

TrueFalse

Figure 5: Two Classiﬁer Cascades.

True True

True

False False False

right half of

part images

input data classified into a non-face

. . .

input data

classified

into a face

True

False False False

left half of

part images

. . .

part

images

split

input data classified into a non-face

. . .

True True

Figure 6: Combining Two Classiﬁer Cascades.

samples will become larger. For this reason, we stop

the process when both the precision and the recall are

larger than 0.95.

Third, in learning process, we must use many sam-

ple images to detect almost all faces. However, when

we use many sample images, the time complexity of

the learning process is very huge. Therefore, we use a

subset of all samples to generate each small classiﬁer.

These samples are selected by random sampling.

Random sampling is a sampling algorithm which

pick out some samples from all samples randomly

without overlapping. Random sampling is used where

we cannot evaluate all samples (for example, market-

ing). The probability of each sample to be picked out

is same. Therefore, the selected samples are minia-

ture versions of all samples, and the learning result

with selected samples will be similar to that with all

samples.

We must decide the total number of selected sam-

ples. We decide the number based on “Chernoff

bound” (Chernoff, 1952). The number of selected

samples n are deﬁned by inequality (8).

n >

2ǫ





(8)

According to “Chernoff bound”, if the above inequal-

ity is satisﬁed for any ǫ (0 < ǫ < 1) and any δ

(0 < δ < 1), the number of sample n is enough for

classiﬁcation. We use this inequality as ǫ = 0.05,

δ = 0.01, and get the minimum n = 1060. Thus we

select 530 positive samples and 530 negative samples

in each stage to generate small classiﬁers.

6 EXPERIMENTS

We performed ﬁve experiments. We use a window

to extract sub-images from the original image. Mini-

mum size of the window is 38x38 pixels, translation

factor is 0.5 * window size and scale factor is 1.2.

First, we compare the precision of the classiﬁer

generated by InfoBoost with that of AdaBoost. We

use Yale Face Database B (Georghiades et al., 2001)

as positive samples. We use half of them as training

set, and the rest as test set. We use our own nega-

tive sample images in the learning process. We gen-

erate more negative samples by clipping and scaling

these original ones . The total number of negative

samples is 7933744, and we use half of these samples

as a training samples, and the rest as a test set.

The result of our experiment is shown in Figure 7.

The horizontal axis shows false positive rate and the

vertical axis shows true positive rate. The horizontal

axis is a logarithmic axis to show the difference of the

graphs more clearly.

This graph shows that the precision of InfoBoost

is higher than that of AdaBoost. The true positive

rate of AdaBoost impatiently decreases when the false

positive rate is small. When the false positive rate is

small, there are less misclassiﬁed non-face samples

than misclassiﬁed face samples. InfoBoost can fo-

cus on both misclassiﬁed non-face and face samples

separately, thus InfoBoost can reduce false positive

rate with reduction of true positive rate. In contrast,

AdaBoost cannot focus on the misclassiﬁed non-face

samples and but can focus on the misclassiﬁed face

samples. That is because AdaBoost does not use the

true classes of samples and cannot discriminate be-

tween misclassiﬁed face samples and misclassiﬁed

non-face samples. AdaBoost cannot distinguish be-

tween misclassiﬁed faces and misclassiﬁed non-faces,

and cannot focus on misclassiﬁed non-faces, thus Ad-

aBoost reduce true positive rate without reduction of

false positive rate, and the precision of AdaBoost im-

patiently decreases.

0.5

0.55

0.6

0.65

0.7

0.75

0.8

0.85

0.9

0.95

1e-05 0.0001 0.001 0.01 0.1 1

AdaBoost

InfoBoost

True Positive Rate

False Positive Rate

Figure 7: Precision of Classiﬁer.

Second, we perform the experiment of face track-

ing with 3D model, and examine the accuracy of

the classiﬁer for each angle (-60, -30, 0, 30, 60 de-

VISAPP 2006 - IMAGE UNDERSTANDING

grees). The training set this time will consist of the

training, and the test sets will in the ﬁrst experiment.

We use Head Pose Image Database of Pointing’04

(N. Gourier, 2004) as test set. This data set contain

multidirectional face images (vertical angle={-90, -

60, -30, -15, 0, +15, +30, +60, +90}, and horizontal

angle={-90, -75, -60, -45, -30, -15, 0, +15, +30, +45,

+60, +75, +90}). We use a part of these samples,

whose vertical angles are 0, and horizontal angles

are {-75, -60, -45, -30, -15, 0, +15, +30, +45, +60,

+75}. There are 30 sample images for each degree,

basically the maximum number of detected faces is

30. Besides, the number of evaluated sub-images is

about 4800000. Thus the maximum number of de-

tected negative samples is about 4800000.

We show two ﬁgures indicating the accuracy of

classiﬁers in Figure 8 and Figure 9. We represent

the classiﬁer aiming at detecting faces rotated with

θ degrees as Classiﬁer[θ], and samples rotated with

θ degrees as Samples[θ]. Most classiﬁers can detect

faces rotated with an angle close to that of the classi-

ﬁer, and the number of mis-detected non-faces is not

many. For example, Classiﬁer[0] classiﬁes Sample[0]

correctly with high precision. However, there are two

exceptions.

One of them is that Classiﬁer[−30] and

Classiﬁer[+30] have the highest detection rate

on Samples[−15] and Samples[+15]. The reason of

angle mismatch is as follows: The structure of 3D

face model is too simple to represent human faces

correctly. Additionally, the test samples are taken by

only one camera, and faces are turned toward a sign

on the wall that indicates the direction. When the

samples were being taken, some people of the test

sample only focused their eyes on the sign instead of

rotating their heads, thus their face direction is not

turned toward the sign.

The other exception is that Classiﬁer[−60] and

Classiﬁer[+60] have the highest detection rate on

Samples[0]. For this case, we consider the reason is

self-occlusion of 3D model. If the angle is -60 or 60

degrees, self-occlusion of 3D model emerges and we

cannot use left or right half-face detectors. Accord-

ingly, the Classiﬁer[−60] and the Classiﬁer[+60] de-

tects half of the whole face, thus the number of de-

tected faces in Samples[0] is increased.

Third, we compare the detection speed between

the classiﬁers using the new cascading structure (Fig-

ure 5) and the classiﬁers using old one (Figure 6) on

all the samples used in the second experiment. If we

use the new cascading structure, we can detect faces

in an image whose size is 320x240 pixels, in about

0.036 seconds on 3.2GHz Pentium 4. If we do not

use the new cascading structure, the calculation time

is about 0.043 seconds. Hence, our new structure of

cascading is effective for reduction of time complex-

ity.

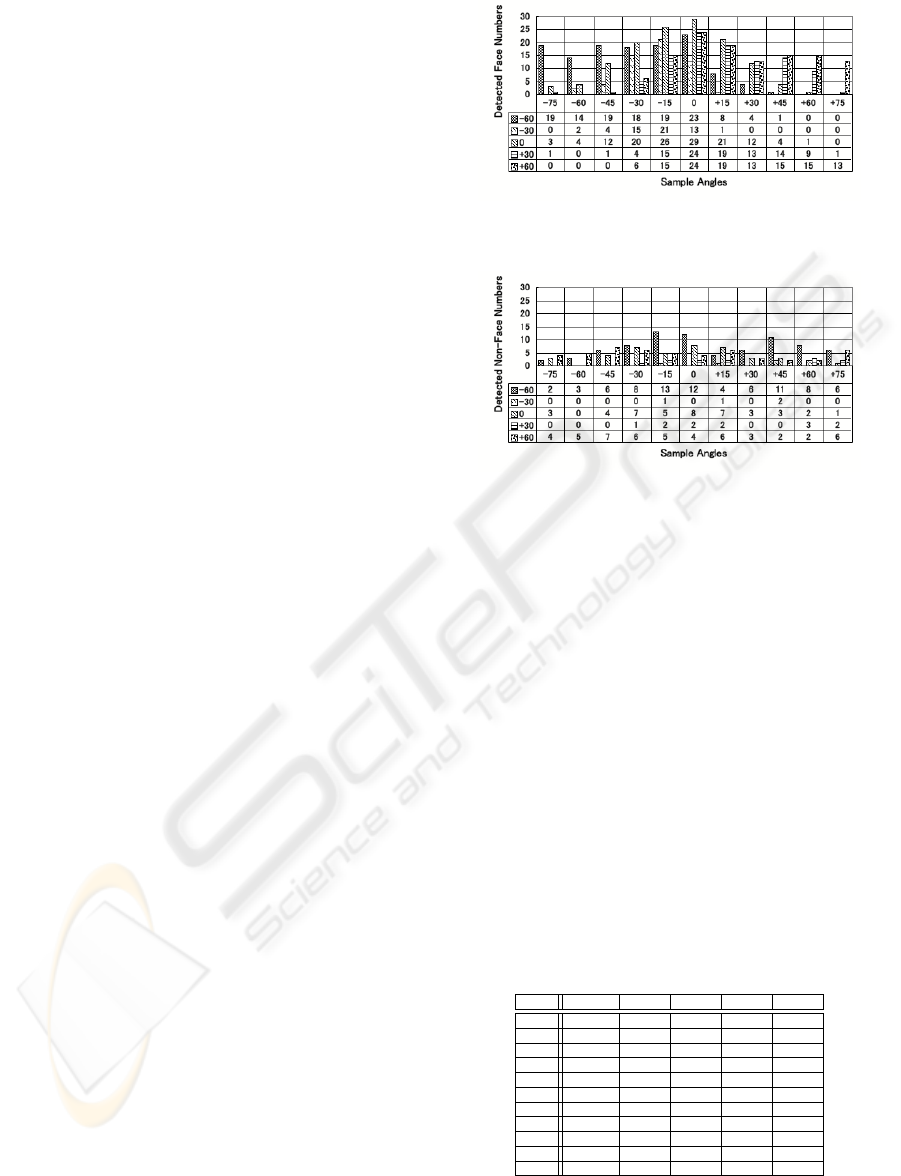

Figure 8: Number of Detected Faces for Each Direction.

Figure 9: Number of Detected Non-Faces for Each Direc-

tion.

Fourth, we execute the learning process with ran-

dom sampling, and evaluate it. We extracted train-

ing sets from the same data set, which is used as the

training set in the second experiment. The learning

time with random sampling is about 2.5 hours, and

that without random sampling is about 2 days. Ad-

ditionally, the result of face detection with random

sampling is shown in Table 1. The numbers of de-

tected faces and non-faces for each direction are re-

duced compared to the detection result without ran-

dom sampling. Accordingly, precision is reduced and

recall is improved. Total accuracy is not reduced. In

conclusion, random sampling reduces the time com-

plexity of learning without reducing the accuracy of

the face detector.

Table 1: Number of Detected Faces/Non-Faces for Each Di-

rection With Random Sampling.

-60 -30 0 +30 +60

-75 23 / 10 0 / 0 1 / 0 0 / 0 0 / 14

-60 17 / 6 0 / 0 2 / 0 0 / 0 0 / 9

-45 11 / 9 1 / 0 2 / 0 0 / 0 0 / 6

-30 9 / 10 7 / 0 12 / 1 0 / 0 1 / 3

-15 8 / 11 14 / 0 20 / 0 3 / 0 5 / 1

0 6 / 5 13 / 0 25 / 0 17 / 0 11 / 3

+15 3 / 2 2 / 0 14 / 1 17 / 1 15 / 1

+30 1 / 2 1 / 0 5 / 0 7 / 0 5 / 3

+45 0 / 10 0 / 0 0 / 1 5 / 0 6 / 2

+60 0 / 10 0 / 0 0 / 1 2 / 0 12 / 4

+75 0 / 7 0 / 0 0 / 0 0 / 0 11 / 8

Fifth, we increase the weight of misclassiﬁed face

samples in the learning process. The way we ex-

MULTIDIRECTIONAL FACE TRACKING WITH 3D FACE MODEL AND LEARNING HALF-FACE TEMPLATE

tracted training sets is the same as that in the fourth

experiment. After updating the weights of samples,

we double the weights of misclassiﬁed face samples.

The result of face detection is shown in Table 2.

Looking at the result of Classiﬁer[−30], Classiﬁer[0]

and Classiﬁer[+30], we see the number of detected

faces is not increased and the number of detected non-

faces is decreased. The reason of this is that we use

parameters maxF P and minT P to repeat and ﬁnish

the learning process. These parameters are stronger

than modiﬁcation of weights. Hence, the modiﬁca-

tion of weights cannot increase the precision of face

detector. However, it can reduce its time complex-

ity, because the learning process focuses more on the

misclassiﬁed faces and converges faster. In this case,

we can detect faces in an image whose size is 320 by

240 pixels, in about 0.023 seconds on 3.2GHz Pen-

tium 4, which is faster than that without modifying

the weights.

Table 2: Number of Detected Faces/Non-Faces for Each Di-

rection With Random Sampling and biased InfoBoost.

-60 -30 0 +30 +60

-75 26 / 1 0 / 0 0 / 0 0 / 0 0 / 15

-60 22 / 2 0 / 0 0 / 0 0 / 0 0 / 10

-45 18 / 3 1 / 0 0 / 0 0 / 0 0 / 11

-30 13 / 8 1 / 0 4 / 0 0 / 0 9 / 2

-15 10 / 10 2 / 0 12 / 0 0 / 0 9 / 2

0 7 / 8 0 / 0 20 / 0 10 / 0 17 / 2

+15 3 / 6 1 / 0 9 / 0 8 / 0 14 / 9

+30 2 / 10 0 / 0 1 / 0 2 / 0 11 / 5

+45 0 / 10 0 / 0 0 / 0 0 / 0 12 / 8

+60 0 / 14 0 / 0 0 / 0 1 / 0 17 / 2

+75 0 / 11 0 / 0 0 / 0 0 / 0 18 / 5

7 CONCLUSIONS AND FUTURE

WORK

In this paper, we tried to improve the precision of a

classiﬁer by using InfoBoost algorithm and tried to

detect not only frontal faces but also side faces by us-

ing 3D model and half-face templates. Additionally

we extend the classiﬁer cascade, and reduce the time

complexity of learning and face detection.

However, we cannot detect faces rotated around the

horizontal axis, or the axis vertical to the image. If we

rotate the 3D model around these axes and project the

features from 3D model to 2D space, these Haar-Like

feature rectangles are deformed. In our algorithm, we

can only calculate upright rectangles. Thus, we must

think about a fast algorithm to calculate these feature

values.

Furthermore, with the extensions in this paper, the

time complexity of face detection is increased. We

must reduce the time complexity by reducing the

images evaluated with face detector or some other

method. In the process of extracting sub-images

from the target image, if we use skin colors to de-

tect face candidate regions, the number of evaluated

sub-images are reduced. Therefore, the precision of

classiﬁer may be improved and time complexity may

be reduced.

Likewise, we must perform more experiments with

different training and test samples. When we perform

experiments with only one training set and one test

set, the result depends only on these samples. Conse-

quently, if these samples are not trusty, the experiment

result is not trusty either.

REFERENCES

Aslam, J. A. (2000). Improving Algorithms for Boosting.

In Proc. of 13th Annual Conference on Computational

Learning Theory (COLT 2000), pages 200–207.

Chernoff, H. (1952). A Measure of Asymptotic Efﬁciency

for Tests of a Hypothesis Based on the Sum of Obser-

vation. Ann. Math. Stat., 23:493–509.

Freund, Y. and Schapire, R. E. (1996). Experiments with

a New Boosting Algorithm. In Proc. of 13th Interna-

tional Conference on Machine Learning (ICML’96),

pages 148–156.

Georghiades, A., Belhumeur, P., and Kriegman, D. (2001).

From Few to Many: Illumination Cone Models

for Face Recognition under Variable Lighting and

Pose. IEEE Trans. Pattern Anal. Mach. Intelligence,

23(6):643–660.

Gross, R., Matthews, I., and Baker, S. (2004). Constructing

and ﬁtting Active Appearance Models with occlusion.

In Proc. of the IEEE Workshop on Face Processing in

Video (FPIV’04).

N. Gourier, D. Hall, J. L. C. (2004). Estimating Face Ori-

entation from Robust Detection of Salient Facial Fea-

tures. In Proc. of Pointing 2004, International Work-

shop on Visual Observation of Deictic Gestures.

Pradeep, P. P. and Whelan, P. F. (2002). Tracking of facial

features using deformable triangles. In Proc. of the

SPIE - Opto-Ireland 2002: Optical Metrology, Imag-

ing, and Machine Vision, volume 4877, pages 138–

143.

Ross, D. A., Lim, J., and Yang, M.-H. (2004). Adaptive

Probabilistic Visual Tracking with Incremental Sub-

space Update. In Proc. of Eighth European Confer-

ence on Computer Vision (ECCV 2004), volume 2,

pages 470–482.

Viola, P. and Jones, M. (2001). Rapid Object Detection us-

ing a Boosted Cascade of Simple Features. In Proc. of

IEEE Conf. on Computer Vision and Pattern Recogni-

tion, pages 511–518.

Zhu, Z. and Ji, Q. (2004). Real Time 3D Face Pose Tracking

From an Uncalibrated Camera. In Proc. of the IEEE

Workshop on Face Processing in Video (FPIV’04).

VISAPP 2006 - IMAGE UNDERSTANDING
