ACHIEVING HIGH-RESOLUTION VIDEO

USING SCALABLE CAPTURE, PROCESSING, AND DISPLAY

Donald Tanguay

HP Labs, Palo Alto, CA & Stanford University, Stanford, CA, USA

H. Harlyn Baker, Dan Gelb

Hewlett-Packard Laboratories, 1501 Page Mill Rd, Palo Alto, CA, USA

Keywords: Camera arrays, Chip multiprocessors, GPUs, Mosaicking, Video processing.

Abstract: New video applications are becoming possible with the advent of several enabling technologies:

multicamera capture, increased PC bus bandwidth, multicore processors, and advanced graphics cards. We

present a commercially-available multicamera system and a software architecture that, coupled with

industry trends, create a situation in which video capture, processing, and display are all increasingly

scalable in the number of video streams. Leveraging this end-to-end scalability, we introduce a novel

method of generating high-resolution, panoramic video. While traditional point-based mosaicking requires

significant image overlap, we gain significant advantage by calibrating using shared observations of lines to

constrain the placement of images. Two non-overlapping cameras do not share any scene points; however,

seeing different parts of the same line does constrain their spatial alignment. Using lines allows us to reduce

overlap in the source images, thereby maximizing final mosaic resolution. We show results of synthesizing

a 6 megapixel video camera from 18 smaller cameras, all on a single PC and at 30 Hz.

1 INTRODUCTION

Several industry trends are creating new

opportunities for video processing on commodity

PCs. First, PC bus bandwidth is increasing from 2

Gbit/sec to 40 Gbit/sec, with 80 Gbit/sec planned.

Second, graphics cards have become very powerful

general-purpose computing platforms that also

support high-bandwidth display. Finally, processor

manufacturers have begun delivering chip

multiprocessors for parallel execution. In particular,

they can no longer exclusively rely on smaller

transistors and higher clock speeds to improve

performance. Due to the economics of their current

strategy, manufacturers have turned their attention to

multiple-core processors (Gibbs, 2004). For

example, Sun’s Niagara processor has 32 processing

cores (Kongetira, 2005).

Along with these opportunities for video

computing come two significant challenges. The

first challenge is the difficulty of obtaining good

quality video. This is due to a market focus on both

low quality webcams and expensive, non-scalable

machine vision systems. To address this problem we

have designed a capture system that uses the PCI-x

bus to stream many video cameras directly into the

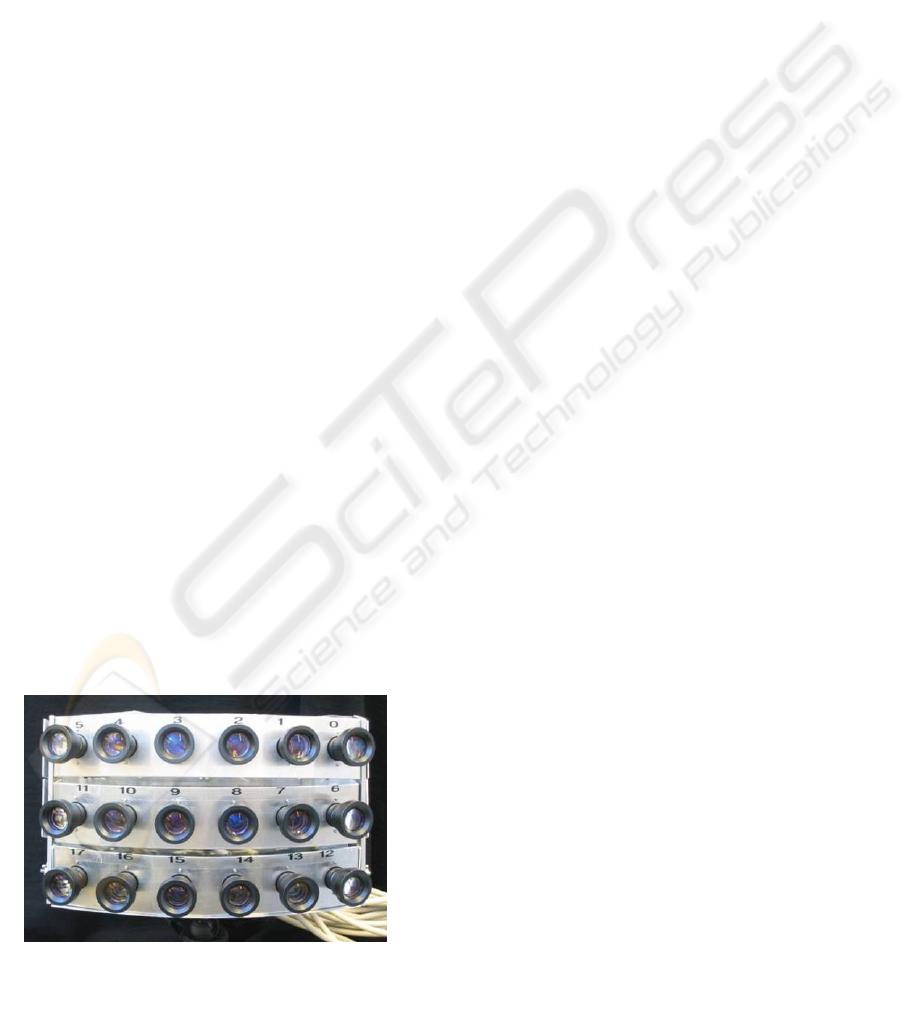

memory of a single PC. Figure 1 shows an example

arrangement of many cameras for video mosaicking.

A second significant challenge is that successful

multiprocessing requires multithreaded program-

ming. This is difficult and error prone. In fact, a

Figure 1: A mosaic camera is one type of new video

application enabled by current imaging and

computing trends.

162

Tanguay D., Harlyn Baker H. and Gelb D. (2006).

ACHIEVING HIGH-RESOLUTION VIDEO USING SCALABLE CAPTURE, PROCESSING, AND DISPLAY.

In Proceedings of the First International Conference on Computer Vision Theory and Applications, pages 162-169

DOI: 10.5220/0001374301620169

 SciTePress

startling result of the multicore trend is that most

existing applications will no longer benefit from

future processor advances (Gibbs, 2004) unless they

are redesigned (McDougall, 2005). While most

applications have multiple threads, the vast majority

are not performing compute-intensive operations in

parallel. While video applications have large

computing needs, they can often benefit from

multiprocessing. To address this computing

challenge, we have developed a cross-platform

software framework specifically designed to perform

video processing on a multiprocessor.

Such scalable capture and processing systems

enable new video applications. For our first effort,

we have chosen to develop a high-resolution video

camera from many smaller ones (Figure 1). A trend

in digital photography is that still cameras can now

have upwards of 12 megapixels of resolution, with 5

megapixel cameras being common. Video cameras,

however, haven’t attained these resolutions.

Expensive HDTV cameras have the most resolution,

at about 2 megapixels. Our goal is to significantly

exceed current video resolutions.

A range of applications could benefit from such a

high-resolution video camera. For example,

surveillance systems need enough resolution over a

large area to identify suspects. As another example,

an interactive desk-space may need to image an

entire tabletop at high resolution in order to digitize

documents placed anywhere on the desk.

2 RELATED WORK

Other systems of high-bandwidth video capture

(Kanade 1995, Wilburn 2002) have been developed.

Thus far, however, these systems work offline or use

lossy compression to satisfy bandwidth constraints.

Besides mosaicking, other novel applications of

multicamera video being pursued are synthesizing a

camera with a very high frame rate (Wilburn, 2004)

and making one with an enormous synthetic aperture

for selective depth of field (Levoy, 2004).

Most mosaicking methods use point

correspondences to constrain image alignment. In

digital photography, panoramic mosaics (Peleg

1997, Sawhney 1998, Shum 2000) are derived from

the motion of a single hand-held camera. In

photogrammetry, aircraft and satellites capture

images which are stitched together to produce

photographic maps. Having large areas of overlap

(typically 20-50%), these solutions are generally not

effective for a rigid camera arrangement because this

overlap reduces total resolution. They also typically

depend on a scene’s visual complexity since they

require distinguishable features from the content

itself. Because our cameras do not move relative to

each other, we can calibrate the system beforehand.

Our video processing framework is inspired by

early dynamic dataflow computers (Arvind, 1984)

which potentially exploit the full parallelism

available in a program. In such a computer, each

processing node is enabled when tokens with

identical tags are present at each of its inputs. Thus,

process scheduling is completely determined by the

availability of data. Our software framework

emulates this behaviour on a multiprocessor. While

a dataflow computer can achieve fine-grained

parallelism at the instruction level, our framework

operates at a much coarser granularity such as a

single video frame.

Signal processing software environments (such

as Ptolemy (Buck, 1994) and Khoros (Rasure, 1991)

have an established history of “visual dataflow

programming.” Others have presented a thorough

review of such systems and their relationship to

other dataflow styles (Lee, 1995). The one-

dimensional, fine-grained, deterministic nature of

audio processing often allows optimal scheduling at

compilation time. In video and vision processing,

however, the mapping of inputs to outputs is often

nondeterministic (e.g., face detection vs. 1-D

convolution), and the sample size is larger (e.g., 30

Hz video vs. 44 KHz audio).

Some commercial frameworks are available for

multimedia processing, including DirectShow

(Microsoft) and the Java Media Framework (Sun).

DirectShow is designed for plug-and-play

compatibility between third-party developers. For

example, a commercial video conferencing

application can transparently use any particular

video camera if both manufacturers adhere to a

common DirectShow interface. Unfortunately,

constructing new modules is painfully difficult, and

it is a Windows-only system. By encapsulating a

simple DirectShow application inside a software

module, we leverage DirectShow for its real strength

– to access third party devices. The Java Media

Framework has cross-platform support, as well as

integrated networking support via RTP; however, its

video processing performance is not competitive.

Distributed computing extends the dataflow

approach from a single machine to a network of

machines. The Berkeley Continuous Media Toolkit

ACHIEVING HIGH-RESOLUTION VIDEO USING SCALABLE CAPTURE, PROCESSING, AND DISPLAY

163

(Mayer-Patel, 1997) is multi-platform and uses

Tcl/TK. The open-source Network-Integrated

Multimedia Middleware project (Lohse, 2002) has

demonstrated applications with set-top boxes and

wireless handhelds. Unlike our framework, these

approaches do not have single-machine performance

features, such as a dataflow scheduler. However, we

believe a distributed computing approach can be

very complementary to our framework.

Finally, the power of graphics cards is being

used in many other applications. For example, GPUs

are being used to perform a real-time plane-sweep

stereo computation (Yang, 2004). Furthermore, the

GPGPU organization (GPGPU) promotes general

purpose computing on graphics cards.

3 MOSAIC CAMERA

A mosaic camera is a composite of many other

cameras. Calibration is the process of determining

the parameters that map these cameras into a

seamless image. We describe the calibration

problem, formulate the solution as a global

minimization, and describe how to calibrate in

practice.

3.1 Problem Statement

The goal of our video application is to produce high

resolution video from many cameras. We have

narrowed our focus with two requirements. First, to

produce resolution that scales with the number of

cameras, we fully utilize native resolution by

“tiling” the cameras. In other words, we require that

camera images overlap only to ensure spatial

continuity in the final mosaic. Super-resolution

techniques, on the other hand, require complete

overlap and face theoretical limits on resolution

(Robinson, 2003).

Second, we facilitate an initial solution by using

a linear homographic model for mapping each

camera into a common imaging plane to produce the

final mosaic. This homographic model supports two

types of scenario: those where the imagers have a

common centre of projection (i.e., pure camera

rotation), and those where the scene is basically

planar (e.g., imaging a white board). For the latter

scenario, we can increase the range of valid depths

by increasing the distance from the cameras to the

scene, or by reducing the separation between camera

centres. In fact, continued reduction in camera sizes

improves the validity of the homographic model.

Our calibration methodology is as follows: (1)

Place cameras in an arrangement so that they cover

the desired field of view, while minimizing overlap.

(2) Select one camera

C as the reference camera

(typically, a central one), with its image plane

becoming the imaging plane of the final mosaic. (3)

Estimate a homographic mapping

for each

camera

C that maps its image into camera

C to

produce a single, coherent mosaic image.

3.2 Line-Based Solution

We calibrate the cameras using line

correspondences. Using lines has two major

benefits. First, a line can be estimated more

accurately than a point. It can be localized across the

gradient to subpixel accuracy (Canny, 1986), and the

large spatial extent allows estimation from many

observations along the line. Second, two cameras

can observe the same line even without any

overlapping imagery. This profoundly increases the

number of constraints on a solution because non-

neighbouring cameras can have common

observations.

We have developed a bundle adjustment

formulation to minimize the geometric error in the

mosaic image by simultaneously estimating both the

homographies of each camera and the line models

behind the observations. The nonlinear least-squares

formulation is

()

minarg

∑

≠

, (1)

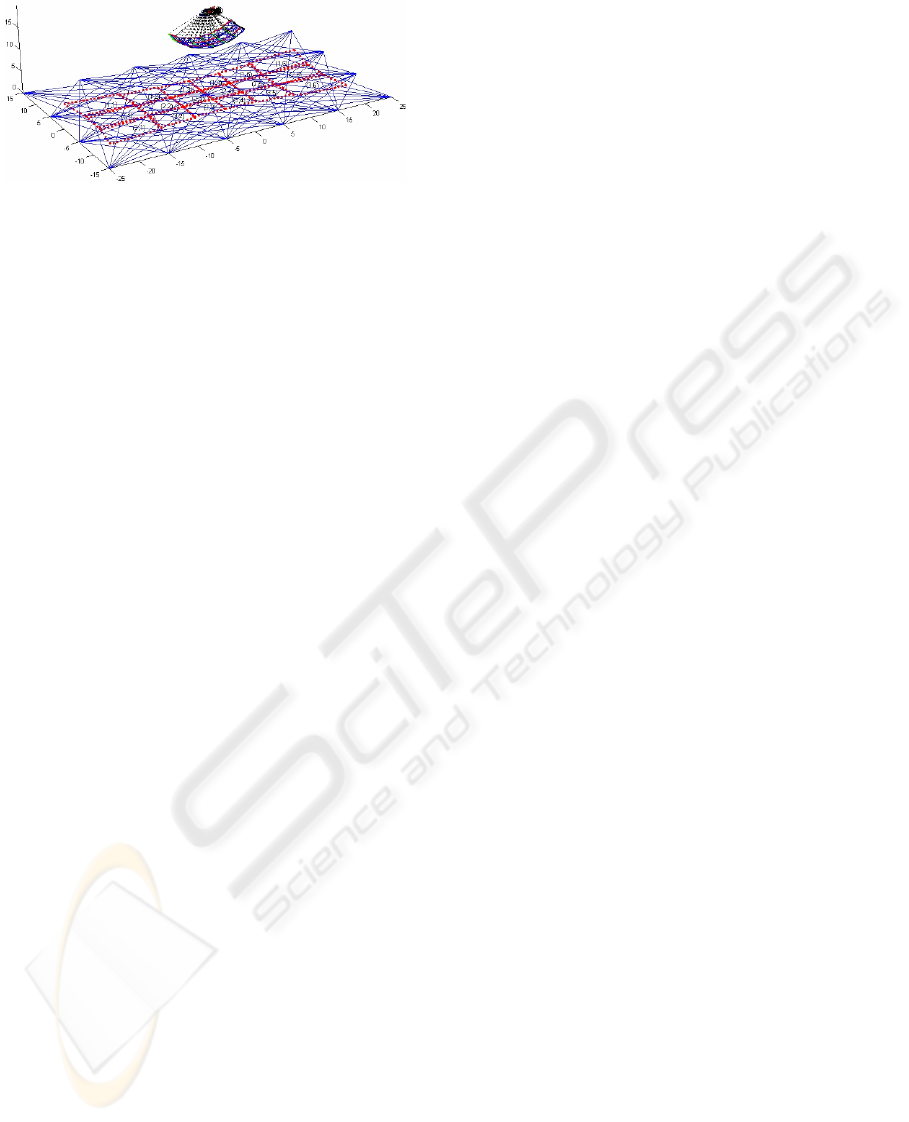

Figure 2: Imaging geometry of the 3x6 mosaic

camera. The 18 side-by-side imagers (top) are

aligned using common observations of lines on a

plane (shown in blue). The individual camera fields

of view (outlined in red) illustrate minimal image

overlap.

VISAPP 2006 - IMAGE FORMATION AND PROCESSING

164

where the estimated parameters are the ideal point

homographies

from the cameras

C to the

reference camera

C and the ideal lines

expressed in the coordinates of the reference camera.

The function

()d

measures the difference between

, the observation of line

in camera

C , and

its corresponding estimate

. This measure can be

any distance metric between two lines. We chose the

perpendicular distance between the ideal line and the

two endpoints of the measured line segments. This is

a meaningful error metric in the mosaic space, and it

is computationally simple. More specifically, we

have selected

()d

so that the bundle adjustment

formulation of Equation 1 becomes

()()

ˆˆˆˆ

minarg

qHlpHl

⋅⋅+⋅⋅

∑

≠

(2)

where

and

q are the intersection points of

the measured line with the boundary of the original

source image.

The domain of the error function (Equation 2)

has

LND

3)1(9 +−= dimensions, where

N is

the number of cameras and

L is the number of

lines. Our current setup has 18 cameras and 250

lines, or 903 parameters. We use Levenberg-

Marquardt minimization to find a solution to

Equation 2, and we use a novel linear method to

initialize the parameters (Authors).

3.3 Calibration Method

We use a digital projector as a calibration

instrument. The projector displays a series of lines

one-by-one. Cameras that see a line at the same

instant

are actually viewing different parts of the

same line

l and therefore have a shared

observation. Image analysis determines line

equations

, and this is intersected with the image

boundary to find the points

and

. After all

observations are collected, the solution of Equation

2 is found, paying careful attention to parameter

normalization.

Image analysis easily dominates the calibration

time. A simple approach is to sample the space of

lines “evenly” by enumerating all pairs of points

evenly distributed around the perimeter of the

projector image. For the 3x6 mosaic camera, a

1024x768 projector, and points spaced 150 pixels

apart, calibration presents 253 calibration images

and processes 4554 total images. Reducing the

number of line images will significantly reduce

calibration time.

We have devised an alternate approach that

adapts to the number of constraints accumulated thus

far. Addressing horizontal (vertical) lines separately,

we perform a breadth-first search in a binary tree in

which each node defines an interval, and the two

children define the top and bottom (left and right) of

the parent’s interval. Starting at the root, which

contains the entire image, each visited node

represents a line drawn across (down) the middle of

the interval. The sequence becomes: one line, two

lines offset a quarter from opposite edges, etc. The

search is terminated when every camera has at least

two lines in common with another camera. This

coarse to fine method reduces the number of

calibration image to 60, so that the calibration

processes 1080 total images, a 76% reduction.

4 SCALABLE CAPTURE

The camera system (Figure 4) streams synchronized

video to PC memory through a tree structure with

three layers: camera, concentrator, and frame

grabber.

The camera package is a 30 mm cube consisting

of three small boards: a color VGA CMOS sensor, a

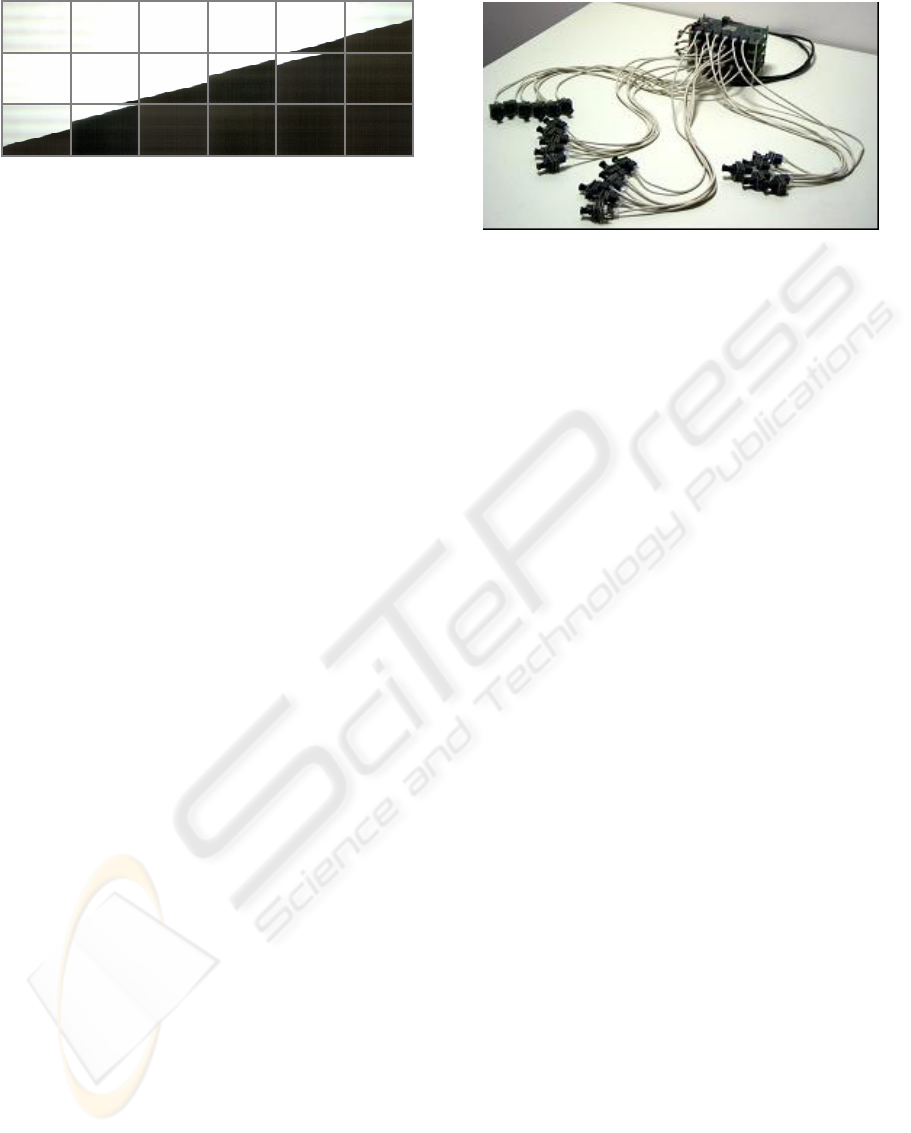

Figure 3: A single calibration projector image, as

seen from all 18 cameras.

Figure 4: Our capture hardware currently supports 22

Bayer-format VGA cameras at 30 Hz, without

compression.

ACHIEVING HIGH-RESOLUTION VIDEO USING SCALABLE CAPTURE, PROCESSING, AND DISPLAY

165

co-processor, and a low-voltage differential-

signalling (LVDS) chip interfacing to the rest of the

system. It is connected to a concentrator board

through a 10-wire UTP connector over an LVDS bus

that carries captured video data, control signals, and

power. An FPGA is available for truly scalable on-

camera processing (not exploited in this work).

The concentrators and frame grabber use Altera

Flex FPGAs, and the frame grabber is built on a

QuickLogic 5064 64-bit DMA engine designed for a

64-bit PCIx bus. The DMA engine delivers 24

Bayer-format VGA video streams directly into RAM

at 30 Hz, without causing any load on the CPU. Our

interface card currently operates at 33MHz on this

bus, with theoretic utilization of about 0.25GB/sec.

We plan extensions to PCI-express which will

provide 4.4 GB/sec, or 350 VGA streams at 30 Hz.

Our hardware collaborator is now commercial-

izing the system. More details are available

(Authors).

5 SCALABLE PROCESSING

Video processing performance becomes more

scalable if multiprocessing can take advantage of

inherent parallelism in an application. We have built

a cross-platform software framework (Authors) to

build multimedia applications. We now describe

how to use such an architecture to achieve

computational scalability in video applications.

5.1 Software Dataflow

A dataflow architecture naturally models the

streaming nature of real-time rich media

applications. Simply stated, a dataflow architecture

is one based on sequential transformations of data.

By observing the lifecycle of signals in the

application (from production through transformation

to consumption), one can define a pipeline of

distinct processing stages. These stages can be

expressed as a directed graph of processing modules.

The application, then, is a connected graph of

functional modules linked together by directed arcs.

This modular graph structure reveals opportunities

for parallel computing. Figure 5 shows two dataflow

graphs for the mosaic camera.

Our software framework uses the dataflow

paradigm to isolate the algorithms (e.g., video

processing or analysis) from the runtime system

(e.g., multithreading, synchronization, performance

measures). The developer concentrates on the

algorithmic processing specific to the application at

hand, while at the same time leveraging the

framework to address performance issues. More

specifically, our architecture provides a framework

for (1) decomposing an application’s processing into

task dependencies, and (2) automating the

distribution and execution of those tasks on a

multiprocessor machine to maximize performance.

Figure 5: Leveraging chip multiprocessors with a flexible software design. The data flow structure of an application

reveals opportunities for parallel computation. The straightforward mosaic application (left) has task parallelism

across the image converters. Data parallelism can concurrently execute the monolithic mosaicking module,

possibly increasing latency. Alternatively, a developer can divide the mosaic module (right) into multiple sections

and therefore increase task parallelism.

Camera Array

Image Mosaicking

Viewer W indow


Converters

Camera Array

Image Mosaicking

Viewer W indow


Converters

Camera Array

½ Image Mosaicking

Viewer W indow


Converters

½ Image Mosaicking

Image Merge

Camera Array

½ Image Mosaicking

Viewer W indow


Converters

½ Image Mosaicking

Image Merge

VISAPP 2006 - IMAGE FORMATION AND PROCESSING

166

5.2 Parallelism

Our architecture has facilities to take advantage of

both task and data parallelism. In task parallelism,

each processing module is treated as sequential, that

is, that each input must be processed in order of

arrival. Sequential modules have internal memory,

and so the output may depend both on the current

input and previous inputs. An example sequential

module is one that tracks coordinates of a hand,

where the location in the previous frame initializes

the search for the hand location in the current frame.

At most one execution thread may be resident in a

sequential module at any given instant. A computer

with processors equal to the number of modules will

reach the limit of usable task parallelism. Each

module essentially has its own processor, and

additional processors can not improve performance.

In fact, the application throughput is limited by the

latency of the slowest module. Figure 6 (middle)

illustrates execution using task parallelism.

More significantly, our architecture can also use

data parallelism, which has the potential of

increasing performance linearly with the number of

processors. The scheduler uses data parallelism on

modules specified as combinational, or stateless. In

other words, these modules do not have any internal

history of previous executions. An example

combinational module is one that compresses

images to JPEG. Because each conversion is

independent of any other, the code of the converter

can be executed simultaneously by multiple threads

on different data. Being combinational is particularly

key for a module that is a performance bottleneck

(i.e., one that has the largest latency).

Figure 5 shows two versions of the CPU-based

mosaicking application. The straightforward

implementation (left) exhibits significant parallelism

among the converters. Because the mosaic module is

combinational, multiple instances of it can be

executed concurrently via data parallelism.

Alternatively, the large mosaic module can be

divided spatially so that two modules each work on

one half of the mosaic (Figure 5, right). A separate

lightweight module is introduced to combine the

results.

5.3 Performance Tuning

Because the application graph is a pipeline

architecture, it exhibits the usual latency/throughput

trade-offs. At the extremes, the single processor

machine will have lower latency and throughput,

and a multiprocessor with data parallelism may have

higher latency but similar or better throughput.

Constraints on particular applications determine the

appropriate latency/throughput trade-off. Our

architecture provides simple mechanisms to change

the execution behaviour to explore these

performance trade-offs.

Our framework assumes data and processing

have coarse granularity. That is, media samples

generally are at least a kilobyte in size and have a

duration of at least a millisecond. Our framework is

not designed for implementing integer addition, for

example, because the fine granularity reveals the

multiprocessing overhead (e.g., data transfer,

threading, and synchronization).

6 SCALABLE DISPLAY

Of the three key technologies enabling new video

applications, graphics cards are the most accessible.

Driven by the demands of the gaming market, a

modern graphics card has both a high-bandwidth

connection to main memory and impressive

processing capabilities.

The high-bandwidth connection to the host

CPU’s main memory is either AGP or PCI, both

delivering 5-16 Gbits/sec. This easily supports up to

hundreds of uncompressed colour VGA video

streams. Drawing video on a graphics card entails

sending it the latest frame, storing this as a texture,

and drawing the texture through the normal graphics

transformation pipeline. Amazingly, the latest

graphics processors have 200 gigaflops of

Figure 6: Parallel execution. On a dual processor

system, a program can be executed sequentially

(top), with task parallelism (middle), or with data

parallelism (bottom), changing the latency and

throughput of the application.

1 1 2 2 3 3 4 4

1 1 3 3A

2 2 4 4

1 1 3 3

2 2 4 4

latency

Time

1 1 2 2 3 3 4 4

1 1 3 3A

2 2 4 4

1 1 3 3

2 2 4 4

1 1 2 2 3 3 4 4

1 1 3 31 1 3 3A

2 2 4 42 2 4 4

1 1 3 31 1 3 3

2 2 4 42 2 4 4

latency

Time

ACHIEVING HIGH-RESOLUTION VIDEO USING SCALABLE CAPTURE, PROCESSING, AND DISPLAY

167

computing power. These GPUs have been heavily

optimized for frame-based computing. To leverage

the full capabilities, one must formulate a problem

as a graphics rendering (GPGPU).

Developers now have the option of processing on

either the host PC or a graphics card. In our mosaic

camera, for example, we have two ways of using the

graphics card. First, ignoring lens distortion and

other nonlinear effects, the homographic mapping

may have the same parameterization as drawing

textures onto a quadrilateral. Figure 7 shows a

reduced software pipeline using the GPU to mosaic

the images. Second, because our single-sensor

cameras deliver the original Bayer colour image, the

GPU shader can be programmed to perform the

colour sampling. Figure 7 depicts the further

reduced software pipeline, in which the CPU does

nothing at all. Note that these types of optimizations

are not always possible.

A display could also be scalable in the number of

pixels. In a similar fashion to the mosaic camera, a

tiled projector display would dramatically increase

the display resolution and allow presentation of a

mosaic video. We have begun efforts on this

problem.

7 RESULTS

have built an end-to-end system and now show

initial results. Figure 8 shows the mosaic results of

the cameras looking at a patterned wall. The pattern

is an arrangement of coloured lines with white

numbers as landmarks. The input images are shown

in Figure 8 (left), where they are tiled in the same

3x6 arrangement as the cameras. Figure 8 (right)

shows the final result. The solution has a maximum

error of 1.2 pixels, or 0.04% of the mosaic width of

3600.

Remarkably, the six left cameras are perfectly

aligned with the rest of the mosaic in spite of the gap

between these two sets of images. Although the two

sets of cameras do not share any 3-D scene points,

they do have enough information from observing

different parts of the same lines.

The best performance for the mosaic camera

came with the computing configuration of Figure 7

(right). We achieved 30 Hz mosaic video using an

NVIDIA FX3400 graphics card on a dual processor

machine. Multicore results are expected by press

time.

Figure 8: Results from a 3x6 mosaic camera. 18 VGA images (left) are combined into one 3600x1400 mosaic

(right). The scene is a projected image with coloured lines and numbered landmarks. Notice that all the lines

are straight in the result.

Figure 7: GPUs and CPUs. With an appropriate formulation, graphics processors can assist GPUs. For limited

situations of the mosaic camera, the graphics card can display video (left), compute the composite image (middle),

and convert image formats (right).

RA M

Camera System

Ba yer RGB

RA M

Graphics Board

AGP

Color

Conversion

Synchroni zed

Cameras

DisplayCompositing

RG B

PC I

RA M

Camera System

Ba yer RGB

RA M

Graphics Board

AGP

Color

Conversion

Synchroni zed

Cameras

DisplayCompositing

RG B

PC I

Ba yer RG B

GPU

Color

Conversion

Synchronized

Cameras

Compositing,

Display

PC I

Ba yer RG B

GPU

Color

Conversion

Synchronized

Cameras

Compositing,

Display

PC I

Bay er

GPU

Synchronized

Cameras

Color Conversion,

Compositing, Display

PC I

Bay er

GPU

Synchronized

Cameras

Color Conversion,

Compositing, Display

PC I

VISAPP 2006 - IMAGE FORMATION AND PROCESSING

168

8 CONCLUSIONS

We are entering an exciting period in which capture,

processing, and display are increasingly scalable in

the number of video streams supported. In support of

this view, we capture 24 uncompressed VGA

streams in real-time on a single PC and leverage

multiprocessors for video processing. Coupling

these developments with recent commercial

hardware advances brings forth end-to-end

scalability that enables new applications of camera

arrays and other multi-video sources. We selected a

mosaic camera as our first application in this space.

We presented several innovations in this paper.

First, we described how to use a digital projector as

a calibration instrument for a mosaic camera. We

also presented an adaptive technique for reducing

the number of calibration images using the solution

constraints accumulated thus far. We described how

the mosaic camera is built using our camera array,

and how our dataflow architecture combined with

chip multiprocessors and graphics cards present new

abilities and options for mosaic processing. Finally,

we showed initial results for 18 cameras with small

error and real-time performance.

REFERENCES

Authors. References withheld to preserve anonymity

during review process.

Arvind, D. Culler, R. Iannucci, V. Kathail, K. Pingali, R.

Thomas, 1984. The tagged token dataflow

architecture. Technical report, MIT Laboratory for

Computer Science.

Buck, J., S. Ha, E. Lee, and D. Messerschmitt, 1994.

Ptolemy: A framework for simulating and prototyping

heterogeneous systems. In International Journal of

Computer Simulation, April 1994.

Canny, J., 1986. A computational approach to edge

detection. In IEEE Trans. on Pattern Analysis and

Machine Intelligence, vol. 8, pp. 679-698.

Gibbs, W. Wayt, 2004. A split at the core. In Scientific

American, Nov. 2004.

Gortler, S.J., R. Grzeszczuk, R. Szeliski, M.F. Cohen,

1996. The Lumigraph, In Proc. ACM SIGGRAPH,

New Orleans, USA.

GPGPU. General-purpose computation using graphics

hardware. http://www.gpgpu.org.

Hartley, R., A. Zisserman, 2000. Multiple view geometry

in computer vision, Cambridge University Press.

Kanade T., P.J. Narayanan, P.W. Rander, 1995.

Virtualized reality: Concepts and early results. In

Proc. IEEE Workshop on Representation of Visual

Scenes.

Kongetira, P., K. Aingaran, K Olukotun, 2005. Niagara: A

32-way multithreaded SPARC processor. In IEEE

Micro, vol. 25, no. 2, pp. 21-29.

Lee, E., T. Parks, 1995. Dataflow Process Networks. In

Proceedings of the IEEE, May 1995.

Levoy, M., B. Chen, V. Vaish, M. Horowitz, L.

McDowall, M. Bolas, 2004. Synthetic aperture

confocal imaging. In ACM Trans on Graphics

(SIGGRAPH 2004).

Levoy, M., P. Hanrahan, 1996. Light field rendering. In

Proc. ACM SIGGRAPH, New Orleans, USA.

Lohse, M., M. Repplinger, P. Slusallek, 2002. An open

middleware architecture for network-integrated

multimedia. In Protocols and Systems for Interactive

Distributed Multimedia Systems, Proceedings of

IDMS/PROMS'2002 Joint International Workshops on

Interactive Distributed Multimedia Systems /

Protocols for Multimedia Systems, Coimbra, Portugal,

November 26-29, 2002.

Mayer-Patel, K., Rowe, L., 1997. Design and performance

of the Berkeley Continuous Media Toolkit. In

Multimedia Computing and Networking, Proc. SPIE

3020, pp. 194-206.

McDougall, R., 2005. Extreme software scaling. In ACM

Queue, vol. 3, no.7, pp. 36-46.

Microsoft Corp., DirectShow. http://msdn.microsoft.com.

Peleg, S., J. Herman, 1997. Panoramic mosaicing with

VideoBrush. In DARPA Image Understanding

Workshop, May 1997, pp.261-264.

Rasure, J., C. Williams, 1991. An integrated visual

language and software development environment. In

Journal of Visual Languages and Computing, vol. 2,

pp. 217-246.

Robinson, D., P. Milanfar, 2003. Statistical performance

and analysis of super-resolution image reconstruction.

Proceedings of Intl. Conf. on Image Processing.

Sawhney, H.S., S. Hsu, R. Kumar, 1998. Robust video

mosaicing through topology inference and local to

global alignment. In Proc. of the 5th European

Conference on Computer Vision, vol. II, 1998, pp.

103-119.

Shum, H.-Y., R. Szeliski, 2000. Construction of

panoramic mosaics with global and local alignment. In

International Journal of Computer Vision, February

2000, vol. 36, no.2, pp. 101-130.

Sun Corp., Java Media Framework.

http://java.sun.com/products/java-media/jmf.

Wilburn, B., N. Joshi, V. Vaish, M. Levoy, M. Horowitz,

2004. High speed video using a dense camera array. In

Proc. Computer Vision Pattern Recognition.

Wilburn, B., M. Smulski, H-H. Kelin Lee, M. Horowitz,

2002. The light field video camera. In Proc. Media

Processors, SPIE Electronic Imaging, vol. 4674, 29-

36.

Yang, R., M. Pollefeys, S. Li, 2004. Improved real-time

stereo on commodity graphics hardware. In

Proceedings of the 2004 IEEE Computer Society

Conference on Computer Vision and Pattern

Recognition Workshops (CVPRW’04).

ACHIEVING HIGH-RESOLUTION VIDEO USING SCALABLE CAPTURE, PROCESSING, AND DISPLAY

169
