MESSAGE QUEUING MIDDLEWARE ON VPN AND ITS

TRAFFIC CONTROL SCHEME

Modeling Asynchronous Message Queuing Communication on MPLS VPN

Hiroshi Yamada

NTT Service Integration Laboratories, Communication Traffic Project,

3-9-11, Midori-Cho, Musashino-Shi, Tokyo, Japan

Akira Kawaguchi

NTT Advanced Technology Corporation, Core Networks Business Headquarters,

1-19-3, Nakacho, Musashino-Shi, Tokyo, Japan,

Keywords: Message queuing, Distributed application, SOA (Service Oriented Architecture), RFID (Radio frequency

identification), Sensor network, MPLS VPN (Multiprotocol label switching virtual private network), Traffic

controlInternet services, Dial-up networking.

Abstract: Message oriented middleware is being used as an advanced enterprise application integration tool. It can

establish reliable asynchronous communication sessions between distributed application objects. In such

enterprise communications, guaranteed message delivery is critical. In this paper, we consider message

queuing communication on an MPLS VPN. In client VPN sites, a large amount of data is generated by

computers and it is stored in the local message queue. Then data is processed, filtered, and sent to the

remote message queue in the server VPN site. In the server VPN site, stored messages are dequeued and

sent to the business application or database servers in the server VPN site. The data generating processes in

the local VPN sites may be different. Data may be generated explosively during a short period in some

local VPN sites. It is necessary to utilize the message queue resources in the whole VPN efficiently in order

to avoid an overflow of messages and to guarantee the message delivery during such a bursty period. This

paper describes a traffic control scheme that can adaptively change the rate at which data is sent from the

local message queue in the VPN site to the remote message queue in the server VPN site. We created a

OPNET simulation model that can precisely simulate the above control scheme on an MPLS VPN and

showed its effectiveness through simulation studies.

1 INTRODUCTION

Many enterprises are introducing the service

oriented architecture (SOA) concepts (Chappell,

2004) and distributed computing technologies to

visualize the flow of information and money.

Although enterprise application integration (EAI)

tools have been introduced, the hub and spoke

architecture that old EAI tools need is not scalable,

so several expansions are needed to enable us to

efficiently communicate among several distributed

application objects. As an advanced infrastructure

that provides such distributed application integration,

message oriented middleware (MOM) is being

introduced. It can establish reliable asynchronous

communication sessions between distributed

application objects.

Radio frequency identification (RFID)

technologies enable direct machine-to-machine or

device-to-device communications within distributed

computer networks. RFID is being applied to

enterprise applications (Clauberg, 2004), (Sikander);

for example, supply chain management (SCM),

baggage handling in airports, sensor networks for

environmental monitoring, and condition-based

maintenance systems. Compared with the data flow

of Web access, where a large amount of data flows

from a central web server to clients, such machine-

to-machine or device-to-device communication

traffic flows from devices to a few central servers.

In addition, this traffic needs high transactional

guarantees. If data transportation is disrupted, the

system is required to perform rollback recovery to

Yamada H. and Kawaguchi A. (2006).

MESSAGE QUEUING MIDDLEWARE ON VPN AND ITS TRAFFIC CONTROL SCHEME - Modeling Asynchronous Message Queuing Communication

on MPLS VPN.

In Proceedings of the International Conference on e-Business, pages 46-54

DOI: 10.5220/0001424700460054

 SciTePress

maintain consistent integrity of the data. Guaranteed

message delivery is critical in many systems like

SCM. This is the reason that message queuing is

adopted as the communication scheme. Message

queuing communication can be divided into

communication between the device and the server

using the message queue. For example, let us

consider that the data that is obtained by the RFID

reader is processed in the remote application server.

If the synchronous communication scheme is

adopted, then when the remote application is busy,

the application will be locked up and a lot of data

will be lost. RFID cannot process other jobs while it

is waiting for the acknowledgement from the remote

application server. If asynchronous communication

like message queuing communication is adopted,

then even if the remote application is busy, the

generated message is stored in the local message

queue, sent to the remote message queue, and then

sent to the remote application server. The message

queue communication can achieve the guaranteed

message delivery.

For enterprises that want to create an SCM

system with other partners like suppliers, deliverers,

and retailers, the virtual private network (VPN)

service is a cost-effective solution. The MPLS VPN

(multiprotocol label switching virtual private

network) service can provide secure and any-to-any

connectivity to subscribers (Pepelnjak et al., 2003).

Therefore, most enterprises use a VPN service to

connect to remote applications. The MPLS VPN is

provided on a wide-area public network by the

network provider. In the MPLS VPN, any node can

belong to several VPNs if the policy of the import

and export of the routing distinguisher is suitably

configured. So, if the enterprises want to gather and

process the data obtained from several enterprise

VPNs, the network provider can provide the node as

the root message queue, which can communicate

with the enterprise client message queue nodes.

Using the MPLS fast rerouting technology, when a

failure occurs in nodes or links in the middle of the

LSP (label switched path) in the MPLS network, the

local protection mechanism for the LSP starts

immediately and becomes effective in a short time.

Compared with the enterprise network built by the

enterprise itself, it is generally more cost-effective

for users to create a message queue application

overlay network on the MPLS VPN that is provided

by the network provider.

In this paper, we consider message queuing

communication on an MPLS VPN from the

viewpoint of a network service provider. In some

VPN sites, a large amount of data is generated and

stored in the local message queue at once. The

remote message queue is in the server VPN site.

The database or application servers are in this server

VPN site. The data stored in the local message

queue in local VPN sites is sent to the remote

message queue in the server VPN site according to

the message queuing transport protocol. To keep the

integrity of the data, the local message queue makes

a copy of the original message and stores it when the

local message queue sends the original message.

The local message queue can discard the stored copy

message only when an acknowledgement from the

remote message queue has been received. The data

generating processes in the local VPN sites may be

different. Messages may be generated explosively

during a short period in some local VPN sites.

Because there is a limit on the length of the local

message queue, an overflow can occur. In this paper,

we propose a traffic control scheme. To avoid an

overflow in such a case, it is necessary to utilize the

message queue resources in the whole VPN

efficiently. In this control scheme, the rate at which

data from the local message queue in local VPN

sites is sent to the remote server message queue is

adaptively controlled according to a control rule and

the volume of messages in all local message queues

in the VPN. To confirm the effectiveness of such a

traffic control scheme in message queuing

communication, we created precise simulation

models by OPNET (OPNET) and analyzed its

effectiveness for these simulation models.

This paper is organized as follows. The

architecture of an RFID application using the

message queuing scheme is explained as an example

in section 2 and an overview of the MPLS VPN is

shown. The traffic control scheme and OPNET

modeling are explained in section 3. In section 4,

the effectiveness of the proposed traffic control

scheme is examined through simulation studies.

Section 5 summarizes the control scheme and

mentions further studies.

Figure 1: Software architecture.

Applications

(e.g., SAP, database, …)

Message queues

(e.g., MSMQ, MQ Series, JMS, …)

\Device manager/OS

(e.g., RFID, UNIX, Windows, ...)

Business processes

(e.g.,. Supply chain management)

MESSAGE QUEUING MIDDLEWARE ON VPN AND ITS TRAFFIC CONTROL SCHEME - Modeling Asynchronous

Message Queuing Communication on MPLS VPN

2 REFERENCE ARCHITECTURE

2.1 Software Architecture

(Chappell, 2004), (Sikander), (Strauss), and (BEA)

showed software architecture models for MOM

systems or RFID application. They all considered

the following four layers, as shown in Figure 1:

device manager layer, message queuing

communication layer, application layer, and business

process layer. In the message queuing layer, the

commercial message queuing products are used, for

example, MSMQ (Microsoft message queue) and

JMS (Java messaging service). The message

queuing communication scheme is explained in

detail in Section 3

2.2 MPLS VPN

VPN is a network over the public service provider

network. MPLS VPN is a networked-VPN that can

provide any-to-any connectivity among several VPN

sites. An MPLS LSP is established between the PE

(provider edge) routers. The PE routers have the

routing instance, VRF (VPN routing and

forwarding) table. For each VPN, VRF is

configured. Information about routes in the VPN

sites is exchanged using the MP-iBGP

(multiprotocol interior border gateway protocol)

among all PE routers. Two labels, VPN label and

LSP label, are attached to the arriving packet at the

ingress PE router. In the provider network, a packet

is forwarded according to the LSP labels instead of

the destination address of the packet. At the egress

PE routers, the VPN label is popped and forwarding

to the appropriate VPN sites according to the VRF.

To reduce the operation expenditure and capital

expenditure, most enterprises use the provider VPN

service instead of building their own network.

Therefore, the message queuing communication

traffic among the distributed message queues in

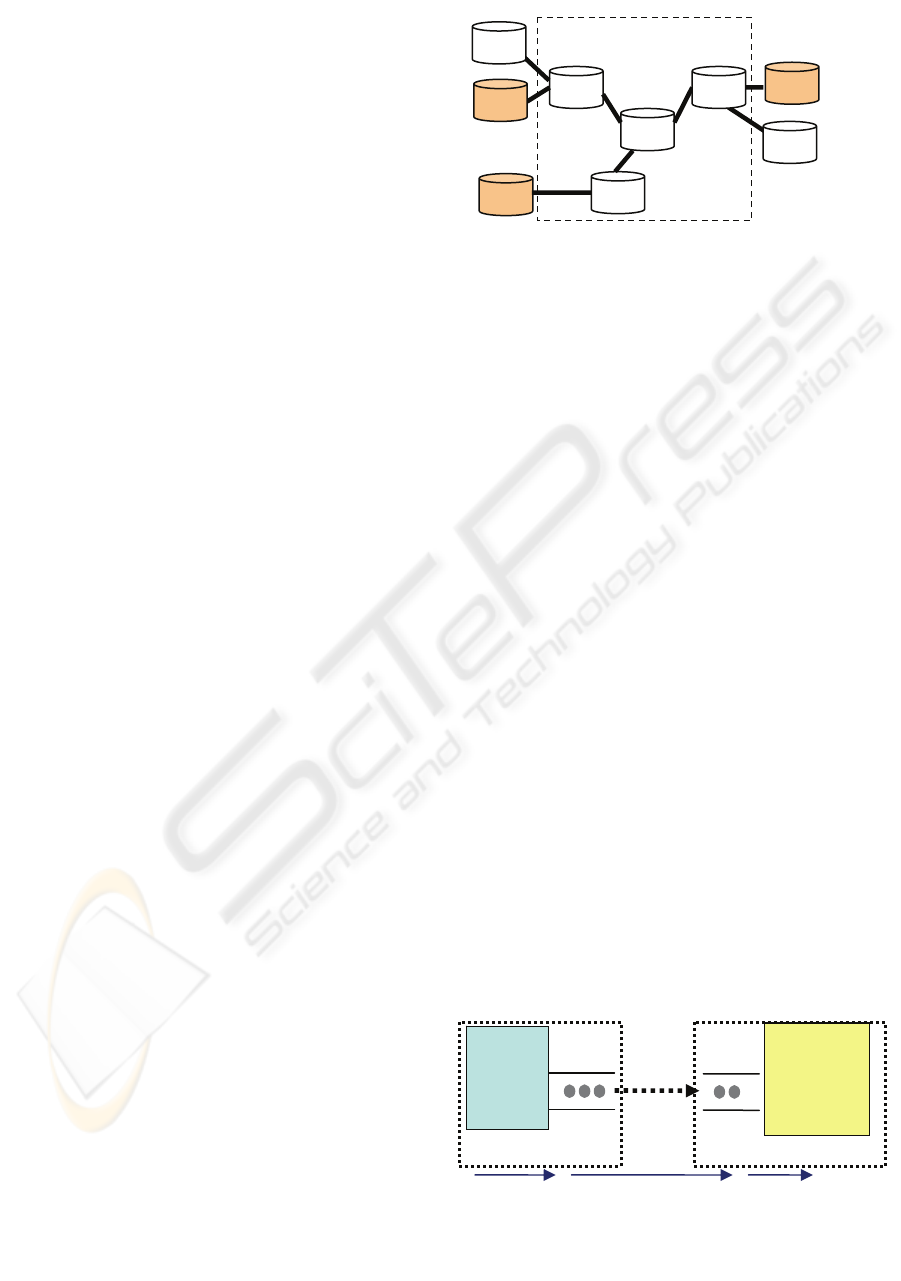

several VPN sites may flow in the VPN. Figure 2

shows the MQ service on the MPLS VPN. In this

figure, the MQ node works as the CE router and the

message queuing (MQ) server

3 MESSAGE QUEUING

COMMUNICATION ON MPLS

VPN VARIABLES

3.1 Overview

We explain how message queuing middleware can

certainly deliver the messages using the example in

Figure 3. In this figure, the sender application tries

to send a message to the receiver application. The

message queuing communication is asynchronous.

Therefore, this communication is treated as three

transactions: (1) the sender application puts the

message in the local message queue, (2) the local

message queue moves the message to the remote

message queue, (3) the receiver application gets

message from the remote message queue. Because

the above transactions are completely separate,

recovery is possible in the event of a failure. In

transaction (1), the first transaction is completed

when the local message queue stores a message. In

transaction (2), the second transaction is completed

when the message is moved and surely stored in the

remote message queue. Finally, in transaction (3),

the third transaction is completed when the

application gets the message. The remote

application is ignorant of the states of the local

application and message queues. Message queuing

communications mainly corresponds to transaction

(2) in the above example. The message stored in the

sender message queue is not removed until an

acknowledgement of its reception by the receiver

message queue is received in the sender message

queue

Here, we remark on the features of traffic in

RFID or sensor networks. One is the direction of the

MQ: Message queue

CE: Customer edge router

PE: Provider edge router

P: Provider router

Figure 2: MQ service on VPN.

Sender

Network

Receiver

MQ 1

MQ 2

Remote

Put

Get

Trans. (1)

Trans. (2)

Trans.

(

)

Local

Trans.(i) : Transaction (i)

Figure 3: MQ communication.

MPLS VPN Domain

Client MQ

Root MQ

ICE-B 2006 - INTERNATIONAL CONFERENCE ON E-BUSINESS

traffic flow. In such networks, the direction of

traffic flow is from multiple local sites to a few

central server sites. Second, the message delivery is

strongly required to be guaranteed. In the case of

failures in a node or a link in the network, a rollback

scheme is required to maintain the consistency of the

data. Even if the messages are explosively

generated in the local VPN sites, their delivery

should be guaranteed. If synchronous

communication like ftp or Web access is adopted,

the local server must wait for the acknowledgement

from the remote server. When the network is

congested, the acknowledgement is delayed and the

local server may lose some messages generated

during this delay. Because the transactions are

independently separate in the message queuing

middleware in figure 3, these messages are stored in

the message queue and never lost if we configure the

queue size well

3.2 Modeling of Message Queuing

Communication

In order to simulate the message queuing

communication on MPLS VPN that explained in the

previous subsection, we developed a simulation

model using OPNET. Here, we briefly explain the

modeling. The OPNET node model of the message

queuing node is shown in figure 4. This message

queuing (MQ) node model consists of several

protocol modules (for example, IP, TCP, UDP, and

several routing protocols) and receiver and

transmitter interfaces. Because the developed MQ

node establishes a TCP connection between the

other MQ nodes, the MQ module is connected to the

TCP protocol module. The MQ module deals with

the message queue communication protocol. Other

routing and IP modules deal with the routing process

as the CE router. Here we consider two types of MQ

node, the client MQ node and root MQ node.

In the client MQ node, the message generating

module is connected to the MQ module. In this

simulation model, the messages are generated in the

client MQ node. Generally, the client MQ node

receives messages from many RFID devices or PCs

by wireless or wired communication and stores

them. Here, for the sake of simplicity, we do not

model the above communications between client

MQ nodes and other devices including the

application server. Instead of modeling the above

wireless or wired communication, we add a traffic

generator module in the client MQ node model to

generate messages, which are sent to the MQ

module, which stores them in the message queue. In

the root MQ node, the messages stored in the

message queue are removed at the rate they are

transferred to the application server in the server

sites.

It is necessary to establish a secure connection

between client MQ and root MQ nodes. The

procedure for establishing the connection is shown

in figure 5. It is similar to that of BGP (border

gateway protocol). In our model, neighbour

information is configured in each message queuing

node. This information provides the IP address and

network mask of the remote MQ node and the

update source that is the source interface of the MQ

connection. First, each MQ node establishes a TCP

connection. After that, they exchange MQ_OPEN

and MQ_KEEPALIVE messages. When they both

receive a KEEPALIVE message, the MQ connection

is established. The messages in the client MQ node

are dequeued and sent to the remote root MQ node

This is a snapshot of the OPNET node model in the root

MQ node. In the client MQ node model, the traffic

generator module is added and this module is connected

to the MQ module.

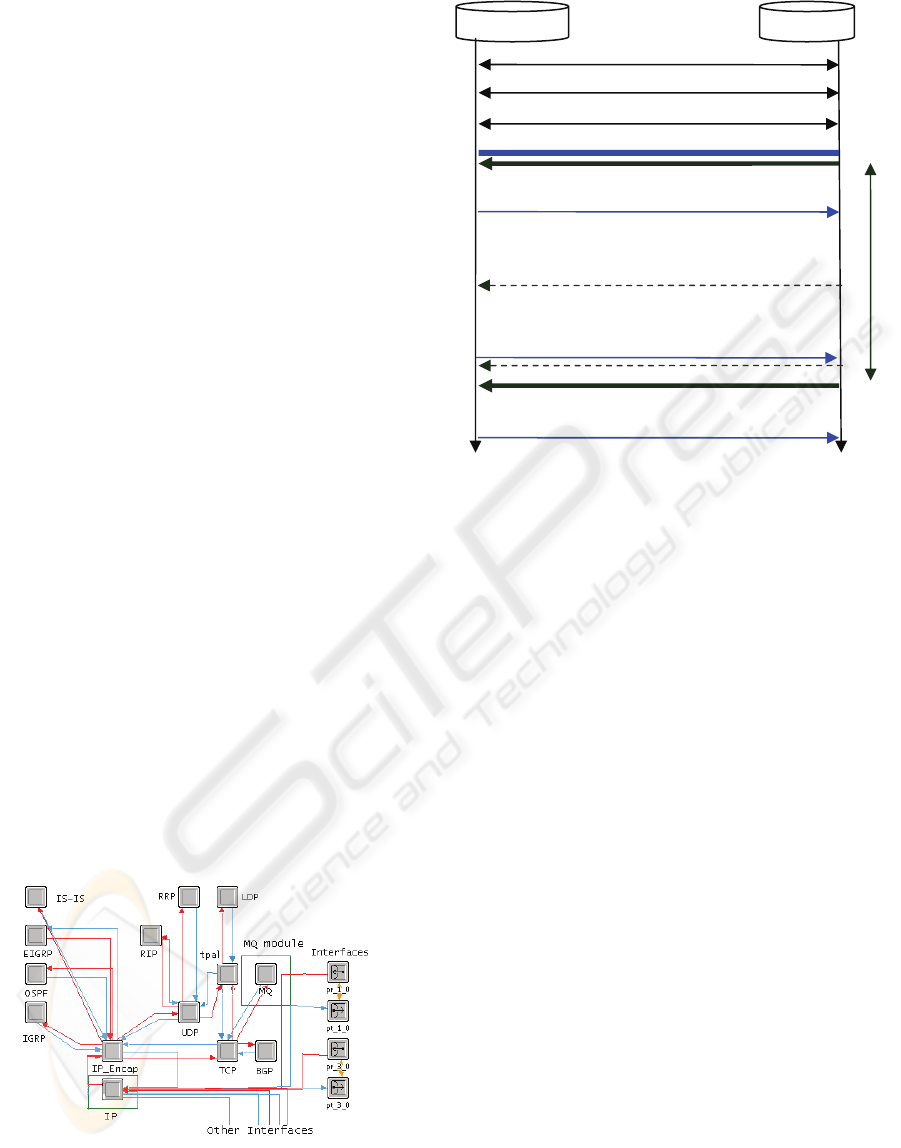

Figure 4: Node model.

Client MQ

Root MQ

TCP connection is established.

MQ_OPEN messages are exchanged.

MQ_KEEPALIVE messages are exchanged.

MQ session is established.

The initial rate for sending data is reported

using the control message

Data messages are sent. Weight value that

indicates the current MQ size in the client MQ

is also reported using the data message.

The calculated rate for sending data is reported

using the control message.

……

Acknowledgement is sent. When the Client

MQ receives it, the copy message in the MQ is

discarded.

Figure 5: Procedure for establishing MQ connection.

MESSAGE QUEUING MIDDLEWARE ON VPN AND ITS TRAFFIC CONTROL SCHEME - Modeling Asynchronous

Message Queuing Communication on MPLS VPN

through the established MQ connection. In order to

guarantee secure delivery, a copy message is created

when the original message is dequeued. If the client

MQ node receives the acknowledgement of

receiving the message from the root MQ node, then

the copy is removed and the MQ transaction is

completed. If the acknowledgement does not arrive

at the client MQ node, the copy is not be removed.

The control information is sent from the root MQ

node to the client MQ node through the established

MQ session. The management scheme of the MQ

session is the same as that of the BGP session

3.3 Control Scheme to Deal with

Messages Generated Explosively

During a Short Period

Congestion control has been an active research area

for Internet protocols. These schemes are for best-

effort delivery and assume that all receivers get the

same set of messages. In contrast, as mentioned in

(Pietzuch et al., 2003), compared with an Internet

router, in a message queue, the ratio of maximum

queue size to the message processing throughput is

larger. The large queue can handle the burstiness

due to the application-level scheduling. In message

queuing communication, the messages may be

filtered or processed in the intermediate message

queue server. Because messaging communication is

sensitive to loss rather than to delay, the rate at

which messages are sent from the client MQ node to

the root MQ node is determined not by the end-to-

end delay but by the queue sizes of all client MQ

nodes

(Pietzuch et al., 2003) proposed the congestion

control scheme in the context of a publish/subscribe

messaging model. In their model, a feedback loop

control scheme is implemented between a publisher-

hosting broker and all subscriber-hosting brokers,

which is used to adjust the rate of publishing new

messages. Messaging middleware is deployed as an

overlay network of application-level routers

The basic idea of our congestion control scheme

is similar to that of (Pietzuch et al., 2003). In our

model, the feedback protocol explained in the

previous section is implemented between the client

MQ and root MQ nodes. The rate at which data is

sent from the local message queue in the VPN site to

the remote message queue in the server VPN site is

determined by the message size in each client MQ in

order to utilize the message queue resources in the

whole VPN efficiently. In this paper, we consider

that the MPLS VPN network is used to make the

application overlay network. We consider that the

network service provider provides a customer edge

node that has a large message queue and the function

of the message queuing communication.

The processes of generating messages in the

client MQ node are different and messages may be

generated explosively during a short period in some

client MQ nodes. Because there is a limit on the

size of the message queue, an overflow will occur in

this situation. In order to avoid overflows, it is

necessary to utilize the MQ resources in the whole

VPN efficiently.

In this paper, the following traffic control scheme

is considered. In this control scheme, the rate at

which data is sent from the client MQ node in VPN

sites to the root MQ node in the VPN server sites is

adaptively controlled according to the control rule

and the volume of messages in all client MQ nodes.

For simplicity, we explain it using the following

example. We considered three client MQ nodes and

one root MQ node in this simulation experiment.

The stored messages in the root MQ node are sent to

the server applications in the server site at the

maximum R bps. An index like MQi (i = 1, 2, 3) is

assigned. In the initialization, the root MQ sends a

control packet to the i_th client MQi

node to report

the initial rate R

(i = 1, 2, 3). The initial value, R

equal to R/3. The client MQi node always measures

the total volume of stored messages in the MQ node.

Multiple threshold values and weights for the stored

message size are configured, as shown in figure 6.

When the client MQ node sends the message to the

root MQ node, the current weight value is measured

and this value is set in the field of the MQ packet.

For example, the current message queue size in

MQ1 in figure 6 is larger than T

but less than T

: i th weight.

: i th value of the

threshold of queue of

MQi.

rate for sending

message from client MQi

to root MQ.

Values of weight and

threshold are defined in

eac

h M

MQ1

MQ3

+ w

This indicates

the current

queue size.

MQ2

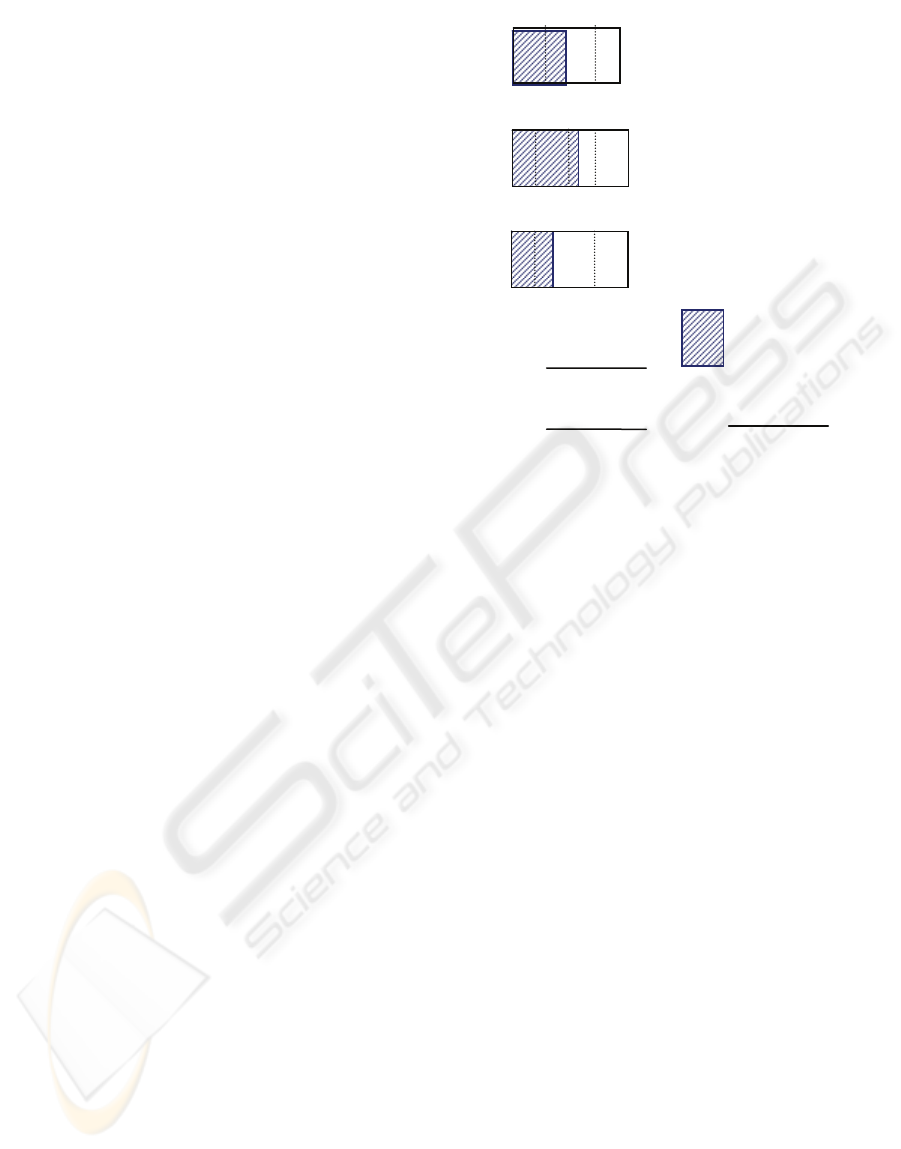

Figure 6: Calculation of the transmitting rate.

ICE-B 2006 - INTERNATIONAL CONFERENCE ON E-BUSINESS

so, the current weight is w

. In the same way, the

current weights of MQ2 and MQ3 are w

and w

respectively. The MQ packet has some fields. The

original message is stored in the message field. The

current weight value of the client MQ node is set in

the weight field. In figure 6, MQ1 reports the

current weight, w

, to the root MQ. MQ2 and MQ3

report the current weights, w

and w

, respectively.

The root MQ node maintains the table of the

current weights of all client MQ nodes and the

elapsed time after the last expired time. The timeout

value is determined in the root MQ node. When the

root MQ node receives the MQ packet, it updates

this table. When the elapsed time exceeds the

timeout value, the root MQ node calculates the new

rate R

according to the equations shown in figure 6.

The new rate R

is calculated as R multiplied by the

ratio of the latest MQi node’s weight to the

summation of the latest total weights of all client

MQ nodes. The calculated new rate value, R

reported by sending a control packet to each client

MQ node. The timer in the root MQ node is reset

and restarted again.

When the client MQ node receives this control

packet, it changes the rate at which message data is

sent to the root MQ node. As a result, when the

number of messages in the client message queue

increases because of an explosive generation of

messages during a short period, more messages in

the client MQ node are sent to the root MQ node

than before. In this way, we can avoid an overflow

in this client MQ node.

4 CASE STUDIES

4.1 MPLS VPN Configuration

In the case study, we considered the MPLS VPN

shown in figure 7. The network model consisted of

five P routers, four PE routers, four CE routers, six

client MQ nodes, and 2 root MQ nodes. The OSPF

(open shortest path first) protocol was running as the

baseline IP routing protocol. MPLS (multiprotocol

label switching) and LDP (label distribution

protocol) were configured in the provider network,

which consisted of P and PE routers. The LSPs

were fully meshed among all PE routers. The VRF,

router target, and route distinguisher were

configured in the PE routers for each VPN. The

static routing was configured between the PE and

CE routers. In order to advertise the prefixes

belonging to VPN sites, MP-iBGP was configured.

MP-iBGP sessions were established among all PE

routers in full mesh fashion. The static routing from

PE router to CE router was redistributed in the MP-

iBGP. In the VPN sites, RIP (routing information

protocol) was configured. In our simulation model,

when a packet from VPN sites arrived at the ingress

PE router, two labels were assigned: a VPN label

and an LSP label. In the provider network, label

packets were forwarded according to the label

forwarding table. When the packet arrived at the

egress PE routers, the VPN label was popped and

the packet was forwarded to the appropriate CE

routers or MQ nodes according to the VRF table

4.2 MQ Node Configuration

The message queue sizes were set to 4 Mbytes for

the root MQ node and 1 Mbytes for the client MQ

node. The stored messages in the root MQ node

were transmitted to the application server at 1 Mbps

(R). In this simulation model, a block consisting of

25 messages was removed from the root MQ node

every 1 second. The message size was fixed at 5k

bytes. Therefore, the client MQ node could store a

maximum of 200 messages. The interval of

calculating the rate (T in figure 5) was set to 2 s in

the root MQ node. In the client MQ node, the

weight values and threshold values in the client MQ

node were configured. When the current utilization

of the client MQ node was equal to or greater than X

* 10% and less than 10 * (X + 1)%, the weight value

) was set to X (X = 0, 1, …, 9). The neighbour

information about the client MQ node was similar to

that of the BGP neighbour configuration. The IP

address of the remote MQ node was set to that of the

root MQ node in the client MQ node. The update

source was set to the loopback interface. In the root

MQ node, the number of neighbour client MQ nodes

was three. The IP address of the remote MQ was set

to that of the client MQ node. The update source

was set to the loopback interface

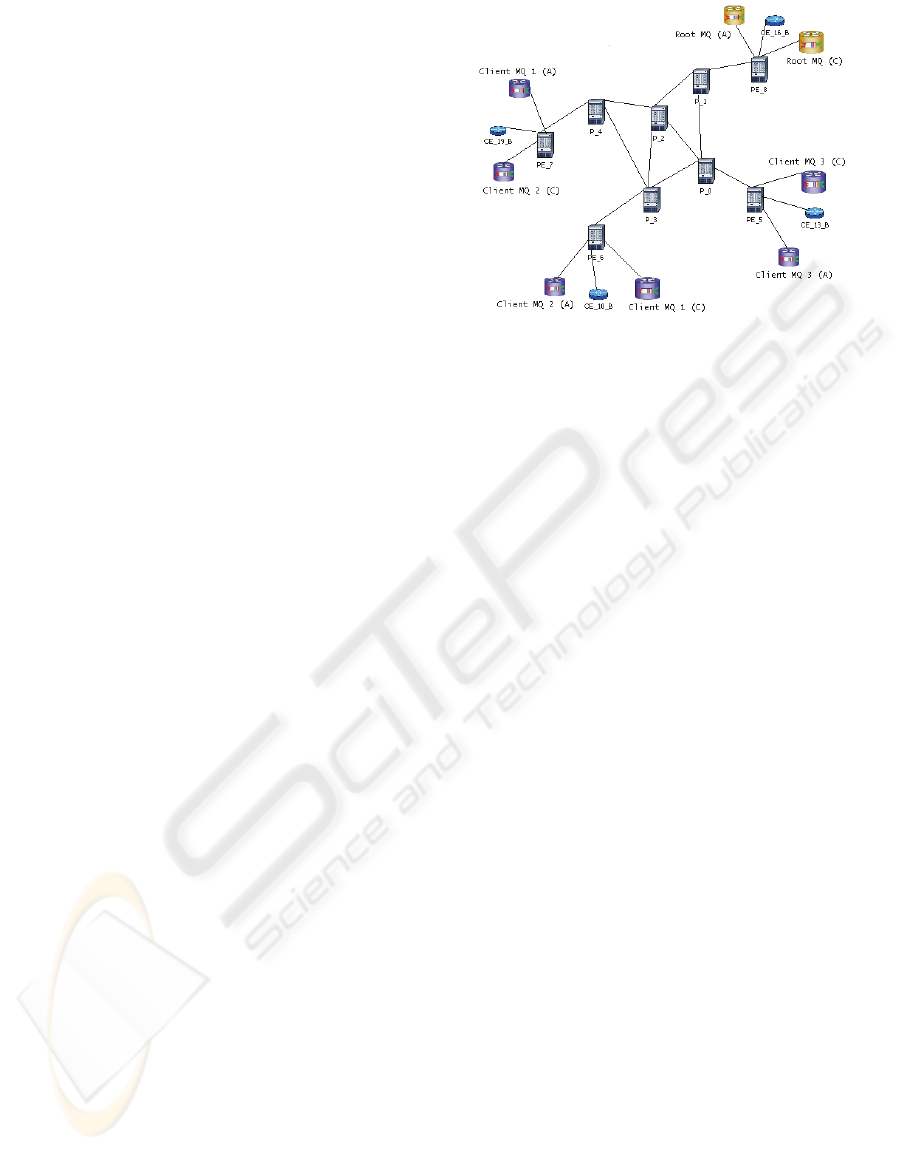

Figure 7: Network model (snapshot of the OPNET

etwork Editor).

MESSAGE QUEUING MIDDLEWARE ON VPN AND ITS TRAFFIC CONTROL SCHEME - Modeling Asynchronous

Message Queuing Communication on MPLS VPN

4.3 Processes of Generating

Messages

We considered the following three patterns for the

process of generating messages in the VPN site. As

mention before, in the simulation model, the

generator module in the client MQ node generated

messages. The average message generation rate for

each pattern during the simulation is shown in figure

8. The average rates for patterns 1 and 3 were fixed

during the simulation. The intervals of

consecutively generated messages followed the

exponential distribution with means of 0.24 s and

0.2 s for the patterns, 1 and 3, respectively. The

message size was fixed at 5k bytes. Therefore, the

average rate for pattern 1 was 167 kbps and that for

pattern 3 is 200 kbps. In pattern 2, the rate was

explosively increased between 2400 and 4200

during the simulation (we called this the bursty

period). Outside such bursty periods, the intervals

of consecutively generated messages followed the

exponential distribution with mean of 0.24 s.

During the bursty period, the intervals of

consecutively generated messages followed the

exponential distribution with mean 0.075 of s. The

average message generation rate during the bursty

period was about 534 kbps, which was about three

times that during the non-bursty period. In this

simulation, the message generation pattern in the

client MQi node was pattern i (i = 1, 2, 3)

4.4 Effectiveness of the Traffic

Control Scheme

In order to verify the effectiveness, we considered

the number of overflow messages and message

queue size as performance measures. In the scenario

in which the control scheme was not implemented,

the rate at which data was sent from the client MQ

node to the root MQ node was fixed at the initial rate

(R/3). In this simulation, R was set to 1 Mbps.

When the control scheme was not implemented, the

load in the MQ2 node during the non-bursty period

was 0.5 (((5 kbytes *8)/0.24)/(R/3)) and that during

the bursty period was 1.6 (((5 kbytes

*8)/0.075)/(R/3)). Thus, there was an overload

during the bursty period and we think that overflow

occurred when the traffic control scheme was not

implemented.

When the control scheme was not implemented,

we could see that an overflow occurred in the MQ 2

node, as shown in figure 9. The size of the message

queue in the client MQ2 node is shown in figure 10.

When the control scheme was implemented, no

overflow occurred during the bursty period. When

we examined the size of the message queue in the

client MQ 2 node, we found that the queue was

smaller with the traffic control scheme than that

without it. The size of the message queue in the

client MQ 2 node without the traffic control scheme

was equal to the total message queue size and some

messages overflowed during the bursty period.

When the adaptive traffic control scheme was

implemented, the rate at which messages were sent

from the client MQ 2 node to the root MQ node was

changed as shown in figure 11. More messages in

MQ 2 node sent to the root MQ node during the

bursty period than during the non-bursty period.

The moving average size of the message queue in

the root MQ node is shown in figure 12. The

moving average means the continuous average of the

ordinate value over intervals of a specified width

(60). The size of the message queue in the root MQ

node increased when the adaptive traffic control was

implemented. These results show that the messages

were efficiently stored in all message queues in the

whole network and this control scheme could avoid

overflows and guarantee message delivery when the

adaptive traffic control was implemented

5 CONCLUSION

In this paper, we considered the message queuing

communication on an MPLS VPN. The application

overlay network is made on the MPLS VPN

network. It is possible to configure the message

queue node that belongs to several enterprise MPLS

VPNs. The use of fast rerouting mechanisms of the

MPLS network is expected to make the application

overlay network more reliable. In order to

efficiently utilize the message queue resources in the

whole network and to avoid an overflow in the local

message queue when a lot of messages are suddenly

and explosively generated during a short period, we

proposed the adaptive traffic control scheme. In this

scheme, the client MQ nodes and the root MQ node

can communicate with each other. The client MQ

node notifies the root MQ node about the current

Pattern 1

(167 kbps)

Pattern 2

(167 kbps, but 534

kbps during the bursty

period)

Pattern 3

(200 kbps)

Time

bps

300

2400 4200

Bursty period

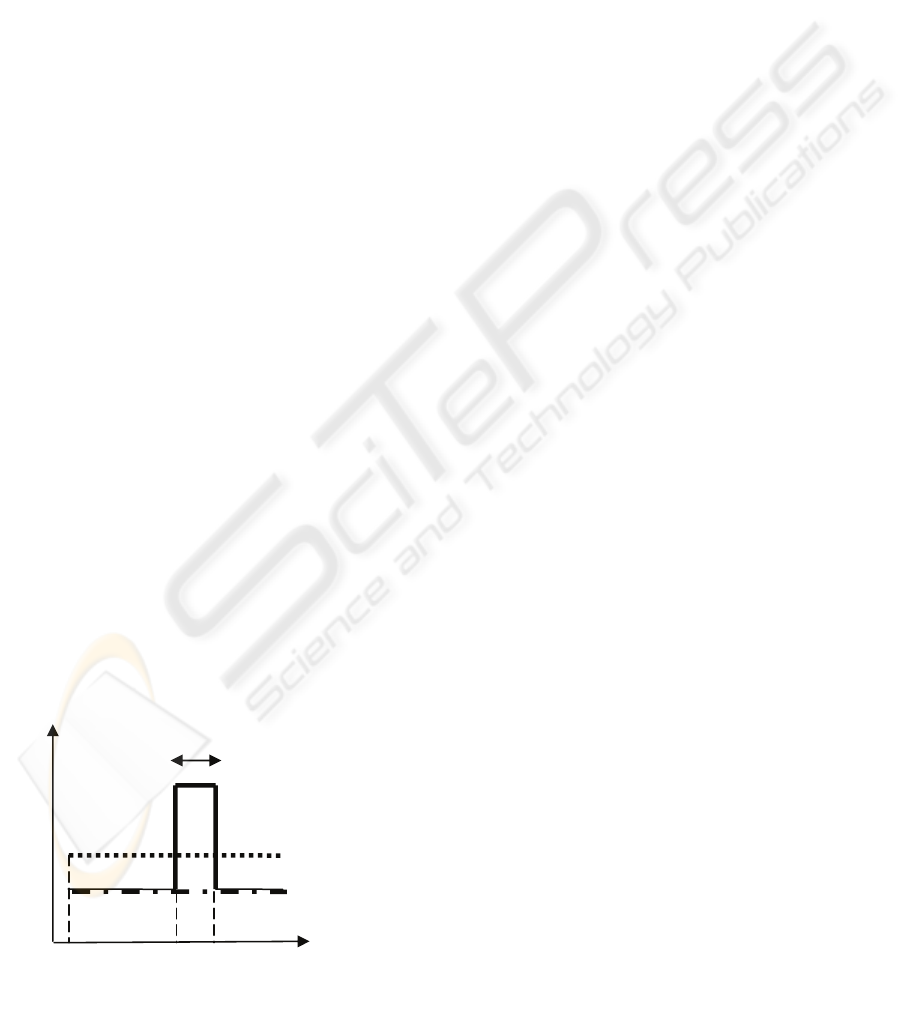

Figure 8: Traffic generating processes.

ICE-B 2006 - INTERNATIONAL CONFERENCE ON E-BUSINESS

weight, which indicates the current size of the

message queue in the client MQ node. The root MQ

node calculates the rate for sending messages from

the client MQ node to the root MQ node and notifies

the client MQ node about the calculated value for

each client MQ node. This control scheme can

adjust the rate for sending messages from client MQ

node to root MQ node. We showed its effectiveness

through simulation studies. The described model is a

centralized solution. The backup solution of the root

MQ node should be used at the same time

The method of adjusting the rate of sending

messages from the client MQ node to the root MQ

node in this paper was simple. Developing more

sophisticated methods for adjusting the rate is

further study. We considered that the occurrence

probability of the case in which messages may be

suddenly and explosively generated at the same time

in all the client MQ nodes, to be very small. In such

a case, our current control scheme cannot avoid

overflows, so we need to add another control scheme

to deal with this situation. This is also for further

study

REFERENCES

David A. Chappell, Enterprise Service Bus, O’Reilly,

2004.

Rolf Clauberg, RFID and Sensor Networks – From

Sensor/Actuator to Business Application, RFID

workshop, University of St. Gallen, Switzerland, Sept.

27, 2004,

http://www.zurich.ibm.com/pdf/sys/RFID_and_Sensor

_Networks.pdf.

Peter R. Pietzuch and Sumeer Bhola, Congestion Control

in a Reliable Scalable Message-Oriented Middleware,

MIDDLEWARE2003, pp.202-221, 2003.

Javed Sikander, RFID Enabled Retail Supply Chain,

http://msdn.microsoft.com/library/default/asp?url=/libr

ary/en-us/dnbda/html/RFIDRetSupChn.asp

Dipl.-Ing. Heinz Strauss, Towards A Ubiquitous Future

Limited Only By Our Imagination…,

http://www.itu.int/osg/spu/ni/ubiquitous/Presentations/

13_strauss_future.pdf

Chris Britton, IT Architectures and Middleware: Strategies

for Building Large, Integrated Systems, Pearson

Education, 2001.

Ivan PepeInjak, Jim Guichard, and Jeff Apcar, MPLS and

VPN Architectures I, II, Cisco Press, 2003.

Chris Loosely and Frank Douglas, High-Performance

Client/Server – A Guide to building and managing

robust distributed systems, John Wiley & Sins, Inc.,

1988.

BEA, BEA RFID Technical Challenges and Reference

Architecture,

http://www.bea.com/content/news_evenets/

white_papers/BEA_RFID_ref_arch_wp.pdf

OPNET Technologies, http://www.opnet.com.

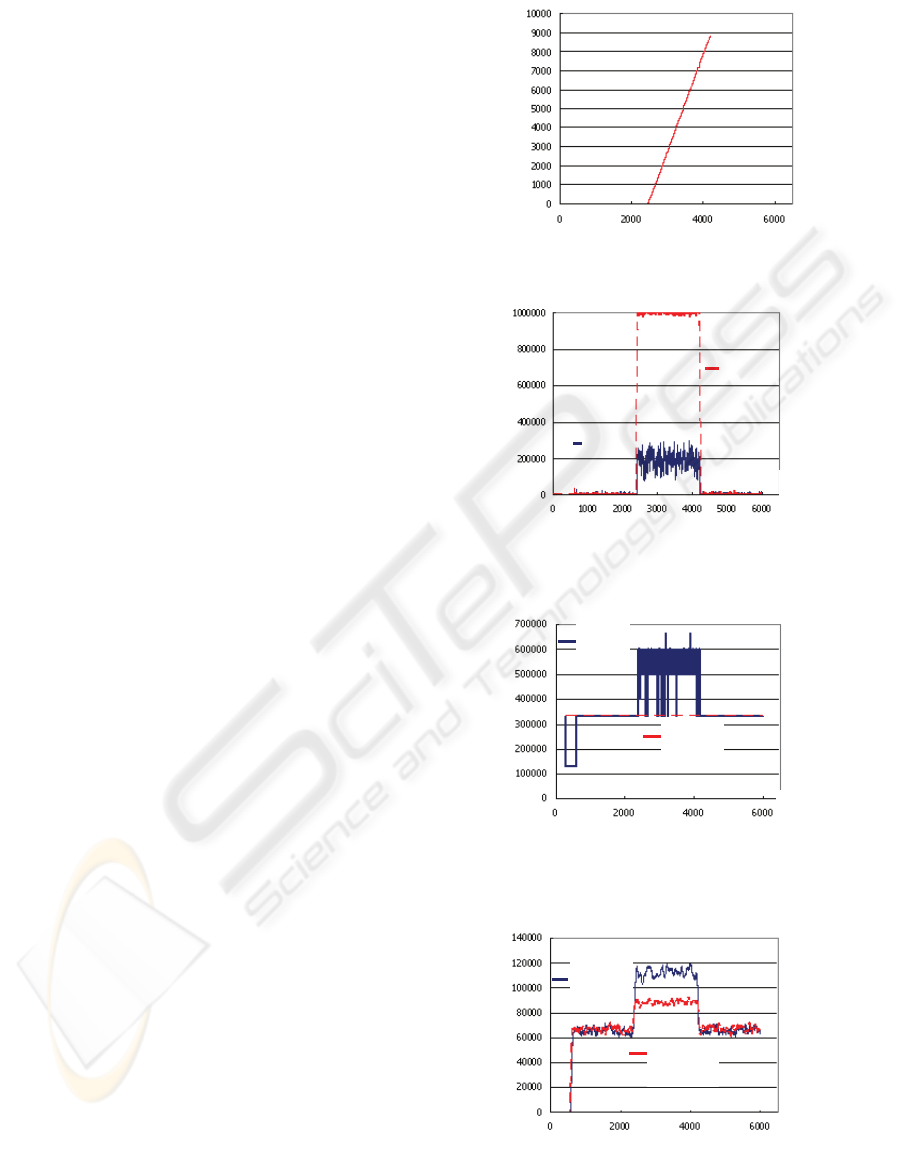

Figure 9: Cumulative overflowed messages.

Figure 10: Size (bytes) of the message queue in the client

MQ 2.

Figure 11: Rate (bps) for sending messages in the client

MQ 2, when the adaptive traffic control was implemented.

Figure 12: Moving average size (bytes) of the message

queue in the root MQ.

elapsed time

message

elapsed

time

bytes

Without

control

With

control

bps

elapsed

time

Without

control

With

control

bytes

elapsed

time

Without

control

With

control

MESSAGE QUEUING MIDDLEWARE ON VPN AND ITS TRAFFIC CONTROL SCHEME - Modeling Asynchronous

Message Queuing Communication on MPLS VPN
