A COMPARATIVE STUDY OF STATE-OF-THE-ART ADAPTATION

TECHNIQUES FOR SCALABLE MULTIMEDIA STREAMS

Andreas Schorr, Franz J. Hauck

University of Ulm

89069 Ulm, Germany

Bernhard Feiten, Ingo Wolf

T-Systems Enterprise Services GmbH

Berlin, Germany

Keywords:

Adaptation, scalable media formats, media ﬁltering, MPEG-21, digital item adaptation.

Abstract:

Stream adaptation is a key technology for enabling communication between heterogeneous multimedia de-

vices and applications, possibly located in heterogeneous wired or wireless networks. Converting already

compressed multimedia streams into a format suitable for a certain receiver terminal and network can be

achieved by transcoding or by ﬁltering of media streams. Transcoding allows more ﬂexible adaptation opera-

tions but is in general a very CPU-intensive process. Therefore, scalable media formats have been developed,

which allow more efﬁcient adaptation of media streams through media ﬁltering. Several ﬁlter techniques for

speciﬁc media formats have been proposed and implemented during the last decade. Recently, the MPEG-21

Digital Item Adaptation standard has deﬁned a set of new tools for multimedia adaptation. In this paper, we

provide a comparative study of several adaptation techniques for scalable multimedia streams. We compare

generic MPEG-21-based adaptation techniques with ﬁlter mechanisms for speciﬁc media formats with respect

to the required processing resources and scalability. We also compare ﬁlter techniques with stream adaptation

through transcoding. Moreover, we compare how adaptation of multiple media streams performs on systems

with single-core and with multi-core processors.

1 INTRODUCTION

During the last two decades, enormous advances have

been achieved in the area of multimedia data com-

pression as well as in (wireless) network technolo-

gies. Accompanied by a clear trend towards all-over-

IP multimedia communication, these advances enable

real-time multimedia streaming applications, such

as voice-over-IP (VoIP), video-on-demand (VoD) or

video-conferencing (VC). On the other hand, there

exist many different devices with different hardware

and software capabilities as well as a variety of het-

erogeneous networks with different properties. If

communicating applications do not support the same

media formats, or whenever the datarate of a media

stream does not match the bandwidth constraints of a

certain network, adaptation can be used as a means to

bridge the heterogeneity gap.

In this paper, we focus on media adaptation tech-

niques that can be performed in real-time during an

ongoing streaming session from the media source to

one or several receivers. Such an adaptation can

be performed at the source or at the sink of a me-

dia stream or somewhere in between (Kassler and

Schorr, 2003), and it can be achieved by transcoding

or by ﬁltering of media streams or by a number of

other techniques that we will shortly discuss in Chap-

ter 2. Transcoding allows ﬂexible adaptation opera-

tions but is in general a very CPU-intensive process.

Therefore, scalable media formats have been devel-

oped, which allow more efﬁcient adaptation of me-

dia streams through media ﬁltering, e.g., MPEG-2

(ISO/IEC, 1994), MPEG-4 (ISO/IEC, 2000), Wave-

Video (Fankhauser et al., 1999). Several ﬁlter tech-

niques for speciﬁc media formats have been proposed

and implemented during the last decade (Yeadon

et al., 1996b; Yeadon et al., 1996a; Keller et al., 2000;

Kassler et al., 2001). Recently, the MPEG-21 Digi-

tal Item Adaptation (DIA) standard (ISO/IEC, 2004)

has deﬁned a set of new tools for multimedia adap-

tation. These tools make it possible to build generic

adaptation engines which can handle arbitrary media

formats.

Several researchers have proposed architectures for

video gateways (Amir et al., 1995) or content adapta-

tion nodes (Kassler and Schorr, 2003), which are lo-

cated in the network between sender and receiver(s)

of a media stream and provide stream adaptation ser-

Schorr A., J. Hauck F., Feiten B. and Wolf I. (2006).

A COMPARATIVE STUDY OF STATE-OF-THE-ART ADAPTATION TECHNIQUES FOR SCALABLE MULTIMEDIA STREAMS.

In Proceedings of the International Conference on Signal Processing and Multimedia Applications, pages 81-88

DOI: 10.5220/0001568200810088

 SciTePress

vices. Such adaptation nodes must be able to adapt

large numbers of streams in parallel for being prof-

itable. Whereas commercially distributed media gate-

ways already support real-time transcoding of limited

numbers of audio streams, little effort has been spent

so far on integrating media ﬁlter techniques for scal-

able media streams into such products. An important

question is how well ﬁlter techniques perform with re-

spect to required processing resources. In Chapter 3,

we compare several state-of-the-art adaptation mech-

anisms. We compare MPEG-21 DIA based adapta-

tion techniques with media ﬁlters for speciﬁc media

formats and with transcoding techniques. Whereas

other performance studies usually concentrate on the

quality degradation caused by adaptation operations,

our study analyses the scalability of the adapatation

algorithms, i.e., how many media streams can be pro-

cessed on an adaptation node in parallel. Vendors and

operators of media gateways might be particularly in-

terested in how currently emerging MPEG-21 DIA

based adaptation techniques perform in comparison

to other ﬁlter and transcoding mechanisms. We also

compare how adaptation of multiple media streams

performs on systems with single-core and with multi-

core processors.

2 ADAPTATION TECHNIQUES

The main focus of our performance study lies on

media ﬁlter techniques for scalable media formats

that can be applied on an intermediary network node

between the sender and the receiver(s) of a media

stream. Nevertheless, there exist a number of other

adaptation techniques for multimedia sessions. These

are shortly discussed in Section 2.1. Transcoding and

ﬁlter techniques are introduced in Section 2.2 and in

Section 2.3.

2.1 Sender and Receiver Based

Adaptation

Some VoD servers store multiple representations of

the same movie clip in their database using differ-

ent media formats or data rates. When adaptation

of an ongoing streaming session is required, stream

switching can be applied to adapt the multimedia

stream (Amon and Pandel, 2003). A drawback of

this sender-driven adaptation technique is that more

storage capacity is needed for each additional pre-

encoded stream representation stored on the video

server. Therefore, the number of different formats and

data rates that can be offered is limited. For broadcast

services, multiple versions of the same multimedia

content can be transmitted simultaneously in several

separate broadcast channels using different media for-

mats or data rates. This technique is called simulcast

(Amon and Pandel, 2003). Receiver-driven adapta-

tion of such a streaming session can be achieved by

simply switching to another broadcast channel. The

drawback of this approach is that a lot of network

bandwidth is required (and possibly wasted) if many

different media formats shall be supported. A more

efﬁcient approach is Receiver-Driven Layered Multi-

cast (RLM) (McCanne et al., 1997). Here, different

layers of a scalable media source are streamed to dif-

ferent multicast addresses, and receivers decide about

the quality by joining or leaving respective multicast

groups. The bandwidth requirements for the RLM ap-

proach are lower than for simulcast, but if the num-

ber of layers is high, the overhead caused by packet

headers becomes worse. Newer scalable media for-

mats like ﬁne granularity scalability (FGS) (ISO/IEC,

2000) do not create a discrete number of layers pro-

portional to the number of quality levels. Instead, an

FGS-encoded bitstream can be truncated at any arbi-

trary byte position. This kind of scalability can not

be supported by the RLM approach; media ﬁlters (see

Section 2.3) are better suitable for reducing the data

rate of an FGS-encoded media stream.

The above mentioned adaptation techniques have

their raison d’

etre in certain application scenarios, but

content adaptation nodes inside the network must of-

fer complementary media ﬁltering or transcoding ser-

vices if arbitrary terminals, networks and users with

their respective requirements on media formats and

data rates shall be supported. Nevertheless, it should

be mentioned that stream switching, simulcast and

RLM all perform excellently with respect to process-

ing resources (neglecting bandwidth and storage re-

sources). In the case of stream switching and simul-

cast, no additional processing resources are required

for adaptation. Using RLM, only a small amount of

additional processing power is required for managing

multiple parallel multicast sessions and reassembly of

the media stream.

2.2 Transcoding

Transcoding denotes the process of changing the for-

mat of a media stream by decoding and re-encoding.

Input format and target format may both be com-

pressed formats, or either of them may be an uncom-

pressed format. The codec of the input format may

either be the same as the target codec, or it may be

a different one. In case input codec and target codec

are the same, other properties of the media format are

changed (e.g., frame size, data rate). A simple video

transcoder, for instance, works as follows: a com-

pressed frame is decoded; intermediate operations are

applied on the uncompressed data (e.g., scaling the

frame size); the video frame is re-encoded. In the lit-

SIGMAP 2006 - INTERNATIONAL CONFERENCE ON SIGNAL PROCESSING AND MULTIMEDIA

APPLICATIONS

Format A

Format B

Transcoder

VLC

Encoder

DCT

MEM

-1

DCT

-1

VLC

-1

DCT

-1

Decoder

DCT

-1

MEM

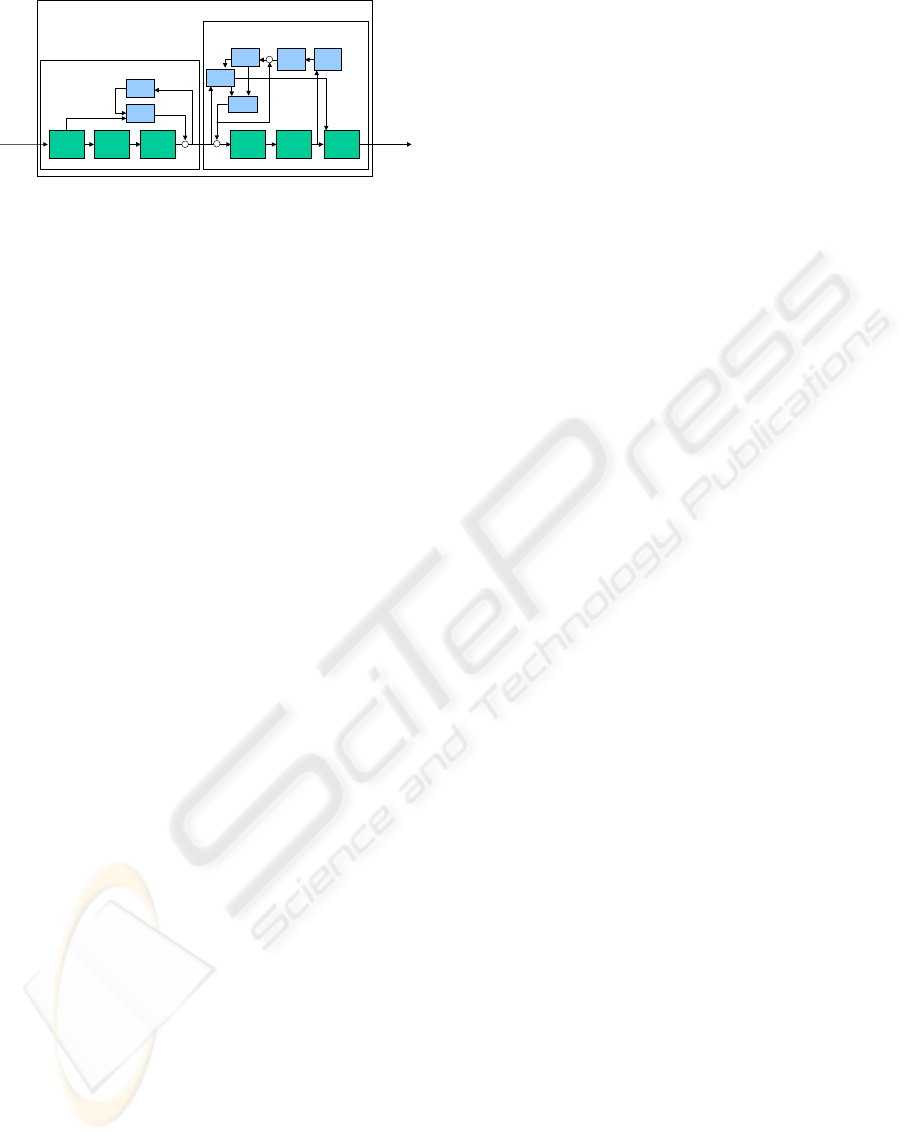

Figure 1: A spatial domain cascaded transcoder.

erature, this kind of transcoder is called a spatial do-

main cascaded transcoder (SDCT) (Sun et al., 2005).

Although this approach is very straightforward, the

computational complexity of such a transcoder can be

very high, especially for video transcoding.

The majority of current video codecs use a block-

based video coding scheme, which applies discrete

cosine transform (DCT) on a block of video pixels,

quantizes the DCT coefﬁcients followed by variable

length coding (VLC) of the quantized values. Further-

more, motion-compensated predictive coding is often

used for reducing the temporal redundancies between

video frames. Thus, the main processing steps inside

an SDCT (as depicted in Figure 1) are: inverse VLC,

inverse quantization, inverse DCT and motion com-

pensation (MC), followed by DCT, quantization (Q),

and ﬁnally VLC. Furthermore, the re-encoding step

requires additional Q

−1

and DCT

−1

operations to al-

low proper motion estimation (ME) and motion com-

pensation.

Several optimized transcoding techniques have

been proposed that allow faster transcoding. For in-

stance, motion vectors of the input stream can often

be re-used for the output stream. Thus, it is not nec-

essary to perform new motion estimation. If the spa-

tial resolution of the picture shall be reduced, motion

vectors must to be down-scaled, which can still be

performed much faster than a new motion estimation

search. Other optimization techniques perform con-

version operations in the frequency domain instead of

transforming the video data into the spatial domain

ﬁrst. This way, DCT and DCT

−1

operations can be

skipped. Vetro et al. provide a quite comprehen-

sive survey of such optimized transcoding techniques

(Vetro et al., 2003).

Sun et al. declare that optimized video transcoders

achieve temporal performance gains of up to 70 per-

cent over simple spatial domain cascaded transcoders

(Sun et al., 2005) (possibly at the cost of reduced

video quality). Even when using such an optimized

video transcoder, the computational complexity is

high in comparison to ﬁlter techniques, which are dis-

cussed in the next section. A few video codecs exist

which use wavelet transform instead of block-based

DCT (Fankhauser et al., 1999), but the computational

complexity of these compression algorithms is sim-

ilar to the complexity of codecs using DCT. Many

audio codecs require substantially less processing re-

sources than video codecs, but the requirements for

more complex audio codecs like MP3 or AAC are also

quite high in comparison to ﬁlter techniques.

2.3 Media Filtering

Media ﬁltering denotes the process of removing in-

formation from a media stream. Filtering media data

compressed with a conventional coding format is dif-

ﬁcult and may require costly decoding and encod-

ing operations. Scalable media formats like MPEG-4

(ISO/IEC, 2000), or WaveVideo (Fankhauser et al.,

1999) have been developed which allow more efﬁ-

cient ﬁltering without decoding the media stream. To-

day, two techniques are common for creating scalable

media formats: layered coding and ﬁne granularity

scalability coding (FGS). In layered coding schemes,

frame data is spread over several media layers. The

ﬁrst layer is called base layer, the others are called en-

hancement layers. The base layer is always decodable

without the enhancement layers, but the quality of the

media stream will be low if only the base layer is used

for decoding. The more enhancement layers are avail-

able at the decoder, the better the quality of the me-

dia stream will be. In the FGS encoding scheme, the

media stream is also split into a base layer and an en-

hancement layer. Additionally, the information in the

enhancement layer can be truncated at any arbitrary

byte position while still being decodable.

A media ﬁlter removes certain enhancement lay-

ers from a layered bit stream or truncates an FGS en-

coded bit stream, thus reducing the data rate of the

stream. Data rate reduction can also be achieved by

transcoding, but the computational complexity of a

simple ﬁlter operation is much lower. A ﬁlter only

has to identify where the data belonging to each layer

is located inside the bitstream and to remove some of

the identiﬁed parts. SNR (signal-to-noise ratio) ﬁlters

allow to scale the quantization accuracy. For video

data, there exist also spatial and temporal ﬁlters that

allow to scale the spatial and temporal resolution of

the video. Furthermore, some scalable video formats

like WaveVideo encode luminance and chrominance

pixel information in different layers, thus allowing to

reduce the SNR of luminance and chrominance inde-

pendently or to remove the chrominance information

completely (Kassler et al., 2001).

MPEG-21 part 7 also known as Digital Item Adap-

tation introduces a novel approach for the adaptation

of media resources. As a basis, the model of a Digital

Item is chosen, which is composed of structured meta-

data and binary resources. The XML based metadata

is normatively deﬁned using XML Schema and allows

to combine metadata describing the resources itself

A COMPARATIVE STUDY OF STATE-OF-THE-ART ADAPTATION TECHNIQUES FOR SCALABLE

MULTIMEDIA STREAMS

as well as metadata describing user preferences, us-

age environment, usage constraints, quality of service

information and other descriptions with the media re-

sources. A generic adaptation model is speciﬁed, that

applies a normative processor as part of a digital item

adaptation engine. Following this model, it is possible

to adapt media encoded with scalable codecs without

the need of codec speciﬁc processors. The idea be-

hind that model is the introduction of a management

layer fully based on XML. A certain number of de-

scriptions is needed to manage the resource adapta-

tion, one of them is the so-called Bitstream Syntax

Description (BSD). In principle, this BSD describes

a media resource as a sequence of units and can be

transformed using e.g., XSLT (other transformation

languages like STX are possible as well). The trans-

formed BSD is then fed into the normative BSDto-

Bin processor, which applies the changes to the me-

dia resource. This normative processor applies only

simple operations like truncation or update controlled

by the BSD. The transformation logic is placed into

the transformation stylesheet, that becomes part of the

metadata of a digital item. Nevertheless, a BSD-based

adaptation engine still needs to know a codec speciﬁc

bitstream syntax schema. Therefore, MPEG-21 DIA

also deﬁnes the so-called generic BSD (gBSD), which

can be used to describe any binary resource in a codec

independent manner and no codec speciﬁc schema is

required for adapting the bitstream.

3 MEASUREMENTS

In next generation networks, content adaptation nodes

(CANs) belonging to the network infrastructure will

offer adaptation services for multimedia streams. The

purpose of the following performance measurements

is twofold. If real-time media streams shall be

adapted on such a CAN inside the network, it is im-

portant to know how much delay is added to the end-

to-end latency of the data transport. Furthermore, we

study the scalability of adaptation services. We are in-

terested in how many streams can be adapted in par-

allel on a single CAN. In the latter context, we also

look at the performance gains that can be achieved

by building such an adaptation service with multi-

processor or multi-core processor technology.

3.1 Test Environment

The examined adaptation mechanisms were imple-

mented as software plug-ins for a generic content

adaptation node and tested on two different hard-

ware platforms. Test system 1 (TS1) used the fol-

lowing hardware conﬁguration: Pentium-4 processor

with 1,8 MHz clock rate, 1 GB RAM, 100 Mbit/s net-

work interface. Test system 2 (TS2) was conﬁgured

as follows: Athlon-64 X2 Dual-Core 3800+ proces-

sor, 1 GB RAM, 100 Mbit/s network interface.

We examined codec-speciﬁc ﬁlter mechanisms for

MPEG-4 BSAC audio and WaveVideo streams, a

gBSD-based MPEG-21 DIA ﬁlter for audio streams,

and video and audio transcoders. The gBSD-based

adaptation engine was implemented using the C/C++

based Expat XML parser library (libexpat) and the

Sablotron XSL transformation library (sablot) — both

are developed in open source projects. As a design de-

cision, the event based Simple API for XML (SAX)

was chosen due to performance advantages over the

more complex Document Object Model (DOM) API.

The examined ﬁlter mechanisms for WaveVideo were

proposed by (Kassler et al., 2001). Transcoding is an

adaptation operation not explicitly dealing with scal-

able media streams. Nevertheless, transcoding can of

course be applied on scalable and on non-scalable me-

dia streams alike, so it is interesting to know whether

ﬁlter mechanisms perform much better than transco-

ding or not. We evaluated a proprietary cascaded au-

dio transcoder and a proprietary spatial domain cas-

caded video transcoder. For encoding and decoding,

the cascaded audio transcoder makes use of standard

audio codecs installed on the Windows XP platform

as well as of the well-known LAME MP3 encoder.

The cascaded video transcoder uses the well-known

XVID codec for MPEG-4 encoding.

3.2 Measurement Results

In this section, we present the results of our perfor-

mance measurements. The following diagrams de-

pict the processing time (measured in microseconds)

per audio/video frame. Each diagram (except Fig-

ure 3 and 7) shows four measurements: two curves

depict the processing time for a single media stream

on TS1 and TS2, respectively. The third and fourth

curve show the total processing time for parallel adap-

tation of multiple media streams on TS1 and TS2,

respectively. In all four cases, the same adapta-

tion operations are applied on each media stream,

and in each test sequence, the adaptation parameters

are changed over time as depicted in the respective

diagram. Please note that for better readability of

the diagrams the depicted processing time values are

smoothed average values (over the last ten frames).

Note also that the measurement includes only the

processing time inside the content adaptation node.

For determining the total delay added to the end-to-

end latency, you have to add the time required for re-

ceiving and sending the data through the CAN’s net-

work interface and the time for which the incoming

data is stored inside the CAN’s jitter buffer. The time

needed for receiving and sending can be easily calcu-

lated for constant bitrate media streams. For instance,

SIGMAP 2006 - INTERNATIONAL CONFERENCE ON SIGNAL PROCESSING AND MULTIMEDIA

APPLICATIONS

1000

2000

3000

4000

5000

6000

7000

0 120 240 360 480 600 720 840 960 1080 1200 1320 1440

frame number

processing time (microseconds)

1 stream, TS1

1 stream, TS2

10 streams, TS1

10 streams, TS2

no filter

bandwidth filter (32 kbps)

bandwidth filter (16 kbps)

Figure 2: Simple ﬁlter for MPEG-4 BSAC audio.

when processing a 64 kBit/s audio stream, the time

required for sending and receiving a frame of 40 mil-

liseconds length through a 100 MBit/s network inter-

face is (64 kBit/s / 25 frames/s) / 100 MBit/s = 25,6

µs. The time for which the incoming data packets are

stored in the jitter buffer is variable. Setting it to zero

will result in loss of information if the network jitter

is more than zero and temporal dependencies between

consecutive frames exist, because adaptation modules

like transcoders must processes such media units in

the correct temporal order. So you usually have to set

the length of the jitter buffer to a value corresponding

to the currently monitored network jitter.

3.2.1 Test Sequence 1: Codec-speciﬁc Audio

Filter

In a ﬁrst test sequence, we evaluate the perfor-

mance of a proprietary codec-speciﬁc media ﬁlter for

MPEG-4 BSAC audio streams (Figure 2). The orig-

inal stream has a data rate of 64 kBit/s. The test se-

quence has a length of 45 seconds. During the ﬁrst

15 seconds, the stream is not modiﬁed by the CAN.

During the next 15 seconds, the media ﬁlter reduces

the data rate of the audio stream to 32 kBit/s. During

the third period, the data rate is reduced to 16 kBit/s.

The average processing time for a single audio frame

(40 ms of audio data) is quite low (290 µs on TS1

and 175 µs on TS2). Since the ﬁlter operation is quite

simple, there is no visible difference (in processing

time) during the ﬁrst period, where no adaptation was

performed, when compared to the second and third

period. You can also see that each time the ﬁlter set-

tings are changed, a short peek occurs which is due to

the fact that the ﬁlter has to be re-initialised. A few

additional peeks occur randomly, which are probably

caused by interrupt routines executed by the operating

system.

Moreover, Figure 2 shows that the audio ﬁlter has

good scalability properties. We can see that pro-

cessing time is linearly increasing with the num-

ber of audio streams. For instance, ﬁltering ten au-

20000

40000

60000

80000

100000

0 250 500 750 1000 1250 1500 1750 2000 2250 2500 2750 3000 3250

frame number

processing time (microseconds)

200 streams, TS2

no filter

bandwidth filter (32 kbps)

bandwidth filter (16 kbps)

Figure 3: Maximum number of adaptation sessions.

dio streams requires 2.8 milliseconds total processing

time on TS1, which is about ten times more than the

processing time per audio frame for a single stream

on TS1. On TS2, processing ten audio streams re-

quires about 950 µs, which is 5.5 times the process-

ing time for a single audio stream on TS2. The perfor-

mance gain achieved by using a dual-core processor is

10/5.5− 1 = 81%. This performance gain is less than

100 percent, because the total processing time inside

the CAN is not only determined by the CPU, but also

by other hardware components, such as main memory

and PCI bus.

Just for the purpose of demonstrating the maximum

number of adaptation sessions that can be executed in

parallel, Figure 3 shows an additional measurement

with 200 adaptation session on TS2. The average total

processing time per frame is now about 20 ms, which

is 114 times the processing time per audio frame for

a single stream on TS2. Assuming that a single-core

system would require 200 times the processing time

for a single stream, the performance gain through the

dual-core technologie is 200/114 − 1 = 75%. In Fig-

ure 3, a relatively long and high peek occurs when the

ﬁlter is activated because this is done for 200 sessions

at the same time. In a real-life scenario, it is very un-

likely that this happens at the same time for all adap-

tation sessions. Furthermore, we can see that the peek

is not always so high. At the transition from period

two to period three, there is almost no peak visible.

3.2.2 Test Sequence 2: gBSD-based Audio Filter

In the second test sequence, the same audio stream is

adapted in the same way as in test sequence one. But

this time, a generic MPEG-21 DIA adaptation engine

performs the adaptation operation using gBSD meta-

data that is transmitted together with the audio stream.

The result is depicted in Figure 4.

It is not possible to ﬁlter more than three streams

in realtime on TS1 because of the high CPU demands

of the gBSD engine. Therefore, we cannot directly

compare the processing times for ten parallel ses-

A COMPARATIVE STUDY OF STATE-OF-THE-ART ADAPTATION TECHNIQUES FOR SCALABLE

MULTIMEDIA STREAMS

10000

20000

30000

40000

50000

60000

0 120 240 360 480 600 720 840 960 1080 1200 1320

frame number

processing time (microseconds)

1 stream, TS1

1 stream, TS2

3 streams, TS1

10 streams, TS2

no filter

bandwidth filter (32 kbps)

bandwidth filter (16 kbps)

Figure 4: gBSD ﬁlter for MPEG-4 BSAC audio.

sions on TS1 and TS2. The processing time needed

by this gBSD-based adaptation engine is obviously

much higher than the processing time needed by the

codec-speciﬁc ﬁlter used in test sequence 1. Actually,

about 90% of the processing time is required for the

XML transformation, whereas the actual ﬁlter oper-

ation is quite simple and fast. Furthermore, an obvi-

ous weakness of the current implementation is that the

gBSD processing (including XSL transformation) is

performed even when no ﬁltering is necessary. A fu-

ture version of this implementation may be enhanced

with a fast test at the beginning of the ﬁlter operation

to determine whether ﬁltering is necessary at all, thus

reducing the processing time during periods where no

adaptation is required.

Figure 4 shows as well the performance gain

achieved by using a dual-core CPU. Whereas ﬁltering

a single stream on TS2 requires about 6 ms per frame,

the total processing time for ten parallel streams is

only about 24 ms, which is four times the process-

ing time for a single stream on TS2. The process-

ing time for three streams on TS1 (also about 24 ms)

is exactly three times more than the processing time

for one stream on TS1 (about 8 ms). Assuming that

a single-core system with enough processing power

would require ten times the processing time for a sin-

gle stream, a performance gain of 10/4 − 1 = 150%

is achieved. A performance gain of more than 100%

may occur if the activities of one processor core lead

to a higher cache hit ratio for the other core. The

Athlon X2 uses the MOESI cache coherency proto-

col (Sweazey and Smith, 1986) which allows a pro-

cessor core to access modiﬁcations of shared data in

the other core’s level two cache without accessing the

main memory. The hard disk cache may be another

source of the improved performance. Actually, we

observed that much more paging activity occurs when

applying the gBSD adaptation engine as compared to

the other examined adaptation mechanisms.

5000

10000

15000

20000

25000

30000

0 150 300 450 600 750 900 1050 1200 1350 1500 1650 1800

frame number

processing time (microseconds)

1 stream, TS1

1 stream, TS2

10 streams, TS1

10 streams, TS2

linear PCM, 44,1 kHz,

16 bit, stereo

linear PCM, 8 kHz,

8 bit, mono

G.711, 8 kHz,

8 bit, mono

GSM 6.1,

8 kHz, mono

MP3, 32 kHz,

64 kbps, mono

Figure 5: Audio Transcoding.

3.2.3 Test Sequence 3: Audio Transcoding

In a third test sequence, we study the performance of

audio transcoding performed on a content adaptation

node. Here, the CAN receives an audio stream en-

coded with linear pulse code modulation (PCM) at

44.1 kHz, 16 bit per sample, stereo quality. During the

ﬁrst measurement period, no adaptation is performed.

During the second period, sampling rate and quanti-

zation resolution are reduced. Then we transcode the

stream into G.711, GSM 6.1 and MP3 format, respec-

tively. The required processing time per audio frame

is depicted in Figure 5. Notice that the processing

time in the second and third period is even lower than

the processing time in the ﬁrst period, during which

no adaptation is performed. This is due to the fact,

that the total size of the audio data is reduced when re-

ducing the sampling rate, so subsequent operations on

this small amount of audio data are performed faster.

An interesting observation is that the transcoding

time for all target formats is lower than the process-

ing time needed by the MPEG-21 DIA ﬁlter that was

examined in test sequence two. This is a bit disap-

pointing, since one of the original goals of MPEG-21

DIA was to achieve very fast adaptation through sim-

ple and efﬁcient editing-style operations (ISO/IEC,

2004). However, it can be expected that a higher ben-

eﬁt might be achieved when video scaling based on

MPEG-21 DIA is applied.

Since we had no BSAC encoder plug-in for the

content adaptation node, we cannot directly compare

measurements for BSAC transcoding and BSAC ﬁl-

tering. BSAC encoding requires even more process-

ing resources than encoding MP3. BSAC is based

on the MPEG AAC codec (Advanced Audio Coding).

Only the stage in the codec that encodes and decodes

the already quantized spectral coefﬁcent is different.

The BSAC uses arithmetic coding in a way that the

coefﬁecients are represented in a sliced form. By

this means the bitrate can be adapted by removing the

slices partly. The transcoding requires cascaded AAC

SIGMAP 2006 - INTERNATIONAL CONFERENCE ON SIGNAL PROCESSING AND MULTIMEDIA

APPLICATIONS

decoder and encoder. The AAC encoder is much more

complex than the decoder, because the encoder usu-

ally contains a powerful spectral analysis to adapt the

quantisation noise to the auditory perception. Scaling

with BSAC does not need complete audio decoding

and re-encoding. Only the bit sliced arithmetic decod-

ing has to be processed to get the exact boundaries for

removing parts of the bitstream. This arithmethic de-

coding makes up about 10% of the total decoding pro-

cess. From these facts, one can estimate the advantage

of ﬁltering (with processing gBSD) over transcoding.

The AAC and the BSAC decoder have similar com-

plexity. The AAC encoder has at least a complexity

that is twice the decoder complexity. Consequently

the transoding requires more than 30 times of the pro-

cessing power than the scaling of the bitrate.

Regarding scalability of the transcoding opera-

tions, we can see that the processing time is again

linearly increasing with the number of audio streams.

For instance, during the fourth period when transco-

ding to GSM 6.1 is applied, the processing time for

a single stream is about 800 µs on TS1 and about

450 µs on TS2. Transcoding 10 audio streams into

the GSM 6.1 format requires about 7.5 ms (9.5 times

more) processing time on TS1 and about 2.5 ms (5.5

times more) on TS2. We achieve a performance gain

of 9.5/5.5 − 1 = 72% by using the dual-core technol-

ogy.

3.2.4 Test Sequence 4: Codec-speciﬁc Video

Filter

In a fourth test sequence, we analysed the per-

formance of a media ﬁlter for WaveVideo streams

(Kassler et al., 2001). This ﬁlter is again a codec-

dependent ﬁlter not using MPEG-21 DIA mecha-

nisms. The results of this test sequence are depicted

in Figure 6. Again, no adaptation is performed during

the ﬁrst period of the test sequence. During the sec-

ond period, the chrominance information is removed

from the stream, and during the third period the data

rate (originally > 1 MBit/s) is reduced to 200 kBit/s.

As in test sequence one, the ﬁlter itself does not

require noteworthy processing resources. Simply for-

warding the stream requires about 1 ms per frame (be-

cause of the high data rate), but when adaptation is

actually switched on, the processing time does not in-

crease. Instead, it decreases because of the decreased

frame size. Again, the total processing time is in-

creasing linearily with the number of parallel ses-

sions. For instance, during the second period when

applying the screyscale ﬁlter, the processing time for

a single stream on TS1 is about 1.25 ms on TS1 and

about 1 ms on TS2. Filtering ten video streams in par-

allel requires about 14 ms (11 times more) processing

time on TS1 and about 8 ms (8 times more) on TS2.

The performance gain through the dual-core technol-

5000

10000

15000

20000

25000

0 50 100 150 200 250 300 350 400 450 500 550 600 650

frame number

processing time (microseconds)

1 stream, TS1

1 stream, TS2

10 streams, TS1

10 streams, TS2

no filter

greyscale filter

bandwidth filter (200 kbps)

Figure 6: Wave Video Filter.

20000

40000

60000

80000

100000

120000

1 26 51 76 101 126 151 176 201 226 251 276 301 326

frame number

processing time (microseconds)

no transcoding

transcoding

WaveVideo--MPEG-4

Figure 7: Video transcoding.

ogy is 11/8 − 1 = 38%.

3.2.5 Test Sequence 5: Video Transcoding

In a last test sequence, we study the performance of

video transcoding. We used a simple spatial domain

cascaded video transcoder implementation (see Sec-

tion 2.2), which decodes the compressed video data

completely and re-encodes the uncompressed data us-

ing the target format. Figure 7 depicts only the pro-

cessing time for a single video stream on TS2. The

video sequence is encoded with the WaveVideo codec

at 20 fps, frame size CIF (Common Intermediate For-

mat = 352 ∗ 288 pixel). On the CAN, the stream

is transcoded into MPEG-4 format using the XVID

video codec. A maximum of two such streams can

be transcoded in parallel on TS2. TS1 does not have

enough processing power for transcoding multiple

video streams in parallel and in realtime. Even when

transcoding one stream, TS1 does not match the fram-

erate of 20 fps. The processing time per video frame

is about 50 milliseconds per frame on TS2. When us-

ing the smaller QCIF format (Quarter CIF = 176 ∗ 144

pixel), it is possible to transcode up to ﬁve streams in

realtime on TS2 and up to two streams on TS1.

As described in Section 2.2, performance gains can

be achieved by using an optimized video transcoder

A COMPARATIVE STUDY OF STATE-OF-THE-ART ADAPTATION TECHNIQUES FOR SCALABLE

MULTIMEDIA STREAMS

instead of the cascaded video transcoder that is used

by the current CAN prototype. Sun et al. (Sun et al.,

2005) state that highly optimized video transcoders

can achieve 70% faster adaptation than a cascaded

video transcoder, at the cost of reduced SNR. Nev-

ertheless, even a transcoder that is able to perform the

adaptation 70% faster can support only a small num-

ber of parallel video transcoding sessions.

4 CONCLUSION

We have seen that many ﬁlter techniques are efﬁ-

cient enough to enable real-time adaptation of multi-

ple media streams in parallel on a content adaptation

node. We have also seen that content adaptation ser-

vices beneﬁt from multi-processor or multi-core pro-

cessor architectures. In general, the gBSD approach

requires more processing resources than media ﬁlters

for speciﬁc codecs which do not process gBSD meta-

data. Even audio transcoding performs slightly better

than the implemented gBSD ﬁlter. Nevertheless, the

MPEG-21 DIA approach has the big advantage that a

gBSD adaptation engine can handle any abitrary me-

dia format (even not yet developed ones) as long as an

appropriate bitstream syntax description of the media

stream is available.

For video streams, the temporal performance delta

between media ﬁlters and transcoders is enormous.

In the future, we plan to study the performance of

other video transcoders using optimized video trans-

coding techniques and hardware-supported transco-

ding. Nevertheless, although noticable performance

gains can be achieved by optimized transcoders, it

seems very unlikely that in the near future a media

gateway will be able to transcode high numbers of

high quality video streams in parallel. Video ﬁlters

will presumably play a more important role in real-

time video adaptation than transcoding in the near fu-

ture.

ACKNOWLEDGEMENTS

The work described in this paper is based on results

of IST FP6 Integrated Project DAIDALOS, which re-

ceives research funding from the European Commu-

nity’s Sixth Framework Programme. Apart from this,

the European Commission has no responsibility for

the content of this paper. The information in this doc-

ument is provided as is and no guarantee or warranty

is given that the information is ﬁt for any particular

purpose. The user thereof uses the information at its

sole risk and liability.

Additional support has been provided by the DFG

within the AKOM framework.

REFERENCES

Amir, E., McCanne, S., and Zhang, H. (1995). An appli-

cation level video gateway. In Proceedings of ACM

Multimedia ’95.

Amon, P. and Pandel, J. (2003). Evaluation of adaptive

and reliable videotransmission technologies. In Pro-

ceedings of the 13th Packet Video Workshop, Nantes,

France.

Fankhauser, G., Dasen, M., Weiler, N., Plattner, B., and

Stiller, B. (1999). WaveVideo - an integrated approach

to adaptive wireless video. ACM Monet, Special Issue

on Adaptive Mobile Networking and Computing, 4(4).

ISO/IEC (1994). Generic coding of moving pictures

and associated audio. International Standard 13818,

ISO/IEC JTC1. MPEG-2.

ISO/IEC (2000). Coding of audio-visual objects, part-2 vi-

sual. International Standard 14496-2:2001, ISO/IEC

JTC1/SC29. MPEG-4.

ISO/IEC (2004). Information Technology - Multimedia

Framework (MPEG-21) - Part 7: Digital Item Adap-

tation. Technical Report 21000-7:2004, ISO/IEC

JTC1/SC29/WG11.

Kassler, A., Neubeck, A., and Schulthess, P. (2001). Clas-

siﬁcation and evaluation of ﬁlters for wavelet coded

videostreams. Signal Processing Image Communica-

tions, 16(8):795–807.

Kassler, A. and Schorr, A. (2003). Generic QoS aware me-

dia stream transcoding and adaptation. In Proceedings

of the 13th Packet Video Workshop, Nantes, France.

Keller, R., Choi, S., Decasper, D., Dasen, M., Fankhauser,

G., and Plattner, B. (2000). An active router architec-

ture for multicast video distribution. In Proceedings

of INFOCOM, pages 1137–1146, Tel Aviv, Israel.

McCanne, S., Vetterli, M., and Jacobson, V. (1997). Low

Complexity Video Coding for Receiver-Driven Lay-

ered Multicast. IEEE Journal on Selected Areas in

Computing (JSAC), 14(6):983–1001.

Sun, H., Chen, X., and Chiang, T. (2005). Digital Video

Transcoding for Transmission and Storage. CRC

Press.

Sweazey, P. and Smith, A. J. (1986). A class of compatible

cache consistency protocols and their support by the

IEEE futurebus. In Proceedings of the 13th Interna-

tional Symposium on Computer Architecture.

Vetro, A., Christopoulos, C., and Sun, H. (2003). Video

transcoding - architectures and techniques: An

overview. IEEE Signal Processing Magazine.

Yeadon, N., Garcia, F., Hutchinson, D., and Shepherd, D.

(1996a). Filters: QoS support mechanisms for multi-

peer communications. IEEE Journal on Selected Ar-

eas in Communications, 14:1245–1262.

Yeadon, N., Garcia, F., Shepherd, D., and Hutchison, D.

(1996b). Continuous media ﬁlters for heterogeneous

internetworking. In Proceedings of the SPIE Multime-

dia Computing and Networking, San Jose, CA.

SIGMAP 2006 - INTERNATIONAL CONFERENCE ON SIGNAL PROCESSING AND MULTIMEDIA

APPLICATIONS
