SEGMENTING OF RECORDED LECTURE VIDEOS

The Algorithm VoiceSeg

Stephan Repp, Christoph Meinel

Hasso-Plattner-Institut for Software System Engineering (HPI),University of Potsdam, D-14440 Potsdam, Germany

Keywords: Topic segmentation, recorded lecture videos, imperfect and erroneous transcripts, indexing, retrieval.

Abstract: In the past decade, we have witnessed a dramatic increase in the availability of online academic lecture

videos. There are technical problems in the use of recorded lectures for learning: the problem of easy access

to the multimedia lecture video content and the problem of finding the semantically appropriate information

very quickly. The first step to a semantic lecture-browser is the segmenting of the large video-corpus into a

smaller cohesion area. The task of breaking documents into topically coherent subparts is called topic

segmentation. In this paper, we present a segmenting algorithm for recorded lecture videos based on their

imperfect transcripts. The recorded lectures are transcripted by an out-of-the-box speech recognition

software with a accuracy of approximately 70%-80%. Words as well as a time stamp for each word are

stored in a database. This data acts as the input to our algorithm. We will show that the clustering of similar

words, the generation of vectors with the values from the clusters and the calculation of the cosine-mass of

adjacent vectors, leads to a better segmenting result compared to a standard algorithm.

1 INTRODUCTION

This paper describes a technique for improving

access to recorded lecture videos by dividing them

into topically coherent sections without the help of

extern resources like slides or textbooks. The aim of

this paper is to discover the topic boundaries of the

lecture videos based on the imperfect transcripts of

the recorded lecture videos. Segmenting of the

lecture is important for further processing of the

data. Topic segmentation has been extensively used

in information retrieval and text summarization. For

the information retrieval task, the user would prefer

a document passage in which the occurrence of the

word/topic is concentrated in one or two passages.

Further more, these elements of the lecture are

necessary for the index in a semantical design (Repp

and Meinel, 2006).

In the past decade, we have witnessed a

dramatic increase in the availability of online and

offline academic lecture material. An example of

this being, the newly developed tele-teaching system

called "tele-Task" (Schillings et al., 2002). This

system allows a video sequence to be bundled with

the capture of the speaker’s desktop. This

multimedia stream can be broadcast live or on

demand over the Internet. These archived

educational resources can potentially change the

way people learn (Linckels, et. al. 2005).

Transcripts of live-recorded lectures consist of

unscripted and spontaneous speech. Thus, lecture

data has much in common with casual or natural

speech data, including false starts, extraneous filler

words and non-lexical filled pauses (Glass et al.,

2004). Furthermore, a transcript is a stream of words

without punctuation marks. Of course, there is also a

great variation between one tutor’s speech and

another’s. One may speaks accurately, the next

completely differently with many grammatical

errors, for example. One can also easily observe that

the colloquial nature of the data is dramatically

different in style from the same presentation of this

material in a textbook. In other words, the textual

format is typically more concise and better

organized. Speech recognition software produces

outcomes prone to error, approximately 20%-30% of

the detected words being incorrect. The not-in-the-

vocabulary-problem is a dilemma of the recognition

software too (Hürst, 2003). The software needs a

database of all words used by the lecturer for the

transcription process. If a word that occurs in the

speech of the lecturer is not in the vocabulary, the

wrong word is transcripted by the engine.

Furthermore, the changing of language in a

presentation may lead the software to unsolvable

317

Repp S. and Meinel C. (2006).

SEGMENTING OF RECORDED LECTURE VIDEOS - The Algorithm VoiceSeg.

In Proceedings of the International Conference on Signal Processing and Multimedia Applications, pages 317-322

DOI: 10.5220/0001570603170322

 SciTePress

problems. A lecture presented in German may

sometimes use English terminology. This causes

wrong words to be included in the transcript

Our algorithm takes these properties into

account, and in this paper, we will show how our

segmenting technique will work.

2 RELATED WORK

In the past decade, a lot of research on topic

segmentation has been carried out. In (Reynar,

1998), Reynar gives a thorough review of Topic

Segmentation. The algorithm TextTiling (Hearst,

1997) and Dotplotting (Reynar, 1998) are based on

lexical item repetition (an item being a sequence of

characters, a stem, a morphological root or an

ngram). Another emphasis of research is the area

based on Semantic Network (Morris and Hirst,

1991) and (Nicola, 2004). Morris used a thesaurus to

detect topic boundaries based on lexical cohesion

relations called lexical chains. An application of text

segmentation is the segmentation of broadcast news.

This application uses systems relying on supervised

learning (Beefermann et. al., 1999). These

approaches cannot be applied to domains for which

no training data exists.

The third main research focus is to detect patterns

(for instance cue phrases) around topic boundaries

(Chau et. al., 2004)(Tür et. al., 2001). They use the

appearance of particular words before a boundary

and the appearance of cue words at the beginning of

the previous sentence. Chau et. al. combined and

adapted the TextTiling technique, the cue phrase

technique and the lexical cohesion technique to

perfect transcripted lecture videos. He obtained a

segmenting result of around 70% precision and

around 70% recall. This research was done for

perfect text or transcript with whole sentence and

correct grammar.

These techniques require an accurate corpus of

text! As the author knows, no work is done to do the

topic segmenting with real world data from

imperfect transcript of recorded lectures and without

other resources like textbooks or slides. In this

paper, we will demonstrate some results of our

research on the topic of segmentation of imperfect

transcripts.

The indexing-process resulting in the imperfect

transcript of lecture videos is described in (Hürst,

2003). He evaluated that indexing may be done with

a high vocabulary automatic speech recognition

system (a commercial, “out-of-the-box” system).

However, the accuracy of the speech recognition

software is rather low, the recognition accuracy of

audio lecture being approximately 22%-60%. It is

shown in (Chau et. al., 2004) that audio retrieval can

be performed with out-of-the-box speech recognition

software. Hürst comes to the conclusion that the

imperfect transcripts of recorded lectures are useful

for further standard indexing processes (Hürst,

2003). Repp and Meinel show that a smart

semantical indexing may be done even with

incorrect transcripts (Repp and Meinel, 2006).

To segment the lecture, the chapter from the

slides is often used (Hürst et. al., 2003). However,

the segments of the slides are partially wrong,

because the lecture speech is highly dynamics. The

tutor uses his freedom to report on topics not

classified by the slides.

3 ALGORITHM

An algorithm which detects topic boundaries in

imperfect transcripts has to be very robust against

wrongly recognized words, and to the not-in-the-

vocabulary-problem. Furthermore, the transcripts

consist of a stream of words and not of cohesive

areas like sentences or chapters. We show in our

algorithm VoiceSeg how topic-boundaries for

domain independent and imperfect transcripts of

recorded lecture videos can be generated. In addition

we implement a TextTiling algorithm for comparing

our algorithm with a standard segmenting algorithm.

Our VoiceSeg algorithm consists of five steps: After

a standardized preprocessing with a ‘tagger’ and

deletion of stop-words, the similar and adjacent

words are grouped in clusters. We fill the vector-

elements with the values of the cluster data. After

that we build vectors and weight the elements in the

vector. Then we calculate the cosine-mass of two

adjacent vectors to get the similarity of the

neighboring areas. The last step involves the

determining of boundaries.

3.1 Preprocessing

First the stop-words from the output transcript of the

out-of-the-box speech recognition software are

deleted. The generation of the transcript is described

in (Repp and Meinel, 2006). After that, the words

from the transcript are transformed into their stem

with the TreeTagger provided by the institute for

“Maschinelle Sprachverarbeitung, Stuttgart”

(http://www.ims.uni-stuttgart.de; last access:

02/02/2006). The transcript is now a stream of stems

with a time stamp for each stem.

SIGMAP 2006 - INTERNATIONAL CONFERENCE ON SIGNAL PROCESSING AND MULTIMEDIA

APPLICATIONS

318

This stream can contain all verbosity, such as a

noun, verb, number etc… From that set we store the

distinct stems

(1)

In other words,

L consist of all distinct stems

(without stop-words) detected by the speech

recognition engine of the course. A term is any

stemmed word within the course.

3.2 Clustering

The clustering is used to detect cohesive areas

(lexical chains) in the transcript. Our algorithm is

similar to the algorithm descript in (Galley et. al.,

2003), but we generated windows after a fix time

interval.

A chain is constructed to consist of all repetitions

ranging from the first to the last appearance of the

term in the course. The chain is divided into subparts

when there is a long hiatus (time distance ε )

between the terms. The chain is a segment of

accumulated appearance of equal words w

∈

inside the transcript. For all term-chains with start

time and end time are generated. The chains of the

terms may be overlap, because they have been

generated for any stems used in the course. For all

chains (we will call them a cluster) that have been

identified for the terms, a weighting scheme is used.

Clusters containing more repeated terms receive

higher scores.

Let ts

∈N be the start-time and te∈N be the end-

time of a term. Every occurrence of the term

the transcript has a start-time ts

and an end-time te

Let p

∈N be the position of the term w

p=1 is the

first occurrence of the term w

, p=2 is the second

occurrence of w

, p=E is the last occurrence of w

the stream. The term w

on the position p is then

defined as w

i,p

. (see Figure 1) Let ε be the maximum

time distance between two equal terms (w

i,p

.and

i,p+1

) inside of a cluster. Let TN be the number of

the terms w

inside of the cluster. Let n be the index

of TN. Thus the cluster is defined as:

where for all:

and:

and: (2)

p=E-TN+1 is the first position of the term w

inside

the last cluster (of w

) in the course.

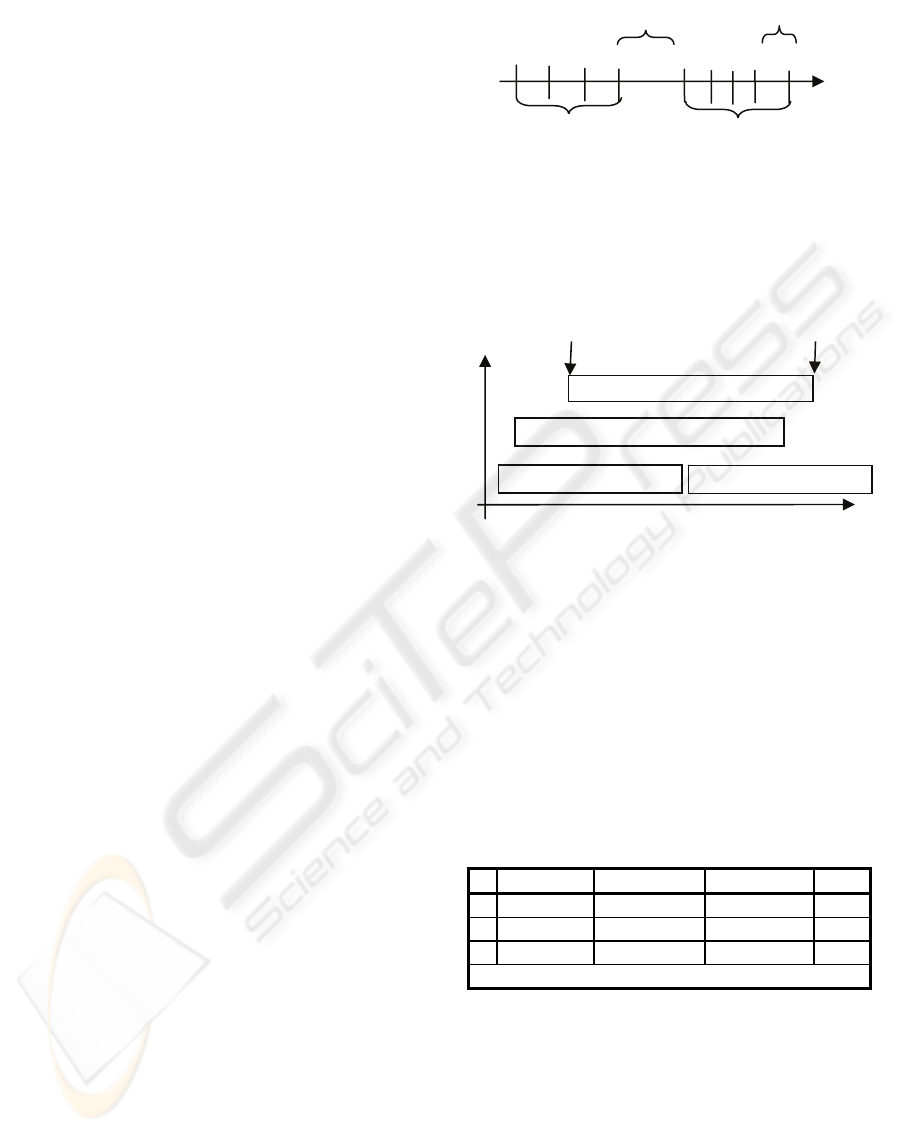

Figure 1: The clusters for one example word w

A cluster is an area inside the course. A term w

occurs very often in this area and the time distance

between adjacent and equal terms in this area is

lower than the bound ε. The clusters are generated

for all w

i..

time

Figure 2: Stored data for the cluster.

The main steps of the clustering algorithm of the

course run in the following way (see the equation (3)

and (4)): Take the term w

and create the clusters C

so that the distance between two equal terms

i,p

.and w

i,p+1

) is not more than the time-distance ε,

otherwise create a new cluster C

k+1

. Count the

occurrence TN

of the terms w

in the cluster C

and

store TN

, the start-time and the end-time of C

the database (see Figure 2 and Table 1). Do this for

all terms w

Table 1: Example set of cluster-data.

tets

−

(3)

→ w

i,p+1

is in the cluster C

tets −≤

(4)

→ w

i,p+1

is not in the cluster C

; start a new cluster

k+1

The tables 2 and table 3 provide overview of the

index and some important abbreviations used in this

paper.

C Term start-time end-time TN

1 TCP 160sec 240sec 15

2 TCP 250sec 360sec 4

3 topology 152sec 260sec 7

etc…

i,5

i,6

i,7

i,1

i,2

i,3

-te

≤ ε

-te

> ε

cluster

cluster k+1

()( )( )

{}

TNpTNpTNpipppipppi

tetswtetswtetswC

111,

,,,...,,,,,,

−+−+−++++

:TCP, TN

: 15

star

-time en

-time

:TCP, TN

: 4

: topology, TN

: 7

, w

:WWW, TN

: 3

},...,,,{

321 iR

wwwwL =

10 −<≤ TNn

11 +

−

≤≤ TNEp

≤−

+++

)(

1 npnp

tets

SEGMENTING OF RECORDED LECTURE VIDEOS - The Algorithm VoiceSeg

319

Table 2: Abbreviation. Table 3: Overview of

used indices

3.3 Vectoring and Weighting

The next step is to produce the vectors. In order to

do so, we use the cluster-values at a specific time

t to create the vector a

. Furthermore, we define a

time-distance d between two adjacent vectors (see

equation (5)). After the time d we produce a new

vector a

j+1

: dtt

(5)

…

time

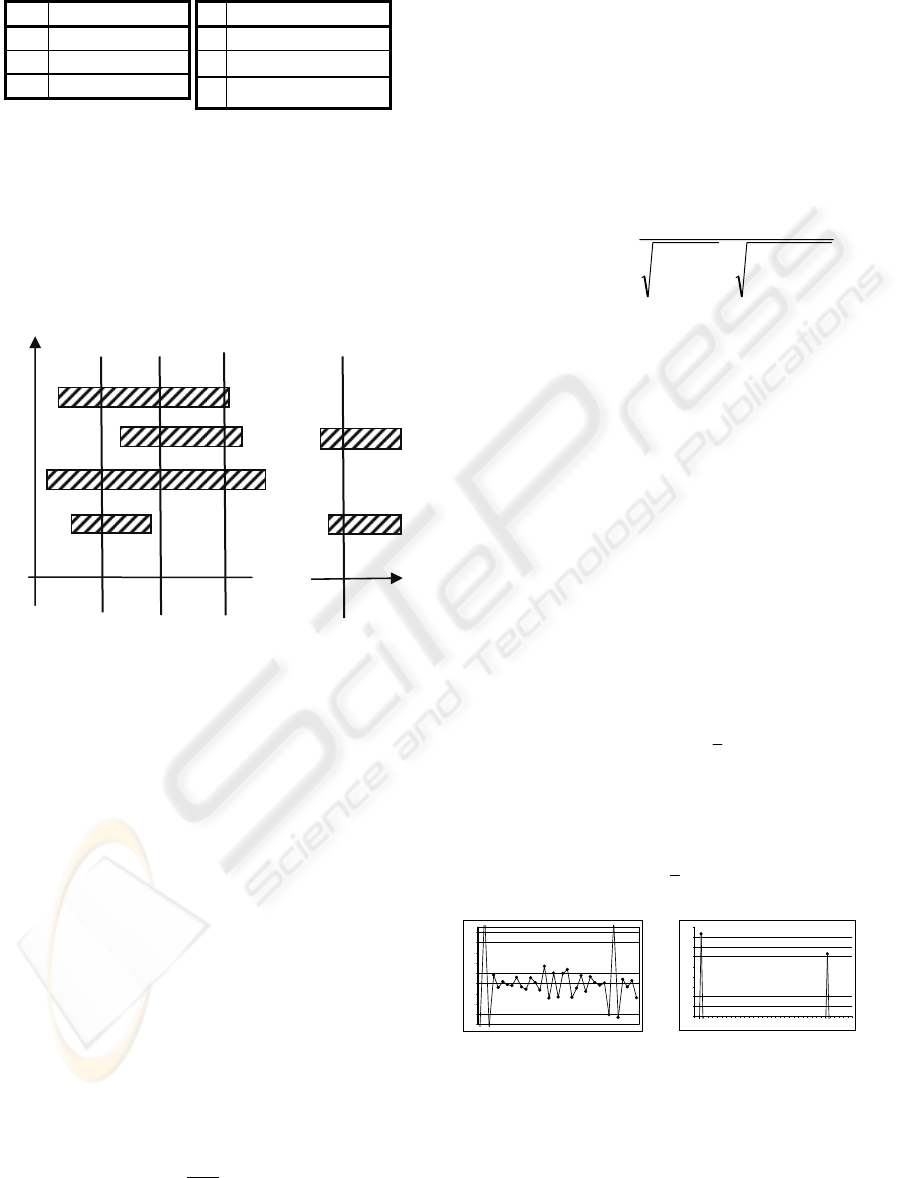

Figure 3: The production of the vectors.

The elements a

j,i

are filled with the term number

(TN

) from the cluster. When there is no cluster for a

word w

and for the specific time

the element a

j,i

is filled with 0. The figure 3 shows this procedure.

We define a parameter WM as a minimum term

number needed in the cluster for filling the element

j,i

. WM may, for example, be defined as 3. If the

cluster consists of a term number TN

which is

higher or equal than 3 aj,i is filled with TN

otherwise aj,i is set to 0.

We assume that a topic shift occurs, if somebody

uses different terms. The lecturer speaks on the topic

a, than topic b, than topic c and so on. He used for

each topic some different terms. A topic shift arises,

if a term occurs only in few chains. So the weighting

of the elements works in the following way: If a

cluster occurs very infrequently it is much more

relevant than the clusters which occur very often.

The cluster is also more relevant, if the TN

is high.

So the elements are weighted as follows:

(6)

where n

= is the number of all clusters for the term

in the course. (a

j,i

was filled with TN

described

before).

3.4 Similar Measuring

For the similar measuring we use the well known

cosine-mass method (Baeza-Yates and Ribeiro-Neto,

1999). The calculation of the cosine-mass of

adjacent vectors is defined as:

(7)

The elements S

and S

are represented by 0 for the

reason that no values of neighboring vectors exist.

3.5 Identifying Boundaries

Our identification of the boundaries is based on

(Hearst, 1997). The calculation of the equation (8)

produces a similarity graph. For better understanding

of the variation of S

score, each time its value goes

from a high value to a low value and back up to high

again, the resulting valley is called a downhill. The

deeper the downhill, the better the hit for a

boundary. The downhill is defined as:

jjjjj

SSSSSdownhill −+

−

+− 11

)( (8)

We calculate all downhills with the equation above

(8) and get the following graph, which is shown by

the figure 4. Once all downhills in the data-set have

been calculated, their mean

x and the standard

deviation

of the set of )(

Sdownhill are

evaluated. The topic-boundaries are elected if the

data satisfies the constraint expressed in equation

(9). See figure 5.

+≥ xSdownhill

)(

(9)

Figure 4: The downhills. Figure 5: Detecting of

segment boundaries.

In the result-set of potential boundaries, we may

detect values which are very close to each other. If

this occurs and the densely populated results ensue,

w stem

a vector

C cluster

TN term number in C

i number of the stem

k number of the cluster

p position of the term

j number of the Vector

∑∑

∑

ijji

jjj

aasimS

)()(

),(

0,57

0,67

0,77

0,87

0,97

1,07

1,17

1,27

1,37

1,47

2,5 4 5,5 7 8, 5 10

-0,8

-0,6

-0,4

-0,2

0,2

0,4

0,6

0,8

SIGMAP 2006 - INTERNATIONAL CONFERENCE ON SIGNAL PROCESSING AND MULTIMEDIA

APPLICATIONS

320

then data may be cancelled. If the distance between

two neighboring boundaries S

and S

j+n

is lower than

60 sec the boundary S

j+n

is not a boundary and it is

cancelled.

It must be borne in mind that the algorithm detects

the similarity between two adjacent vectors, which

have a time distance of d. So the start time of a topic

segment falls at the calculated time (

t ) minus the

distance d. The start time of the topic segment is,

therefore,

1−j

4 EVALUATION

The corpus of the videos consists of the course

“Einführung in das WWW” held in German in the

first semester 2005 at the Hasso Plattner Institut

Potsdam. The videos can be found at www.tele-

task.de. This part of the course consists of 16

lectures, each lecture lasting approximately 90

minutes. The video corpus has a total length of

approximately 1440 minutes. As previously

mentioned the word error rate is between 20%-30%.

Our algorithm is based on the imperfect transcript

of recorded videos. It is very difficult to compare

our algorithm with other reference data sets, because

no such sample sets exist for this purpose.

There stile exists the sizeable problem of hitting

the manual segmenting area with the help of a

segmenting algorithm. If we decide that the segment

starts at one particular time it is not possible to hit

the boundary in exact seconds by a segmenting

algorithm. Therefore, the so-called start-duration

area is determined at the beginning of a segment.

This start-duration area is an area (start-time to start-

time + start-duration), where the topic starts. If the

auditor begins the topic in this area, he may

understand the whole topic. For instance, the speaker

starts with a short general introduction, and then

begins the segment “topology”. All hits in that

beginning-phase (start-duration phase) are taken as

correct hits. Furthermore a variation of ± 15sec of

this area is accepted.

We can not use the probabilistic accuracy metric

(Beeferman et. al., 1999) for topic segmentation

because the mass is based on sentence and an exact

defined boundary. In our case we have an area of a

break, which we mention before. For our evaluation

we use the recall and precision mass adapted to topic

segmentation (Baeza-Yates and Ribeiro-Neto,

1999), (Chau et. al.,2004).

We manually segment tree lectures of the course

with 77 segments. A simple baseline segmenting

algorithm is also developed. Given the average

distance (d

) between two adjacent segments in the

lecture, the baseline algorithm chooses every point

(after the time d

) to represent a boundary.

The TextTiling algorithm is based on (Hearst,

1997) and (Chau et. al., 2004). We build a sliding

window system. We move a sliding window (e.g.

120 words) across the text-stream over a certain

interval (e.g. 20 words) and compare the

neighboring windows with each other. The equation

(7) is used to calculate the similarity between the

vectors. The boundaries identification is done in the

same way as it is done by the VoiceSeg algorithm.

If you are interested in the detailed evaluation of

the data please contact the author.

Table 4: Baseline uniformly distributed.

baseline precision recall

120 / 10 32.50% 33.66%

Table 5: TextTiling variation of the step size.

window / step precision recall

120 / 10 36.07% 28.57%

120 / 20 38.20% 23.38%

120 / 30 35.00% 18.18%

Table 6: TextTiling variation of the window size.

window / step precision recall

140 / 20 37.84% 18.18%

120 / 20 38.30% 23.38%

100 / 20 33.96% 23.38%

Table 7: VoiceSeg variation of the cluster number TN;

parameters:

=120 second, d=15 second.

word in cluster TN precision recall

min 1 54.05% 51.95%

min 2 65.75% 62.38%

min 3 54.88% 58.44%

min 4 51.39% 48.05%

min 5 55.07% 49.35%

Table 8: VoiceSeg variation of the vector distance d;

parameters:

=120 second, TN=2.

vector distance d precision recall

5 sec 45.31% 37.66%

10 sec 51.39% 48.05%

15 sec 65.75% 62.38%

20 sec 59.21% 58.44%

25 sec 66.18% 58.44%

30 sec 62.90% 50.65%

45 sec 56.67% 44.16%

60 sec 61.70% 37.66%

90 sec 53.13% 22.08%

SEGMENTING OF RECORDED LECTURE VIDEOS - The Algorithm VoiceSeg

321

Table 9: VoiceSeg variation of the cluster parameter

;

parameters: d=15 second, TN=2.

cluster distance

precision recall

60 sec 42.39% 50.65%

120 sec 65.75% 62.38%

180 sec 45.95% 44.38%

240 sec 46.27% 40.28%

300 sec 46.23% 33.77%

5 CONCLUSION AND OUTLOOK

In this paper, we present a system of segmenting

imperfect transcripted lecture videos. We show in our

evaluation that it is possible to detect boundaries in an

imperfect transcript. The results are surprisingly high.

Bear in mind that the raw material is highly erroneous

(only 70%-80% being correctly recognized). The

parameter d=15 seconds,

=120 seconds and a TN of

2 are considered optimum. The VoiceSeg algorithm

(precision 65.75%, recall 62.38%) is more

successful at detecting the boundaries compared to

the adapted TextTiling-algorithm (precision 38.30%,

recall 23.38%) and the baseline algorithm (precision

32.50%, recall 33.66%).

Our Algorithm and the TextTiling-algorithm have

problems in detecting boundaries inside repetition-

segments or inside overview-segments (which occur at

the beginning and end of a lecture). In these segments,

many infrequent words occur very close together.

Further study may be carried out with our new

algorithm VoiceSeg. We will study the influence of

difference weighting equations and the influence of

other cluster values (length, correlation, etc…) to the

results. We will adapt the cue phrase, or other pattern

detecting techniques in the areas around potential

boundaries (for example, pauses). Another important

point is to compare our result with the result of other

state of the art topic segmentation algorithm (Galley

et. al., 2003), (Choi 2000) using erroneous transcripts.

We are also working on a "lecture-browser" for a

simple navigation through the corpus of lectures. This

lecture-browser will help students in their learning and

will make the process of learning more efficient. The

combination of pedagogical and content description

leads to novel forms of visualization and exploration

of course lectures.

REFERENCES

Schillings V.; Meinel, C., 2002. tele-TASK - Teleteaching

Anywhere Solution Kit. In Proceedings. ACM

SIGUCCS 2002, 130-133. Providence, USA.

Hürst, W., 2003. A qualitative study towards using large

vocabulary automatic speech recognition to index

recorded presentations for search and access over the

web. IADIS International Journal on WWW/Internet,

Volume I, Number 1: 43-58.

Chau, M.; Jay, F.; Nunamaker, Jr.; Ming, L., Chen, H.

,2004. Segmentation of Lecture Videos Based on Text:

A Method Combining Multiple Linguistic Features. In

Proceedings of the 37th Hawaii International

Conference on System Sciences. Hawaii, USA.

Baeza-Yates, R.; Ribeiro-Neto, B., 1999. Modern

Information Retrieval. New York, USA: Addison-

Wesley.

Glass, J.; Hazen, T.J.; Hetherington, L.; Wang, C., 2004.

Analysis and Processing of Lecture Audio Data:

Preliminary Investigations. In Proceedings of the

HLT-NAACL 2004 Workshop on Interdisciplinary

Approaches to Speech Indexing and Retrieval, 9-12.

Boston, MA, USA.

Linckels, S.; Meinel, Ch.; Engel, T., 2005. Teaching in

theCyber Age: Technologies, Experiments, and

Realizations. In Proceedings of 3. Deutschen e-

Learning Fachtagung der Gesellschaft für Informatik

(DeLFI), 225 – 236. Rostock, Germany.

Repp, S.; Meinel, C., 2006. Semantic Indexing for

Recorded Educational Lecture Videos. In Proceedings

of the Fourth Annual IEEE International Conference

on Pervasive Computing and Communications

Workshops (PERCOMW'06), 240-245. Pisa, Italy.

Nicola, S., 2004. Applications of Lexical Cohesion

Analysis in the Topic Detection and Tracking Domain.

Ph.D. diss., Dept. of Computer Science, University

College Dublin.

Hearst, Marti A., 1997. TextTiling: Segmenting Text into

Multi-paragraph Subtopic Passages. Computational

Linguistics 23, 33-64. Cambridge, MA: MIT Press.

Reynar, J. C., 1998. Topic Segmentation: Algorithms and

application. Ph.D. diss., University of Pennsylvania.

Morris, J.; Hirst, G., 1991. Lexical cohesion computed by

thesaural relations as an indicator of the structure of

text. Computational Linguistics 17, 21-48. Cambridge,

MA: MIT Press.

Tür, G; Hakkani-Tür, D; Shriberg, E., 2001. Integrating

Prosodic and Lexical Cues for Automatic Topic. In

Segmentation CoRR

Beeferman, D; Adam, L.; Berger, A.; Lafferty, J., 1999.

Statistical Models for Text Segmentation. In Machine

Learning 34

Choi, F., 2000. Advance in domain independent linear text

segmentation. In Proceedings of NAACL

Galley, M.; McKeown, K.; Fosler-Lussier, E.; Jing, H.,

2003. Discourse Segmentation of Multi-Party

Conversation In Proceedings of the 41st Annual

Meeting of the Association for Computational

Linguistics

SIGMAP 2006 - INTERNATIONAL CONFERENCE ON SIGNAL PROCESSING AND MULTIMEDIA

APPLICATIONS

322
