CONTENT-BASED VISUAL RETRIEVAL ON MULTIPLE

FEATURES IN THE IMAGE DATABASES OBTAINED FROM

DICOM FILES

Liana Stanescu, Dan Dumitru Burdescu

Faculty of Automation, Computers and Electronics,University of Craiova, Bvd. Decebal, Craiova, Romania

Keywords: Content-based visual retrieval, color, color texture, region detection, color set back-projection algorithm.

Abstract: The paper presents the results of some experiments effectuated in the content-based visual query process

applied on color medical images extracted from the DICOM files provided by the medical tools. The color

feature was considered first, and the study implied more quantization methods (HSV color space at 166

colors, RGB color space at 64 colors and CIE-LUV color space at 512 colors) and several methods of

computing the dissimilitude between the query and the target images (Euclidian distance, the histogram

intersection and the quadratic distance between histograms). The content-based visual query on color

texture feature was tested using two important methods of texture detection: the co-occurrence matrices and

the Gabor filters. Also, the accurateness of the color set back-projection in detecting color regions

representing sick tissue in medical images was studied. The effectuated statistics encourage the use of this

algorithm in keeping track of the patient evolution under a certain treatment, with performances both in

quality and speed.

1 INTRODUCTION

Retrieving the visual information is important in

many applications starting with the artistic domain

(art galleries, museums), to security and medical

fields, which are in fact the most important (Del

Bimbo, 2001). The purpose of this process is to

retrieve from a database the relevant images for a

query. The extraction of data that describe as

accurately as possible the visual content is essential.

Visual elements such as color, texture, shape that

directly describe the visual content are used for

retrieving images with a similar content from the

database (Del Bimbo, 2001).

One of the domains in which the use of the

content-based visual retrieval is needed is the

medical one. This is mainly due to the fact that in

the process of patient diagnosis, medical tools that

offer images to the doctor are used on a large scale

(Muller et al, 2004). A big part of these medical

tools generates a standard DICOM file including

images and associated data. This process led to very

large medical image databases. Except for the

traditional information retrieval in these databases

(taking into account the patient name, the doctor

name, the diagnosis), it is necessary to have a

content-based visual query for the following

reasons:

• The diagnosis process can be clarified in

certain cases;

• The education and research activity can be

improved by using the access visual methods;

• The visual characteristics allow not only the

retrieving of the patients having the same disease,

but also the cases where the visual similitude exists,

but the diagnosis differs;

There are still few systems that are really

integrated into the medical diagnosis process. The

work for the application of the most suitable

algorithms in image processing and features

extraction continues (Muller et al, 2004). A large

part of the images given by the medical apparatus

are color, in which case the characteristics like color,

color texture and shape must be considered.

In this article, the research has been effectuated

on color images extracted from DICOM files

provided by medical tools used in the diagnosis

process. The images are stored in a database on

which is applied the content-based image query on

color and color texture features because there are

347

Stanescu L. and Dumitru Burdescu D. (2006).

CONTENT-BASED VISUAL RETRIEVAL ON MULTIPLE FEATURES IN THE IMAGE DATABASES OBTAINED FROM DICOM FILES.

In Proceedings of the International Conference on Signal Processing and Multimedia Applications, pages 347-350

DOI: 10.5220/0001572203470350

 SciTePress

some diseases that are characterized by the change

of the color and the texture of the affected tissue, for

example: colitis, esophagitis, polyps, ulcer and

ulcerous tumor. Also, an important medical

application of the color set back-projection

algorithm, which is a method for detecting color

regions, is presented.

2 CONTENT-BASED VISUAL

RETRIEVAL ON COLOR

FEATURE

The color is the visual feature immediately

perceived on an image. In content-based visual

query on color feature is important the used color

space and the level of quantization, meaning the

maximum number of colors (Del Bimbo, 2001).

Because there is not a unanimously accepted

solution on the appropriate color space to be used in

the content–based image query on color feature, the

study realized on color images extracted from the

DICOM files takes into consideration three

solutions, like:

1.The transformation of the RGB color space to

HSV and the quantization at 166 colors (Smith,

1997)-M1

2.The use of the RGB color space quantized at

64 colors – M2

3.The transformation of the RGB color space at

the CIE-LUV and the quantization at 512 colors

(Smith, 1997)– M3

There are considered different color spaces and

different levels of quantization to determine the way

they affect the retrieval quality. It should be

mentioned that in this study there are displayed three

sets of result images that correspond to calculation

mode of the distances between query image and

target image. There have been taken into

consideration the Euclidian distance (D1), the

intersection of histograms (D2) and the quadratic

distance between histograms (D3) (Smith, 1997).

The experiments were performed in the

following conditions:

1. The images and alphanumeric data were

extracted from DICOM files by applying the

necessary algorithms (DICOM, 2006, LEAD, 2006).

2. It was created the test database with 920 color

medical images extracted from the DICOM files,

representing stomach and duodenum ulcers, ulcerate

cancer, hernias and esophagus varicosis.

3. Each image from the database was processed

before the execution of any query.

4. For each experimental query, an image was

chosen like query image and there were established

by a human factor, specialist medic, the images

considered relevant for the respective query.

5. Each of the relevant images for the considered

query was utilized, one by one, for querying the

database containing images. The final values of the

precision and the recall represent an average of the

values resulted in the case of each image taken one

by one as query image.

6. For each experimental query was constructed

the graphic of the precision reported to the recall for

each of the three distances in the case of each

quantization method. Also there were presented

under a tabular form the values that represent the

number of relevant images, existing in the first 5,

respectively 10 retrieved images, on the one hand,

and on the other hand the number of images which

can be retrieved for retrieving among them the first

5, respectively 10 relevant images.

The values from table 1 represent an average of

the resulted values in the case of each image taken,

one by one, as query image for the query that

considers the stomach and duodenum ulcers images.

Table 1: Stomach and Duodenum Ulcers.

D1 D2 D3

5(9) 5(9) 5(9) M1

8(13) 6(11) 7(12)

5(9) 5(9) 5(9) M2

7(18) 6(11) 5(11)

4(7) 5(9) 4(7) M3

8(23) 6(13) 7(17)

3 CONTENT-BASED VISUAL

RETRIEVAL ON COLOR

TEXTURE FEATURE

Together with color, texture is a powerful

characteristic of an image, existing in nature and

medical images, where a disease can be indicated by

changes in the color and texture of a tissue. A series

of methods have been studied to extract texture

feature (Del Bimbo, 2001). Among the most

representatives methods of texture detection are the

co-occurrence matrices and Gabor representations,

studied in this paper (Del Bimbo, 2001, Palm et al.,

2000). There are many techniques used for texture

extraction, but there isn’t a certain method that can

be considered the most appropriate, this depending

on the application and the type of images taken into

SIGMAP 2006 - INTERNATIONAL CONFERENCE ON SIGNAL PROCESSING AND MULTIMEDIA

APPLICATIONS

348

account. Over the past few years, research has been

done in color textures recognition, proving that the

color information improves the color texture

classification (Palm et al., 2000).

The experiments were performed in the

following conditions:

1. the same database with 920 color images

was used;

2. the co-occurrence matrices are computed

for each component R,G,B and three vectors

containing the 6 sizes (energy, entropy, maximum

probability, contrast, inverse difference moment,

correlation) are generated (Del Bimbo, 2001); the

matrices are computed for d=1 and φ=0; in this case

the characteristics vector has 18 values;

3. the Gabor characteristics vector containing

12 values (computed for 3 scales and 4 orientations)

is generated (Palm et al., 2000);

4. the characteristics vectors generated at

points 2 and 3 are stored in the database;

In order to make the query the procedure is:

1. a query image is chosen;

2. the dissimilitude between the query image

and every target image from the database is

computed for each specified criteria (the vector

generated on the basis of the co-occurrence matrices

and the vector for Gabor method);

3. the images are displayed on 2 columns

corresponding to the 2 methods in ascending order

of the computed distance;

For each query the relevant images have been

established. Each of the relevant images has become

in its turn a query image, and the final results for a

query are an average of these individual results.

The experimental results are summarized in table

2. Met 1 represents the query on color texture

feature using Gabor method and Met 2 represents

the query on color texture feature using co-

occurrence matrices.

The values in the table represent the number of

relevant images in the first 5 images retrieved for

each query and each method.

Table 2: The experimental results.

Query

Met 1 Met 2

Polyps 2.2 2.8

Colitis 1.7 1.7

Ulcer 1.8 2.2

Ulcerous

Tumor

1.1 1.5

Esophagitis 1.7 2.5

4 DETECTING COLOR REGIONS

The application of an automated algorithm for

detecting the color regions in medical images has

two important utilizations:

1. in content-based region query on medical

images collections, the specialist chooses one or

more of the detected regions for querying the

database, the purpose being the retrieval of images

with similar color regions; this can be useful for

clarifying some uncertain diagnosis. This problem

was studied in Stanescu et al., 2004, interesting

results being presented;

2. during the evolution in time of the disease

of patients that follow a certain treatment;

For detecting color regions it was chosen the

color set back-projection algorithm, introduced

initially by Swain and Ballard and then developed in

the research projects at Columbia University (Smith,

1997). For each detected regions the color set that

generated it, the area and the localization are stored

in the database. All the information is necessary

further on in studying the evolution of the patients.

The region localization is given by the minimal

bounding rectangle (MBR). The region area is

represented by the number of color pixels, and can

be smaller than the minimum bounding rectangle.


relevant region relevant region

area=367;color=162; area=251; color=126;

MBR=(40,25) MBR=(28,24)

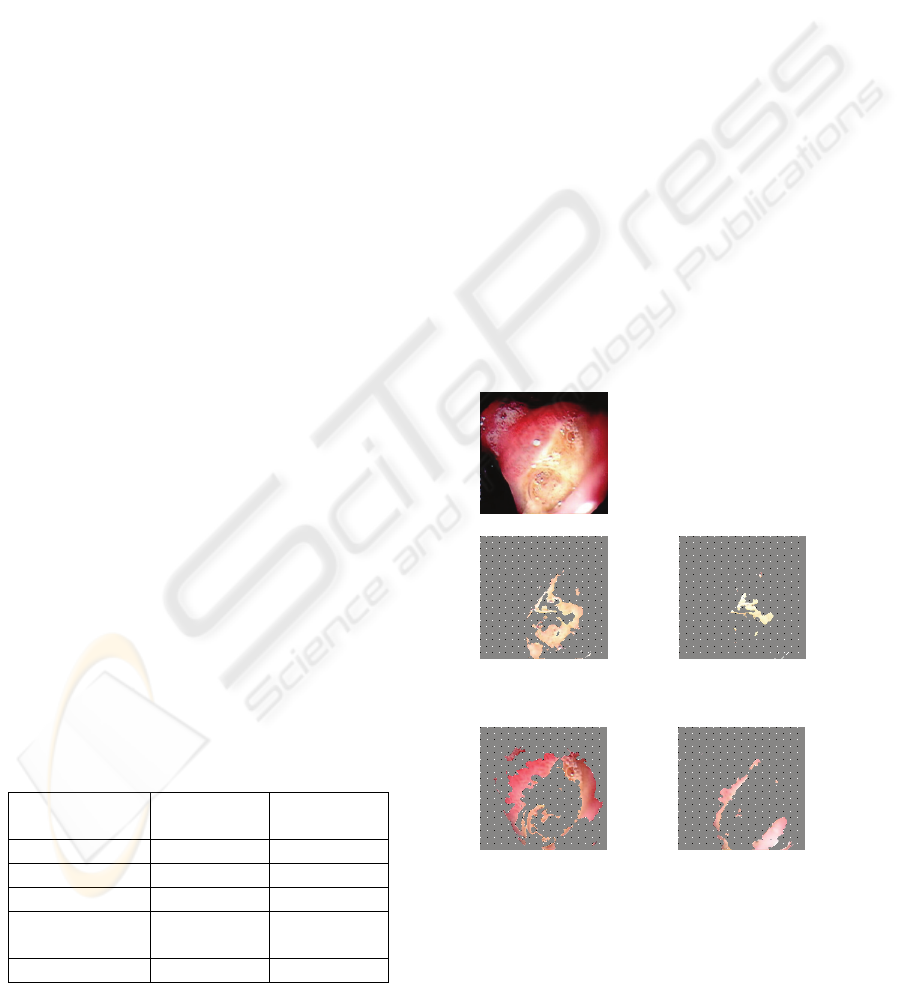

Figure 1: The detected color regions for the image.

The experiments were effectuated on 202 color

images extracted from DICOM files and

representing patients with peptic ulcer disease. The

color set back-projection algorithm is applied on

CONTENT-BASED VISUAL RETRIEVAL ON MULTIPLE FEATURES IN THE IMAGE DATABASES OBTAINED

FROM DICOM FILES

349

each image for detecting the single color regions,

and the region (s) that represents the sick zone were

marked as relevant. By applying a certain drugs

treatment on some patients, at some time intervals

strictly established by the physician, the images

were again collected from the same patients and the

same algorithm is applied for detecting the color

regions. The relevant region(s) that represents the

sick tissue is marked again. The comparison

between the new and old regions detected as

relevant for the same patient, taking into

consideration the number of pixels, can help the

physician to establish in what percentage the sick

region is reduced because of the administrated

drugs. This approach may lead to a more rapid

estimation and correct enough of the percentage in

which the medication has a good effect in the ulcer

diagnosis. This may come in the help of the patients,

specialists, and the drugs producers that intend to

test a medical product. The experiments showed that

there were slight differences between human

observer and computer system in order to appreciate

healing staging. The speed of the retrieval process

was also tested, comparing the time spent by the

observer and the computer to find each patient’s

record in the database. This process was

electronically measured and stored in the computer

for statistics. The result is that the software has a

significantly higher speed than human observer with

no significant decrease of the retrieval quality.

5 CONCLUSIONS

As a result of effectuating an important number of

experiments (synthetically presented here) in the de

content-based visual retrieval process on databases

with images extracted from DICOM files generated

by medical tools, some conclusions are clear. In the

case of the content-based image query on color

feature, the series of effectuated tests indicated that

the best results were obtained for the color space

HSV quantized at 166 colors and using the

histogram intersection for computing the image

similitude. In the case of the content-based image

query on color texture feature, better results are

obtained using the co-occurrence matrices. The two

algorithms (Gabor filters and co-occurrence

matrices) have the same complexity O(n

) where n

represents the maximum dimension of the image

(Burdescu, 1998). As a result, the co-occurrence

matrices method is recommended in this type of

query. The retrieval system can combine two

methods: one based on color feature and the other

based on color texture detected with co-occurrence

matrices, which complete one another. The statistic

studies for the color set back-projection algorithm in

keeping track of the patient evolution, during the

treatment of a certain disease, emphasize a superior

speed in sick region detection and a similar quality

between the computerized mode and the process

effectuated by the specialist.

In the future, the studies will be extended on

more types of color medical images and new

methods will be implemented and compared, taking

into consideration the same factors: the complexity

of the algorithm and the retrieval quality.

REFERENCES

Burdescu, D.D., 1998. Analiza complexitatii algoritmilor,

Ed. Albastra. Cluj-Napoca.

Del Bimbo, A., 2001. Visual Information Retrieval,

Morgan Kaufmann Publishers. San Francisco USA.

DICOM Homepage, 2006. http://medical.nema.org/

LEAD Technologies, 2006.

http://www.leadtools.com/SDK/Medical/DICOM/ltdc1.htm

Muller, H., Michoux, N., Bandon, D., Geissbuhler, A.,

2004. A Review of Content_based Image Retrieval

Systems in Medical Application – Clinical Benefits

and Future Directions. Int J Med Inform. 73(1)

Palm, C., Keysers, D., Lehmann, T., Spitzer, K., 2000.

Gabor Filtering of Complex Hue/Saturation Images

For Color Texture Classification. In: JCIS2000, 5th

Joint Conference on Information Science. Atlantic

City, USA.

Smith, J.R., 1997. Integrated Spatial and Feature Image

Systems: Retrieval, Compression and Analysis, Ph.D.

thesis, Graduate School of Arts and Sciences.

Columbia University.

Stanescu, L., Burdescu, D., Mocanu, M., 2004. Detecting

Color Regions and Content-based Region Query in

databases with Medical Images. Periodica

Politechnica, Transactions on Automatic Control and

Computer Science. 49(63)

SIGMAP 2006 - INTERNATIONAL CONFERENCE ON SIGNAL PROCESSING AND MULTIMEDIA

APPLICATIONS

350
