QOS MONITORING AND FAULT DETECTION USING CALL

DETAIL RECORDS

A Different Approach that has Come to Add Value

Gean Davis Breda, Leonardo de Souza Mendes

Universidade Estadual de Campinas – Unicamp, Telecommunications Department, Faculty of Eletrical Engineering

Campinas, Brazil

Keywords: Qos Monitoring, Performance Evaluation, Call Detail Records, Management Systems, Failure Detection.

Abstract: The purpose of this paper is to demonstrate an algorithm to monitor the QoS and, while monitoring, detect

the occurrence of failures in wireless and wireline communication systems. It’s a new approach based on the

analysis of data stored in Call Detail Records (CDR). Each time a call is made in a voice system, VoIP or

PSTN, a detailed record is generated. Detail Records are tickets whose data provide information related to

the system elements involved, such as time and duration of the call, phone types and numbers, SS7

signaling, etc. The tickets are generated and stored either in PSTN switches or in VoIP gateways. For VoIP

systems the detail records are usually called IPDR (Internet Protocol Detail Record). As we have already

mentioned, the algorithm works on the information stored in Detail Records. So, our main goal here is to

show, analyze and classify this algorithm according to its performance and use.

1 INTRODUCTION

In the analysis and production of information

performed by Telecom companies we often see a

rather technical and immediate approach, frequently

disregarding important information collected and

stored in the Telecommunications Management

Databases. An important example of such occurrence

can be found when we analyze the use of Call Detail

Record. Currently, their only function in Telecom

Companies is dispose information to the billing

system. CDRs are tickets whose data provide many

information related to the call, such as time and

duration, phone types and numbers, SS7 signaling,

etc. The tickets are generated either in the PSTN

switches or in VoIP gateways, in the case of Internet

Protocol Detail Record, IPDRs.

The objective of this paper is to analyze an

algorithm that can be used for monitoring the QoS

and, in this process, detect failures in wireless

systems (voice communication systems). It is based

on a new approach to where the information

contained in CDR is subjected to several treatments

and analysis. For CDR we mean the Call Detail

Records (Ginzboorg, 2000), for conventional

networks, or the Internet Protocol Detail Record

(IPDR Organization, 2004) (Borthick, 2001), for

VoIP networks.

There are basically no conceptual differences

between CDR and IPDR, therefore, the algorithm

can be equally applied to both cases. Detail records

have a complete range of information that contains

the entire history of a call. It is unlikely that the

information contained in the detail records can be

found anywhere else on the telephone network. Some

examples of information that a detail record contains

are: switch’s name and point code, in/out voice

trunks, in/out voice time slots, origin and terminal

BTS (base transceiver station) number, origin and

terminal RF channels (Radio Frequency), switch

peripheral components (through where the call

passes inside the switch), calling and called phone

numbers, serial phone number, dialed number,

transferred number, phone features, starting and

ending conversation time, call duration, signaling

duration time, SS7 signaling information, internal

call transit, type of response for the call, what

happened to the call, etc. The majority of the

elements contained in detail records can be

monitored in order to detect failures.

Another characteristic of the detail records is

reliability. This allows us to work with the detailed

information contained in the CDR to perform critical

tasks with large confidence in the results. In a

Davis Breda G. and de Souza Mendes L. (2006).

QOS MONITORING AND FAULT DETECTION USING CALL DETAIL RECORDS - A Different Approach that has Come to Add Value.

In Proceedings of the International Conference on Wireless Information Networks and Systems, pages 95-100

 SciTePress

broader view, we can consider the possibility of

using CDR to perform from simple tasks like traffic

monitoring (Chen, Hsu, Dayal, 2000) (Sestak, Kaye,

1990) to complex ones, like the analysis of social and

economic aspects of the system (Yan, et al., 2005).

Such analysis can be performed once each call

received or originated from the system has a

correspondent detail record, making it possible to

analyze the behavior of each user/element in the

network. Therefore, the use of detail records, along

with the algorithms presented here, can help decrease

economic losses as well as lower complaints

associated to a deficient Quality of Service (Mozer,

et al., 2000).

There is only a handful of publications available

about CDRs and IPDRs. Since the CDR and IPDR

carry very strategic information for the operators and

suppliers, it is understandable the reason why

Telecom companies choose to restrict the

information associated to it. There are some works

developed for the use of CDR in Fraud Detection

(Dong, et al., 2004) (Rosset, et al., 1999). In these

works, information is extracted from CDR and used

to build up customer profiles. Other works that use

CDR are related to data mining (Cortes, et al., 2004)

(Trisolini, et al., 1999). As far as we know, there are

no publications using detail records to monitor the

QoS and, consequently, no ways to detect failures in

communications systems.

The remainder of this paper is organized as

follows: in section 2, we describe detail records

classification; in section 3, the algorithm is

introduced and its performance is analyzed; finally,

in section 4, we present the conclusions of this work.

2 RECORDS CLASSIFICATION

The classification of a detail record, which we call

event, is a representation of what happened in a

specific telephone call. It’s much like attributing a

badge or label to each possible call termination. For

instance, if a call were successfully concluded, in

which user “A” spoke to user “B” and the call was

finalized by any of the users, we would have an OK

call. This classification is necessary in order to

identify the system behaviour in all of its range and

paths where the call has been through.

In telephone switchs of some Telecom

companies, such as Nortel (Northern Telecom,

1998), Motorola (Motorola, 1998), and Ericson

(Ericson, 2001), it is possible to classify a detail

record in approximately 300 different ways of a call

termination, which can be considered a highly

detailed classification. This type of classification can

be extremely useful when we are looking for the

cause/origin of a problem in the system. Some

examples of classification: Carrier Loss (CL), RF

channel dropped (RFD), User B does not answer

(UA), User B busy (UB), Technical failure (TF),

Incorrect Dialing (ID), etc.

In Figure 1, we have a flowchart of a typical

call showing some possible events that may happen

in a call attempt.

3 ALGORITHM

We are going to use the algorithm for the monitoring

of the different resources in a wireless

communication system. By resource, we refer to all

the elements in the system, both logical and physical.

A physical resource, as the name says, is related to a

physical component of the system, such as switch

name, BTS number, RF channel, phone number, etc.

A logical resource is a definition like the country and

area codes in the call direction monitoring, switch

software components, etc. The information about the

resources are contained in the detail records. By

monitoring these resources, we aim at following the

behavior of all the events associated to that specific

resource. A resource fails when one or more events

associated to this resource fails. It means that when

we are monitoring a resource in fact we are

monitoring the QoS of each event related to that

resource. In a general way the QoS term is related

with the reliability of the resources, but it can have a

different meaning depending the resource that is

being monitored.

Following, we present the algorithm called Real Time

Algorithm which can be used to detect failures using

CDRs contained in database of telecommunication

management systems of Telecom companies.

Call

Attempt

Detail

Reco rd

Generated

•UserB does notanswer(UA);

• User B busy (UB);

• Resources Overload (RO);

• Technical Failure (TF);

• Incorrect Dialing (ID);

• Premature Hang Off (PH);

•Carrier Loss(CL);

• RF Channel Dropped RFD);

• Congestion (CO);

•...

Call OK

Retry

Call Abandon

Call

Attempt

Detail

Reco rd

Generated

•UserB does notanswer(UA);

• User B busy (UB);

• Resources Overload (RO);

• Technical Failure (TF);

• Incorrect Dialing (ID);

• Premature Hang Off (PH);

•Carrier Loss(CL);

• RF Channel Dropped RFD);

• Congestion (CO);

•...

Call OK

Retry

Call Abandon

Figure 1: Call’s Flowchart.

WINSYS 2006 - INTERNATIONAL CONFERENCE ON WIRELESS INFORMATION NETWORKS AND SYSTEMS

3.1 Real Time Algorithm

The Real Time Algorithm is based on the Renewal

Theory (Feller, 1968) (Cox, 1970) (Nunes, 2001)

applied to Bernoulli trials. The term “Real Time”

means that the algorithm can be run on tickets in the

same time that they are generated and stored.

Another possibility is to run the algorithm offline on

tickets already generated and stored.

To explain the algorithm, we will start to model

the events of the system as random variables. For

example, let X be a random variable that represents a

specific event in a Bernoulli experiment. The Sample

Space of X can take two values

⎭

⎬

⎫

⎩

⎨

⎧

X ,

(1)

where the value X = 1 stands for the occurrence of a

specific event and 0 the occurrence of any other

event. Let’s also assume the probability of X = 1

being equal to p.

Now, we introduce a new random variable Y,

which is the number of events occurring until a

sequence of r ones is formed for the first time, as we

can see from Figure 2. According to the Renewal

Theory, N = E(Y), the mean or the expected value of

Y, can be given as

)1(

)(

NYE

−

(2)

Isolating variable r in (2), we obtain

[]

1)1(ln +−−

(3)

The value of r should always be rounded to the next

integer number in order to assure that the probability

of occurrence of a false positive alarm is restricted to

a certain limits. Then, we should modify the last

equation as

[]

⎥

⎦

⎤

⎢

⎣

⎡

+−−

INTr

1)1(ln

(4)

As a result, this last equation gives the number of

times, r, that an event should happen consecutively

for the correspondent fault to be considered as

having happened. The quantity is directly related to

the probability p and the value N. N is directly

related to the guarantee that a false positive alarm

will be generated in the stipulated limit. We can use

many values for N in accordance with the

necessities. In the example that follows N is equal to

100,000 meaning one false positive alarm in 100,000

alarms. This value is a good level of confidence to be

used.

To analyze the relationship among the quantities,

let’s suppose, for example, that an event has an

average of occurrence of 1% (p = 0.01) and that N is

100,000. Then, by inserting these values in (4) we

obtain that r=3. Therefore, if there are 3 or more

consecutive events an alarm will be generated. If we

want to have a greater guarantee, a bigger N, that a

real fault in fact occurred, that is, a lower probability

of a false positive alarm, we must observe the

corresponding event sequentially occurring in a

larger number of times.

1 1 1 0 0 0 0 1 1 0 . . . . . . . . . . . 1 1 0 0 1 0 1 1 1 1 1 . . . 1 1 1

Sequence of “r” ones

1 1 1 0 0 0 0 1 1 0 . . . . . . . . . . . 1 1 0 0 1 0 1 1 1 1 1 . . . 1 1 1

Sequence of “r” ones

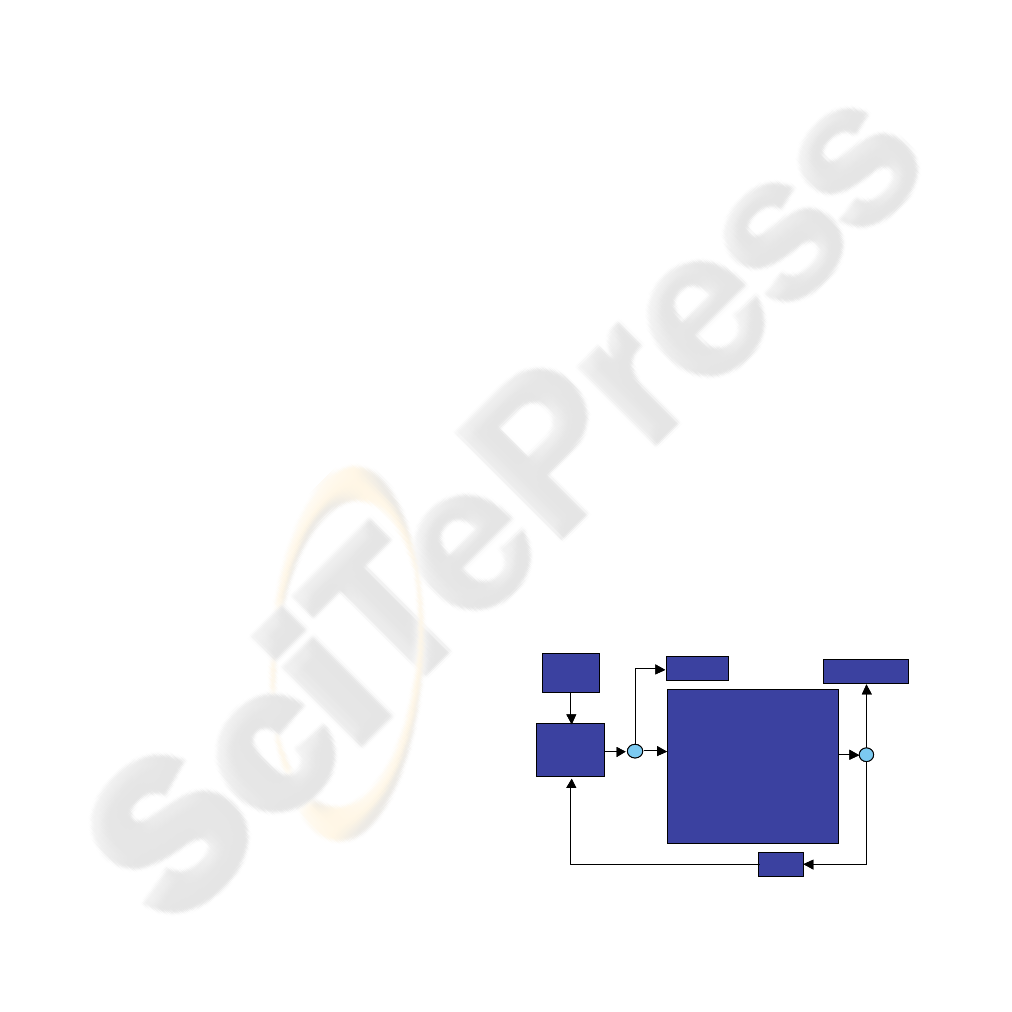

Figure 2: Random Variable.

3.2 Experiment

The algorithm’s performance was tested using data

from real voice communication systems, in this case,

a Brazilian cellular communication company. This

company has 5 million customers appoximately and

uses CDMA technology.

We applied the algorithm to analyze faults of

various resources of the system, such as, Base

Transceiver Station, RF channels, time slots, specific

peripheral controllers, etc. The results shown in

Figure 3 synthesize the behavior of a Base

Transceiver Station (BTS) of a cellular system with

high traffic density.

The algorithm behavior was tested over different

quality levels or probability p, which assumed the

values 1%, 2%, 7%, 17%, 27%, 37%, 47%, 57%,

67% and 77% . For each level we find, by using

formula (4), the number r for detection of failure for

that specific event. The quality level or probability p

is used here as the Acceptance Quality Level (AQL).

The method adopted in the fault detection was to

degrade the QoS of the BTS through random

generation of problems in the RF channels. The

troubleshooting was generated in a cumulative form,

which means, a RF channel with a normal behavior

starts to behave irregularly, presenting problems. In a

second instant another channel starts to present the

same failure and so on successively. As more

channels present problems the QoS degrades. Each

time the QoS degrades the algorithm is applied in

order to detect any anomalies.

QOS MONITORING AND FAULT DETECTION USING CALL DETAIL RECORDS - A Different Approach that has

Come to Add Value

The detection of this type of failure is complex,

considering that the generation of these problems is

purely random. It will be easier and faster to detect it

if there is some order in the degradation of resources.

An order presumes smaller entropy or a greater

amount of information than just purely random

occurrences.

3.3 Results

Each curve in Figure 3 represents the algorithm’s

behavior for one specific quality level or probability

p. Each curve was created through the degradation of

QoS on the BTS, represented on the horizontal axes.

Around 5,000 experiments were done for each

probability p, each curve, and evaluated in each

experiment the value of degradation (%) of the QoS

in which the failure was detected. The results are

curves similar to Normal Distribution.

Each curve basically shows that if a resource

starts to degrade its QoS, this degradation will be

monitored by the algorithm according to the behavior

of the specific curve shown in Figure 3. In order to

know the probability of failure detection on a

resource when the quality level is, for instance, 3%

and the degradation is, for instance, 10%, it is

necessary to integrate, on the relative curve, from the

initial point until to the point 10%. This represents

the Cumulative Distribution Function and expresses

the chance of detection.

As the degration in the QoS increases the

probability of detention of the failure also increases.

When the degradation in the resource is caused by a

small failure that causes small changes in the QoS,

the algorithm can or not detect the failure.

Another important variable that should be

measured is the amount of time needed to detect the

fault. We could observe that the algorithm’s behavior

related to time detection varies according to the

quality level as well as the QoS degradation level.

We concluded that these algorithms are extremely

efficient once there is a great degradation on the QoS

of a resource. In these cases, the failure detection

only takes a few seconds.

When degradation is not so critical, the algorithm

may or may not detect the failure. Therefore, there is

no way to guarantee the exact moment the

degradation on the QoS will be detected. This can be

verified by inspecting the four graphs in Figure 4,

where we have a representation of the BTS behavior

with quality level or p equals to 12% and with a

degradation of 24.7%, 44.5%, 64.3% and 74,2%,

respectivelly. Degradation of 24.7% means that

24.7% of all RF channels in the BTS are out of

service. The horizontal axis represents the time in

which the failure was detected and the vertical axis

shows the amount of times in which the failure was

detected in the total of 4,000 experiments.

Different Quality Levels

100

200

300

400

500

600

700

800

900

1000

Response related to Degradation of the Resource (%)

Occurences

17%

27%

37%

47%

57%

67%

77%

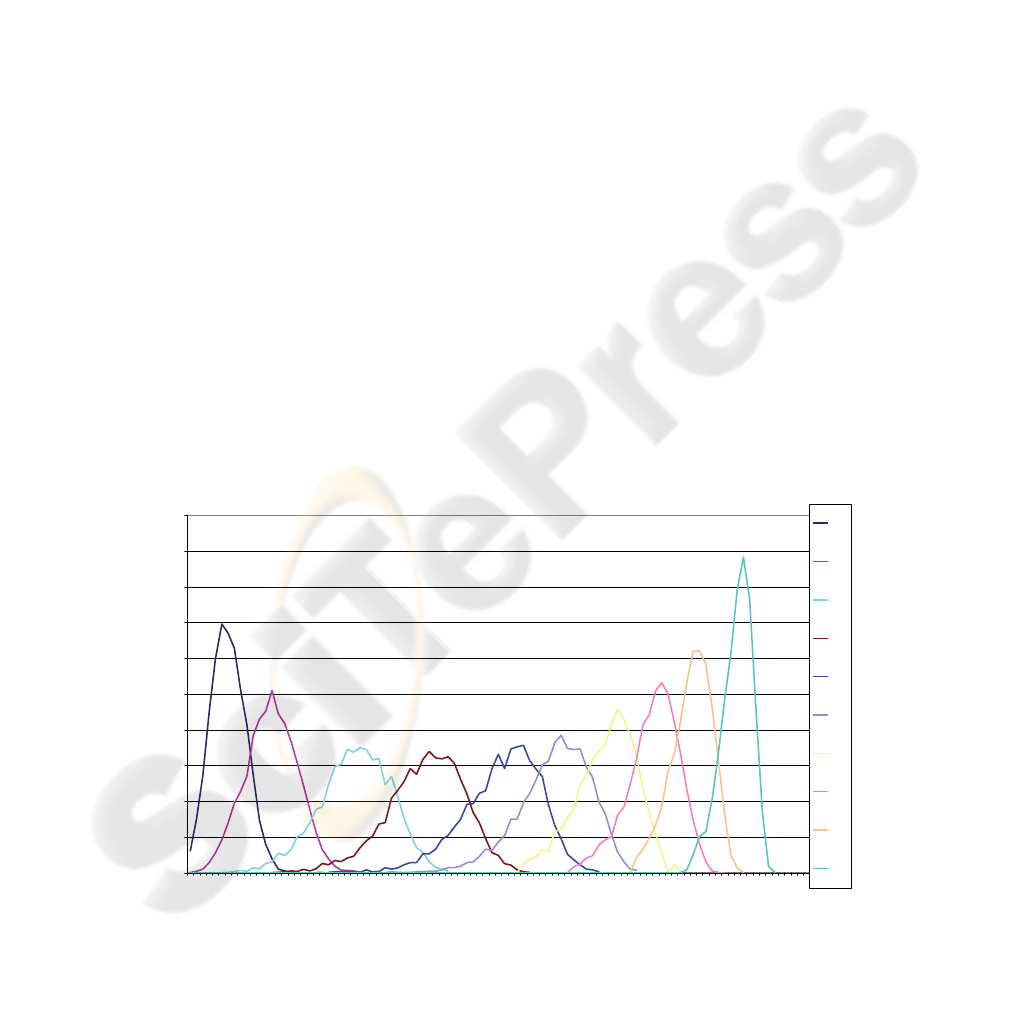

Figure 3: Response related to the BTS’ degradation.

WINSYS 2006 - INTERNATIONAL CONFERENCE ON WIRELESS INFORMATION NETWORKS AND SYSTEMS

Knowledge discovery and data mining, pp: 409-413,

August 1999.

Cortes, C., Fisher, K., Pregibon, D., Rogers, A., Smith, F.,

2004. “Hancock: A language for analyzing

transactional data streams”, in ACM Transactions on

Programming Languages and Systems (TOPLAS),

Vol. 26, Issue 2, pp: 301-338, March 2004.

Trisolini, S., Lenzerini, M., Nardi, D., 1999. “Data

integration and warehousing in Telecom Italia” in

proc. ACM SIGMOD international conference on

Management of data SIGMOD, Vol. 28, Issue 2, pp:

538-539, June 1999.

Northern Telecom, Inc., 1998. “Billing Management”,

Version MTX 07-Preliminary 06.01, Northern

Telecom, March 1998.

Motorola, Inc., 1998. “Call Final Class (CFC)

Definitions”, Motorola, Inc., November 1998.

Ericson, Inc., 2001. “Mapping of Cause Codes and

Location Information”, Ericson, Inc., January 2001.

Feller, W., 1968. “An introduction to Probability Theory

and Its Applications – Volume 1”, Chapter XIII, p.

303-341, John Wiley & Sons, Inc.

Cox, D.R., 1970. “Renewal Theory”, Mthuen &

Company.LTD;

Nunes, G., 2001. “Probability Theory and Renewal

Theory”, Curse of Probability theory applied to

Engineering, unpublished.

WINSYS 2006 - INTERNATIONAL CONFERENCE ON WIRELESS INFORMATION NETWORKS AND SYSTEMS

100
