NETWORK SECURITY EVALUATION

BASED ON SIMULATION OF MALFACTOR’S BEHAVIOR

Igor Kotenko, Mikhail Stepashkin

St. Petersburg Institute for Informatics and Automation, 39, 14 Liniya, St.-Petersburg, 199178, Russia

Keywords: Network attacks, Vulnerability Assessment, Risk Assessment, Security Metrics.

Abstract: The approach to computer network security analysis intended for using both at design and exploitation

stages is suggested. This approach is based on simulation of malefactor’s behavior, generating common

attack graphs and calculating different security metrics. The graph represents possible attack scenarios

taking into account network configuration, security policy, malefactor’s locations, knowledge level and

strategy. The security metrics describe computer network security at different levels of detail and take into

account various aspects of security. Attack scenarios model, common attack graph building procedures,

used security metrics, and general security level evaluation are defined. The implemented version of the

security analysis system is described, and examples of express-evaluations of security level are considered.

1 INTRODUCTION

Malefactors can use different vulnerabilities and

bottlenecks of network configuration and security

policy and perform various penetration strategies.

These strategies are directed to different network

resources and include a great number of assault

actions chains. Malefactors can step-by-step

compromise network hosts and realize diverse

security threats.

Therefore, during computer network design and

maintenance, designer or administrator should check

whether network configuration parameters and

security procedures provide necessary security level.

Moreover, at exploitation stage, the configuration of

computer networks can be changed, and it is also

necessary to perform network monitoring, analyze

available vulnerabilities and evaluate security level.

At design stage the specifications of network

configuration and security policies are the main

input for security analysis. At exploitation stage the

main input are the actual parameters of network

configuration and security policy.

The complexity of computer network security

management causes the necessity to develop

powerful automated security analysis systems. These

systems should allow to find and correct errors in

network configuration, reveal possible assault

actions for different security threats, determine

critical network resources and choose effective

security policy appropriate to threats.

At design stages, different approaches to security

analysis and evaluation of general security level can

be used, for example, based on qualitative and

quantitative techniques of risk analysis. We think the

perspective directions in evaluating security of

large-scaled networks consist in simulating possible

malefactor’s actions, building the representation of

these actions as attack graphs, the subsequent

checking of various properties of these graphs, and

determining security metrics which can explain

possible ways to increase network security level.

At exploitation stages, passive and active

methods of vulnerability assessment are used. The

passive methods do not allow estimating the possible

routes of malefactor’s penetration. The active

methods can not be applied in all situations, as lead

to operability violation of network services or the

system as a whole. The combination of passive

obtaining appropriate data about network

configuration and security policy, attack modeling

and simulation, attack graph construction, and

automatic reasoning can be satisfactory approach to

solve these problems.

There are a lot of papers which consider different

approaches to security analysis. For example,

various methods for representing attack scenarios

are used: attack trees (Schneier, 1999), formal

grammars (Gorodetski, Kotenko, 2002), cause-effect

339

Kotenko I. and Stepashkin M. (2006).

NETWORK SECURITY EVALUATION BASED ON SIMULATION OF MALFACTOR’S BEHAVIOR.

In Proceedings of the International Conference on Security and Cryptography, pages 339-344

DOI: 10.5220/0002102803390344

 SciTePress

model of attacks (Cohen, 1999), etc. (Ritchey,

Ammann, 2000) proposes model checking technique

for network vulnerability analysis. (Jha, Sheyner,

Wing, 2002) suggests the technique of attack graph

evaluation based on model checking, Bayesian and

probabilistic analysis. (Sheyner, Haines, Jha, etc.,

2002) presents algorithms for generating scenario

graphs based on symbolic and explicit-state model

checking. These algorithms ensure producing

counterexamples for determining safety and liveness

properties. (Rothmaier, Krumm, 2005) proposes an

approach for analyzing different attack scenarios.

The approach is based on high-level specification

language, a translation from this language to the

constructs of model checker SPIN, applying

optimization techniques and model checking for

automated attack scenario analysis. In (Lye, Wing,

2005) the game theory based method of evaluating

security is suggested. The authors view the

interactions between an attacker and the

administrator as a two-player stochastic game and

construct the game model. (Hariri, Qu,

Dharmagadda, etc., 2003) describes global metrics

which can be used to analyze and proactively

manage the effects of complex network faults and

attacks, and recover accordingly. (Rieke, 2004)

offers a methodology and a tool for vulnerability

analysis which can automatically compute possible

attack paths and verify some security properties.

(Dantu, Loper, Kolan, 2004) proposes approach to

estimate the risk level of critical network resources

using behavior based attack graphs and Bayesian

technique. (Ou, Govindavajhala, Appel, 2005)

suggests the logic programming approach to

automatically fulfill network vulnerability analysis.

In (Noel, Jajodia, 2005) the common approach,

attack graph visualization and the tool for

topological vulnerability analysis are considered.

In the paper we try to develop a new approach to

security evaluation based on comprehensive

simulation of malefactor’s actions, construction of

attack graphs and computation of different security

metrics. The main difference of offered approach

from examined ones consists in the way of

simulating attacks (we use a multi-level model of

attack scenarios) and applying constructed attack

graphs (for different locations of malefactors) for

determining a family of security metrics and

comprehensive evaluation of security properties.

Security analysis system (SAS) based on the offered

approach is intended for usage at different stages of

computer network life cycle. The results of security

analysis are as follows: (1) vulnerabilities detected;

(2) routes (graphs) of possible attacks; (3)

bottlenecks in network; (4) different security

metrics, which can be used for general security level

evaluation of computer network (system) and its

components. Obtained results allow producing the

valid recommendations for elimination of detected

bottlenecks and strengthening common security

level. After modification, if it is necessary, the user

repeats the process of security evaluation. The work

is organized as follows. Section 2 defines the model

of attack scenarios and considers the common attack

graph generated. Section 3 specifies security metrics

and the procedure for evaluating a common security

level. Section 4 presents the security analysis system

implemented. Conclusion surveys main work results

and future research.

2 ATTACK GRAPH

Our model of attack scenarios is hierarchical and

contains three levels: integrated, script and actions.

Integrated level determines high-level purposes

(threats) of the security analysis and attack objects.

Integrated level allows to coordinate several

scenarios performed by one or several malefactors.

Script level takes into account initial malefactor’s

qualification and knowledge about computer

network, defines attack object and attack purpose

(for example, “OS determining”, “denial of service”,

etc.). Script level sets script stages used, including

reconnaissance, penetration (initial access to the

host), privileges escalation, threat realization, traces

hiding and backdoors creation. The lower scenario

elements serve for detailing of these phases.

The low level of attack model describes low-

level malefactor’s actions and exploits.

The algorithm of generating the common attack

graph is based on the attack scenarios model

developed. It is intended for creation of attack graph

which describes all possible routes of attack actions

in view of malefactor’s initial position, skill level,

network configuration and used security policy. The

algorithm of generating common attack graph is

based on realization of the following action

sequence: (1) actions which are intended for

malefactor’s movement from one host to another;

(2) reconnaissance actions for detection of “live”

hosts; (3) reconnaissance scenarios for detected

hosts; (4) attack actions based on vulnerabilities and

actions of ordinary users.

All objects of attack graph are divided into two

groups: base objects and combined objects. Base

objects define the graph vertexes. They are linked to

each other by edges for forming different sequences

SECRYPT 2006 - INTERNATIONAL CONFERENCE ON SECURITY AND CRYPTOGRAPHY

340

of malefactor’s actions. Combined objects are built

on the basis of linking the elementary objects by

arcs. Objects of types “host” and “attack action” are

base (elementary) objects. Set of objects “hosts”

includes all hosts discovered and attacked by

malefactor. Set of objects “attack action” contains

all distinguishable actions of malefactor.

All attack actions are divided into the following

classes: Reconnaissance actions; Preparatory actions

(within the limits of malefactor’s privileges) used for

creation of conditions needed for other attack

actions; Actions to gain the privileges of local user

and of administrator; Confidentiality, Integrity and

Availability violation.

Objects of types “route”, “threat” and “graph”

are combined objects. Route is a collection of linked

vertexes of general attack graph (hosts and attack

actions), first of which represents a host (initial

malefactor’s position) and last has no outgoing arcs.

Threat is a set of various attack routes having

identical initial and final vertexes. We classify

threats as follows: (1) Primary threats – threats of

confidentiality, integrity and availability violation;

(2) Additional threats – threats of gaining

information about host or network, gaining

privileges of local user and of administrator. Graph

is integration of all threats.

3 METRICS

About 150 different metrics were constructed on the

basis of common attack graph. According to division

of attack graph objects the security metrics can be

divided into metrics of base objects (hosts and attack

actions) and ones of combined objects (routes;

threats; attack graph). According to the order of

calculation we differentiate primary and secondary

metrics. Primary metrics are defined from attack

graph; secondary ones are calculated on the basis of

primary. All security metrics are divided into basic

and auxiliary according to whether they are used for

evaluating a common security level. Basic security

metrics are directly used for the evaluation.

Auxiliary security metrics serve for building detailed

picture of network security and are required, for

example, for detecting bottlenecks and generating

instructions on security strengthening.

We define the following metrics as basic ones:

Criticality level of host h (Criticality(h)); criticality

level of attack action a (Severity(a)); Damage level

caused by attack action and taking into account the

criticality level of host (Mortality(a,h)); damage

level of route S and threat T (Mortality(S) and

Mortality(T)); “Access complexity” of attack action

a, route S and threat T (AccessComplexity(a),

AccessComplexity(S), AccessComplexity(T));

Admissibility of threat realization (Realization(T));

Risk level of threat T (RiskLevel(T)); General

security level of computer network (SecurityLevel).

Some security metrics are calculated on the basis

of standard Common Vulnerability Scoring System

(CVSS, 2006). CVSS metrics are divided into base,

temporal and environmental. Base indexes define

criticality of vulnerability. Temporal indexes

determine urgency of vulnerability at the given time.

Environmental indexes should be used for priorities

arrangement at time of generating plans of

vulnerabilities elimination. CVSS metrics of attack

actions can be obtained from external databases of

vulnerabilities, for example, NVD (NVD, 2006).

The offered technique for qualitative express-

assessment of security level contains the following

stages: (1) Calculation of security metrics of basic

and combined objects; (2) Estimation of qualitative

assessments of risk level for all threats; (3) Security

level evaluation on basis of risk levels of all threats.

Criticality(h) is determined by designer (or

administrator) using three level scale (High,

Medium, Low) according to the purpose of given

host and its functions. Criticality(h) is determined in

dependence from the security policy used. For

example, if accessibility is the main factor, the

maximum criticality level is defined for those hosts,

incorrect functioning of which leads to impossibility

of using network resources by legitimate users.

Severity(a) is calculated with usage of CVSS

index “BaseScore” (NVD-Severity, 2006) also by

applying three level scale (High, Medium, Low).

Mortality(a,h) is calculated taking into account

the criticality levels of host and action.

Mortality(T) is defined by the damage level of

the latest attack action of one of the threat routes.

The values of Mortality(T) are as follows: High –

stopping of critical subdivisions of organization

which leads to essential financial losses; Medium –

short-term stopping of critical processes or systems

which leads to limited financial losses in one

subdivision of organization; Low – the damage do

not cause the essential financial losses.

However, it is possible that a malefactor at threat

realization causes the greater damage than damage

calculated by latest attack action of the threat. Then

it is necessary to define the following metrics:

maximum damage level of route S and threat T.

These metrics can be calculated as follows:

Mortality

max

(S)=max

(Mortality(a

)),i∈[1,N

],a

∈S,

Mortality

max

(T)=max

(Mortality(S

)), i∈[1,N

], S

∈T,

NETWORK SECURITY EVALUATION BASED ON SIMULATION OF MALFACTOR’S BEHAVIOR

341

where N

– length of route (quantity of attack actions

in the route); N

– quantity of routes in the threat T.

For calculation of threat risk level it is necessary

to evaluate the threat realization admissibility

(Realization(T)) and to use the FRAP technique

(FRAPб 2006) taking into account threat damage

level Mortality(T) obtained earlier.

“Access Complexity” index of CVSS

(AccessComplexity(a), where a – attack action) is

used for computation of threat realization

admissibility. This index belongs to a group of base

indexes and is specified for each attack action. The

possible values of this index are: High – there are

specific conditions for vulnerability usage (attack

action realization), for example a specific time or

network service configuration, interaction with

human, etc; Low – there are no specific conditions,

i.e. the vulnerability is always exploitable.

Then, AccessComplexity(S) is High if ∃k∈[1,N]:

Access Complexity(a

)=High and is Low if

∀k∈[1,N]: Access Complexity(a

)=Low, where

{}

– attack scenario (route); N – length of

route (quantity of attack actions).

AccessComplexity(T) (threat T represented as a

set of various attack routes having the same initial

and final vertexes) is Low if ∃k∈[1,N

]: Access

Complexity(S

)= Low and is High if ∀k∈[1,N

Access Complexity(S

)=High, where

{}

–

threat; N

– quantity of different routes of threat T;

{}

– attack scenario (route); N

– quantity

of attack actions in the route.

Then admissibility of threat T realization is High

if AccessComplexity(T)=Low and is Low if

AccessComplexity(T)=High.

Threat risk level (RiskLevel(T)) can be evaluated

according to

Realization(T) and Severity(T). Threat risk

level can be interpreted as follows: Level А – the

actions concerned with risk (for example, using a

new security software or eliminating detected

vulnerabilities) should be fulfilled immediately;

Level B – the actions concerned with risk should be

undertaken; Level C – monitoring a situation is

required (possibly, it is not required to undertake

additional actions); Level D – additional actions are

not required.

SecurityLevel is defined in the following way:

[

]

(

)

[]

()

[]

()

[]

()

,1,

,1,:

Green i N RiskLevel T D

Yellow i N RiskLevel T C

SecurityLevel

Orange i N RiskLevel T B

Red i N RiskLevel T A

⎧

∀∈ =

⎪

∀∈ ≤

⎪

⎨

∀∈ ≤

⎪

∃∈ =

⎩

where D<C<B<A, N

– the quantity of all threats.

4 IMPLEMENTATION

Based on the suggested approach the security

analysis system (SAS) has been implemented. The

network model which SAS uses at the design stage

is based on network configuration expressed in

System Description Language (SDL) and security

policy in Security Policy Language (SPL) (Positif,

2006). At the exploitation stage the network model

is created on the basis of data collected from

network. Let us consider the main SAS components.

Data Repository contains the data base (DB) of

network configuration and security policy

(NetworkModel), DB of malefactor’s conception on

configuration and security policy, and the database

of actions (Attacks). The component NetworkModel

contains information about network architecture and

its parameters (for example, types and versions of

operating systems, applications, opened ports, etc.)

and rules which describe the security policy. The

component Attacks consists of DB of actions which

uses vulnerabilities and DB of usual user actions.

ModelInitializator converts the information

about network configuration and security policy into

internal representation. DataControl detects

incorrect or undefined data which are necessary for

evaluating security level. For example, the user can

make a mistake in the name of a service or specify

that port 21 is opened, but do not specify what

application serves the requests on this port.

GraphBuilder builds attack graph by simulating

malefactor’s actions on the base of information

about available attack actions, network configuration

and used security policy. This module sets up

security metrics of elementary objects in attack

graph vertexes. On the basis of these metrics,

GraphAnalyzer calculates the metrics of combined

objects. ReportGenerator shows vulnerabilities

detected by SAS, represents bottlenecks and

recommendations on strengthening security level.

InformCollector is used for collection of information

derived from host software agents, representation of

derived information using SDL and SPL and

transfering this data to the ModelInitializator.

DataUpdater downloads the XML specifications of

vulnerabilities from open vulnerability database and

translates them into the database of attack actions.

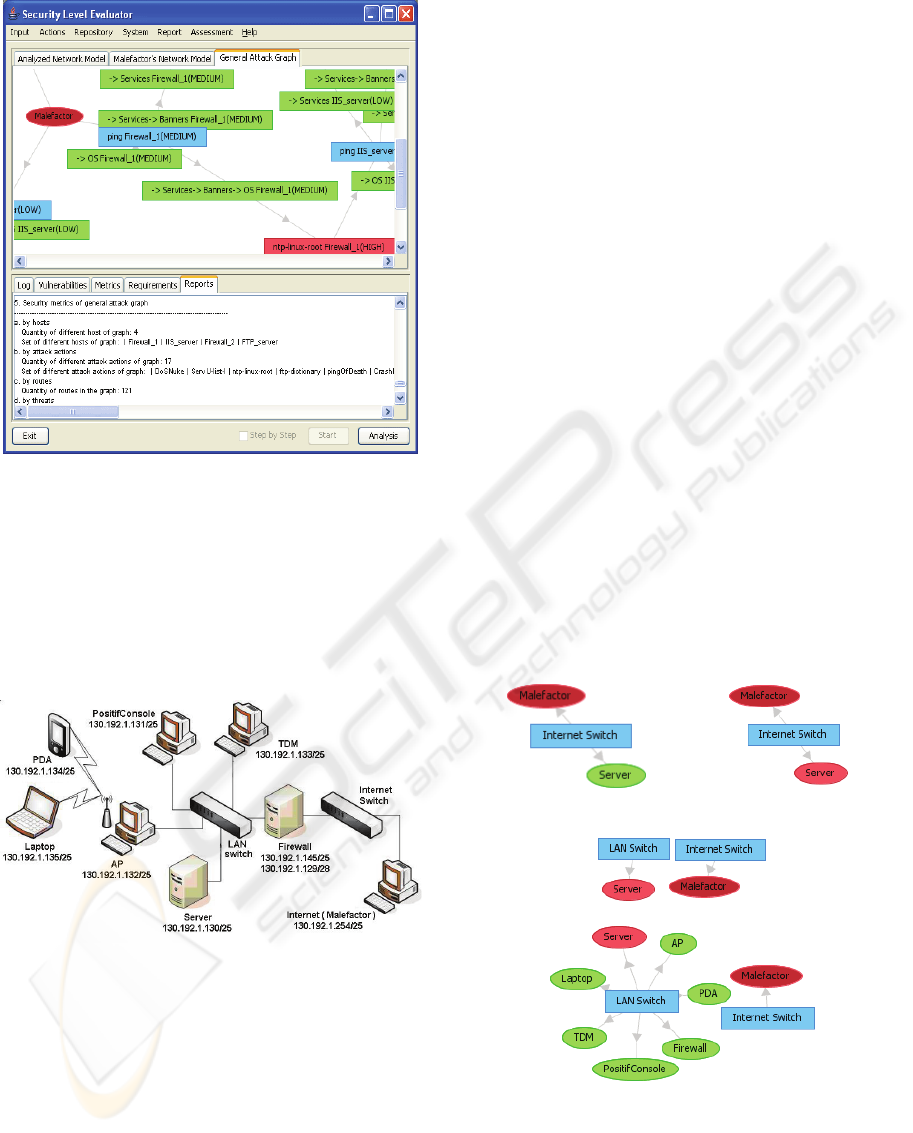

Figure 1 shows the SAS user interface. It is

divided into four basic parts: (1) The SAS main

menu; (2) The top area of the main window with the

following tabs: “Analyzed Network Model” –

representation of network model; “Malefactor's

Network Model” – malefactor’s conception on

configuration and security policy at the given attack

SECRYPT 2006 - INTERNATIONAL CONFERENCE ON SECURITY AND CRYPTOGRAPHY

342

stage; “General Attack Graph” – general attack

graph representation; (3) The bottom area of the

main window which displays the SAS log,

vulnerable hosts and revealed vulnerabilities,

security metrics, requirements and reports; (4)

Management buttons area.

Let us consider SAS operation for the simple test

network depicted in Figure 2.

Figure 2: Structure of test network.

During construction of attack graph there are the

following main changes in malefactor’s conception

about network (depicted in step-by-step mode – see

Figure 3):

(1) After executing the “ping” attack (according

to rules of traffic routing), malefactor gets to know

about host “Server” (Figure 3,a);

(2) Malefactor executes attack action which uses

the vulnerability in ftp service and allows to gain

administrator privileges (host “Server” is highlighted

by red) (Figure 3,b);

(3) Malefactor uses gained privileges to get all

information about “Server”. This information allows

him to understand that “Server” is connected to

another switch (the port forwarding is used in the

network). Hence, it is advantageous for malefactor

to change location since he gets the access to other

network segment. Figure 3,c shows a breach

between hosts which appears because malefactor

does not know through what host (router) the

network packets move from his host (“Malefactor”)

to host “Server”;

(4) Malefactor moves to the host “Server”,

executes the “ping” action and gets to know about a

set of hosts which he tries to attack sequentially

(Figure 3,d).

The main results of security analysis for this

example are as follows: (1) detected vulnerabilities;

(2) values of security metrics (for example, quantity

of attack routes which are passing through

“Server”); (3) reports on the status of basic security

aspects including instructions on security level

increase.

Security analysis showed that the network

security level is red. Next actions of user are as

follows: (1) elimination of detected vulnerabilities

and bottlenecks by updating network configuration

and security policy; (2) repeated security analysis.

(a)

(b)

(c)

(d)

Figure 3: Malefactor’s representations about the network.

Figure 1: SAS user interface.

NETWORK SECURITY EVALUATION BASED ON SIMULATION OF MALFACTOR’S BEHAVIOR

343

5 CONCLUSION

The paper offered the approach and software tool for

security analysis of computer networks. The

approach possesses the following peculiarities: (1)

Usage of integrated family of different models based

on expert knowledge, including malefactor’s

models, multilevel models of attack scenarios,

building attack graph, security metrics computation

and security level evaluation; (2) Taking into

account diversity of malefactor’s positions,

intentions and experience levels; (3) Usage (during

construction of common attack graph) not only of

the parameters of computer network configuration,

but the rules of security policy used; possibility of

estimating the influence of different configuration

and policy data on the security level value; (4)

Taking into account not only attack actions (which

use vulnerabilities), but the common actions of

legitimate users and reconnaissance actions; (5)

Possibility of investigating various threats for

different network resources; (6) Possibility of

detection of bottlenecks (hosts and applications

responsible for the most serious attack actions,

routes and threats); (7) Possibility of querying the

system in the “what-if” way, for example, how the

general security level will change if the certain

parameter of network configuration or security

policy is changed or information about new

vulnerability is added; (8) Usage of updated

vulnerabilities databases (for example, Open Source

Vulnerability Database (OSVDB 2006); (9) Usage

of widespread CVSS approach (CVSS, 2006); (10)

Usage of qualitative techniques of risk analysis (in

particular, modified techniques of evaluating attack

criticality of SANS/GIAC and FRAP (FRAP, 2006).

The future research will be devoted to

comprehensive experimental assessment of offered

approach and improving the models of computer

attacks and security level evaluation.

This research is being supported by grant of

Russian Foundation of Basic Research (№ 04-01-

00167), grant of the Department for Informational

Technologies and Computation Systems of the

Russian Academy of Sciences (contract №3.2/03)

and partly funded by the EC as part of the POSITIF

project (contract IST-2002-002314).

REFERENCES

Cohen, F., 1999. Simulating Cyber Attacks, Defenses, and

Consequences. In IEEE Symposium on Security and

Privacy, Berkeley, CA.

CVSS, 2006. Common Vulnerability Scoring System.

Retrieved April 14, 2006, from

http://www.first.org/cvss/

Dantu, R., Loper, K., Kolan, P., 2004. Risk Management

using Behavior based Attack Graphs. In International

Conference on Information Technology: Coding and

Computing.

FRAP, 2006. Facilitated Risk Analysis Process. Retrieved

April 1, 2006, from http://www.peltierassociates.com/

Gorodetski, V., Kotenko, I., 2002. Attacks against

Computer Network: Formal Grammar-based

Framework and Simulation Tool. LNCS, V.2516.

Hariri, S., Qu, G., Dharmagadda, T., Ramkishore, M.,

Raghavendra, C. S., 2003. Impact Analysis of Faults

and Attacks in Large-Scale Networks. In IEEE

Security&Privacy, September/October.

Jha, S., Sheyner, O., Wing, J., 2002. Minimization and

reliability analysis of attack graphs. Technical Report

CMU-CS-02-109, Carnegie Mellon University.

Lye, K., Wing, J., 2005. Game Strategies in Network

Security. International Journal of Information

Security, February.

McNab, C., 2004. Network Security Assessment. O’Reilly

Media, Inc.

Noel, S., Jajodia, S., 2005. Understanding complex

network attack graphs through clustered adjacency

matrices. In Proc. 21st Annual Computer Security

Conference (ACSAC).

Netfilter, 2006. Netfilter/iptables documentation.

Retrieved April 14, 2006, from

http://www.netfilter.org/documentation/

NVD, 2006. National Vulnerability Database. Retrieved

April 14, 2006, from http://nvd.nist.gov/

NVD-Severity, 2006. National Vulnerability Database

Severity Ranking. Retrieved April 14, 2006, from

http://nvd.nist.gov/cvss.cfm

OSVDB, 2006. The Open Source Vulnerability Database.

Retrieved April 14, 2006, from http://www.osvdb.org/

Ou, X., Govindavajhala, S., Appel, A.W., 2005. MulVAL:

A Logic-based Network Security Analyzer. In 14th

Usenix Security Symposium.

Peltier, T.R., Peltier, J., Blackley, J.A., 2003. Managing a

Network Vulnerability Assessment. Auerbach Publ.

Positif, 2006. Positif Project. Retrieved June 8, 2006, from

http://www.positif.org/

Rieke, R., 2004. Tool based formal Modelling, Analysis

and Visualisation of Enterprise Network

Vulnerabilities utilising Attack Graph Exploration. In

Proceedings EICAR.

Ritchey, R. W., Ammann, P., 2000. Using model checking

to analyze network vulnerabilities. In

IEEE Symposium

on Security and Privacy.

Rothmaier, G., Krumm, H., 2005. A Framework Based

Approach for Formal Modeling and Analysis of Multi-

level Attacks in Computer Networks. LNCS, Vol.3731.

Sheyner, O., Haines, J., Jha, S., etc., 2002. Automated

generation and analysis of attack graphs. In IEEE

Symposium on Security and Privacy.

Schneier, B., 1999. Attack Trees. Dr. Dobb’s Journal,

Vol.12.

SECRYPT 2006 - INTERNATIONAL CONFERENCE ON SECURITY AND CRYPTOGRAPHY

344
