DEVELOPMENT OF SUMMARIES OF CERTAIN PATTERNS

IN MULTI-BAND SATELLITE IMAGES

Hema Nair

C.T.R.F., 813, 7

Main, 1

Cross, HAL 2

Stage, Bangalore 560008, India

Keywords: Data mining, pattern recognition, fuzzy sets, genetic algorithm, linguistic summary, intelligent systems.

Abstract: This paper describes a system that is designed and implemented for interpretation of some patterns in multi-

band (RGB) satellite images. Patterns such as land, island, water body, river, fire, urban area settlements in

remote-sensed images are extracted and summarised in linguistic terms using fuzzy sets. Some elements of

supervised classification are introduced to assist in the development of linguistic summaries. A few

LANDSAT images are analysed by the system and the resulting summaries of the image patterns are

explained.

1 INTRODUCTION

Data mining is a term applied to the set of

techniques and processes that analyse raw data to

discover implicit patterns which are useful for

decision-making. Pattern recognition can be

considered as a form of data mining because both

concentrate on the extraction of information or

relationships from data (Kennedy et al., 1997).

Knowledge discovery and data mining systems

employ methods and techniques from the field of

pattern recognition, as well as related topics in

database systems, machine learning, artificial

intelligence, statistics, and expert systems, where the

unifying goal is to extract knowledge from large

volumes of data (Friedman, Kandel, 1999). Several

pattern classification techniques have been proposed

in literature. These include neural nets, genetic

algorithms (GA), Bayesian methods, statistical

methods, decision tables, decision trees etc. A

multimedia database system (Thuraisingham, 2001)

is an example of a heterogeneous database system

because it manages heterogeneous data types such as

audio, images, video etc. Such data is typically

unstructured in format. Although many techniques

for representing, storing, indexing and retrieving

multimedia data have been proposed, the area of

multimedia mining has seen few results (Zaine et al.,

1998a), (Zaine et al., 1998b). This is mainly due to

the fact that multimedia data is not as structured as

relational data (Zaine et al., 1998b). There is also the

issue of diverse multimedia types such as images,

sound, video etc. A particular data mining technique

may be successful with one type of multimedia such

as images, but the same technique may not be well

suited to many other types of multimedia due to

varying structure and content. In (Zaine et al.,

1998a), (Zaine et al., 1998b), the objective is to mine

internet-based image and video. The results

generated could be a set of characteristic features

based on a topic (keyword), a set of association rules

which associate data items, a set of comparison

characteristics that contrast different sets of data, or

classification of data using keywords. From another

perspective, (Barnard et al., 2003a), (Barnard et al.,

2003b) describe the approach involved in matching

images to text. Their work describes models used for

automatic image annotation, browsing support and

auto-illustration of blocks of text. Such models are

focussed on prediction of words (from an available

pool) that match with specific image regions. This is

a form of labelling and requires assistance from

training data and manually annotated images.

A system that classifies and interprets patterns such

as land, island, water body, river, fire, urban area

settlements in satellite images is described in this

paper. It utilises fuzzy logic to describe these

patterns (Nair, 2003), (Nair, Chai, 2004), (Nair,

2004), (Nair, Chai, 2005). Some feature descriptors

such as area, length, shape ratio etc., of such patterns

are extracted and stored in a relational database.

Data mining techniques that employ clustering and

278

Nair H. (2006).

DEVELOPMENT OF SUMMARIES OF CERTAIN PATTERNS IN MULTI-BAND SATELLITE IMAGES.

In Proceedings of the Eighth International Conference on Enterprise Information Systems - AIDSS, pages 278-284

DOI: 10.5220/0002439202780284

 SciTePress

genetic algorithms are then used to develop the most

suitable linguistic summary of each pattern/object

stored in the database. This paper is organised as

follows. Section 2 describes the system architecture,

section 3 describes the approach, section 4 discusses

the implementation issues, and section 5 discusses

the conclusions and future work.

2 SYSTEM ARCHITECTURE

The system architecture is shown in Figure 1. The

input image is analysed and some feature descriptors

extracted. These descriptors are stored thereafter in a

relational table in the database. The blackboard

holds the current state in the process of developing

summaries. The key difference with (Nair, Chai,

2005) is that presently the user has the choice of

suggesting concepts such as descriptions of area,

length, location of patterns etc. Also, human

interaction could be of assistance when complicated

summaries that involve a combination of attributes

need to be developed (Kacprzyk, Yager, 2001). It

would be possible for the user to assign importance

to each of the attributes. The knowledge base uses

geographic facts to define feature descriptors using

fuzzy sets. It interacts with a built-in library of

linguistic labels, which also interacts with the

summariser as it supplies the necessary labels to it.

The summariser receives input from these

components and performs a comparison between

actual feature descriptors of the image patterns

stored in the database, the concepts suggested by the

user, and the feature definitions stored in the

knowledge base. After this comparison, the

summariser uses the linguistic labels supplied by the

library to formulate some possible summaries for

each pattern/object in the database. These summaries

are stored in the blackboard. From among these

summaries, the most suitable one describing each

pattern is selected by interaction with the engine

(genetic algorithm). As the GA evolves through

several generations, it generates better summaries

(indicated by higher fitness, as defined in Section 4)

which are then stored and indicated on the

blackboard. Thus, the system has been improved and

enhanced to include some elements of supervised

classification and summarisation.

This research focuses on analysing multi-band

(RGB) satellite images. The following set of rules is

developed to perform pattern classification in multi-

band satellite images.

1. If a pattern/object is to be classified as an

island, it should have a water envelope

surrounding it such that it has a uniform

band ratio at at least eight points on this

envelope (corresponding to directions E,

W, N, S, NE, NW, SE, SW). Also grey

level values on the envelope could be lower

than the grey level values on the object.

2. If an object does not have an envelope in all

directions as described in rule (1) above,

then it is classified as land.

3. If an object is to be classified as water body

(expanse of water, river), it is necessary

that it should have a uniform band ratio.

4. Fire is classified as a separate pattern. It is

identified by applying colour density

slicing to the image and by viewing the

histogram of the affected area. The

histogram would show a majority of pixels

at lower intensity for the burnt scar area

near the fire.

5. A new rule is proposed for the

classification and identification of urban

area settlements in an image. At this stage,

only simple, geometrically regular

settlements can be identified. The grey

level intensity (indicated as white colour

for settlements) and shape are used as

attributes to aid the identification and

classification process. Settlements are

identified by sharp edges and corners.

Shape ratio can be used to verify the

preciseness of the shape. This classification

will have a percentage of accuracy

associated with it.

3 APPROACH

Area, length, location (X, Y pixel co-ordinates of

centroid of pattern in image), Additional Information

or Pattern Id, grey level intensity, and shape ratio are

the attributes of the patterns/objects that are used to

develop their linguistic summaries. Area, length,

location, grey level intensity, shape ratio are

calculated/extracted automatically by the GUI tool.

Additional information contains the pattern’s id,

which is obtained by using the classification rules

described in the earlier section. The linguistic

summary of patterns/objects is evaluated as follows.

DEVELOPMENT OF SUMMARIES OF CERTAIN PATTERNS IN MULTI-BAND SATELLITE IMAGES

279


Figure 1: System architecture.

p21

y,...y,yY = (1)

then

truth(y

isF)=μ

):i=1,2,...,p, (2)

where μ

) is the degree of membership of y

the fuzzy set F and 0 ≤ μ

) ≤ 1. The linguistic

proposition y

is F could be instantiated as for

example, River is long. Thus referring to equations

(1) and (2), y

could be island or area of land or

expanse of water or river. For each object y

, the

degree of membership of its feature descriptor such

as area or length in corresponding fuzzy sets is

calculated. An example of a typical linguistic

summary for land generated by the system in this

paper would be:

A moderately large area of land at the centre of the

image.

In order to generate such summaries, it is necessary

to formulate fuzzy sets that quantify area/length

attributes of the object/pattern. Some of the

trapezoidal fuzzy sets formulated for area are large,

fairly large, moderately large, and small and fuzzy

sets for length are long, relatively long, fairly long

and short. Triangular fuzzy sets have also been

formulated for area and length. The linguistic

description is calculated as follows:

njj2j1j

m...mmT ∧∧=

, (3)

where m

is the matching degree (Kacprzyk,

Ziolkowski, 1986) of the ith attribute in the jth tuple.

∈[0,1] is a measure of degree of membership of

the ith attribute value in a fuzzy set denoted by a

fuzzy label. The logical AND (∧) of matching

degrees is calculated as the minimum of the

matching degrees (Kacprzyk, Ziolkowski, 1986).

≠∀=

∑

mTT

(4)

T in equation (4) is a numeric value that represents

the truth of a possible set of summaries of the k

objects in the database. The next section discusses

how the GA evolves the most suitable linguistic

summary for all the objects by maximising T.

4 IMPLEMENTATION ISSUES

This section explains the genetic algorithm approach

and then discusses the results from applying this

approach to analyse images.

4.1 GA Approach

The genetic algorithm emulates biological

evolutionary theories as it attempts to solve

optimisation problems (Filho et al., 1994),

(Goodman, 1996), (Smith et al., 1994). Each binary

chromosome string in a population represents a

possible linguistic summary for a pattern. Such a

population of strings is manipulated by selection,

cross-over and mutation operators in the GA (Filho

et al., 1994) such that as the GA evolves through

several generations, only those strings with highest

fitness survive. The evaluation or fitness function for

the linguistic summaries or descriptions of all

objects in the table is

f=max(T), (5)

Database


Analysis &

Feature

Extraction

GUI

Tool

Blackboard

Architecture

Knowledge base Library

Summariser

Engine

ICEIS 2006 - ARTIFICIAL INTELLIGENCE AND DECISION SUPPORT SYSTEMS

280

where T is evaluated as shown in the previous

section and f is the maximum fitness value of a

particular set of linguistic summaries that has

evolved over several generations of the GA.

4.2 Results and Discussion

In general, image objects/patterns are classified at

the highest level into land, water or fire. Land is

further classified into island and other land. Urban

area settlement is a pattern that can be identified on

land or island. Water is further classified into river

and other water body. The fuzzy sets that quantify

area or length are defined with reference to

geographic facts such as:

• Largest continent is Asia with area of

44579000 km

• Largest freshwater lake is Lake Superior

with area of 82103 km

• Smallest continent is Australia/Oceania

with area of 7687000 km

• Largest island is Greenland with area

2175000 km

A total of 29 fuzzy sets have been formulated in this

research. Formulation of these fuzzy sets is based on

the universal geographic facts given earlier. Only

some of the trapezoidal fuzzy sets and triangular

fuzzy sets formulated are shown here due to space

limitation. The trapezoidal fuzzy sets for large

expanse of water, fairly large expanse of water and

small expanse of water are formulated as shown in

equations (6), (7), and (8). In (9), the triangular

fuzzy set for considerably large expanse of water is

shown.

seofwaterlargeexpan

(x)=1, for 82103≤ x

=x/2203 – 36.27, for 79900≤x≤ 82103

=0,x<79900 (6)

watereexpanseoffairlylarg

(x)=1, for 100≤ x≤900

=1-(100-x)/91, for 9≤ x≤ 100

=1-(x-900)/100, for 900≤ x≤ 1000

=0, x< 9

=0,x>1000 (7)

waterof expanse small

(x) = 1, 0≤x≤ 100

=-x/900 +1.11, for 100≤x≤1000

=0,otherwise (8)

waterof expanse largely considerab

(x)=1-(55068.66-

x)/27034.33, for 28034.33≤ x≤55068.66

=1-(x-55068.66)/27034.33, for 55068.66≤ x≤ 82103

=0, x< 28034.33

=0, x> 82103 (9)

In (Nair, Chai, 2005), SPOT Multi-spectral images

were analysed and their resulting summaries

discussed. A few LANDSAT images are analysed

in this paper. An example LANDSAT satellite

image to be analysed is shown in Figure 2. Table 1

shows the data collected from the image to perform

k-means clustering (Mather, 1999) in order to cluster

the pixels in the image. The feature vector used

consists of X, Y, R, G, B values. Table 2 shows a

small sample data set of feature descriptors

calculated/collected from the patterns in the image

using the graphical tool. The R band grey level at

centroid location of pattern is shown in the table, as

this band shows all patterns clearly. Area of each

pattern is in sq km. Length is in km. Pattern id

attribute denotes numbers as follows: 0=River,

1=Water Body, 2=Island, 3=Land, 4=Fire, 5=Urban

area settlement. Location is indicated by X, Y pixel

co-ordinates of centroid of pattern/object. The

additional information or pattern id attribute of each

object in Table 2 is calculated automatically using

the classification rules in Section 2, which hold for

multi-band images. For land, island, and water body

(expanse of water), area is the most significant

parameter in calculations and therefore their length

is ignored. A river’s length is its most significant

parameter in calculations and therefore its area is

ignored. In order to extract more patterns such as

different types of vegetation, observational ground

data is required for training. Such data could not be

afforded in this research.

The GA is run with following input parameter set.

These parameter values are set after several trial

runs.

Number of bits in a chromosome string of the

population = 10

Generations per cycle = 15

Population size = 200 strings

Probability of cross-over = 0.53

Probability of mutation = 0.001

DEVELOPMENT OF SUMMARIES OF CERTAIN PATTERNS IN MULTI-BAND SATELLITE IMAGES

281

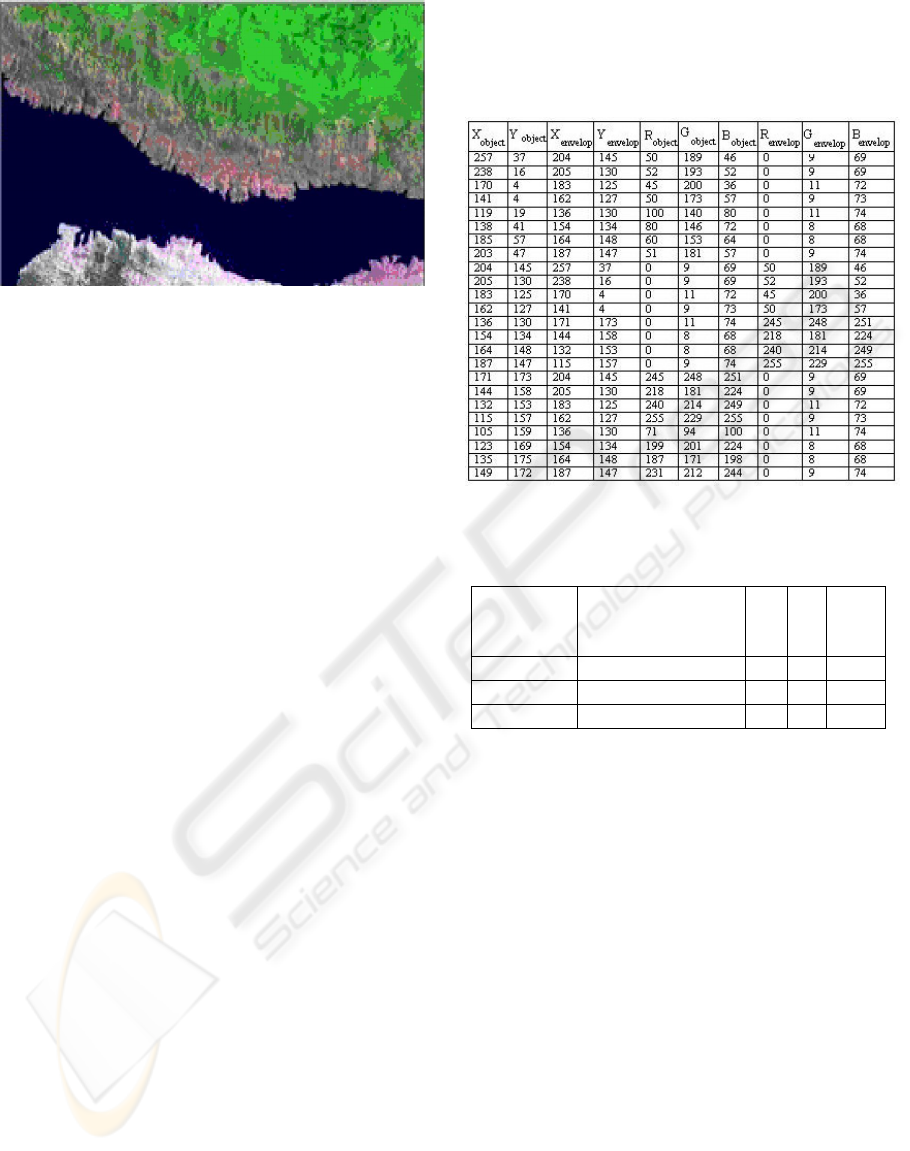

Figure 2: LANDSAT 7 ETM+ image of a section of

Kvarneric islands, Croatia. Approximate scale 1:0.952 sq

With triangular fuzzy sets in the knowledge base,

after 120 generations of the GA, the linguistic

summaries generated for the data in Table 2 are:

• A small area of land at the top

• A small area of land in the lower part

• A fairly large expanse of water in the lower

part

Figure 3 shows another sample LANDSAT image,

which is analysed by the system. The k-means

clustering table is Table 3 and the data

collected/calculated by the graphical tool is shown

in Table 4. The corresponding output linguistic

summaries from the system are also shown.

For the data in Table 4 corresponding to image in

Figure 3, the GA is run with following input

parameter set. These parameter values are set after

several trial runs.

Number of bits in a chromosome string of the

population = 9

Generations per cycle = 10

Population size = 200 strings

Probability of cross-over = 0.53

Probability of mutation = 0.001

Table 1: Data collected from image in Figure 2 for

clustering. The header of the table denotes data from left

to right as follows:

object,

envelope,

object,

envelope,

envelope.

Table 2: Data calculated and collected from image in

Figure 2

With trapezoidal fuzzy sets in the knowledge base,

after 80 generations of the GA, the linguistic

summaries generated are:

• A fairly large island at the top left

• A fairly large island at the right

• A moderately large expanse of water in the

remainder of image

The summaries produced by this system have been

verified to be correct using topographic maps of the

areas in the images. In general, as the graphical tool

is a user-interactive tool, it is limited by the accuracy

of the user’s point and click action.

R-band

grey level

Approximate

Area

in sq km

Pattern

45 28624.29 174 95 3

0 11528.145 158 135 1

188 8093.116 155 184 3

ICEIS 2006 - ARTIFICIAL INTELLIGENCE AND DECISION SUPPORT SYSTEMS

282

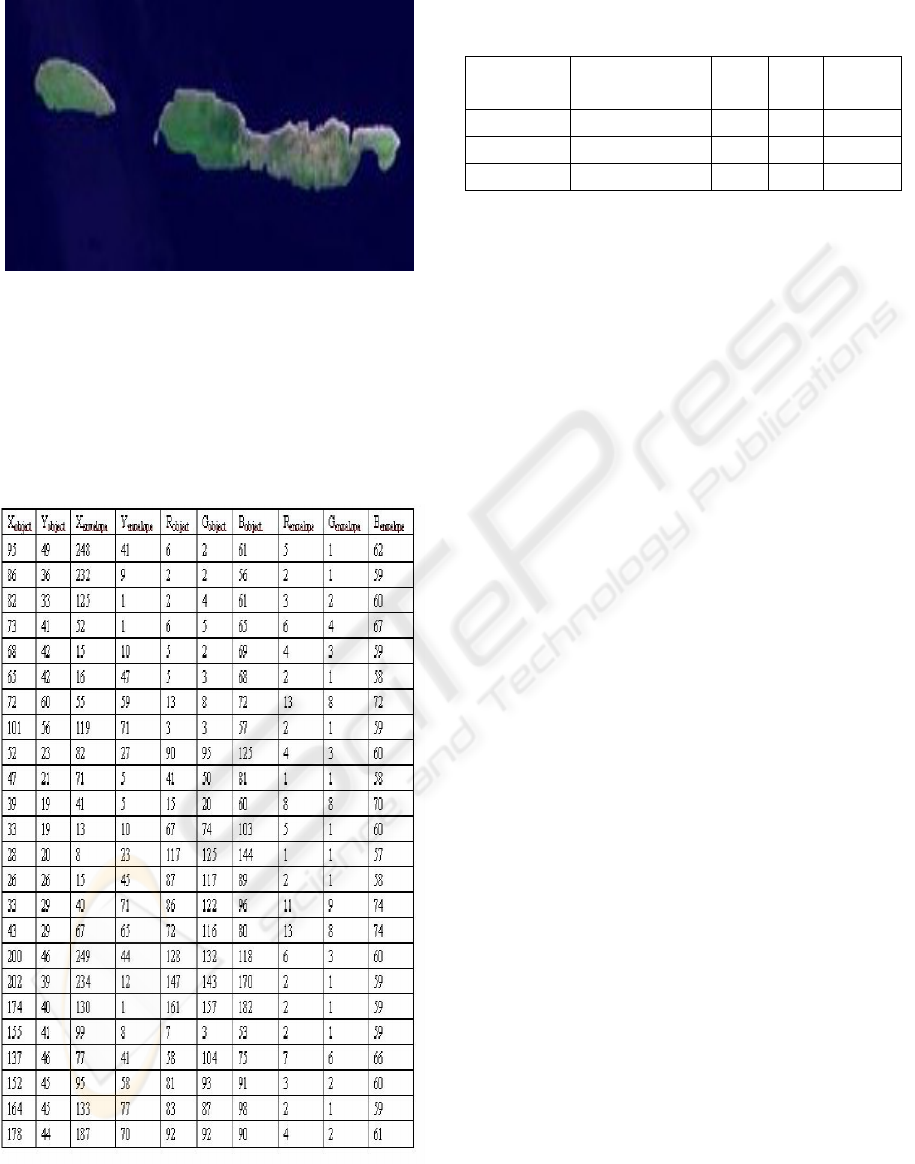

Figure 3: LANDSAT 7 ETM+ image of a part of

Kvarneric islands, Croatia. Approximate scale 1: 0.952 sq

Table 3: Data collected from image in Figure 3 for

clustering. The header of the table denotes data from left

to right as follows

: X

object,

envelope,

object,

envelope,

envelope.

Table 4: Data calculated and collected from image in

Figure 3

R-band

grey level

Approximate

Area in sq km

X Y Pattern

86 447.71 41 27 2

113 2225.22 158 48 2

10 11073.696 128 40 1

5 CONCLUSIONS AND FUTURE

WORK

This paper has presented a system for interpretation

of multi-band remote-sensed images by extracting

and classifying some patterns such as land, island,

water body, river, fire and describing these patterns

using linguistic summaries. A new rule has been

proposed for the identification of urban area

settlements. A genetic algorithm technique has been

employed to evolve the most suitable linguistic

summary that describes each object/pattern in the

database. This method can be extended to an array

of images of the same geographic area, taken over a

period of several years, to describe many interesting

and unusual patterns that emerge over time. In this

paper, only two images have been analysed by the

system. More images with patterns such as urban

area settlements will be available for analysis and

summarisation in future. Some directions for future

work include:

1. Adding the provision to upload ground data

in order to help classify more patterns such

as vegetation using supervised

classification techniques.

2. Adding enhancements to image analysis

functions.

3. As a future application, it would be

possible to construct an index for an image

database using the linguistic summaries

developed here.

4. Adding more fuzzy sets and corresponding

labels in knowledge base and library

respectively to have a system that is richer

and can generate a wider variety of

linguistic summaries.

5. Expanding the system to test application

domains other than remote-sensing.

DEVELOPMENT OF SUMMARIES OF CERTAIN PATTERNS IN MULTI-BAND SATELLITE IMAGES

283

REFERENCES

Barnard, K., Duygulu, P., Forsyth, D., De Freitas, N., Blei,

D.M., Jordan, M.I., 2003a. Matching words and

pictures. Journal of Machine Learning Research, Vol

3, pp. 1107-1135.

Barnard, K., Duygulu, P., Forsyth, D., 2003b. Recognition

as translating images into text. Internet Imaging IX,

Electronic Imaging.

Filho, J.L.R., Treleaven, P.C., and Alipi, C., 1994. Genetic

Algorithm programming environments. In IEEE

Computer, pp. 28-43

Friedman, M., Kandel, A., 1999. Introduction to pattern

recognition – Statistical, structural, neural and fuzzy

logic approaches, World Scientific.

Goodman E.D., 1996. An Introduction to Galopps-the

Genetic ALgorithm Optimized for Portability and

Parallelism System(Release 3.2). Technical Report

No. 96-07-01, Genetic Algorithms Research and

Applications Group, Michigan State University.

Kacprzyk, J., Ziolkowski, A., 1986. Database queries with

fuzzy linguistic quantifers. In IEEE Transactions on

Systems, Man and Cybernetics, pp. 474-479.

Kacprzyk, J., Yager, R.R., 2001. Linguistic summaries of

data using fuzzy logic. In International Journal of

General Systems, 30(2), pp. 133-154.

Kennedy, R.L., Roy, B.V., Reed, C.D., Lippman, R.P.,

1997. Solving Data Mining problems through Pattern

Recognition, Prentice Hall.

Mather, P. M., 1999. Computer Processing of Remotely-

Sensed Images, Wiley.

Nair, H., 2003. Developing linguistic summaries of

patterns from mined images. In Proceedings of

International Conference on Advances in Pattern

Recognition, pp. 261-267.

Nair, H., Chai, I., 2004. Linguistic description of patterns

from mined images. In Proceedings of 6

International Conference on Enterprise Information

Systems, Vol 2, pp. 77-83.

Nair, H., 2004. Linguistic summaries of image patterns.

Ruan D., D’hondt P., De Cock M., Nachtegael M.,

Kerre E.E., eds, Applied Computational Intelligence,

pp. 246-249, World Scientific.

Nair, H., Chai, I., 2005. A system to interpret and

summarise some patterns in images. In Proceedings of

International Conference on Enterprise

Information Systems, Vol 2, pp. 283-290.

Shapiro, G.P., Fayyad, U., Smith, P., 1996. From data

mining to knowledge discovery: An overview. Fayyad

U. M., Shapiro G.P, Smith P, Uthurusamy R, eds,

Advances in Knowledge Discovery and Data Mining,

pp. 1-35, AAAI/MIT Press.

Smith, R.E., Goldberg, D.E., Earickson, J.A., 1994. SGA-

C:A C-language implementation of a Simple Genetic

Algorithm. TCGA Report No.91002.

Thuraisingham, B., 2001. Managing and Mining

Multimedia Databases, CRC Press.

Zaine, O.R, Han, J., Ze-Nian, L., Hou, J., 1998a. Mining

Multimedia Data. CASCON’98 : Meeting of Minds,

pp. 83-96

Zaine, O.R., Han, J., Ze-Nian, L., Chee, S.H., Chiang,

J.Y., 1998b. MultimediaMiner : A System Prototype

for Multimedia Data Mining. In Proceedings of ACM-

SIGMOD International Conference on Management of

Data (SIGMOD ’98).

ICEIS 2006 - ARTIFICIAL INTELLIGENCE AND DECISION SUPPORT SYSTEMS

284
