A FORMAL ARCHITECTURE-CENTRIC MODEL-DRIVEN

APPROACH FOR THE AUTOMATIC GENERATION OF GRID

APPLICATIONS

David Manset

1,2,3

2 ETT Division, CERN 1211, Geneva 23, Switzerland

Hervé Verjus

3 LISTIC, University of Savoie, Annecy, France

Richard McClatchey

1 CCCS, University West of England, Bristol, UK

Flavio Oquendo

4 VALORIA, University of South Brittany, Vannes, France

Keywords: MDE, Grid, Software Architectures, Model Transformation, Refinement, ADLs.

Abstract: This paper discusses the concept of model-driven software engineering applied to the Grid application

domain. As an extension to this concept, the approach described here, attempts to combine both formal

architecture-centric and model-driven paradigms. It is a commonly recognized statement that Grid systems

have seldom been designed using formal techniques although from past experience such techniques have

shown advantages. This paper advocates a formal engineering approach to Grid system developments in an

effort to contribute to the rigorous development of Grids software architectures. This approach addresses

quality of service and cross-platform developments by applying the model-driven paradigm to a formal

architecture-centric engineering method. This combination benefits from a formal semantic description

power in addition to model-based transformations. The result of such a novel combined concept promotes

the re-use of design models and facilitates developments in Grid computing.

1 INTRODUCTION

The Grid paradigm is described in (Foster et al,

2001) as “a distributed computing infrastructure for

advanced science and engineering” that can address

the concept of “coordinated resource sharing and

problem solving in dynamic, multi-institutional

virtual organizations”. This coordinated sharing may

be not only file exchange but can also provide direct

access to computers, software, data and other system

resources. Grid applications bundle different

services using a heterogeneous pool of resources in

a so-called virtual organization. This makes Grid

applications very difficult to model and to

implement.

In addition, one of the major issues in today’s Grid

engineering is that it often follows a code-driven

approach. Although it has been proven from past

experience that using structured engineering

methods would ease the development process of any

computing system and would reduce complexity, the

inter-disciplinarily of Grid computing is still

encouraging ‘brute-force’ coding and consequently

a rather unstructured engineering process. This

always leads to a loss of performance,

interoperability problems and generally ends in very

complex systems that only dedicated and expert

developers can manage. As a direct consequence the

resulting source code is neither re-usable nor does it

promote dynamic adaptation facilities as if it were a

true representation of the Service Oriented

Architecture (SOA). Having no guidelines or rules

in the design of a Grid-based application is a

paradox since there are many existing, architectural

approaches for distributed computing which could

ease the engineering process, could enable rigorous

engineering and could promote the re-use (Cox,

322

Manset D., Verjus3 H., McClatchey R. and Oquendo F. (2006).

A FORMAL ARCHITECTURE-CENTRIC MODEL-DRIVEN APPROACH FOR THE AUTOMATIC GENERATION OF GRID APPLICATIONS.

In Proceedings of the Eighth International Conference on Enterprise Information Systems - ISAS, pages 322-330

DOI: 10.5220/0002443503220330

 SciTePress

2004) of software components in future Grid

developments.

It is our belief that code-driven approaches and

semi-formal engineering methods in current use are

insufficient to tackle tomorrow’s Grid

developments. This paper provides a set of Grid

specific models enacted within a novel engineering

approach that implements the model-driven

philosophy. Inside a well-defined and adapted

formal approach, we investigate the enactment of

our model-driven engineering process providing the

tools to build the next generation of Grid

applications. Thus, this paper emphasizes different

aspects, which are, in our view, essential to Grid

engineering:

• it offers a user-friendly vision to Grid architects

by providing re-usable conceptual building

blocks,

• it hides the complexity of the final execution

platform through abstraction models,

• it promotes design re-use to facilitate further

developments.

To achieve these objectives, we combine two

approaches together and seek advantages from each.

On the one hand, we use the formal semantic

descriptive power to model Grid applications; on the

other hand, we use a model-driven approach to

promote model re-use, model transformations, to

hide the platform complexity and to refine abstract

software descriptions to concrete ones.

The remainder of this paper is structured as follows.

Part 2 presents the approaches used, (i.e. Model

Driven Engineering and Architecture-centric

approach). Part 3 explains how model-driven

engineering is enacted to design Grid applications.

Part 4 presents our formal architecture-centric

model-driven approach and the means used to

achieve it. Part 5 illustrates the presented paradigms

with a concrete example. Finally, we conclude with

identifying future work and state the benefits of

using the presented concept.

2 MODEL-DRIVEN AND

ARCHITECTURE CENTRIC

APPROACHES

2.1 The MDE Approach

Model Driven Engineering MDE (Kent, 2002),

probably derived from the OMG Model Driven

Architecture MDA

(Kleppe et al, 2003) initiative,

tackles the problem of system development by

promoting the usage of models as the primary

artefact to be constructed and maintained.

Enacting the model-driven paradigm is not an easy

route to follow since as yet there are few available

frameworks designed and most of them are

combinations of existing tools. Despite the lack of

proper MDE tools, there are clear advantages from

using and enacting it. Among such benefits that are

valuable for Grid applications is providing system

developers the capability to design systems

efficiently in a heterogeneous and rapidly changing

environment. Indeed, models being decoupled from

platform technologies, system descriptions remain

relevant and re-usable.

2.2 A Combination of Approaches

By convention and in order to separate clearly the

concept described here from that of the OMG

MDA

, we call our approach a grid model-driven

engineering approach (gMDE) and use a Grid-

specific terminology. The OMG describes a design

method based on model transformations according

to meta-models, which is generic enough to fulfil

any requirements in terms of modelling and re-use.

However, most existing implementations of this

paradigm provide only model to source code

transformations, based on UML, where the Platform

Independent Models (PIMs) are translated to

Platform Specific Models (PSMs). In Grid

engineering, when mapping system models to

concrete platforms, it is often necessary to include

model to model transformations to fill the gap

between the abstract description and its concrete

representation. In addition, model optimization

requires the generation of intermediate models to

compute and synchronize different views of a

system. Providing model to model transformations

as well as model to code transformations along the

development process makes the approach more

modular and also facilitates the final source code

generation. In order to support this approach, we

combine the model-driven philosophy to a well-

established architecture-centric approach (Chaudet

et al, 2000).

Thus, we first define a set of key models to design a

Grid application from the high level descriptions of

each architectural element to its final deployment. In

addition, we introduce the necessary semantics to

generate, transform and check models along the

design process. We consider architectural

descriptions (from abstract to more concrete) as

models. From this basis, transformations are applied

to models and as a consequence to software

architectures according to architect’s and platforms

requirements. The end result of such iterative

A FORMAL ARCHITECTURE-CENTRIC MODEL-DRIVEN APPROACH FOR THE AUTOMATIC GENERATION

OF GRID APPLICATIONS

323

modifications and mappings being the concrete

deployed application.

Focusing on the model transformation aspects, we

can notice similarities with the refinement concepts

found in formal architecture-centric software

engineering developments. The MDE can benefit

from refinement to handle some of the model

transformations and to ensure the models’

correctness. From the OMG’s vision, we use the

basic idea that consists of starting from a PIM to go

to a PSM by means of transformations. Our

approach follows such an idea in implementing the

architecture-centric refinement (see section 3).

3 A FORMAL

ARCHITECTURE-CENTRIC

MDE APPROACH

Following our gMDE paradigm (Manset et al,

2005), we address the challenge of designing,

optimizing and adapting Grid-abstract architectures,

with respect to different criteria, in order to

automatically generate a complete set of Grid

services to be deployed on a physical grid of

resources. From the work we conducted in Grid

engineering (Amendolia et al, 2005) we consider the

Grid as a SOA and provide the means to specify

system properties related to the Quality of Services

QoS (Land, 2002) and Grid middleware platforms.

Using formal semantics, we build a set of major

models and investigate their orchestration along the

gMDE design process.

3.1 The gMDE Key Models

In Grid engineering, design is largely affected by

many constraints; these constraints are of different

types and are introduced either by the architect when

implementing QoS related features or by the target

execution platform. Thus the MDE process

dedicated to Grid engineering must take into account

all of these aspects in providing the necessary

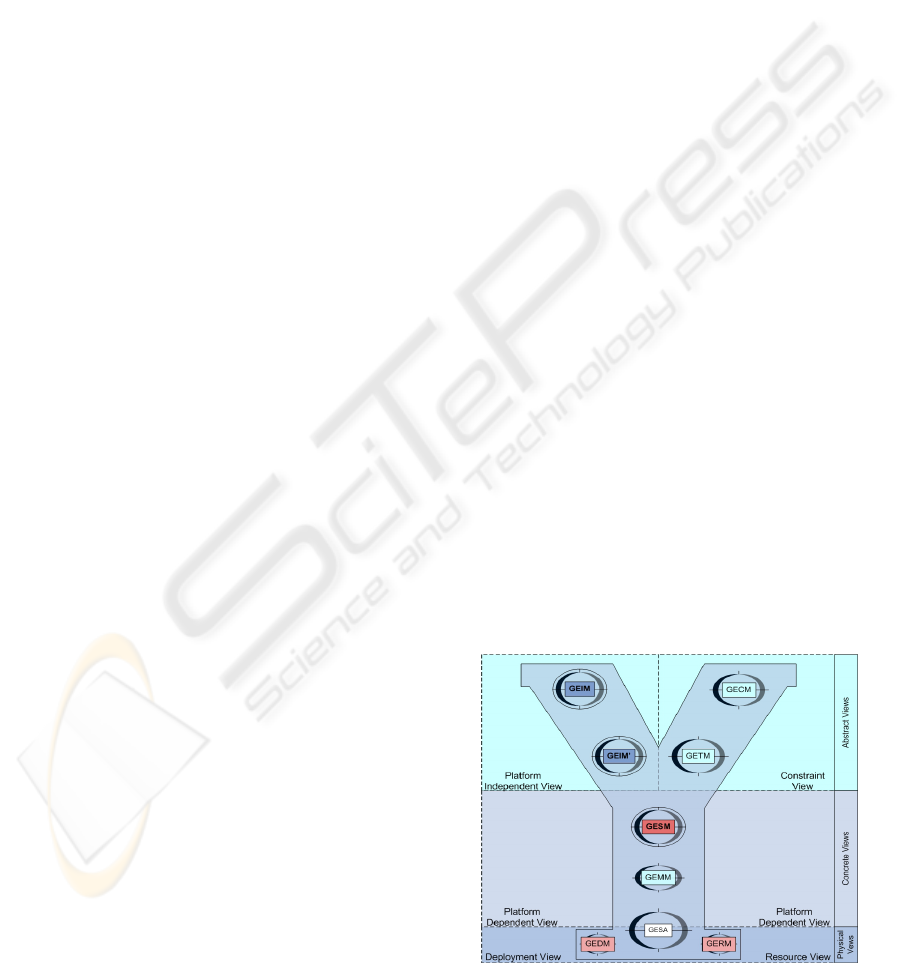

models and semantics. By proposing several models

(see figure 1), our approach separates concerns and

addresses different aspects of Grid applications.

Thus expertise management and capture are better

than in classical approaches e.g. (Medvidovic et al,

1996). Each model represents an accurate aspect of

the system, useful for conceptual understanding,

analysis and refinement. Unlike the software

engineering process where the system architecture is

iteratively refined by the architect, most of the

transformations in the gMDE are automated. The

different models composing our process are defined

as follows:

• GEIM – Grid Environment Independent Model:

an abstract description of the Grid application based

on a formal ADL (Architecture Description

Language) – using domain specific constructs,

• GESM – Grid Environment Specific Model:

a concrete architecture close to the final code and

optimized according to a particular Grid middleware

(execution platform) and QoS properties (a refined

system description),

• GECM – Grid Execution Constraint Model: a

design pattern representing a particular QoS

property,

• GETM – Grid Environment Transformation

Model: a design pattern representing a particular

Grid platform.

As a clarification of concept, we do not discuss in

detail the other models composing our design

process. However, these models can be defined as

follows:

• GEMM – Grid Environment Mapping Model: a

model of translation between an architecture

description language and an implementation

language (i.e. that defines the mapping between the

semantics of the GESM and a given programming

language, for instance Java).

• GERM – Grid Environment Resource Model: a

model representing the physical constitution of the

Grid.

• GEDM – Grid Environment Deployment

Model:

a model specifying the distribution and deployment

of the resulting application onto the grid set of

resources,

• GESA – Grid Environment Specific Application:

the auto-generated source code of the application

(i.e. obtained after GEMM translation).

Figure 1: gMDE key models.

ICEIS 2006 - INFORMATION SYSTEMS ANALYSIS AND SPECIFICATION

324

Figure 1 expresses the progressive design

convergence of these models towards the generation

of the final system source code (GESA) and its

deployment over the physical infrastructure. This

convergence is punctuated by different

transformations (in nature and objectives).

As is mentioned in section 2, our model-driven

approach uses the architecture-centric refinement

concept to decouple:

• the abstract domain specific vision from the

concrete implementation and

• the architect’s functional specifications and

non-

functional requirements.

As is depicted in figure 1, the models represent

different views of the system. Typically, non-

functional aspects – referred to as “Constraint View”

- are defined inside the GECM and GETM models;

unlike functional aspects – referred to as “Platform

Independent View” - which are defined in the GEIM

and GEIM’ (a specialized form of the GEIM)

models.

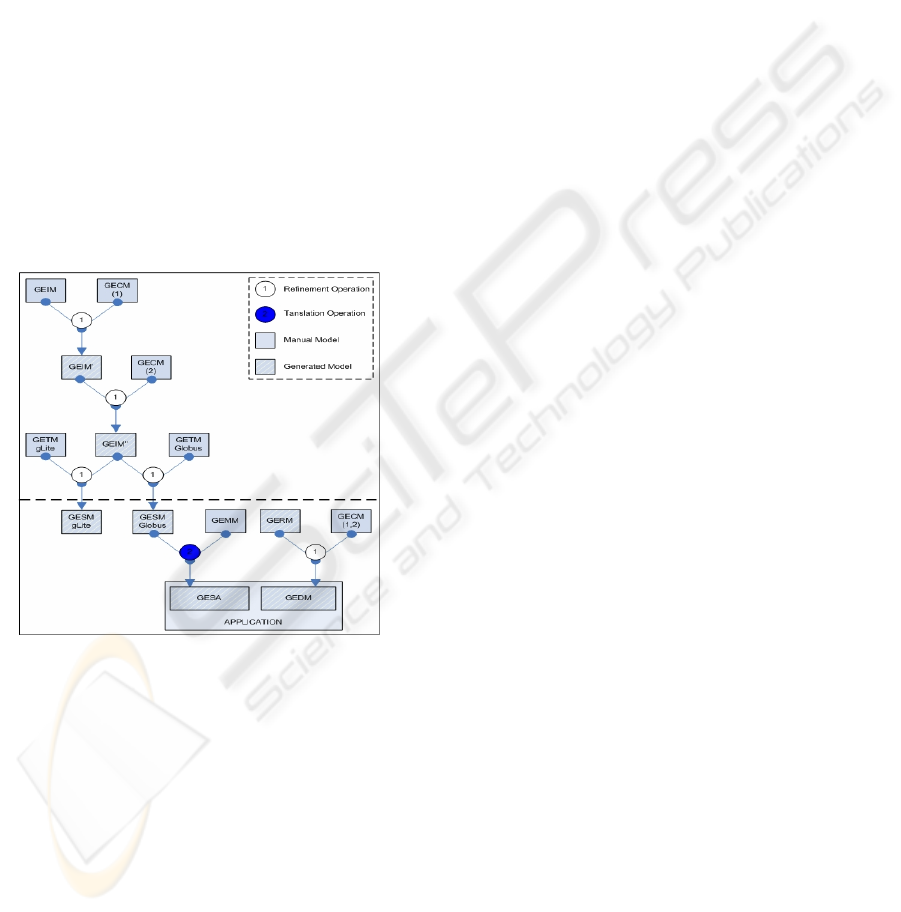

Figure 2: The gMDE development process.

Each of these two views owns a proper meta-model

introducing a Grid domain terminology to facilitate

the domain representation. Once the concrete system

specification (GESM) has been obtained, it is

translated into source code (GESA) using a mapping

expressed in the GEMM model. This transformation

and corresponding models are referred to as part of

the “Concrete View”. Finally, the system

distribution over a physical set of resources (an

essential aspect of Grid computing) is also handled

using models (the GEDM and the GERM) and

transformations, constituting the “Physical View”.

The GEIM, GETM and GESA are the only models

visible and modifiable by the software architect

during design, unlike others, which are

automatically obtained from transformations.

3.2 The gMDE Development Process

Figure 2 introduces the orchestration of the

previously presented models inside the gMDE

design process. In the depicted process, a distinction

is made between two major levels, one is the

architecture level of transformation – above the

broken lines - and the other is the implementation

level of transformation – below the broken lines.

Models and transformations can differ in nature and

objectives. Thus models can be of two distinct types;

either the model is manually created or it is

automatically obtained by transformation.

Transformations can then be of two different types;

either the transformation is a composition of one or

more refinement actions (model to model

transformation) or it is a translation mapping (model

to source code transformation).

In the previous drawing, two different sets of QoS

constraints were successively introduced (referred to

as GECM 1 & 2). By introducing new models, the

software architect can specialize an architecture

progressively with respect to different sets of

constraints. Once the system architecture complies

with the expressed requirements, the software

architect can specify a Grid execution platform. This

is illustrated in figure 2 (referred to as the GETM for

(gLite) and for (Globus) Grid platforms), two

different middlewares were selected to obtain the

adapted concrete system architecture, GESM.

Figure 2 also details the models and transformation

types. The depicted process demonstrates the

integration of multiple constraints by the

introduction of models. The gMDE approach covers

both model to model transformations and model to

code transformations, which makes it flexible

enough to tackle other aspects. Indeed, the process is

not limited to what is expressed in figure 2 but can

be extended to any sets of constraints, provided the

corresponding model is expressed. This scalability is

the direct result of the underlying formal

architecture-centric model-driven approach.

4 ENACTING MDE, A

CONCRETE FRAMEWORK

4.1 ArchWare: Formal

Architecture-centric Approach

and Toolkit

(ArchWare) is an engineering environment

supporting the development of software systems

A FORMAL ARCHITECTURE-CENTRIC MODEL-DRIVEN APPROACH FOR THE AUTOMATIC GENERATION

OF GRID APPLICATIONS

325

through the use of a formal architecture-centric

approach. This formal architecture-centric method

enables the support of critical correctness

requirements and provides tools to guarantee system

properties. ArchWare provides a set of formal

languages to enable reliable design, amongst them:

(1) the ArchWare Architecture Description

Language ADL (Oquendo et al, 2002), defined as a

layered language for supporting both structural and

behavioural descriptions as well as property

definitions. This language is based on the π-calculus

(Milner, 1999) and µ-calculus (Kozen, 1983), (2)

the ArchWare Architecture Refinement Language

ARL (Oquendo et al, 2004), used to describe

software architectures (based on the Component and

Connector architectural style) and to refine them

accordingly to transformation rules.

These languages used together constitute the

ArchWare environment framework. As mentioned

in section 2, there are noticeable conceptual

similarities between some of the gMDE model

transformations and software architecture

refinement operations. From our point of view,

refinement is considered as an architecture-level

transformation. Thus, the rest of this paper

investigates the ArchWare refinement process

,which is, we believe, essential to the enactment of

our formal architecture-centric MDE approach.

4.2 The ArchWare Refinement

Concept

Complex systems cannot be designed in one single

step. In a stepwise architecture refinement, a

sequence of modifications is applied on a system

abstract model, which leads to a concrete,

implementation-centred model of the architecture.

These refinement steps can be carried out along two

directions: “vertical” and “horizontal”. The concrete

architecture of a large software system is often

developed through a “vertical” hierarchy of related

architectures. An architecture hierarchy is a linear

sequence of two or more architectures that may

differ with respect to a variety of aspects. In general,

an abstract architecture is simpler and easier to

understand, while a concrete architecture reflects

more implementation concerns. “Vertical”

refinement steps add more and more details to

abstract models until the concrete architectural

model has been described. A refinement step

typically leads to a more detailed architectural model

that increases the determinism while implying

properties of the abstract model. “Horizontal”

refinement concerns the application of different

refinement actions on different parts of the same

abstract architecture, for instance, by partitioning an

abstract component into different pieces at the same

abstraction level. The ArchWare ARL language is

the formal expression of these refinement

operations, which aims at preserving upper abstract

architecture properties while modifying it. The

ArchWare environment supports at each level of the

design process the re-use of existing architectural

models and, at the concrete level, architecture-based

code generation. As is demonstrated in [24], the

ArchWare approach handles an exhaustive set of

refinement actions. The semantics of such actions

are expressed as follows:

refDefinition::=on a : architecture action actionName is refinement (

actionParameter

, actionParameter

)

{

[ pre is { condition } ]

[ post is { condition } ]

[ transformation is { refExpression } ]

} [ assuming { property } ]

Each refinement action, hereinbefore referred to as

actionName, specifies a refinement action to apply

on an architecture “a”, as well as pre- and post-

conditions.

4.3 A Refinement Process for gMDE

The gMDE approach focuses on both directions of

refinement i.e. the “vertical” and the “horizontal”.

The intention is not only to refine an architecture to

a concrete and “close to final” code form, but also to

adapt it according to constraints. This paper

proposes two ways of using the model

transformations. One consists of optimizing a given

system abstract architecture according to expressed

developers’ requirements in terms of QoS. The

second consists of adapting an architecture

according to a Grid middleware. Respectively:

- Each QoS property is represented by a design

pattern. This representation is then adapted to the

current software architecture by refinement.

- Each platform is represented by a design pattern

and corresponding architectural properties. The

system software architecture is then adapted to this

platform by refinement as well.

To do so, the ARL expressiveness had to be

extended with respect to the Grid domain. The next

sections details our complementary semantic and its

usage.

4.4 Grid Domain Specific Language

Enabling the gMDE requires the expression and

consideration of new semantics. Indeed, as

mentioned in section 3.1, the “Platform Independent

ICEIS 2006 - INFORMATION SYSTEMS ANALYSIS AND SPECIFICATION

326

View” and “Constraint View” are based on

different meta-models. Thus the gMDE approach

uses a Domain Specific Language (DSL) based on

the SOA paradigm, which is a specialisation of the

ARL language.

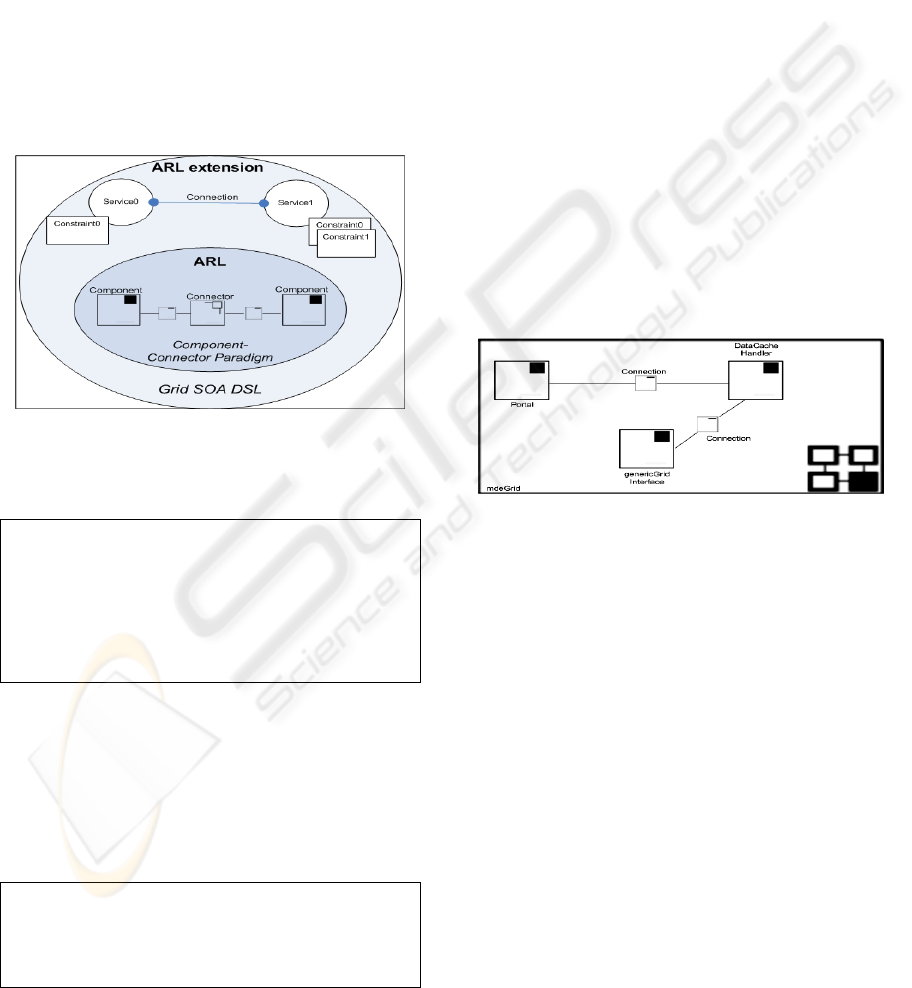

Figure 3 shows the different meta-models and their

mapping, allowing the description of proper Grid

services and their associated constraints. As a

consequence the system architecture (GEIM) is

respectively considered as a set of services by the

software architect and is then mapped to the

component-connector representation, which is

computable. This paradigm mapping is a key

element in our gMDE approach. The software

architect can focus mainly on his domain

requirements and benefits of the architecture-centric

facilities to refine his system.

Figure 3: The grid domain specific language.

As an example, the following is a generic

description of a Grid architecture (voluntary

simplified):

gridArchitectureRef is GridSOAArchitecture where {

structure is {

serviceName is style serviceTypeRef where {

structure is {… service internal structure description … }

connection is { … service connections descriptions … }

constraint is { … QoS and / or platform constraints mappings … }

} …

}

link is {

attach serviceName0 to serviceName1 .

}}

The Grid architecture hereinbefore referred to as

gridArchitectureRef is expressed in terms of services

(e.g. referred to as serviceName), structure,

connections and constraints.

Like the GEIM model, the GECM and GETM

models are expressed using the same semantic.

Following is the meta-model representing a

constraint (of type QoS or Grid middleware).

constraintName is constraintTypeRef {

on a:architecture actions {

actionRef elemRef is typeRef {… element description … }

on b:architecturalElement actions {

actionRef b .

…}}…

The constraint, referred to as constraintName, is

specified in terms of architectural elements (e.g.

referred to as elemRef) providing its core

functionalities and high-level refinement actions

(e.g. referred to as actionRef) to be applied to one or

more target elements “b”. Using this semantic, a

wide variety of QoS and Grid platforms constraints

can be expressed and concretely used along the

gMDE design process. Given the flexibility of our

formal model-driven approach and relying on the

correctness of our models, the resulting technique is

able to tackle every aspect of software architecture

transformations needed in Grid developments. These

models and the enacted gMDE design process

constitute the core of our gMDE environment (called

gMDEnv – not detailed in this paper).

5 THE MDEGRID EXAMPLE

In order to demonstrate the core gMDE concepts,

we introduce here the mdeGrid system example. For

clarification, this example only treats the application

of one QoS constraint model.

The mdeGrid system aims at providing clients,

round-the-clock access to data stored in the Grid.

Figure 4: The mdeGrid system architecture.

To provide such functionality, the mdeGrid system

software architecture has been described as a set of

services with dedicated roles. As detailed in the

figure 4, the system architecture features three main

services:

- The Portal : in charge of delivering data and

answering to clients’ requests. This service handles

interactions with other Grid services in order to

satisfy the client’s request.

- The DataCacheHandler : this service collects and

caches data queried from the grid through the

genericGridInterface service. It updates this data

automatically by checking it periodically and

downloading if necessary.

- The genericGridInterface : this service represents

the interface to a given grid middleware. (NB: this

interface is considered as generic until the Grid

platform is selected as explained later in the

example).

A FORMAL ARCHITECTURE-CENTRIC MODEL-DRIVEN APPROACH FOR THE AUTOMATIC GENERATION

OF GRID APPLICATIONS

327

archetype mdeGrid is architecture {

types is {…}

ports is {…}

behaviour is {

archetype Portal is component {…} .

archetype genericGridInterface is component{…} .

archetype DataCacheHandler is component {

types is { type Data is any . type resultSet is tuple [String, String] }

ports is {

archetype ComsP0 is port {

incoming is {ComsIncP0C0 is connection ( resultSet )}

outgoing is {ComsOutP0C0 is connection ( Data )}

} .

archetype ComsP1 is port {

incoming is {ComsIncC0 is connection (Data)}

outgoing is {ComsOutC0 is connection (resultSet)}

} }

behaviour is {

--<faulttolerance::priority:1,range:1>--

value resultSet is connection (Data);

value query := “the query expression…”;

recursive value readGridDBEntries is abstraction();

{

via ComsOutP0C0 send query;

via ComsIncP0C0 receive res:resultSet;

updateLocalCachedDB(res);

readGridDB();

};

recursive value clientDataRequest is abstraction();

{

via ComsOutP1C0 receive clientRequest:request;

res := processClientRequest(clientRequest);

via ComsIncP1C0 send res;

cacheClientResultSet(res);

clientDataRequest();

}; ...

compose {

readGridDB() and clientDataRequest()

}}}{

unifies DataCacheHandler::ComsP1::ComsIncC1

with Portal::PortComsP0::PortComsOutC0 ... }}

Figure 5: The mdeGrid architecture specification.

Using our DSL, the system software architecture is

specified and then transformed into ARL (see figure

5), which constitutes the GEIM model - presented in

section 3.1. (NB: for clarification, the software

architecture description is simplified, i.e. types,

ports, connections and behaviours are not

expressed). Once the system architecture is

specified, the software architect can express non-

functional requirements. As an instance, it is

relevant in the mdeGrid architecture to ensure fault-

tolerance over the DataCacheHandler service to

guarantee uninterrupted data access to clients. To

explicitly indicate that this service should be fault-

tolerant, the software architect assigns it a constraint

mapping. The mapping declaration is split into three

parts as detailed below. The first part specifies its

nature, the second its priority with respect to other

constraints and thirdly its range/level. This

constraint mapping is attached to the architectural

element as an annotation inside the GEIM model

following this scheme: “--

<constraintRef::priority:#,range:#>--“ (see the

DataCacheHandler architectural element

description in figure 5 for a detailed example of

mapping). Once analyzed during the gMDE design

process, the corresponding constraint design pattern

is selected by the system (see figure 6). The

following definition is a simplified representation of

the Fault-Tolerance design pattern:

FT is qualityOfServiceProperty {

on mdeGrid:architecture actions {

include FTConnector is connector {

… connector architectural description …}

on DataCacheHandler :architecturalElement actions{

replicate DataCacheHandler to DataCacheHandlerClone0;

unify DataCacheHandler::ComsP0::ComsOutC0 with

FTConnector:: genericGridInterfaceComsP0::genericGridInterfaceIncC0

. }}…

Figure 6: The fault-tolerance GECM.

Our engineering environment (gMDEnv) then

proceeds to the elaboration of the transformation

model needed to fix the non-functional requirement.

This is what is shown in figure 7. Inside the

gMDEnv, a model-driven approach is enacted for

the predictive non-functional and functional analysis

of architectural elements. From the original GEIM

model, the system analyzes the different constraint

mappings and generates a satisfactory model of

atomic transformations to apply with respect to the

corresponding constraint design pattern.

The analysis conducted by the system is an heuristic

method to determine constraint compatibilities and

solutions among architectural elements and design

patterns. The system tries to map constraints

between architectural elements through inference

rules and selects which transformation is the best

suited. This iterative process leads progressively to

the elaboration of a satisfactory transformation

model applicable in context. This transformation is

explained in figure 7 and constitutes an example of

the first part of the gMDE design process. In the

resulting architecture (the GEIM’), the fault-

tolerance has been provided by the introduction of a

new connector “FTConnector” – a representation of

a known pattern for fault-tolerance handling - and

the replication of the DataCacheHandler

architectural element as a recovery service.

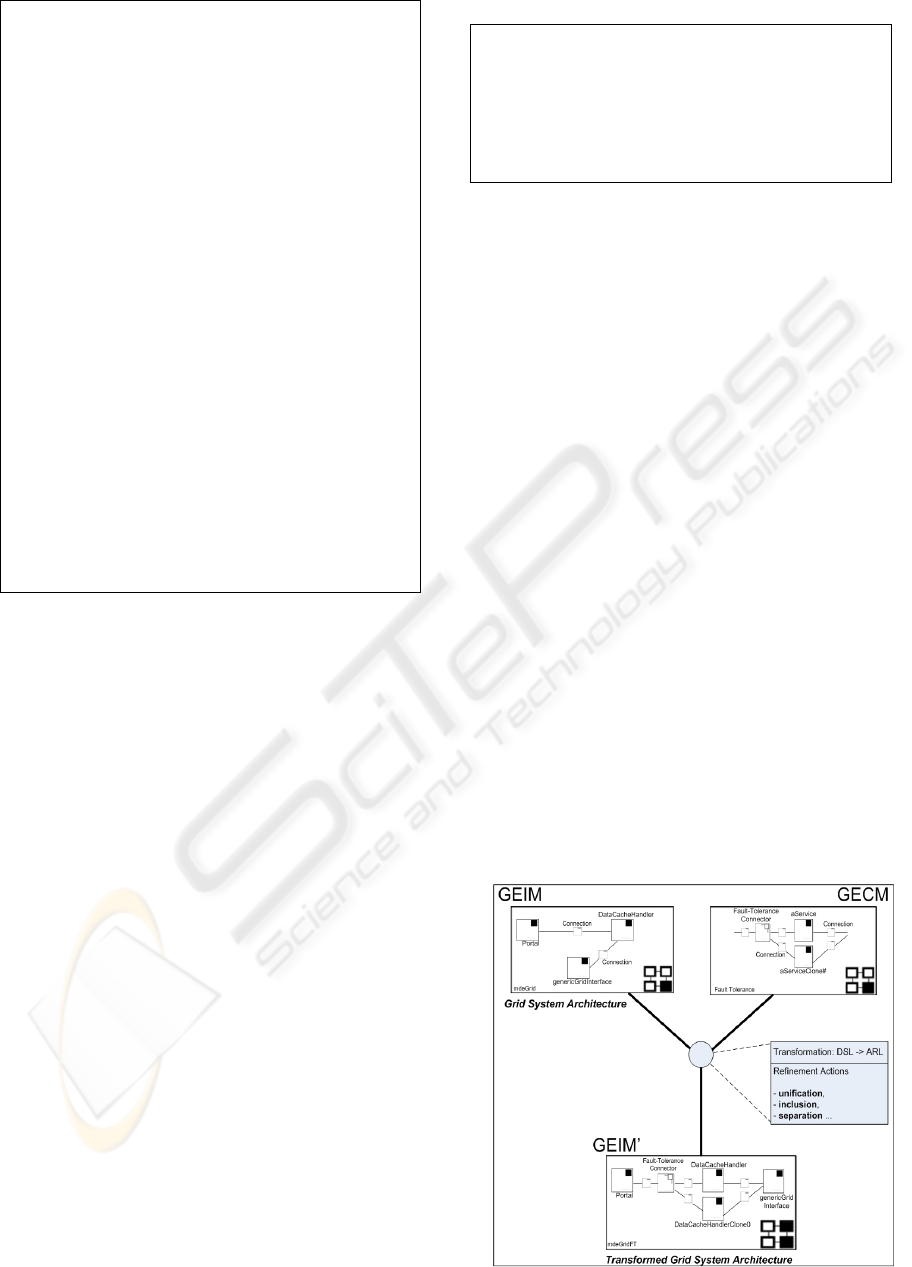

Figure 7: A gMDE model transformation.

ICEIS 2006 - INFORMATION SYSTEMS ANALYSIS AND SPECIFICATION

328

Figure 8 details the obtained new mdeGrid system

description:

behaviour is {

archetype Portal is component {…} .

archetype genericGridInterface is component{…} .

archetype DataCacheHandlerClone0 is component {…} .

archetype DataCacheHandler is component {

behaviour is {

archetype FTConnector is connector { …

behaviour is {

recursive value availabilityChecking is abstraction();

{

if (serviceDown) value serviceRedirectionURL :=

DataCacheHandlerClone0;

availabilityChecking();

};

compose { availabilityChecking() }

} .

recursive value readGridDBEntries is abstraction();

{…};

recursive value clientDataRequest is abstraction();

{…}; ...

compose {readGridDB() and clientDataRequest()}... }

Figure 8: The DataCacheHandler new behaviour.

Thus, the clients’ requests (through the Portal

service) are re-directed to the clone service in case

of a service failure. The same approach is

undertaken when adapting the specified system

architecture to a particular Grid middleware. The

genericGridInterface architectural element is refined

by model transformation so that the system

architecture satisfies the architectural constraints

implied by the design pattern.

As a conclusion, the model-driven paradigm enables

the introduction of well-known design patterns for

every aspect whether functional or not. For example,

other patterns can be introduced for non-functional

requirements like load balancing, security,

performance, cost policies etc. However, for

simplification matters, we do not discuss these in

this paper although they are treated in our gMDE

engineering environment (gMDEnv).

6 OUTLOOK AND CONCLUSION

In this paper we presented a technique for specifying

Grid applications by modeling and by transforming

these models to automate their adaptation to specific

platforms and QoS constraints. We introduced an

example to illustrate how the approach tackles QoS

specifications in addition to platform requirements.

Our investigation has lead to the elaboration of a

wide range of frequently used Grid platforms and

QoS constraint models. The efficiency of the

approach relies strongly on the correctness of these

models; consequently great care is being taken to

ensure this. As a proof of concept, the engineering

framework being developed (gMDEnv) enacts the

combination of the formal architecture-centric and

model-driven approaches introduced previously. In

its current state, it is already capable of handling

most of the presented models and transformations.

Since this approach is based on the concepts of re-

use and execution platform independence, our

engineering framework scope is not limited to the

Grid domain. The same approach can tackle other

developments based on the SOA vision such as web

service-based applications (i.e. online traders,

booking systems, video on demand systems etc).

Thus, the benefits of using the gMDE are numerous.

Formal application models designed using our

framework are persistent and re-usable. For

instance, one can use libraries and previously stored

models to design new applications. The approach is

scalable; one can extend the scope limitation of the

framework by providing the corresponding new

constraint and mapping models. From the

establishment of well-known architectural concepts,

the framework brings a high level of description to

the user while promoting user-friendliness through a

simple semi-automated graphical user interface (see

figure 9).

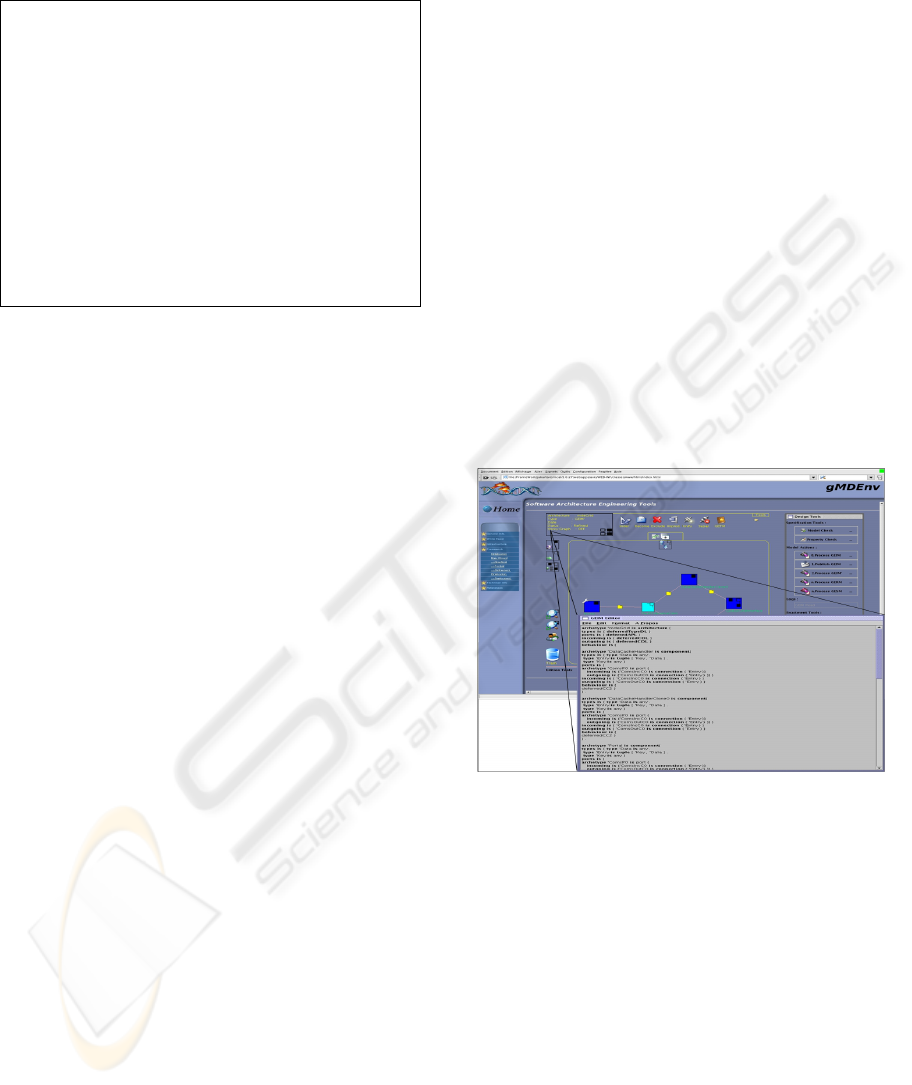

Figure 9: The gMDEnv graphical user interfaces.

Finally, with respect to model transformations, an

interesting area of future research is the

development of a decision system to support users

through model-driven transformations. Indeed, some

of the adaptations required to satisfy platforms and

QoS constraints can lead to critical decisions. We

are using examples such as the one described in

section 5 and the MammoGrid development

experience (Amendolia et al, 2005), to elicit the

framework requirements. The gMDEnv and the

presented approach are currently in use to evaluate

potential advantages in the development process of

the MammoGrid application. There are clearly

identified issues in the development of MammoGrid

on which the gMDEnv emphasizes, such as adapting

the system to other Grid platforms, improving the

global application security level or porting the

A FORMAL ARCHITECTURE-CENTRIC MODEL-DRIVEN APPROACH FOR THE AUTOMATIC GENERATION

OF GRID APPLICATIONS

329

system to different programming languages. From

these case studies, the preliminary conclusions are

encouraging and show the relevance of this formal

model-driven paradigm applied to the Grid domain.

This paper is a first investigation of the model-

driven paradigm enactment using established formal

architecture-centric concepts. Besides supporting the

usefulness of the ArchWare ARL language, we are

able to draw a number of conclusions. We learned

that the model-driven approach is a very useful

paradigm when addressing cross-platform

developments and problems of re-use but it must be

dependent on a rigorous basis to be efficient. The

formal dimension brought by ArchWare is one of

the key points of our successful implementation,

especially in using a formal refinement language.

Similarly we learned that QoS attributes are not easy

to quantify in models. There is a true lack of

standards that could help significantly when

considering resource comparisons. In the context of

other engineering frameworks and given the

concepts we have now in hand, our approach can

provide relevant benefits to the practice of Grid

system engineering. From our experience, we

believe that the presented approach is an important

contribution to the development of new Grid

systems.

ACKNOWLEDGMENTS

The authors wish to thank their Home Institutions

and the European Commission for financial support

in the current research.

REFERENCES

Foster, I. Kesselman, C. Tuecke, S. 2001. The Anatomy of

the Grid – Enabling Scalable Virtual Organisations, In

Int. Journal of Supercomputer Applications,

SOA – Service-Oriented Architectures An Introduction.

See

http://www.developer.com/services/article.php/10143

71.

Cox, A. 2004. An Exploration of the Application of

Software Reuse Techniques to the Location of

Services in a Distributed Computing Environment, In

Thesis report, University of Dublin.

Kent, S. 2002. Model Driven Engineering, In IFM 2002,

volume 2335 of LNCS. Springer-Verlag.

Kleppe, A. Warmer, J. Bast, W. 2003. MDA Explained:

The Model Driven Architecture™: Practice and

Promise. Addison-Wesley, Paperback, ISBN

032119442X.

Chaudet, C. Megzari, K. Oquendo, F. 2000. A Formal

Architecture-Driven Approach for Designing and

Generating Component-Based Software Process

Models. In Proceedings of the 2000 International

Conference on Information Systems Analysis and

Synthesis (ISAS’00), Track on Process Support for

Distributed Teambased Software Development.

Amendolia, S.R. Estrella, F. Del Frate, C. Galvez, J.

Hassan, W. Hauer, T. Manset, D. McClatchey, R.

Odeh, M. Rogulin, D. Solomonides, T. Warren, R.

2005. Deployment of a Grid-based Medical Imaging

Application, In Proceedings of the 2005 HealthGrid

Conference.

Land, R. 2002. Improving Quality Attributes of a

Complex System Through Architectural Analysis – A

Case Study, In Proceedings of the International

Engineering of Computer-Based Systems Conference,

p 167-174, IEEE Press.

Medvidovic, N., Oreizy, P. Robbins, J.E. Taylor, R.N.

1996. Using object-oriented typing to support

architectural design in the C2 Style. In Proceedings of

4th ACM Symposium on the Foundations of Software

Engineering (SIGSOFT).

EGEE gLite : see http://egee-jra1.web.cern.ch/egee-jra1/

Globus : see http://www.globus.org/

ArchWare. The EU funded ArchWare IST 2001-32360 –

Architecting Evolvable Software - project:

http://www.arch-ware.org.

Oquendo F. Cimpan S. Verjus H. 2002. The ArchWare

ADL: Definition of the Abstract Syntax and Formal

Semantics. Deliverable D1.1b. ARCHWARE

European RTD Project IST-2001-32360.

Milner R. 1999. Communicating and Mobile Systems: the

pi-calculus. ISBN 052164320, Cambridge University

Press.

Kozen D. 1983. Results on the Propositional Mu-Calculus,

Theoretical Computer Science 27:333-354.

Oquendo F. 2004. π-ARL: an Architecture Refinement

Language for Formally Modelling the Stepwise

Refinement of Software Architecture. In ACM

SIGSOFT Software Engineering Notes archive

Volume 29, Issue 5, ACM Press.

Manset, D. Verjus, H. McClatchey, R. Oquendo, F. 2005.

A Model Driven Approach for Grid Services

Engineering. In Proceedings of the 2005 International

Conference on Software Engineering and their

Applications.

ICEIS 2006 - INFORMATION SYSTEMS ANALYSIS AND SPECIFICATION

330
