MANAGING THE KNOWLEDGE NEEDED TO SUPPORT AN

ELECTRONIC PERSONAL ASSISTANT

An End-User Friendly Graphical Ontology Editing Tool

Matthias Einig

School of Computer Science/Mathematics, Munich University of Applied Sciences, Lothstraße 34, Munich, Germany

Roger Tagg

School of Computer and Information Science, University of South Australia, Mawson Lakes, SA, Australia

Georg Peters

School of Computer Science/Mathematics, Munich University of Applied Sciences, Lothstraße 34, Munich, Germany

Keywords: Ontology, Graphical Editor, Personal Information Management, Groupware.

Abstract: Today’s administrative worker has to handle huge amounts of data of different types, from many different

sources and using multiple software tools. The effort in organizing and retrieving this data is often

disproportionate to the actual benefit gained. Ontology-based categorization of knowledge has been

advocated to provide a common infrastructure to the tools. However, most current software for building and

maintaining ontologies is too complicated for the average end-user. This paper describes a prototype

ontology editor application that aims to provide a more easily understandable and usable interface.

1 INTRODUCTION

The increasing problem of work and information

overload for many information workers has been

frequently noted, (e.g. Whittaker, 1996; Patch,

1998). Software solutions such as Groupware

(Coleman, 1997; Chaffey, 1998) and Personal

Information Management (Jones, 2004; Boardman,

2004) have been introduced. But so far, these

solutions fall well short of the service that many

managers formerly enjoyed through human

secretaries and personal assistants. Our research is

geared to providing an Electronic Personal Assistant

that can replace – and hopefully improve on – the

service previously supplied by human assistants. The

beneficiaries would be both individuals and groups,

doing either creative work or routine administration

– or both.

All such IT support has to be based on a

repository of the knowledge, both contextual and

structural, through which the human participants

view their work. Garshol (2004) discusses a range of

approaches for representing such knowledge:

metadata, thesauri, taxonomies, topic maps and

ontologies.

The work presented in this paper follows the

view that ontologies (Davies, 2002; McGuinness,

2004) can provide a good mechanism for combining

personal knowledge of individual users with the

domain or application knowledge of the groups to

which users belong.

This implies that the end-user should be able to

manage her/his knowledge directly without

significant support from a specialist. Currently,

however, managing an ontology tends to be a task of

a knowledge management specialist rather than the

end-user.

In an attempt to bridge this gap, our work has

concentrated on developing a tool, EzOntoEdit,

which allows the end-users themselves to maintain -

their ontology.

Sections 2 and 3 of this paper describe the

functional and usability requirements for a suitable

tool. Section 4 describes the design and

304

Einig M., Tagg R. and Peters G. (2006).

MANAGING THE KNOWLEDGE NEEDED TO SUPPORT AN ELECTRONIC PERSONAL ASSISTANT - An End-User Friendly Graphical Ontology

Editing Tool.

In Proceedings of the Eighth International Conference on Enterprise Information Systems - ISAS, pages 304-309

DOI: 10.5220/0002446003040309

 SciTePress

implementation of a prototype. Comments regarding

the limitations of this prototype are given in section

2 FUNCTIONAL

REQUIREMENTS

Developing any ontology is a dynamic process,

starting with an initial ontology that is typically

imported from a group or common source. This is

later revised, refined, and populated in more detail.

There are a number of software packages now

available that allow creation and maintenance of

ontologies e.g. Protégé (2005) or AIFB (2005). Most

current tools do allow the option of editing in a

graphical way, either with a built-in functionality or

through separate plug-ins e.g. Jambalaya (Chisel

Group, 2005) for Protégé.

Based on an evaluation of these tools we

identified four classes of functional requirements for

an ontology editor: (1) editing functions, (2)

transparency, (3) auditing and (4) reversibility.

2.1 Editing Functions

The basic functional requirement is to be able to

add, remove and modify entities in each of the main

entity types in the OWL Ontology meta-model

(W3C, 2005a), namely: (1) classes, (2) hierarchies

and other inter-class relationships, (3) properties

and their domains and ranges, (4) instances and

their property values.

2.2 Transparency

It is an essential requirement for the editor to keep

the ontology in a consistent, valid state after

alterations have been performed. All changes need

to be made as transparent as possible to the user.

This may be no problem in small ontologies, but

since ontologies tend to grow over time, it becomes

difficult to retain an overview over the relationships

within the ontology, especially when the ontology is

built in a collaborative way.

Consequently, if actions cannot be performed

because the editor cannot guarantee the consistency

or validity of the ontology, or data might be lost, the

user must be warned by the application. Then if the

user decides to cancel the operation, no changes will

be made and the ontology should stay consistent.

2.3 Auditing

The following aspects of auditing should be

considered (Stojanovic, 2002):

• A detailed log should be kept of every change to

the ontology to allow manual recovery of lost

data and reconstruction of the events which

caused the current state of the ontology;

• Additional information to each log entry, like

identity of the author of the change, the time of

the change and a textual change description

should be stored.

Auditing is particularly important as several

people may be contributing to a shared ontology. A

log also relates to the reversibility requirement (see

next section).

2.4 Reversibility

To avoid unintentional data loss when the user

makes an unintended change, an undo feature is

required.

Reversibility implies that the old state of the

ontology has to be cached somehow for complete

reconstruction of the previous state. This must

include the case where a class within a hierarchy is

deleted. The tool has to recover the lost instances

and property values and return the class hierarchy to

its original state.

Reversibility also implies the ability to revert to

the previous visual (graphical) state of the work.

Previously selected objects should be selected again,

and restored objects or properties of objects should

be moved into the user’s view, so that the user

realizes the success of his undo operation.

3 USABILITY REQUIREMENTS

According to Shneidermann (2000) usability

requirements include: (1) platform independence, (2)

native appearance, (3) ease of input method, (4)

adjustment to users’ preferences and (5) feedback to

the user. These are discussed below.

3.1 Platform Independence

One of the key goals defined for this project has

been to provide platform independence of the

application. The tool should run on all the

commonest platforms like Windows, Linux and

MANAGING THE KNOWLEDGE NEEDED TO SUPPORT AN ELECTRONIC PERSONAL ASSISTANT - An

End-User Friendly Graphical Ontology Editing Tool

305

MacOSX, using an interface that is familiar on

whatever computer the user is used to working.

3.2 Native Appearance

To avoid risk of rejection, a user’s interface should

behave in tune with the user's computing habits,

which includes the computing platform.

But requiring a platform independent application

creates the problem that the user interface may no

longer be completely uniform. There may be totally

different usage concepts on the various platforms,

for example the best design of dialog boxes.

Although platform independence may be gained by

using a programming language like Java, the

advantage will be partly lost by the need to

implement platform-dependent code fragments into

the program.

3.3 Ease of Input Method

In our project we chose to concentrate on a graphical

editor since we believe that it suits end-users better

than a text based interface. An ideal graphical

ontology interface includes:

• Zooming in and out

• Displaying a small context window, which

shows the current viewpoint;

• Selective hiding of information;

• Displaying a hierarchy starting from a selected

node;

• Displaying instances only of a selected node;

• Searching for objects by name;

• “Magnifying glass”, reducing the size of objects

the further away they are from the centre;

• Preserving the positions of objects in the view

after reloading the ontology.

3.4 Adjustment to Users'

Preferences

The appearance and behavioural settings of the

software should be open to modification. These

include colours, sizes and shapes of objects. Settings

should be preserved after exiting the application and

restored on the next launch.

3.5 Feedback to the User

The primary types of user feedback are input

validation and notification of any necessary

additional modifications to the ontology consequent

on a user action.

In addition, user assistance is desirable on such

matters as:

• Wizards for complex or repetitive tasks , e.g.

importing

• Templates for common input formats

• Tips on how to use the tool

• Reviewing the status of the work

• Context-based enabling/disabling of certain

functions.

4 PROTOTYPE

IMPLEMENTATION

Our prototype EzOntoEdit (Easy Ontology Editor)

was developed in Java, but with components

enabling it to run as a native application in each of

the operating systems Windows, Linux and

MacOSX. The Java implementation allows any

platform where a Java Virtual Machine (JVM) is

provided (Lindholm, 1999). Swing components from

the Java Foundation Classes (Sun, 2005) were used

to implement the GUI.

4.1 Design Decisions

We have used an existing standard ontology format,

namely OWL (Web Ontology Language), which is

based on the RDF (Resource Description Language)

(W3C 2005b).

For parsing OWL files we chose to make use of the

Jena Semantic Web Framework (Sourceforge 2005).

EzOntoEdit can read and write all formats supported

by the Jena Framework.

After considering the use of applets, we decided

instead to develop a normal client/server window

application. This provides the opportunity to use

menus and create separate windows (such as a

preferences window).

4.2 Main User Menu

The user interface has been kept as simple as

possible. The main menu is shown in Figure 1.

ICEIS 2006 - INFORMATION SYSTEMS ANALYSIS AND SPECIFICATION

306

1. Application Menu

2. Tabs of Open Documents

3. Drawing Area

4. Name Modification Field

5. Properties Area

6. Show Inherited Properties

7. Zoom Field

8. Status Line

Description

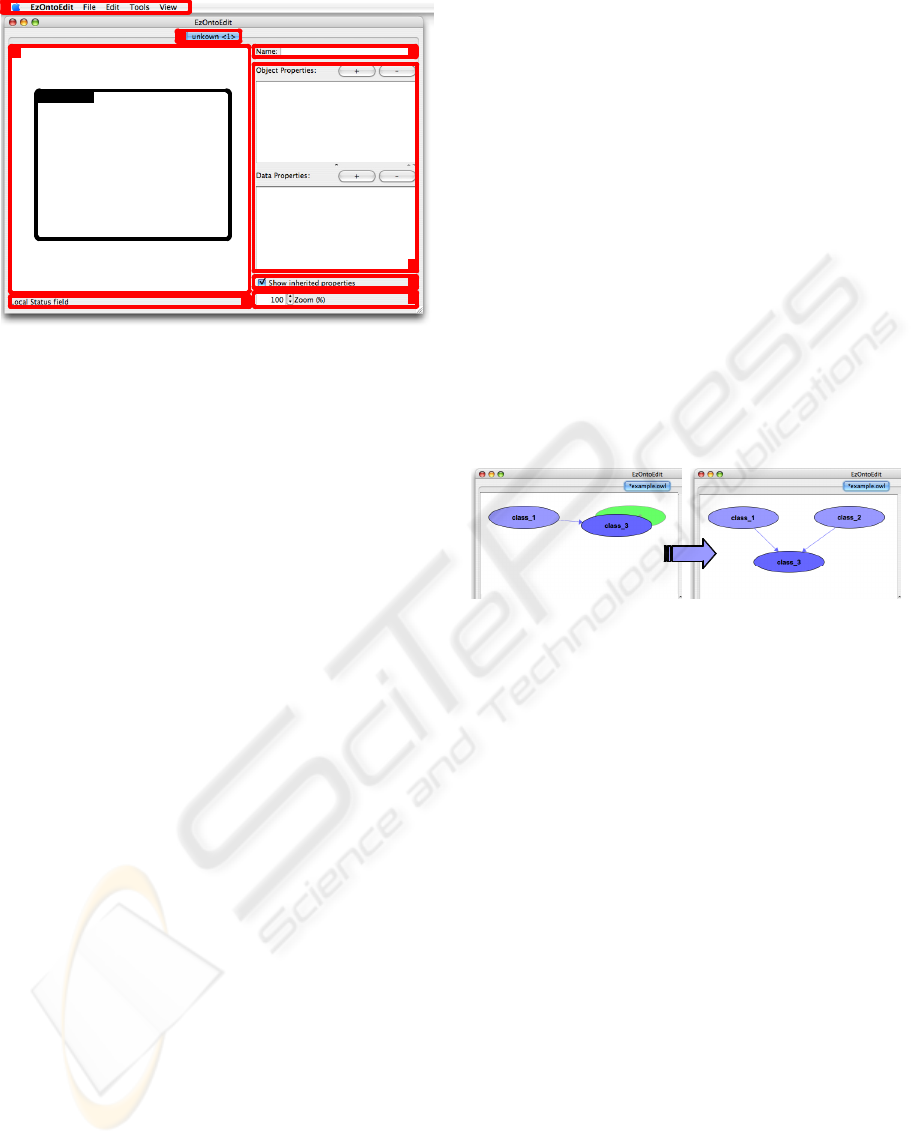

Figure 1: EzOntoEdit Main Menu.

The application menu (1) allows access to all

available functions and is attached to the application

(except for MacOSX). The tabs of open documents

(2) allow more than one document to be open at a

time, with easy switching between them. The

drawing area (3) becomes scrollable when the

ontology objects stretch beyond the visible region.

The name modification field (4) is used to change

the name of classes or instances when they are

selected. The properties area (5) shows the available

object and data properties of a selected class or

instance and provides a method to add, delete and

modify them. If the checkbox “Show inherited

properties” (6) is activated the properties area also

shows the properties inherited from classes higher in

that class's hierarchy. The zoom field (7) allows

changing the current zoom factor of the visible

document either by using spin buttons or by typing

in the desired % magnification. Finally the status

line (8) shows messages related to the currently

visible document.

4.3 Importing

EzOntoEdit’s import function allows quick creation

of classes and instances from a text list in either

CSV (comma separated values) or WSV (whitespace

separated values) formatted files. This helps the user

to introduce bulk amounts of data into his ontology,

rather than enter these as ad hoc additions. The

importer provides an option that enables the user,

after selecting the file, to choose an existing class in

the ontology where the imported object can be added

either as subclass or as instance of the class.

4.4 Basic Editing Interface

We envisage that, in most cases, the user of this tool

will be editing an ontology that has already been

created. However we have included facilities for

adding classes, properties and instances at any stage

of development.

User facilities for editing are similar to typical

modern drawing tools, and allow alternative modes

such as choosing from menus, keyboard short cuts

etc. Toggling is supported between a class view and

an instance view. An instance indicator is used in the

class view to show which classes have instances.

Validation is performed when the user clicks away

from the current selection.

Relations between classes are added by dragging

and dropping one class’s icon onto that of the related

class (see Figure 2). Relations can also be removed

graphically.

Figure 2: Creating relations by dragging classes.

The application also informs the user of the

current view status (i.e. class or instance view) by

displaying the corresponding text in the status bar at

the bottom after changing the view.

4.5 Validation

A limited amount of input validation has been

included in EzOntoEdit. Currently this covers the

creation and renaming of classes, instances and

properties to assure validity of the object names. The

following conditions are checked in the present

version of the tool: (1) name is not empty, (2) name

starts with a letter a-z or A-Z, (3) name contains

only alphanumeric characters, (4) no resource

(class, property or instance) within the ontology has

the same name.

When errors occur on modifying the ontology,

dialogs pop up to inform the user about the cause of

the error.

When importing, if an object already exists with

the same name as an object being imported, an error

message is displayed and the importer skips to the

next string. The imported names are adjusted

automatically to fulfil the naming standards as

MANAGING THE KNOWLEDGE NEEDED TO SUPPORT AN ELECTRONIC PERSONAL ASSISTANT - An

End-User Friendly Graphical Ontology Editing Tool

307

described in the OWL standard. If an import object

starts with a number the character “X” will be added

at the beginning of the name, special characters and

white spaces (space, tab, new line, etc.) are removed

automatically.

4.6 Logging

Currently EzOntoEdit contains basic logging

features only. When the logging is switched on the

logging messages are written into the file

ezontoedit-<current_date>.log in the application

directory. Four different log levels are used:

• Level 1: Errors, messages that occurred while

editing, e.g. a resource exists already;

• Level 2: Information - feedback from successful

user actions like add or delete;

• Level 3: Exceptions - application error

messages;

• Level 4: Debug information.

All log entries start with a timestamp and their

log type, to allow reconstruction of performed

actions. As EzOntoEdit does not yet include the

ability to manage users, the identification of the

author cannot currently be tracked.

4.7 Changing User Preferences

To change the appearance of the user interface to the

tool, EzOntoEdit provides a preferences panel. This

allows the user to set the (1) colours for text,

background and border of classes and instances, (2)

colour of arrows, (3) height and width of classes,

instances and instance indicators, (4) position of the

instance indicator, (4) display shape of classes,

instances and instance indicators.

Any colour can be chosen for the each different

state of selection e.g. selected, drop target etc for

both classes and instances. Arrow colours can be

defined differently for pointing from and to the

selected class.

Currently there are two display shapes available,

ovals and rectangles, which can be adjusted in width

and height.

After changing the settings the user can preview

his adjustments, reset the previous values and

discard or accept the changes. The modified and

accepted preferences will be reloaded when the

application is started the next time.

4.8 Native Look and Feel

A key aspect of this project has been to provide

interfaces that follow the guidelines provided by the

developers of each of the 3 most common target

operating systems, and hence provide interfaces

similar to commonly used applications on those

platforms.

The Java Virtual Machine (JVM) allows Swing

applications to draw themselves with the native

controls of the underlying operating system by

setting the UIManager to the system look and feel.

Unfortunately there are many other parts of a

Java application that do not appear native e.g.

common dialogs, keyboard shortcuts, menu

arrangement, application bundle etc. Some of these

have been addressed in the prototype.

4.9 Packaging the Application

Bundling the application to a platform-dependent

native executable file hides from the user the fact

that it is a Java application. It also avoids dealing

with inconvenient command line instructions or un-

aesthetic batch files. This has to be done differently

for each operating system.

For MacOSX, there has to be an application

bundle (EzOntoEdit.app) which is actually a folder

containing the application as a jar file, all additional

libraries, the icon and some preferences files for

storing the meta-data necessary for the application

start. For Windows a standard Windows .exe

executable has to be created out of the application’s

jar file. The necessary libraries cannot be added to

the application and therefore have to remain with the

executable in a subfolder. On Linux the application

has to be started with a shell script, which sets the

classpath to the required libraries and launches the

main executable out of the applications jar-file.

Consequently, the files cannot be bundled to a single

file. This way of starting would of course also be

possible for any other operating system with a Java

Virtual Machine, including MacOSX and Windows.

5 EVALUATION

5.1 Significance of the Work

We feel that, although we may not have made any

major breakthroughs in ontology editing, we have

demonstrated the feasibility of building a relatively

lightweight, instinctive graphical tool that can run on

ICEIS 2006 - INFORMATION SYSTEMS ANALYSIS AND SPECIFICATION

308

any basic hardware and software configuration.

Perhaps more significantly, we have addressed the

problem of providing a compatible tool for multiple

operating systems.

5.2 Limitations

Despite the considerable time spent building this

prototype, there are a number of features that have

not yet been implemented. These include:

• Class relationships other than specialization

• Displaying a hierarchy from a selected node

• Showing instances of a class as a table

• Moving an instance from one class to another

• Undo and redo of changes

• Copying and pasting between open ontologies

• Searching for nodes by name

• Linking to ontology instance data stored in a

relational database

• Changing the names of properties

Although many features could be added, there

are arguments for not making the tool too

complicated, otherwise it could end up by becoming

a tool for specialists again.

In addition to the above list, we feel that the

main missing feature in this project is that we have

not yet addressed the “lexical dimension”. By this

we mean the use of an inventory of text strings

(words or phrases) by which the concepts in the

ontology can be recognized in messages such as

emails.

6 CONCLUSION

In this project we have built a new ontology editor

that allows easier, more intuitive handling of

ontologies, and that also allows sharing of the effort

of keeping ontologies up-to-date between users

working in groups.

Preliminary end-user tests with EzOntoEdit have

confirmed that ontology editing need not necessarily

be a complicated task. However, more extensive

testing is required before we can reliably establish

whether or not non-specialist users will be prepared

to invest the effort to maintain their ontologies..

In the longer term, rather than remaining as a

stand-alone tool, we feel that EzOntoEdit could be

of most benefit as a component that can be

integrated with Personal Information Management

and Groupware clients in the future.

REFERENCES

AIFB, 2005. OntoEdit website, University of Karlsruhe.

http://www.ontoknowledge.org/tools/ontoedit.shtml

(accessed 11 Oct 2005)

Boardman, R., 2004. Improving Tool Support for Personal

Information Management, PhD Thesis, Imperial

College, London. http://www.iis.ee.ic.ac.uk/~rick/¬

thesis/

Chaffey, D., 1998. Groupware, Workflow and Intranets,

Digital Press.

Chisel Group, 2005. Jambalaya Plugin for Protégé,

http://www.thechiselgroup.org (accessed 11 Oct 2005)

Coleman, D., 1997. Groupware: Collaborative Strategies

for Corporate LANs and Intranets, Prentice Hall,

ISBN# 0-13-727728-8.

Davies, J., Fensel, D. and van Harmelen, F., 2002.

Towards the Semantic Web: Ontology-driven

Knowledge Management, Wiley, 2002.

Garshol, L.M., 2004. Metadata? Thesauri? Taxonomies?

Topic Maps! – Making Sense of it All. Journal of

Information Science, 30(4), pp 378-391, ISSN 0165-

5515, CILIP.

Jones, W., 2004. Finders, Keepers? The present and future

perfect in support of personal information

management. First Monday 9(3). http://www.¬

firstmonday.org/issues/issue9_3/jones/index.html

Lindholm, T. and Vellin, F., 1999. The Java(TM) Virtual

Machine Specification, Sun/Addison-Wesley.

McGuinness, D.L. and van Harmelen, F., 2004. OWL

Web Ontology Language Overview. http://www.¬

w3.org/TR/owl-features/

Patch. K. and Smalley E., 1998. E-mail Overload,

Network World, October 26

, http://www.nwfusion¬

.com/netresources/1026email.html

Protégé, 2005. Protégé website, Stanford University.

http://protege.stanford.edu (accessed 11 Oct 2005)

Shneiderman, B., 2000. Universal Usability,

Communications of the ACM, Vol 43, pp84-91.

Sourceforge, 2005. The Jena Semantic Web Framework,

http://jena.sourceforge.net (accessed 11 Oct 2005)

Stojanovic, L. and Motik, B., 2002. Ontology Evolution

within Ontology Editors, 13th International

Conference on Knowledge Engineering and

Management, Madrid, Spain.

Sun, 2005. Java Foundation Classes (JFC) website

http://java.sun.com/products/jfc/download.html

(accessed 11 Oct 2005)

Whittaker S. and Sidner C., Email Overload: Exploring

Personal Information Management of Email, Lotus

Development Corp., http://dis.shef.ac.uk/steve¬

whittaker/emlch96.pdf

W3C, 2005a. Web Ontology Language (OWL),

http://www.w3.org/2001/sw/WebOnt/ (accessed 11

Oct 2005)

W3C, 2005b. Resource Description Framework,

http://www.w3.org/RDF/ (accessed 11 Oct 2005)

MANAGING THE KNOWLEDGE NEEDED TO SUPPORT AN ELECTRONIC PERSONAL ASSISTANT - An

End-User Friendly Graphical Ontology Editing Tool

309
