THE USE OF THE NATURAL LANGUAGE UNDERSTANDING

AGENTS WITH CONCEPTUAL MODELS

Olegas Vasilecas, Algirdas Laukaitis

Vilnius Gediminas Techical University, Saulėtekio al.11, Vilnius – 40, LT-10223 Lithuania

Keywords: Natural language interfaces, conceptual modelling, neural network.

Abstract: In this paper AI agents for natural language interfaces in data exploration domain are presented. The

experiment done with the IBM natural language toolbox has shown that the black box approach in this case

leads to misclassification. Unsatisfactory results of the experiment triggered the present research aimed at

improving the user interface with the natural language modality at architectural and algorithm levels. We

extended traditional natural language interfaces in data exploration domain in the following direction: the

use of feedforward neural network as concepts indexes in the users natural language interfaces are

suggested. All presented concepts are realized as the open source project JMining Dialog.

1 INTRODUCTION

Corporate data environment is becoming more and

more complex as the amount of information is

constantly growing. Since the early 80's many

efforts have been made to investigate the use of

natural language for information extraction from

data base management systems (DBMS). Some

efforts were successful and some commercial

applications emerged but the NLP techniques have

not become widely used for DBMS interfaces. As

mentioned by researchers in (Androutsopoulos,

1995) this is due to:

1. Graphical and menu driven interfaces achieved

the level of sophistication that data analyst can do

job without deep knowledge of some data queer-ing

language (e.g. SQL), and on the other side NLP

techniques has not been able to deliver interfaces of

adequate sophistication.

2. Most research results reports on the possibility

to generate only one data queering script (in most

cases this was one SQL sentence) generated from

one natural language sentence. They do not support

complex dialog, which is the most usual case in real

life when we query data analysis ex-pert.

3. Some systems are commercial products and

they are close systems with difficulties in extending

such systems. We think that only open source

projects can bring more attention from researchers to

natural language database interface systems

(NLDBIS) field.

4. In available systems only system

administrators are able to parameterise the system.

We think that resent advances is building personal

assistants in such fields like an adaptive information

research from internet or personalized learning

knowledge maps will help to renew researches

interest in (NLDBIS) field.

To respond to these challenges a system

JminingDialog (Laukaitis, 2005) that use a dialog

rather than a sentence and is a constituent part of the

open source information delivery web portal

JMining (Laukaitis, 2005) was developed. The

suggested solution presents an agent architecture

consisting of a set of asynchronously operating

agents. This architecture enables us to perform

sophisticated data and interaction analysis without

loosing the property of short respond time essential

for interactive real-time operation. In the system

created several well-established Java toolboxes were

used. For text information pre-processing GATE

(Cunningham, 2000) which is a general natural

language architecture and a toolbox as well as

WordNet (Miller, 1985) representing English

language dictionary were applied.

The contribution of this paper is as follows:

firstly, a conceptual model used in the performed

experiments is described. Next the experiment with

IBM natural language understanding solution

WebSphere Voice Server considered as the black

308

Vasilecas O. and Laukaitis A. (2006).

THE USE OF THE NATURAL LANGUAGE UNDERSTANDING AGENTS WITH CONCEPTUAL MODELS.

In Proceedings of the Eighth International Conference on Enterprise Information Systems - AIDSS, pages 308-311

DOI: 10.5220/0002446203080311

 SciTePress

box approach to natural language supporting

systems is presented. The encountered problems

stimulated the research in the uses of a hybrid neural

network for natural language understanding. The

main idea behind this new proposal is to simulate

neural network architecture by ontological

knowledge base structure.

2 CONCEPTUAL MODEL

DRIVEN NLU

UNDERSTANDING

Ambiguity and vagueness raise a lot of problems for

developing information systems (IS). Business

applications ambiguity and vagueness arise because

at all IS lifecycle stages (analysis, design, testing

etc.) natural language is an essential part of

communication between people involved in business

activities (policies, regulations, laws, etc.).

Conceptual data centric modelling can be an

effective tool for eliminating ambiguity and

vagueness from IS business applications. This can

help to extend the analysts capabilities, enabling

him/her to define business concepts, characteristics,

behaviours, and interactions. Conceptual data-

centric enterprise models are rarely built and few

organizations even tried to use them with

information systems and in business activities. The

problem with conceptual data-centric enterprise

models is that they are difficult to understand. Their

abstract and generic concepts are unfamiliar to both

business users and IS professionals, being removed

from their local organizational contexts. We have

found this in several Baltic and Scandinavian banks

working with the IBM financial services data model

(FSDM) (IBM, 2005), which is a domain specific

model, based on the ideas of the experts from IBM

banking solution centre. To boast the awareness and

project-centric approach we integrated the model

into the created data exploration and information

extraction framework JMining (Laukaitis, 2005).

The model is shown to consist of a high level

strategic classification of domain classes integrated

with particular business solutions (e.g. Credit Risk

Analysis) and logical and physical data entity-

relationship (ER) models. In JMining Dialog system

the user identifies concepts by using natural

language on all conceptual models levels: the 'A'

level identifies nine data concepts that define the

scope of the enterprise model (involved party,

Products, arrangement, event, location, resource

items, condition, classification, business), the 'B'

level contains with business concepts hierarchies

(more than 3000 concepts), the 'A/B' business

solutions (integrates more than 6000 concepts with

more than 50 solutions) and 'C' level – entity

relationship ER diagram with about 6000 entities,

relationships and attributes.

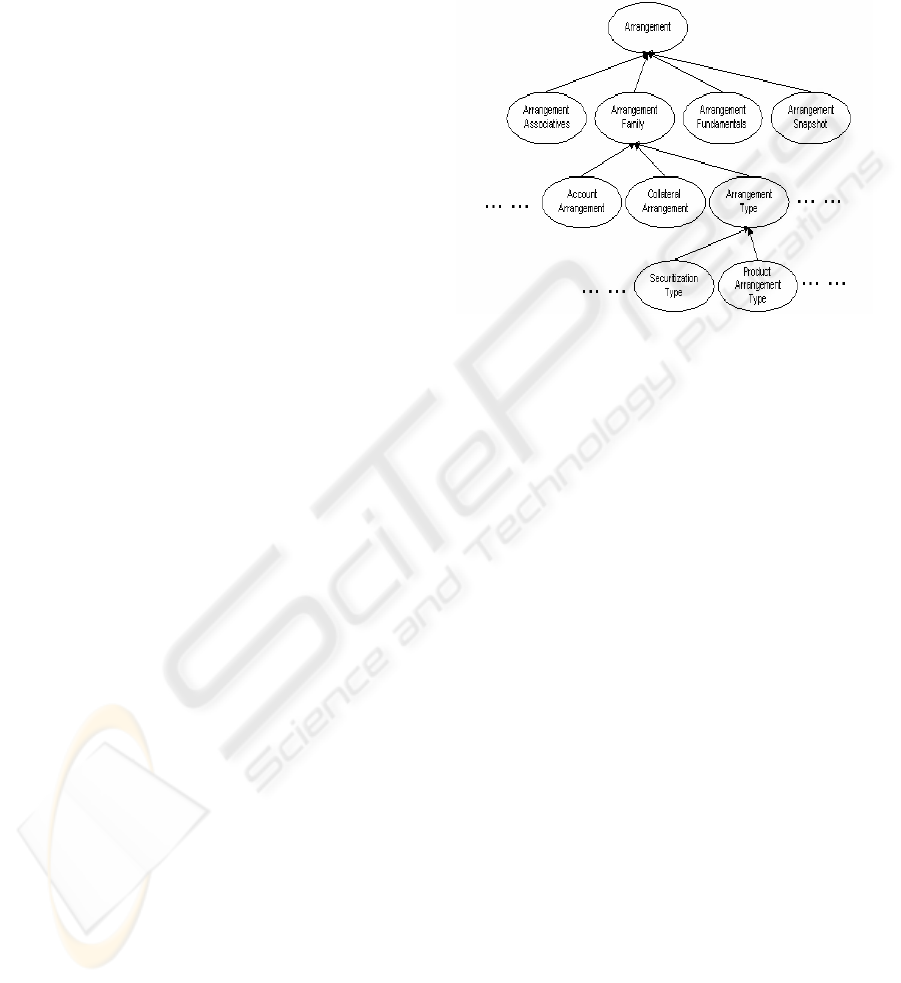

Figure 1: Part from conceptual model used to support

natural language modality in data querying system

Jmining

In figure 1 we can see the small part from

conceptual model. If the user brings the input, "show

all arrangements with the type loan", the system

activates the conceptual model graph paths with

different probabilities for each concept e.g.: 1)

Arrangement (0.59) -> Arrangement Family (0.42) -

> Account Arrangements (0.40) -> Loan

Arrangements (0.14), 2) Arrangement (0.59) ->

Arrangement Family (0.42) -> Arrangements Type

(0.25) -> Product Arrangements Type (0.23) etc.

As we see the user natural language input

activates not just one concept but a path on

conceptual graph. Then intelligent agents can act on

that information e.g. agent responsible for SQL

understanding can build the SQL sentences from

identified databases, agent responsible for dialog

handling can propose several options for user and

ask to specify more accurately what the user has in

mind.

3 NATURAL LANGUAGE

UNDERSTANDING WITH IBM

NLU TOOLBOX

At the beginning of the research we looked for the

state-of-the-art natural language understanding

(NLU) systems that can be found in the market and

used as plugging to our concepts identification

THE USE OF THE NATURAL LANGUAGE UNDERSTANDING AGENTS WITH CONCEPTUAL MODELS

309

system. We have made primary evaluation of

WebSphere Voice Server, which is a part of the IBM

WebSphere software platform. From IBM

presentation (IBM, 2004) it appeared that the system

is primarily intended for telecommunication market.

It was a challenging task to test it on more a

complex system e.g. a full conceptual model for

financial services. The IBM NLU system uses

statistically based models, which as they claim,

provide more flexibility and robustness compared

with traditional grammar-based methods. Much of

the algorithm is unknown becouse the product is

proprietary. In the present research the black box

approach was used: put the training data, compile

and test the system response to the new arriving

data. For statistical learning the sets of pairs

including the concept and the description of the

concept were provided.

The following experiment conducted with IBM

NLU solution revealed some basic problems with

the current state-of-the art technologies when we

want to apply them beyond ordinary telephony voice

applications. A group consisting of 3 students was

instructed about the above data model. They queried

the system with about 20 questions and tried to

identify the "Involved Party" concept. The number

of concepts put into IBM NLU model for learning

was constantly increased. At the beginning only 9

top 'A' level concepts were considered. In this case

for training data a description of these concepts were

extracted from the original IBM model. At the

second stage, the descriptions from child concepts

were added to the training data for these 9 top parent

concepts (see the second row in the table). Next the

number of concepts was increased to 50 and finally

500 concepts with their descriptions were extracted

and put to the IBM NLU statistical training data.

Table 1 shows the results of the experiment. To

detect the classification error the proportion of the

correct identified concepts was used.

We were faced with a critical scalability

problem. There were several instances in training

when the system diverged from any reasonable

acceptance level. While it was possible to make the

training successful through manual intervention by

adding more training data, the problem of

divergence remained when the number of concepts

increased up to the full conceptual model. The

present research has shown that there is a lack of

descriptive power for entities identification when

training data include only brief descriptions of the

conceptual model entities (as in IBM FDWM).

Table 1: Concepts identification experiment (CN - number

of concepts for identification).

CN=9 CN=50 CN=500

1. IBM NLU 0.1521 .0405 0.0152

2. IBM NLU (child

nodes descriptions

added)

0.3682 .1726 0.0822

3. Hybrid modular

FF NN (NL parsers

integrated in the

network structure)

0.4590 0.2814 0.1874

To increase concept identification accuracy, we

experimented with Separate Multi-Layer

Feedforward Network (MLF) with one hidden layer.

The novelty of this experiment is that there is a

feedforward network representing each node

(concept) in the conceptual model. To train the

network unit, which represents one node, we

suggested that a different dictionary be provided for

each network. For parent nodes children's training

data, which was used in the IBM NLU experiment,

was employed. In the presented architecture each

network is concentrated on identification of one

entity, but each network has a connection with other

networks representing different concepts.

It has been found that such "weak"

connectionism between separate neural networks can

increase concept identification. First the modular

network was tested without symbolic pre-

processing. In the training process concept maps

were constructed based on the training examples.

These concept maps relate each input

sentence/phrase to a specific concept in the problem

domain. All patterns consist of a unipolar

representation of the training sentence or phrase. For

example, the sentence could be: Show all my

arrangements. Then the pattern for concept

arrangement would be: 1 0 0 0 … 0 0 … .

It has also been found that if there is a case

where there is no symbolic preprocessing there

should be textual input that accurately matches the

network dictionary. This was the main reason why

we decided to improve the performance of the

system by transforming our dictionary input into

Vector Space Model VSM. For this purpose,

methodology presented in (Wermter, 1995) based on

WordNet (Miller, 1985) was used for additional

semantic mapping. Term weighting is a well-known

representation approach that transforms a term to a

weight vector in text processing. For neural models,

this representation plays a key role in model

performance. The most common term-weighting

method, is based on the bag-of-words approach,

which ignores the linear ordering of words within

ICEIS 2006 - ARTIFICIAL INTELLIGENCE AND DECISION SUPPORT SYSTEMS

310

the context and uses basic occurrence information.

In addition the GATE (Cunningham, 2000) was used

to extend semantic mapping of the WordNet initially

used by others researches (Wermter, 1995). With

GATE toolboxes some natural language processing

techniques, such as tagging, parsing, and word sense

disambiguation can be integrated with statistical

word knowledge.

Table 1 shows the results of the experiment. Row

3 demonstrates that symbolic natural language

processing combined with the connectionism

paradigm can improve concepts prediction accuracy.

REFERENCES

Androutsopoulos, I., Ritchie, G.D., Thanisch, P., 1995.

Natural Language Interfaces to Databases - An

Introduction. Natural Language Engineering, 1(1):29-

81.

Androutsopoulos, I., Ritchie, G.D., Thanisch, P., 1995.

Experience Using TSQL2 in a Natural Language

Interface. In J. Clifford and A. Tuzhilin, editors,

Recent Advances in Tem- poral Databases -

Proceedings of the International Workshop on

Temporal Databases, Zurich, Switzerland, Workshops

in Computing, pages 113-132. Springer-Verlag,

Berlin.

Cunningham, H., Maynard, D., Bontcheva, K., Tablan, V.,

Wilks, Y., 2000.Experience of using GATE for NLP

R/D. In Proceedings of the Workshop on Using

Toolsets References 200 and Architectures To Build

NLP Systems at COLING-2000, Luxembourg.

IBM IBM Banking Data Warehouse General Information

Manual. Available from the IBM corporate site

http://www.ibm.com (accessed July 2005).

IBM. An Introduction to IBM Natural Language

Understanding. An IBM White Paper. Available from

the IBM corporate site http://www.ibm.com (accessed

July 2004).

Laukaitis, A., Vasilecas, O., Berniunas, R., 2005. JMining

- information delivery web portal architecture and

open source implementation // Edited by O. Vasilecas

et al. Information Systems. Development: Advances

in Theory, Practice and Education., Springer.

Laukaitis, A., Vasilecas, O., 2005. An architecture for

natural language dialog applications in data

exploration and presentation domain. ADBIS.

Miller, G.A., 1985. WordNet: A Dictionary Browser,

Proc. 1st Int'l Conf. Information in Data, pp. 25-28.

Wermter, S., 1995. Hybrid Connectionist Natural

Language Processing, Neural Computing Series,

Chapman & Hall.

THE USE OF THE NATURAL LANGUAGE UNDERSTANDING AGENTS WITH CONCEPTUAL MODELS

311
