A FORMAL TOOL THAT INTEGRATES RELATIONAL DATABASE

SCHEMES AND PRESERVES THE ORIGINAL INFORMATION

∗

A. Mora, M. Enciso

E.T.S.I. Inform

atica. Universidad de M

alaga.

Campus de Teatinos. 29071 M

alaga, Spain

Keywords:

Functional dependencies, Logic and Information systems; Schema integration.

Abstract:

In this work we face on with the main problem concerning the database design process in a collaborative

environment: several users provide different models representing a part of the global model and we must

integrate these database sub-shemes to render a uniﬁed database schema.

In this work we propose a technique to integrate relational database sub-schemes based on a formal language.

The extraction, integration and generation tasks are carried out efﬁciently using the SL

logic (Substitution

Logic for functional dependencies). We have selected this logic because it is appropriated to manage the

functional dependencies in a automatic way.

1 INTRODUCTION

In (Chang and Moskowitz, 2000) the authors afﬁrm

that “the development of software to ease the in-

tegration and interoperation of existing information

sources is one of the most signiﬁcant challenges cur-

rently facing computer researchers and developers”.

This sentences emphasizes the needed of intelligent

tools to automate the collaborative database design

database when several designers participate in the

process.

Thus, different sub-sets of information are pro-

vided and a unique and consistent set containing all

the information must be built. The main difﬁculties

arise from the matching of the different structures de-

ﬁned by the designers in their sub-schemes.

As Arch-int and Batanov says in (Arch-int and

Batanov, 2003), the goal is “to get integrate data-

base in a global model without the existence of redun-

dances and inconsistencies”. In this work we cover

both goals by using the Functional Dependency (FD)

notion as the center of our integration architecture.

FDs are powerful relational constraints introduced

in the 70 by E.F. Cood (Codd, 1974) and consolidated

by outstanding authors like W. Armstrong (Arm-

strong, 1974) and R. Fagin (Fagin, 1977).

∗

This work has been partially supported by the CICYT

research project TIC2003-08687-C02-01.

A set of recent works have showed that there ex-

ists a set of classical FD problems which may be suc-

cessfully treated with novel techniques and tools (Lee

et al., 2002). This renewal of FDs are being used also

in the design of databases. Thus, X. Linga (Ling et al.,

1996) considers that “the objective of the logical de-

sign step is to eliminate redundancies and updating

anomalies using the notion of data dependencies”.

In (Enciso and Mora, 2002; Mora et al., 2004), we

propose a Functional Dependencies Data Dictionary

FD3, a tool to store the information provided by dif-

ferent sources in a uniﬁed way. FD3 gathers the in-

formation provided by the original sub-schemes, but

it ﬂattens this information removing the two dimen-

sions of the E/R model. So, FD3 is a set of FDs

generated over the set A of all the attributes deﬁned

by all the designers.

Now, we introduce an integration architecture

which uses FD3 as a central element. The architec-

ture provides a framework to cover all the stages of

the collaborative database design with a full level of

automatization.

In this work, we present a technique to integrate

the information in a full automated way. It works

as follows: the collaborative coordinator indicates the

sub-schemes to be integrated. In the architecture, the

structural functional dependencies (from the primary

key and unique keys) are considered and the collabo-

rative coordinator are asked to add extra FDs (named

302

Mora A. and Enciso M. (2006).

A FORMAL TOOL THAT INTEGRATES RELATIONAL DATABASE SCHEMES AND PRESERVES THE ORIGINAL INFORMATION.

In Proceedings of the Eighth International Conference on Enterprise Information Systems - DISI, pages 302-305

DOI: 10.5220/0002451603020305

 SciTePress

environment FDs). The FDs belonging to different

sub-shemes are uniformly stored in a FD Data Dic-

tionary and the automated algorithms based on the

inference system reduce the redundancy and

render a set of FDs that may be translated into a rela-

tional database.

The technique preservers the foreign key con-

straints and normalizes the output tables into Boyce

Codd Normal Form. We have design an algorithm

which uses the trace of the SL

algorithm execu-

tion and generates a set of INSERT sentences over the

output tables to preserve the original data contained in

the original tables.

2 AN ARCHITECTURE FOR

SCHEME INTEGRATION

We present in this section, a formal tool appropriated

for the integration of DBMS schemes.

We have selected Oracle as the target DBMS. An

oracle scheme is deﬁned as follows: a user (with pass-

word) are associated with a work area where he de-

ﬁnes attributes, tables and the following constraints

(dependencies): Primary, Unique and Foreign key.

The architecture (ﬁgure 1) have three levels:

• Back-end: the extraction of FDs of the scheme.

• Front-end: the user introduce additional FDs.

• Middle-end: the integration method (based on

logic) renders a global scheme without redundancy.

The formal tool is directly based on this architec-

ture and it has three modules:

• Integration engine, developed in PL/SQL, is re-

sponsible to make both structural integration (gen-

erates a scheme containing the elements of the

schemes) and the integration of contents (cover the

migration of the original data).

• The FD Data Dictionary (ODD), implemented as

an extra Oracle scheme, allows the integration en-

gine to store, query and manipulate efﬁciently all

the information that needs throughout the integra-

tion process.

• User interface, implemented by means of portless

inside of Oracle Portal. This web interface acts as

an assistant that simpliﬁes the conﬁguration of in-

tegration process and allows the user to examine in

detail the output schema and the way in which it

has been obtained.

2.1 Solving Structural Integration

Our approach use exhaustively the FDs in all the

stages of the integration process. Thus, the functional

User 1 User 2 User k

DF Model

FD Data Dictionary

X -> Y,Z,T

...

T,W -> Y,L,P

X -> Y,Z,T

...

T,W -> Y,L,P

X -> Y,Z,T

...

T,W -> Y,L,P

SLFD Transformations

Integrated DB

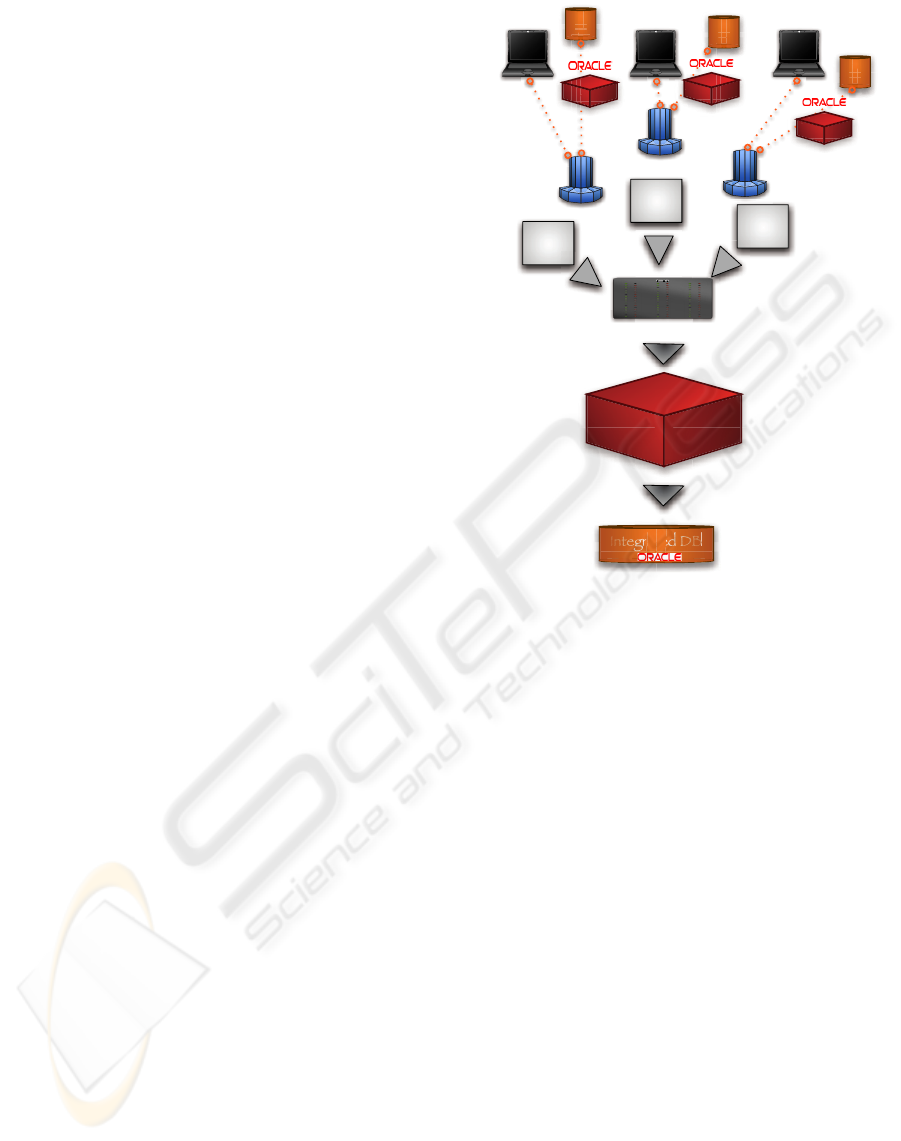

Figure 1: Integration architecture.

dependencies data dictionary FD3 (Enciso and Mora,

2002; Mora et al., 2004) is used to store the FDs col-

lected from the original schemes.

These FDs are inferred from the original key con-

straints speciﬁed in the Oracle schemes and they are

named structural dependencies. We enrich this re-

verse engineering process with an user aided process

where an external agent with domain knowledge may

specify additional FDs to provide additional semantic

information (the environment dependencies).

When both kinds of FDs have been collected, they

are depurated and integrated by the application of

the RemoveRedundancy algorithm over the FD3 data

dictionary.

The algorithm is based directly in the SL

infer-

ence system rules.

Deﬁnition 2.1 (The SL

language) Let Ω be an

inﬁnite enumerable set of atoms (attributes) and let

→ be a binary connective, we deﬁne the language

= {X→Y | X, Y ∈ 2

Ω

}

Deﬁnition 2.2 The SL

logic is deﬁned as the pair

, S

FDS

) where S

FDS

has one axiom scheme:

Ax

FDS

 :  X→Y, where Y ⊆ X.

Particulary, X→ is an axiom scheme.

A FORMAL TOOL THAT INTEGRATES RELATIONAL DATABASE SCHEMES AND PRESERVES THE

ORIGINAL INFORMATION

303

The inferences rules are the following:

Frag Fragmentation rule:

X→Y 

FDS

X→Y



if Y



⊆ Y

Comp Composition rule:

X→Y, U →V 

FDS

XU→YV

Subst Substitution rule:

X→Y, U →V 

FDS

(U-Y )→(V -Y )

if X ⊆ U, X ∩ Y = ∅

Also, a novel derived rule is deﬁned:

rS ust r-Substitution Rule:

X→Y,U→V 

FDS

U→(V -Y )

if X ⊆ UV,X ∩ Y = ∅

Finally, we will use the following derived rules:

Union Union Rule:

X→Y, X→Z 

FDS

X→YZ

Reduc Reduction Rule:

X→Y 

Par

X→Y -X, where Y -X = ∅

The algorithm removeredundancy is depicted in

the following ﬁgure:

Algorithm 2.3

removeRedundancy:

Input

: Γ (a FD set)

Output

: Γ



(a FD set with less redundancy)

Begin

1.  Reduc

2.  U nion 

Repeat

3. Substitution:

 Sust  +  rS ust 

Until

more substitution cannot be applied

End

We remark that this is the ﬁrst approach to n-Aryan

integration of relational data bases that uses directly

logic as a tool of simpliﬁcation and integration.

Our algorithms simpliﬁes attributes and removes

redundancy from the global data dictionary. This

redundancy arises when the information of the sub-

schemes are joined in a unique data dictionary.

From the FD3 Data Dictionary, we infer an Oracle

uniﬁed scheme. We have designed an algorithm able

to generate SQL sentences which creates the tables,

as well as their foreign and primary key restrictions.

In addition to the conventional FDs, there are other

dependencies stored in the data dictionary which we

will call foreign key dependencies (FKD).

These FKDs represent the foreign key constraints

existing in the original schemes so that their infor-

mation can be included later in the new integrated

scheme.

2.2 Solving Contents Integration

We have developed a powerful and ﬂexible algo-

rithm that constructs a nested SELECT sentence, cra-

dle in OUTER JOIN, for each table in the integrated

scheme.

The migration of original data is guided by the re-

sult of the structural integration process.

Thus, the INSERT SQL sentences that store the

original rows into the new tables are built using the

guidelines provided by the remove redundancy algo-

rithm.

The efﬁciency of this algorithm has been improved

using the information stored in the FD

. Whenever

an inference rule of SL

logic is applied, we keep

in the FD

, a link between each attribute of the new

uniﬁed scheme and the set of attributes of the original

schemes that has produced it.

We remark that it is an incremental process.

3 CONCLUSIONS AND FUTURE

WORK

In this paper we present a formal tool directly based

in the SL

logic. It deduces the FDs (structural de-

pendencies) contained in the key constraints of a set

of schemes from an Oracle database.

The user may add others dependencies (environ-

ment dependencies) that represent a more deeper

knowledge of the sub-systems.

The tool applies an optimization algorithm directly

based on the SL

logic. Thus the functional de-

pendencies data dictionary (FD3) is transformed and

a global database may be inferred from its.

We use a generic algorithm which allows a migra-

tion of data to the output tables, avoiding the loss of

the information.

In a medium-future, we will complete the integra-

tion software with a view generation algorithm. This

extension will be used to join several information sys-

tems that was built in the past.

ICEIS 2006 - DATABASES AND INFORMATION SYSTEMS INTEGRATION

304

The views will be used to prevent the re-

compilation of the applications when the new global

database substitute the old set of databases.

The Functional Dependencies appear in other data

models apart from the Relational Model. As a future

work, we may extend the algorithm to generate an FD

model from other source data model such hierarchic,

network data model or even XML.

REFERENCES

Arch-int, S. and Batanov, D. (2003). Development of indus-

trial information systems on the web using business

components. Computers in Industry, 50 (2):231–250.

Armstrong, W. W. (1974). Dependency structures of data

base relationships. Proc. IFIP Congress., pages 580–

583.

Chang, L. and Moskowitz, I. S. (2000). An integrated

framework for database privacy protection. IFIP

Workshop on Database Security, ISBN: 0-7923-8129-

7:161–172.

Codd, E. F. (1974). Recent investigations into relational

data base systems. IFIP Congress, Estocolmo, Suecia.

Enciso, M. and Mora, A. (2002). FD3: A functional

dependencies data dictionary. Proceedings of the

Fourth Conference on Enterprise Information Systems

- ICEIS, 2:807–811.

Fagin, R. (1977). Functional dependencies in a relational

database and propositional logic. IBM. Journal of re-

search and development, 21 (6):534–544.

Lee, M. L., Ling, T. W., and Low, W. L. (2002). Designing

functional dependencies for xml. LNCS, 2287:124–

141.

Ling, T., Goh, C., and Lee, J. (1996). Extending classical

functional dependencies for physical database design.

Information and Software Technology, 38:601–608.

Mora, A., Enciso, M., Cordero, P., Guzm

an, I. P. d., and

Guerrero, J. (2004). A/d case: a new heart for FD3.

Proceedings of ICEIS 2004 - 6th International Confer-

ence on Enterprise Information Systems. Porto, POR-

TUGAL.

A FORMAL TOOL THAT INTEGRATES RELATIONAL DATABASE SCHEMES AND PRESERVES THE

ORIGINAL INFORMATION

305
