MISTEL - AN APPROACH TO ACCESS MULTIPLE RESOURCES

Thomas Bopp, Thorsten Hampel, Robert Hinn

University of Paderborn

Fuerstenallee 11, D-33102 Paderborn, Germany

Jan Pawlowski, Christian Prpitsch

University of Duisburg-Essen

Universitaetsstr. 9, D-45141 Essen, Germany

Keywords:

Multiple sources, digital library, federated search, web service.

Abstract:

Digital documents are widely spread around the web in information systems of all kinds. The approach

described in this paper is to unify the access to documents and connect applications to share, search and publish

documents in a standardised way. The sample implementation uses web services to integrate knowledge

management, a learning management system, and a digital library. We propose a procedure to access resources

in heterogenous repositories by negotiating capabilities before sending queries. The result is a uniﬁed service

model for accessing resources, which can easily be supported by different repositories and clients.

1 INTRODUCTION

Every scientist or teacher at a university usually dis-

tributes some resources to colleagues or students.

Teachers usually provide learning materials in a wide

range: From single sheets of paper to books. These

resources can be published in two different ways: As

printed paper collections or by electronic systems. In

former times, the process of getting a book has been

straight forward. Entering a library, looking for the

right book, and searching for a speciﬁc chapter. Ob-

viously, this is a quite time consuming task: Students

need to visit a library far away only to read one single

article. This is partially solved by the internet and

electronic libraries, but up to now different system

classes, from digital libraries, or applications support-

ing the structuring of courses, to cooperative knowl-

edge management are not coupled in any way.

The goal of our research project ”‘Mistel”’ is

to unify the access to materials and bring together

knowledge organization, learning environments, li-

braries, and planning systems. To accomplish this

task, three applications (one from each system class)

are interconnected: The sTeam system (Hampel and

Keil-Slawik, 2002) provides a platform for knowl-

edge organization and serves as a learning environ-

ment for the students. For planning of lectures, ELM

(Pawlowski, 2001) has been selected. Miless (Gol-

lan et al., 1999) represents an electronic library. Be-

side the systems functionality, these particular sys-

tems have been chosen as they are all available on

an open-source basis. The goal of the project is on

one hand to demonstrate the interoperability of vari-

ous systems on a webservice basis and on the other

hand to ﬁnd transferable webservice infrastructures.

Hence, the deﬁned webservice infrastructures are not

limited to these systems.

In this article, the term resource is used as a collec-

tion of every kind of electronic output an author pro-

duces. Even though the term resource is mainly used

to describe scientiﬁc articles and learning materials,

it is not restricted to any format (MIME-type) nor to

a special subject. Therefore, even video streams and

audio ﬁles are called resources. The system providing

and storing those resources is called a repository.

Our approach combines planning system with

knowledge organization and digital library. In order

to identify the required services, we created one sce-

nario for each of the system classes:

The planning system is used to plan, design and

create new courses/lectures. A digital library is use-

ful to search for resources, which can be included in

the course (for example as a link). If a new course

is created, it can be published into the library as a

SCORM (Dodds, 2004) ﬁle or uploaded to the knowl-

edge management system and conducted there. Exist-

ing courses within the knowledge management sys-

tem can be reviewed. Comments by the learners can

be subsequently used to improve the course.

From the knowledge management point of view,

users can ﬁnd resources in the digital library and

include them into their work spaces. They can be

arranged with existing resources, annotated and ex-

changed with other learners. New resources, which

319

Bopp T., Hampel T., Hinn R., Pawlowski J. and Prpitsch C. (2006).

MISTEL - AN APPROACH TO ACCESS MULTIPLE RESOURCES.

In Proceedings of the Eighth International Conference on Enterprise Information Systems - DISI, pages 319-322

DOI: 10.5220/0002456203190322

 SciTePress

have been cooperatively created previously and dis-

cussed with other users, are published into the library.

Apart from that, the knowledge management serves as

a platform to conduct the courses and lectures created

by the planning system.

In this paper, we describe the process of searching

and retrieving resources from digital repositories.

2 DISTRIBUTED REPOSITORIES

The very ﬁrst step to get information about some sub-

ject is to describe it. The simplest way to do this

is to choose a few keywords and assign them to a

resource. More complex metadata is used by the

project ARIADNE GLOBE to access repositories (Si-

mon et al., 2005a). Unfortunately, the set of meta-

data has to match between all participants and there

are just too many standards. Two well known speciﬁ-

cations are Learning Object Metadata (LOM) (IEEE,

2002) and Dublin Core (DC) (DCMI, 2005). Both are

widely used by two different groups of systems: Digi-

tal libraries use DC and Learning Object Repositories

(LORs) use LOM. There are other projects connect-

ing just one group of systems like LORs (Simon et al.,

2005b) or connecting some systems in a peer-to-peer

way (Nejdl et al., 2002). The Open Archives Intiative

(Agnew, 2003) provides a widely used standard to ac-

cess libraries, but it is also restricted to the metadata

set DC and therefore cannot to be used in connection

with E-Learning and LOM.

Our goal is to access different repositories with uni-

ﬁed interfaces based on web services. A client’s ar-

chitecture needs to be independent from a repository’s

way of organizing resources. Since it is not intended

to change the internals of a system, these standards

have to be implemented in addition to existing in-

terfaces. Moreover, we believe it is essential to cre-

ate simple solutions which are easy to implement. It

should be appealing to developers to implement the

interfaces and gain access to other repositories.

Web services can be published in parallel to exist-

ing sites and services over http(s). The technology

web service with its standard SOAP protocol (Gud-

gin et al., 2003) is a good basis to develop uniﬁed

services, because it is a generally accepted standard,

which is independent from programming languages

and operating systems.

Technically, the whole communication of a query

is made within the web service by XML fragments.

Communication is grouped into three parts: The ﬁrst

one is the agreement-part, like a web-browser and

server checking the presence of common encryption

standards. Second, the query is build based upon

the selected repositories’ capabilities. This has been

adopted from the http-protocol. The last step is to

start the request and retrieve the resources’ descrip-

tions. After this step, the query is done and the user

can select resources to either download or get a link

of as described below.

First, the client queries some basic parameters

(supported MIME-types, protocols to transfer data,

possible permissions with description). Then, the

client can check for at least one matching item in the

ﬁrst and second category. If this fails, no further com-

munication is possible. After this check, other basic

parameters are queried. They describe the server’s

method to store resources (hierarchical or ﬂat). A

server can use catalogues like the common Dewey

Decimal classiﬁcation

in libraries for assigning re-

sources to catalogue entries. It is also possible to as-

sign one resource to multiple catalogue entries and/or

catalogues. A client is able to retrieve these classiﬁca-

tions and metadata sets from the server. With respect

to slow connections and large classiﬁcations it is also

possible not to retrieve a whole classiﬁcation at once

but to navigate through it. At this point, a classiﬁ-

cation is treated like a hierarchical organization in a

repository. Both arrangements contain a tree with re-

sources connected to the nodes. Figure 1 illustrates

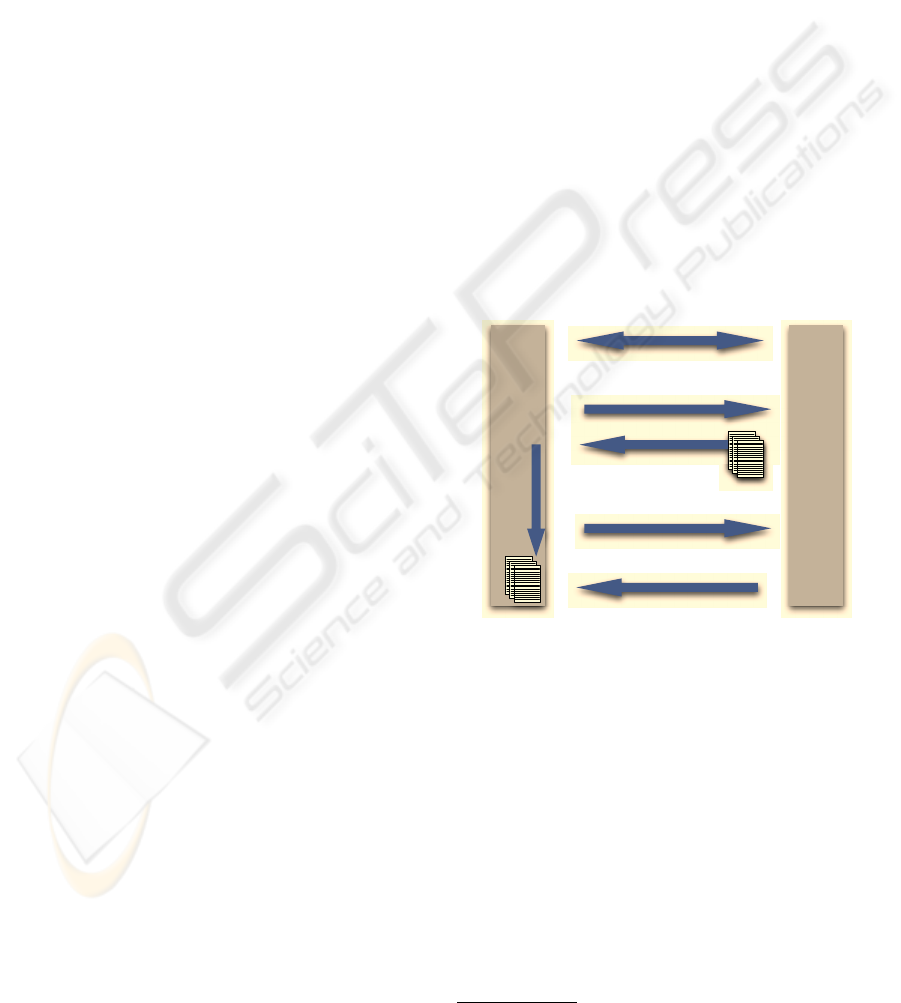

Negotiation

Query

Query-Results

III

Metadata

(DublinCore)

Import Resources

Client Repository

Selection of

Resources

Content/Additonal

Metadata

Figure 1: Importing Resources.

the communication steps between client and reposi-

tory. Before any query can be submitted the two par-

ties need to negotiate about the metadata, catalogues

and supported protocols. Then the query is submitted

and processed by the repository. Finally, resources

are selected and imported from the repository to the

client.

3 COMPOSING A QUERY

Our initial motivation is the connection of different

system classes via a web service infrastructure. This

http://www.oclc.org/dewey

ICEIS 2006 - DATABASES AND INFORMATION SYSTEMS INTEGRATION

320

infrastructure consists of different web services al-

lowing the retrieval (search) and storage of different

resources between connected applications. The re-

trieval of resources is either based on a hierarchical

structure or on metadata sets. Every repository uses

at least one set of metadata. In a very simple case this

set consists of the ﬁelds author and resource title.

In the prior step, there were queries on supported

metadata sets. This information is necessary to the

client to generate a set of search ﬁelds. If several

repositories are to be queried at the same time, they

have to support an intersection of metadata sets or at

least some common ﬁelds. The retrieval via meta-

data sets is done by putting a value to a ﬁeld and

adding a compare operator, e.g. title = "How

to create a query". This creates one search

item. The connection of several items is done by

AND, OR and NOT.

Hierarchical structures are used if resources are or-

ganized in a ﬁle-system or attached to classiﬁcations.

Navigation in the context of this approach is done by

moving from one node to a subnode and looking for

attached resources and subnodes. In our approach,

this is done by just one method returning the node’s

inventory. In case of querying many repositories at

the same time, it is necessary to use the same tree

in all repositories, e.g. common classiﬁcations. The

client has to distinguish the resources by repository as

described later.

After this step, a query consisting of query-items

and connected by operators AND, OR and NOT is

created. It is very simple to transform a query into

SQL using XSL-transformation because many repos-

itories use relational databases and their mathemati-

cal set theory. A similar solution of creating a query

is used by SRU/SRW, a standard for encapsulating

Z39.50 into XML

with the speciﬁcation of web ser-

vices. It does not consist of pure XML but expresses

queries in a non XML language. This is not trans-

formable by XSLT and therefore not part of our ap-

proach. The SQI approach deﬁnes negotiation on a

common query language. It does not support several

hetereogenous repositories in one query.

4 PERFORMING A QUERY

The created query is sent to different repositories and

they return a subset of metadata deﬁned by the user.

The problem of disjunctive sets of metadata will not

be discussed in this article. The client collects all re-

sponses and presents them to the user.

One very important ﬁeld is the ID of a found re-

source. If many repositories are queried at the same

time, the client has to keep the assignment to his

http://www.loc.gov/z3950/agency/zing/srw

server. This problem can be solved by adding the

system’s identiﬁer (e.g. URL) to the resource’s ID.

There are two ways to do so: The ﬁrst is to put the

system’s ID into the metadata (e.g. <providedby>

www.someurl.org </providedby>). The

second is to tell the repository to produce a unique

ID (e.g. <ID>www.someurl.org?1234</ID>).

The second solution conforms with metadata stan-

dards using an alphanumeric string as identiﬁer. It is

also easy to implement on the side of the repository,

because it just adds the own system-ID to the ID.

The ﬁrst idea of fetching the results was only to

fetch resource-IDs and get the metadata in the next

step. However, this solution proved to be quite slow,

because of the protocol’s overhead (XML, SOAP en-

velope, HTTP connection) and the parsing steps for

XML. Too much time and bandwidth is wasted when

fetching a number of resource metadata sequentially.

However, fetching all metadata of all resources at the

same time accelerated the query a little, but still wast-

ing lots of bandwidth and repository resources. In-

specting the log ﬁles of a repository, we found that

most users tend to select only a small subset of the

result anyway. Therefore, the best solution in many

cases is to fetch a small set of metadata for all re-

sources.

After the query has been executed and the result

has been received, the user chooses a subset from the

resources of the result set. To be able to select the

appropriate resources the common metadata is dis-

played for each resource. As described above this

is already part of the result. Additional information

(more detailed metadata) can be retrieved by another

call for each resource separately.

5 ACCESSING RESOURCES

There are several solutions to access a resource. One

is to directly transfer the complete resource to the

client. This could be done by putting the resource’s

content and metadata into the web service response.

By using BASE64-encoding it is also possible to

transfer binary data. However, this solution has

two disadvantages: A SOAP-message (Gudgin et al.,

2003) being an XML-resource has to be completely

transferred and then unpacked before any action can

be taken (there is no streaming). This leads to mem-

ory problems with large resources on the client side

and on the repository side while creating the message.

The second disadvantage concerns the MIME-type of

the resource. If the client for some reason cannot han-

dle the resource, it has to be saved on disk and an

external application has to be called. Those disadvan-

tages are solved by not transferring the content within

a SOAP message. There are many suitable protocols

MISTEL - AN APPROACH TO ACCESS MULTIPLE RESOURCES

321

on the internet like http(s), ftp or rsync. Those proto-

cols are well known, generally approved, and do not

include much overhead. Our approach is not to send

resources through SOAP, but to submit a link where

the resource can be retrieved.

To create a ﬂexible solution the client and the

repository negotiate on the protocols to use (see ﬁg-

ure 1). Usually http(s) covers all needs, but in special

cases this approach is ﬂexible enough to arrange con-

nections using unknown protocols. This negotiation

can only be done after transferring the metadata be-

cause it depends on the MIME-type. If the resource is

a streaming source, it makes no sense to download it.

If a web browser has to handle streaming sources, the

browser detects the MIME-type and uses a dedicated

application to handle it. This workﬂow can be done

with our approach as well: The client has to select an

application and pass the link to it. Links are necessary

in the context of E-Learning. A link can be put into a

learning resource, shipped to learners and are always

needed, if a result set of resources is to be stored. The

only problem is that links can change over time (link

consistence). This has to be solved by the reposito-

ries. For example, in libraries new resources can be

added, but not exchanged or modiﬁed. The link has

to be created carefully because future versions of the

repository (e.g. new software version, other technol-

ogy) must not change the link.

6 CONCLUSION

The described approach shows one solution for ac-

cessing different repositories. It does not matter

what kind of organisation a repository uses nor what

MIME-type the resources are. At the same time, the

client’s architecture is independent from the composi-

tion of the repository. This approach can also be used

to access any system providing metadata or hierarchi-

cal structures.

With the establishment of web services as open

and standardised interfaces, our architecture repre-

sents the key technology to offer uniﬁed access to dif-

ferent repositories. The interfaces need to be as sim-

ple as possible in order to bring together as many sys-

tems as possible. At the same time, some sort of nego-

tiation is required, because different systems support

varying protocols.

In a service oriented architecture (SOA) there is

the idea of sharing services, found in centralized reg-

istries. Transferred to our approach it is possible to

use indexing services of a foreign system. Systems

can be reduced to their core features and therefore

kept small in quantity but with huge quality.

ACKNOWLEDGEMENTS

The project is funded by the Deutsche Forschungsge-

meinschaft (DFG).

REFERENCES

Agnew, G. (2003). Developing a metadata strategy. Cata-

loging & Classiﬁcation Quaterly, 34(3):31–46.

DCMI (2005). Dcmi metadata terms. web-

page, Dublin Core Metadata Initiative,

http://dublincore.org/documents/dcmi-terms.

Dodds, P. (2004). Scorm 2004 overview. Technical report,

Advanced Distributed Learning (ADL).

Gollan, H., Luetzenkirchen, F., and Nastoll, D. (1999). Mi-

less - a learning and teaching server for multi-media

documents. In Cooperman, G., Jessen, E., and Mich-

ler, G., editors, Lecture Notes in Control and Informa-

tion Sciences: Workshop on Wide Area Networks and

High Performance Computing. Springer, London.

Gudgin, M., Hadley, M., Mendelsohn, N., Moreau, J.-J.,

and Nielsen, H. F. (2003). Soap version 1.2. Technical

report, World Wide Web Consortium (W3C).

Hampel, T. and Keil-Slawik, R. (2002). steam: Structuring

information in a team – distributed knowledge man-

agement in cooperative learning environments. Jour-

nal of Educational Resources in Computing, 1(2):1–

27.

IEEE (2002). Draft standard for learning object metadata.

Technical report, Institute of Electrical and Electroni-

cal Engineers Standards Department.

Nejdl, W., Wolf, B., Qu, C., Decker, S., Sintek, M., Naeve,

A., Nilsson, M., Palm

er, M., and Risch, T. (2002).

Edutella: A p2p networking infrastructure based on

rdf. In World Wide Web 2002, Honolulu, Hawaii,

USA.

Pawlowski, J. M. (2001). Das Essener-Lern-Modell

(ELM): Ein Vorgehensmodell zur Entwicklung com-

putergest

utzter Lernumgebungen. PhD thesis, Univer-

sity of Essen.

Simon, B., Massart, D., van Assche, F., Ternier, S., Du-

val, E., Brantner, S., Olmedilla, D., and Miklos, Z.

(2005a). A simple query interface for interoperable

learning repositories. In Simon, B., Olmedilla, D., and

Saito, N., editors, Proceedings of the 1st Workshop on

Interoperability of Web-based Educational Systems,

pages 11–18, Chiba, Japan. CEUR.
