DATA COMPLIANCE IN PHARMACEUTICAL INDUSTRY

Interoperability to Align Business and Information Systems

Néjib Moalla

(1,2)

, Abdelaziz Bouras

(1)

, Gilles Neubert

(1)

, Yacine Ouzrout

(1)

CERRAL/PRISMa, IUT Lumière Lyon 2, 160 Boulevard de l’Université, 69500, Bron, France

Nicolas Tricca

(2)

Sanofi Pasteur / Campus Mérieux. 1541, Avenue Marcel Merieux 69280, Marcy l’Etoile, France

Keywords: Pharmaceutical Sector, Information Systems, ERP, Marketing Authorizations, Compliance, Interoperability

Abstract: The ultimate goal in the pharmaceutical sector is product quality. However this quality can be altered by the

use of a number of heterogeneous information systems with different business structures and concepts along

the lifecycle of the product. Interoperability is then needed to guarantee a certain correspondence and

compliance between different product data. In this paper we focus on a particular compliance problem,

between production technical data, represented in an ERP, and the corresponding regulatory directives and

specifications, represented by the Marketing Authorizations (MA). The MA details the process for

manufacturing the medicine according to the requirements imposed by health organisations such as Food

and Drug Administration (FDA) and Committee for Medicinal Products for Human use (CHMP).

The proposed approach uses an interoperability framework which is based on a multi-layer separation

between the organisational aspects, business trades, and information technologies for each involved entity

into the communication between the used systems.

1 INTRODUCTION

The pharmaceutical industry is distinguished among

process industries by the need to comply with

regulatory constraints imposed by organizations like

Food and Drug Administration (FDA) (FDA, 2004),

Committee for Medicinal Products for Human uses

(CHMP), the guidelines of International the

Conference of Harmonisation (ICH) (ICH6, 2003).

Further constraints are imposed by the conventions

signed with national and international authorities,

called Marketing Authorisation (MA) –

Authorization to Make to Market (AMM) in Europe

– for the manufacture of drugs.

In this operating context, the issue of product

quality is one of high priority for a company in order

to maintain its credibility compared to its customers.

One of the key factors of quality is the good

management of product data. Product data comes in

several types and formats specific to various

business trades and are supported by several

heterogeneous information systems. The challenge is

to enable communication among these systems and

the process of guaranteeing the validity and the

conformity of exchanged information. This

challenge is seldom addressed systematically.

Indeed, considering the complexity of information

systems architectures for the production, there is a

general tendency to check conformance only

between the MA files and the Standard Working

Instructions (SWI).

Our Scope in this paper covers the problem of

communicating product data between information

systems supporting the MA and the ERP for

structuring production data. Delivering a product

according to its description in the MA requires the

right information in the ERP. Otherwise, we risk

manufacturing a non compliant product, to not

deliver our product in time to respect customer

commitments, and in final destroy these products

and lose money.

The pivotal problem of medical data is the

absence of machine readable structures (Schweigera,

2005). Most healthcare data is narrative text and

Moalla N., Bouras A., Neubert G., Ouzrout Y. and Tricca N. (2006).

DATA COMPLIANCE IN PHARMACEUTICAL INDUSTRY - Interoperability to Align Business and Information Systems.

In Proceedings of the Eighth International Conference on Enterprise Information Systems - DISI, pages 79-86

DOI: 10.5220/0002460300790086

 SciTePress

often not accessible. Generally, related works

(Schweigera, 2005) have a certain tendency to treat

this problem in structuring drug and other

information using XML standards. This is generally

made using topic Maps (Schweigera, 2003), but

presenting a product XML data models and

connecting them is not sufficient (EBXML, 2001).

Same Standard for the Exchange of Product Model

data (like STEP-ISO 10303) addresses this through

formats and programming interfaces derived directly

from domain-related information models written in

the EXPRESS information modelling language.

However, these formats and programming interfaces

are predetermined (Sang Bong, 2002), and not

always well suited to current information processing

technologies. We can find also Product Data Markup

Language (PDML) (William, 2001) as an Extensible

Markup Language (XML) vocabulary designed to

support the interchange of product information

among commercial systems (such as PDM systems)

or government systems (such as JEDMICS), where

the vocabularies are related via mapping

specifications.

Performing data mapping between regulatory

and industrial product definition present a hard task

that requires regrouping efforts from different

sectors like regulatory affairs, industrial operations,

information systems, etc.

Some pharmaceutical industries are specialized

in biologic development of medicines. The

implication of a deviation in manufacturing or

subcontracting can run the gamut from very minor to

catastrophic. Our challenge consists in delivering the

right product data value through manufacturing

states in the production information systems.

During manufacturing process, the product

passes from one state to another. Each state may

concern one or several components and we have to

validate their corresponding specifications based on

data coming from MA information system. The

following Figure (Figure 1) presents a hierarchical

structure for a product in the ERP (Enterprise

Resource Planning) system of the company.

When we have to ensure compliance for one data

from MA to ERP, it is necessary to find and validate

product data value for each component through

different product states.

Our main contribution in this paper is to use a

modelling approach to handle the communication

between information systems within a

pharmaceutical context. We also propose a

methodology for structuring and exchanging product

data while ensuring their conformance. In the

following section we present some modelling

approaches and adapt them to our problem. In

section 3, we propose a data exchange structure that

ensures compliance between the information

systems. Finally, by using our approach, we present

a case study at Sanofi-Pasteur, a developer and

producer of vaccines for human use.

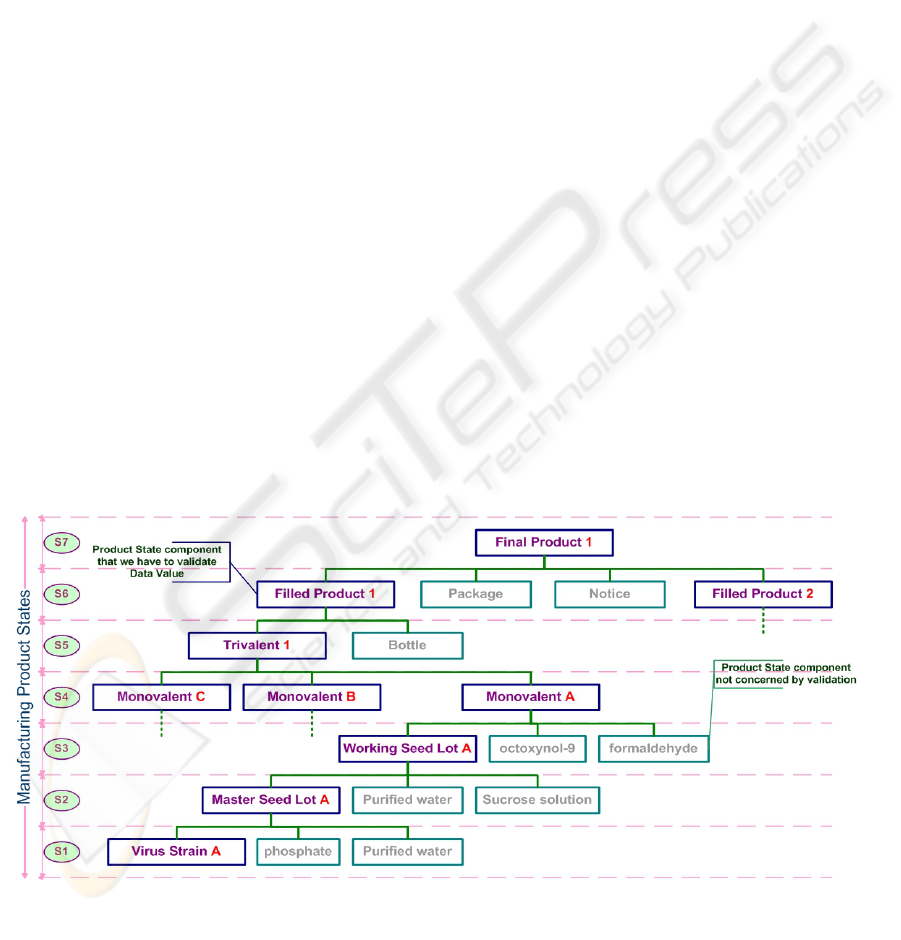

Figure 1: Manufacturing product states and state components.

ICEIS 2006 - DATABASES AND INFORMATION SYSTEMS INTEGRATION

2 INTEROPERABILITY IN

PHARMACEUTICAL

INDUSTRY

2.1 General Requirements for

Interoperability

The IEEE standard computer dictionary defines

interoperability as “the ability of two or more

systems or components to exchange information and

to use information that has been exchanged”. The

EU Software Copyright Directive (ATHENA, 2005)

gives a similar definition and considers the

interoperability between computing components as

“the ability to exchange information and mutually to

use the information which has been exchanged”.

This does not mean that each component must

perform in the same way, or contain the same

functionality as the other components–

interoperability is not a synonym for cloning.

Rather, interoperability means that components with

different functionalities can share information and

use it according to their needs.

The European Interoperability Framework

definition identifies three separate aspects:

• Organisational – is concerned with defining

business goals, modelling business processes and

bringing about the collaboration of administrations

that wish to exchange information, but that may

have a different internal organisation and structure

for their operations.

• Semantic – is concerned with ensuring that

the precise meaning of exchanged information is

understandable by any other application not initially

developed for this purpose. Semantic

interoperability enables systems to combine received

information with other information resources and to

process it in a meaningful manner.

• Technical – covers the technical issues of

linking up computer systems and services. This

includes key aspects such as open interfaces,

interconnection services, data integration and

middleware, data presentation and exchange,

accessibility and security services

Identification and structuring of these

interoperability types help to perform a better

exchange between systems Therefore, it is necessary

to identify the area of our investigation and its

specifications: structures, business constraints, etc.

To achieve interoperability among divisions

systems in collaborative enterprise, we consider

three challenges (ATHENA, 2005):

• Heterogeneity, incoherent information,

different systems and software infrastructures,

different working practices, etc.

• Flexibility, information reuse, following of

variations in documents versions, etc.

• Complexity, definition granularities,

dependency between different components, etc.

Heterogeneity, flexibility and complexity must be

managed at different levels:

• Knowledge, approaches, methods and skills

needed for innovation, shared languages.

• Process, planning’s, coordination and

management of cooperative and interdependent

activities.

• Infrastructure, information formats,

software tools, interoperability technologies.

In an industrial framework, structuring business

knowledge in an information processing system does

not imply facilitation of communication with

another business system. Data interpretation changes

according to the business and the challenge is in the

ability to preserve information semantics when

communicating.

Building interoperability architecture for

communication can align Business, Knowledge and

ICT through semantic framework to ensure

compliance when exchanging data. In the following

section, we will explain a deployment of the

interoperability framework to present a

communication architecture adapted to our context.

2.2 Characteristics of

Pharmaceutical Industry

Product data is compiled from various functional

divisions which interact between each others for the

creation and manufacture of the product. Each of the

following divisions contributes by introducing

different types of data and information:

• Research division: looks for new drugs or

substances that can contribute to the creation of new

drugs. At this stage conducted studies are reported

and indexed in the form of technical reports.

• Research & Development division:

conducts specific research, and is interested in the

development of mixture processes of excipients,

tests and stability conditions of the final solution that

can be defined as a drug. The information system is

used to structure data about clinical trials and tests

for validity. At this stage starts the definition of an

explicit product structure.

• Industrialization division: defines the

industrial infrastructure which will support the

DATA COMPLIANCE IN PHARMACEUTICAL INDUSTRY - Interoperability to Align Business and Information

Systems

production of a defined product quantity on the basis

of a definition of product solution. At this stage, we

define technical data describing the product

manufacturing operations and the used process and

tools.

• Production division: deals with planning,

scheduling and follow-up of production based on the

data describing industrial infrastructure and product

composition. At this stage, we identify static data

compared to external dynamic data like work orders

or those generated by the ERP such as buying orders

of raw material.

• Distribution division: defines the conditions

for handling the product for customer delivery in

accordance with the description of the conditions of

manufacture, which is given by R&D division. At

this stage, product handling information is

documented.

From one stage to another, product data are

recorded using a specific structure and format. Each

division information system is defined in accordance

with the needs which are relevant to the business

trades.

The definition of a product for pharmaceutical

industry is not tied to physical shape except in the

packaging stage.

The company submits to the Health Authorities

entire product specifications along with documented

information. These deposed documents constitute

the request of Marketing Authorization. When health

authorities approve this request, they give the

Marketing Authorization. In the delivered

documents to authorities, it is necessary to present

all the information which justifies the product

creation process, including pre-clinical tests, clinical

trials, tests of validity and the appendices such as

bibliography. Only after reaching the

industrialisation stage that MA documents can get

defined.

Once approved in one country, this MA is used

as a reference document to manufacture the product.

It is considered as a contract between the authority

of a given country and the company, implying the

respect of the regulatory constraints. For the

American market for example, the Food and Drug

Administration (FDA) is responsible for the

checking of the adequacy of the delivered product

and manufacturing processes to the acquired

authorization.

The major quest for each pharmaceutical

company is product quality. This objective is

achieved only by ensuring a better degree of

compliance between existing information in these

MA documents and those used for the production.

We propose hereunder the means to use the MA

data, which can be read only by pharmacists, to

adapt them to logisticians needs. The used approach

makes it possible to ensure interoperability between

the supporting information systems, while satisfying

some business constraints.

3 INTEROPERABILITY AND

COMPLIANCE

In our context, the objective behind the

establishment of the communication between the

information systems is to ensure the conformity of

the product data in one system in relation to each

other. Based on the description of information in an

Marketing Authorization, it is necessary to return the

product data values, useful for the production, to the

ERP.

3.1 From MA to ERP

As we mentioned before, the following systems are

involved in our context:

• Marketing Authorization (MA) information

system: generally managed by the regulatory affairs

division of the company and constitutes a collection

of different information. A MA is composed of

electronic documents coming from several sources

and contains, for example, scanned documents,

reports and attached papers. The semantic

structuring of these authorisations documents

provides a format and content which are harmonized

according to a pharmaceutical vision. It specifies the

Common Technical Document (CTD), defined by

the International Conference of Harmonisation

(CTD, 2005)

(ICH, 2000). In the CTD it is not

always easy to find all the information needed for

production, and some pharmaceutical background is

necessary to find the needed information from

regulatory data. Even with a very large number of

MA documents – that’s run into thousands of pages

– it is very difficult to find all information needed

for production. MA presents regulatory aspect of

product data.

• ERP (Enterprise Resource Planning)

system: related to different divisions of company

and regroups complex functionalities of

“provisioning and scheduling” and generates new

dynamic data, such as working orders, based on the

product definition. When the ERP data are non-

conform to the right product data definition, it

necessarily produces a non conforming product.

ICEIS 2006 - DATABASES AND INFORMATION SYSTEMS INTEGRATION

Each division presents a specific vision of the

product with local knowledge tied to its business

needs. To ensure the conformity at the product data

definition level during its translation (from the

regulatory systems to the ERP), it is necessary to

define a communication platform to include the

different viewpoints: organisational, business,

informational, and technical (Gao, 2003).

3.2 Type of Data to be Translated

The product structure is defined in both MA and

ERP systems as a specific series of “product states”.

The pharmaceutical description of the product and

its various states related to the manufacturing phase

are presented in the CTD “product quality”

documents of the MA. These states are not

necessarily coherent with the actual production

states. To guaranty the product data coherence, it is

suited to organize these data according to the

product states. However, the problem still concerns

the conformance of data values for each product

states during the translation process. We should take

care about the definition of these states and data

semantic in each one. For example the shelf life of

an intermediate product substance (state) is 3 years,

at a storage temperature of -70°C if it was preserved

with no alteration (as is) and 1 year if it was stored

at 5 °C.

In the manufacturing phase, we assume that the

product has a fixed number of states (reflected into

the information system). It is necessary to identify

from the ERP and the regulatory information system

the entire specification of each state. This is

achieved by what we call “product states reference

frame”. The reference frame represents the

structuring of one product datum that assigns for

each product state, the data value, rules applied to

extract data from the information system, and

business constraints helping to understand the choice

of data value. For each product state, we need to

define also some components of the bill of materials

of this state. For example, when our final product is

presented (at its final state) in the form of two

substances (i.e. powder and liquid), we need to

specify shelf life for these two substances.

The application of this reference frame to

product data consists in seeking data values of all

states in accordance to rules and business constraints

already identified. Figure 2 illustrates this

structuring.

This reference frame represents the data profile

in both information systems. It must be updated

during a potential modification of the structure of

the product. It can also be published in the

organization to ensure better comprehension and

exploitation of the product data.

Each line of this reference frame contains the

product state components and for each one of them,

the value to be validated, the rules which allow to

extract and transform data and business constraints.

The interoperability process is supported by the link

between these values, rules and constraints.

3.3 Rules Definition

The definition of the rules is a tedious phase and

requires three levels:

3.3.1 Production Information Rules

These are rules specify when to extract or to insert

data into the ERP. Some difficulties arise when

attempting to insert data because ERPs are

characterized by the re-use of product states

information. Taking a close look into two drugs

pharmaceutical solution, there is a great probability

to find the same excipients. In this case, there are

invariably one or more specific common production

states with the same coding in the system.

In the ERP, and following a request for

modification of a data value of a product state, it is

necessary to check if the reference for this state is

already used by another product. Considering the

complexity of the ERP architecture and overlapping

between the product states information, it is difficult

to seek products by a simple indication of an

“intermediate” state. For example, such

identification can take up to two days to find all

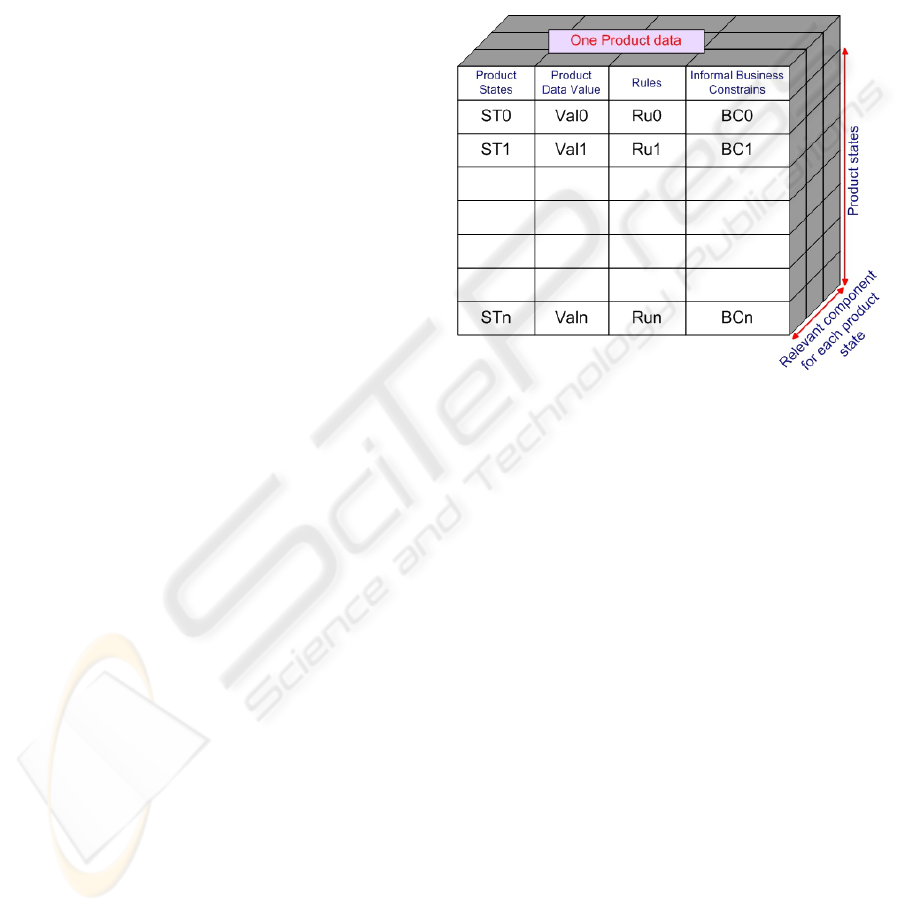

Figure 2: product states reference frame.

DATA COMPLIANCE IN PHARMACEUTICAL INDUSTRY - Interoperability to Align Business and Information

Systems

concerned product states and theirs dependencies. If

we schematize product states by a tree structure, the

overlapping between branches can be possible

everywhere except at the top level (tree leaves).

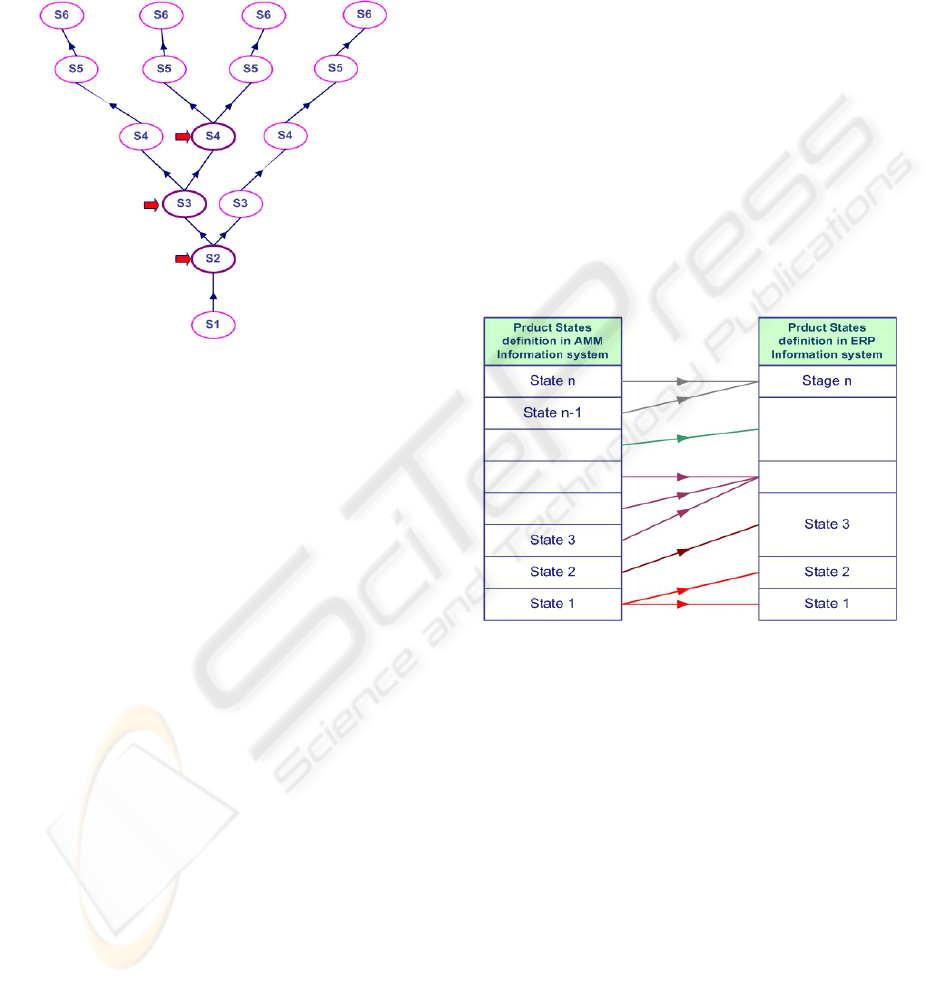

Figure 3 shows an example of these overlapping.

Each product has 6 states: S1 to S6.

Integration rules are used to control the

existence of any overlapping between the tree

branches (resulting in common states) as well as the

impact of any data modification on the product

structure and its states. The impact of some

modifications or transformations at the data level is

sometimes governed by informal business

constraints. For example, the manufacturing date of

a product is notified as the starting date of the first

valid test of stability. If we want to change the shelf

life of a state, the expiry date must be revalidated.

This aspect is important for data understanding. This

is why we added informal business constraints to

each product state. Moreover, these constraints help

understanding the context in which the product

states rules are used, and in mapping the ERP

“product states reference frame” to its corresponding

reference frame in the MA information system.

3.3.2 Mapping Rules

These are rules for mapping between “product states

reference frames” by establishing links between

“active product states”. From all predefined product

states in one reference frame, active product states

present significant states with data value. Performing

these links present a regulatory and pharmaceutical

responsibility that is necessary to share with

production, to ensure the coherence of rules. The

product states are not the same across information

systems and across reference frames. From one

product to another, a state may or may not exist. We

use different business knowledge as references to

create these links of communication between active

states. We notify these information on both MA and

production reference frames (ERP).

The mapping rules allow the formalization of the

fields of the data to be inter-connected (links n .. n).

Active states data values in regulatory reference

frame generate corresponding values in the product

states reference frame of the ERP. Figure 4

illustrates examples of connection modes. One state

in each reference frame can correspond to one or

more states in the second and vice versa. To

generate mapping rules, we should analyze data and

rules from the two reference frames. For example,

mapping rules could be the adding of states data

values, the calculation of their average or their

minimum, etc.

3.3.3 Regulatory Information Systems Rules

According to pharmaceutical data structuring, the

information system which manages the MA is not

able to be directly interfaced to the regulatory

product states reference frame. It is possible to have

several MAs for only one product, and conversely,

one MA for several products. These characteristics

are relocated on product states, which increase the

complexity of the information retrieval. It is very

frequent to find for example two product

authorizations with various destinations (country) or

presentations (packaging containers) and having a

common product state but with different data values.

This difference is due to the history of the

negotiations between the company and health

authority about the MA content.

Figure 4: Mapping links.

Figure 3: overlapping between product states fo

different products in the ERP system.

ICEIS 2006 - DATABASES AND INFORMATION SYSTEMS INTEGRATION

In the following, we will explain the need for

defining different rules types and later (in a future

work), we will present, through a multi level

modelling approach, different kinds of rules we need

to create.

4 CASE STUDY

This case study presents an illustration of an

application developed within Sanofi Pasteur

Company, a firm specialised on biologic

development and the production of vaccines for

human use. The purpose of this application is to

ensure compliance, from the MA to the ERP, for

three data: Site of Manufacturing, Shelf Life, and

Storage Condition.

All MA data were structured in e-TRAC (Electronic

Tracking of Registrations and Commitments) MA

information systems. Access to these data is ensured

through web interface allowing us to export the

defined report from RA-Cockpit reporting module.

As presented in figure 5, we can:

a) export data for one product line to create the

report ,

b) distribute this report by product licence number as

criteria to identify different product data,

c) for one product data, instantiate three reference

frames for regulatory product states,

d) apply mapping rules to generate corresponding

ERP (here SAP) product states reference frame,

e) use the same specific criteria for data structuring

in SAP to validate data (comparing to those coming

from SAP reference frame generated after mapping).

4.1 Validate Data in SAP

As mentioned before, there is a great probability to

have the same product state in different product

states decompositions. So, we can find the same

value for the same product state in different SAP

reference frames. In SAP system, we identify each

entity, called item, by one code. That is why, in

addition to the first SAP reference frame generated

after mapping, we instantiated a second SAP

reference frame with only SAP code and

corresponding data value field. In this second

reference frame it is necessary to find, from SAP,

the code and value of each product state. Due to

specific information structuring in SAP at Sanofi-

Pasteur Company, we can find the item code for the

last state (final product) and use “item code

filiations” (Where-Used technology) to find the code

for previous product states and their data values

starting from the last.

Actually we have two SAP reference frames: one

with data values generated after mapping from the

regulatory reference frame, and the second with data

values and item code coming from SAP. We define

here some new rules of coherence:

R1: For the same product state, there is necessarily

the same data value, otherwise notify a compliance

exception,

R2: The same item codes in the second SAP

reference frames (corresponding to different

products) should have the same associated data

values, otherwise notify a compliance exception,

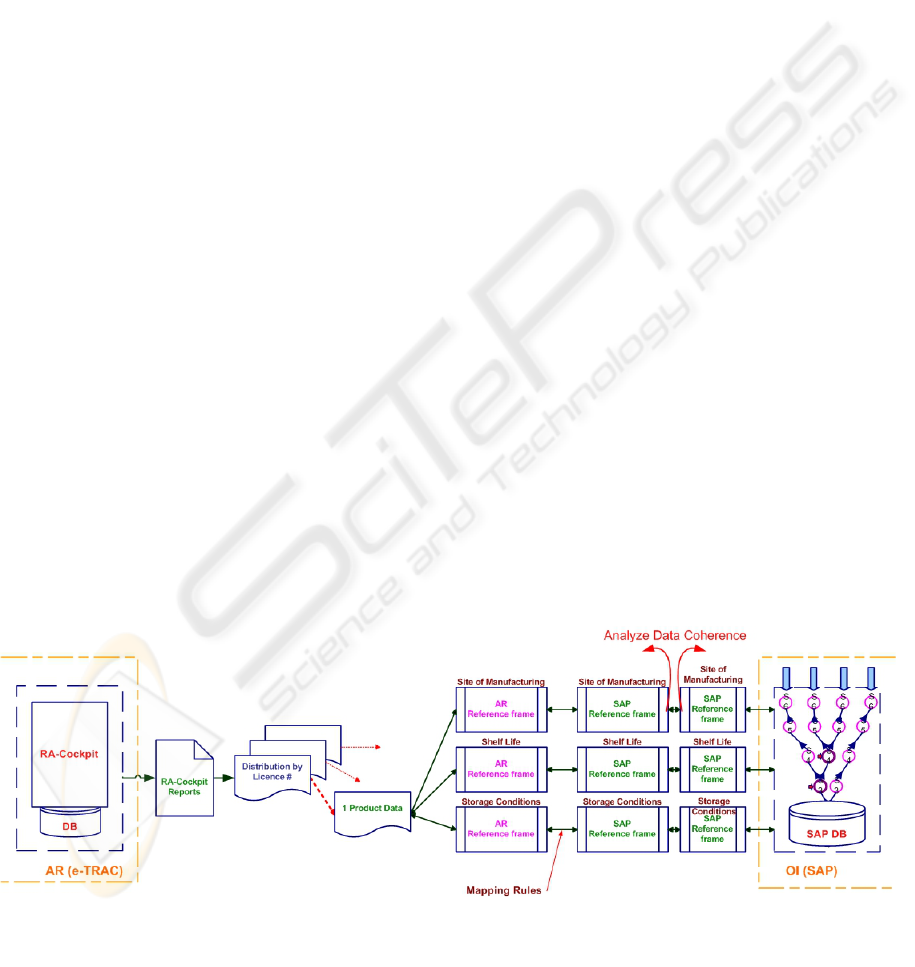

Figure 5: Communication scenario.

DATA COMPLIANCE IN PHARMACEUTICAL INDUSTRY - Interoperability to Align Business and Information

Systems

It is frequent to find two or more MAs or

registrations that differ just by product name from

one country to another. For example we can define

influenza (Flu) vaccines for entire Europe, but

during the structuring of the product information in

the e-TRAC, we should separate the products by

country.

R3: Validating the three data (Site of

Manufacturing, Shelf Life, Storage Condition) for

grippe in a particular region, requires the same data

values in e-TRAC reference frame for all countries

of this region, otherwise notify a compliance

exception.

Finally, within this Flu line product vaccines

case study, the applied architecture and its rules

provided an interesting solution by ensuring

compliance of 94,6% of the final products for the

used three data: Site of Manufacturing, Shelf Life,

and Storage Condition. One of the reasons of non-

total compliance is related to the existence of quality

level information in the MA system that has no

correspondence in the ERP system.

5 CONCLUSION

In this paper, we presented a methodology to

communicate between information systems. We

particularly focused on product structuring and

explained dependencies between product data in the

pharmaceutical field. Our main objective is to ensure

data compliance between two information systems,

one related to the Marketing Authorizations and the

other related to production, through the

establishment of communication architecture. We

based our work on the mapping between product

“states” information along the product

manufacturing life cycle. In spite of differences in

their business visions, both systems use the product

manufacturing decomposition as guide-line for

structuring the information.

Our methodology treats only the information

coming from Marketing Authorizations systems to

map and validate it in the ERP systems. However it

does not treat product information that exists in the

ERP systems and is not related to any MA system.

The next step of this work will focus on the

generalization of the used rules and constraints, not

only to extract or integrate data through reference

frames, but also between product states in a same

reference frame.

REFERENCES

ATHENA, 2005, “Second Version of State of the Art in

Enterprise Modelling Techniques and Technologies to

Support Enterprise Interoperability”, Version 1.3.1,

212 pages.

ATHENA, 2005, “Interoperability Roadmap up date”,

Version 1.0, 30 pages.

CTD Format: http://www.aboutctd.com/resource.htm and

http://www.ich.org/cache/html/1208-272-1.html,

accessed on October 2005.

EBXML, 2001, “Technical Architecture Specification

V1.0.4”, ebXML Technical Architecture Project Team,

39 pages

Gao X., Hayder A., Maropoulos P. G. and Cheung W. M.,

2003, “Application of product data management

technologies for enterprise integration”, International

Journal of Computer Integrated Manufacturing,

Taylor & Francis, Vol 16 N° 7-8, pages 491 – 500.

ICH6 - Sixth International Conference on Harmonisation,

2003, “New Horizons and Future Challenges”,

Summary Report, Osaka Japan, pages 13-15

International Conference on Harmonisation, Harmonised

Tripartite Guideline, 2000 “Organisation Of The

Common Technical Document For The Registration

Of Pharmaceuticals For Human Use”, International

Conference On Harmonisation Of Technical

Requirements For Registration Of Pharmaceuticals

For Human Use, 14 pages.

Sang Bong Y. and Yeongho K., 2002, "Web-based

knowledge management for sharing product data in

virtual enterprises", International Journal of

Production Economics, Volume 75, Issues 1-2, Pages

173-183

Schweigera R., Brumhardb M., Hoelzerc S., Dudecka J.,

2003,” Linking clinical data using XML topic maps”,

Artificial Intelligence in Medicine, Volume 28, Issue

1, Pages 105-115

Schweigera R., Brumhard M., Hoelzerc S., Dudecka J.,

2004, “Implementing health care systems using XML

Standards”, International Journal of Medical

Informatics (2005) 74, pages 267—277

U.S Food and Drug Administration, 2004,

“Pharmaceutical CGMPS For The 21st Century — A

Risk-Based Approach Final Report”, Department of

Health and Human Services, 32 pages

William C. Burkett, 2001, "Product data markup language:

a new paradigm for product data exchange and

integration", Computer-Aided Design, Volume 33,

Issue 7, Pages 489-500

ICEIS 2006 - DATABASES AND INFORMATION SYSTEMS INTEGRATION
