VISUAL CONTRACTS

A Way to Reason About States and Cardinalities in IT System Specifications

José D. De la Cruz, Lam-Son Lê, Alain Wegmann

School of Computer and Communications Sciences,

Ecole Polytechnique Fédérale de Lausanne, CH-1015 Lausanne, Switzerland

Keywords: Visual Languages, UML, Specification, Conceptual Modeling, Hierarchical Systems, Model-Checking.

Abstract: Visual modeling languages propose specialized diagrams to represent behaviour and concepts necessary to

specify IT systems. As a result, to understand a specification, the modeller needs to analyze these two types

of diagrams and, often, additional statements that make explicit the relationships between them. In this

paper, we define a visual contract notation that integrates behaviour and concepts. Thanks to this notation,

the modeler can specify, within one diagram, an action and its effects on the specified IT system. The

notation semantics is illustrated by a mapping to Alloy, a light weight formal language.

1 INTRODUCTION

The creation of the specification of an IT system is a

complex task that requires the division of the

specification into smaller, partial descriptions (e.g.

conceptual class diagram, state machine diagram,

etc.) portraying each a perspective of the system. In

this paper, we focus on the division between

conceptual and behavioural diagrams in graphical

specifications. When such separation is made, four

main drawbacks appear: First, there are not precise

relationships among the different diagrams.

Secondly, each kind of diagram is expressed using

its own language. Third, the constraints are generally

expressed in yet another language. Fourth, the

system specification cannot be easily validated.

Our concern is how to “glue back” the partial

system descriptions together in order to obtain a

holistic view of the system that can be validated. We

propose a notation that integrates conceptual

specification together with behavioural specification.

The goals are to facilitate a) the reasoning of the

modellers in the terms of actions/services, and b) to

enable the model checking of the specification. We

map our visual notation onto the formal language

Alloy (Jackson, 2002) in order to validate its

soundness.

Throughout the paper we show the example of an

IT system (

BoardingITSystem) that controls the

boarding process of passengers to a plane. Initially,

the plane is empty but the passengers have already

checked-in at the company ticket counter. Then the

system processes the requests from passengers that

are ready for going onboard: passengers’ boarding

passes are processed one by one until the plane’s

maximum capacity is reached. As a safety rule, none

of the passengers can board or disembark more than

once. Figure 1 illustrates this example using the

UML notation (OMG, 2005).

Section 2 defines visual contracts and their

semantics (in Alloy). Section 3 presents the

BoardingITSystem example using our visual

contract notation. Section 4 is the state of the art.

2 VISUAL CONTRACT

We define Visual Contract (VC) as the visual

model that represents both the pre and the post

conditions for an action as well as the changes

between the two. Our visual contract notation is

developed in the context of SEAM (Systemic

Enterprise Architecture Methodology), a method

designed for reasoning about business and IT

alignment (Wegmann et al, 2005).

In our approach, we model the behaviour

together with the state of the systems. Our modelling

ontology is based on RM-ODP(ISO/IEC & ITU-T,

1998) and on our formalization of it (Le &

Wegmann, 2005).

298

D. De la Cruz J., Lê L. and Wegmann A. (2006).

VISUAL CONTRACTS - A Way to Reason About States and Cardinalities in IT System Speciﬁcations.

In Proceedings of the Eighth International Conference on Enterprise Information Systems - ISAS, pages 298-303

DOI: 10.5220/0002462402980303

 SciTePress

Plane

Person_1:PersonPerson_1:Person

Activity diagram

Board: Sequence diagram

Snapshot diagram – After Board Snapshot diagram – Before Board

Person

Class diagram

Plane

1..*

State diagram State diagram

Plane_1: Plane

Person_2:Person

Person_3:Person

reponse_OK: Response

Board

User_1:User

Plane_1:Plane Person_1:Person

Response

Ask_for_Board ()

Plane_1: Plane

Person_2:Person

Person_3:Person

time = after Boardtime = before Board

notFull

full

[number of

person

capacity]

[crash]

class Plane

offBoard

onBoard

[disembark_OK]

[board_OK]

[kill]

class Person

board_OK

passenger

BoardingITSystem

passenger_1

candidate_1

passenger_2

BoardingITSystem

BoardingITSystem BoardingITSystem

1..*

checkedIn

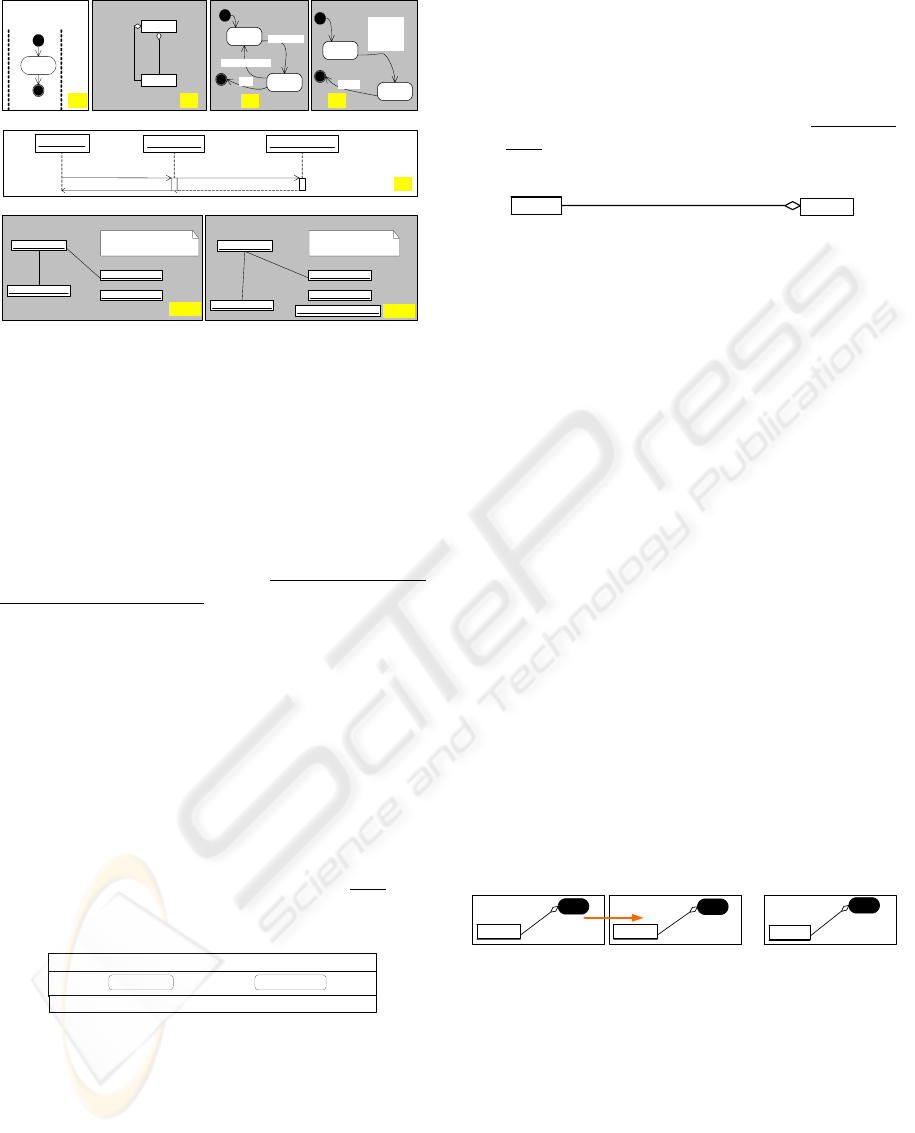

Figure 1: A partial UML specification for activity Board

of system BoardingITSystem.

A system is modelled as a RM-ODP object that

we call working object. Working objects can be

specified as whole or as composite. A working

object as whole is described atomically. Only the

externally visible behaviour is described using a

model-based description (Schätz et al, 2002). A

working object as composite is described as a set of

component working objects that collaborate

together. In visual contracts, we consider only

working objects as whole.

Working objects as whole are described in terms

of information objects, set associations and localized

actions.

2.1 Information Objects

An Information Object (IO for short) captures the

type and the possible states of the concepts

necessary to describe the observed system.

For example, Figure 2 represents the IO

Person

that captures the information of a person in the real

world. The attribute

Boarded captures the state of a

Person in relation with the Plane she wants to

board. All IOs include an identity attribute

Id.

Person

offBoard onBoard

Boarded

Figure 2: Information Object representation.

2.2 Set-Associations

We claim that when reasoning with graphical

models our minds use instances implicitly.

Set-associations (SA) captures information

about these instances. As set-associations relate IOs,

it means that these instances exist within a context.

For example a set-association between a Plane and a

Person can represent a person that is either

offBoard or onBoard. This is illustrated in Figure 3.

For practical reasons, we avoid drawing the single

instances (extensional form, like in the object

diagrams of UML), and we use instead cardinality

and state information of the set of instances. We call

this the intensional form.

Plane

passenger_List

Person

offBoard

Figure 3: SEAM representation of 4 passengers using

instance cardinalities.

As illustrated in Figure 3, a SA requires a name

(

passenger_List), a referring instance cardinality

(

#1), a set of referred instances cardinality (#4), and

a state (

offBoard).

2.3 Actions

As illustrated in Figure 1, an action can be modelled

in UML by a set of quasi-orthogonal diagrams (that

can be related to each other via OCL). In contrast,

our visual contract diagrammatically describes in a

single diagram an action and its effects.

An action specifies the effects of system’s

reactions to a set of events for a given system state.

When we consider a given action A (A), we

describe the set of predicates for the initial

conditions (P) that will guarantee that the final state

(Q) is reached, as expressed in (Hoare, 1969):

{ P } A { Q } (1)

Since state information of objects is represented

at the set associations, the change of global state is

equivalent to the sum of changes in set associations:

changes of cardinality and of state.

Figure 4 and Figure 5 represent diagrammatically

changes due to actions

op1 and op2, respectively.

op1

Person

op1

Person

op1

Person

#1 -> #2

onBoard onBoard onBoard

Figure 4: Action changes cardinality of set-associations.

On the left side the initial (a) and final (b) conditions. In

In Figure 4.a there is only a single instance of

type

Person. After op1, there are two instances of

the same IO, as shown in Figure 4.b. The state of the

instances does not change. The Figure 4c is the

SEAM equivalent to the evolution from 4.a to 4.b.

In Figure 5, we illustrate a state change (without

cardinality changes). Initially, the SA

selected

includes one instance of IO

Person that is offBoard

VISUAL CONTRACTS - A Way to Reason About States and Cardinalities in IT System Specifications

299

(5.a). At the end, this same person is onboard

(5.b). Figure 5.c represents the evolution from 5.a

to 5.b.

Op2

Person

op2

Person

offBoard

op2

Person

onBoard

offBoard ->

onBoard

#1 #1

Figure 5: Action changes state of instances in set-

associations.

Figures 4.c. and 5.c introduce the «change»

operator (Æ), central in our approach. As a

corollary, we may say that what is not shown as

changing in the specification of an action is

considered to remain unchanged.

2.4 Other Modeling Constructs

We can reason about systems because we can see

how actions change the instances. Therefore, it is

fundamental to model the lifecycles of the instances

(to understand which instances exist and when). A

context of existence of an instance is the temporal

frame where an instance or a set of instances exist.

Our semantics for the context of existence is similar

to UML composition/ aggregation, so we will use

the UML notation (black/hollow diamond).

Given that all instances exist in a context, there is

a “first context” for each system. It is the model

element Myself. This element represents the “root”

of all behavioural and conceptual

information

describing the system. The double nature of this

model element is represented by a symbol that

combines an IO and an action:

Myself

We also define a special kind of information

object: the parameter. Parameters are necessary to

represent the communication through the boundary

of the system or through action boundaries. The

stereotype can be «Par In» or «Par Out» depending

on whether it is an input or an output parameter.

3 EXAMPLE: THE PLANE

BOARDING CONTROL

SYSTEM

In this Section, we present the visual contract that

corresponds to Figure 1. First we introduce the

necessary information objects (Section 3.1). We then

define the operations

Init and CheckIn (Section

3.2) and then

Board (Section 3.3). Only a normal,

correct case of behaviour is shown in this paper.

For each diagram we present, we define the

Alloy equivalent. Alloy is a light weight model-

checkable specification language that we use to

define the semantics of our notation.

3.1 Definition of Information

Objects

BoardingITSystem

# *

capacity

Plane

Myself

offBoard_passenger_List

Person

onBoard offBoard

# *

onBoard_passenger_List

Boarded

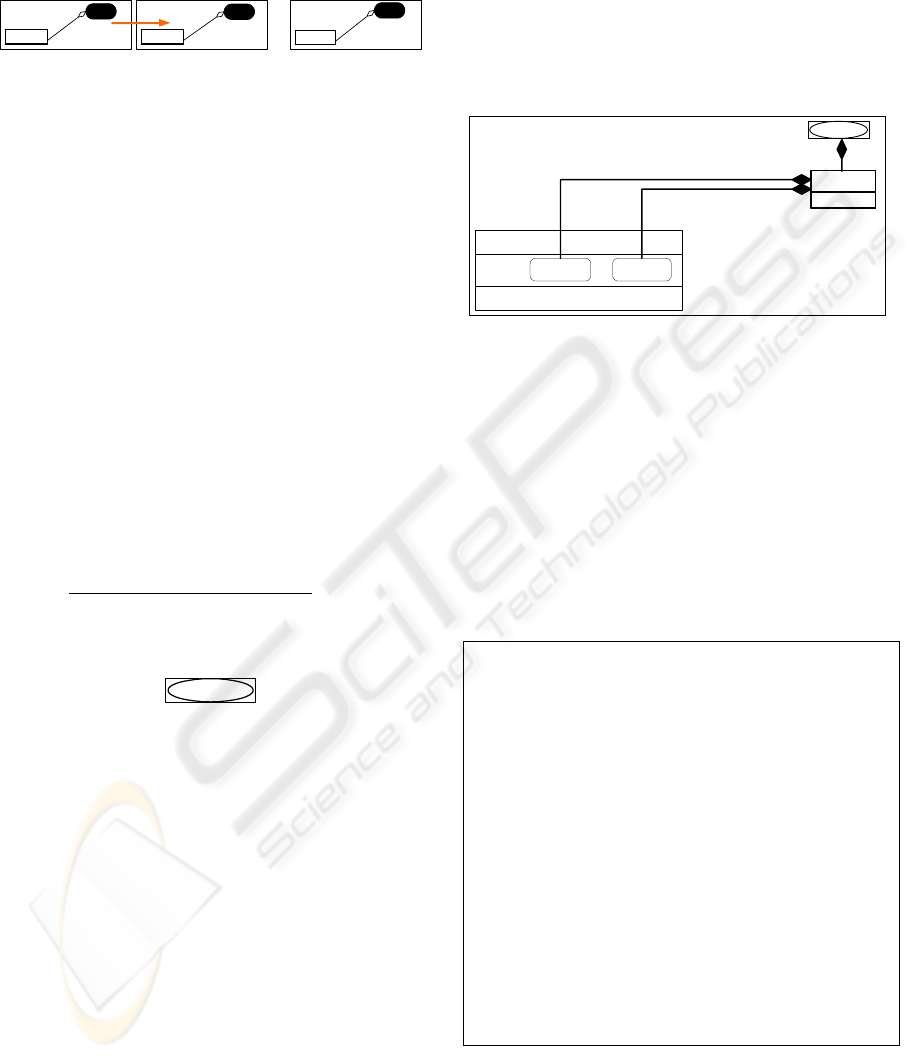

Figure 6: SEAM notation for data definitions for the

BoardingITSystem.

For sake of simplicity, the system

BoardingITSystem knows one Plane only. SEAM’s

representation, shown in Figure 6, can be read as

follows: In the system (i.e.

Myself), there is the

knowledge of one Plane with a

capacity. This

Plane has two passenger_List that can contain

multiple passengers each; one is for the

passengers

that have checked-in (

offBoard) and the other one

for the ones that have effectively boarded the

Plane (

onBoard).

The Alloy equivalent is shown in figure 7.

sig Time { }

sig Person { id: Int }

fact uniqueId{

all p,q:Person|p!=q => p.id!=q.id }

one sig Plane {

capacity: Int,

onboard_passenger_List:

set Person->Time,

offboard_passenger_List:

set Person -> Time }

{ int capacity > 0

all t: Time |

int capacity >=

#onboard_passenger_List.t +

#offboard_passenger_List.t

all t: Time | no p: Person |

p in onboard_passenger_List.t and

p in offboard_passenger_List.t

}

Figure 7: Partial Alloy specification for action Board.

The Alloy can be read as follows: a set of

ordered time points are defined (

sig Time); a set of

Person are defined (sig Person) with a unique

ICEIS 2006 - INFORMATION SYSTEMS ANALYSIS AND SPECIFICATION

300

identifier (

fact uniqueID). We define also a Plane

that has a

capacity and 2 lists: onboard_Passenger

_List

and offBoard_Pass enger_List. These lists

include a relation between a person and a time point

(necessary to simulate the execution sequence).

Some invariants are defined in the plane: the

capacity is never exceeded, and nobody can be in

both lists at the same time.

3.2 Operations Init & CheckIn

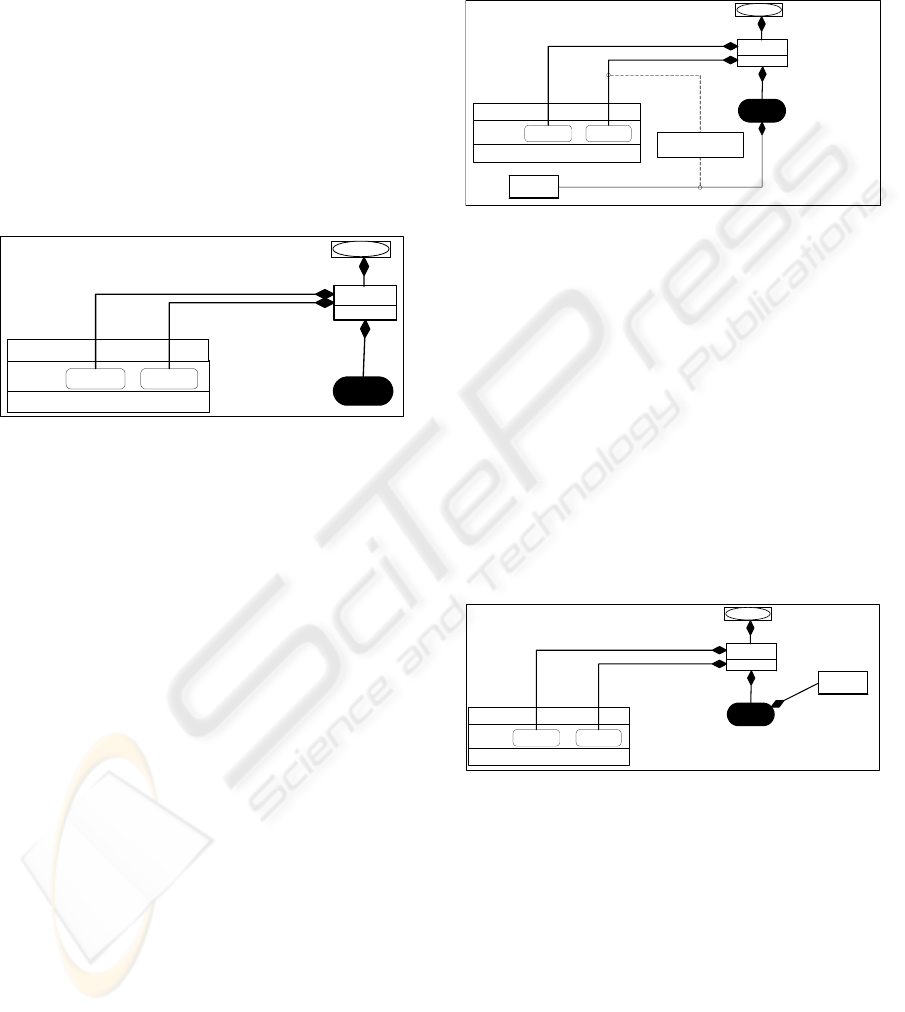

Figure 8 shows the SEAM visual contract for

operation

Init. It states that the number of Person

in both

passenger_List (offBoard, onBoard) is set

to zero.

Init

BoardingITSystem

# * --> #0

capacity

Plane

Myself

Person

onBoard offBoard

# * --> #0

offBoard_passenger_List

onBoard_passenger_List

Boarded

Figure 8: The SEAM contract of Init: the cardinality of the

passenger_List SA changes.

The cardinality of each set-association that links

passenger_List to Person goes from some initial

value (any, symbolized by the character ‘*’) to 0. In

the practice, this means erasing all instances of

Person linked to both

passenger_List

(

offBoard, onboard).

The action

checkIn, not presented in this paper,

assigns instances of Person to the

offBoard_passenger_List.

3.3 Operation Board

The specification of action Board is the following:

“The plane preconditions are: a) an input parameter

represents the identifier of the person that desires to

go on board, b) this person has already checked-in,

and c) the number of people onboard has not reached

the maximum capacity of the plane. The post

condition is that the person is now onboard. In

addition, the system emits a message confirming the

entry of the person into the plane”.

Before creating the Visual Contract for action

Board, we illustrate the action by making two

snapshots: one before and one after the operation

Board. The situation would be as shown in Figures 9

and 10, respectively.

In the precondition, there is an instance of

Id_Person that is considered as valid. The valid

condition is defined by a constraint in the diagram:

the

Id_Person should correspond to the id of only

one Person that has already checked-in (she is in

the

offBoard_passenger_List).

Board

Id_Person

<<Par In>>

valid

Valid = one (Persoin.id

== Id_Person)

BoardingITSystem

# *

capacity

Plane

Myself

offBoard_passenger_List

Person

onBoard offBoard

# *

onBoard_passenger_List

Boarded

Figure 9: Precondition for action Board.

During the action Board, the parameter

Id_Person is validated and the corresponding

instance of

Person in the offBoard_

passenger_List

is referenced by the action via the

selected.

In the post condition, Figure 10, the selected

instance of

Person will be transferred to the

onBoard_passenger_List (supposedly the one that

has been admitted in the precondition); the

cardinality change in the corresponding SA

symbolizes this. Simultaneously, the

offBoard_passenger_List is decremented by one.

Finally, a Response parameter is emitted,

indicating the success of the operation (represented

by the SA

Greetings_Response).

Response

<<Par Out>>

Greetings_Response

Board

BoardingITSystem

# * -> # (*+1)

capacity

Plane

Myself

offBoard_passenger_List

Person

onBoard offBoard

# * -> # (*-1)

onBoard_passenger_List

Boarded

Figure 10: Post condition of action Board.

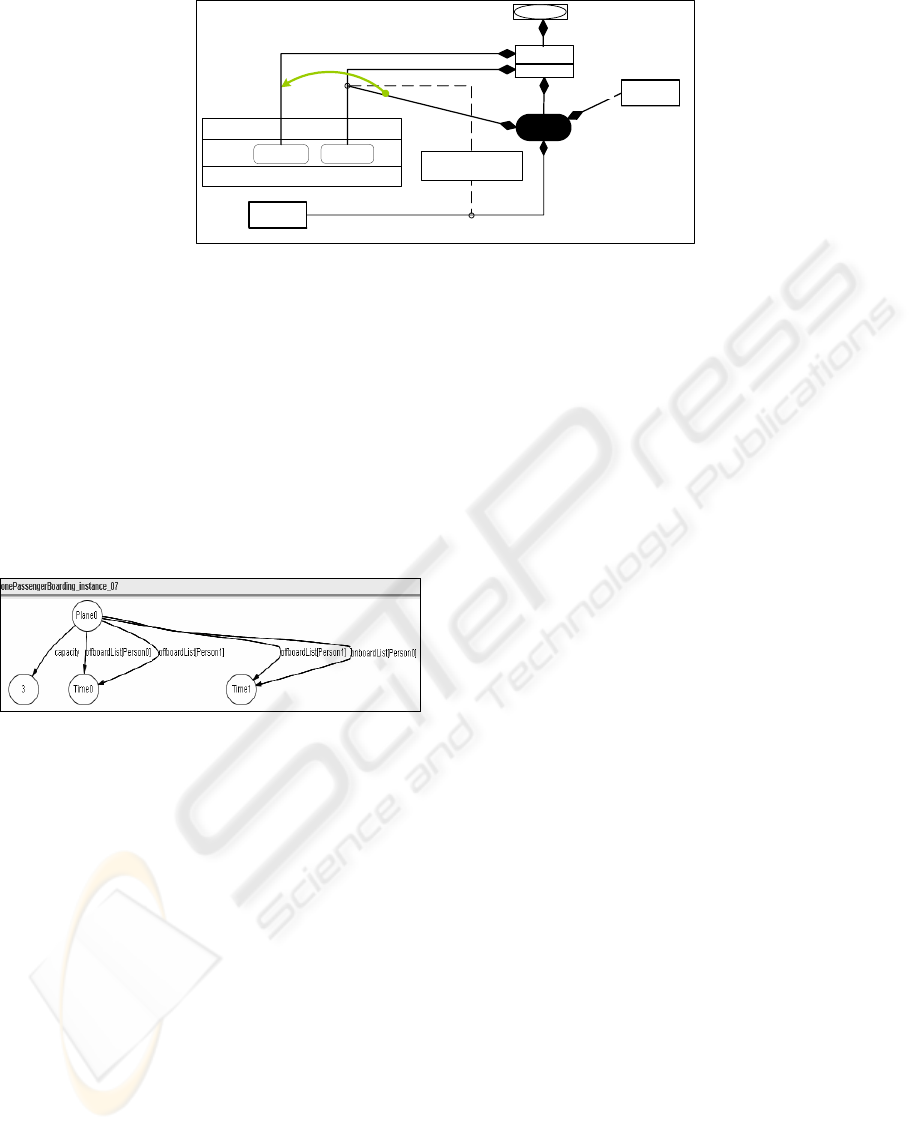

The whole visual contract is shown in Figure 11.

Here we make explicit the changes and the instances

involved, in order to avoid misunderstandings. The

instance of the

offBoard_passenger_List that

corresponds to the

Id_Person is represented by the

selected, that exists in the context of action

Board. Remark that this temporary information does

appear neither in the pre nor in the post condition.

Notice also that the constraint regarding the

Plane capacity has become a guard for a transfer of

the instance

selected of IO Person from

offBoard_passenger_List onto the onBoard_

passenger_List

VISUAL CONTRACTS - A Way to Reason About States and Cardinalities in IT System Specifications

301

Board

Id_Person

<<Par In>>

#1 -> #0

valid

Valid = one (Persoin.id

== Id_Person)

BoardingITSystem

# * -> # (*+1)

capacity

Plane

Myself

offBoard_passenger_List

Person

onBoard

offBoard

# * -> # (*-1)

onBoard_passenger_List

selected

Response

<<Par Out>>

#0 -> #1

Greetings_Response

[notFull]

notFull = onBoard_passenger_List.cardinality < Aircraft.capacity

Boarded

Figure 11: Visual contract for action Board. It illustrates the «change» operator.

The Figure 12 illustrates the evolution of state of

the IT system during the contract execution. It is the

result of the execution of the Alloy code presented

below. It shows a scenario where the plane has two

people (

Person0, Person1) in the offBoard_

passenger_List

before the action execution (at

Time0). One passenger (Person1) actually boards the

plane, as can be seen in the nodes that represent the

state after the action execution (at

Time1). The

person

Person0 has changed to the

onBoard_passenger_List.

Figure 12: Result of simulating the action Board in the

Alloy analyzer. Time0 and Time 0 are the moment before

and after the action takes place.

4 RELATED WORK

UML (OMG, 2005) is the industry standard in

object-oriented analysis and design. UML creating

heterogeneous models made up of different

diagrams and notations. In our approach, we try to

minimize the number of diagrams to one by

representing conceptual and behavioural

specifications together. Our syntax is comparable to

UML –in order to improve the usability— however

semantics are totally dissimilar. We can say that

VCs are complementary to UML diagrams.

One of the challenges we face is how to express

the relationships between instance and types in

conceptual modelling. UML proposes the use of

separate diagrams: class and object (OMG, 2005).

Heckel (Heckel & Sauer, 2001) deals with types and

instances in collaboration diagrams. While these

approaches represent static information, our goal is

to represent how actions change information.

The use of contracts allowed validating

implementations of object-oriented designs (Helm et

al; 1990; Meyer, 1992). The use of contracts to

specify actions, interactions, use cases, and activities

is presented in (D'Souza & Cameron Wills, 1998;

Rik Eshuis, 2001; Stevens, 2001; Wirfs-Brock et al,

1990). However, most of the work has been done

mostly using OCL and textual logics. Only recently,

two research groups (Lohmann et al, 2005; De la

Cruz et al, 2005) have proposed independently the

concept of “visual contracts”. The first focuses on

automatic generation of code that reinforces the

compliance of the applications of the IT system with

the constraints and business rules whereas the latter

focuses on conceptual modelling and IT system

specification.

The graph transformation (GT) languages like

QVT (OMG, 2005) , VPM (Varro & Pataricza,

2003) and the one proposed by Heckel (Heckel &

Sauer, 2001) are syntactically similar to our

contracts because a) we use UML-like notation and

b) the contracts are also executed according to a

pattern-matching oriented philosophy. However,

they use OCL and are used mostly for

transformation among languages –e.g. class

diagrams to java code, statecharts to sequence

diagrams, etc. — at the metamodel level. They are

not used as languages for specification but for

extraction/transformation from models that should

generate object-oriented code. Their primary goal is

to guarantee well-formedness and translatability, and

not to support reasoning about actions/services and

system evolution. Besides, our approach is

declarative whereas many of the GT languages are

mostly operational/ imperative. Our approach is

complementary to these UML-based initiatives.

ICEIS 2006 - INFORMATION SYSTEMS ANALYSIS AND SPECIFICATION

302

5 CONCLUSIONS AND FUTURE

WORK

In order to define visual contracts, we extend the

traditional interpretation of the association and we

integrate diagrams that are usually considered as

separate. We define the concept of set associations

that capture the existence of instances of concepts in

a given context. We use these set associations to

relate information objects (our term for concepts) to

information objects but also actions to information

objects. To represent the pre and the post condition

on a single diagram, we define a new graphical

symbol to express the change of cardinality or state.

Our visual contracts addressed the four issues

raised by the separation of conceptual and

behavioral diagrams for modeling actions. First,

differente descriptions were put along in a single

diagram; our visual contracts include structure, state,

communication & synchronization, action/activity

and constraint information. Secondly, the proprietary

languages of each notation were harmonized with

each other by our semantics. Third, constraints were

illustrated as logic guards for changes in the visual

contracts. Fourth, the diagram themselves can be

used to reason about the system actions.

We also reconcile and integrate the formal

methods that allow us model-checking and

simulating our models. The mapping between the

visual contracts and a model-checkable language as

Alloy is useful to validate the specification model

before a real/complex implementation is done.

Our future work includes testing and improving

the usability of the notation, developing tool support

that translates automatically the visual contract into

the Alloy code, and the integration of this feature

into our CAD tool (Le & Wegmann, 2005), as well

as formalizing the model-checking capability. We

plan also to build a UML to SEAM translation tool.

REFERENCES

De la Cruz, J. D., Wegmann, A., & Regev, G. (2005).

Expressing Systemic Contexts in Visual Models of

System Specifications. In T. Bui & A. Gachet (Eds.),

Proceedings of the Workshop on

Context Modeling and Decision Support, CONTEXT-

05 Workshops (Vol. CEUR 144). Retrieved October

31, 2005, from http://CEUR-WS.org/Vol-

144/04_deLaCruz.pdf

D'Souza, D. F., & Cameron Wills, A. (1998). Objects,

components, and frameworks with UML: The

Catalysis approach (1 ed.): Addison Wesley

Longman, Inc.

Heckel, R., & Sauer, S. (2001). Strengthening UML

Collaboration Diagrams by State Transformations.

Paper presented at the FASE 2001, Genova, Italy.

Helm, R., Holland, I. M., & Gangopadhyay, D. (1990).

Contracts: Specifying Behavioural Compositions in

Object-Oriented Systems. Paper presented at the

OOPSLA/ECOOP 1990, Ottawa, Canada.

Hoare, C. A. R. (1969). An Axiomatic Basis for Computer

Programming. Communications of the ACM (CACM),

12(10), 576-580.

ISO/IEC, & ITU-T. (1998). Recommendation X.901,

X.902, X.903, X.904, "Open Distributed Processing -

Reference Model" (Recommendation): ISO and ITU-

Jackson, D. (2002). Alloy: a lightweight object modelling

notation. ACM Trans. Softw. Eng. Methodol., 11(2),

256-290.

Le, L. S., & Wegmann, A. (2005). Definition of an Object-

Oriented Modeling Language for Enterprise

Architecture. Paper presented at the HICSS'05,

Hawaii, USA.

Lohmann, M., Sauer, S., & Engels, G. (2005). Executable

Visual Contracts. Paper presented at the IEEE

VL/HCC’05, Dallas, Texas, USA.

Meyer, B. (1992, Oct.). Applying "Design by Contract".

IEEE Computer, 25, 40-51.

OMG. (2005). Unified Modeling Language (UML), from

www.omg.org

Rik Eshuis, R. W. (2001). A Real-Time Execution

Semantics for UML Activity Diagrams. Paper

presented at the FASE 2001, Genova, Italy.

Schätz, B., Pretschner, A., Huber, F., & Philipps, J.

(2002). Model-based development of embedded

systems. In J.-M. Bruel & Z. Bellahsene (Eds.),

Advances in Object-Oriented Information Systems,

OOIS 2002 Workshops (Vol. LNCS 2426, pp. 298-

312). Montpellier, France: Springer.

Stevens, P. (2001). On Use Cases and Their Relationships

in the Unified Modelling Language. Paper presented at

the FASE 2001, Genova, Italy.

Varró, D., & Pataricza, A. (2003, Aug.). VPM: A visual,

precise and multilevel metamodeling framework for

describing mathematical domains and UML. Software

and Systems Modeling, 2(3), 187-210.

Wegmann, A., Balabko, P., Le, L.-S., Regev, G., &

Rychkova, I. (2005). A Method and Tool for Business-

IT Alignment in Enterprise Architecture. Paper

presented at the CAiSE'05, Porto, Portugal.

Wirfs-Brock, R., Wilkerson, B., & Wiener, L. (1990).

Designing Object-Oriented Software (1 ed.).

Englewood Cliffs: Prentice Hall.

VISUAL CONTRACTS - A Way to Reason About States and Cardinalities in IT System Specifications

303
