ENABLING ROBUSTNESS IN EXISTING BPEL PROCESSES

Onyeka Ezenwoye and S. Masoud Sadjadi

School of Computing and Information Sciences

Florida International University

11200 SW 8th St., Miami, FL 33199

Keywords:

ECommerce, Web Service Monitoring, Robust BPEL Processes.

Abstract:

Web services are increasingly being used to expose applications over the Internet. To promote efﬁciency and

the reuse of software, these Web services are being integrated both within enterprises and across enterprises,

creating higher function services. BPEL is a workﬂow language that can be used to facilitate this integration.

Unfortunately, the autonomous nature of Web services leaves BPEL processes susceptible to the failures of

their constituent services. In this paper, we present a systematic approach to making existing BPEL processes

more fault tolerant by monitoring the involved Web services at runtime, and by replacing delinquent Web

services. To show the feasibility of our approach, we developed a prototype implementation that generates

more robust BPEL processes from existing ones automatically. The use of the prototype is demonstrated using

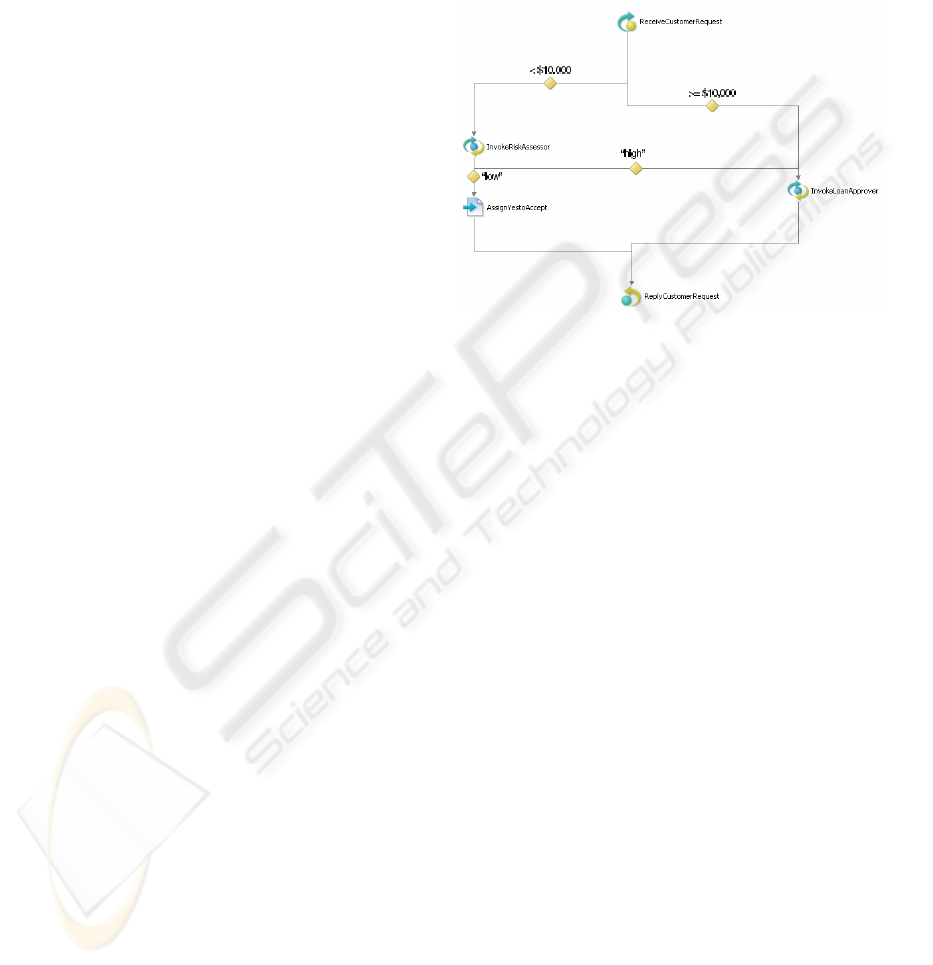

an existing Loan Approval BPEL process.

1 INTRODUCTION

Web services are becoming prevalent in the electronic

marketplace and are often used to represent speciﬁc

business functions (e.g., ticket reservation). In or-

der to create coarse grained business processes that

constitute a number of related business functions, a

high-level work ﬂow language such as BPEL (Weer-

awarana and Curbera, 2002) is often used. However,

due to the autonomous nature of the Web services, it is

difﬁcult for a third party user to ensure and check that

a Web service will fulﬁll its requirements (functional

or non-functional) (Robinson, 2003; Menasc, 2002).

Consequently, the inherent openness of the interac-

tions among Web services leaves BPEL processes

susceptible to the failures of their constituent services.

In this paper, we present a systematic approach to

making existing BPEL processes more robust. By

systematic, we mean that the code for robustness is

generated and woven into the BPEL process; so the

developers of the BPEL processes do not need to be

aware of such code.

BPEL provides a coarse grain approach to build-

ing complex business processes by integrating sepa-

rate and simpler Web services. The goal of BPEL is

to improve corporate efﬁciency by promoting appli-

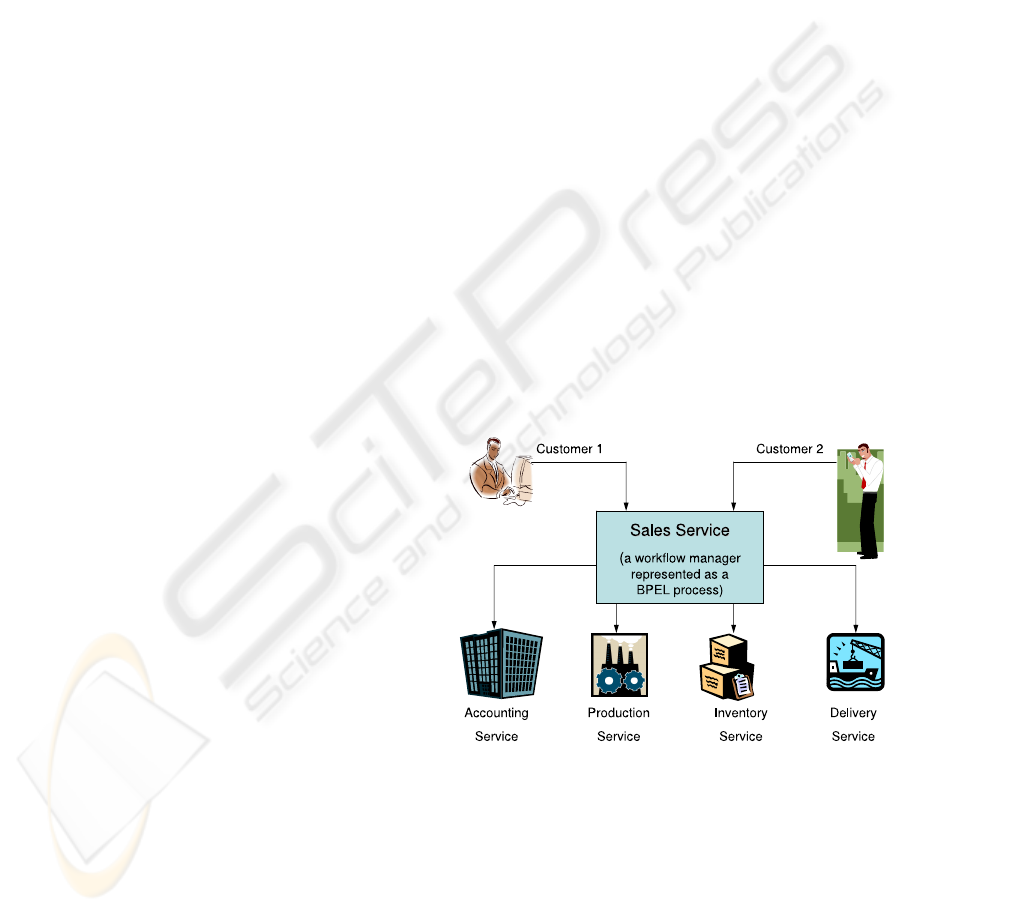

cation integration and software reuse. Figure 1 de-

picts an example business process (Sales service) that

involves four functional units. In this example, the

activity of processing a purchase order from a cus-

tomer involves the accounting, production, inventory

and delivery services.

Figure 1: An example Sales Business Process.

To provide some robustness to BPEL processes,

we need to monitor the behavior of the partner Web

services. The problem of monitoring Web services

is however compounded by the fact that traditional

monitoring, debugging and testing tools do not suf-

ﬁce because some services may be outside the con-

trol of the developer of the BPEL process (Vogels,

2003). One type of monitoring that can be done on

such autonomous Web services is to check that they

fulﬁll their service contracts (Robinson, 2003). Ex-

Ezenwoye O. and Masoud Sadjadi S. (2006).

ENABLING ROBUSTNESS IN EXISTING BPEL PROCESSES.

In Proceedings of the Eighth International Conference on Enterprise Information Systems - DISI, pages 95-102

DOI: 10.5220/0002464100950102

 SciTePress

isting methods of monitoring BPEL processes either

do not fully separate the functional from the non-

functional requirements of the process (Baresi et al.,

2004) or do not maintain the portability of the BPEL

process by extending the BPEL language or the BPEL

engine (M. Blow et al., 2004).

In this paper, we show how an existing BPEL

process can be made robust by automatically identi-

fying and monitoring desired services and replacing

them upon failure. The rest of this paper is struc-

tured as follows. Section 2 provides a background

on the key technologies used in this paper. Section 3

overviews our approach and provides some detailed

description. A case study using our prototype imple-

mentation is presented in Section 4. Section 5 con-

tains related work. Finally, a discussion of future

work and some concluding remarks are in Section 6.

2 BACKGROUND

The use of the term Web service is often overloaded

and confusing. In its broadest deﬁnition, a Web ser-

vice is a software component that is accessible over

the Internet via some middleware protocols. A more

precise deﬁnition however is, any software compo-

nent that utilizes WSDL (explained next) as the pri-

mary means to describe its interface and can be ac-

cessed over the Internet with the use of a messag-

ing protocol such as SOAP (Gudgin et al., 2003).

Web services aim to promote the use of distrib-

uted applications by harmonizing the heterogeneity

between interacting systems. Unlike previous at-

tempts, Web services have been successful in fa-

cilitating application-to-application and business-to-

business integration via the Internet (Vinoski, 2003).

This section presents in brief the key technologies that

are necessary for the understanding of the material in

the following sections.

WSDL. Web Services Description Language

(WSDL) (Chinnici et al., 2004) is an XML-based

standard for describing a Web service. A WSDL

deﬁnition is divided into two parts: abstract and

concrete. The abstract part describes the service

interface, the operations it performs and the messages

involved; the concrete part describes the location

of the service and how to access and bind to a Web

service. An abstract deﬁnition can be mapped to

multiple concrete implementations. Both abstract

and concrete WSDL deﬁnitions are independent

of the service implementation. In other words, the

description of service end points, the operations

and messages, the message formats and the network

protocols used in the communication are independent

of how the services are implemented (e.g., what

programming languages have been used or whether

the services are using other services to perform their

tasks).

BPEL. Business Process Execution Language

(BPEL) (T. Andrews et al., 2003) is a high-level

workﬂow language for deﬁning more coarse-grained

Web services by integrating a number of existing

Web services. BPEL provides many constructs for

the management of the process including loops,

conditional branching, fault handling and event

handling (such as timeouts) and it allows for partner

service to be accessed asynchronously, sequentially

or in parallel. BPEL process can catch faults from

a service invocation. A caught fault is handled

by speciﬁed catch activity which could be a reply

containing an error message. Faults are caught

with

catch or catchAll handlers that deﬁned

inside

faultHandlers tags. The catch elements

specify custom fault-handling activities that execute

on a given fault name or fault variable While the

catchAll elements specify fault-handling activities

that execute when a fault is not caught by a

catch

fault handler. The scope is a container that provides

a context for a subset of activities. It can contain fault

and event handler for activities nested within it. The

scope allows the activities enclosed within it to be

managed as logical unit.

3 OVERVIEW OF APPROACH

Our approach to making an existing BPEL process ro-

bust involves monitoring the invocation of partner ser-

vices from within the BPEL process. Events such as

timeouts and faults are monitored and upon the occur-

rence of such events, a speciﬁc proxy Web service is

invoked to ﬁnd and replace the faulty services.

3.1 Modifying BPEL Processes

By modifying existing BPEL processes, either by a

developer or by an automatic generator, our approach

aims to achieve a separation of concerns (McKinley

et al., 2004). That is, enabling the separate devel-

opment of the process’s functional requirements (the

business logic) from the non-functional requirements

(fault tolerance, in our case). This allows the ini-

tial developer of the BPEL process, which could be

a business analyst, to determine the functional re-

quirements of the process and compose it as such.

Adding non-functional requirements involves identi-

fying points in the process at which monitoring is re-

quired and inserting appropriate code to do so. The

monitoring code we insert is in the form of standard

ICEIS 2006 - DATABASES AND INFORMATION SYSTEMS INTEGRATION

BPEL constructs to ensure the portability of the mod-

iﬁed process.

BPEL provides constructs for the management of

the faults and events by using the

faultHandlers

and eventHandlers clauses, respectively (see sec-

tion 2). A fault can be a programmatic error generated

by the Web service partners of the BPEL process or

unexpected errors (e.g., service unavailability) from

the Web service infrastructure. A timeout is an

“event” in BPEL that is deﬁned by the

onAlarm

clause. We use a timeout to limit the amount of time

that the process can wait for a reply from an invoked

Web service.

We modify the existing BPEL process by identify-

ing points in the process at which external Web ser-

vices are invoked and then wrapping each of those

invocations with a BPEL

scope that contains the de-

sired fault and event handlers. The following XML

code is an example of a service invocation in BPEL.

1. <invoke name="invokeApprover"

2. partnerLink="approver"

3. portType="loanApprovalPT"

4. operation="approve"

5. inputVariable="request"

6. outputVariable="approvalInfo">

7. </invoke>

Figure 2: An unmonitored invocation.

The above code instructs the BPEL engine (a

virtual machine that interprets and executes BPEL

processes) to invoke a partner Web service. The actual

Web service partner is deﬁned by the

partnerLink

(line 2). Lines 3 and 4 identify the inter-

face (

portType) of the partner and what method

(

operation) the invocation wishes to call. The input

and expected output messages are speciﬁed in lines

5 and 6. This bare invocation can be identiﬁed and

wrapped with the monitoring code. The process of

identifying an invocation to monitor includes noting

the exact interface (operation, input and output vari-

ables) of the invocation. This is important for deﬁning

the proxy service as we will explain shortly.

The XML shown in Figure 3 is a version of the

above invocation after our monitoring code has been

wrapped around it. The unmonitored invocation (Fig-

ure 2) is ﬁrst wrapped in a

scope container which

contains fault and event handlers (lines 2-11 and 12-

21 respectively in Figure 3). The

scope allows the

activities enclosed to be managed as one logical unit.

catchAll fault handler is added (lines 3-10) to the

faultHandlers to handle any faults generated as a

result of the invocation of the partner Web service.

The fault-handling activity deﬁned is the invocation

of the proxy Web service (lines 4-9). Thus, when a

fault is generated by the partner service invocation,

this fault is caught by the

catchAll and the proxy

service is invoked to substitute for the unavailable or

failed service.

1. <scope>

2. <faultHandlers>

3. <catchAll>

4. <invoke name="InvokeProxy"

5. partnerLink="proxy"

6. portType="proxyPT"

7. operation="approve"

8. inputVariable="request"

9. outputVariable="approvalInfo"/>

10. </catchAll>

11. </faultHandlers>

12. <eventHandlers>

13. <onAlarm for="’PT15S’">

14. <invoke name="InvokeProxy"

15. partnerLink="proxy"

16. portType="proxyPT"

17. operation="approve"

18. inputVariable="request"

19. outputVariable="approvalInfo"/>

20. </onAlarm>

21. </eventHandlers>

22. <invoke name="invokeApprover"

23. partnerLink="approver"

24. portType="loanApprovalPT"

25. operation="approve"

26. inputVariable="request"

27. outputVariable="approvalInfo">

28. </invoke>

29.</scope>

Figure 3: A monitored invocation.

A similar construct is used for the event handler.

onAlarm event handler (lines 13-20) is used to

specify a timeout. That is, a duration within which the

partner service invocation must complete. If the part-

ner service fails to reply within the stipulated time,

the proxy service is invoked (lines 14-19) as a substi-

tute. In our case, we have arbitrarily speciﬁed a time-

out duration of 15 seconds (line 13), but this can vary

depending on the type application or personal prefer-

ence. Note that the interface for the proxy Web ser-

vice is exactly the same as that of the monitored Web

service. This is because we intend to generate a proxy

with an exact interface as that of the monitored ser-

vice. Thus, the operation, input and output variables

of the proxy are the same as that of the monitored in-

vocation.

As stated in section 2, the BPEL speciﬁcation al-

lows for the deﬁnition of two types of fault han-

dlers (

catch and catchAll). Our decision to use

catchAll is based on the fact that, we expect the

initial developer of the process would have deﬁned

explicit fault-handlers (using

catch) for predeﬁned

exceptions (T. Andrews et al., 2003). Recall that

ENABLING ROBUSTNESS IN EXISTING BPEL PROCESSES

the catch handler is used to handle speciﬁc prede-

ﬁned programmatic exceptions from the partner ser-

vices. The

catchAll would then handle any un-

foreseen faults that might arise from the Web service

infrastructure, for instance, if the invoked service is

unavailable. If it so happens that the speciﬁc

catch

fault-handlers are missing, the catchAll would han-

dle any fault that is thrown, which may or may not

be desirable. Finally, if there exists a

catchAll in

the original BPEL, then the wrapping code will be

added at the beginning, which again may not be de-

sirable. This shortcoming is due to the fact that the

BPEL speciﬁcation still does not have a proper run-

time exception speciﬁcation for unavailability of ser-

vice partners.

3.2 Deﬁning the Proxy Web Services

We have previously referred to the proxy Web service

as a “speciﬁc proxy”. By speciﬁc, we mean that the

proxy for a monitored service has to have the same

interface as the monitored service. Infact, the speciﬁc

proxy only exists after the service to be monitored has

been identiﬁed. The abstract portion of WSDL de-

scription for the proxy Web service is similar to that

of the monitored service, only the concrete portions

are different.

The job of the proxy Web service is to discover

and bind equivalent Web services that can substitute

for the monitored services, upon the failure of those

services. By equivalent, we mean services that im-

plement the same port type (and business logic) as

that of the monitored service. A port type is simi-

lar to an interface in the Java programming language.

So, when two Web services implement the same port

type, only their internal implementations may vary,

their interfaces (the abstract portions of their WSDL

descriptions) remain the same. Although the Web ser-

vice paradigm is still in its infancy, the idea of having

equivalent services is not far fetched. The business

logic of applications such as search engines, ﬂight

reservation services, driving directions or even a net-

work of printers, are all the same. Thus applications

with the same functional requirement are equivalent.

It is expected that in the near future, standard organi-

zations will specify standard service interface deﬁni-

tions for different business domains that providers can

choose from, implement and deploy (Kreger, 2001;

Januszewski, 2002).

Equivalent services can be discovered at design

time (static discovery) (Kreger, 2001). When sta-

tic discovery is used, services that can substitute for

the monitored service are noted and tightly associated

with the code for the proxy.

One concern about using a speciﬁc proxy is that

we need to have several speciﬁc proxies, if the BPEL

process has several partner Web services that need to

be monitored. However, this problem can be easily

overcome by deﬁning one proxy with an interface that

is an aggregation of all the interfaces of the monitored

Web services.

3.3 Generating the Robust BPEL

The task of manually modifying a BPEL process to

insert monitoring code and then producing the cor-

responding proxy service, can be quite cumbersome.

This task becomes even more daunting when there

are multiple service invocations that need to be moni-

tored. A systematic approach to achieving these goals

can however be devised. This systematic approach

makes it possible to come up with a generator that

can automatically generate the more robust version of

a given BPEL process and its associated proxy ser-

vice.

Such a generator, as illustrated in Figure 4, would

need as input three sets of documents: (1) the original

BPEL process, (2) the WSDL descriptions of all the

Web service partners of the BPEL process that need

to be monitored, and (3) the WSDL descriptions of all

the substitutes for the monitored services.

The generator would add all the necessary moni-

toring code to the BPEL process. It needs the abstract

descriptions of the partner services from their WSDL

ﬁles in order to be able to deﬁne the interface for the

proxy service. The WSDL ﬁles for the substitutes are

needed so that they can be statically associated with

the developed proxy as described in section 3.2. The

WSDL ﬁles for the substitutes may not actually need

to be fed into the generator. They could be enumer-

ated on a list and the list is read by the proxy. The

point here is that the substitutes and their bindings are

known at design time. The output of the generator

is the monitored BPEL and a proxy Web service that

utilizes static discovery.

Figure 4: The generation process.

ICEIS 2006 - DATABASES AND INFORMATION SYSTEMS INTEGRATION

4 CASE STUDY

To show the feasibility of our approach presented

in the previous section, we developed a prototype

implementation of the generator in Java. Although

the previous section provides an overview of the ap-

proach, some detail about the adaptation and genera-

tion process has been omitted for the purpose of clar-

ity. In this section, we use a case study to demonstrate

in more detail the issues we encountered and the deci-

sions we made. For our case study, we use an existing

Loan Approval process that is commonly used as a

sample BPEL process.

4.1 The Loan Approval Process

The Loan Approval BPEL process is a Web service

(

LoanApproval) that is an aggregation of two other

Web services. The two Web services involved in the

process are a risk assessor service (

LoanAssessor)

and a loan approver (

LoanApprover). The Loan

Approval process implements a business process that

uses its two partner services (

LoanAssessor and

LoanApprover) to decide whether a given individ-

ual qualiﬁes for a given loan amount. Please note that

in this case study we assume that we have access to

the Loan Approval BPEL process, but the two other

Web service partners are assumed to be developed,

deployed and managed by third parties (outside our

control). In this case study, we try to use our pro-

totype implementation of the generator to generate

a more robust version of the Loan Approval BPEL

process without manually modifying the source code

of the original BPEL process and without the need to

modify the two Web service partners.

As illustrated in Figure 5, the Loan Approval BPEL

process receives as input a loan request (

Receive-

CustomerRequest

). The loan request message com-

prises two variables: the name of the customer and

the loan amount (not shown in the ﬁgure). If the

loan amount is less than $10,000, then the risk asses-

sor Web service is invoked (

InvokeRiskAssessor),

otherwise the loan approver Web service is invoked

(

InvokeLoanApprover). The risk assessor and the

loan approver services take as input the loan request

message (not shown in the ﬁgure). After the risk as-

sessor is invoked, the BPEL process expects to re-

ceive as reply a risk assessment message. This risk

assessment message is a string with a value of either

“high” or “low”. When the risk assessment is “low”,

this means the loan is approved and the loan approval

process sends an approval message (with “yes” value,

AssignYestoAccept) to the customer and termi-

nates (

ReplyCustomerRequest). If the risk assess-

ment message is “high”, the loan approver service

is invoked (

InvokeLoanApprover). The loan ap-

prover service returns a loan approval message (ei-

ther “yes” or “no”), which is then sent as reply to the

customer (

AcceptMessageToCustomer). Both the

risk assessor service and the loan approver service can

also return a predeﬁned fault message to the BPEL

process. When any of these services reply with a fault

message, the BPEL process sends an error message to

the user and terminates (not shown in the ﬁgure).

Figure 5: The work ﬂow of the loan approval BPEL

Process.

Both the risk assessor and the loan ap-

prover Web services were implemented pre-

viously by ActiveWebﬂow in Java (

http:

//www.active-endpoints.com/

). For the

purpose of our case study, we deployed the Web

services locally on an Apache Tomcat server with

Apache AXIS (

http://www.apache.org/) as the

SOAP engine. The BPEL process was hosted on an

Active-Bpel engine.

To ensure the clarity of the instrumentation process,

it is important to brieﬂy introduce the key WSDL ﬁles

involved.

loandeﬁnitions.wsdl: This ﬁle contains deﬁnition

of the common messages between the risk assessor

and the loan approver Web services. These mes-

sages are the

creditInformationMessage and the

loanRequestErrorMessage. The loanRequest-

ErrorMessage

deﬁnes the input message of the ser-

vices. It is a 3-tuple that consists of the ﬁrst and

last name of the customer and the loan amount. The

loanRequestErrorMessage deﬁnes the program-

matic fault message that can be returned by both ser-

vices. This ﬁle ensures consistency in the speciﬁca-

tion of the services. In this case, the services share

the deﬁnition of two messages.

loanapprover.wsdl: This ﬁle describes the loan ap-

prover Web service. It describes the location of the

service, the methods it exposes and the three mes-

ENABLING ROBUSTNESS IN EXISTING BPEL PROCESSES

sages involved. The “loandeﬁnitions.wsdl” ﬁle is im-

ported so as to include the two messages speciﬁed

therein. A third message, the loan approval message,

is explicitly deﬁned inside this ﬁle.

loanassessor.wsdl: This ﬁle contains the descrip-

tion for the loan assessor service. It is much similar

to the “loanapprover.wsdl”, the only different being

that, for this interface, the name of the operation and

output message are different.

4.2 Monitoring the Process

As previously described (Figure 4), our static gener-

ator uses the original BPEL process code, the WSDL

ﬁle of the partners and their substitutes to generate a

more robust BPEL process and its proxy Web service.

The generator we are developing tries to achieve this

in two steps: generate the modiﬁed BPEL process and

generate the proxy Web service. These steps are not

necessarily ordered as both can be achieved indepen-

dently. In the following sections, we describe how we

have done this.

4.2.1 Generating the BPEL Process

We have successfully derived and implemented an

algorithm that, when given any syntactically correct

BPEL process, would generate a more robust but

equivalent version of the process. The task of trans-

parently adapting any program code is made compli-

cated by the need to preserve its original function-

ality (McKinley et al., 2004). This, coupled with

the fact that BPEL is not a sophisticated program-

ming language and is thus limited in the number of

available programming language constructs, makes

the task of instrumentation more arduous.

Because BPEL uses

Flow and Sequence contain-

ers to specify parallel and sequential activities, indi-

vidually wrapping the invocations in those containers

with a

Scope does not affect the sequence of their

execution. However, when the order of execution be-

tween activities is speciﬁed with the use of a

Link,

the links have to be removed as part of the

Invoke

to become part of the Scope. Recall (from Section 2)

that a

Scope allows the activities within to be man-

aged as one logical unit. So moving the moving the

links to the

Scope preserves the execution sequence

of the activities. Figure 7 below is the modiﬁed ver-

sion of the invocation in Figure 6 after the generation

process. It can be seen that the target and source links

in Figure 6 (lines 7-9) have been moved outside of the

invocation in Figure 7 (line 29) to become immediate

children of the

Scope (lines 2-5).

The original Loan Approval BPEL process has a

single fault handler for the whole process. This fault

1. <invoke inputVariable="request"

2. name="InvokeLoanApprover"

3. operation="approve"

4. outputVariable="approval"

5. partnerLink="approver"

6. portType="lns:loanApprovalPT">

7. <target linkName="receive-to-approve"/>

8. <target linkName="assess-to-approve"/>

9. <source linkName="approver-to-reply"/>

10.</invoke>

Figure 6: The invocation of the Loan Approver Service.

handler sends a fault message to the customer in the

event of a fault. Our algorithm leaves this fault han-

dler intact. But our policy of making sure that each

target invocation has a speciﬁc fault and event han-

dler means that our monitoring code is closest to the

invocation. A limitation of this approach is that by

using a

catchAll fault handler, all faults generated

by the invocation will ﬁrst be caught by this handler

even though there may already be explicitly deﬁned

handlers for known programmatic faults. Currently,

we are working on a solution to address this problem.

In addition, the current prototype wraps all the invo-

cations in the BPEL process with monitoring code.

It would be easy to come up with an implementa-

tion that allows the user to select which invocations

to monitor. To avoid redundacy, only the transforma-

tion of the invocation for the Loan Approver service

is shown in Figure 7.

The loan approver service was made to gener-

ate a

loanProcessFault, which was caught in the

faultHandlers clause and the proxy service in-

voked. The loan approver service is disabled to sim-

ulate an unavailable service. The generated exception

is now successfully caught and the proxy is invoked.

The modiﬁed process is also able to deal with a time-

out event after the loan approver is purposefully made

to loop to simulate a slow service. The timeout is

caught by the speciﬁed

eventHandlers clause (not

shown in the code). Instead of the BPEL failing on

these events, the proxy is successfully able to invoke

an equivalent loan approver service, which substitutes

for the failed loan approver.

4.2.2 Generating the Proxy Web Service

The second part of the generator is to automatically

produce a Java implementation of the proxy Web ser-

vice. As of this writing, this part of the generator

is a work-in-progress. We have however, manually

composed this proxy service. Currently, we employ

a static discovery method (Kreger, 2001) for the dis-

covery of equivalent services. The implementation of

the proxy involves the use of a stub interface gen-

erator through which the discovered equivalent ser-

ICEIS 2006 - DATABASES AND INFORMATION SYSTEMS INTEGRATION

100

1. <scope variableAccessSerializable="no">

2. <target linkName="receive-to-approve"/>

3. <target linkName="assess-to-approve"/>

5. <source linkName="approver-to-reply"/>

6. <faultHandlers>

7. <catchAll>

8. <invoke inputVariable="request"

9. name="proxy"

10. operation="approve"

11. outputVariable="approval"

12. partnerLink="proxy"

13. portType="pxns:proxyPT"/>

14. </catchAll>

15. </faultHandlers>

16. <eventHandlers>

17. <onAlarm>

18. <invoke inputVariable="request"

19. name="proxy"

20. operation="approve"

21. outputVariable="approval"

22. partnerLink="proxy"

23. portType="pxns:proxyPT"/>

24. </onAlarm>

25. </eventHandlers>

26. <invoke inputVariable="request"

27. name="InvokeLoanApprover"

28. operation="approve"

29. outputVariable="approval"

30. partnerLink="approver"

31. portType="lns:loanApprovalPT"/>

32.</scope>

Figure 7: The monitored loan approver service.

vices can be invoked. A stub interface is a Java in-

terface for WSDL Web services using their port type

descriptions. To generate the stub interface, you can

use any tool that generates Java interfaces for WSDL

services using their port type descriptions, such as

WSDL2Java from AXIS or Java WSDP from Sun Mi-

crosystems.

As stated in the overview (Sections 3.2 and 3.3),

the interface for the proxy service can be an aggre-

gation of the interfaces of all the monitored services.

This is the approach we have taken so as to have a

single proxy for all monitored services. In order to

achieve this, the WSDL of the proxy was composed

with a new port type deﬁnition called

proxyPT. This

port type contains the operations and messages de-

ﬁned in the interfaces of the Loan Assessor and Loan

Approver services. It contains both the

check and

approve operations of the loan assessor and loan ap-

prover services, respectively. The WSDL2Java tool

from AXIS was used to generate a Java interface from

the proxy WSDL. This Java interface was then imple-

mented with code that would bind to the equivalent

services when the corresponding operation is invoked.

For the equivalent services, we created replicas of the

Loan Approver and Loan Assessor services.

When a monitored service fails, the input message

for that service is used as input message for the proxy.

The proxy will then invoke the equivalent service with

the same input message. A reply from the substi-

tute service is then sent back to the loan approval

BPEL process via the proxy. More detailed informa-

tion about this case study can be found in (Ezenwoye

and Sadjadi, 2005).

5 RELATED WORK

There has been a lot of work done both in web service

monitoring (Robinson, 2003; Birman et al., 2004; G.

Canfora et al., 2005) and in adding fault tolerant to ex-

isting systems (L. Moser et al., 1999; Natarajan et al.,

2000), but they are not speciﬁcally addressing fault

tolerance in BPEL processes. . So, we only focus on

the most related ones.

Baresi’s approach (Baresi et al., 2004) to moni-

toring involves the use of annotations that are stated

as comments in the source BPEL program and then

translated to generate a target monitored BPEL pro-

gram. In addition to monitoring functional require-

ments, timeouts and runtime errors are also moni-

tored. Whenever any of the monitored conditions in-

dicates misbehavior, suitable exception handling code

in the generated BPEL program handles them. This

approach is much similar to ours in that monitoring

code is added after the standard BPEL process has

been produced. This approach achieves the desired

separation of concern. This approach however re-

quires modifying the original BPEL processes manu-

ally. The annotated code is scattered all over the orig-

inal code. The manual modiﬁcation of BPEL code

is not only difﬁcult and error prone, but also hinders

maintainability. In our approach, there is no need for

annotation and manual modiﬁcation of the original

BPEL processes.

BPELJ (M. Blow et al., 2004) is an extension to

BPEL. The goal of BPELJ is to improve the func-

tionality and fault tolerance of BPEL process. This

is accomplishes by embedding snippets of Java code

in the BPEL process. This however requires a spe-

cial BPEL engine, thereby limiting its portability of

BPELJ processes. The works mentioned above, al-

though are able to provide some means of monitoring

for BPEL processes, they not dynamically replace the

delinquent services once failure has been established.

6 CONCLUSIONS

We have described and implemented a way of instru-

menting BPEL processes so as to make them more

fault tolerant. By adding code for monitoring the indi-

vidual services that are part of the BPEL composition,

ENABLING ROBUSTNESS IN EXISTING BPEL PROCESSES

101

failed services are replaced via a purposely generated

proxy web service. We described how to automati-

cally generate the more robust BPEL process and the

corresponding static proxy.

In our future work, we plan to address the fol-

lowing issues. First, in our current work, we do not

use dynamic service discovery. But because services

are continuously published with the broker, there are

bound to be appropriate services that become avail-

able after the composition of the BPEL process and

the static proxy. So, it makes sense that upon fail-

ure of any of the constituent Web services of the

BPEL process, an equivalent service can be dynam-

ically discovered (at run-time) to serve as a substi-

tute for the failed service. When dynamic discovery

is used, care must also be taken not to re-discover

the failed service. Second, substituting service im-

plementations at runtime may lead to failures on the

client-side (Denaro et al., 2005). Thus it is impor-

tant to be able to detect and resolve potential inte-

gration problems from discovered equivalent services.

This could include making sure that they actually ful-

ﬁll their functional requirements. Third, we realized

that the task of improving fault tolerance for multi-

ple service collaborations is made even more com-

plex if the collaborating services are stateful. Some

techniques (Dialani et al., 2002) for dealing with such

stateful services can be employed.

Further Information. A number of related pa-

pers, technical reports, and a download of the soft-

ware developed for this paper can be found at

the following URL: http://www.cs.fiu.edu/

∼

sadjadi/.

ACKNOWLEDGEMENTS

The authors are very thankful to Eduardo Monteiro

who worked on the implementation of the generator.

This work was supported in part by IBM SUR grant.

REFERENCES

Baresi, L., Ghezzi, C., and Guinea, S. (2004). Smart moni-

tors for composed services. In ICSOC ’04: Proceed-

ings of the 2nd international conference on Service

oriented computing, pages 193–202. ACM Press.

Birman, K. P., van Renesse, R., and Vogels, W. (2004).

Adding high availability and autonomic behavior to

web services. In Proceedings of the 26th Interna-

tional Conference on Software Engineering (ICSE

2004), pages 17–26, Edinburgh, United Kingdom.

IEEE Computer Society.

Chinnici, R., Gudgin, M., Moreau, J.-J., Schlimmer, J., and

Weerawarana, S. (2004). Web Services Description

Language (WSDL) Version 2.0. W3C, 2.0 edition.

Denaro, G., Pezze, M., and Tosi, D. (2005). Adaptive inte-

gration of third party web services. In in Proceeding

DEAS 2005, St. Louis, Missouri, USA.

Dialani, V., Miles, S., Moreau, L., Roure, D. D., and Luck,

M. (2002). Transparent fault tolerance for web ser-

vices based architectures. In Eighth International

Europar Conference (EURO-PAR’02), Lecture Notes

in Computer Science, Padeborn, Germany. Springer-

Verlag.

Ezenwoye, O. and Sadjadi, S. M. (2005). Enabling ro-

bustness in existing bpel processes. Technical Report

FIU-SCIS-2005-08, School of Computing and Infor-

mation Sciences, Florida International University, Mi-

ami, Florida.

G. Canfora et al. (2005). The c-cube framework: Develop-

ing autonomic applications through web services. In

Proceedings of DEAS’05, Missouri, USA.

Gudgin, M., Hadley, M., Mendelsohn, N., Moreau, J.-J.,

and Nielsen, H. F. (2003). SOAP Version 1.2. W3C,

1.2 edition.

Januszewski, K. (2002). Using uddi at run time, part ii.

UDDI Technical Article.

Kreger, H. (2001). Web Services Conceptual Architecture

(WSCA 1.0). IBM Software Group.

L. Moser et al. (1999). The Eternal system: An archi-

tecture for enterprise applications. In Proceedings of

the Third International Enterprise Distributed Object

Computing Conference (EDOC’99).

M. Blow et al. (2004). BPELJ: BPEL for Java, A Joint

White Paper by BEA and IBM.

McKinley, P. K., Sadjadi, S. M., Kasten, E. P., and Cheng,

B. H. C. (2004). Composing adaptive software. IEEE

Computer, pages 56–64.

Menasc, D. A. (2002). Qos issues in web services. IEEE

Internet Computing, 6(6):72–75.

Natarajan, B., Gokhale, A. S., Yajnik, S., and Schmidt,

D. C. (2000). DOORS: Towards high-performance

fault tolerant CORBA. In International Symposium on

Distributed Objects and Applications, pages 39–48.

Robinson, W. N. (2003). Monitoring web service require-

ments. In Proceedings of the 11th IEEE International

Conference on Requirements Engineering (RE 2003),

pages 65–74. IEEE Computer Society.

T. Andrews et al. (2003). Business Process Execution

Language for Web Services version 1.1. BEA Sys-

tems, International Business Machines Corporation,

Microsoft Corporation, SAP AG, and Siebel Systems.,

1.1 edition.

Vinoski, S. (2003). Integration with Web services. IEEE

Internet Computing.

Vogels, W. (2003). Web services are not distributed objects.

IEEE Internet Computing.

Weerawarana, S. and Curbera, F. (2002). Business process

with bpel4ws: Understanding. Online article.

ICEIS 2006 - DATABASES AND INFORMATION SYSTEMS INTEGRATION

102
