Grid Authorization Based on Existing AAA

Architectures

Manuel Sánchez

, Gabriel López

, Óscar Cánovas

and Antonio F. Gómez-Skarmeta

Department of Information Engineering and Communications

Department of Computer Engineering

University of Murcia, Spain

Abstract. Grid computing has appeared as a new paradigm to cover the needs of

modern scientiﬁc applications. A lot of research has been done in this ﬁeld, but

several issues are still open. One of them, the Grid authorization, is probably one

of the most important topics regarding to resource providers, because they need

to control the users accessing their resources. Several authorization architectures

have been proposed, including in some cases new elements which introduce re-

dundant components to the system. In this paper, we propose a new scheme which

takes advantage of a previously existing underlying authorization infrastructure

among the involved organizations, the NAS-SAML system, to build a Grid envi-

ronment with an advanced and extensible authorization mechanism.

1 Introduction

In the last years, the computing and storage capacity required in scientiﬁc environments

has exceeded the capacity offered by traditional computers. This problem has motivated

the developmentof a new computer paradigm called Grid Computing [9], which deﬁnes

the resource sharing among different organizations in a ﬂexible, secure and coordinated

way, conforming the so called Virtual Organizations (VO).

Nowadays, some aspects of the Grid computing such as resource sharing or discov-

ery have been solved by projects as the Globus Toolkit [1]. However, other Grid aspects

generally related to the security of the VO are still open, and one of the most important

open issues in the Grid research ﬁeld is user authorization. Indeed, authorization is a

critical feature in Grid computing because when an organization offers its resources to

users belonging to other domains, it wants to be sure that only authorized users are able

to perform the set of allowed actions over each protected resource.

Authorization mechanisms in the Grid have evolved from a simple authorization

ﬁle, listing the users who can access to each resource, to more complex schemes based

on the use of authorization servers, access control policies or identity certiﬁcates. Sev-

eral solutions, such as CAS [14] or VOMS [7], have been proposed, and some exist-

ing authorization mechanisms, as for example PERMIS [2], Akenti [16] or Shibboleth

(GridShib) [18] have been adapted to provide authorization decisions to the Grid. How-

ever, these authorization systems introduce new elements in spite of the authorization

process in the Grid environment could take advantage of existing ones.

anchez M., L

opez G., C

anovas

O. and F. G

omez-Skarmeta A. (2006).

Grid Authorization Based on Existing AAA Architectures.

In Proceedings of the 4th Inter national Workshop on Security in Information Systems, pages 3-12

 SciTePress

Although authorization is a key feature in Grid environments, this is not an exclu-

sive topic of this ﬁeld. Traditionally, organizations have protected critical resources,

for example the communications network. In fact, the AAA architecture [5] was de-

signed to solve this problem using different mechanisms to identify end users, such

as login/password or identity certiﬁcates. Therefore, one of the most common network

access control mechanism used by network providers is the one based on the AAA ar-

chitecture. An example of them is the architecture Network Access Service based on the

AAA architecture and SAML authorization attributes, NAS-SAML, described in [11].

Due to the fact that there are organizations using these kinds of architectures to

control the network access, it would be desirable that this authorization information

could be reused by other applications which also need to perform access control, for

example the Grid. This paper proposes a new authorization mechanism for those Grid

systems which takes advantage of an existing AAA infrastructure among two or more

organizations to provide authorization decisions, and which makes use of XML-based

standards such as SAML [13] and XACML [6] to manage the authorization data and

access control policies in an extensible and distributed way.

The rest of this paper is structured as follows. In Section 2, an overview about Grid

authorization is given. Next, Section 3 presents NAS-SAML. Section 4 describes the

proposed architecture to provide authorization in a Grid environment, and the different

design alternatives are shown in Section 5. In Section 6 other authorization proposals

for Grid computing are described, specifying the main differences with the approach

presented in this paper. Finally, conclusions and future work are presented in Section 7.

2 Authorization in the Grid

Grid computing is the response to a higher computer power and storage capacity de-

mand. This technology tries to make use of the resources provided by several organiza-

tions to offer the sum of all of them to the users belonging to these organizations. This

resource sharing implies several authorization issues, since an organization offering its

resources wants to be sure that only allowed users perform the allowed operations over

the protected resources.

Nowadays, there are several Grid implementations available, such as UNICORE

[15] or Globus Toolkit (GT), being GT the most common one. In 2002, a Grid spec-

iﬁcation called OGSA [8] appeared in order to deﬁne a standard way to create Grid

implementations. In OGSA, resources are offered by means of Grid services, which are

web services with speciﬁc interfaces to address service discovery, dynamic creation,

lifetime management and other features. This speciﬁcation was redesigned in 2004 as

WSRF [4], but the main idea remains unaltered.

In the early Grid implementations, authorization was performed by means of a ﬁle,

called grid-mapﬁle, with a mapping between user’s subject names and local account

names. Only if the subject name appeared in this ﬁle, the user was allowed to access

to the resource. This solution was not very scalable and several alternatives, such as

CAS or VOMS appeared to address this problem. The requirements that a Grid security

model must address are described in [20]. This document shows that an authorization

service have to evaluate policy rules to take authorization decisions based on informa-

tion about the requestor and the target service, and must be transparent to the user and

to the target service. Using this approach, once the user is authenticated, the hosting

environment has to contact with this authorization service in order to obtain a deci-

sion about the user request. The Global Grid Forum (GGF), through one of its working

groups, OGSA-Authz WG, deﬁned an OGSA authorization service based on SAML for

requesting and expressing authorization assertions, OGSA-SAML [19].

As Figure 1 shows, OGSA-SAML deﬁnes new SAML statements to carry the

needed information between a Policy Enforcement Point (PEP) and a Policy Decision

Point (PDP), those new introduced statements are the ExtendedAuthorizationDecision-

Query and SimpleAuthorizationDecisionStatement sentences. The ﬁrst one includes a

parameter to notify the PDP whether the PEP only needs a simple boolean authorization

decision instead of a list of allowed rights. It also adds a mechanism to pass information

about the requestor. The second statement contains a decision response to the ﬁrst one

as a whole, without enumeration of rights.

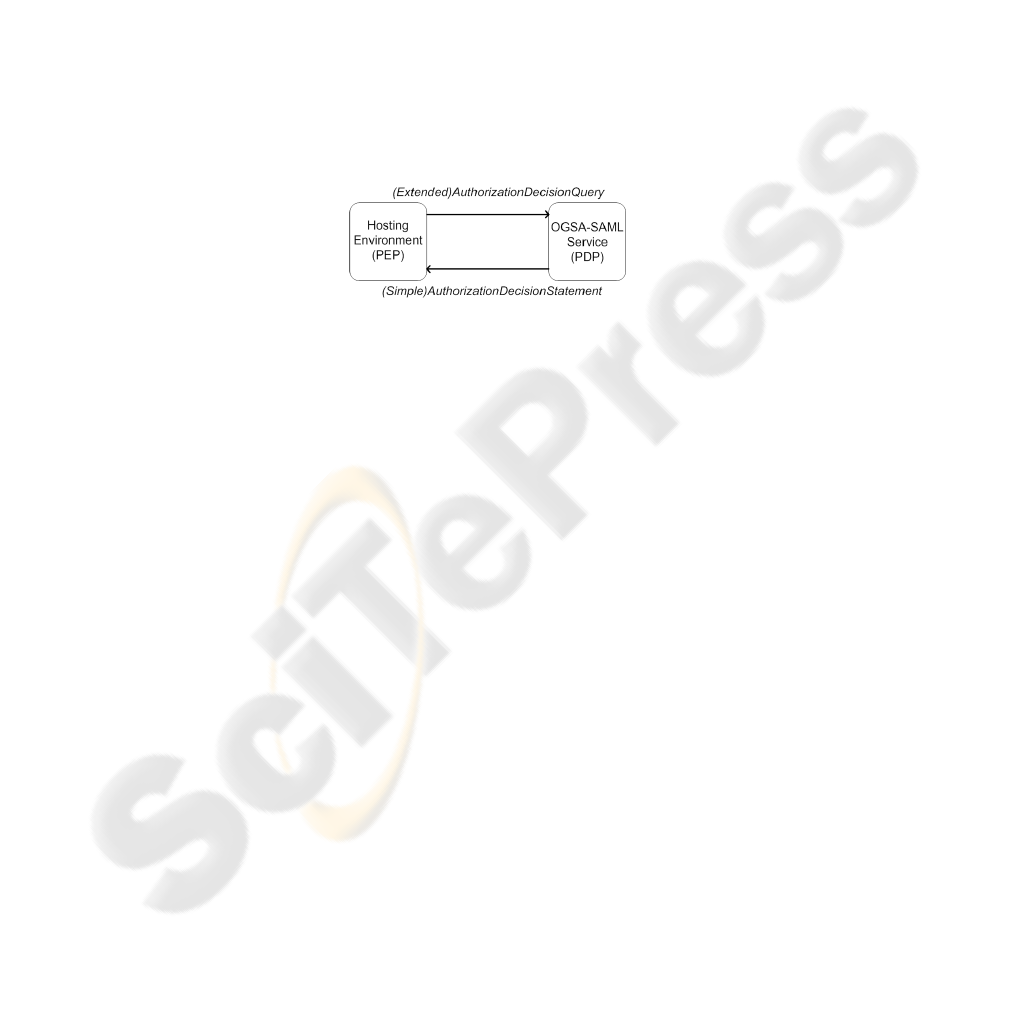

Fig.1. OGSA-SAML Authorization Service.

This speciﬁcation has been included in GT, providing a Grid service interface called

SAMLRequest port type. In this way, the Grid service container, acting as PEP, can be

conﬁgured to check the user’s permissions from the PDP. Consequently, the PDP has

to be a grid service which implements the interface SAMLRequest. In this proposal, as

explained below, the authorization service used by the Grid system takes advantage of

an underlying NAS-SAML infrastructure in order to manage the authorization process

in a multi-domain scenario, which includes the retrieval of user attributes from his home

domain and the authorization decision processes.

3 SAML-Based Network Access Control Architecture

During the last years, how to control the users that are making use of computer networks

has become an increasing concern for network administrators. As a direct consequence,

several security technologies have appeared in order to provide access control mecha-

nisms based on the authentication of users. Traditionally, network access systems have

been based on login/password mechanism. Other systems following a more advanced

approach for mutual authentication are based on X.509 identity certiﬁcates. These sys-

tems are especially useful for organizations concerned about the real identity of the

requestor. There are other organizations where the different users are classiﬁed accord-

ing to their administrative tasks, the type of service obtained, or some others internal

requirements. In those scenarios, the identity could not be enough to grant the access to

the resource being controlled, since we should know the role being played by the user in

order to offer the right service. Therefore, a system able to assign to the different users

the set of attributes specifying those privileges or roles is needed. This kind of systems

is usually designed following the Role Based Access Control (RBAC) model.

In [11], a network access control approach based on X.509 identity certiﬁcates

and authorization attributes is presented. This proposal is based on the SAML and the

XACML standards, which will be used for expressing access control policies based

on attributes, authorization statements, and authorization protocols. Authorization is

mainly based on the deﬁnition of access control policies [10] including the sets of users

pertaining to different subject domains which will be able to be assigned to different

roles in order to gain access to the network of a service provider, under speciﬁc cir-

cumstances. The starting point is a network scenario based on the 802.1X standard and

the AAA (Authentication, Authorization and Accounting) architecture, where processes

related to authentication, authorization, and accounting are centralized.

The system operates as follows. Every end user belongs to a home domain, where

he was given a set of attributes stating the roles he plays. When the user requests a

network connection in a particular domain by means of an 802.1X connection, the re-

quest is captured by the AAA server located in the target domain, and it makes a query

to obtain the attributes linked to the user from an authority responsible for managing

them, located in the user’s home domain. Alternatively, following a push approach, the

user itself can present its attributes instead of letting the AAA server to recover them.

Finally, the AAA server sends an authorization decision query to a local PDP entity, and

that element provides an answer indicating whether the attributes satisfy the resource

access control policy. Furthermore, that policy can also establish the set of obligations

derived from that decision, for example some QoS parameters, security options, etc.

This general scheme works both in single and inter-domain scenarios.

This scenario, although is focused on network access control, can be used as a basis

to provide authorization services to higher level applications, such as the Grid. More-

over, due to NAS-SAML has been integrated [12] with other authorization systems,

such as PERMIS [3], the Grid environment could be extended to those domains easily.

4 Architecture

This section describes the elements needed in the proposed solution to take advantage

of the NAS-SAML infrastructure, an already implemented and tested system that can

provide an authorization mechanism to organizations willing to collaborate by means

of a Grid, speciﬁcally using the Globus Toolkit middleware.

As Figure 2 shows, this architecture might be used when two or more organizations

share an AAA infrastructure with NAS-SAML support. One one hand, each organiza-

tion has its own AAA server, the key element in this scenario since it is responsible

for performing the authorization process in every domain. Two modules help the AAA

server, the Source Authority (SA), which produces the authorization attributes, and the

Policy Decision Point (PDP) entitled to obtain authorization decisions. When the AAA

server needs some information about a foreign user, it will ask the home AAA server,

located in the user’s home domain, in order to obtain this information. The communica-

tion between AAA servers is made through the DIAMETER protocol, speciﬁcally the

DIAMETER-SAML extension [11]. The authorization process is guided by access con-

trol policies, represented in XACML, provided to the PDP. In this way, by adding the

suitable service policies, the infrastructure can be extended to support other application-

level services willing to obtain authorization decisions about users.

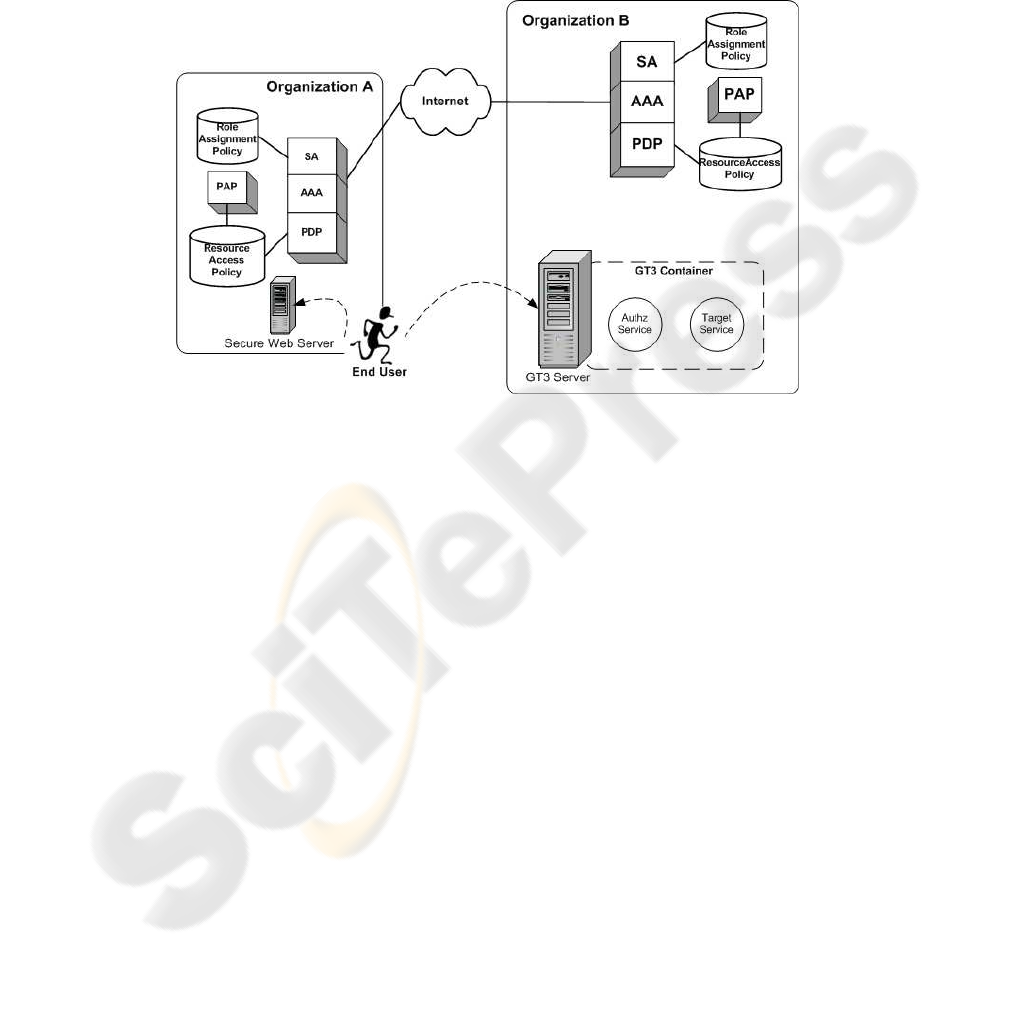

Fig.2. Architecture elements.

On the other hand, an authorization system in a Grid environment needs the set of

elements shown in Figure 2. In this scenario, when an end user wants to access to a

Target Service, the GT3 server may check the user’s rights to perform the requested

action asking an Authorization Service. To take the right decision, this service may use

the information about the user contained in the authorization request or, if necessary, it

can contact with external entities.

Trying to integrate those two scenarios, the main aim of this work is to provide

to those organizations a way to cooperate using a Grid infrastructure by means of an

advanced and extensible authorization model, trying to reuse already existing authoriza-

tion data and elements whenever is possible. This goal can be achieved taking advantage

of the extensibility of the OGSA-Authz authorization interface and the ﬂexibility of the

NAS-SAML infrastructure to process Grid authorization requests.

It is necessary to deﬁne how those two architectures can be integrated, that is, to

deﬁne the communication interfaces between the Grid and NAS-SAML entities, and

the different design alternatives depending on the user requirements and the application

scenarios. Therefore, we need to deﬁne how the Authorization Service will interact

with the local AAA server, in order to follow the authorization process as explained in

Section 3.

5 Design Alternatives

Four different scenarios are possible in NAS-SAML, depending on the use of the pull

or push approach to access to the network, and whether the user is accessing from his

home domain or from a foreign one. In this section we are going to focus on inter-

domain scenarios since a Virtual Organization only makes sense among several institu-

tions. Therefore, this section describes two scenarios based on the pull and push models

involving, at least, two administrative domains. In the ﬁrst one, the user gains access to

the Grid resources in the traditional way since every authorization task is performed by

the authorization service. In the second one, the user preselects the set of attributes he

wants to use, and then he presents them to the authorization service.

5.1 Pull Model

In this model the authorization process is transparent to the user, so the Globus client

software needs no modiﬁcation. As Figure 3 shows, when the user wants to access to

the Target Service, the GT3 server sends an ExtendedAuthorizationDecisionQuery to

the Authorization Service, following the OGSA proposal. This message contains the

user’s identity, the target resource and the action to be performed on that resource. In

this scenario, the resource is the Grid Service invoked by the user, and the action is the

service method to be executed. Once the Authorization Service gets this information,

builds a standard SAML AuthorizationDecisionQuery and sends it to the local AAA

server, using the DIAMETER-SAML protocol, as described in NAS-SAML [11].

Fig.3. Pull Model.

Once the local AAA server receives the AuthorizationDecisionQuery message, it

sends an AttributeQuery request to the user’s home AAA server, asking for the user’s

attributes. The local AAA server is able to discover the home AAA server location from

the user’s subject, as described in [11]. The home AAA server gets those attributes

from its local SA and responds with an AttributeStatement sentence, containing those

attributes. When the local AAA server receives this message, it uses the attributes and

the information received from the Authorization Service to obtain an authorization de-

cision consulting the local PDP. The AAA server sends an AuthorizationDecisionQuery

message to the PDP, and the AuthorizationDecisionStatement sentence received is sent

to the Authorization Service, which forwards the decision to the GT3 server as a Sim-

pleAuthorizationDecisionStatement sentence.

The advantage of this alternative is that a Virtual Organization making use of

the NAS-SAML scenario can make use of the authorization mechanism without user

knowledge. In this way, users continue accessing to GT3 in the traditional way, and or-

ganizations can manage attributes and its mapping to permissions in a transparent way.

The drawback is that the user cannot control the parameters related to the authorization

process, such as the set of attributes used to obtain the decision.

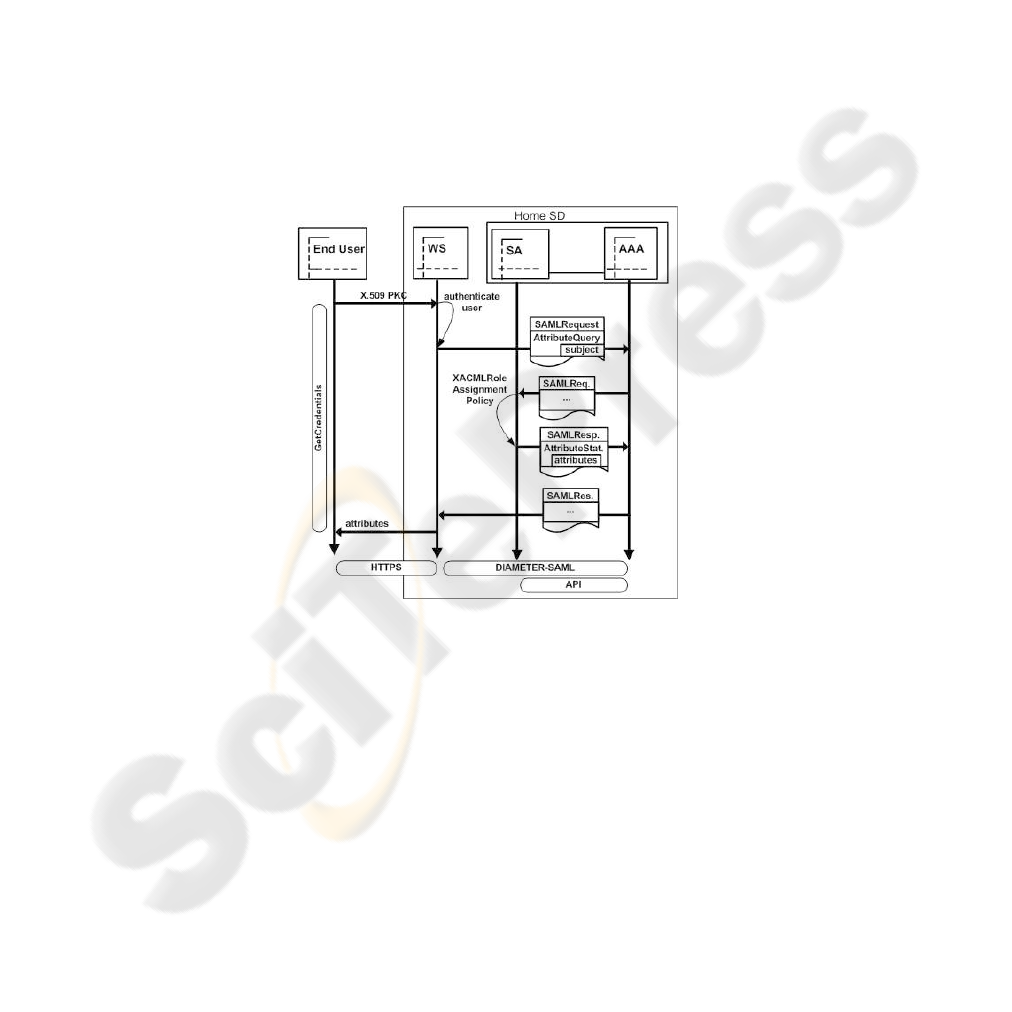

Fig.4. Attribute Recovery.

5.2 Push Model

In the push model, the user selects in his home domain the attributes he wants to present

to the target domain when requesting access to the Grid service. As Figure 4 shows, this

process is done by means of a secure web server (WS), located in the user home domain,

which returns the attributes to the user. First, the user and the WS authenticate mutually,

using X.509 certiﬁcates. Then, the WS requests the user attributes to the home SA using

the underlaying AAA infrastructure. It sends an AttributeQuery request to the AAA

server asking for all the user attributes and this server obtains the requested information

from the SA. The attributes are returned to the WS also through the AAA server in an

AttributeStatement response message. Finally the user selects the attributes he wants to

disclose and the WS provides them to the user as digitally signed SAML Assertions.

Once the user has obtained the desired attributes, the X.509 Proxy Certiﬁcate [17]

used to identify the user in GT, can be used to carry and present them to the GT3

server. The reason for using a X.509 Proxy Certiﬁcate instead of using a X.509 Attribute

Certiﬁcate, is that the proxy is a short lived certiﬁcate created by the user from its own

certiﬁcate, such as a ticket, which is currently supported by the Globus Toolkit since

it is the mechanism used to identify users. In this way we do not need to incorporate

additional functionality related to X.509 ACs. These attributes are added to the X.509

Proxy as non critical extensions which can be recovered from the GT3 server. Then,

they can be used to obtain the authorization decision, as Figure 5 shows.

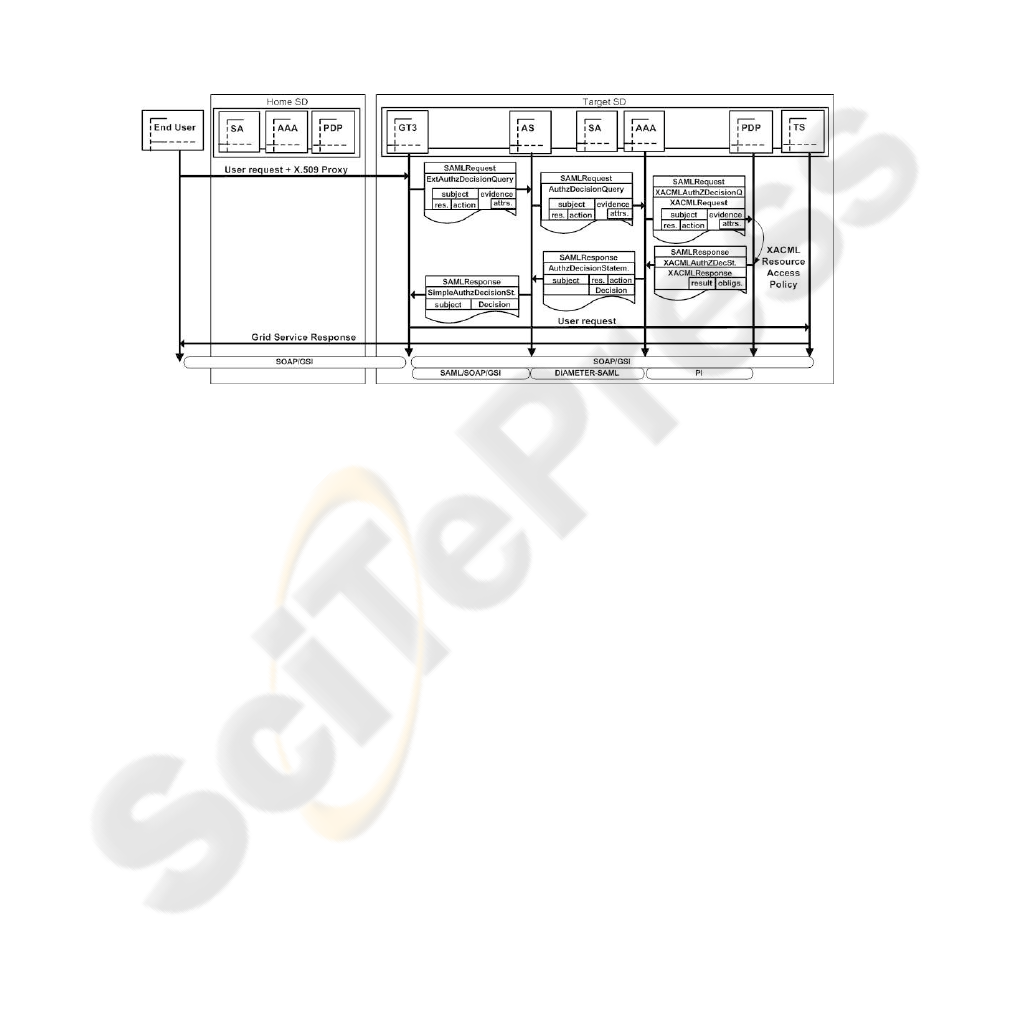

Fig.5. Push Model.

When the GT3 server receives the user’s request, it extracts the attributes and adds

them as evidences to the ExtendedAuthorizationDecisionQuery message sent to the Au-

thorization Service. Using the received data, this service builds an AuthorizationDeci-

sionQuery which is sent to the local AAA server. From the user identity, the resource,

the service method, and the evidences, the PDP responds to the AAA server using an

AuthorizationDecisionStatement sentence, indicating the authorization decision.

6 Related Work

As we previously mentioned, several Grid authorization mechanisms have been pro-

posed during the last years. In this section we analyze ﬁve of the most important solu-

tions, outlining the main advantages and drawbacks related to each one of them.

Two authorization systems speciﬁcally designed for Grid environments are

CAS [14] and VOMS [7]. They try to solve the problems of scalable and ﬂexible rep-

resentation and enforcement of access policies in a Virtual Organization using a server

which maintains the community policies. Both systems only supports the push access

mode, and in CAS the element which enforces authorization is the own target service.

In the Virtual Organization Membership Service (VOMS) the enforcement of the au-

thorization is made by a gatekeeper, eliminating the need for modifying every service.

PERMIS and Akenti are two existing authorization systems which have been

adapted to the Grid. PERMIS is a RBAC mechanism based on the use of X.509 Attribute

Certiﬁcates and its own XML-based policy language. This system has been integrated

into GT3 as authorization method by means of the PERMIS Authorization Service [2].

On the other hand, Akenti represents the resource access policy as a set of distributed

signed certiﬁcates which are gathered up when necessary to take an authorization deci-

sion. In this system, resources are accessed via a resource gateway which contacts the

Akenti server. The use of a plug-in to handle the interface between the job manager in

GT2 and the Akenti server is described in [16], but a solution to integrate Akenti into

OGSA Grids is not implemented. These two authorization systems have been designed

to work in single organizations, so they are not suitable to be used in multi-domain en-

vironments, such as the grid. For example, they have not deﬁned a protocol to exchange

authorization information between the different organizations. Besides, they only per-

mit the pull access mode in the Grid.

GridShib [18] is a project which main goal is the integration of Shibboleth and

Globus to provide identity federation and attribute-based policy enforcement for Grids.

Furthermore, Shibboleth offers pseudonymous interaction with the resources, which

GridShib expects to incorporate into the Grid. This system also offers the possibility to

access to the Grid using the push and pull models. GridShib allows a similar result that

our proposal. The main differences between both alternatives are due to the underlying

architectures, NAS-SAML and Shibboleth. In NAS-SAML the involved organizations

take advantage of an already existing AAA infrastructure which had been previously

deployed for other purposes, in this case, the network access control. On the other hand,

Shibboleth is a more recent architecture mainly focused on web applications.

7 Conclusions and Future Work

This paper demonstrates that when two or more organizations wants to collaborate by

means of a Grid, they have to introduce new authorization elements to manage their

user’s rights and the resource access control. Besides, in some cases the elements intro-

duced are redundant because each organization has its own authorization mechanism,

or collaborating organizations share a previous authorization infrastructure deployed

with another intention. This paper proposes to take advantage of the underlying AAA

infrastructure to provide an extensible and scalable authorization mechanism based on

the use of SAML statements to represent the authorization data.

Due to NAS-SAML allows both pull and push access modes, this authorization

mechanism offers these two kind of access to the Grid.

As a statement of direction we are integrating NAS-SAML in other high level ap-

plications, such as an admission control infrastructure for multimedia systems.

Acknowledgments

Partially supported by IST-2004-026600 project and TIC2003-08154-C06-03 project.

References

1. Globus alliance home page. http://www.globus.org.

2. D. Chadwick, S. Otenko, and V. Welch. Using SAML to link the Globus Toolkit to the

PERMIS Authorisation Infrastructure, September 2004. Proceedings of Eighth Annual IFIP

TC-6 TC-11 Conference on Communications and Multimedia Security.

3. D.W. Chadwick, O. Otenko, and E. Ball. Implementing role based access controls using

x.509 attribute certiﬁcates. IEEE Internet Computing, pages 62 – 69, March – April 2003.

4. K. Czajkowski, D. Ferguson, I. Foster, J. Frey, S. Graham, T. Maguire, D. Snelling, and

S. Tuecke. From Open Grid Services Infrastructure to WS-Resource Framework: Refactor-

ing & Evolution, 2004.

5. C. de Laat, G. Gross, L. Gommans, J. Vollbrecht, and D. Spence. Generic AAA Architecture,

August 2000. RFC 2903.

6. A. Anderson et al. EXtensible Access Control Markup Language (XACML) Version 1.0,

February 2003. OASIS Standard.

7. R. Alﬁeri et al. Managing Dynamic User Communities in a Grid of Autonomous Resources,

2003. Conference for Computing in High Energy and Nuclear Physics.

8. I. Foster, C. Kesselman, J.M. Nick, and S. Tuecke. The Physiology of the Grid. An Open

Grid Services Architecture for Distributed Systems integration, 2002. Globus Project.

9. I. Foster, C. Kesselman, and S. Tuecke. The anatomy of the Grid. enabling scalable virtual

organizations. Supercomputer Applications, 2001.

10. O. Cánovas G. López and A. F. Gómez. Use of XACML policies for a Network Access

Control Service, 2005. 4th International Workshop for Applied PKI, IWAP 05.

11. R. Marín G. López, A. F. Gómez and O. Cánovas. A Network Access Control Approach based

on the AAA Architecture and Authorzation Attributes, 2005. First International Workshop on

Security in Systems and Networks.

12. Antonio F. Gómez-Skarmeta Sassa Otenko Gabriel López, Óscar Cánovas and David Chad-

wick. A Heterogeneos Network Access Service based on PERMIS and SAML, 2005. 2nd

European PKI Workshop.

13. Eve Maler, Prateek Mishra, and Rob Philpott. Assertions and Protocols for the OASIS Secu-

rity Assertion Markup Language (SAML)v1.1, September 2003. OASIS Standard.

14. Laura Pearlman, Von Welch, Carl Kesselman, Ian Foster, and Steve Tuecke. The Community

Authorization Service: Status and Future, 2003. Conference for Computing in High Energy

and Nuclear Physics.

15. A. Streit, D. Erwin, Th. Lippert, D. Mallmann, R. Menday, M. Rambadt, M. Riedel,

M. Romberg, B. Schuller, and Ph. Wieder. UNICORE - From Project Results to Produc-

tion Grids, 2005.

16. M.R. Thompson, A. Essiari, K. Keahey, V. Welch, S. Lang, and B. Liu. Fine Grained Au-

thorization for Job and Resource Management using Akenti and the Gloubs Toolkit, March

2003. Proceedings of Computing in High Energy and Nuclear Physics.

17. S. Tuecke, V. Welch, D. Engert, L. Pearlman, and M. Thompson. Internet X.509 Public Key

Infrastructure (PKI) Proxy Certiﬁcate Proﬁle, June 2004. RFC 3820.

18. V. Welch, T. Barton, K. Keahey, and F. Siebenlist. Attributes, Anonymity and Access: Shib-

boleth and Globus Integration to Facilitate Grid Collaboration, 2005. 4th Annual PKI R&D

Workshop.

19. Von Welch, David Chadwick, Sam Meder, Laura Pearlman, and Frank Siebenlist. Use of

SAML for OGSA Authorization, June 2004.

20. Von et all. Welch. Security for Grid Services, 2003. Twelfth Internation Symposiumon High

Performance Distributed Computing.
