Simulation Modelling Performance Dynamics of Ship

Gas Turbine at the Load of the Ship’s

Synchronous Generator

Josko Dvornik

and Eno Tireli

Faculty of Maritime Studies, University of Split,

Zrinsko frankopanska 38, 21000 Split, Croatia

Faculty of Maritime Studies, University of Rijeka,

Studentska 2, 51000 Rijeka, Croatia

Abstract. Simulation modelling, performed by System Dynamics Modelling

Approach-MIT and intensive use of digital computers, which implies the

extensive use of, nowadays inexpensive and powerful personal computers

(PCs), is one of the most convenient and most successful scientific methods of

analysis of performance dynamics of nonlinear and very complex natural

technical and organizational systems [1].

The purpose of this work is to demonstrate the successful application of system

dynamics simulation modelling at analyzing performance dynamics of a

complex system of ship’s propulsion system.

Ship turbine generator is a complex nonlinear system which needs to be

analysed systematically, i.e. as an entirety composed of a number of sub-

systems and elements which are through cause-consequence links (UVP)

connected by retroactive circles (KPD), both within the propulsion system and

with the corresponding environment.

Indirect procedures of analysis of performance dynamics of turbine generator

systems used so far, which procedures are based on the use of standard, usually

linear methods, as Laplace’s transformation, transfer functions and stability

criteria, do not meet the current needs for information about performance

dynamics of nonlinear turbine generator systems.

Since the ship turbine generator systems are complex and the efficient

application of scientific investigation methods called qualitative and

quantitative simulation methodology of System dynamics will be presented in

this work. It will enable the production and application of more and varied

kinds of simulation models of the observed situations, and enable the

continuous computer simulation using high speed and precise digital

computers, which will significantly contribute to the acquisition of new

information about nonlinear characteristic of performance dynamics of turbine

generator systems in the process of designing and education.

Successful realization of this work, or qualitative and quantitative scientific

determination of a complex phenomenon of performance dynamics of load of

the ship electric network, or ship turbine generator system, will give a

significant scientific contribution to the fundamental and applied technical

scientific fields, and to interdisciplinary sub-directions of maritime transport,

exploitation of ship drive systems, mariners education, automatics, theory of

management and regulation, expert systems, intelligent systems,

computerization and information systems.

Dvornik J. and Tireli E. (2006).

Simulation Modelling Performance Dynamics of Ship Gas Turbine at the Load of the Ship’s Synchronous Generator.

In Proceedings of the 4th International Workshop on Modelling, Simulation, Veriﬁcation and Validation of Enterprise Information Systems, pages

157-162

DOI: 10.5220/0002471301570162

 SciTePress

The contribution may also be significant in the process of education of the

present and future university mechanic and electric engineers in the field of

simulation modelling of complex organisational, natural and technical systems.

1 Introduction

Dynamic investigation of nonlinear engine (especially electric engine) systems is a

relatively considerable problem in the area of investigating performance dynamics of

ship’s propulsion systems.

Ship gas turbine, i.e. the ship turbine synchronous generator (BTSG),

belongs, undoubtedly, to a set of linear complex technical systems, which consist of

two main subsystems: turbine system and ship synchronous generator.

In this work ship three-phase self-excited synchronous generator (BSG) has

been treated as particular sensitive consumer which is driven by ship gas turbine,

which means that they are the main source of alternating voltage of ship energy

consumers.

Ship turbine generator system will be presented as a set of nonlinear

differential equations, or continuous simulation model of upper level, the so called

equations of state, so it will simultaneously be a discrete simulation model, because it

strictly complies with the selected value of the main computation interaction step DT.

2 System Dynamics Simulating Modelling of Twin Shaft Gas

Turbine

2.1 System Dynamics Mathematical Model of Twin Shaft Gas Turbine

Mathematical model of dynamic performance of gas turbine is presented like this

[11]:

)(

tfkkT

bbGG

−−=+

•

μμϕϕ

ωω

(1)

where:

- relative change of angular speed,

ω - turbine angular speed,

- relative change of fuel consumption,

- absolute fuel consumption

By developing the equation a final differential form in explicit form is reached:

Equations of shaft of turbo compressor with low pressure – consumer:

()

1122G

k)t(fk

ωωω

ϕ−−ϕ+μ=

(2)

158

Equations of shaft of turbo compressor with high pressure:

()

211G

ωωω

ϕ−ϕ+μ=

(3)

2.2 System Dynamics Qualitative Model of Twin Shaft Gas Turbine

Qualitative simulation models, or mental and verbal, structural model and flow

diagram of ship gas turbine for the explicit differential equation (2) will be:

Mental and Verbal Model. When relative variation of fuel consumption

and

product k

are increasing, relative angular speed variation is also increasing,

resulting in positive cause-consequence relation UPV (+).

When relative variation of possible external act of cargo and product k

are

increasing, relative angular speed variation is decreasing and observed UPV(-) is

negative.

Further, when time of shaft running T

increasing, relative angular speed variation

is decreasing, resulting in negative sign UPV (-).

Structural Model and Flow Diagram. In accordance to the developed mental and

verbal model, structural model and flow diagram in DYNAMO symbols [2] of the

equation of the state (2) follow:

DFIOM1T

FIOM1T

TA1C

MIG

KOM2C*FIOM2

FBL (-)

Fig. 1. Structural diagram of turbo compressor with low pressure.

159

TA1C

MIG

PRODU

DFIOM1T

FIOM1

Fig. 2. Flow diagram of turbo compressor with low pressure.

In observed system there is one feed back loop (FBL):

FBL1(-): FIOM1=>(-) DFIOM1T=>(+)DFIOM1T=>(+)FIOM1; with self regulating

dynamic character (-), because the addition of negative sign is odd number.

3 System Dynamics Simulating Modelling of Ship Synchronous

Generator

In this short paper, it is impossible to give a complete model; complete model (30

equations) has been presented in IASTED, Pittsburgh, 1998, 372-375, (7).

4 Computing Simulating Model of the Gas-turbo Generator

Simulation Scenario. Run of the turbine is triple-stage, which means that in TIME=1

second the turbine was accelerated by bringing the fuel. At 10% of the nominal

number of revolution in TIME=5 seconds fuel consumption was increased to the 35%

of the nominal number of revolution, and in TIME=10 fuel supply was increased,

and in that way “uniform” heating of turbine i.e. nominal number of revolution is

obtained. In TIME=20 PID regulator is involved, and in TIME=30 exciting of the

generator started. In TIME=30 stochastic load occurs.

Graphics results of the simulation:

160

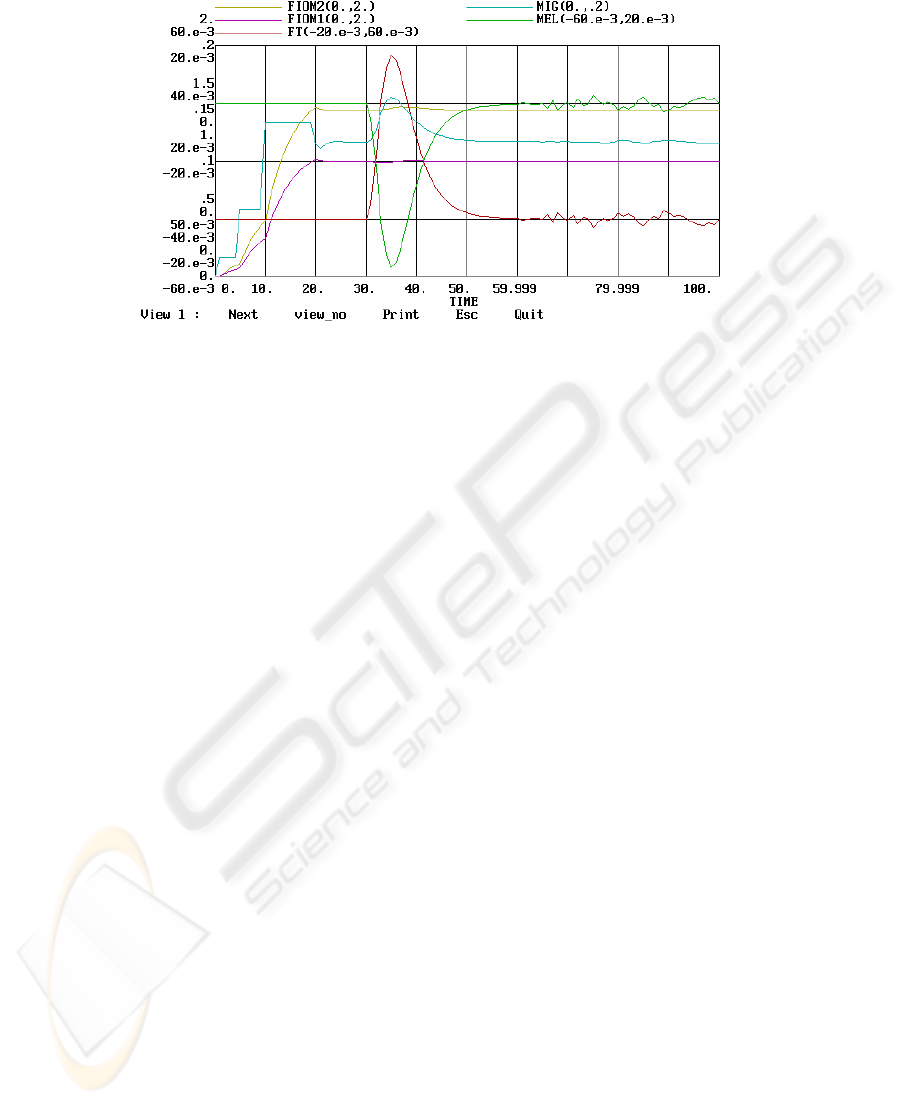

Fig. 3. Relative angular speed variation, relative angular speed variation of second shaft,

generator electromagnetic moment, relative variation of fuel consumption.

After turn of the turbine in idling PID regulator is involved. PID regulator acts on fuel

supply and with this act brings number of revolution of turbine on nominal value.

Fuel consumption increases with switching on the synchronous generator, while the

number of revolution of both shafts varies relatively little. In regime of stochastic

load (we simulate alternating switch on and off of electric consumer generating

random number) attempt to stabilise output voltage with self-excited according to the

phase compounding scheme was not effective enough. After replacing this part of

assembly with electrical PID regulator, which is visible from the diagram, those

output voltages vary in permissible limits, although variations of load are extremely

unfavourable.

5 Conclusion

The application of System Dynamics Simulation Modelling Approach of the complex

marine dynamic processes revealed the following facts:

l. System Dynamics Modelling Approach is a very suitable software education tool

for marine students and engineers.

2. System Dynamics Computer Simulation Models of marine systems or processes are

very effective and successfully implemented in simulation and training courses as part

of the marine education process.
