A Model Driven Approach for Secure

XML Database Development

Belén Vela

, Eduardo Fernández-Medina

, Esperanza Marcos

and Mario Piattini

Kybele Research Group. Languages and Information Systems Department

Rey Juan Carlos University

C/ Tulipán, s/n - 28933 Móstoles, Madrid, Spain

Alarcos Research Group. Information Systems and Technologies Department

UCLM-Soluziona Research and Development Institute

University of Castilla-La Mancha

Paseo de la Universidad, 4 – 13071 Ciudad Real, Spain

Abstract. In this paper, we propose a methodological approach for the model

driven development of secure XML Databases (DB). This proposal is under the

framework of MIDAS, a model driven methodology for the development of

Web Information Systems (WIS) based on the Model Driven Architecture

(MDA) proposed by the Object Management Group (OMG). The XML DB

development process in MIDAS proposes to use as Platform Independent

Model (PIM) the data conceptual model and as Platform Specific Model (PSM)

the XML Schema model, both of them represented in UML. In this work, such

models will be modified to be able to add security aspects if the stored

information is considered as critical. On the one hand, it is proposed the use of a

UML extension to incorporate security aspects at the conceptual secure DB

development (PIM) level and on the other hand, the previously-defined XML

schema profile will be modified with the purpose of incorporating security

aspects in the logical secure XML DB development (PSM) level. In addition,

the semi-automatic mappings to pass from PIM to PSM for secure XML DB

will be defined. The development process of a secure XML DB will be shown

through a case study: a WIS for the management of hospital information in an

XML DB.

1 Introduction

XML is the current standard for information interchange and data transportation

between heterogeneous applications. Traditionally, the XML documents’ information

was stored directly in XML files or in conventional database (DB) systems, by

mapping the XML data to relational data stored in relational tables or by using the

data types supplied for supporting file management, for example the CLOB

(Character Large OBject) type. Now, the XML DBs are emerging as the best

alternative to store and manage XML documents. Nowadays, there are different

solutions for XML documents’ storage, which could be roughly categorized according

to [18] into two main groups: native XML DBs like Tamino [16] or eXcelon XIS [3];

Vela B., Fern

andez-Medina E., Marcos E. and Piattini M. (2006).

A Model Driven Approach for Secure XML Database Development.

In Proceedings of the 4th International Workshop on Security in Information Systems, pages 33-46

 SciTePress

and XML DB extensions enabling the storage of XML documents within

conventional, usually relational or Object-Relational (OR) Database Management

Systems (DBMSs) like Oracle which includes, since version 9i release 2, new features

for the storage of XML (Oracle’s XML DB) [15]. Besides, other products such as

IBM DB2 XML Extender [9] or Microsoft SQLXML [13] also include extensions for

XML storage. In [18] a study of different XML DB solutions is performed.

For most organizations, management, security and confidentiality of information

are critical topics [2]. Moreover, as some authors remarked, information security is a

serious requirement which must be carefully considered, not as an isolated aspect, but

as an element present in all stages of the development life cycle [1,6,8]. Even the

Information Systems Audit and Control Foundation insists on the fact that security

should be considered in an integral and explicit way in all the development stages of

an information system [10]. In the case of the XML DBs, security is also a key aspect

that must be explicitly considered and that has to be taken into account in an

orthogonal way for the complete development process of this kind of DB [7].

Although there are different ideas for integrating security into the information

systems development process, within the scope of DBs, information security is used

to be considered only from a cryptographic point of view. Recently, there have

appeared works, in which a methodology for relational DB is proposed including

security aspects in all stages of the development process [4]. However, to the best of

our knowledge, there are no works that deal with security when developing an XML

DB.

In this paper, we will integrate the security aspect into the methodological

approach for XML DB development [17] framed in MIDAS [11], a model driven

methodology for the development of Web Information Systems (WIS). MIDAS

proposes the use of standards in the development process as well as the use of UML

to model the WIS with independence of the abstraction level and the aspect of the

system to model. As UML does not allow us to represent all the necessary models,

MIDAS incorporates some existing UML extensions [5] and defines or adapts some

new ones, whenever it is necessary [12].

MIDAS proposes a model driven architecture based on the Model Driven

Architecture (MDA) proposed by the Object Management Group (OMG) [14] and it

considers, when modelling the system, the aspects of content, hypertext and behaviour

at the levels of Computation Independent Models (CIMs), Platform Independent

Models (PIMs) and Platform Specific Models (PSMs). In Figure 1 we can see the

simplified MIDAS model driven architecture, where the CIMs, common to all the

system, as well as the different PIMs and PSMs to represent the aspects of content,

hypertext and behaviour are proposed.

has been applied and validated. Finally, in section 0 we will put forward our main

conclusions and future works.

2 Development of Secure XML Databases in MIDAS

As we have already mentioned in the previous section, in this work, we focus on the

content aspect of MIDAS that corresponds to the traditional concept of a DB. The

development of a DB depends on several aspects; First of all, on the fact that whether

there is already a DB within the organization or not, and on the other hand, on the

technology to be used, in other words, if we aim at using an OR DB [12] or an XML

DB [17]. In addition, it is necessary to take into account the fact that if the DB that we

want to develop includes information to be protected, it will be necessary to consider

security aspects from the earliest stages of the DB development.

Now, we will describe in a detailed way the XML DB development process from

the beginning, including the necessary tasks, models and notations:

• At the PIM level, the data conceptual design is carried out. To do so, the data

conceptual model is used without considering the selected technology since this

model is independent of the platform. This data PIM is represented through a

UML class diagram. In our proposal, we will use, as we have mentioned before,

an extended UML class diagram to be able to represent security aspects together

with a set of security constraints that have been expressed through OSCL

language [5], as we will see in the subsection 0.

• At the PSM level, the data logical design is performed. Here, it is necessary to

take into account the selected technology that, in our case, is an XML DB. We

will start from the secure data PIM obtained at the previous level and we will

apply the mappings summarized in subsection 0. The secure data PSM will be

represented through an XML schema in extended UML (see subsection 0). In this

case, the DB schema will be the obtained XML schema that will take into

account the necessary security aspects.

Table 1 summarizes the tasks, models and notations to be performed when

developing a secure XML DB.

Table 1. Development process of a secure XML DB.

MIDAS: Secure XML DB Develo

ment

Level Tasks Models Notation

PIM

Secure Data

Conceptual Design

Secure Data Conceptual

Model

Class Diagram

(Extended UML)

PSM

Secure Data Logical

Design

Secure Data Logical

Model

XML Schemas

(MIDAS-UML)

2.1 Secure Data PIM

To develop a secure data PIM, a secure UML profile has been developed (for more

details, see [5]). The defined UML profile allows us to classify both data and users

according to different classification criteria with the purpose of performing the

mandatory access control and a simplified role based access control. These criteria are

as follows:

• Security levels: They allow us to define a hierarchy of levels such as the

traditional in military contexts: unclassified, confidential, secret and top secret.

• User roles: They allow us to define a hierarchical set of user roles that represent

the hierarchical functions within an enterprise.

• User categories: They allow us to define a horizontal organization or

classification (non hierarchical) of groups of users.

In addition to this classification information, this profile allows us to define three

kinds of constraints:

• Data dynamic classification rules: They allow us to define the classification

data of different instances depending on the value of one or several attributes of

the instances.

• Authorization rules: They allow us to define which users will be allowed to

access to which data and to perform which actions depending on a condition

expressed in OCL.

• Audit rules: They specify situations in which it is interesting to register an audit

trail to analyze which users have accessed (or have tried to access) to

information. To do so, conditions expressed in OCL are defined. For the

definition of all these elements, we consider the UML profile known as

Conceptual Secure DB (extension of UML and OCL to design secure DBs), that

is composed of a set of data types, tagged values and stereotypes together with

the definition of a set of well-formedness rules.

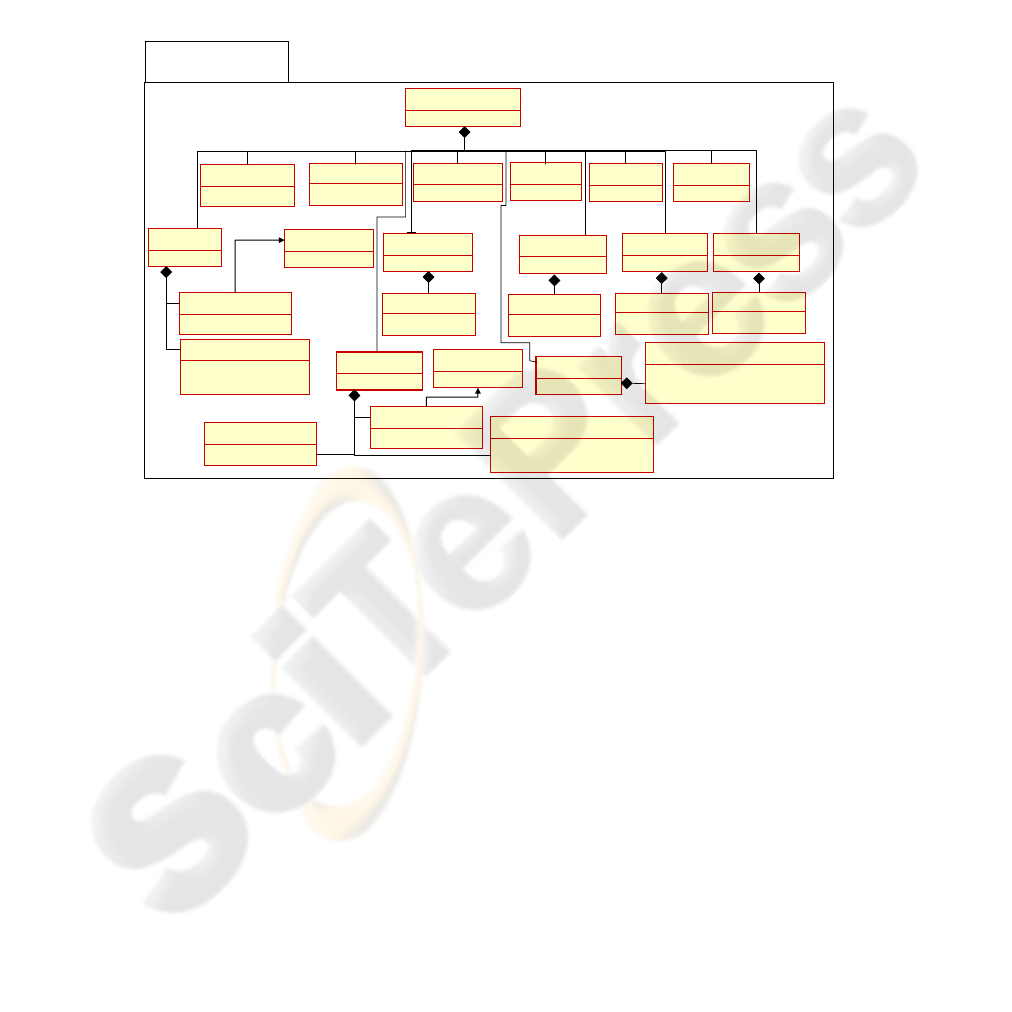

The package containing all the stereotypes defined within this UML profile can be

analyzed in Fig. 3. These stereotypes can be classified into three categories:

• The necessary stereotypes to represent security information in the model elements

(the model itself, the classes, the attributes, associations and instances).

• The necessary stereotypes to model the security constraints to a) define the

dynamic classification of any element of the model, b) define authorization rules

and c) define audit rules depending on the access types, perhaps of any condition

expressed in OCL.

• The UserProfile stereotype that is necessary to specify constraints depending on

any property of a user or a group of users, for instance, depending on the

citizenship, age, etc.

A detailed description of all these stereotypes as well as the tagged values that

have been defined for these stereotypes can be found in [5].

2.3 Mappings to Pass from Secure Data PIM to Secure Data PSM

In the same way that methodologies for relational or OR DBs propose some rules for

the transformation of a conceptual schema into a standard logical one, in MIDAS,

mappings to pass from the data PIM to the data PSM are proposed. In this work, we

have defined the necessary transformation rules to obtain a secure data PSM from the

secure data PIM. Now, we will show these rules to collect the characteristics of

security taking as a basis the work of [17], where the different mappings to obtain the

schema of an XML DB were defined.

• Transformation of the secure data PIM: The data conceptual model, that is,

the secure data PIM, is transformed, at the PSM level, into an XML schema

called ‘Secure Data PSM’. This will be represented with a UML package

stereotyped with <<Secure XML SCHEMA>> including all components of the

secure data PSM. Furthermore, it will contain the security attributes

(securityLevel, securityRoles and securityCompartments) of the secure data PIM.

These attributes will be defined within the XML schema as global elements.

These security attributes could have been included as schema attributes but if

they were represented in such a way, they would not be considered first order

elements and the fact that they could have a multiple maximum cardinality could

not be collected either.

• Transformation of the User Profile class: This class includes the information

that we want to record about one or several users. It will be transformed by

including a global element stereotyped with <<User Profile ELEMENT>>, that

will contain a sequence complexType with all class attributes as subelements.

• Transformation of secure classes: In a generic way, a UML class is transformed

into an element of the XML schema with the same name as the class it comes

from [17]. To transform secure UML classes, stereotyped with <<SecureClass>>,

we have to include the secure characteristics that they have too. Secure classes

can have three specific attributes: securityLevel, securityRoles and

SecurityCompartments. They will be transformed into secure elements

stereotyped with <<Secure ELEMENT>>. Each secure element will contain a

complex type of sequence type, that will contain as subelements, among others,

the secure attributes, indicating with the subelements attribute maxOccurs the

number of possible instances of the security attributes.

• Transformation of secure attributes: Due to the fact that the attributes of a

class, according to the proposal of [17], are transformed as subelements of the

element that represents the UML class to which those attributes belong, if an

attribute has its own security attributes associated with it, these attributes will be

represented as subelements of the element that represents the corresponding

attribute. Thus, the security attributes defined within an attribute will be

transformed into <<Secure ELEMENT>> subelements.

• Transformation of secure associations: Regarding the transformation of

associations, in [17] it was carried out a detailed study of the most appropriate

way to map these associations at the PSM level. The associations between two

classes are transformed, in a generic way, by including a subelement in one of the

elements, corresponding to one of the classes implied in the relationship with one

or several references to the other element implicated in the association. If it was a

secure association, this subelement would have subelements to represent the

corresponding security attributes (securityLevel, securityRoles,

securityCompartment) stereotyped as <<Secure ELEMENT>>.

• Transformation of security constraints: When transforming the security

constraints that had been defined at the PIM level, these can be defined for any

element (model or class) although it is normal to define them at the class level. If

they are defined at the model level, global elements to collect this fact will be

created. In the rest of the cases, there will be created subelements of the elements

they depend on. There are different types of security constraints:

a) Audit Rules: They will be transformed by creating a subelement stereotyped

with <<AuditRule>> with the name of “AuditRule_” plus the number of the

rule. This element will be of the complexType and it will contain a sequence

formed by two elements: One AuditRuleType element of simple Type of the

string base type with a constraint of enumeration type with the values all,

frustratedAttempt, successfullAccess; and another element

AuditRuleCondition that will be an element of string type, that will contain

the XPath expression associated with the expression in OCL.

</restriction>

</simpleType>

</element>

</sequence>

</complexType>

b) Authorization Rules: They will be transformed by creating a subelement

stereotyped with <<AuthorizationRule>> with the name

“AuthorizationRule_” plus the number of the rule. This element will be of

complexType and it will contain a sequence formed by three elements: An

AuthorizationRuleSign element of simpleType of string base type with a

constraint of enumeration type with the values: + or - ; another

AuthorizationRulePrivileges element of simpleType of string base type with

a constraint of enumeration type with the values: read, insert, delete, update

and all; and an AuthorizationRuleCondition element of string type that will

contain the XPath expression associated with the expression in OCL.

<enumeration value=”+”/> <enumeration

value=”-”/>

</restriction>

</simpleType>

</element>

</restriction>

</simpleType>

</element>

</sequence>

</complexType>

c) Security Rule: The dynamic classification of any PIM element will be

transformed by creating a subelement stereotyped with <SecurityRule>>,

with the name “SecurityRule_” plus the number of the rule. This element

will be of complexType and it will contain one element of string type with

the XPath expression associated with the OCL expression.

</sequence>

</complexType>

In Table 2, we will summarize the transformation rules to pass from the data PIM

to the corresponding PSM using XML DB technology. In [17], these rules are

detailed, but without including the security aspect.

Table 2. Transformation rules to pass from the secure data PIM into the secure data PSM.

Data PIM Data PSM

Secure Data PIM Secure Data PSM <<Secure XML Schema>>

securityLevels attribute Global element of the schema (maxOccurs=unbounded)

securityRoles attribute Global element of the schema

securityCompartments attribute Global element of the schema (maxOccurs=unbounded)

Secure Class Secure XML Element <<Secure Element>>

securityLevels attribute Subelement (maxOccurs=unbounded)

securityRoles attribute Sublement

securityCompartments attribute Sublement (maxOccurs=unbounded)

User Profile Secure Class Global XML Element <<User Profile Element>>

Attribute Subelement

securityLevels atributte Subelement (maxOccurs=unbounded)

securityRoles atributte Sublement

securityCompartments atributte Sublement (maxOccurs=unbounded)

Association

securityLevels atributte Subelement of the association element

(maxOccurs=unbounded)

securityRoles atributte Subelement of the association element

securityCompartments atributte Subelement of the association element

(maxOccurs=unbounded)

Constraint

Subelememt with complexType of sequence type with

subelements

AuditRule - AuditRuleType of simpleType with enumeration constraint

- AuditRuleCondition of string type containing the XPath

expression associated with the OCL expression

AuthorizationRule - AuthorizationRuleSign of simpleType with enumeration

constraint

- Privileges of simpleType with enumeration constraint

- AuthorizationRuleCondition of string type that will contain

the XPath expression associated with the OCL expression

SecurityRule - Subelement of string type with XPath expression

3 Case Study

In this section, we will apply our UML extension to develop the secure data PIM in a

case study in the context of hospital information systems.

Later, through the transformation rules that we have defined in section 0, we will

create a secure XML DB by using the other UML extension for secure data PSM.

For this example, we have defined a simplified users’ hierarchy (see Fig. 5, left-

hand side) composed of a generic role “Hospital Employee” that is separated into the

roles “Sanitary” personnel and “Non Sanitary” personnel. The first of these roles is

divided into “Doctor” and “Nurse”, while the second one is specialized into

“Maintenance” and “Administrative”. Additionally, for this case study, we have

considered three security levels: “Unclassified”, “Secret” and “Top Secret” (see Fig.

5, right-hand side). For the sake of simplicity, we have not defined users’ categories,

but we could have considered regional categories (region Spain, region Argentina,

etc), professional criteria (Paediatrics, Surgery, etc.) and so on.

Hospital Employee

Sanitary Non Sanitary

Doctor Nurse Maintenance

Administrative

<< enumeration >>

Level

Unclassified

Secret

Top Secret

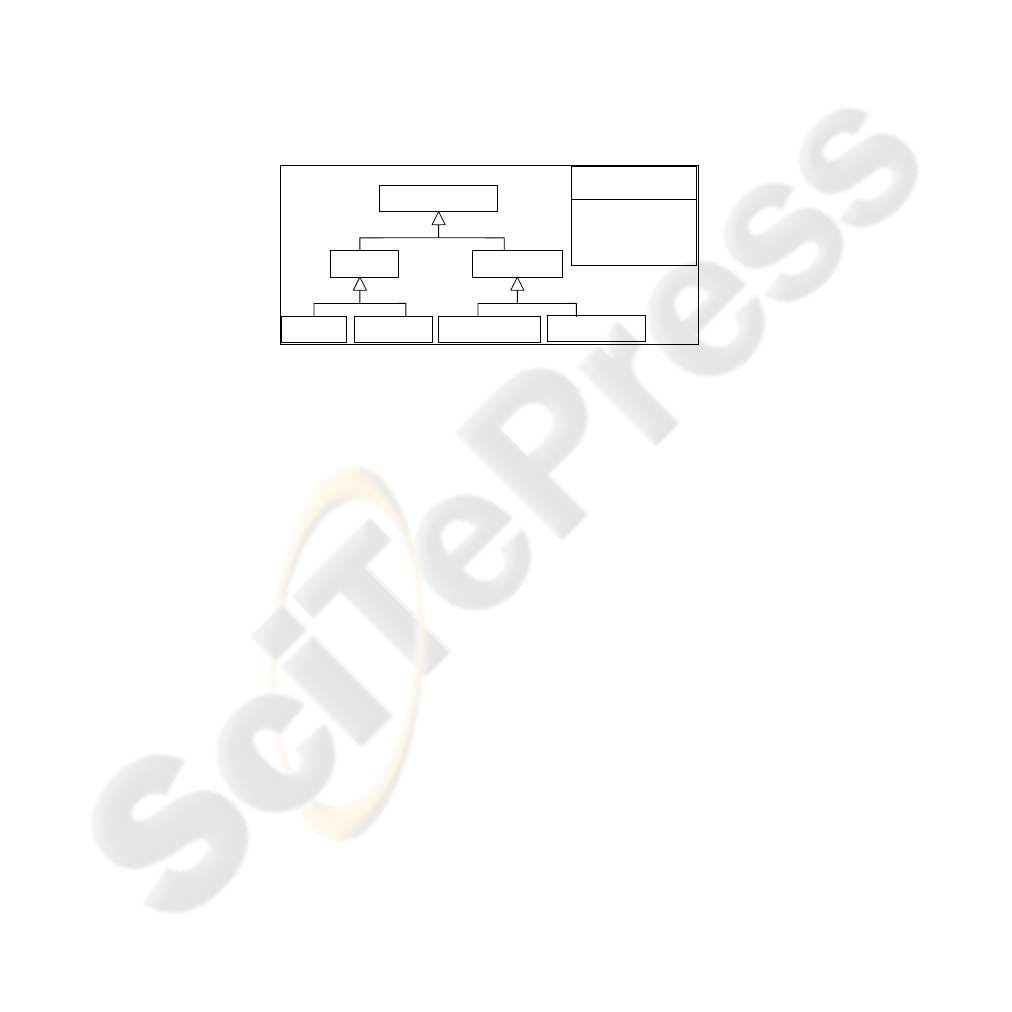

Fig. 5. Users’ roles hierarchy and security levels.

Fig. 6 shows us the secure data PIM, represented through a class diagram

containing many details. However, we will only explain some classes to be able to

focus our attention on security aspects. The classes of the diagram that we will

mention are (the rest are obvious and we will not study them in depth) the following:

UserProfile, Patient and Admission. The UserProfile class contains the different

information fields that are registered for all users that will have access to the DB. The

Patient class contains information of all hospital patients and can be accessed by the

users that have at least the secret security level and perform administrative or sanitary

roles. The Admission class contains information of all hospital admissions and can be

accessed by users that perform sanitary or administration tasks and that have also a

secret security level. In this class, we specify that the attributes diagnosis, result and

treatment can only be accessed by sanitary personnel (and not by administrative one)

and that the attribute cost can be seen by administrative personnel and not by sanitary

personnel. There is an association between the classes Patient and Admission and

besides, we can see that there are many security constraints associated with these

classes.

6. Finally, we could consider patients as special users of the system in the sense

that they could have access only to their own personal data. In this case, it is

necessary to specify a positive authorization rule (symbol = +) indicating as

a condition that the user’s name has to be equal to the patient’s name

(self.name = UserProfile.name). We can see that using the UML extension, it

is possible to specify a wide range of confidentiality constraints in the secure

data PIM.

When transforming the secure data PIM of Fig. 6, we will apply the rules defined

in subsection 0 and we will obtain data PSM. In Fig. 7, we can see part of the secure

data PSM that we have obtained.

<<Secure XML Schema>>

Secure Data PSM

«Secure ELEMENT»

Admission

<<sequence>>

«Secure ELEMENT»

SecurityLevel

Type=string

Fixed=“S..TS”

«Secure ELEMENT»

SecurityRoles

Type=“string”

Fixed=“Health,Admin”

«ELEMENT»

aCode

«ELEMENT»

dateIn

«ELEMENT»

dateOut

«ELEMENT»

area

«Secure ELEMENT»

diagnosis

«Secure ELEMENT»

outCome

«Secure ELEMENT»

cost

«Secure ELEMENT»

drugs

<<sequence>>

«Secure ELEMENT»

SecurityRoles

Type=“string”

Fixed=“Health”

«Secure ELEMENT»

SecurityRoles

Type=“string”

Fixed=“Health”

«Secure ELEMENT»

SecurityRoles

Type=“string”

Fixed=“Admin”

«Secure ELEMENT»

SecurityRoles

Type=“string”

Fixed=“Health”

«AuditRule»

AuditRule_1

«Secure ELEMENT»

AuditRuleType

Type= “string”

Fixed=“frustatedAttempts”

«Secure ELEMENT»

AuditRuleCondition

Type=“string”

Fixed=“diagnosis eq cancer“

«AuthorizationRule»

AuthorizationRule_4

«Secure ELEMENT»

AuthorizationRuleSign

Type= “string”

Fixed=“-”

«Secure ELEMENT»

AuditRuleCondition

Type=“string”

Fixed=“area !=UserProfile/workingArea”

«Secure ELEMENT»

AuthorizationRulePrivileges

Type= “string”

Fixed=“all”

«SecurityRule»

SecurityRule_2

<<sequence>>

«Secure ELEMENT»

SecurityRuleCondition

Type=“string”

Fixed=“

if(diagnosis=“cancer”)

then ”Admission.SecurityLevel=“TS”

else “Admission.SecurityLevel=“S“

”

«simpleType»

AuditRuleType

Restriction=enumeration

<<uses>>

«simpleType»

AuditRuleType

Restriction=enumeration

<<uses>>

<<sequence>>

Fig. 7. Part of the secure data PSM.

First of all, we have created a UML package stereotyped with <<Secure XML

Schema>> known as Secure Data PSM, that will include all the obtained elements

when transforming the secure data PIM. In our case, due to space constraints, we have

focused on the transformation of the Admission class as well as that of some

constraints, in concrete, the following rules: AuditRule1, AuthorizationRule4 and

SecurityRule2, following the steps indicated in section 0.

When transforming the Admission secure class, firstly, it will be created an

element stereotyped with <<Secure ELEMENT>> that will contain a complexType

with the subelements that represent the attributes of the class (aCode, dateIn, dateOut,

area). In addition, it will contain the subelements that correspond to the security

attributes (Security Level and Security Roles) and stereotyped with <<Secure

ELEMENT>>. The value of these attributes will be collected with the attribute fixed

of these elements. The attributes diagnosis, result, cost and treatment of such class are

secure attributes and therefore, they will be represented as secure elements. For this

reason, they have their own subelements that represent secure attributes.

4 Conclusions and Future Work

Nowadays, there are different solutions for the storage of XML data but there is not a

methodology for the systematic design of XML DB that incorporates security in all

the development process if the information to be stored is considered as critical.

In this work, we have integrated the security aspect into the methodological

approach for the development of an XML DB in the framework of MIDAS, a model-

driven methodology for the development of WIS based on MDA. According to the

specified development process for secure XML DB, for the secure data PIM, a UML

extension to incorporate security aspects at the conceptual level is used, while for the

secure data PSM we have modified the previously-defined XML DB profile with the

goal of incorporating security aspects. Moreover, we have defined transformation

rules to pass from secure data PIM to secure data PSM that will be the secure XML

DB schema. From this logical secure XML DB (PSM), we will obtain in a semi-

automatic way the code for the specific XML DB product that we want to use. In

future works, we will study in detail different XML DB products, in order to analyze

which of them take into account security aspects and how.

We have developed a case study for the management of hospital information to

validate our proposal; in this paper, we have shown part of it, in which the secure

XML DB schema is defined for a reduced part of the developed secure data PIM.

Now we are working in several lines to extend the proposal of this paper. One of

them, in which we have already started to work, is the automatization of the

transformations of the constraints expressed in OCL at the PIM level to convert them

into XPath language. Furthermore, we have the purpose of performing the

implementation of several case studies to detect new needs as well as to analyze the

advantages of incorporating security aspects provided by the different XML DB

administrators, not only native but also the XML extensions that DB systems have.

On the other hand, we are going to include the security aspect in the module for the

semi-automatic development of XML DB of the tool CASE that we are developing.

Acknowledgements

This research has been carried out in the framework of the following projects: GOLD financed

by the Spanish Ministry of Education and Science (TIN2005-00010/), DIMENSIONS (PBC-

05-012-2) financed by the FEDER and by the “Consejería de Ciencia y Tecnología of the Junta

de Comunidades de Castilla-La Mancha” and the RETISTIC network (TIC2002-12487-E)

financed by the “Dirección General de Investigación” of the Spanish Ministry of Science and

Technology.

References

1. Devanbu, P. and Stubblebine, S. Software engineering for security: a roadmap, in: A.

Finkelstein (Ed.), The Future of Software Engineering, ACM Press pp. 227-239, 2000.

2. Dhillon, G. and Backhouse, J. Information System Security Management in the new

Millennium. Communications of the ACM. 43, 7. pp. 125-128, 2000.

3. eXcelon Corporation. Managing DXE. System Documentation Release 3.5. eXcelon

Corporation. Burlington. Retrieved from: www.excelon.corp.com, 2003.

4. Fernández-Medina, E. and Piattini M. Designing secure databases. Information & Software

Technology 47(7), pp. 463-477. 2005

5. Fernández-Medina, E. and Piattini, M. Extending OCL for Secure Database Design. In Int.

Conference on the Unified Modeling Language (UML 2004). Lisbon (Portugal), October,

2004. Springer-Verlag, LNCS 3273, pp. 380-394. 2004.

6. Ferrari E. and Thuraisingham B., Secure Database Systems, in: M. Piattini, O. Díaz (Ed.),

Advanced Databases: Technology Design. Artech House, 2000.

7. Ferrari, E. Secure DataBase Systems. Second Meeting. RETISBD. Murcia (Spain), June

2001.

8. Ghosh, A., Howell C., Whittaker J., Building software securely from the ground up, IEEE

Software 19 (1) (2002), pp. 14-17, 2002.

9. IBM Corportation. IBM DB2 Universal Database -XML Extender Administration and

Programming, Product Documentation Version 7. IBM Corporation, 2000.

10. ISACF, Information Security Governance. Guidance for Boards of Directors and Executive

Management, Information Systems Audit and Control Foundation, USA, 2001.

11. Marcos, E., Vela, B., Cáceres, P. and Cavero, J.M. MIDAS/DB: a Methodological

Framework for Web Database Design. DASWIS 2001. Yokohama (Japan), November,

2001. Springer-Verlag, LNCS 2465, pp. 227-238, 2002.

12. Marcos, E., Vela, B. and Cavero J.M. Methodological Approach for Object-Relational

Database Design using UML. Journal on Software and Systems Modeling (SoSyM).

Springer-Verlag. Ed.: R. France and B. Rumpe. Vol. SoSyM 2, pp.59-72, 2003.

13. Microsoft Corporation. Microsoft SQL Server - SQLXML 2.0, System Documentation.

2000.

14. OMG. MDA Guide Version 1.0. Document number omg/2003-05-01. Ed.: Miller, J. and

Mukerji, J. Retrieved from: http://www.omg.com/mda, 2003.

15. Oracle Corporation. Oracle XML DB. Technical White Paper. Retrieved from:

www.otn.com, 2003.

16. Software AG. Tamino X-Query. System Documentation Version 3.1.1. Software AG,

Darmstadt, Germany. Retrieved from: www.softwareag.com, 2001.

17. Vela, B., Acuña, C. and Marcos, E. A Model Driven Approach for XML Database

Development, 23

. International Conference on Conceptual Modelling (ER2004). Shanghai

(China), November, 2004. Springer Verlag, LNCS 3288, pp. 780-794. 2004.

18. Westermann, U. and Klas W. An Analysis of XML Database Solutions for the Management

of MPEG-7 Media Descriptions. ACM Computing Surveys, Vol. 35 (4), pp. 331-373,

December, 2003.
