The Software Infrastructure of a Java Card Based

Security Platform for Distributed Applications

Serge Chaumette, Achraf Karray

⋆

and Damien Sauveron

⋆⋆

LaBRI, Laboratoire Bordelais de Recherche en Informatique

UMR CNRS 5800 – Université Bordeaux 1

351 cours de la Libération, 33405 Talence CEDEX, FRANCE.

Abstract. The work presented in this paper is part of the Java Card

TM1

Grid

project

carried out at LaBRI, Laboratoire Bordelais de Recherche en Informa-

tique. The aim of this project is to build a hardware platform and the associated

software components to experiment on the security features of distributed ap-

plications. To achieve this goal we use the hardware components that offer the

highest security level: smart cards. We do not pretend that the resulting platform

can compare to a real grid in terms of computational power, but it serves as a

proof of concept for what a grid with secure processors could be and could do.

As of writing, the hardware platform comprises 32 card readers and two PCs to

manage them. The applications that we run on our platform are applications that

require a high level of conﬁdentiality regarding their own binary code, the input

data that they handle, and the results that they produce. Even though we know that

we cannot expect our grid to achieve high speed computation, we believe that it

is a good testbed to experiment on the security features that one would require in

a real grid environment. This paper focuses on the software infrastructure that we

have set up to manage the platform and on the framework that we have designed

and implemented to develop real applications on top of it.

1 Introduction

The technologies that have recently emerged and that are now widely used, contribute

to anonymize and virtualize the resources of the network (Java, .NET, Solaris containers

- previously N1 Grid Containers -, User-mode Linux, etc.) and the way they are con-

nected (WiFi, Bluetooth, etc.). This leads to a situation where computing resources can

effectively be shared. Sharing resources means federating them and allowing potentially

unknown people to execute their applications on the resulting platform. The notion of

Grid [1,2] is a well known example of this kind of approach that is now supplied by

⋆

LaBRI (Bordeaux, FRANCE) and University of Sfax, ENIS, TUNISIA

⋆⋆

XLIM, UMR CNRS 6172 (Limoges, FRANCE)

Java and all Java-based marks are trademarks or registered trademarks of Sun microsystems,

Inc. in the United States and other countries. The authors are independent of Sun Microsys-

tems, Inc. The other marks are the property of their respective owner.

The Java Card Grid received the best innovative technology award at e-Smart2005.

Chaumette S., Karray A. and Sauveron D. (2006).

The Software Infrastructure of a Java Card Based Security Platform for Distributed Applications.

In Proceedings of the 4th International Workshop on Security in Information Systems, pages 101-114

 SciTePress

both universities and private companies. Of course, users of such systems must accept

to have their applications executed on resources that are under the control of someone

else who they potentially do not even know.

Security is then a big concern. First, the owner of the code or more precisely the

code itself must be protected from the platform that executes it and from other appli-

cations executed on the same platform. Second, the resource that runs the code must

be protected from this code. Even though there are software and hardware level protec-

tions, it is clearly not sufﬁcient. If someone uploads a code to my workstation so that

it is executed, nothing can prevent me from dumping the memory where it has been

loaded to work out what it is doing, or even to trace the instructions executed by my

processor. If I upload a code to the machine of someone else, nothing will prevent my

code from doing some malicious operation (e.g. my application can take advantage of

hardware errors [3]), even though sand box approaches can solve some of the problems.

Smart cards [4] provide solutions for these problems, at both hardware and soft-

ware levels. At hardware level, the cards are built so as to resist any physical attack.

Of course, attacks remain possible but they will not be feasible in a reasonable amount

of time. Furthermore, when a code is loaded inside a card, it can neither damage the

card or access the assets that it contains, nor can it be reverse engineered by the owner

of the card. The processors that can be found in standard workstations do not offer the

same protections. At the software level, the cards and the applications that they embed

are evaluated and certiﬁed by well deﬁned procedures (e.g. ITSEC [5] - Information

Technology Security Evaluation Criteria - or CC [6] - Common Criteria -) in govern-

ment approved agencies or companies (e.g. ITSEF - Information Technology Security

Evaluation Facility).

It should be noted that even though smart cards are not very usable to achieve ef-

fective computations right now, the resources that they provide in terms of memory

and computing power [7] have increased a lot. Cards that will provide 1 Gigabyte of

memory and more efﬁcient processors are expected as soon as 2007.

Therefore we have begun the Java Card Grid project. Within the framework of this

project we have designed and implemented a platform that can be viewed as a grid

of smart cards. As of today, we have 32 card readers that are connected together. The

goal of this platform is to experiment security features that will help in supporting

or designing secure real size grids. This platform and more precisely its supporting

software framework is the topic of this paper.

The rest of this paper is organized as follows. In section 2 we present what the role

of smart cards could be in distributed systems. We explain the difﬁculties, the pros and

the cons of their integration and usage in such environments. In section 3 we describe

the overall Java Card Grid platform at both hardware and software levels. Section 4

focuses on the communication stack of the framework which is one of the key points of

the environment. In sections 5, 6 and 7, we overview the solutions that we have set up

to overcome the other main difﬁculties that we encountered. In section 8 we present the

most relevant related work and compare it to our own approach. We eventually discuss

in section 9 the future evolutions of our platform.

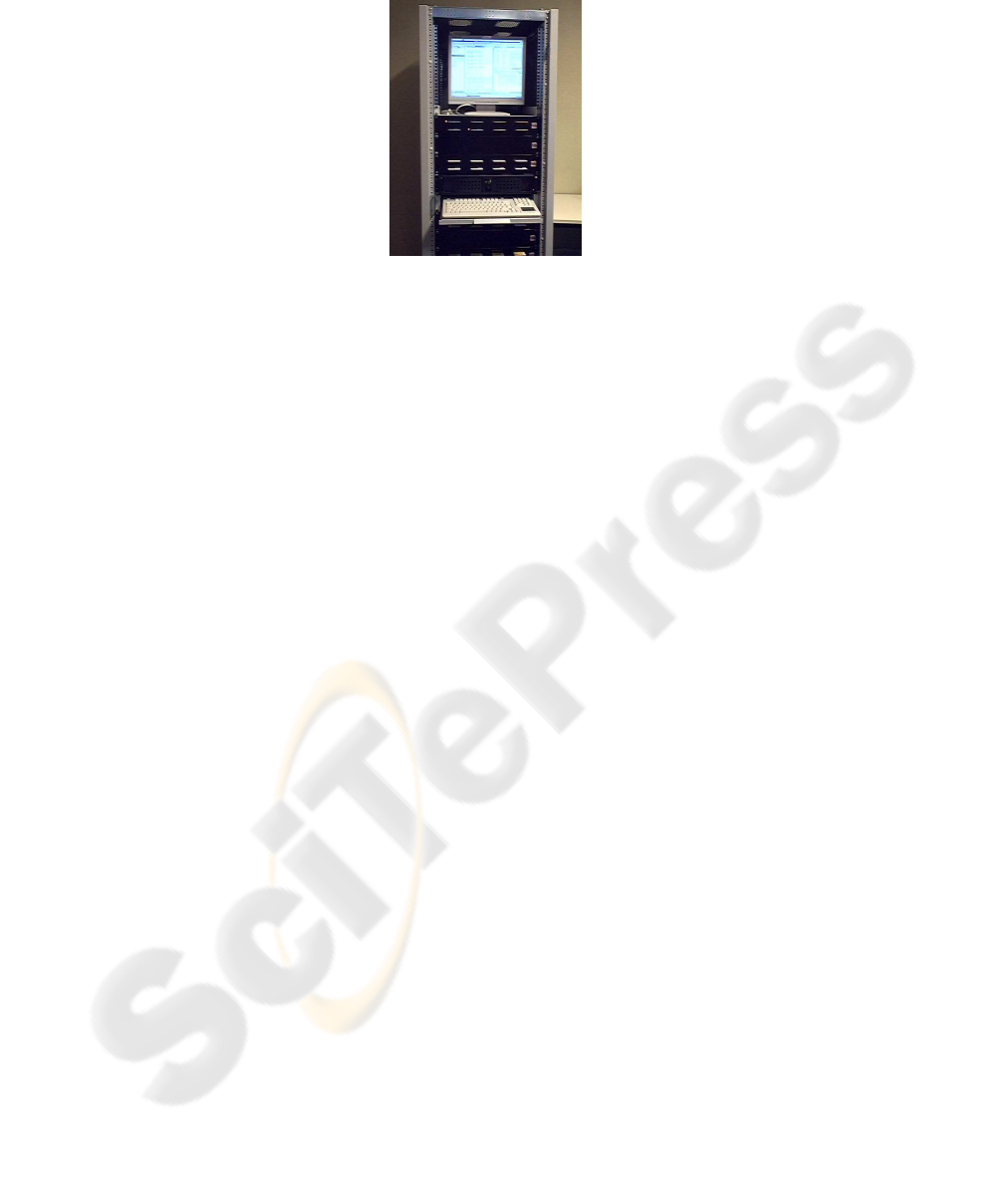

Fig.1. The Java Card Grid platform.

2 Smart Cards in Distributed Systems

2.1 The Pros of Using Smart Cards in a Distributed System

Smart cards have a small size that makes them very mobile, i.e. it is easy to carry them in

everyday life. It is a highly secure device that is able to store conﬁdential information. It

is protected against any attempt to obtain its contents. Contrary to most other devices, a

smart card is resistant to physical attacks: it is a tamper resistant device. This is its main

advantage. In fact, several mechanisms are integrated in a smart card at both hardware

and software levels, so as to protect it against external attacks and thus protect the

assets which it contains. In the worst case, the hardware structure of the card makes so

that all the sensitive data (e.g. secret information or private keys) that it stores will be

automatically destroyed in order not to be revealed to an attacker.

Smart cards offer a secure environment perfectly adapted to support higher level

security features for large distributed systems. Nevertheless, their integration into such

systems is not straightforward.

2.2 The Difﬁculties of Using Smart Cards in a Distributed System

There are many problems that prevent smart cards from being widely adopted in dis-

tributed systems.

First, smart cards are by design dependent on a device called the Card Acceptance

Device (CAD), generally known as card reader.

Second, smart cards have very limited resources in terms of memory and storage

capacity, computing power, and communication bandwidth with the outside. These lim-

itations reduce the range of possible domains of application.

Third, smart cards are passive. They work according to a master/slave model. The

host application (i.e. the application which is out of the card) is the master, and the

card application is the slave that provides the service. The card is always waiting for a

command to execute, and never takes the initiative of a communication with the outside.

Because of this passive mode, the card can neither explore its environment nor initiate

any interaction with external components or services.

Fourth, the communication protocol between a card and its CAD is extremely poor,

both in terms of contents and structure, and it is also very dependent on the brand of

card. The communication takes place as a sequence of bytes (i.e. the APDUs – Appli-

cation Protocol Data Units) which are poorly structured. The elaboration of the APDU-

based messages must follow the ISO7816-4 standard [8] that describes their format and

a number of special cases (error codes, special commands, etc.). Thus, the programmer

must have a deep knowledge of the APDU protocol to be able to develop smart card

applications. Compared to other communication methods such as RPC [9], RMI [10] or

CORBA [11] which are widespread in distributed systems, the APDU protocol remains

rather primitive and relatively complex, even though it is possible to use additional lay-

ers on top of it to partially hide this problem.

For all these reasons, the development of applications for smart cards is a complex

task. It is really challenging to implement the mandatory layers that are missing if one

wants to use smart cards in a distributed environment. We have developed these layers

and they will be presented in sections 4 to 7.

2.3 Features Required to Support the Use of Smart Cards in a Distributed

System

We have explained above why using smart cards in a distributed system is a complex

process. Without a card reader and the proper software layers it is almost impossible,

even though frameworks such as PC/SC can manage low level communication between

the embedded applications and the host. To make it a reasonable task to develop ap-

plications that make use of smart cards, two main features have to be supported: high

level communication and transparent service discovery. To make possible to develop

real (size) applications, two other main features are required: proactivity and extended

memory resources.

Communication. To face the complexity of the communication protocol and to make

it easier so support different brands of cards, it is interesting to apply the methods of

distributed systems to smart cards in order to provide transparent communication with

the embedded objects. This is, for instance, what is offered by Java Card RMI [12].

Service Discovery. A smart card does not spontaneously announce the services that it

contains. It is thus interesting to provide a mean for a card to expose and describe its

services, so that the other components of the distributed system can discover and use

them. This would make the integration of smart cards in distributed systems easier and

faster.

Proactivity. The components of a distributed system need to communicate with each

other to achieve some sort of cooperation. Therefore offering a framework that makes

the cards active, i.e. able to take the initiative of a communication (possibly with an

other card), is mandatory.

Extended memory resources. The limited memory of smart cards is probably the

main obstacle to the deployement of real size applications. Therefore, while cards with

a large memory are not available, providing a solution to extend their capabilities is

fundamental to experiment security in new kinds of application domains.

We offer these four features in the Java Card Grid platform. They are described in

section 4 and section 5.

3 The Java Card Grid Platform

The goal of the Java Card Grid project is to provide a hardware platform, a software

framework and the associated administration software.

3.1 Hardware Platform

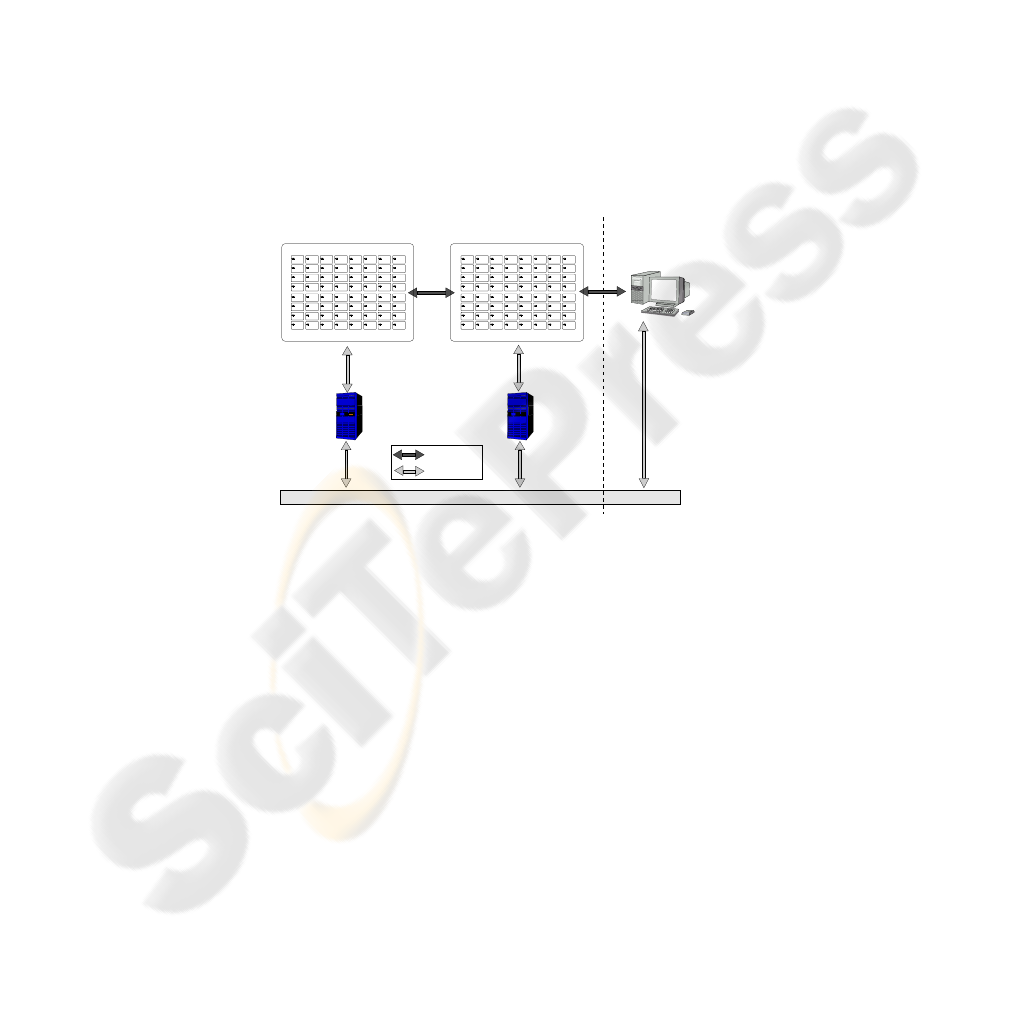

The hardware platform that we have set up is presented Fig. 2. This ﬁgure shows that

NETWORK

Untrusted Environment

Environment

Customer

Grid of Java Cards = Trusted Env. Grid of Java Cards = Trusted Env.

PC/SC

Secure channel

Physical links

PC/SC

Fig.2. A hardware platform based on Java Card grids.

we have in fact deployed two grids that are connected together by the network. The

hardware ﬁts in a wall mount cabinet of 19U. Each grid is composed of:

– a PC which needs 2U;

– two 2U racks from SmartMount, each having 8 CCID readers from SCM Microsys-

tems, i.e. we have a total of 16 CCID readers;

– three USB 7-port hubs (placed in a empty 2U rack) to connect the readers to the PC

and to power the readers;

– Java Cards of different manufacturers plugged in the readers which then power

them.

We have also equipped one of the PCs with a LCD monitor and a special rackable

keyboard (with an integrated touchpad) that we use to control the servers. A picture of

this platform is shown Fig. 1.

3.2 Software Framework

The software framework that we have designed and implemented comprises two layers:

a low level layer that handles the PCs, the readers and thus the smart cards, and a high

level layer that manages the distributed computing framework that we offer.

At low level, the pilot PCs run Linux and we use pcsc-lite [13], an open source

implementation of the PC/SC

standard, to manage the readers. We have chosen CCID

readers because they are supported by an open source generic driver which is avail-

able for pcsc-lite [15]. Because our high level framework is Java-based, we have

added JPC/SC [16], a JNI-wrapper for PC/SC, to control the readers and to manage the

applications embedded in the cards (cf. Fig. 3).

At the user level, the programming API is based on Mandala[17]. Mandala is a gen-

eral framework that has been developed in our team to support distributed computing

in Java. It provides a RMI-like abstraction with an asynchronous method invocation

mechanism [18], which is very useful to deal with slow computing resources.

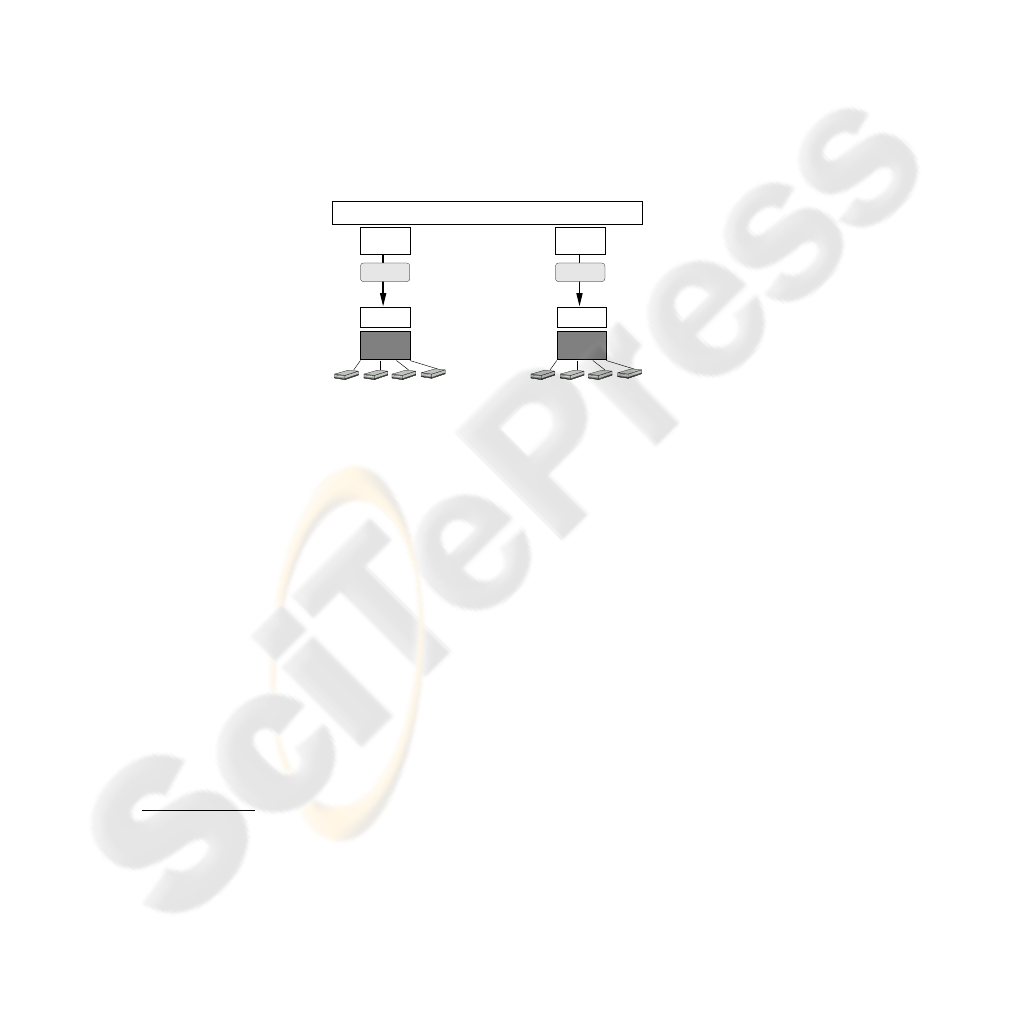

The overall software framework deployed on the two hosts is shown Fig. 3.

JPC/SC

PC/SC

Station with

many readers

JPC/SC

PC/SC

Station with

many readers

JVM JVM

Mandala

Fig.3. The software framework.

3.3 Administration Tools

We have begun to design and implement tools to support remote administration of the

grid of Java Cards, i.e. to monitor the topology of the grid, to detect the defective cards,

to deploy new applications, etc. As of writing, only the remote topology control tool is

available.

Remote Topology Control Tool. This tool enables a distant administrator to display

the topology of the grid on its monitor, i.e. to see which readers are free and which

contain a card. The administrator can also use it to track the evolution of the grid since

any modiﬁcation of its state, resulting from the insertion or the tearing of a card, is

instantly notiﬁed to the tool. He can also get additional information about a given card

and its associated reader: the low level communication protocol that it uses, the name

of the reader, the name of the card, its ATR

, etc.

PC/SC [14] is a standard that provides a high level API to communicate with smart card read-

ers.

CCID is a standard that deﬁnes a protocol to handle USB readers.

Answer To Reset.

Tools Under Development. The tools and APIs that we are currently working on are

dedicated to the deployment of applets on a set of Java Cards. Since most of the Java

Cards are GlobalPlatform

[19] compliant, we develop an implementation that uses this

standard to be able to load and delete embedded applications. We plan to use the open

source GlobalPlatform library [20] recently developed by Karsten Ohme.

4 Global Communication Stack of the Framework

We have used a number of different technologies when we have developed our frame-

work and altogether they make a complex stack of software components and protocols.

The goal of this section is to describe this stack and to explain the task of each layer.

For the sake of clarity, we present it in terms of the OSI reference model to show the

features of each software component and the complexity of the system. We eventually

explain why future cards that support TCP/IP will make it possible for us to build a

more ﬂexible framework.

4.1 Current Communication Stack

Our framework is designed to handle several client applications (potentially running on

different hosts) which interact with several Java Cards of the grid (more precisely with

several applets possibly distributed on different Java Cards). These interactions take

place through different servers and card readers. The servers of the grid and the readers

act as gateways and there are only two really active entities in the dialog: the client

application and the applet. All the software stack (including server processes) between

these two elements needs to be transparent. In what follows, we present the architecture

of this stack from the bottom to the top, by comparison with the OSI reference model.

Physical layer. At the bottom of the OSI model, the physical layer encompasses the

physical interfaces and the physical protocols (i.e. voltages, timing, etc.). Between the

client host and the server host we assume that the hardware interfaces are Ethernet cards.

To simplify the stack presented Fig. 4, we also assume that the client and the server are

in a LAN. In the real world, they could be in different networks and there might be

several routers between them (but the framework would remain almost the same). On

the grid side, the host machine and the CCID readers have a USB interface and the I/O

channels use the USB protocol. The cards and the CCID readers are connected through

contact interfaces (i.e. the contacts in the reader and the faceplate on the card) using the

related physical protocol (i.e. the ISO7816 speciﬁcations). This layer is quite simple but

yet requires three different protocols.

Data link layer. On top of the physical layer sits the data link layer, the goal of which

is to provide error-free communication between network entities. It detects and possibly

corrects errors that may occur in the physical layer. The client and the grid server both

have an Ethernet module that communicates with the Ethernet cards. On the grid side,

GlobalPlatform is a standard that speciﬁes APIs to manage multiapplication cards.

LAN

(e.g. T=0 or T=1)

APDU select/deselect specific

Physical

Data link

Network

Transport

Session

Presentation

Application

OSI layers

Application

Client

Java Card

CCID readers

#N

#2

Applet #1

protocol module

Data link

interface module

ISO 7816

CCID

Reader’s driver

PC/SC

APDU data format

management

APDU command/response

Data application specific

APDU protocol

module

Ethernet

IP module

Network Card USB portNetwork Card

module

Ethernet

IP module

IP protocol

protocol

Ethernet

CCID

protocol

USB

protocol

TPDU protocol

Physical protocol

Physical

protocol

Mandala

protocol

Client Server of the Grid

(i.e. contact protocol)

Mandala Mandala

XML common format and security

APDU processor

module

Client side Grid side

CardProxy

protocol

APDU

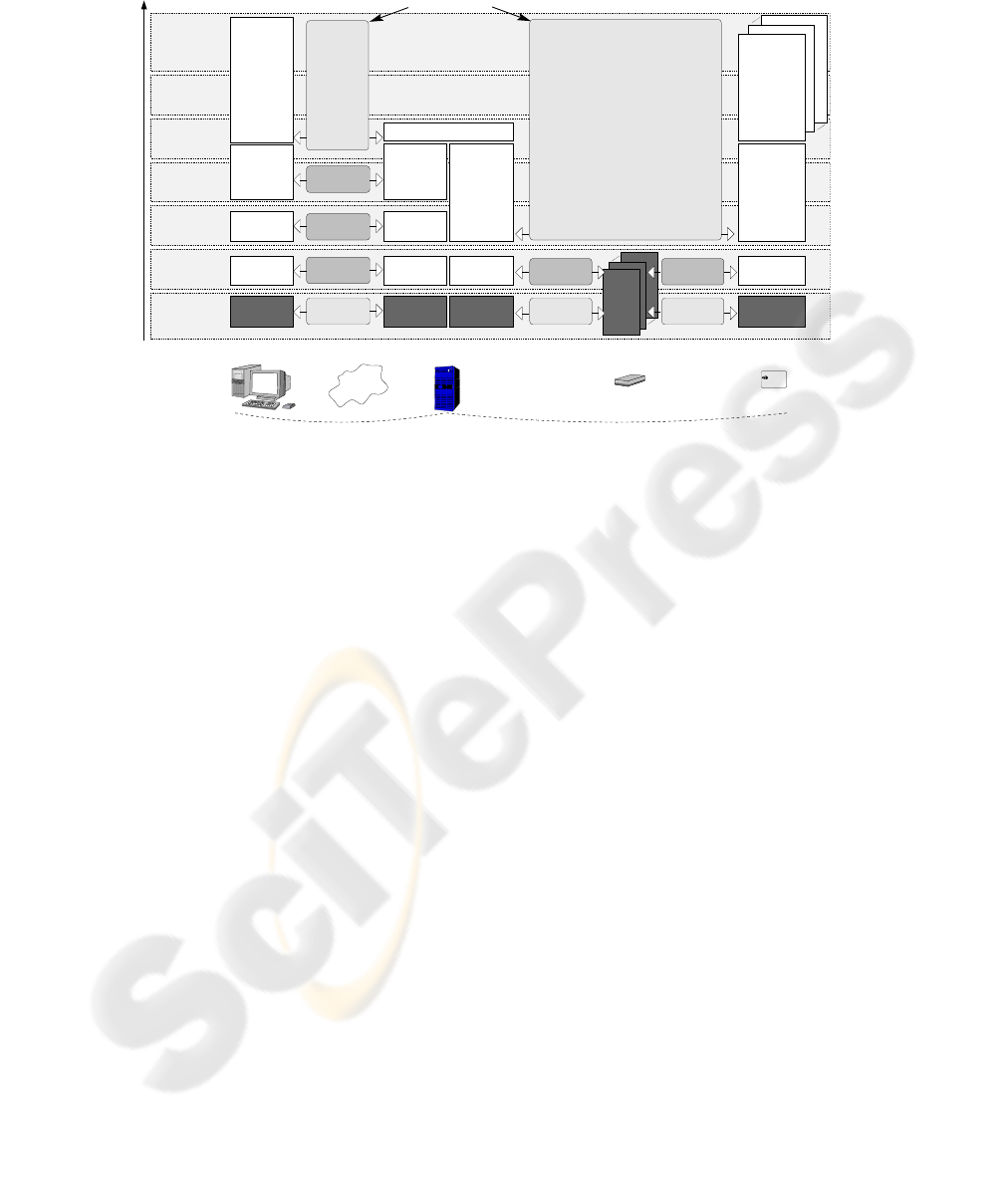

Fig.4. Communication stack.

the data link layer is implemented by the CCID protocol between the CCID drivers

hosted on the server and the CCID readers. Between the CCID readers and the data link

module of the Java Card different kinds of TPDU (Transmission Protocol Data Unit)

based protocols can be used (e.g. T=0 or T=1 are the more frequently encountered). The

TPDU are constructed within the CCID readers and they are passed across the physical

layer to the Java Cards. Thus, there are several different data link protocols between the

different entities from the client application to the Java Cards.

Network layer. Over the data link layer, the OSI reference model has the network

layer. One of its main tasks is to perform network routing. In the framework that we

propose, there are several routing nodes. First, routing is achieved using the IP protocol,

between the client and the server. As mentioned above, in a large network, many routers

may be present between these two entities. On the grid side, the ﬁrst routing element

is the PC/SC component. It dispatches the messages that it receives to the speciﬁed

CCID reader (or to the speciﬁed slot if the reader is a multi-slot reader) and then to

the speciﬁed Java Card. The messages sent by PC/SC are called APDUs (Application

Protocol Data Units) and there is no other protocol speciﬁed on top of it (at least for the

transport layer and the session layer). Since this protocol encompasses many features

that could be found at different levels of the OSI reference model, we decided, for

the sake of clarity, to cut this protocol into ﬁve different subsets (where each subset

corresponds to a part of the APDU speciﬁcation) that we then map onto the ﬁve upper

layers of the OSI model (cf. Fig. 4). Moreover, in our framework, the APDU protocol

is not inside the same layers on the client side and on the grid side. We could not ﬁnd

a better solution with an architecture based on PC/SC. The APDU subset present at

the level of the network layer is dedicated to the selection/deselection of applets in a

Java Card. The next routing element is the APDU processor module that interprets the

APDU selection/deselection commands and sets the target applet as the current active

one, i.e. this applet will receive the following APDU commands (except if it is an other

selection/deselection APDU).

Transport Layer. On top of the network layer, the transport layer provides connection

services to the session layer. Between the client and the grid server our framework uses

Mandala that supports several protocols to perform this task. One can observe Fig. 4 that

Mandala is spread between the transport and the session layers; this will be explained

a bit further in this paper. On the grid side, the protocol that is used is a subset of

the APDU protocol representing the APDU data format speciﬁcation. It sits between

PC/SC on the server and the APDU processor module in the card.

Session Layer. Above the transport layer, we have the session layer that manages

the dialog between the client application and the selected applet. In the OSI reference

model, it provides either duplex or half-duplex mode of operation and establishes check-

pointing, adjournment, termination, and restart procedures. In our framework, the client

application and the CardProxy located on the server communicate using the APDU pro-

tocol. Thus, the application generates all the APDU commands to send to the distant

applet and parses the APDU responses. The CardProxy acts as a gateway between the

network communication technologies (e.g. IP) on the client side and the smart card

communication technologies (e.g. CCID and TPDU) on the grid side (see Fig. 4). So,

the upper layer enables direct end-to-end communication between a client application

and an applet. The APDU protocol which is half duplex requires the use of a token to

decide which entity can use the communication channel. Mandala also participates in

the session layer by offering asynchronous communication features. These features can

be used by both the client application and the CardProxy to achieve non blocking invo-

cation of services, (at both client and server sides). On the grid side, the CardProxy and

the applet also exchange data using the APDU protocol. The part of the APDU protocol

speciﬁcation mainly involved in this layer is the client/server model that schedules the

commands and the responses. As soon as the CardProxy gets a response to a previous

APDU command it checks its pending queue and if an APDU command is present,

then it forwards it to the applet. The CardProxy also acts as a sort of router within the

grid when a card wishes to call a method located on another card. It handles speciﬁc

response messages to transform the server model of a smart card to a model where the

card can also be a client. Thus it enables the card to be proactive (see section 6).

Presentation Layer. Over the session layer, the presentation layer relieves the appli-

cation layer of concerns regarding syntactical differences in data representation within

the end-user systems. In usual systems, MIME encoding, encryption and operations of

that kind that have to do with the presentation of data are done at this level. In a similar

manner, in our framework, the security and the data independent representations are

managed in this layer. If this is required by the security policies, the communications

between the client application and the applet can be ciphered. We also offer a XML

based format to structure the data exchanged between the entities (e.g. to get the list of

the available services and to pass the parameters when invoking a service on a card –

see section 5). These two features are encompassed in a subset of the APDU protocol

that we have deﬁned, as presented Fig. 4.

Application Layer. The last layer on top of the stack is the application layer that is

the direct interface of the application processes and that performs common services for

them. Thus, in this layer, the data exchanged are speciﬁc to the goal of the application.

Note that in our framework the application on the client side and the applet on the grid

side each spread on three layers for practical reasons. However it would be possible to

develop independent libraries on each side to handle the speciﬁc aspects of each layer.

Nevertheless, it is important to be aware of the problems caused by the limitation of

the resources available on Java Cards to achieve such developments (e.g. small stack of

frames, etc.).

The framework and the stack of protocols that we have developed provide many of

the features required by the OSI reference model. It was thus interesting to present our

stack by comparison with the OSI stack even though it is not a direct mapping.

4.2 Future Communication Stack

In the short term we will make the communication stack much simpler by using TCP/IP

Java Cards. These next generation cards will provide TCP/IP connectivity, what will

make them directly accessible on the network. They will use a USB connection that

will suppress the need for a reader and that will support high speed communication.

This is very interesting in the case of our grid where the main cost is that of the readers.

Moreover, thanks to the TCP/IP connectivity, we will have a homogeneous stack on the

client side and on the grid side: TCP/IP for both. In such a context, the server of the

grid will act as a simple router between the client applications and the applets.

These next generation Java Cards will also support a communication model in

which the cards will be active, i.e. be able to initiate communication. This feature will

be very helpful to call from inside a card, a service located in another card of the grid

or on a distant host.

These two features, i.e. a TCP/IP stack and proactivity, will simplify our framework

and open the way to new kinds of applications. Moreover these cards will be multi-

threaded and this will make our framework really more efﬁcient. The new protocols

integrated in the Java Card speciﬁcations (e.g. TLS), the new APIs (e.g. cryptographic

algorithms) and the new programming models will also make the development of new

secure applications much simpler.

Nevertheless, to be able to work till these new cards become available on the market,

we have proposed and implemented several mechanisms to use the current Java Cards.

5 Services in the Java Card Grid

By using the features provided by the stack presented above it is possible to easily

and quickly develop high level services (or applications) that will be embedded in the

cards of the grid. In our framework, a Java Card is seen as a container for services.

The provider develops the applet implementing the service and describes its interface

in a Service Descriptor using XML. This is then uploaded to the card and the service

is registered in an on-card local registry, called

ServiceCatalog

, which contains all the

Service Descriptors of the installed services. Potential clients are provided with a list of

the available services. For this purpose, the software framework initially scans the grid,

and extracts the services available on each card. The client can then select and remotely

use one of them. More details about these different phases are shown Fig. 5 and are

detailed in [21].

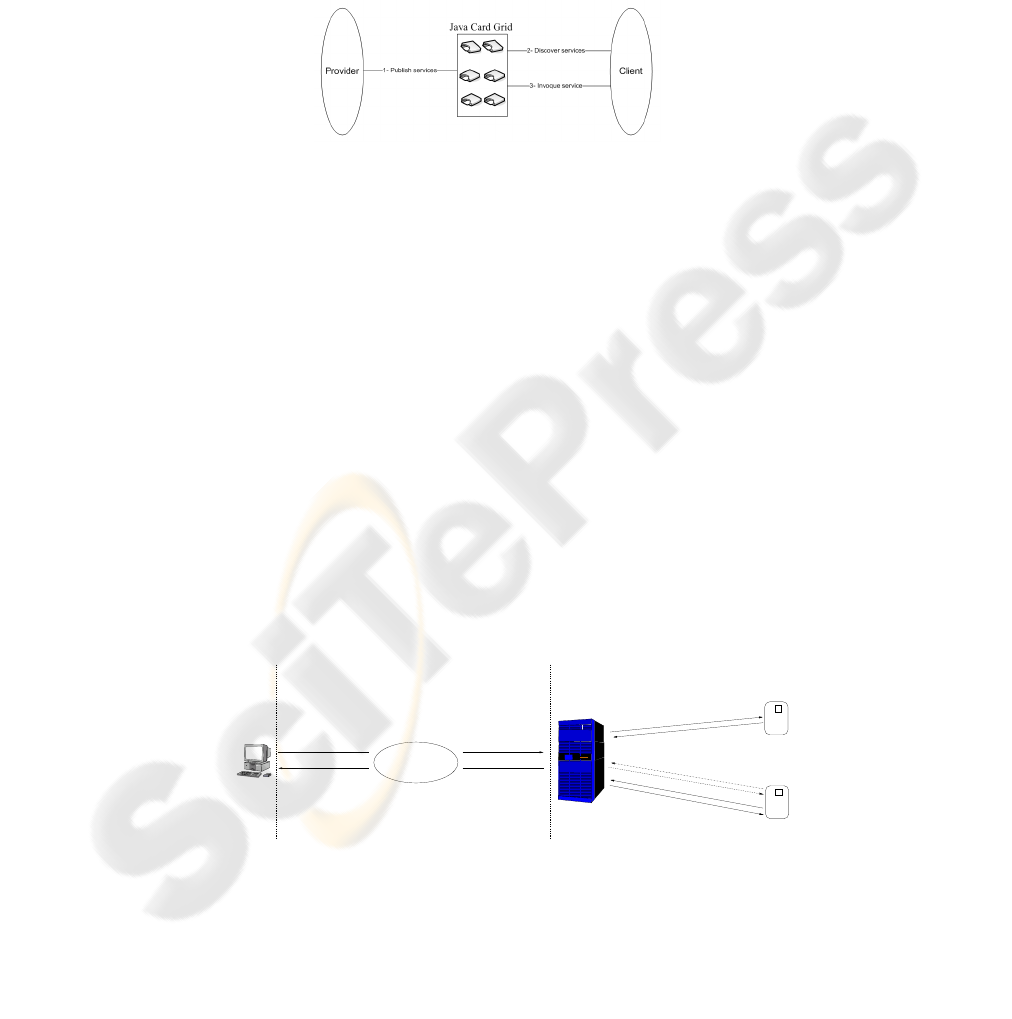

Fig.5. Main steps to create, discover and invoque a service.

6 Proactivity in the Java Card Grid

To make the card active, i.e. able to send a request and thus, for example, to invoque a

service on another card, we have set up a simple mechanism which consists in asking

the card in order to know if it wishes to send a request. To achieve this goal, an APDU

command is sent and if the card has a request to send, it puts it in the APDU response.

The mechanism is similar to what is used for SIM cards in cellular phones [22,23].

When an APDU response is received, it is handled by the PC (and more precisely

by the CardProxy) which acts as a router. If the response matches a speciﬁed format

(not detailed here, but which contains all the information to locate a precise service on

a precise card of the grid), it means that it is a method invocation of a service of another

card. Using this information, the PC forwards the request to the target card (the APDU

command is also contained in the APDU response of the client card).

To simplify the calls, we have set up a Stub/Skeleton mechanism generated from

an interface which represents the service, its AID, and the name of card where it is

installed. More details about this extension are available in [21].

Fig. 6 illustrates the remote invocation method used between cards.

1: User request

2: Method invocation

4: Result of the invocation

3: Method invocation

5: Result of the invocation

6: Result of the request

Result of the request

Internet

Server card

Client card

Java Card GridUntrusted Network

Client Environment

User request

Fig.6. Remote method invocation between cards.

7 Extended Memory in the Java Card Grid

In order to overcome the problems due to the small memory size of smart cards, we

propose a solution that offers them a secondary storage (the hard disk of a host) which

increases the memory capacity for the embedded applications:

– for short lived data, in a way similar to a virtual memory mechanism, as can be

found in most operating systems (such as Windows, Linux, etc.);

– for long lived data, as with secure data repositories.

The proposed solution furthermore ensures the security so swapped information, i.e.

it preserves the integrity and the conﬁdentiality of data so as to be in perfect adequacy

with the security requirements which characterize smart cards. Two entities are involved

to achieve this goal:

– one on the card, a Secure Storage Manager Unit (SSMU) ;

– one on the host which performs the following operations:

– write the ciphered data sent by the SSMU with speciﬁc keys for each applet and

for each record,

– manage the identiﬁcation of ciphered data records,

– return back data to the card (on demand).

Fig. 7 focuses on the entity deployed on the smart card side, the SSMU. It helps the

applications that use a large amount of data to store it outside the card. It is furthermore

in charge of ensuring the conﬁdentiality and the integrity of the swapped data. Using the

SSMU will therefore provide a good security level even though some of the application

data are stored off-card. More details about this extension are available in [24,25].

Computing

Hash

Process

Encryption

Data

Process

Decryption

Data

Process

CipheredApp1R1

CipheredApp2R1

Untrusted Environment

Trusted

Environment

Applet 1 Applet 2

Keys storage

KeyApp1R1

KeyApp1R2

MasterKeyApp1

KeyApp2R1

MasterKeyApp2

Firewall

Applet SSMU

verification

Integrity

is a data block

Hard Disk

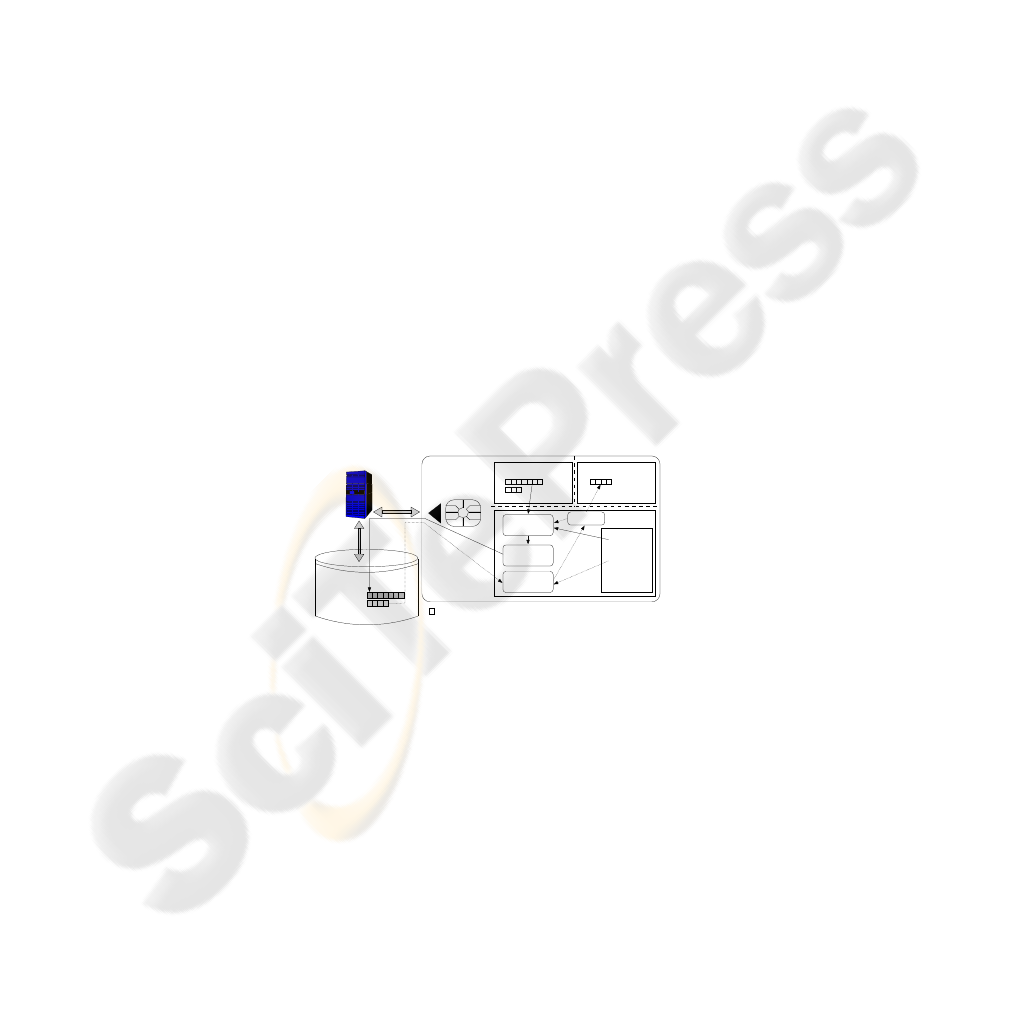

Fig.7. Overview of the SSMU architecture.

8 Related Work

We have identiﬁed a number of projects, the aim of which is to integrate Java Cards in a

distributed environment. The goal of all the frameworks that we have studied is to make

the on card services usable as standard services: Corba[11] for ORBCard [26]; Jini[27]

for JiniCard [28]; RMI[10] for JCRMI [12]. Once integrated, the functionalities offered

on these cards become transparently usable from the outside.

It is clearly not the goal of these approaches to use the cards to run CPU demanding

applications, or even really distributed applications. They are more designed in terms

of services. On the contrary, we intend to use the cards as cooperating computional

resources [21]. To achieve this goal our framework makes the cards proactive and this

is one of the major originalities of our work. Thus, in terms of services, our platform

is more advanced and more ﬂexible. Moreover, in our platform, both computation and

inter card communication are secured. Finally, we have also set up a cache mechanism

that is not available in any other smart card based platform.

9 Conclusion and Future Work

The platform that we have set up is working and we have run sample applications on

it. We have solved the problems related to the physical equipments, the drivers and the

communication layers required to make the whole system work. The security of our

platform is based on the build-in hardware and software security mechanisms of the

smart cards and on the security protocols used for the communication.

At the beginning, the Java Card Grid project was only intended as a proof of con-

cept. We only planed to build a prototype platform. But now that it is operational, we

have found a lot of interest in the university community, the ofﬁcial agencies and the

industry. For instance we got the “most innovative technology award”, delivered by a

committee comprising industry leaders, at e-Smart 2005 [29]. With one of the leading

smart cards companies, we are now planning to set up a platform with 1000 cards to

deploy applications that can handle real size problems. In the longer term, we also plan

to use the next generation cards that should provide 1 Gigabyte of memory, efﬁcient

processors, a full Java virtual machine and a TCP/IP stack.

Acknowledgments

Our project is supported by: Axalto, Gemplus and IBM BlueZ Secure Systems (for the

cards); SCM Microsystems and SmartMount (for the readers); Sun microsystems (for

the overall platform).

We also thank: Fujitsu, Giesecke&Devrient, Oberthur Card Systems and Sharp

for the Java Card samples; David Corcoran and Ludovic Rousseau for their work on

pcsc-lite and the CCID generic driver.

References

1. Berman, F., Hey, A.J., Fox, G.: Grid Computing: Making The Global Infrastructure a Reality.

John Wiley & Sons (2003)

2. Foster, I., Kesselman, C.: The Grid: Blueprint for a New Computing Infrastructure. Morgan

Kaufmann Publishers (1998)

3. Govindavajhala, S., Appel, A.: Using Memory Errors to Attack a Virtual Machine. In:

Proceedings of IEEE Symposium on Security and Privacy. (2003)

4. Rankl, W., Efﬁng, W.: Smart Card Handbook 2nd edition. John Wiley & Sons (2000)

5. : ITSEC. (http://www.ssi.gouv.fr/site_documents/ITSEC/ITSEC-fr.

pdf)

6. : International Common Criteria home page. (http://www.

commoncriteriaportal.org/)

7. Siegelin, C., Castillo, L., Finger, U.: Smart cards: distributed computing with $5 Devices.

Parallel Processing Letters 11 (2001) 57–64

8. International Organization for Standardization: Identiﬁcation cards – Integrated circuit cards

– Part 4: Organization, security and commands for interchange. ISO (2005)

9. Sun Microsystems, I.: RFC1057 – RPC: Remote Procedure Call Protocol Speciﬁcation.

(http://www.ietf.org/rfc/rfc1057.txt)

10. Grosso, W.: Java RMI. O’Reilly & Associates (2002)

11. Object Management Group: The OMG’s CORBA Website. (http://www.corba.org)

12. Microsystem, I.S.: Java Card 2.2 Runtime Environment (JCRE) Speciﬁcation,. (2002) Re-

mote Method Invocation Service, chapter 8, pages 53-68.

13. Corcoran, D., Rousseau, L., Sauveron, D.: pcsc-lite home page. (http://alioth.

debian.org/projects/pcsclite/)

14. PC/SC Workgroup: PC/SC Workgroup Home. (http://www.pcscworkgroup.com/)

15. Rousseau, L.: CCID free software driver. (http://pcsclite.alioth.debian.

org/ccid.html)

16. IBM BlueZ Secure Systems: Java Wrappers for PC/SC. (http://www.musclecard.

com/middleware/files/jpcsc-0.8.0-src.zip)

17. Chaumette, S., Vignéras, P.: A framework for seamlessly making object oriented applications

distributed. In: Parallel Computing 2003, Dresden, Germany (2003)

18. Vignéras, P., Grange, P.: The Mandala website. (http://mandala.sourceforge.

net/)

19. GlobalPlatform: GlobalPlatform. (http://www.globalplatform.org/)

20. Ohme, K.: Open source GlobalPlatform library. (http://sourceforge.net/

projects/globalplatform)

21. Chaumette, S., Karray, A., Sauveron, D.: Secure Collaborative and Distributed Services in

the Java Card Grid Platform. In: Proceedings of Workshop on Collaboration and Security

(COLSEC’06), Las Vegas, Nevada, USA (2006)

22. Jurgensen, T.M., Guthery, S.B.: Smart Cards: The Developer’s Toolkit. Prentice Hall (2002)

23. Guthery, S., Cronin, M.: Mobile Application Development with SMS and the SIM Toolkit.

McGraw-Hill Professional (2001)

24. Chaumette, S., Karray, A., Sauveron, D.: Secure Extended Memory for Java Cards. In: Pro-

ceedings of he 2006 International Conference on Computational Science and its Applications

(ICCSA 2006), Glasgow, UK (2006) (Poster).

25. Chaumette, S., Karray, A., Sauveron, D.: Secure storage for the Java Card Grid. (In: (Sub-

mitted))

26. Chan, A.T., Tse, F., Cao, J., Leong, H.V.: Enabling distributed corba access to smart card

applications. IEEE Internet Computing (2002) 27–36

27. The Community Resource for Jini Technology. (http://www.jini.org/)

28. Kehr, R., Rohs, M., Vogt, H.: Mobile code as an enabling technology for service-oriented

smartcard middleware. In: Internationnal Symposium on Distributed Objects and Applica-

tions. (2000) 119–130

29. Atallah, E., Chaumette, S., Darrigade, F., Karray, A., Sauveron, D.: A Grid of Java Cards

to Deal with Security Demanding Application Domains. In: Proceedings of e-Smart 2005,

Nice, France (2005)
